Product Description
The Machine CONTROL Dual set is specially designed for Machines where the left and right side of the blade must be hydraulically controlled. It controls both sides of the blade and is connected to the receivers. This system requires two receivers (one at each side). Using this control unit makes the use of two control units unnecessary, saves space and makes working more comfortable.
The system can be applied on any kind of Machines that are used for leveling and have a hydraulic system.
Some examples of applications are:
- Dozers
- Concrete leveling Machines
Applied where level, single or dual grade is required.
The system can be applied on any kind of Machines that are used for leveling and have a hydraulic system.
Some examples of applications are:
- Dozers
- Concrete leveling Machines
Applied where level, single or dual grade is required.
Specification
Producut Name | Dual Control System Laser Machine Control Agriculture Leveling System | ||||||

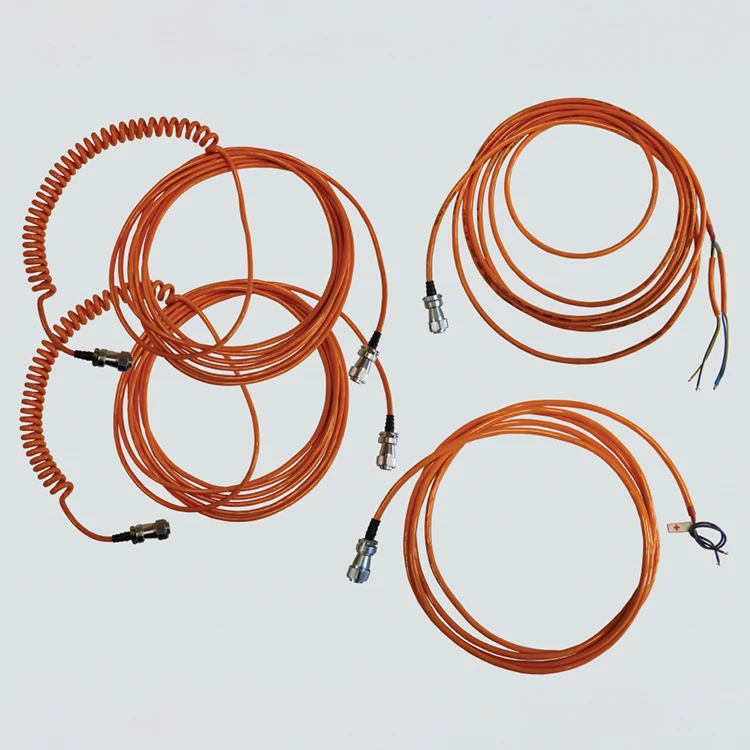

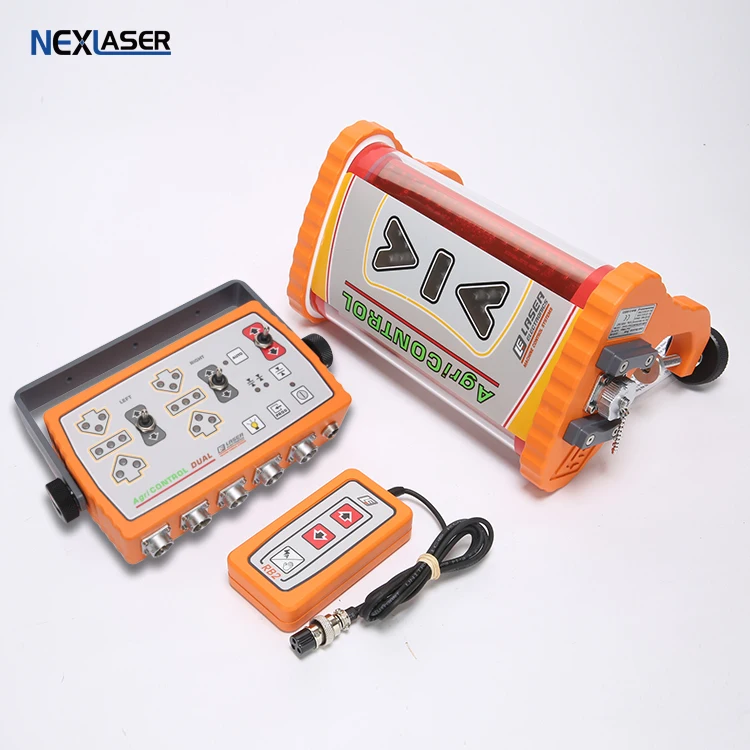

Kits Include | CT10D Dual control box,RC05 receiver,cables | ||||||
Usage | Leveling the land | ||||||
Warranty | 1 year | ||||||

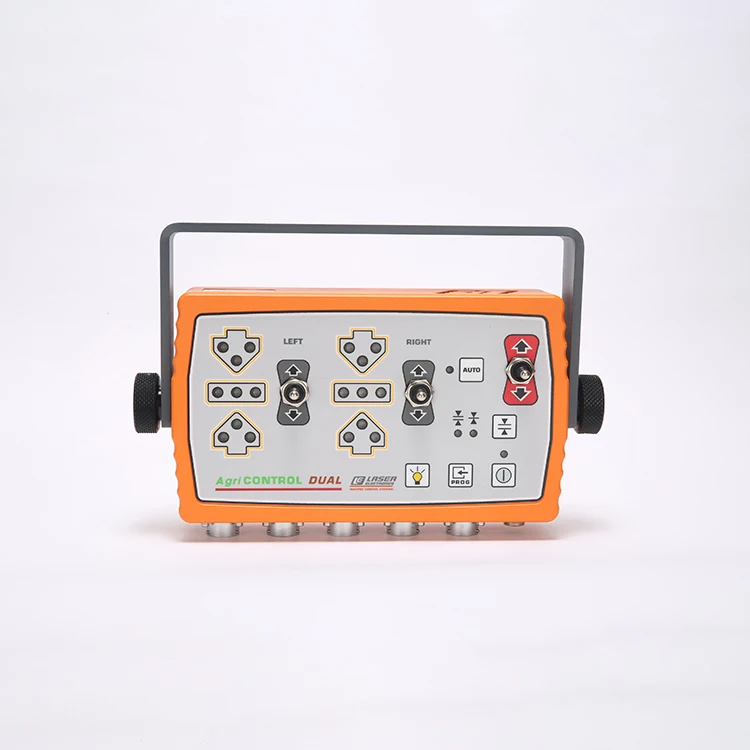

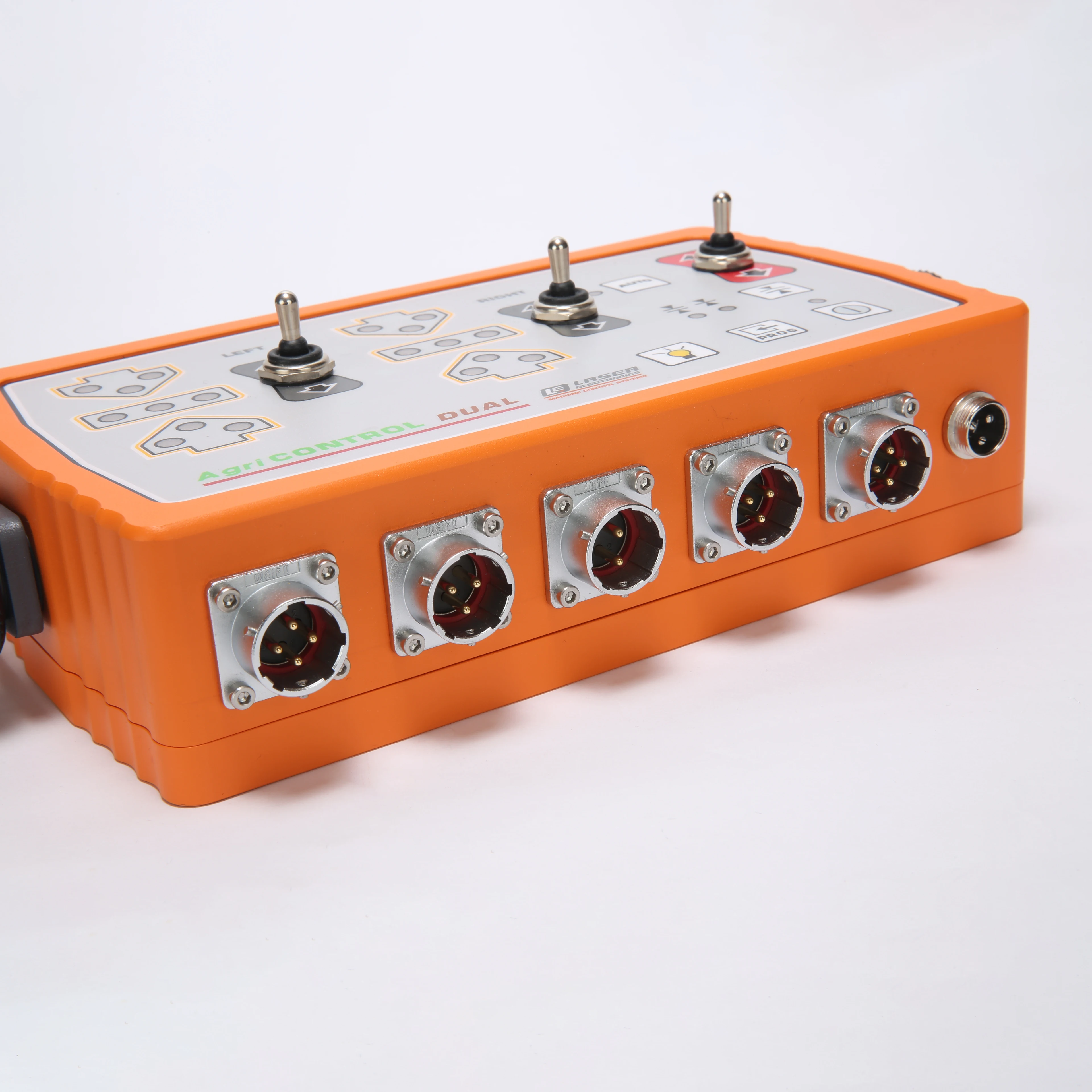

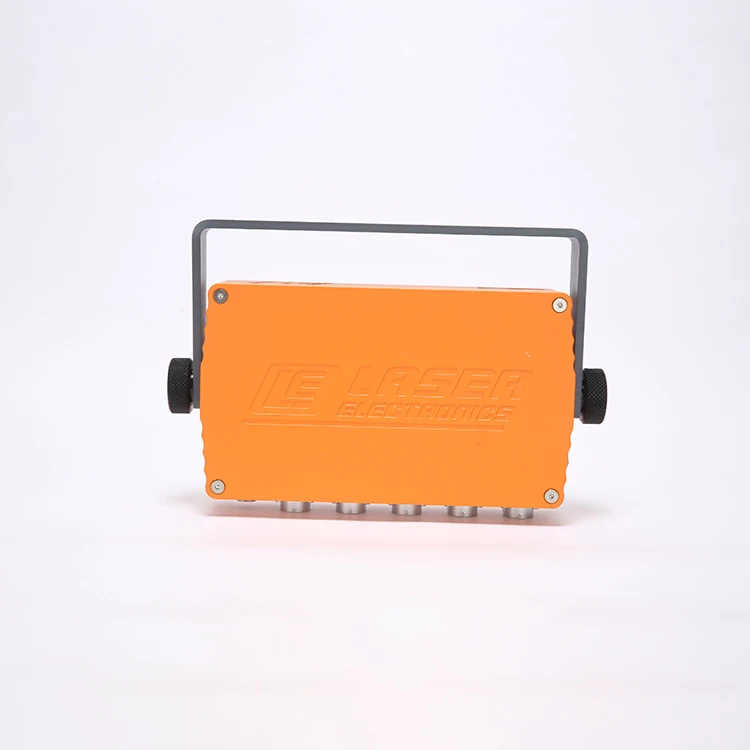

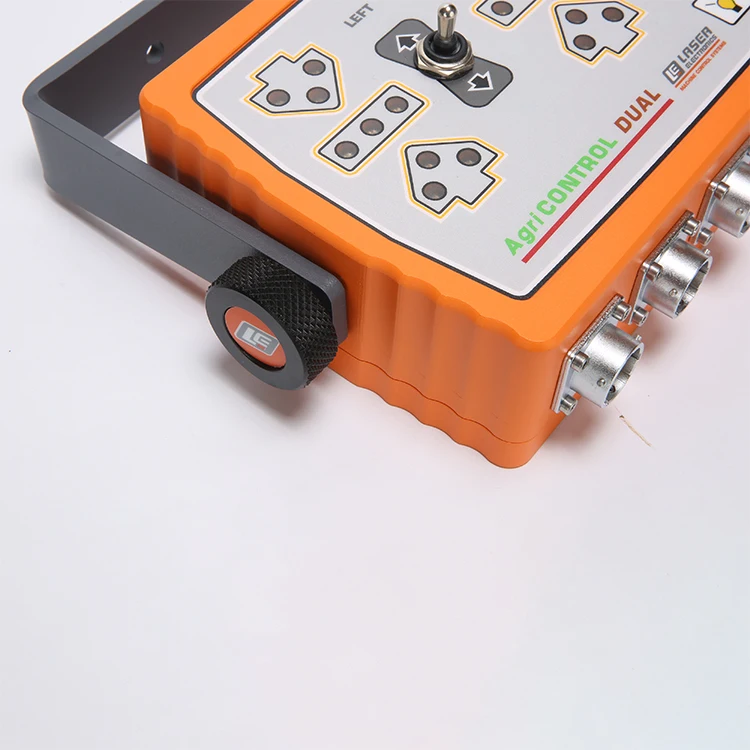

Features and Technical Specifications for CT10D
• Aluminum Housing
• Attachable to all hydraulic systems
• Connection for 2 laser receivers
• User friendly programming interface
• Fully programmable frequency and PWM hydraulic outputs with short-circuit and overload •protection
• Manual or automatic control

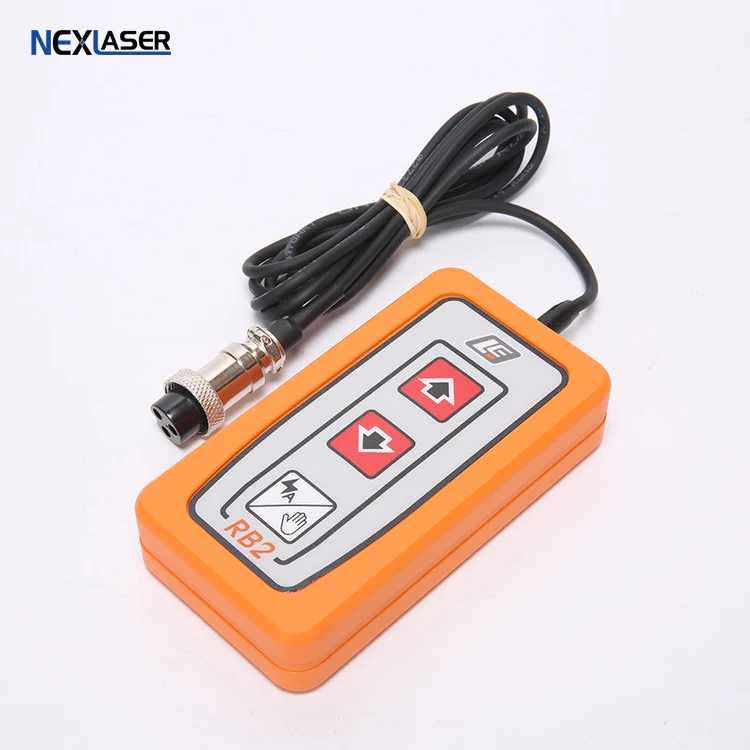

• Remote control (option)
• Easy to read LED-indication layout with adjustable brightness
• Hydraulic functioning indication
• On grade accuracy selection
• Mounting Bracket
• Great staying power under frequent and tough use
• Operating voltage 12-24V DC
• Operating temperature -15°C to +60°C
• Dimensions (mm): 250 (W) x 143 (D) x 63 (H) mm
• Weight: 3kg
• Waterproof and shock resistant IP64
• Connection for 2 laser receivers
• User friendly programming interface
• Fully programmable frequency and PWM hydraulic outputs with short-circuit and overload •protection
• Manual or automatic control
• Remote control (option)
• Easy to read LED-indication layout with adjustable brightness
• Hydraulic functioning indication
• On grade accuracy selection
• Mounting Bracket
• Great staying power under frequent and tough use
• Operating voltage 12-24V DC
• Operating temperature -15°C to +60°C
• Dimensions (mm): 250 (W) x 143 (D) x 63 (H) mm
• Weight: 3kg
• Waterproof and shock resistant IP64

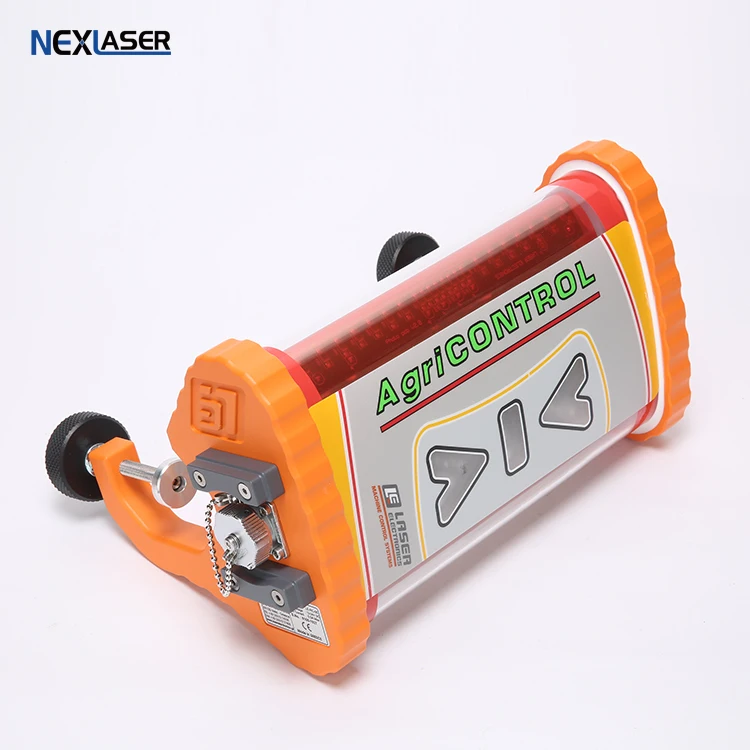

Features and Technical Specifications For RC05
• 8 Levels photocells for a better accuracy
• Three ‘’on grade’’ accuracies
• Constant reception accuracy regardless of operating distance, spot size and rotating laser type
• Min. operating rotating laser rpm: 300rpm
• Ultra bright indication with LED’s easy to view even in brightest sunlight
• Double stable bracket mounting
• Quick installation and easy mounting
• Detection range: 360°
• Operating range: 450m radius (depends on rotating transmitter)
• Operating voltage: 10-24V DC
• Operating temperature -15°C to +60°C
• Dimensions (mm): 162 (W) x 175 (D) x 272 (H) mm
• Weight: 2,3kg
• Waterproof and shock resistant IP65
• Three ‘’on grade’’ accuracies
• Constant reception accuracy regardless of operating distance, spot size and rotating laser type
• Min. operating rotating laser rpm: 300rpm
• Ultra bright indication with LED’s easy to view even in brightest sunlight
• Double stable bracket mounting
• Quick installation and easy mounting
• Detection range: 360°
• Operating range: 450m radius (depends on rotating transmitter)
• Operating voltage: 10-24V DC
• Operating temperature -15°C to +60°C
• Dimensions (mm): 162 (W) x 175 (D) x 272 (H) mm
• Weight: 2,3kg
• Waterproof and shock resistant IP65
