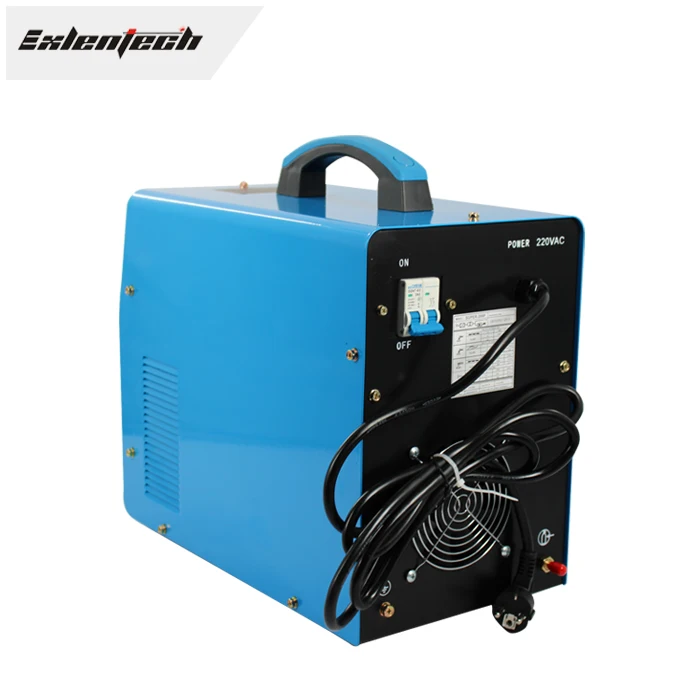

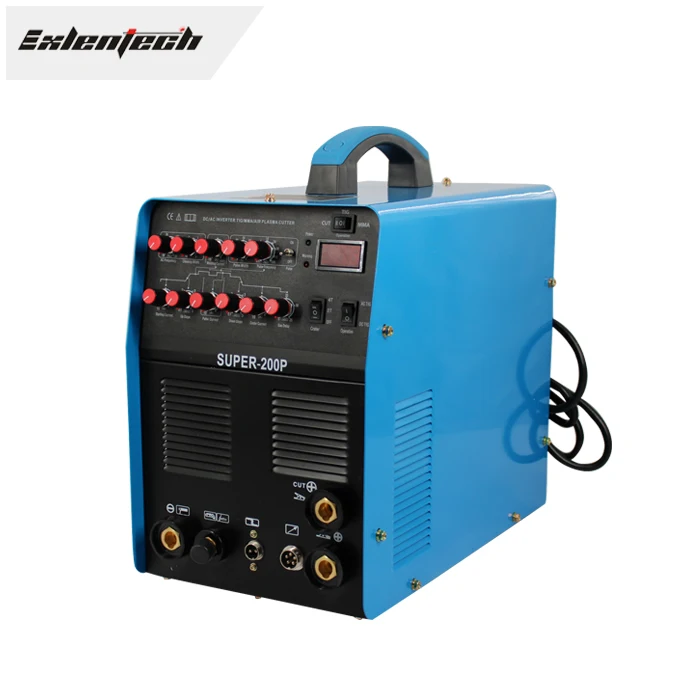

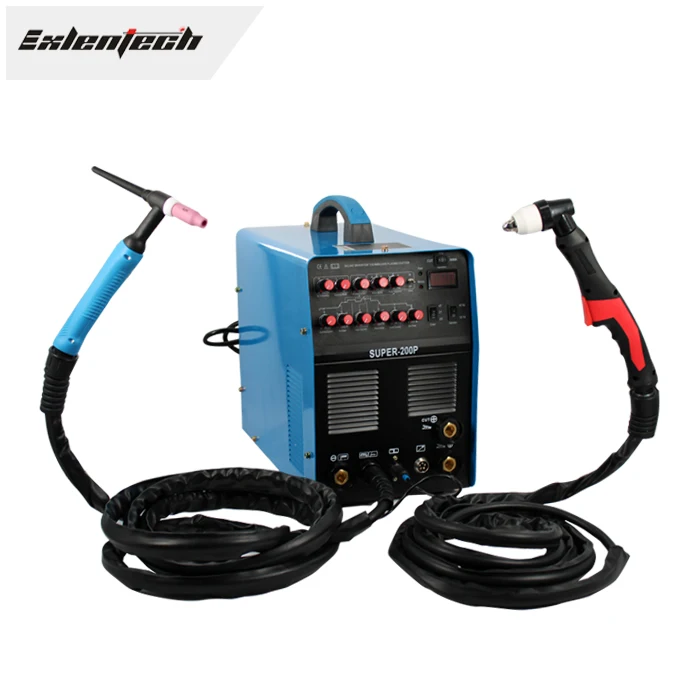

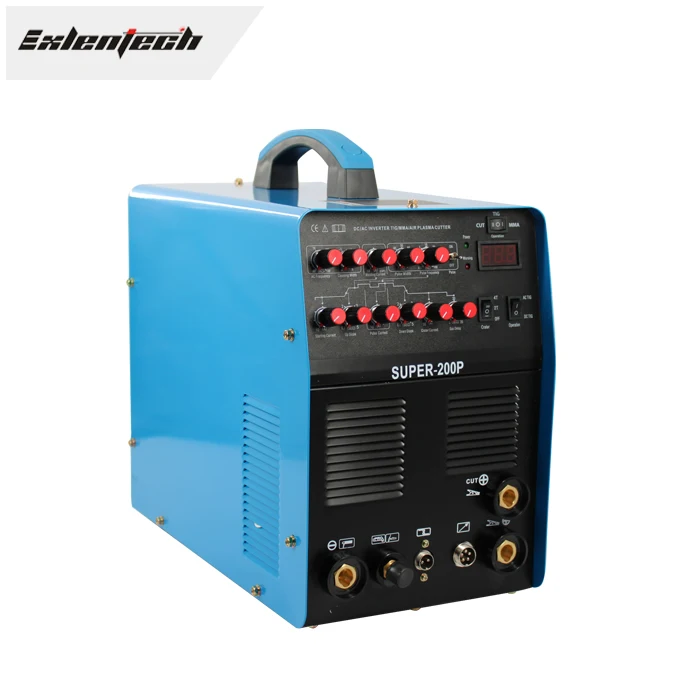

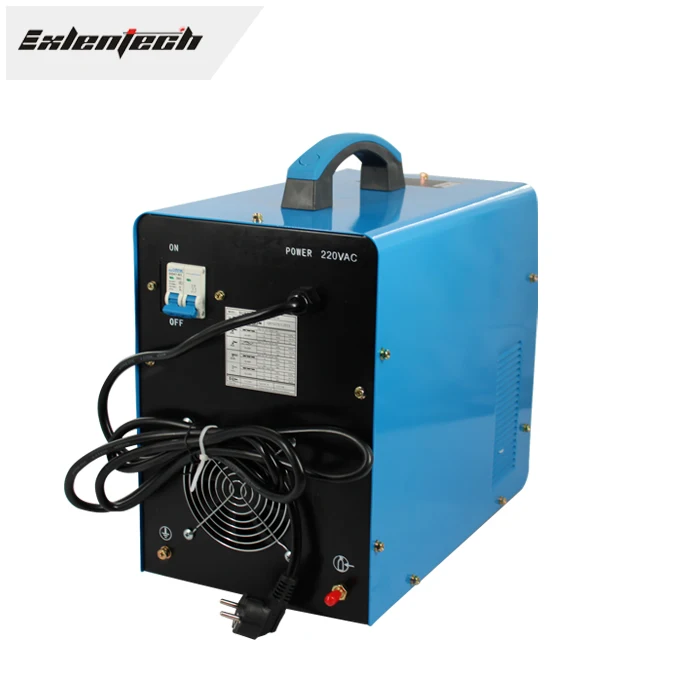

Inverter Multifunctional Digital Super 200 TIG CUT MMA ARC Ac Dc Tig welding machine Tig welder
- Category: Welding Equipment >>>
- Supplier: Shenzhen Exxon Welding Equipment Co. Ltd.
Share on (1600424782240):
Product Overview
Description
Product Overview

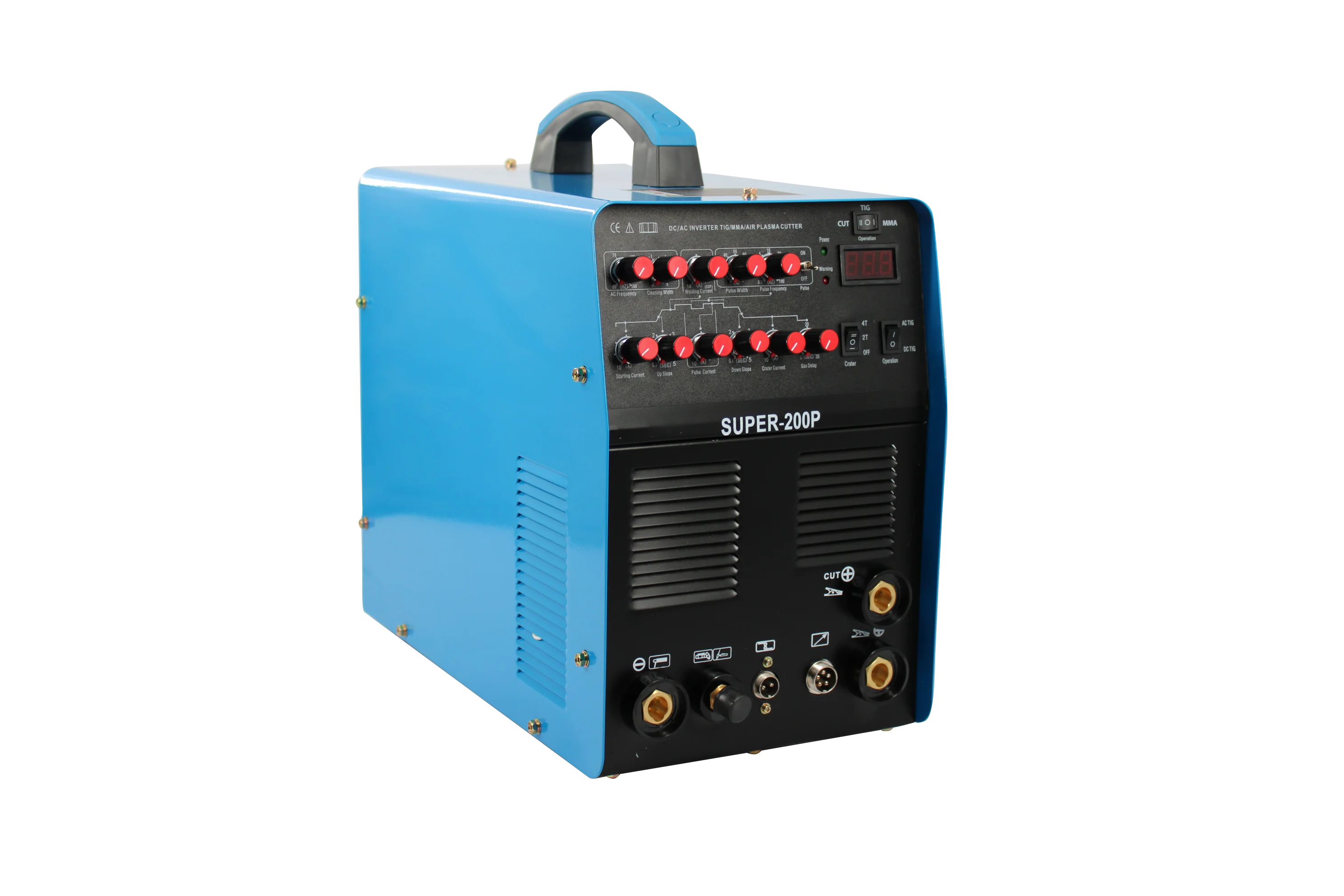

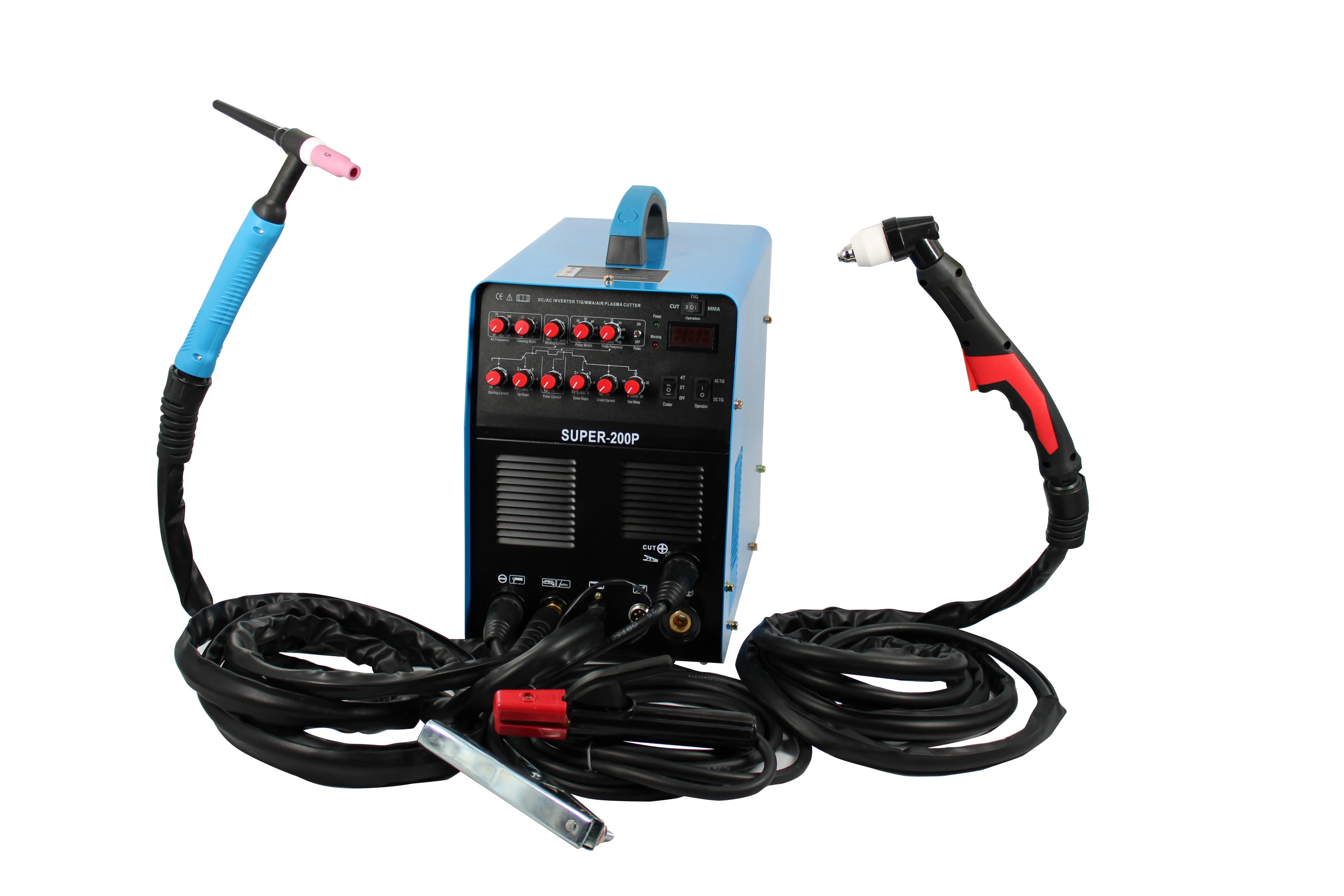

Inverter Multi-functional TIG/CUT/MMA AC DC Welder
This SUPER-200 welder are multi-functional,with AC TIG /DC TIG/CUT/MMA functions
FEATURES AT A GLANCE
1.Multi-functional Welder: AC/DC TIG/MMA/CUTTING.
2.Suitable for Aluminium,Stainless steel,Carbon steel etc.
3.Light in weight and Mini size portable.
4.single phase 220V±15% input voltage.
5.Adopt IGBT inverter technology.
6.Easy to operate.
7.Auto protection:Over voltage/Over heat auto protection.
8.Low voltage available

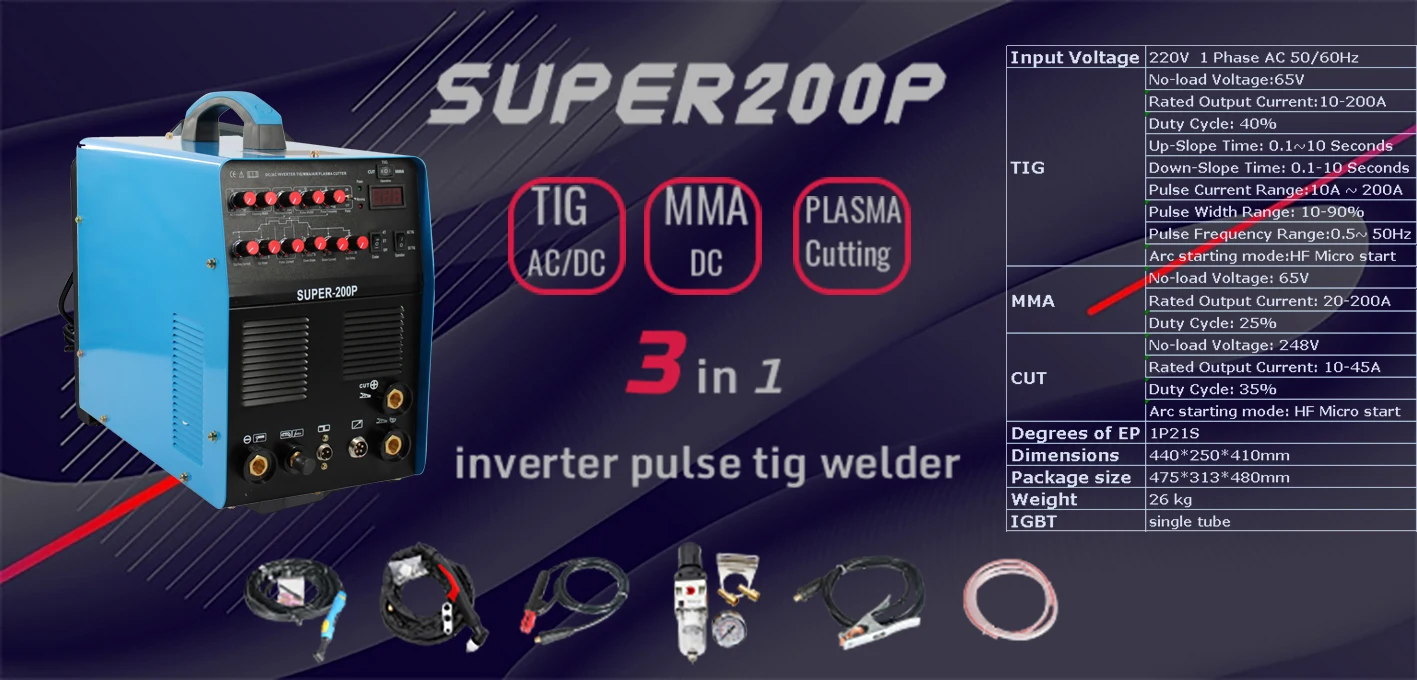

PRODUCT SPECIFICATIONS

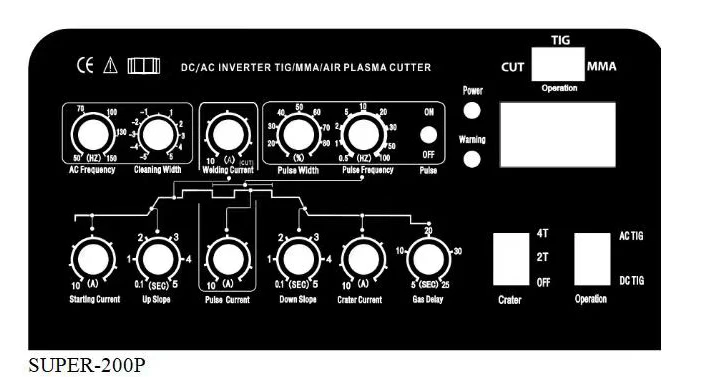

No | Model No. | SUPER-200P | SUPER-250P | ||
1 | Input (volts/amps) | 220V 1 Phase AC 50/60Hz | 220V 1 Phase AC 50/60Hz | ||
2 | MMA | No-load Voltage | 65V | 65V | |
3 | Rated Output Current | 20-200A | 20-250A | ||
4 | Duty Cycle | 25% | 25% | ||
5 | TIG | No-load Voltage | 65V | 65V | |
6 | Rated Output Current | 10-200A | 10-250A | ||
7 | Duty Cycle | 40% | 40% | ||
8 | Up-Slope Time | 0.1~10 Seconds | 0.1~10 Seconds | ||
9 | Down-Slope Time | 0.1-10 Seconds | 0.1-10 Seconds | ||
Pulse Current Range | 10A ~ 200A | 10A ~ 250A | |||
Pulse Width Range | 10-90% | 10-90% | |||
Pulse Frequency Range | 0.5Hz ~ 50Hz | 0.5Hz ~ 50Hz | |||
Arc starting mode | HF Micro start | HF Micro start | |||
CUT | No-load Voltage | 248V | 279V | ||
Rated Output Current | 10-45A | 10-60A | |||
Duty Cycle | 35% | 35% | |||
Arc starting mode | HF Micro start | HF Micro start | |||
Weight | 16.9 KG | 25.6KG | |||
Insulation | IP21S | IP21S | |||
Dimensions mm | 420*235*350 | 520*275*450 | |||
About Us
Factory and notifications
Factory and notifications

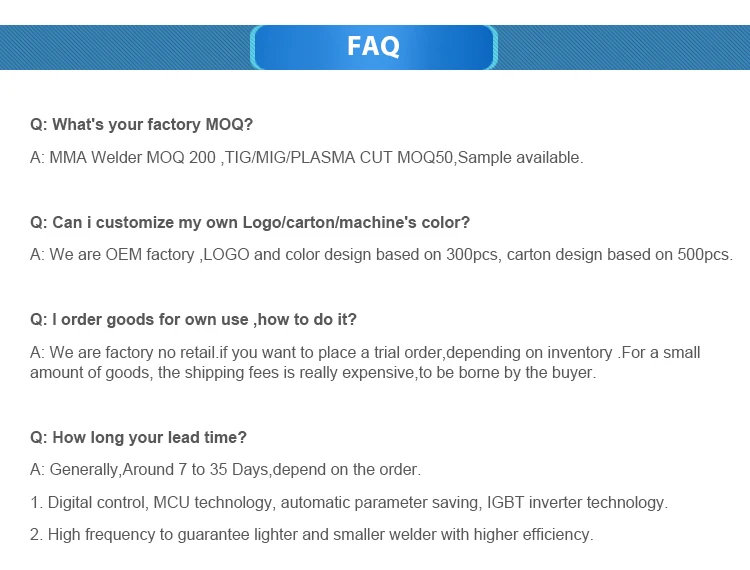

FAQ
