Product Overview
Description

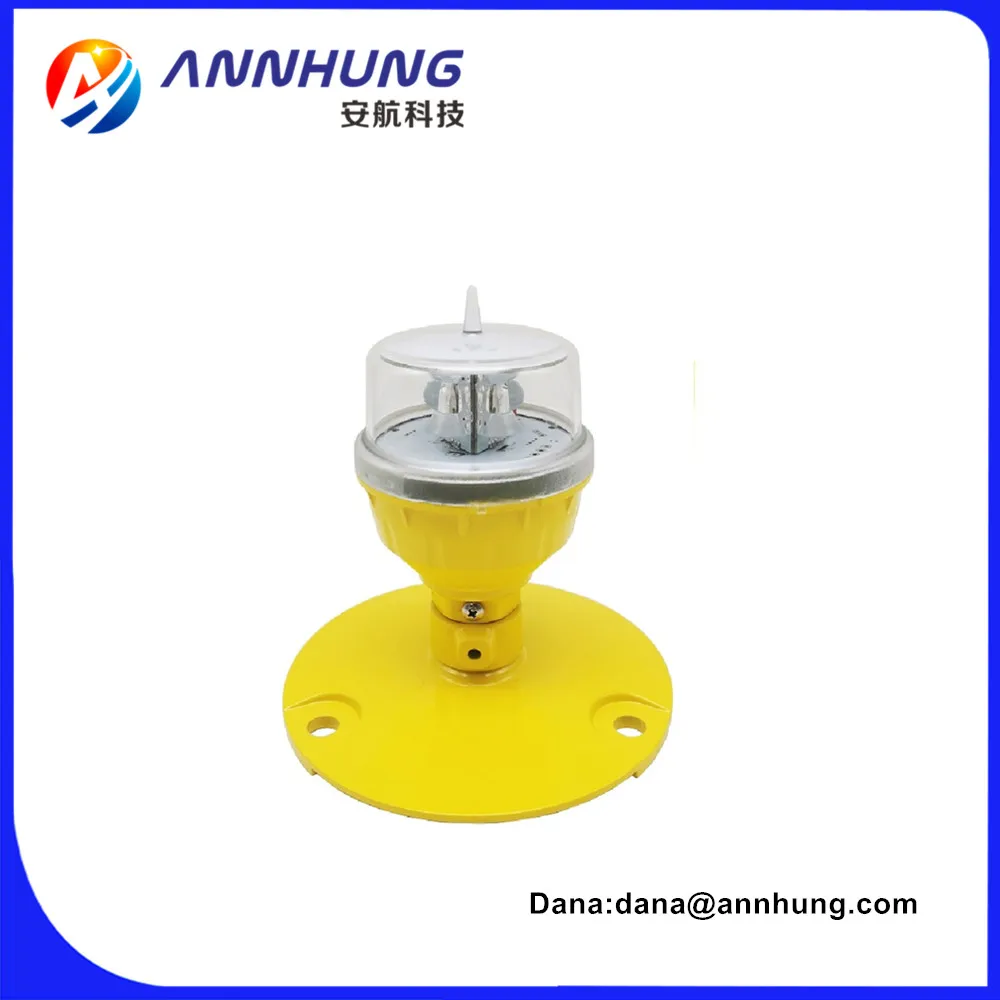

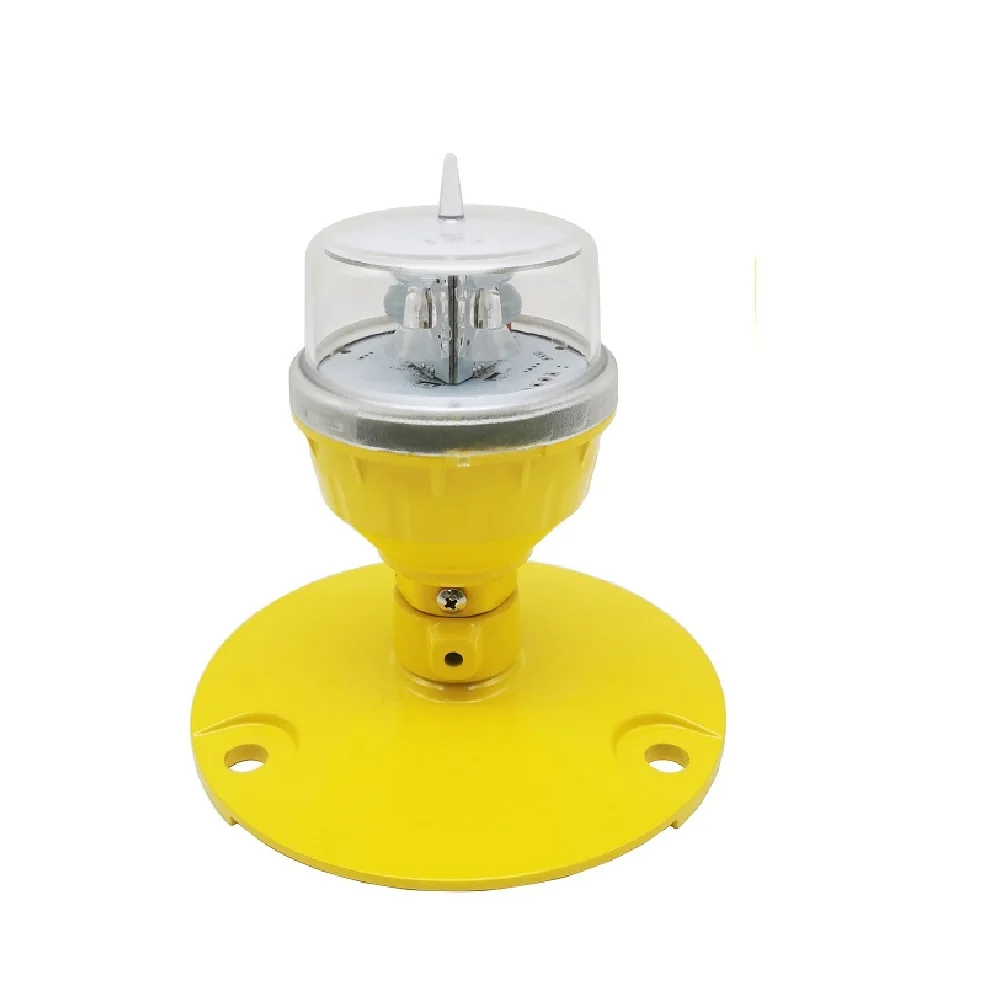

AH-HP-E1 LED Heliport Elevated Light
Heliport beacons
Elevated apron edge light
Helipad led lights
Led aircraft lights
Helipad inset perimeter light
Heliport taxiway light
Heliport tlof light
Portable taxiway light
Heliport elevated light
Product Description
Heliport Elevated light should not exceed a height of 25cm. There is a fragile coupling in the base connection, so if aircraft hit the light by accident, the base will break immediately to avoid more damage.
Compliance
ICAO Annex 14 Volume
FAA AC 150/5390-2B Heliport Design Guide
CAP 437
Features
Electrical
LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light
Power supply available in AC(110-240VAC) and DC48V, DC12V and other voltage is optional
LED power supply board includes short circuit and open circuit protection
Line surge protection by metal oxide varistor
Physical
Unique designed polycarbonate lens for converging light and also provides corrosion resistance and UV protection.
UV protection Powder coated bright yellow color base make better visibility
Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
Fragile coupling base reduce the secondary damage to helicopters effectively
Optional
Infrared LED for pilot using NVG(Night Vision Goggles)
Controller for power supplying and turn ON/OFF light
VHF pilot to ground remote control
Application
Helipad/Heliport TLOF edge areas
Heliport FATO edge
Helipad Runway edge
Helipad taxiway edge
| SPECIFICATIONS | LED Heliport Elevated Light |
Flash Characteristics | Steady burning |
| Light Source | LED |
| Colors | Green, Yellow, White, Red, Blue, IR |
Horizontal Output(degrees) | 360 |
Vertical Divergence(degrees) | ≥10 |
| LED Life Experience(hours) | >100,000 |
Power(W) | 5W |
| Operating Voltage | DC(12V, 48VDC) or AC(110-240VAC) or others |
| Circuit Protection | Integrated |
| Physical Characteristics | |
| Body Material | UV protected Polycarbonate |
| Base Material | Powder-coated Die-casting aluminum |
| Mounting | 140×140×12 |
| Dimension(mm) | 165×165×170 |
| Weight(kg) | 0.7 |
| Product Life Expectancy | ≥10 years |
| Environmental Factors | |
Ambient Temperature(℃) | -55~70 |
| Humidity | 10~90% |
| Wind Speed | 80m/s |
| Waterproof | IP66 |
| Compliance | |
| ICAO | Annex 14 Volume |
| Options Available | |
Infrared LED compatible for NVG (Night Vision Goggles) | |
VHF Pilot to Ground Remote Control |
Company information
Anhang Technology is a speciallized enterprise focusing on reseach, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our factory located in Shenzhen City, China and have more than 10 years manufacturing experience for clients from whole world. Our products are patented and also have passed CE, ICAO, FAA, CAAC, IALA,ROHS,ISO9001, ISO 14001, ISO 45001etc. All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO ( International Civil Aviation Organization), FAA (Federal Aviation Administration), CAAC ( Civil Aviation Administration of China ). All marine navigation lanterns are fully complied with standards of IALA (International Association of Lighthouse Authorities). Till now, we’ve got 12 software copyright, 9 design patent and 5 utility model patent.
We have professional technicians and a strong sales team. Our products have been sold to regions as far away as Asia, Europe and North America, among others. Products are widely used in Civil Airports, Helipads, Communication Towers, Factory, Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoy in sea, etc.
