Factory supply coin operated Ultrasound weight and height scale body fat water muscle analyzer
- Category: >>>
- Supplier: Inbca Medical Corp.Inbca Corp.
Share on (1600424788068):
Product Overview
Description

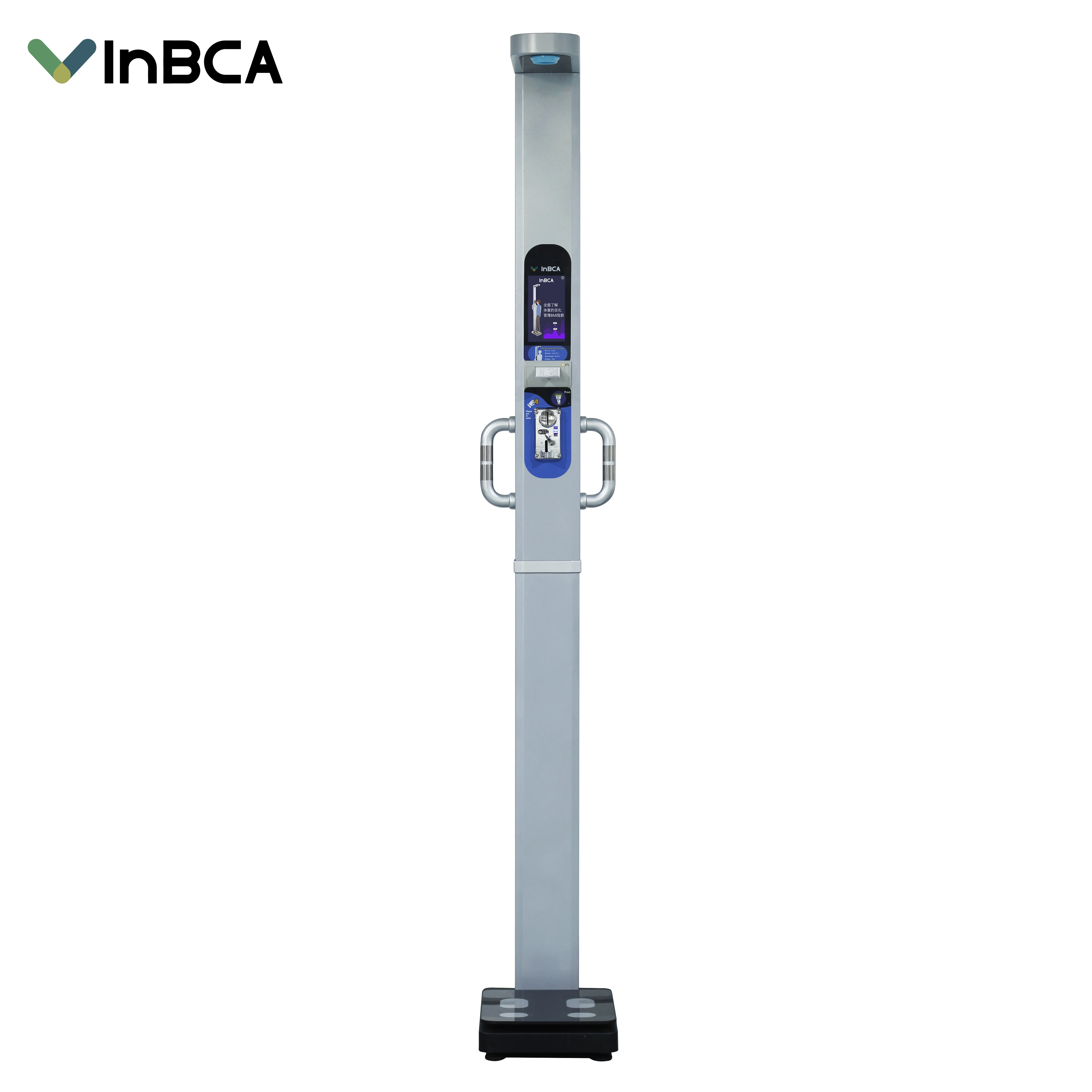

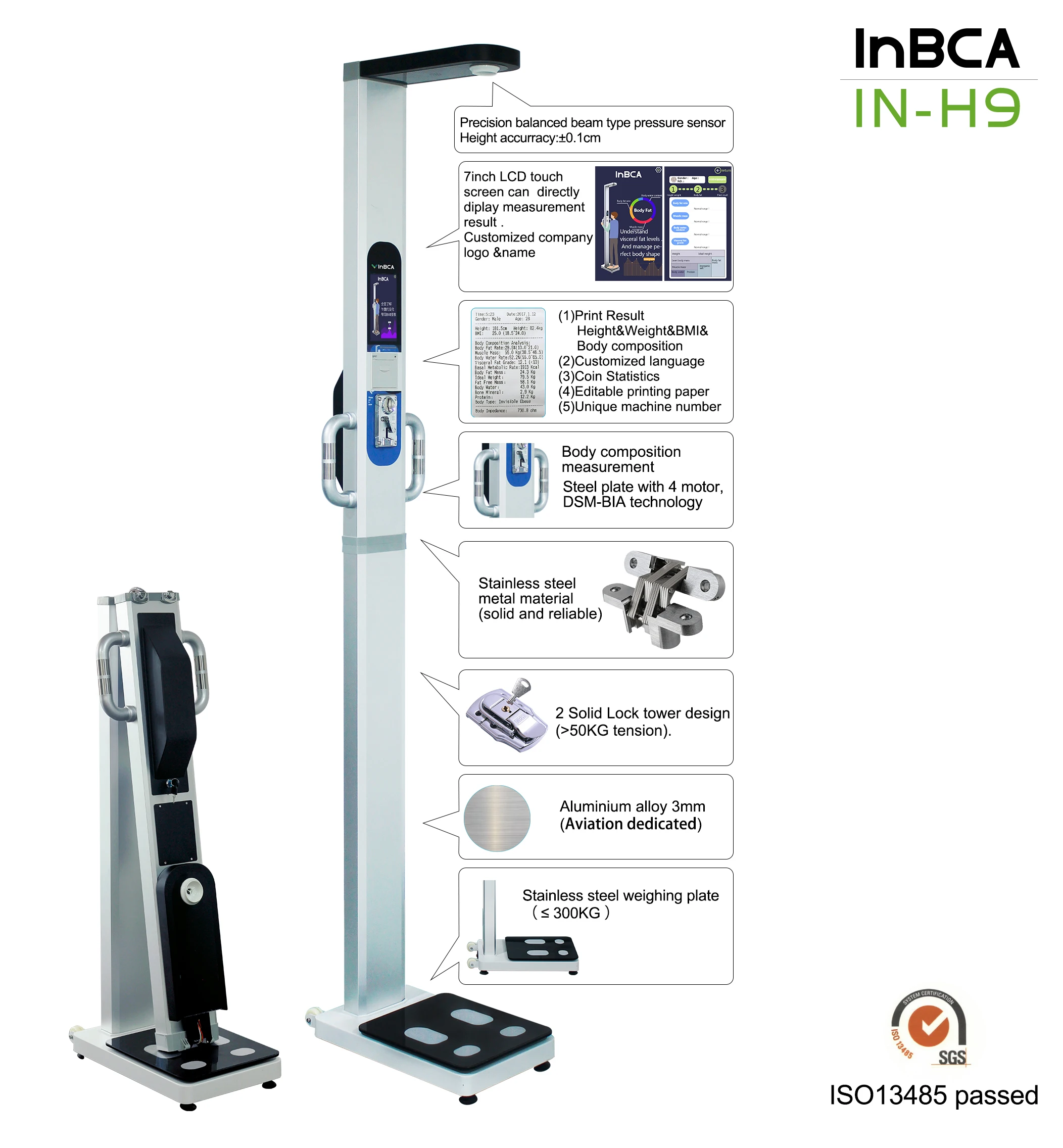

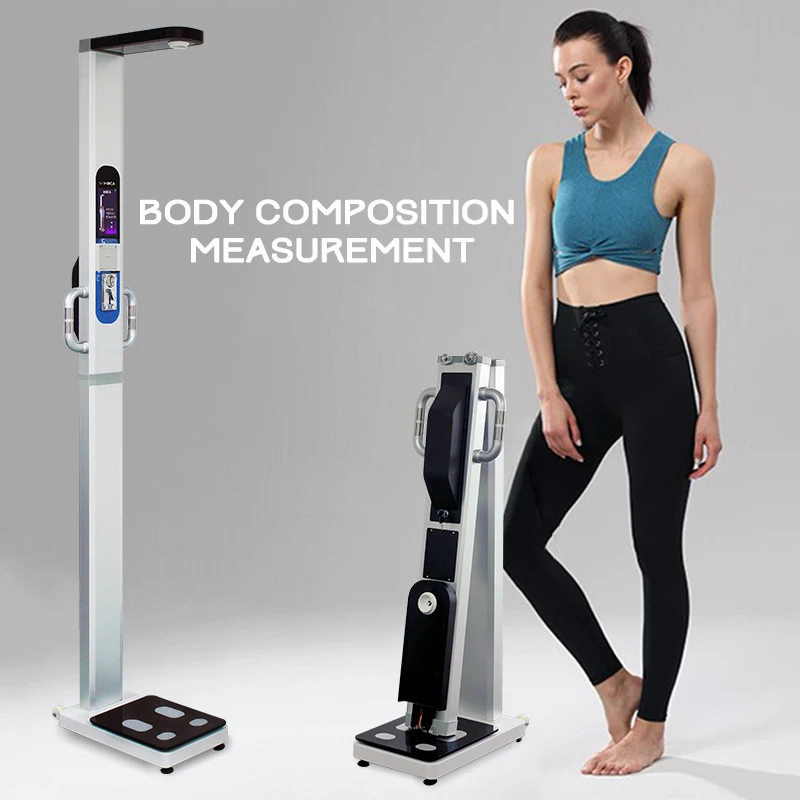

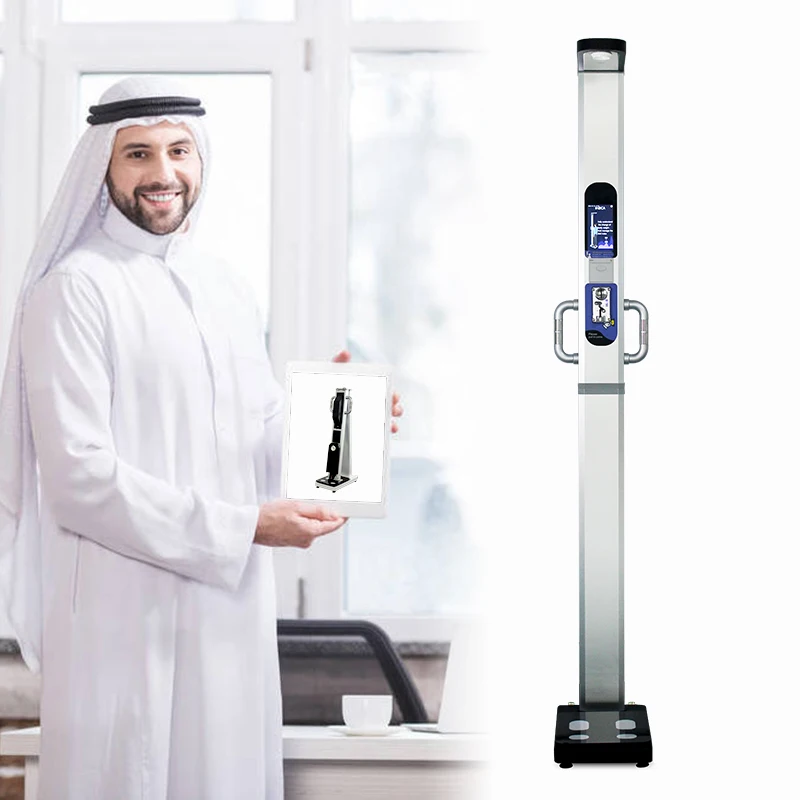

Factory supply coin-operated Ultrasound weight and height scale body fat water muscle analyzer
Advantage
Precise measurement results

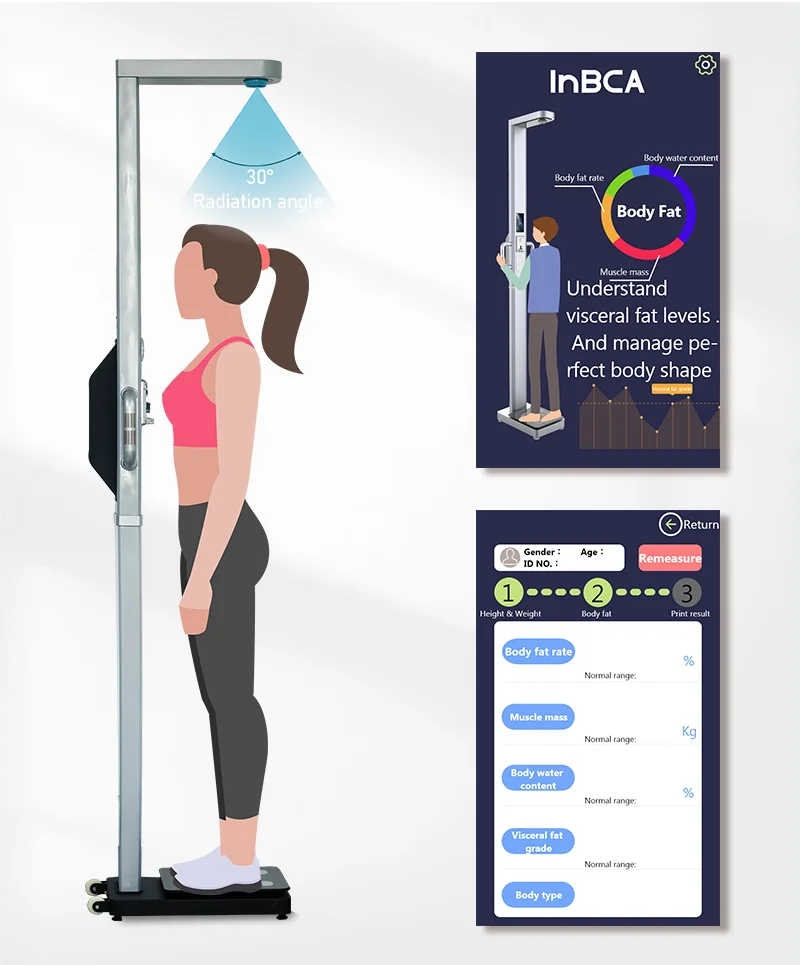

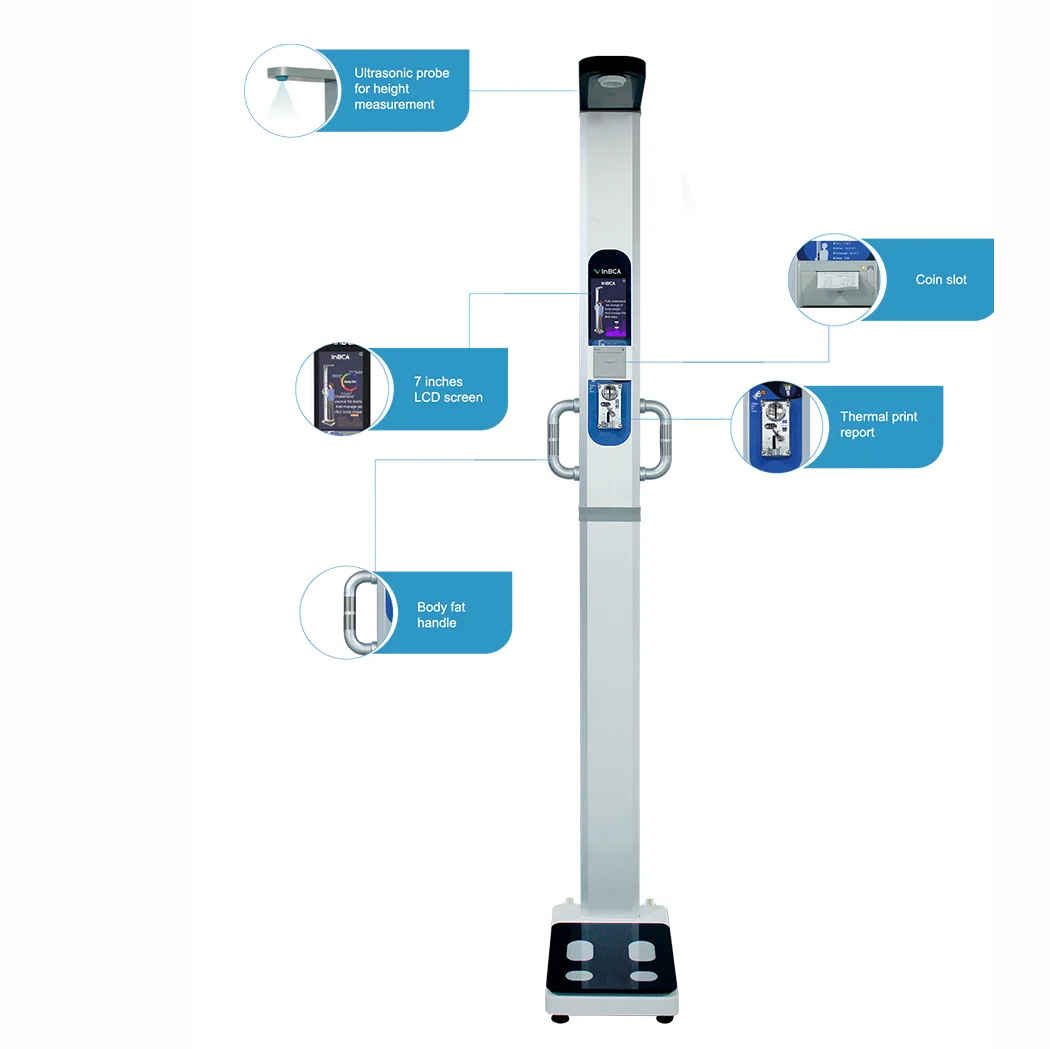

Accurate measurement of height with ultrasonic probe
Accurate weight measurement with pressure sensing
Enhanced design and functionality
Height, weight, BMI
Noble and stylish design
Measurement results can be thermally printed
Portable design to meet the demands of outdoor medical examination
7-inch large screen
Support RS232 serial port to transmit data
Can be powered by mobile power
Specification
Modle No | IN-H9 |
Display screen | 7 inches touch LCD screen |
Height measurement | Ultrasonic probe (US brand) |
Weight measurement | Resistance high accuracy loadcell |
Measurement range of height | Height: 20-200cm |
Measurement range of weight | Weight: 1-300kg (500kg is optional) |
BMI | Automatic display |
Fat measurement | Measuring system,electrodes |
| Measuring frequency,5kHz/50kHz/250kHz/500kHz |
| Analysis Project, Body fat, visceral fat, body water, muscle, bonequality |
| Material, Plating materials |
| Measuring current, below90pA |
| Resistance, 75.0~ 1,500.0 0Q(0.1 QUnit) |
Measuring parts,Body, right leg, left leg, right arm, left arm | |
Deviation of height | Height: ±0.5cm |
Deviation of weight | Weight: ±100g |

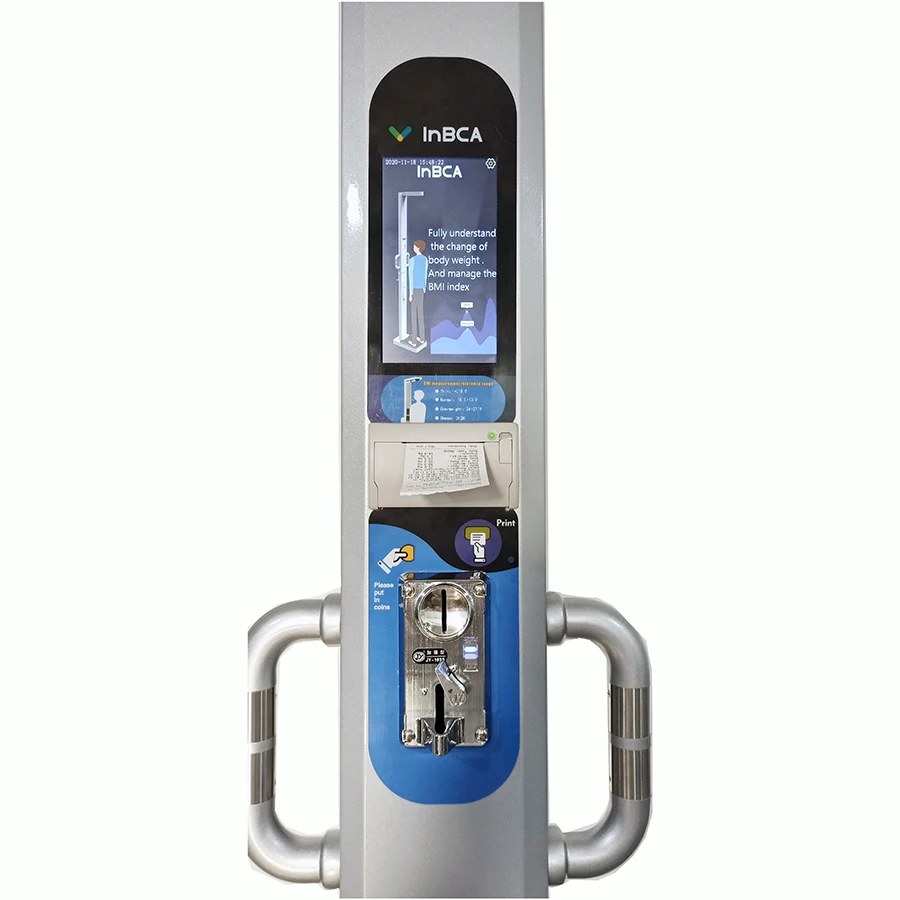

Coin acceptor | Support most countries * coin or game coin |
Peak power consumption | <30W |
Standby power consumption | <8W |
Working temperature/humidity | 10-40°C 20-95% |
Net weight/package weight | 20kg/30kg |
Height of machine | 229cm(Height could be customized) |

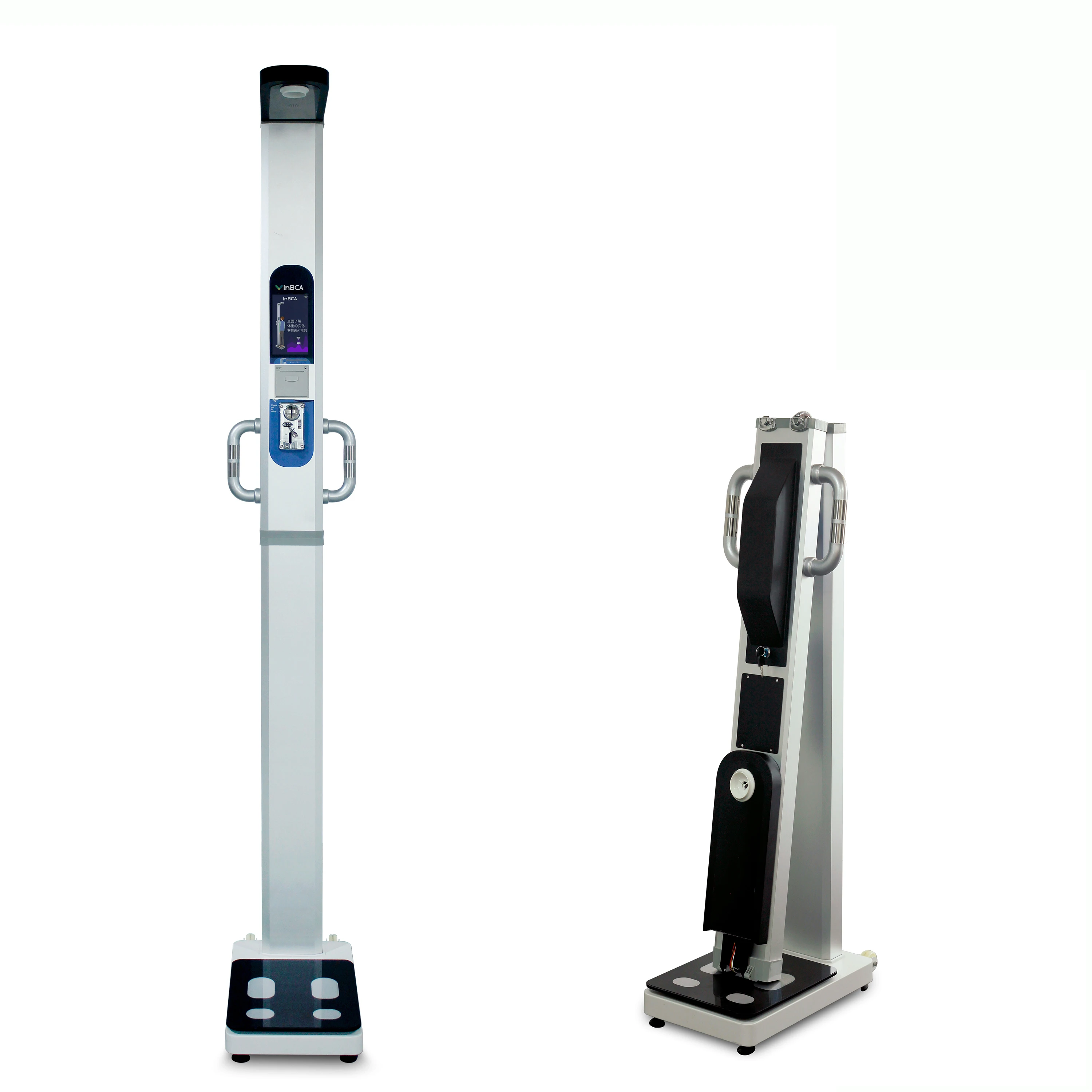

Scale body folding dimension | 1152*229.2*179.4mm |
Basefoot dimension | 310*520*100mm |
Package dimension | 550* 1300*310mm (1 pcs/carton) |

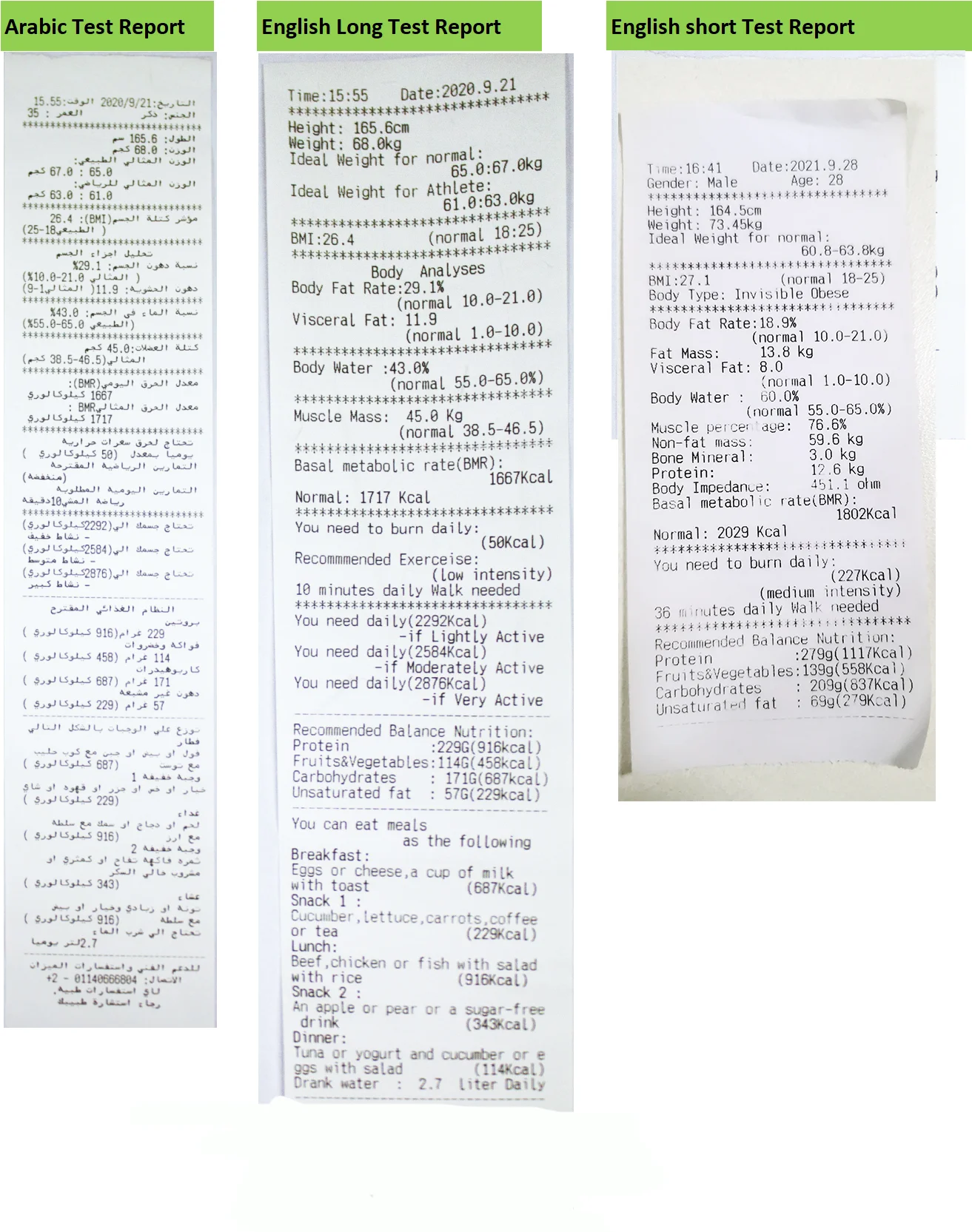

Test Report
