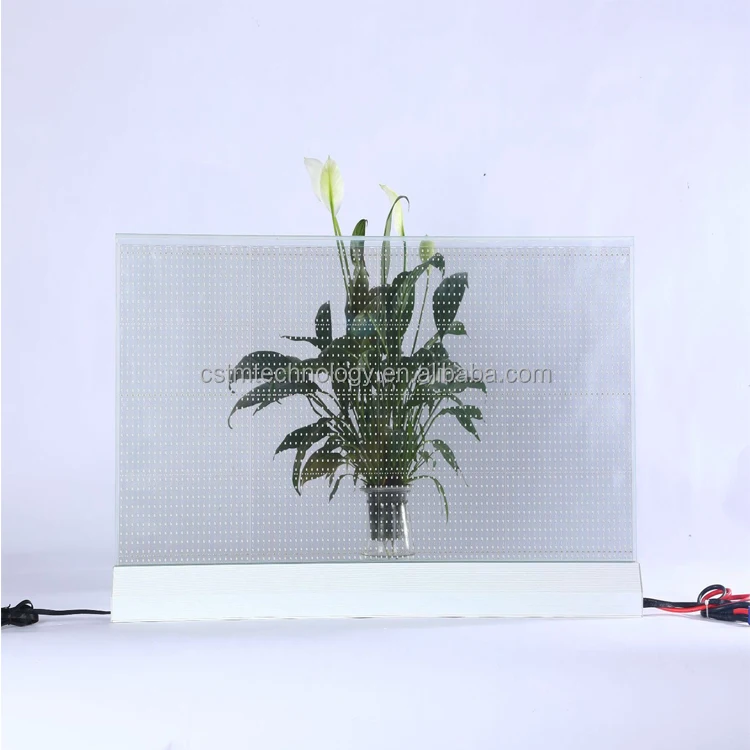

p10 Outdoor LED intelligente Transparent LED Display Advertising Outdoor Curtain Wall
- Category: Building & Industrial Glass >>>
- Supplier: Shenzhen Customized Technology Co. Ltd.
Share on (1600424800636):
Product Overview
Description
Product Description
Our Advantages
LED transparent screen, high transparency and high definition, does not change the permeability of the original location, does not affect the appearance of buildings and indoor and outdoor images, into the city, into life, It solves the problems of outdoor advertising safety, light pollution and city image control.
The grille screen is composed of each independent light board, the more the light board, the more splicing will be produced by the connection between the light board and the light board, and the final effect is not good. Our transparent screen each light board has a width of 500mm, the same size of the screen produced joint reduction, better effect.
The size of the grille screen is usually 1000x1000mm. No matter how big the screen size is, it is composed of this specification. The stitching between each piece will produce a certain gap, and the final result is not good. Our transparent screen body is made of glass, which can be made larger in size, and the joint can be reduced. The maximum can be 5000x5000mm.
The transparency of the grille screen between 40%-60%, our transparent screen transparency in 80%-90%, far from the supermarket grille screen.
The thickness of the traditional screen is generally 70-80mm. The thickness of the screen increases the weight of the whole body, which increases the difficulty of installation. The second screen is very thick, which affects the appreciation. To sum up, when developing transparent screen, our company adopts toughened glass as the screen material, which greatly reduces the thickness of the screen and thus increases the ornamental value.
Crystal Panel Screen | ||||||||
Specifications | P5*10 | P10 | P10*20 | P20 | ||||
Gray Scale | 256 levels | same | same | same | ||||
Brightness | 0-5000cd/m; adjustable | same | same | same | ||||
Color Temperature | 3000-12000 color; adjustable | same | same | same | ||||
Lamp Beads | 1812-2020 (1R1G1B) SMD wick in one | same | same | same | ||||
Dot Pitch | 5.5*11 mm | 11 mm | 11*20 mm | 20*20 mm | ||||
Pixel Density | 16200 | 8100 | 4500 | 2500 | ||||
Permeability | 80-90% | 80-90% | 90-95% | 90-95% | ||||
Viewing Angle | Greater than 160 Degrees | same | same | same | ||||
Best Viewing Distance | More than 7.5 meters | More than 15 meters | More than 23 meters | More than 30 meters | ||||
Maximum Power | 1200 W/m² | 600 W/m² | 350 W/m² | 180 W/m² | ||||
Encapsulation | 5+5 Tempered Glass | same | same | same | ||||
Operating Temperature | -20~55℃ | same | same | same | ||||
Format Size | 4000 X 1332 mm | same | same | same | ||||
Accessories | Built-in high P400W power supply, HUB board, receiving card, network cable, profile | same | same | same | ||||

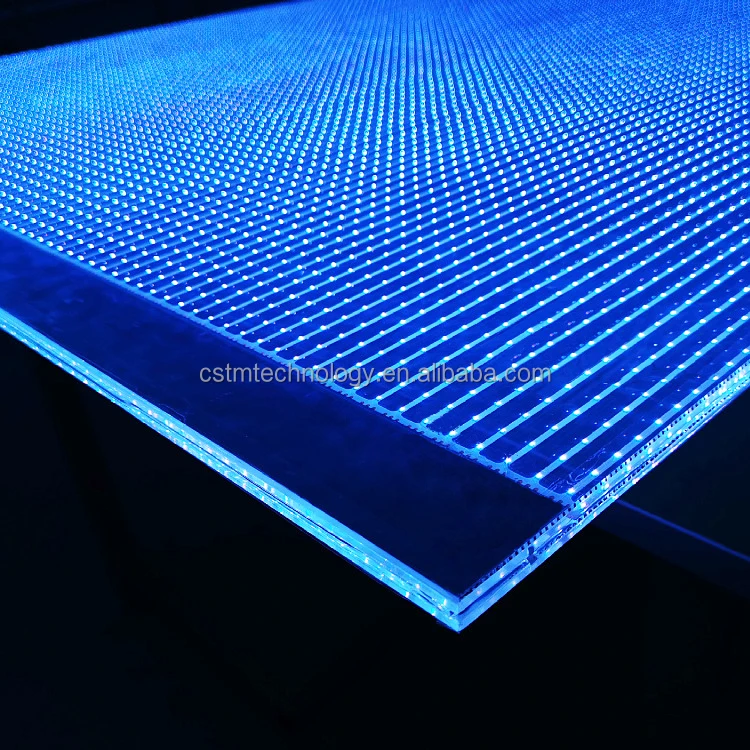

The transparent screen is made into a unit module by RGB magic light beads. Through the splicing module, it can form an ARBITRARY size LED display screen to display text, image, video and other pictures.The screen size can be adjusted, gray scale can be adjusted, and colorcan be adjusted. With multiple expansion of high-tech displayproducts, can be widely used in glass curtain wall, lighting, advertising media, space decoration, partition decoration, home design, commercial display, functional identification cards and so on.
