WLD Water Curtain Paint Booth Customer Made paint booth & spray booth

Product Overview

Description

Water curtain spray cabin furniture water curtain paint room for sale

 Technical parameter

Internal size (mm): 6900 x 3900 x 2600mm

Water curtain cabinet size (mm): 4000 x 1900 x 2100(one set)

Air flow:20000m³/h

Main structure and parts

Consist of cabin, air circulation system and control system

Wallboard: Sandwich style EPS (epispastics polystyrene) 50mm thickness. Galvanized steel roof panel. Without basement.

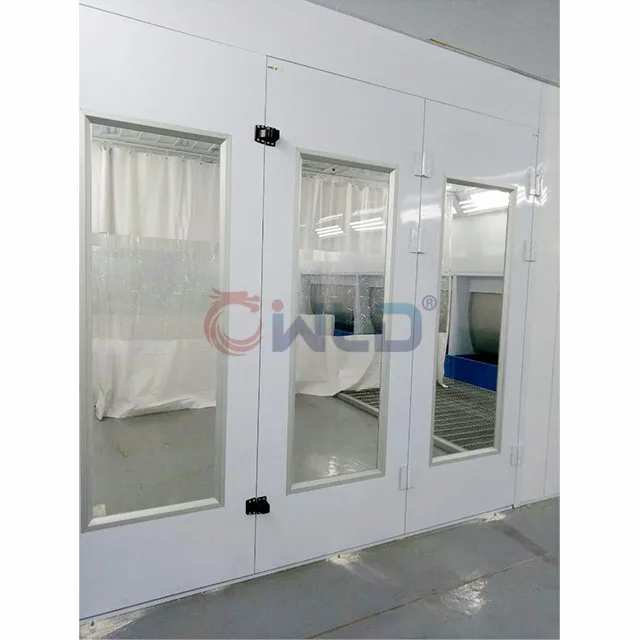

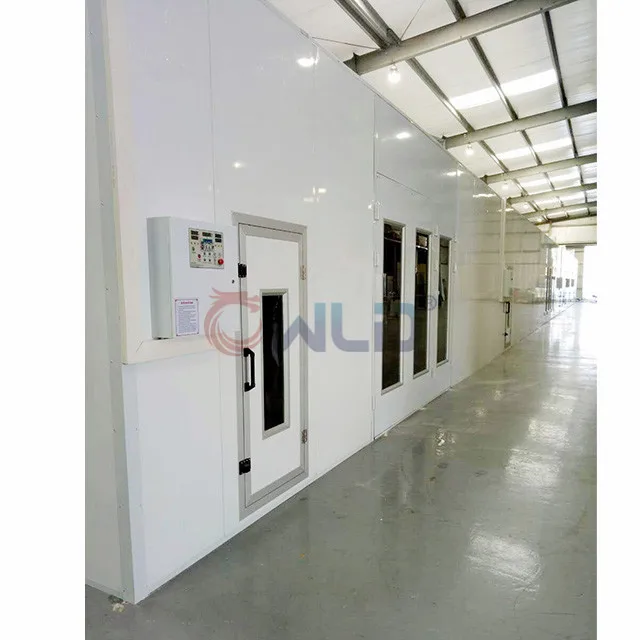

 Door: 3 pcs of luxury front doors with aluminum frame view window. Size: 3000(w) x 2600mm(h). 1 pc of emergency door.

Lighting System: Ceiling light has 24 pcs of 16w LED lamps. 900 Lux.

Intake Air Circulation System: 2x3kw intake fan. Air Flow 20000 m³/h.

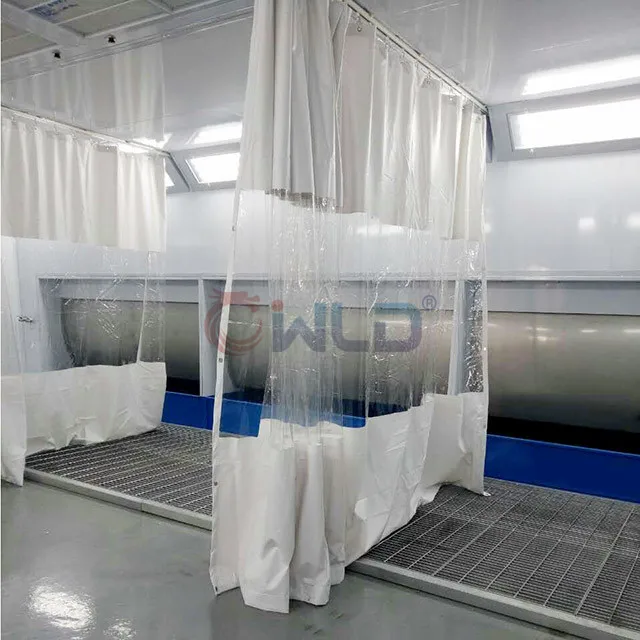

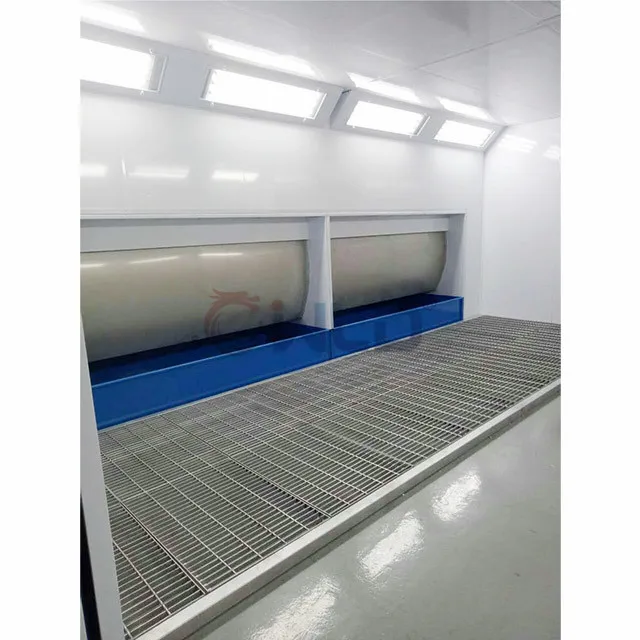

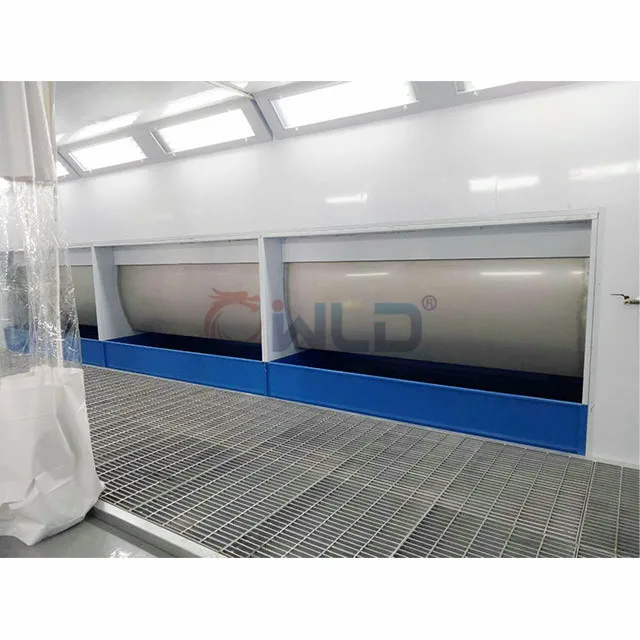

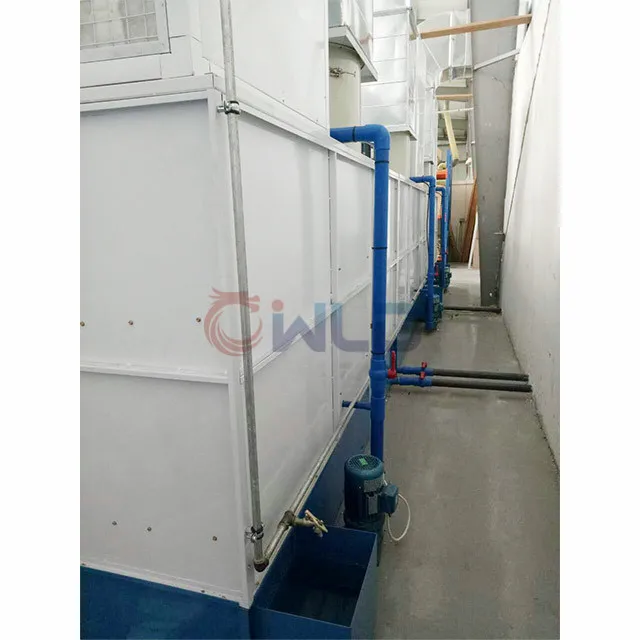

Exhaust Air Circulation System: adopts water curtain filter treatment device. Structure characteristics: One set of water curtain painting cabinet in the booth. Water pool adopts 3mm welded steel plate. Air circulation boards adopt 1.5mm thickness steel plate; Water curtain board is stainless steel, water curtain painting cabinet equips 1 x 4kw pipe type fan for exhausting.1 set of 1.5kw pump for water supply. Water can be recycling use. 5 pcs of air ducts.

Control system: Adopts famous domestic components, Equip with over load & shortcircuit protected, safe and reliable.
