Product Overview
Description

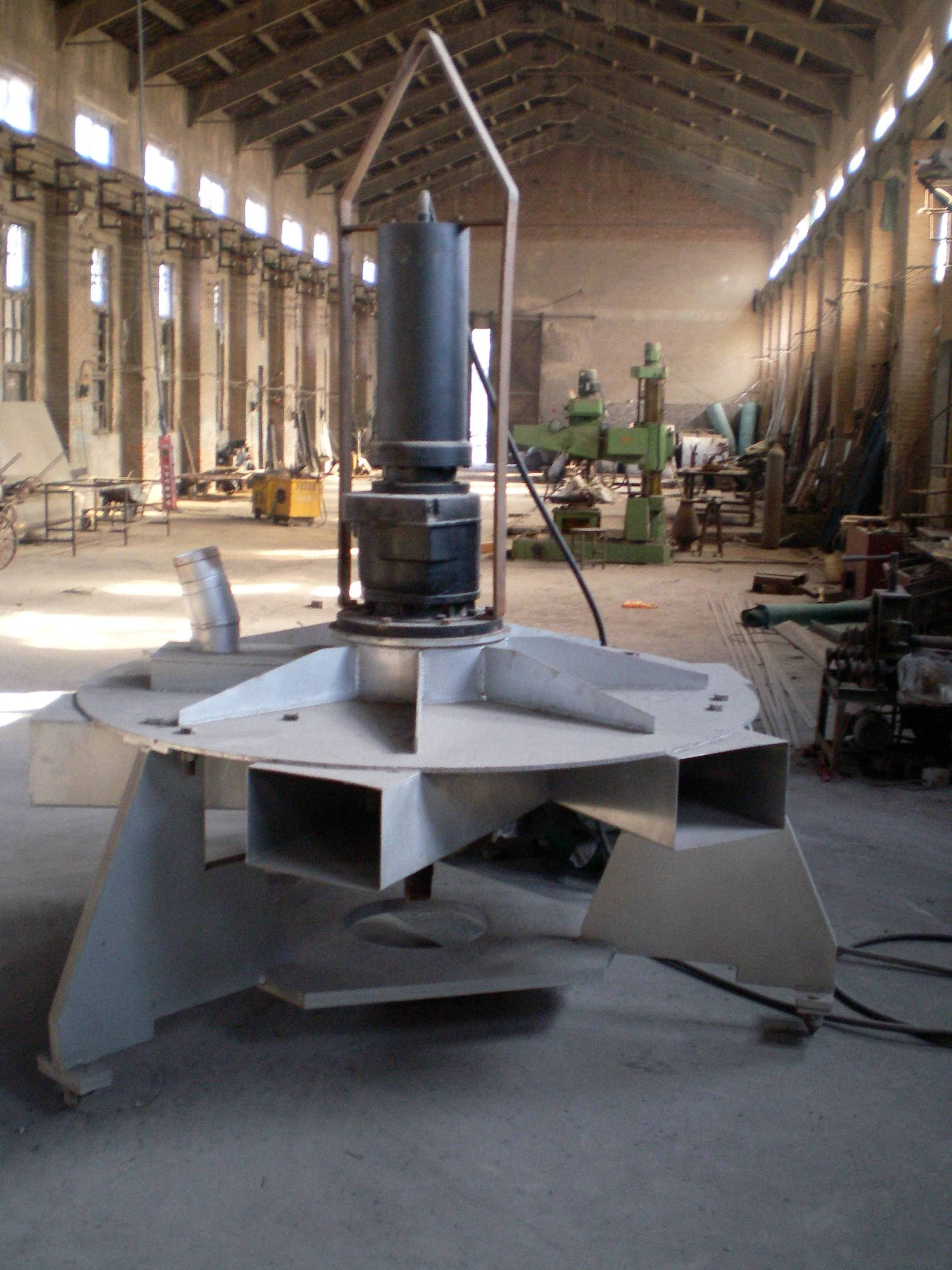

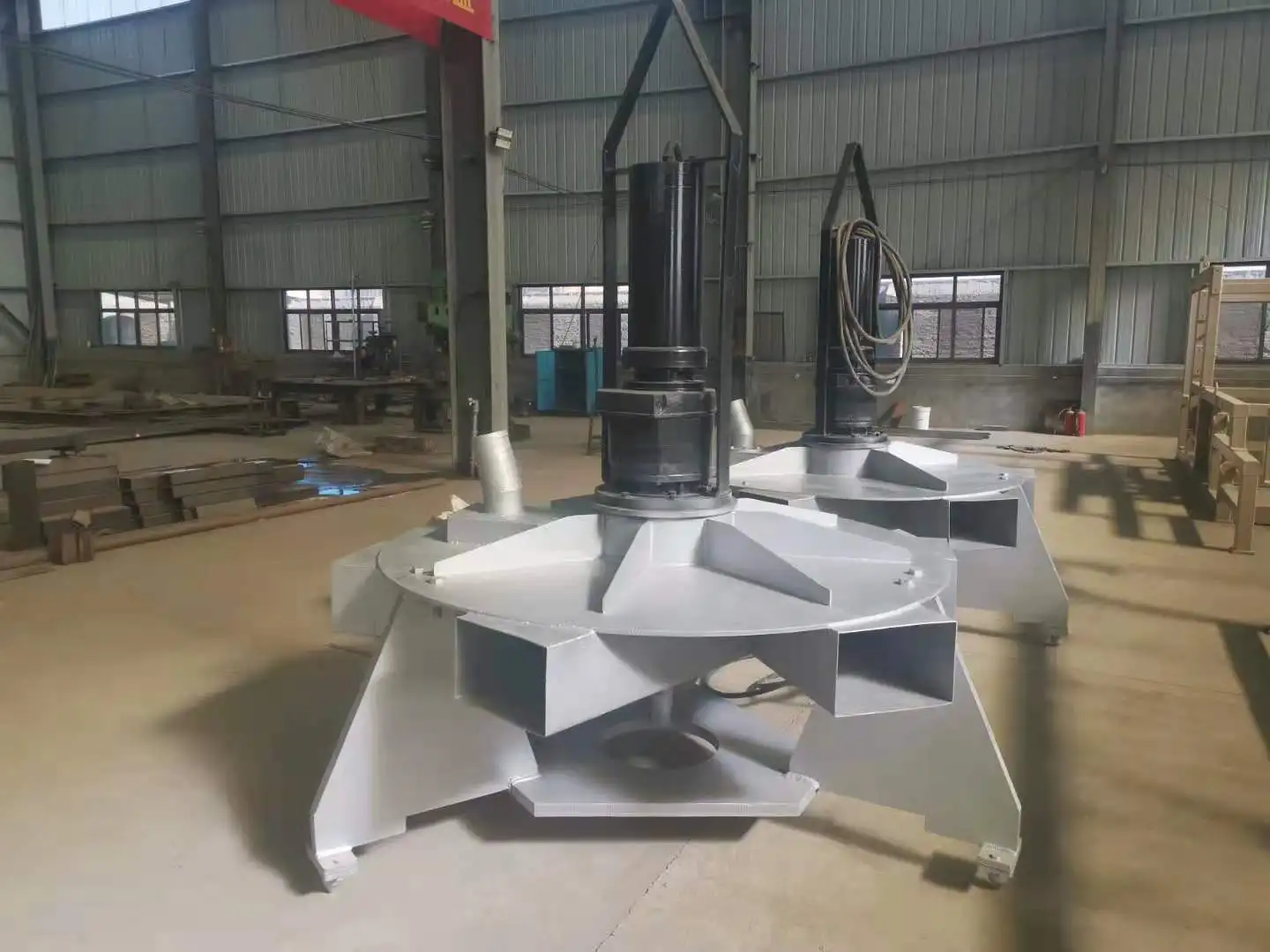

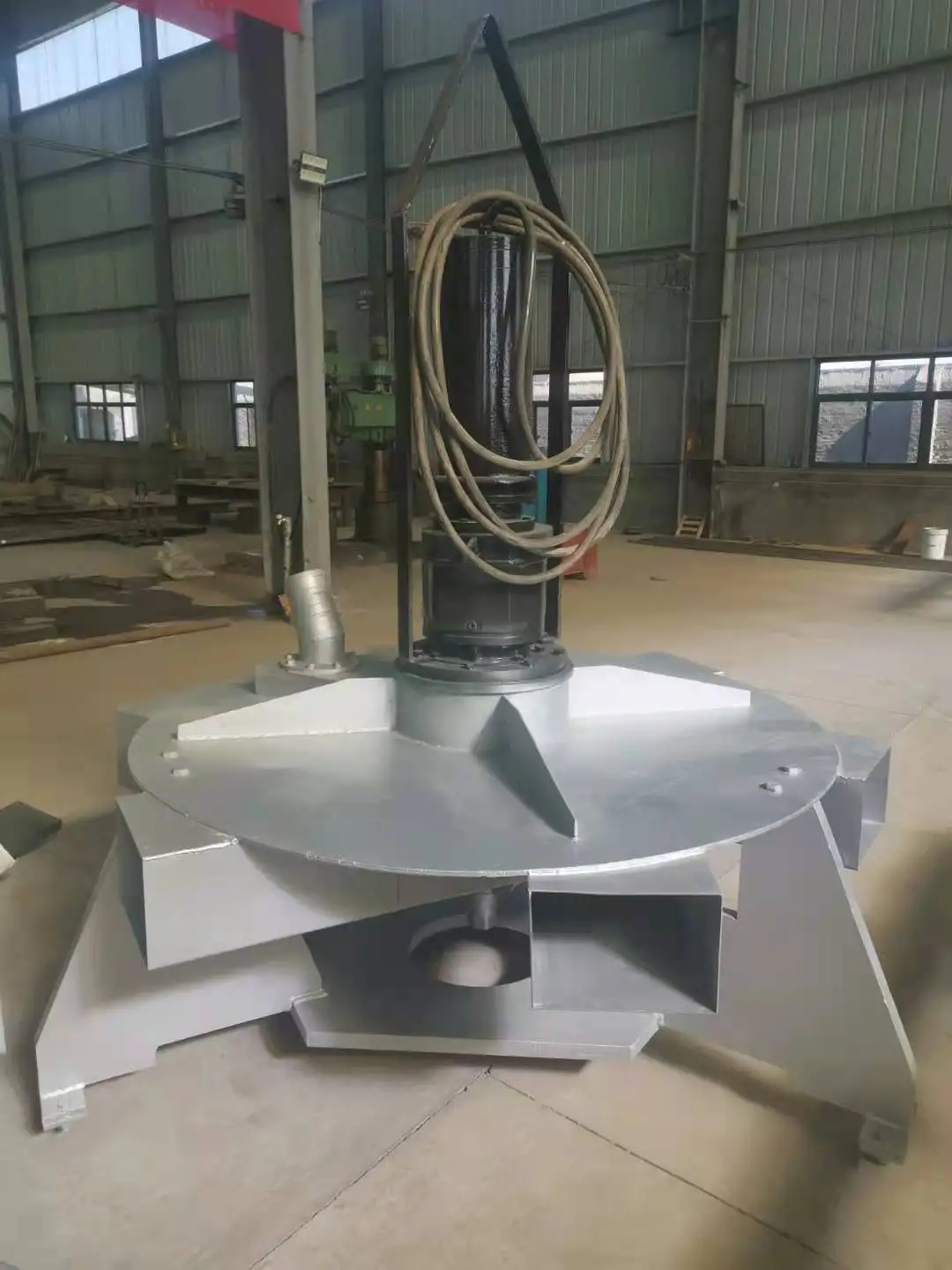

QBJ submersible stirring aerator is developed by using the optimized design concept. QBJ series has good aeration and stirring effect, good durability, reliability and economic benefit.

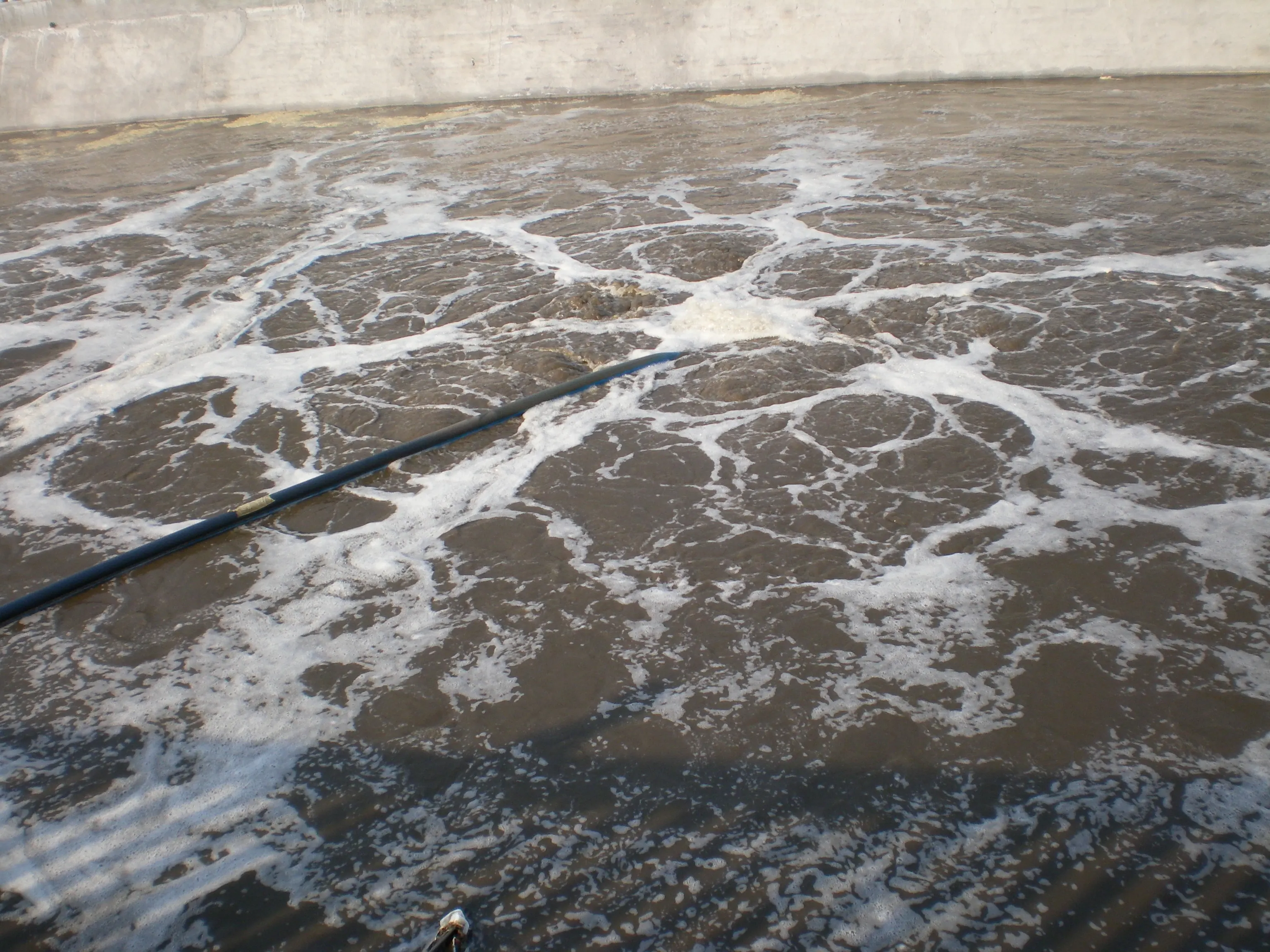

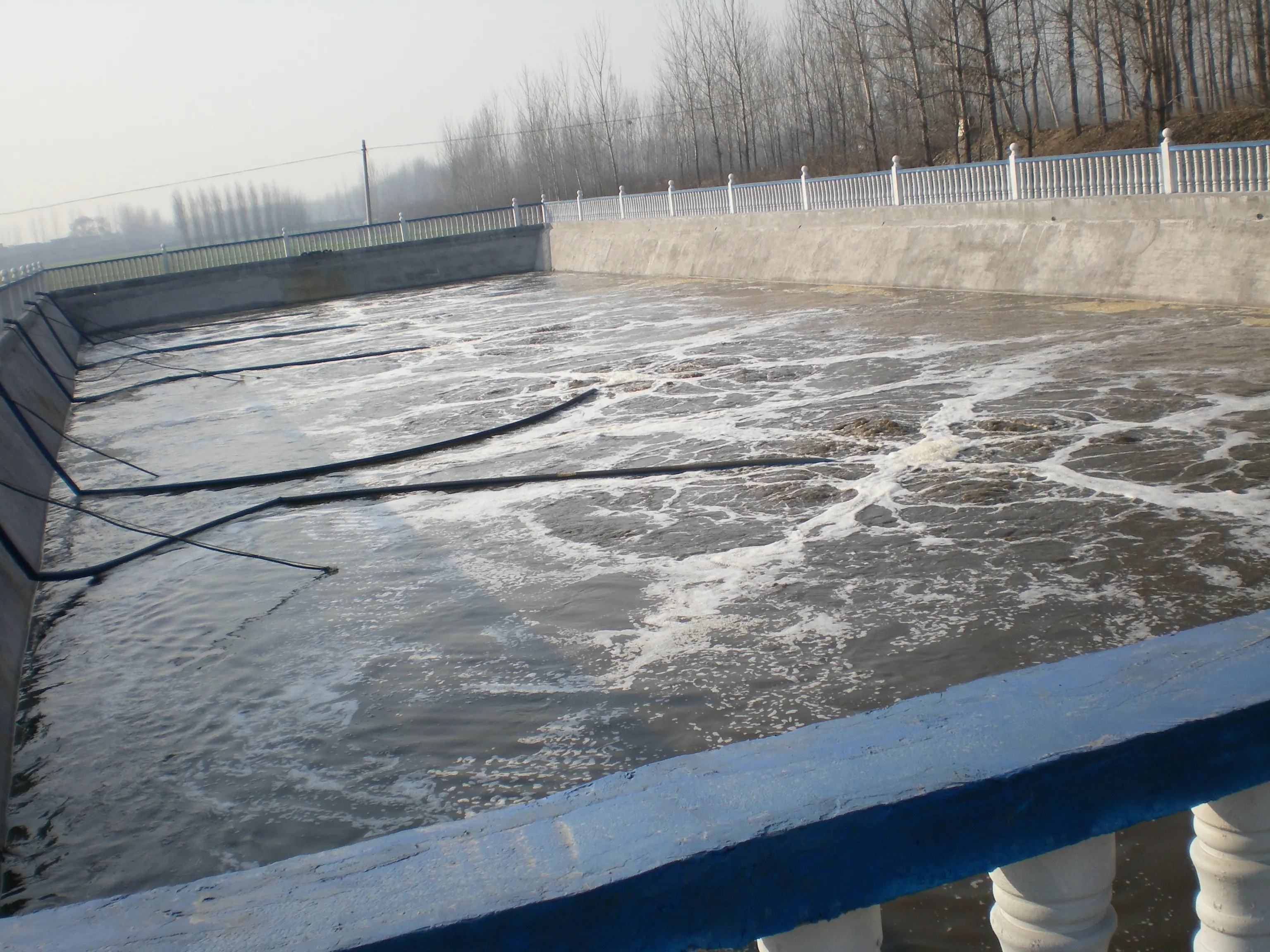

High efficiency of dissolved oxygen
The injected air flows into the water of the aeration tank through the air pipe and is mixed with the water to effectively fuse the gas/liquid.Therefore, by convection/due to the high fusion effect of the above outlet port and oxygen microbubbles forming a gas/liquid mixing effect, excellent oxygen dissolution effect can be achieved.
The injected air flows into the water of the aeration tank through the air pipe and is mixed with the water to effectively fuse the gas/liquid.Therefore, by convection/due to the high fusion effect of the above outlet port and oxygen microbubbles forming a gas/liquid mixing effect, excellent oxygen dissolution effect can be achieved.
Easy to install and check
Easy to raise water surface, installation and inspection are also convenient
Easy to raise water surface, installation and inspection are also convenient
Good mixing effect
Impeller is made of stainless steel, through dynamic and static balance, to achieve high quality design of the spiral to form a strong stirring force, produce a good stirring effect.
3) Easy modification of aeration or stirring application Selection of aeration or stirring is easy to handle by simply opening or closing the air control valve.
Easy to control the oxygen intake control valve can control the oxygen intake
Adaptable
No matter the shape of tank or tank is rectangle, square, S or round, it can be selected.
Impeller is made of stainless steel, through dynamic and static balance, to achieve high quality design of the spiral to form a strong stirring force, produce a good stirring effect.
3) Easy modification of aeration or stirring application Selection of aeration or stirring is easy to handle by simply opening or closing the air control valve.
Easy to control the oxygen intake control valve can control the oxygen intake
Adaptable
No matter the shape of tank or tank is rectangle, square, S or round, it can be selected.
Model | Power（KW） | Filling range(Nm³/min) | Inflating volume(Nm³/min) | Oxygen(Nm³/min) | Maximum effective length（m） | Minimum circulation（m³/min） |
22D | 20 | 1.2~3.5 | 2.2 | 8.1 | 12 | 15 |
37D | 25 | 2.0~5.5 | 3.6 | 13.8 | 14 | 23 |
55D | 30 | 3.0~8.0 | 6.0 | 21.5 | 18 | 35 |
75D | 35 | 4.0~12.0 | 9.0 | 32.5 | 22 | 50 |
110D | 40 | 6.0~18.0 | 13.0 | 45.5 | 25 | 65 |
150D | 45 | 9.0~25.0 | 20.0 | 65.0 | 31 | 83 |
220D | 50 | 12.0~35.0 | 26.0 | 92.0 | 35 | 95 |
300D | 55 | 16.0~50.0 | 36.0 | 125.0 | 42 | 110 |
