Product Overview
Description
Product Overview
Water Filling Machine * water bottling machine * mineral water filling machine * pure water filling machine
* pure water bottling machine * water bottling plant * water filling equipment * water filling machine supplier
* mineral water pet bottle machine * water filling machine manufacturer * mineral water bottling equipment
* bottled water machine * mineral water plant * water production machine * bottled water making machine
* pure water bottling machine * water bottling plant * water filling equipment * water filling machine supplier
* mineral water pet bottle machine * water filling machine manufacturer * mineral water bottling equipment
* bottled water machine * mineral water plant * water production machine * bottled water making machine
Due to increasing demand in all beverage industry, many clients want to put up water and beverage lines. When you're looking for automatic water filling machine project, need consider for your budget first, such as water fillling machine prices, labeling packaging prices, raw material prices etc to get suitable model speed under your budget.
There's many water filling machine for sale, but need confirm first for bottle sizes, such as 200-2000ml, 5-10L, 20L bottle,
confirm for market needs first, then you can start designing automatic water filling machine complete line. More automatic degree will save more labor and getting better working efficiency. water filling machine for sale of our stock line of small and big bottles will allow you to get a quicker start.
There's many water filling machine for sale, but need confirm first for bottle sizes, such as 200-2000ml, 5-10L, 20L bottle,
confirm for market needs first, then you can start designing automatic water filling machine complete line. More automatic degree will save more labor and getting better working efficiency. water filling machine for sale of our stock line of small and big bottles will allow you to get a quicker start.

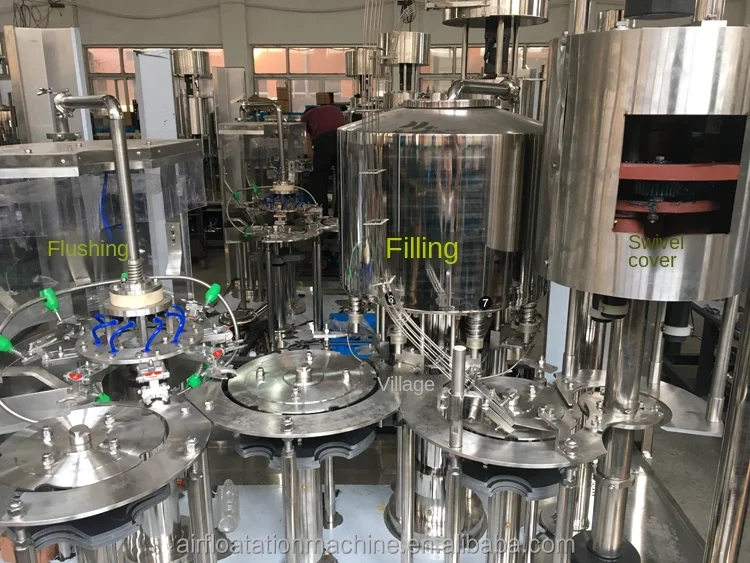

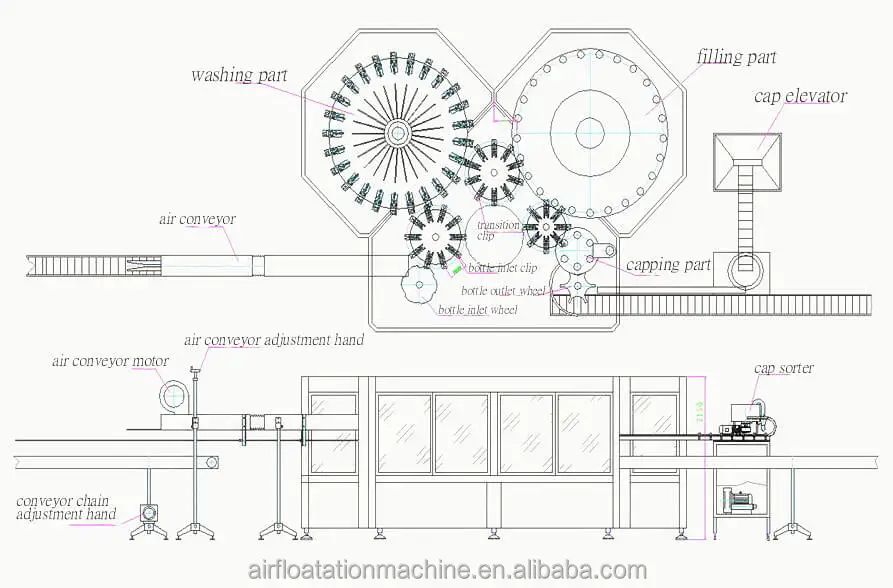

Working principle:
1. Empty bottles are running on the conveyer belt with photo electricity, the bottle cylinder will go out, meanwhile push the
bottle into bottle support ring, and bottle neck support catch the bottle neck, than main shaft turned 180degree under gear wheel. Let bottle’s mouth face to land, jetting water into bottle, after a few seconds, the main shaft will be back, than finishing the washing.
2.The machine is composed water tank, float ball, shaft, filling valve, Pneumatic component, electric machine. Washing finished bottle is conveyed into filling position , cylinder push and hold the plate which can hitch bottles , the mouth of bottle can open the valve, finishing filling, plate which can hitching bottle will running down, the valve will closed automatically, the time lasting of filling can be adjusted.
3. The working is intermission when running with automatically capping. The capper will be screw type with 3 start neck finish.
bottle into bottle support ring, and bottle neck support catch the bottle neck, than main shaft turned 180degree under gear wheel. Let bottle’s mouth face to land, jetting water into bottle, after a few seconds, the main shaft will be back, than finishing the washing.
2.The machine is composed water tank, float ball, shaft, filling valve, Pneumatic component, electric machine. Washing finished bottle is conveyed into filling position , cylinder push and hold the plate which can hitch bottles , the mouth of bottle can open the valve, finishing filling, plate which can hitching bottle will running down, the valve will closed automatically, the time lasting of filling can be adjusted.
3. The working is intermission when running with automatically capping. The capper will be screw type with 3 start neck finish.
FEATURES AT A GLANCE
Machine structure
- washing, filling and capping part in one unit;
- one driving system makes the speed more stable
- need one person to operate the machine
- no noisy while running,more compact
- different bottles can be applied in same machine (the bottle neck should be the same)
- washing, filling and capping part in one unit;
- one driving system makes the speed more stable
- need one person to operate the machine
- no noisy while running,more compact
- different bottles can be applied in same machine (the bottle neck should be the same)

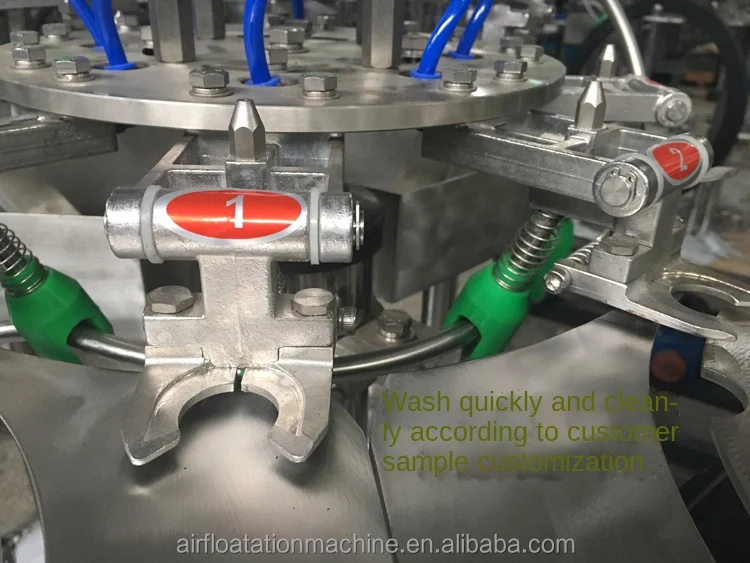

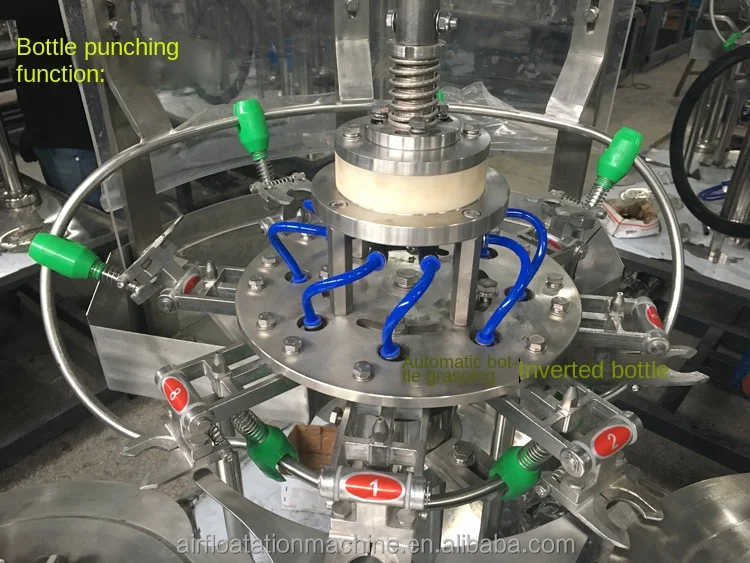

Washing part/ Rising heads
- the star wheel to hold the bottle neck to avoid damage the bottle mouth
- there is nylon grip to protect bottle mouth
- there is nylon grip to protect bottle mouth

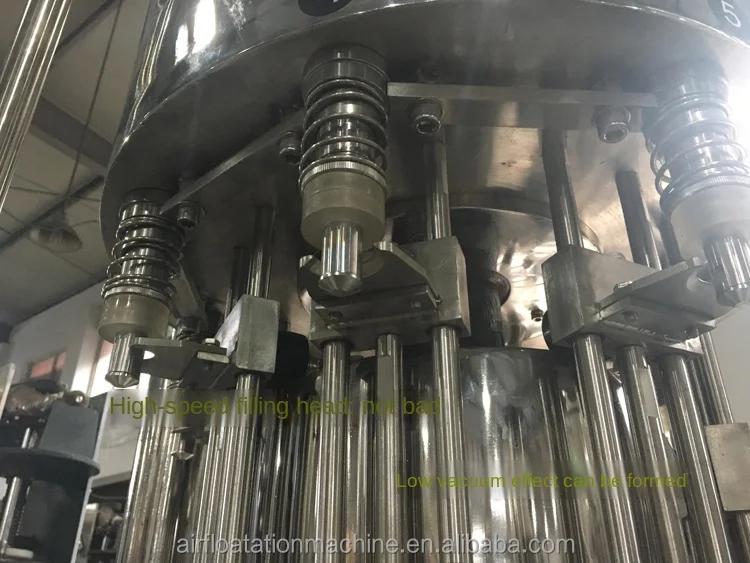

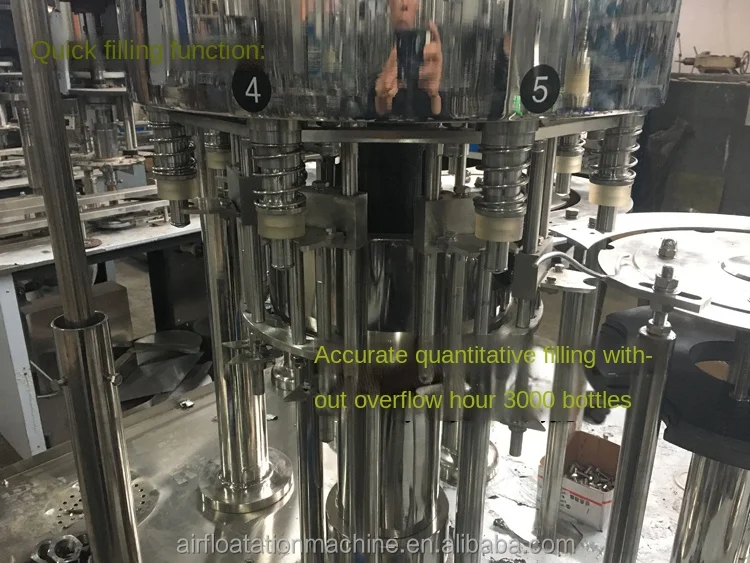

Filling part/ Filling heads
- round liquid tank, no residual after filling
- the valves are stainless steel 304
- no bottle no filling
- filling level can be adjusted
- the valves are stainless steel 304
- no bottle no filling
- filling level can be adjusted

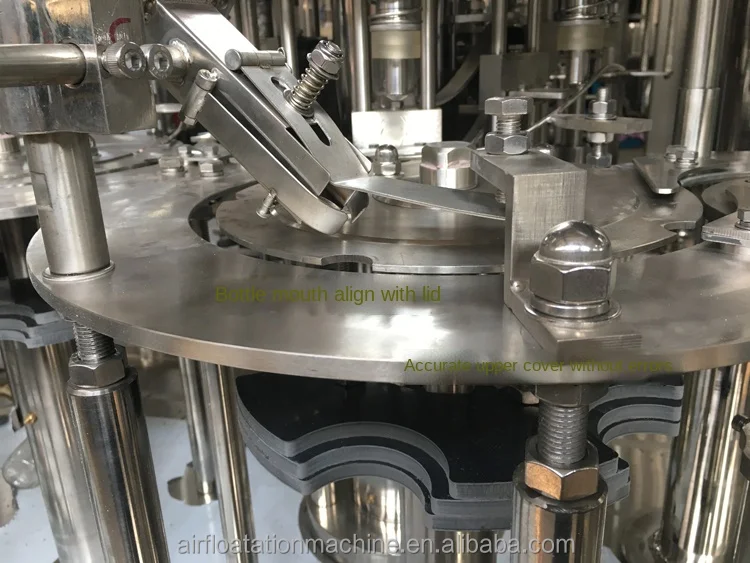

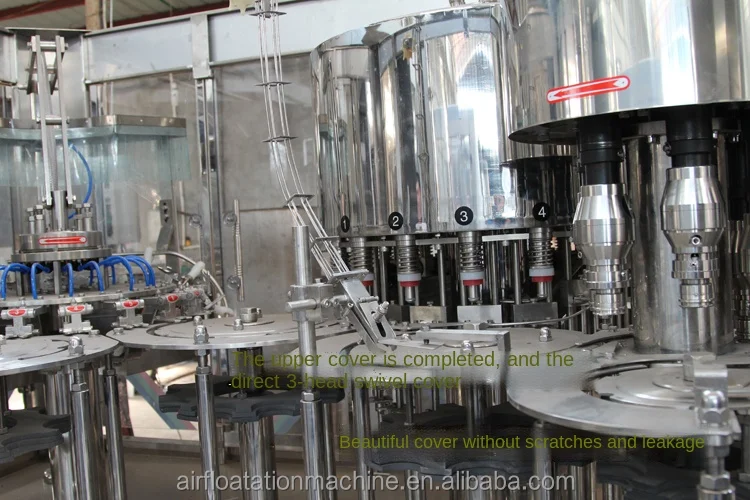

Capping part/ Capping head
- Anti-rotary blade to fix the bottle without moving，the capping torque can be adjusted，Italy technology capping more precision，Belt type cap uploader with new tehnolgy avoid cap blocking.
Control system
- Advanced Siemens PLC
- Touch screen
- Touch screen
PRODUCT SPECIFICATIONS
Bottle design service
30pcs top beauty bottle drawing suggestion. Hundred of world famous bottle design for your choices. You can also DHL us the really bottle samples. We will use 3D scanning machine scanning the bottle which is completely same with the real bottle.
Bottle label service
Two options for selection:
1.We design the label for you, very ordinary design.
2.You buy the PVC label from us, and we will recommend professional design company to work for you.
Water Bottling Machine
When you're looking for water bottling machine project, need consider for your budget first, such as water bottle fillling machine prices, labeling packaging prices, raw material prices etc to get suitable model speed under your budget. There's many water bottling machine for sale, but need confirm first for bottle sizes, such as 200-2000ml, 1-10L, 20L bottle, confirm for market needs first, then you can start designing complete line.
500ml water bottle fillling machine | ||||||||||||||
Model | 40-40-12 | 32-32-10 | 24-24-8 | 24-24-8 | 18-18-6 | 12-12-4 | ||||||||
Capacity (500ml) | 20000 BPH | 14000-16000 BPH | 12000 BPH | 10000 BPH | 8000 BPH | 6000 BPH | 4000 BPH | |||||||
Bottle Size | 150- 2000ml | |||||||||||||
Water Pressure | 0.18-0.25Mpa | |||||||||||||
Water Consumption | 1500kg/h | 1000kg/h | ||||||||||||
Washing Valves | 40 | 32 | 24 | 18 | 12 | |||||||||
Filling valves | 40 | 32 | 24 | 18 | 12 | |||||||||
Capping Heads | 12 | 10 | 8 | 6 | 4 | |||||||||
Filling Precision | <+5MM | |||||||||||||
Air Pressure | 0.5Mpa | |||||||||||||
Air Consumption | 0.3m3/min | |||||||||||||
Power | 7.5kw | 6.0kw | 5.0kw | 2.5kw | ||||||||||
Weight | 5000kg | 4000kg | 3500kg | |||||||||||
Size(I*w*H m) | 3.2*2.1*2.1 | 3*2.1*2.1 | 2.7*2.1*2.1 | 2.35*2.1*2.1 | ||||||||||
5L water bottle fillling machine | ||||||
Model | 24-24-8 | 12-12-5 | 8-8-3 | |||
Capacity (5L B/H) | 4000 BPH | 2000 BPH | ||||
Bottle Size | 5-10L | 150- 2000ml | ||||
Water Pressure | 0.18-0.25Mpa | |||||
Water Consumption | 1500kg/h | 500kg/h | ||||
Washing Valves | 24 | 12 | 8 | |||
Filling valves | 24 | 12 | 8 | |||
Capping Heads | 8 | 5 | 3 | |||
Filling Precision | <+5MM | |||||
Air Pressure | 0.5Mpa | |||||
Air Consumption | 0.3m3/min | |||||
Power | 3.5kw | 2.2kw | ||||
Weight | 4000kg | 2000kg | ||||
Dimension (I*w*H) | 3*1.9*2.1m | 2.3*1.9*2.1m | ||||

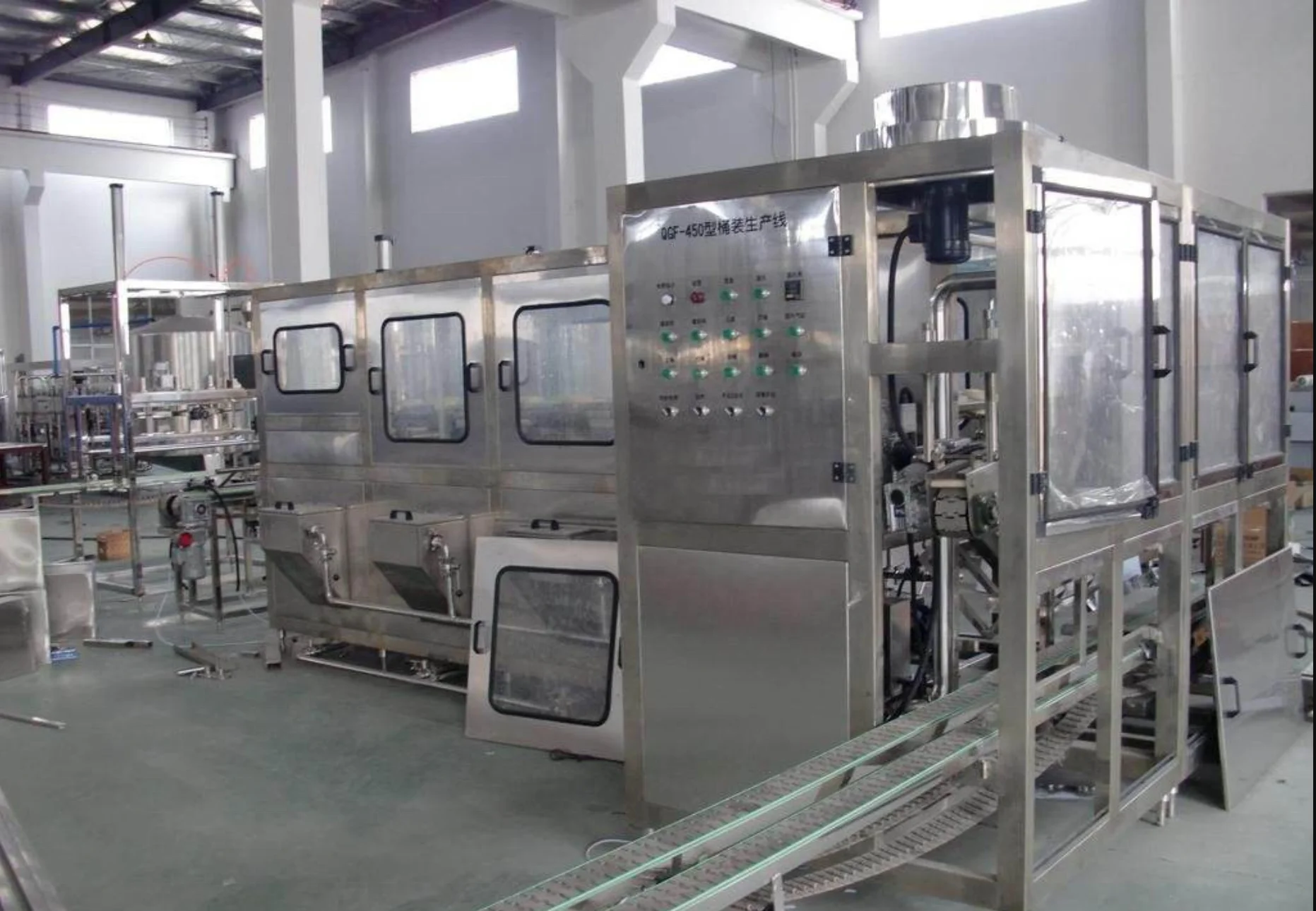

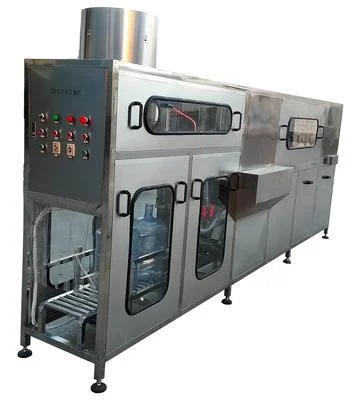

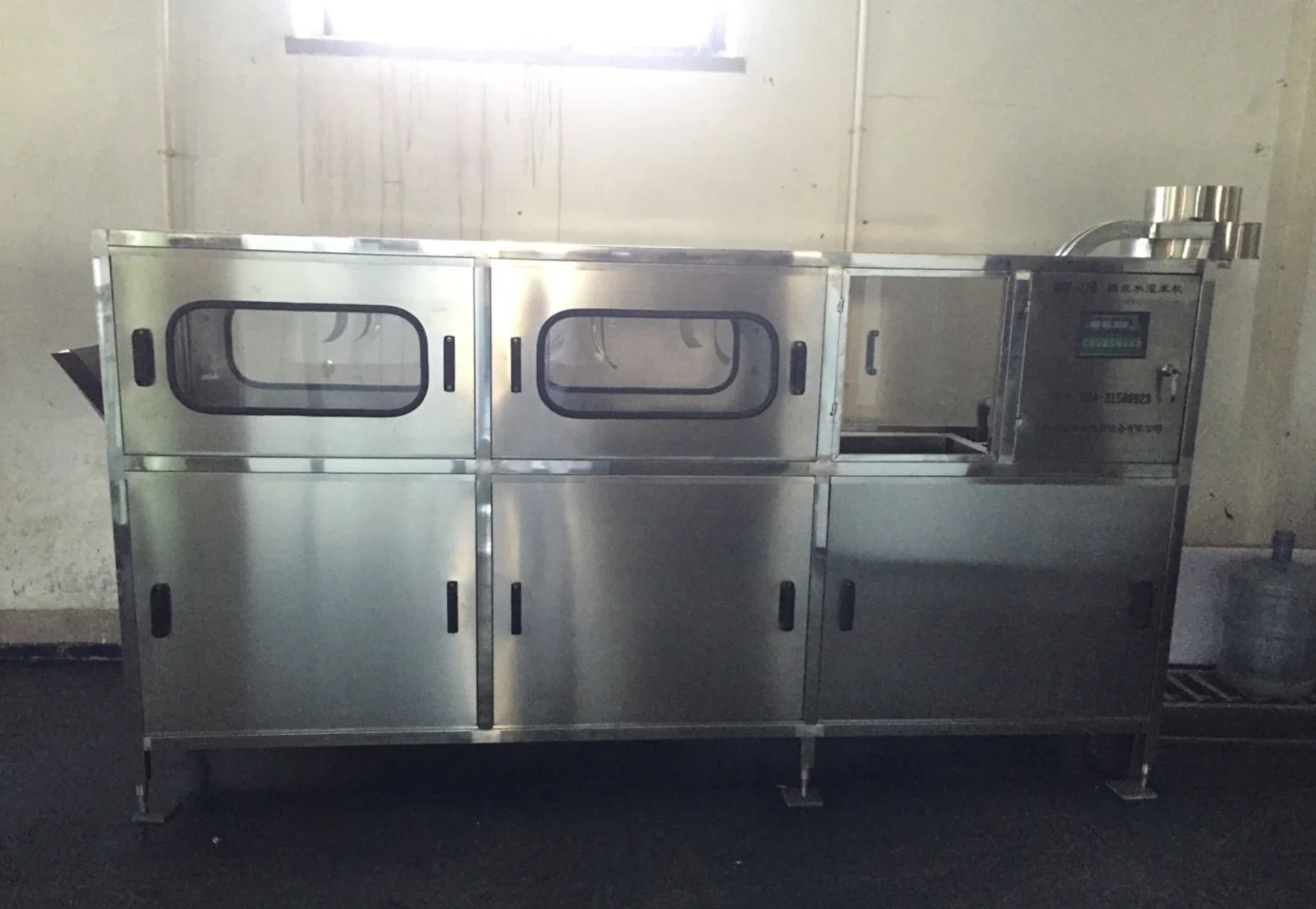

20L bottle water filling machine | ||||||||||
Model | LBJ-200 | LBJ-300 | LBJ-450 | LBJ-600 | LBJ-900 | |||||
Washing station | 1 row | 2 rows | 3 rows | 4rows | 6rows | |||||
Filling nozzles | 1 | 2 | 3 | 4 | 6 | |||||
Bottle type | 5 gallon Diameter:270mm; Height:490mm | |||||||||
Production capacity | 100-200BPH | 250-300BPH | 400-450BPH | 550-600BPH | 850-900BPH | |||||
Gas consumption | 0.37m3/min | 0.6 m3/min | 1.2 m3/min | 2.2 m3/min | ||||||
Pressure | 0.4-0.6Mpa | 0.6Mpa | ||||||||
Power | 1.75kw | 3.22kw | 4.8kw | 1.2kw | 2.2kw | |||||
Voltage | 380V 3phase 50HZ / CUSTOMIZE | |||||||||
Machine size | 3190*650*1550mm | 3100*900*1650mm | 3550*1100*1800mm | 3800*1100*1800mm | 3800*2200*1800 | |||||
Weight | 800kg | 1350kg | 1860kg | 2300kg | 3300kg | |||||
Features | Our 20L bottle water filling machine is suitable for 20L bottle and 5 gallon and 3 gallon barrel. we can provide speed from 100-2500BPH. complete line include: bottle loader--bottle de-capper--bottle brusher--bottle high pressure rinser--bottle multi-washing machine--bottle filling capping machine--bottle bagging machine--bottle palletizer. | |||||||||
Advantages | Does not damage the barrel, no second pollution, the equipment in the same in a leading level, is the large and medium-sized enterprise ideal equipment for barreled water. capacity: 600 barrels / hour to 2500 barrels / hour | |||||||||
Applications | 20L bottle water filling machine is mainly applied for the filling of beverage. Integrating with washing, filling and sealing, it realizes full automation in the whole process, suitable for polyester bottle and plastic bottle filling of mineral water and purified water. | |||||||||
25000BPH High Speed PET Bottle Water Filling Bottling Machine | ||||||||
Model | 60-40-15 | 18-18-6 | 24-24-8 | 32-32-10 | ||||
Capacity | 25000BPH | 5000-6000BPH | 8000-10000BPH | 10000-14000BPH | ||||
Applicable bottle | Plastic bottle 500ml-1.5L Plastic screw cap | |||||||
Applicable filling content | Mineral water, wine, non-carbonated water | |||||||
Washing station | 60 | 18 | 24 | 32 | ||||
Filling nozzle | 40 | 18 | 24 | 32 | ||||
Capping head | 15 | 6 | 8 | 10 | ||||
Main motor power | 15kw | 2.5kw | ||||||
Water pump power | 0.37kw | |||||||
Dimension | 4350*2850*2450mm | 2700*2100*2450mm | 2800*2400*2450mm | 3200*2800*2450mm | ||||
Weight | 5500kg | 4500kg | 5500kg | 6800kg | ||||

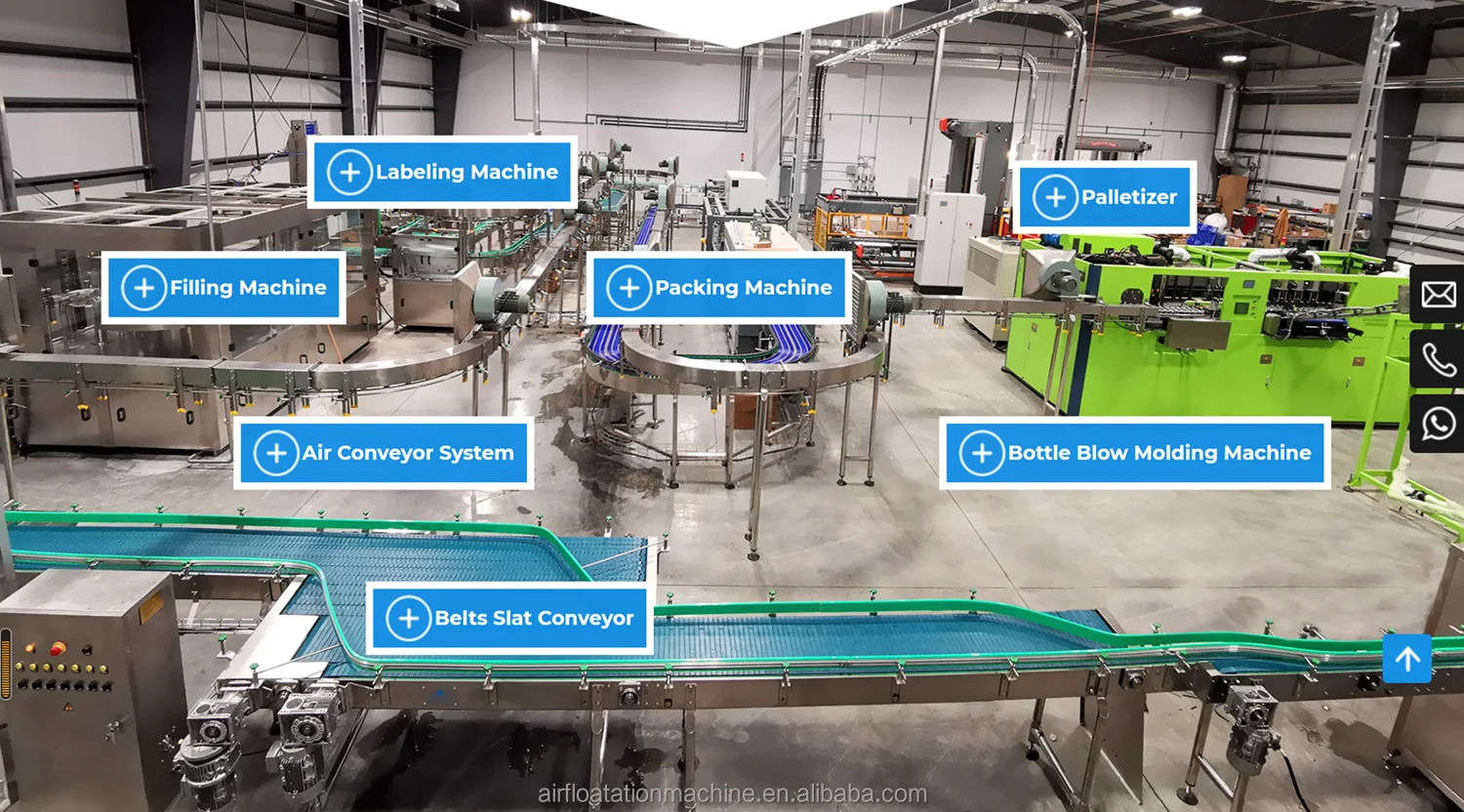

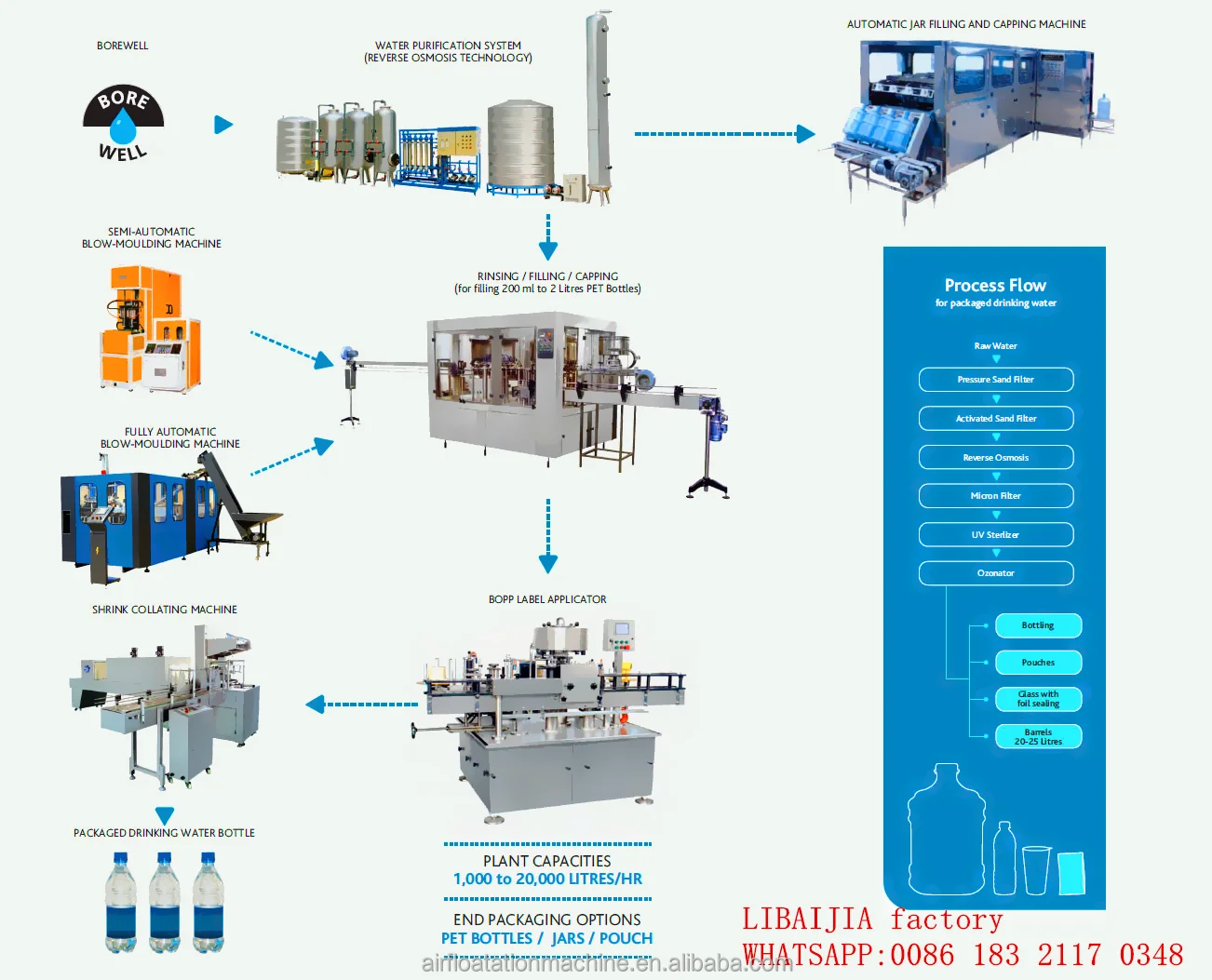

Inroduction of Water Production Line

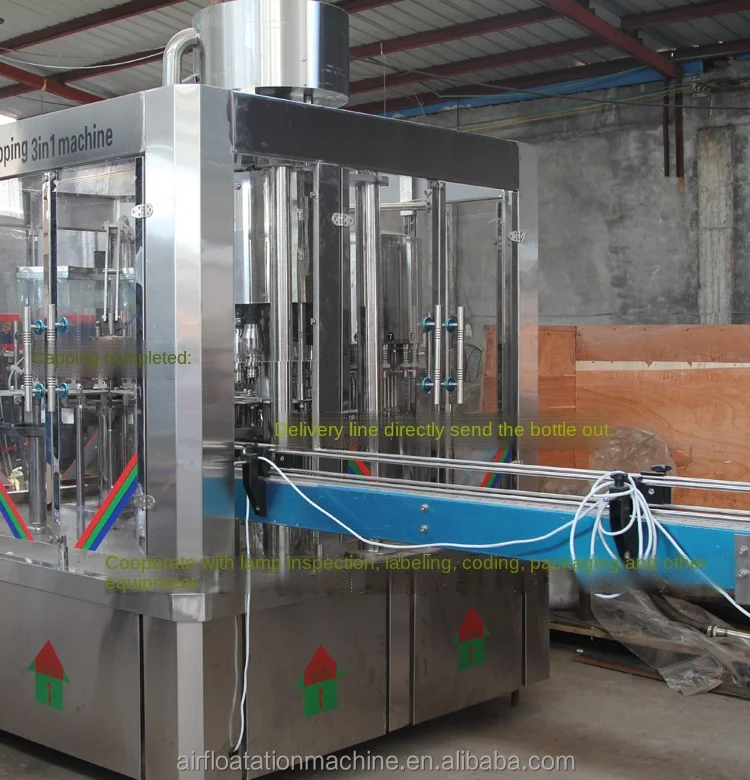

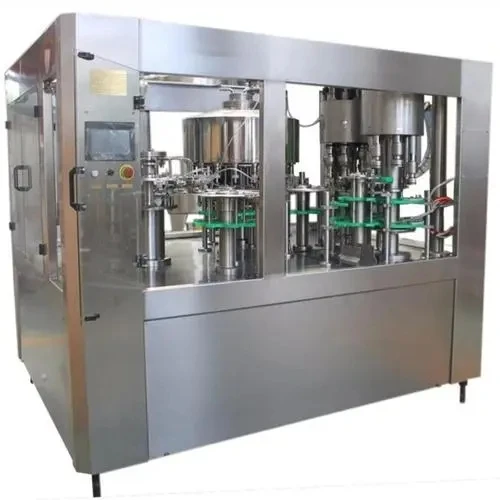

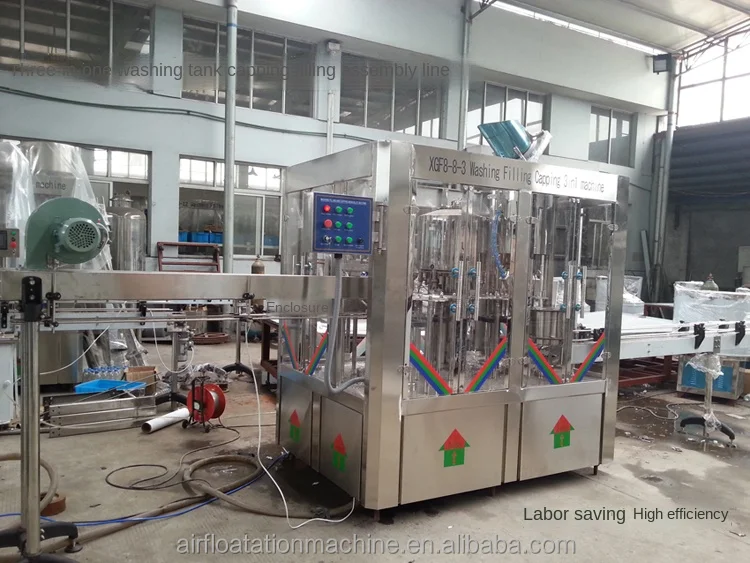

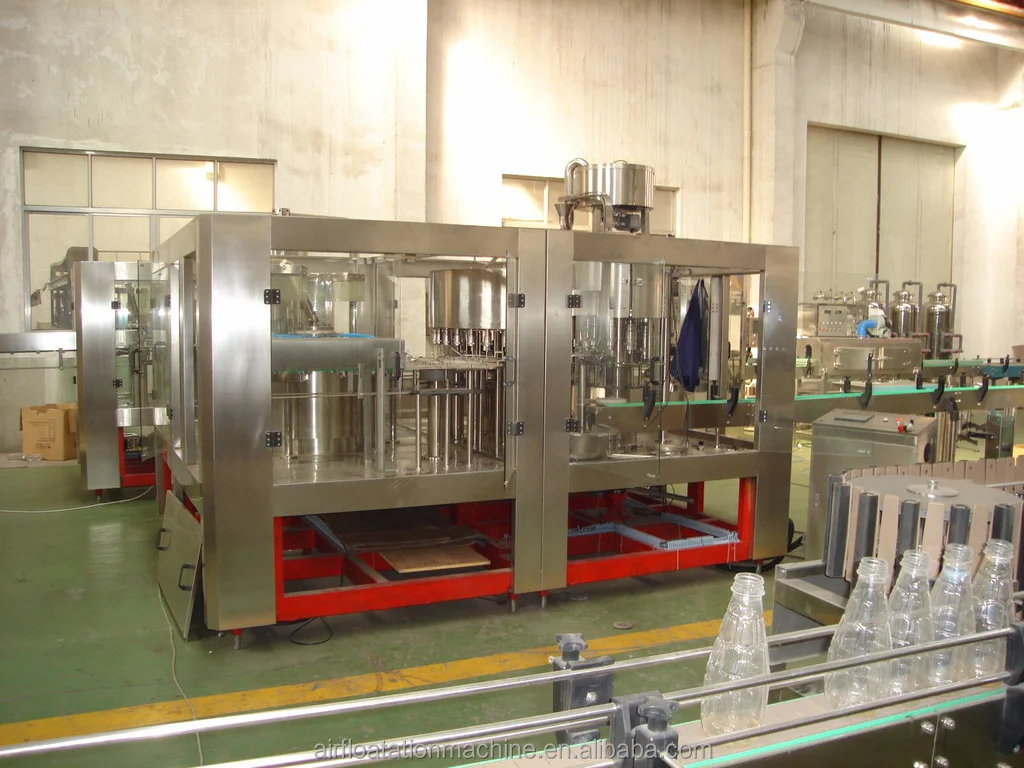

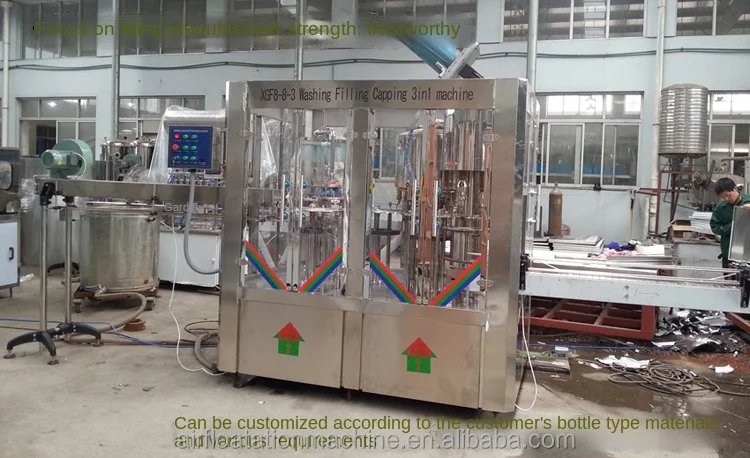

This Automatic 3-in-1 Wash-filling-capping Water Filling Machine is used to produce bottled mineral water, purified water,
flavored water, alcoholic beverage and other non-gas Liquid. This Machine can be applied to all kinds of plastic products such as PET, PE. Bottles size varies from 250ml-2500ml meanwhile few changeover is needed. This series of filling machine capacity varies from 1000BPH to 32000BPH.
Our water filling machine is designed for the bottle water factory. It features low water and low electricity consumption, small space occupation as well as easy operation. At the same time It improves the sanitary conditions and simplifies the maintenance compared with the last generation water filling machine. it can perfectly complete the function of automatic washing, filling and capping, which has been aproved by our clients as technical matured and quality product.
flavored water, alcoholic beverage and other non-gas Liquid. This Machine can be applied to all kinds of plastic products such as PET, PE. Bottles size varies from 250ml-2500ml meanwhile few changeover is needed. This series of filling machine capacity varies from 1000BPH to 32000BPH.
Our water filling machine is designed for the bottle water factory. It features low water and low electricity consumption, small space occupation as well as easy operation. At the same time It improves the sanitary conditions and simplifies the maintenance compared with the last generation water filling machine. it can perfectly complete the function of automatic washing, filling and capping, which has been aproved by our clients as technical matured and quality product.
Installation Instructions
LIBAIJIA offers expertly trained technicians to assist you in installing your equipment. Upon installation of you equipment or line, the technician stays on-site to watch your new equipment run smoothly and train your operators. Even after our specialist leaves your plant, LIBAIJIA is ready to give you prompt, courteous service when you need it.
LIBAIJIA will offer engineer oversea installation with the buyer providing proper accommodation, all the fees for transportation,insurance and medicines, and salary for our engineers*1.
Installation of equipment or bottling line at the customer’s plant
Coordinate schedule with mechanics to perform changeovers and preventive maintenance activities
Perform mechanical adjustments (if needed) on equipment and packaging line to optimize equipment’s performance
Resolve equipment issues
Document all work activities according to Proper Documentation Practices
Provide on-site training on all assigned procedures
An LIBAIJIA Packaging Technician will be in-charge of the equipment setup and adjustment in your plant. All of the activities will be focused on optimizing the equipment to maximize production output. LIBAIJIA also ensures that the technician will execute routine packaging operations to fully meet production demands.
LIBAIJIA will offer engineer oversea installation with the buyer providing proper accommodation, all the fees for transportation,insurance and medicines, and salary for our engineers*1.
Installation of equipment or bottling line at the customer’s plant
Coordinate schedule with mechanics to perform changeovers and preventive maintenance activities
Perform mechanical adjustments (if needed) on equipment and packaging line to optimize equipment’s performance
Resolve equipment issues
Document all work activities according to Proper Documentation Practices
Provide on-site training on all assigned procedures
An LIBAIJIA Packaging Technician will be in-charge of the equipment setup and adjustment in your plant. All of the activities will be focused on optimizing the equipment to maximize production output. LIBAIJIA also ensures that the technician will execute routine packaging operations to fully meet production demands.
Successful Project
mineral water plant machine automatic in Ghana water filling 3 to 5 gallon water filling machine filling machine bottle water
water filling line plastic water bottles machine in Kenya small bottle water filling machine water filling machine cup
bottle filling machine
water filling plant water cup filling and sealing machine bottle water filling machine automatically filling bottle water machine semi automatic water bottle filling machine bottle water filling machine sellers in sri lanka
water filling machine water bottle filling machine
filling machine water small scale bottle water filling machine 5 gallon water filling machine plastic water bag filling sealing machine 1000 bph water bottle filling machine

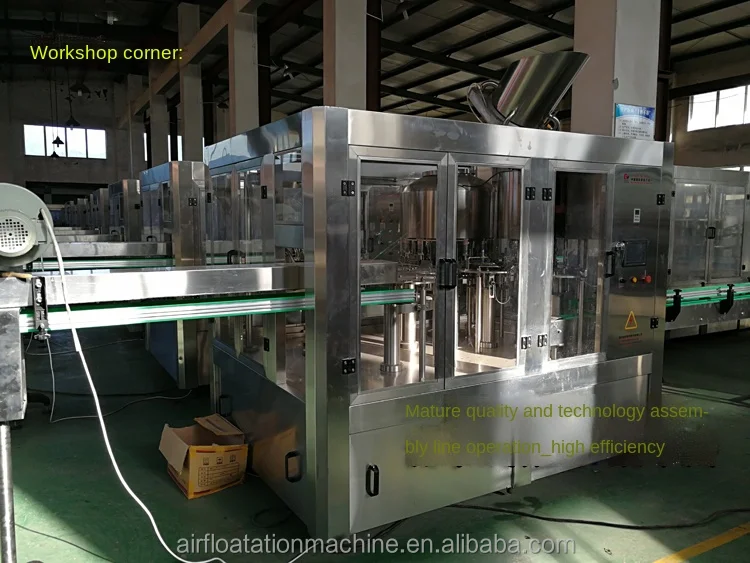

Work shop
Main Features Of Small Bottle Drinking Water Filling Machine
1,The all machine applies bottle handling technical and the filling valves go up-down when filling, which make sure the bottle filling goes stable, reliable during high speed. The bottle handling technical also make the different bottle changing easily without changing too many accessories.
2, This machine uses new generation stainless steel spring washing clips and the clips do not contact the upside of bottle screw avoiding the second pollution. It can both clear the inside and the outside of the bottle.
3, The advanced normal pressure filling principle was applied. Filling is quick, and stable. Not contacting with the liquid avoids second pollution and oxidation.
4, This machine applies magnetic force screw type sealing, realizing auto grasping cap, sealing. The sealing cap force can be adjusted.
5, Independent electricity box makes sure every electrical appliance works normally.
2, This machine uses new generation stainless steel spring washing clips and the clips do not contact the upside of bottle screw avoiding the second pollution. It can both clear the inside and the outside of the bottle.
3, The advanced normal pressure filling principle was applied. Filling is quick, and stable. Not contacting with the liquid avoids second pollution and oxidation.
4, This machine applies magnetic force screw type sealing, realizing auto grasping cap, sealing. The sealing cap force can be adjusted.
5, Independent electricity box makes sure every electrical appliance works normally.
Certifications
FAQ
Maintenance of automatic water filling machine:
Every shift of production shall carry out an overall clean of machine and the inspection of the fixing parts to ensure no looseness either at beginning or at the end.
If the meshing of gears is not satisfactory the remedy work shall be carried out and lubricate the gears with grease at last.
When the seasonal production is finished or any temporal stop of production happens in a year, an overhaul shall be carried out and the wearing-and-tearing parts should be replaced ensuring the satisfactory production of next term.
If the meshing of gears is not satisfactory the remedy work shall be carried out and lubricate the gears with grease at last.
When the seasonal production is finished or any temporal stop of production happens in a year, an overhaul shall be carried out and the wearing-and-tearing parts should be replaced ensuring the satisfactory production of next term.
* water bottling machine * mineral water filling machine * pure water filling machine * pure water bottling machine
* water bottling plant * water filling equipment * water filling machine supplier * mineral water pet bottle machine
* water filling machine manufacturer * mineral water bottling equipment * bottled water machine * mineral water plant
* water production machine * bottled water making machine
* water bottling plant * water filling equipment * water filling machine supplier * mineral water pet bottle machine
* water filling machine manufacturer * mineral water bottling equipment * bottled water machine * mineral water plant
* water production machine * bottled water making machine
Monoblock means the filling machine integrates washing machine, filling machine and capping machine in one frame. The driving system will be transmitted step by step which makes the speed more stable.
The monoblock filling machine will be made basing on:
1, the production capacity per hour
2, bottle type: plastic bottle, glass bottle or another
3, cap type: plastic screw cap, aluminum screw cap or another
Please send us the inquiry with above points so that we can help to send better quotation for reference.
The monoblock filling machine will be made basing on:
1, the production capacity per hour
2, bottle type: plastic bottle, glass bottle or another
3, cap type: plastic screw cap, aluminum screw cap or another
Please send us the inquiry with above points so that we can help to send better quotation for reference.
1, When you can arrange the delivery after customers place the order ?
A: Normally production time is around 30-60days,the exactly depend on what kind of machine you ordered .
2, How long time for installation?
A: According your machines order,we will arrange one or two engineers to your factory,it will take about 1 to 2 weeks.
3, What kind payment be accepted by LIBAIJIA?
A: We can accept L/C,West union,TT
4, How to install my machines when it arrives?how much the cost?
A: We will send our engineers to your factory to install the machines and train your staff how to operate the machines.Customer pay air tickets go and back,accommodation,food,and so on.USD 100/DAY/PERSON
Installation and maintenance:
The machines should have good maintenance twice for 6 months,and for installation, you can get the manual guide from LIBAIJIA, or we can sent our engineers to help you.
A: Normally production time is around 30-60days,the exactly depend on what kind of machine you ordered .
2, How long time for installation?
A: According your machines order,we will arrange one or two engineers to your factory,it will take about 1 to 2 weeks.
3, What kind payment be accepted by LIBAIJIA?
A: We can accept L/C,West union,TT
4, How to install my machines when it arrives?how much the cost?
A: We will send our engineers to your factory to install the machines and train your staff how to operate the machines.Customer pay air tickets go and back,accommodation,food,and so on.USD 100/DAY/PERSON
Installation and maintenance:
The machines should have good maintenance twice for 6 months,and for installation, you can get the manual guide from LIBAIJIA, or we can sent our engineers to help you.
