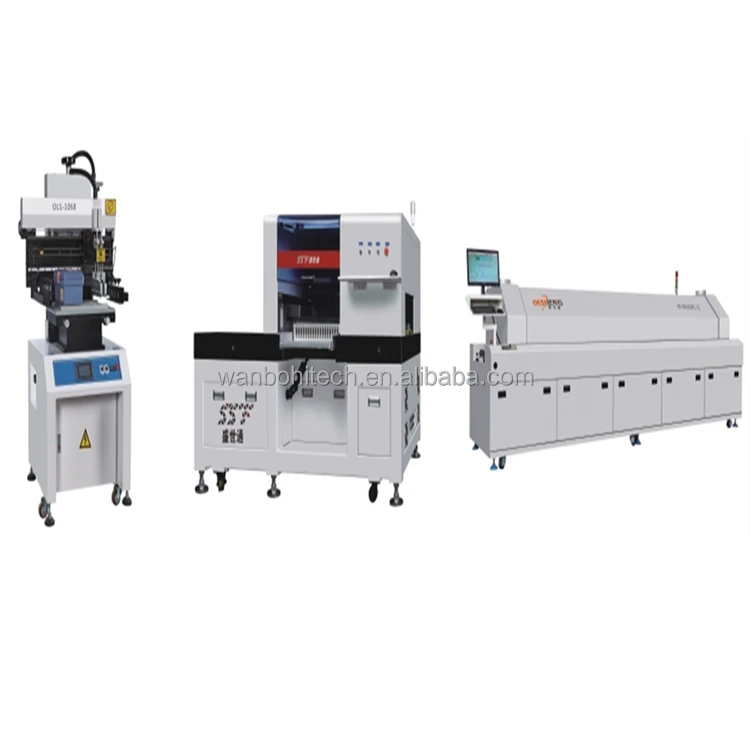

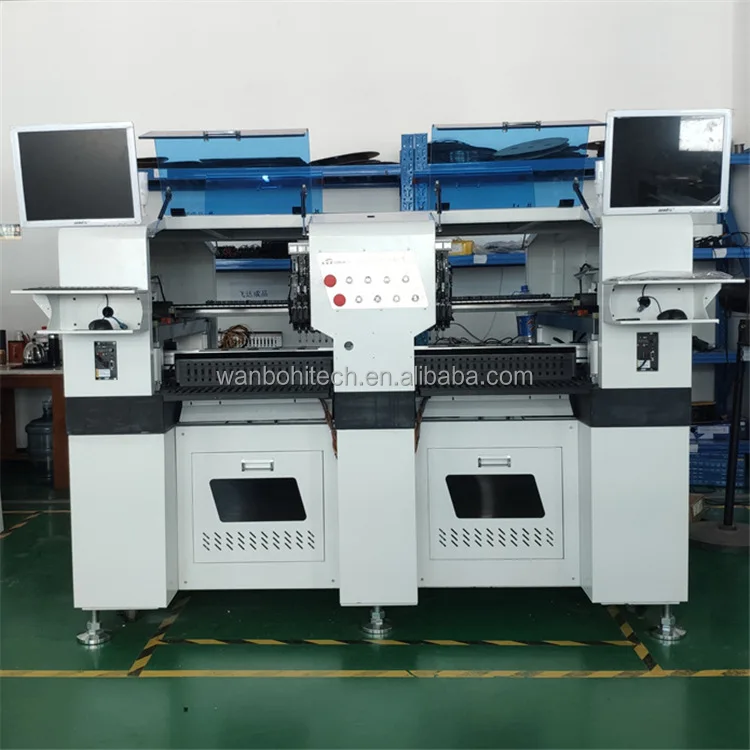

LED bulb light tube light LED strip smt machine, LED driver charger pcb smt production line

Product Overview

Description

LED bulb light tube light LED strip smt machine, LED driver charger pcb smt production line

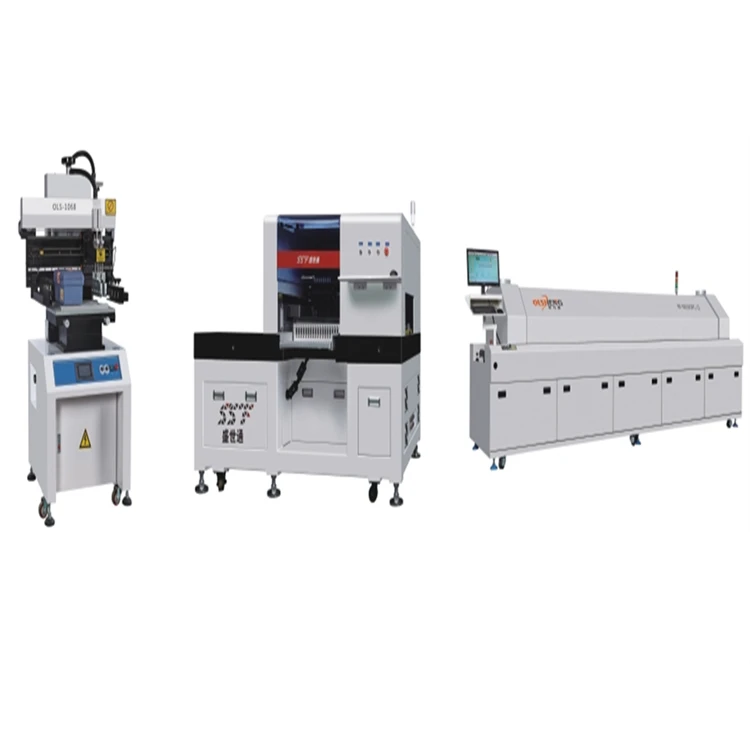

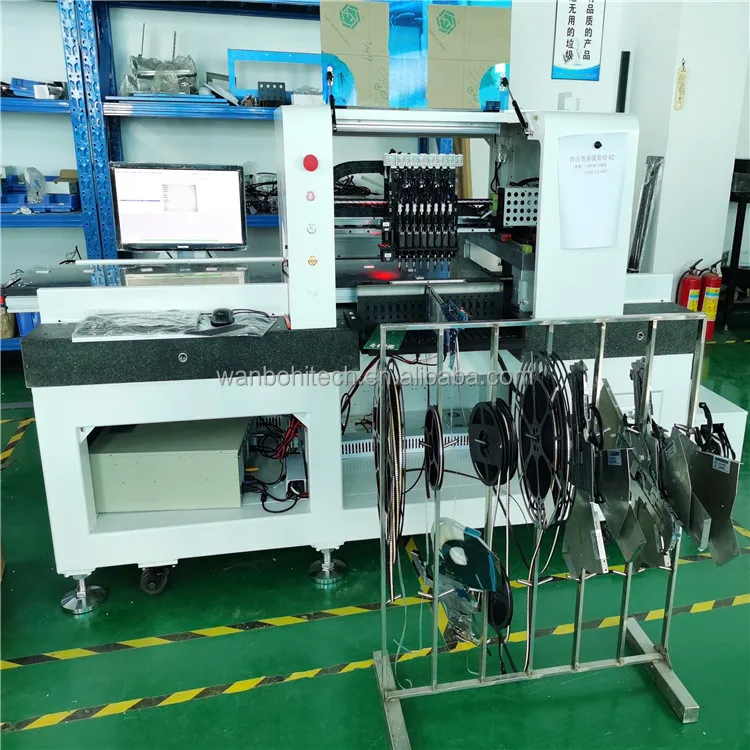

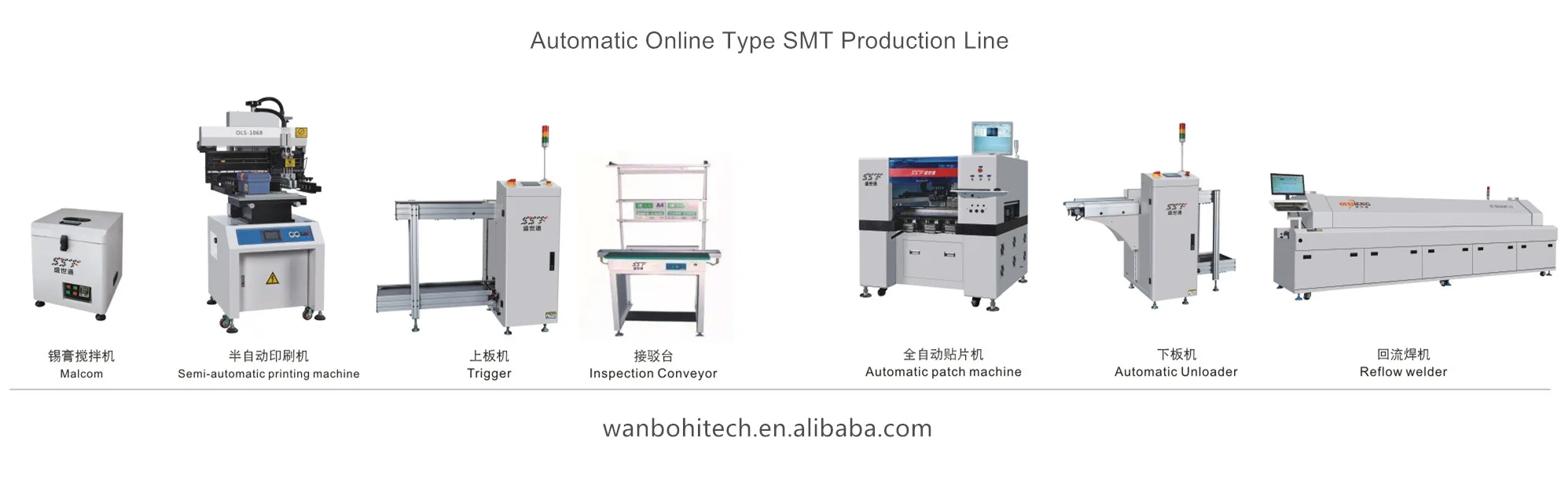

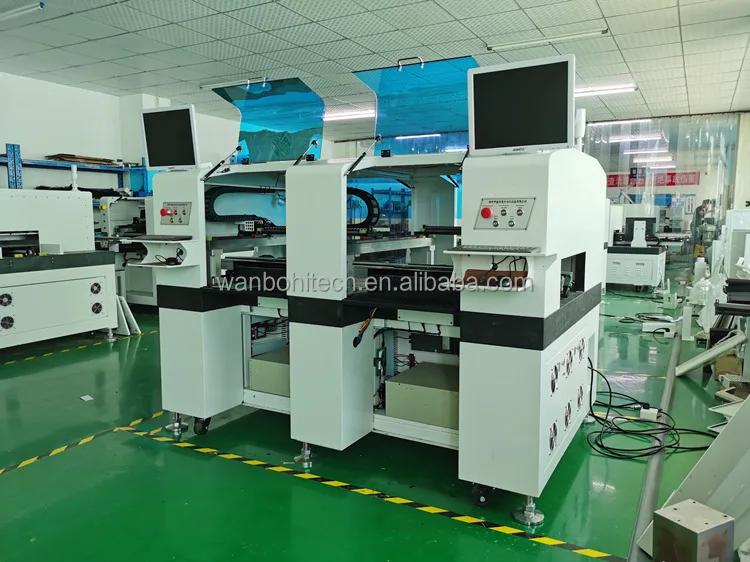

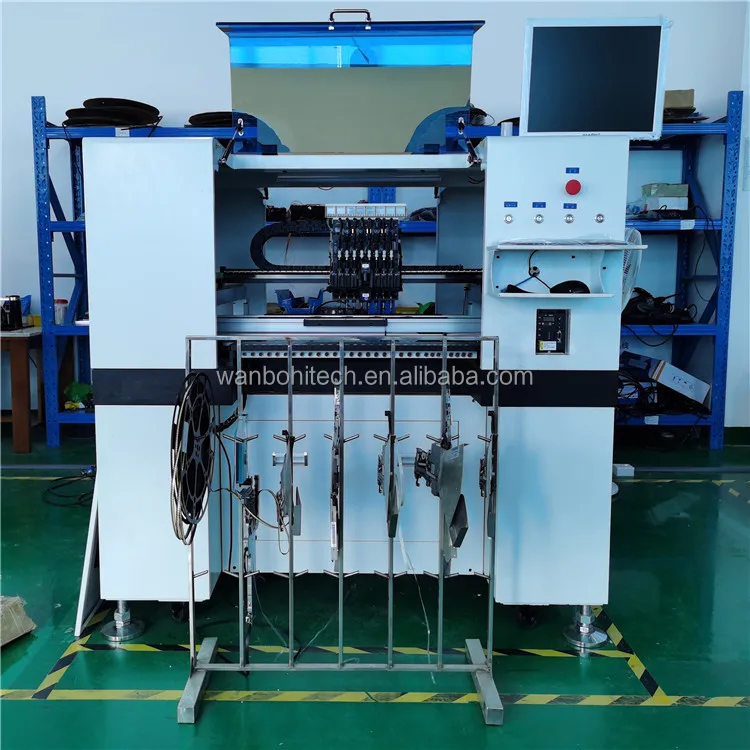

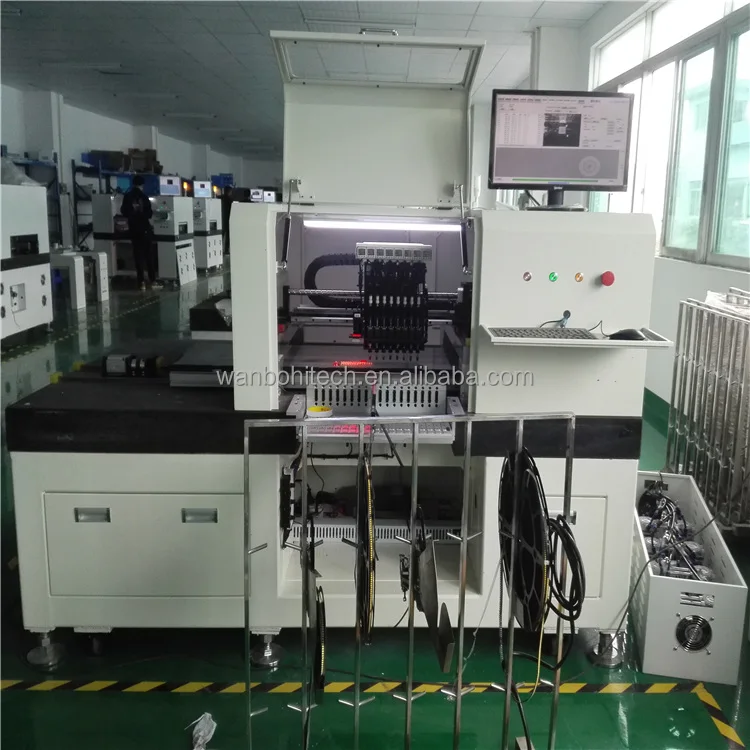

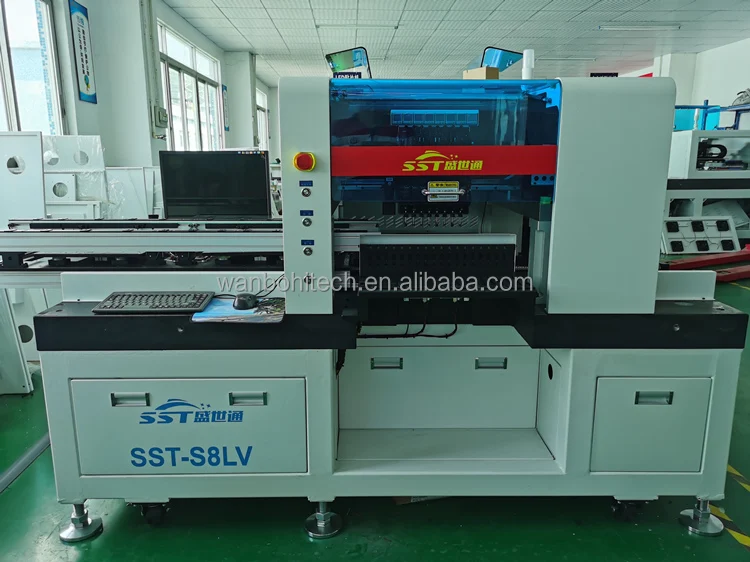

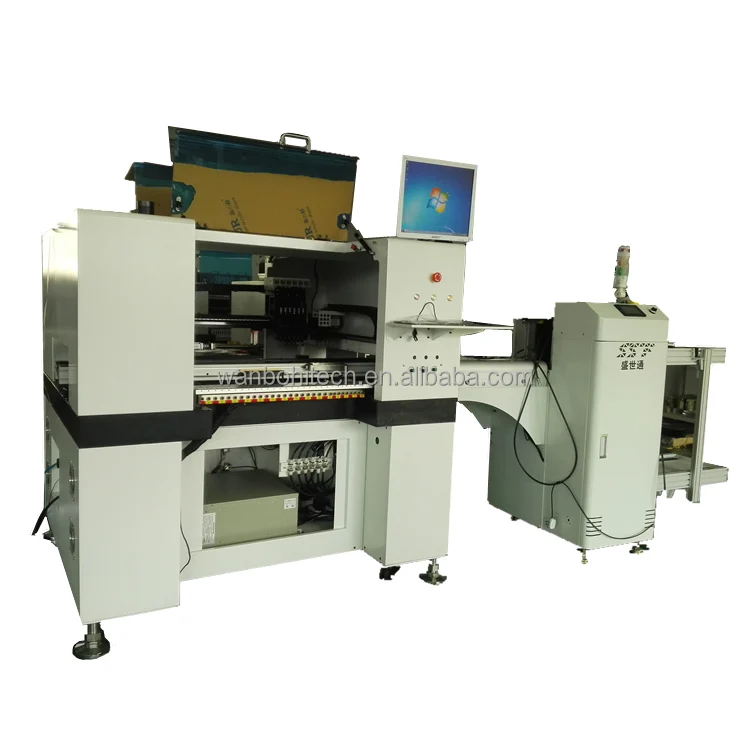

Product name: Automatic multifictional LED smt pick and place machine, LED SMT line

Product main features:

1. The platform USES the Japanese panasonic servo motor, imported orbit, ensure the stability and control precision of mobile platform.
2. The X, Y axis adopt panasonic servo drive, with imported linear guide, ensure the patch of high precision, high speed, the stability of the first-class.
3. 4 sets high speed post opening work at the same time, greatly improve the equipment performance. Under the suction head adopt the imported guide rail, high precision and long durability.
4. Easy to understand way of graphical programming, greatly improve the convenience of operation, automatic visual auxiliary positioning positioning, accurate, convenient.
5. The selection of a variety of batcher, can satisfy the requirement of different LED packaging components of SMT.
6. Controlled by industrial control computer + independent special controller, system stability, simple operation, easy to learn.
7. Powerful software, programming coordinates using numerical and graphical display, coordinate correction and change is convenient, the production process of graphical display patch progress and components, subsidy is convenient.
8. The software USES the database system, different types of PCB programming can be stored, convenient call, a programming of new products, calling for life.
9. The platform, the Y axis, the X axis can be manually move, free movement speed adjustment, realize arbitrary point can manually to arrive, convenient programming.
10. Imported negative pressure detection system, to accurate detection of absorption material, effectively prevent leakage of material, extractor.
11. A negative pressure generator with built-in, low noise, long service life, vacuum pressure constant.
12. The standard configuration: 1 set of industrial control computer, opening four groups, suction nozzle 12;

13. Optional: matchs outside to 8 mm, 12 mm, 16 mm and 24 mm yamaha feeder; Air compressor;

Technical parameters:



Machine Model	WANBO SST-S6, SST-S8, SST-H560, SST-H580
The biggest circuit board area	500×400mm
Maximum moving range	X axis 500mm, Y axis 400mm
Z axis Maximum moving range	12mm
Typical patch speed	15000-20000cph
Typical LED lens patch speed	20000cph-35000cph
The theory of maximum patch speed	35000cph
positionaI accuracy	±0.05mm
Location way	Mark point camera + 6 sets sony Visual camera positioning + 1 industrial camera
Components can be placed	0603 above to 7272 resistors and capacitors, and all kinds of 0603 and 3528, 5050, 5630, 5730, meet placement of SOP, SOT chip, LED power driver, driver board, and compatible with all kinds of high-power chip SMD componets, LED lens placement
Programm method	Computer graphical programming + visual camera positioning
Feeder applicable	8mm, 12mm, 16mm and 24 belt type feeder, or vibration plate
Number of feeder	Standard placed 14pcs feeders of 8mm
nozzles	JUKI nozzle 504, 505 and 506

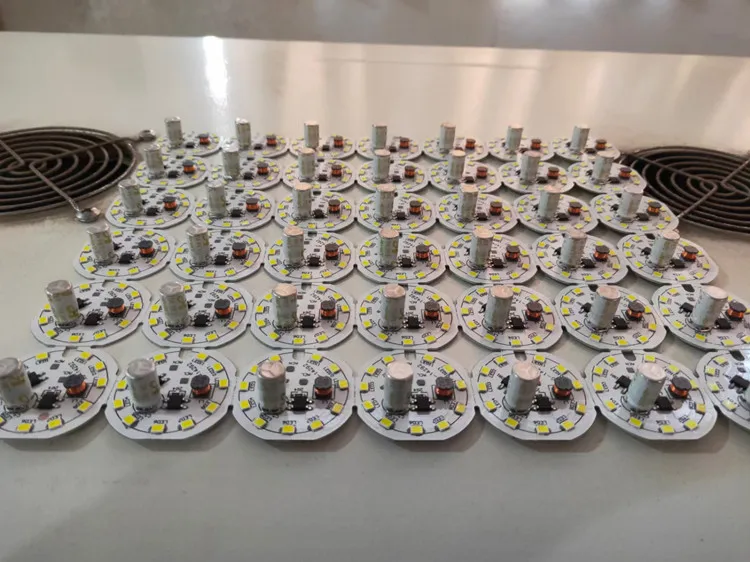

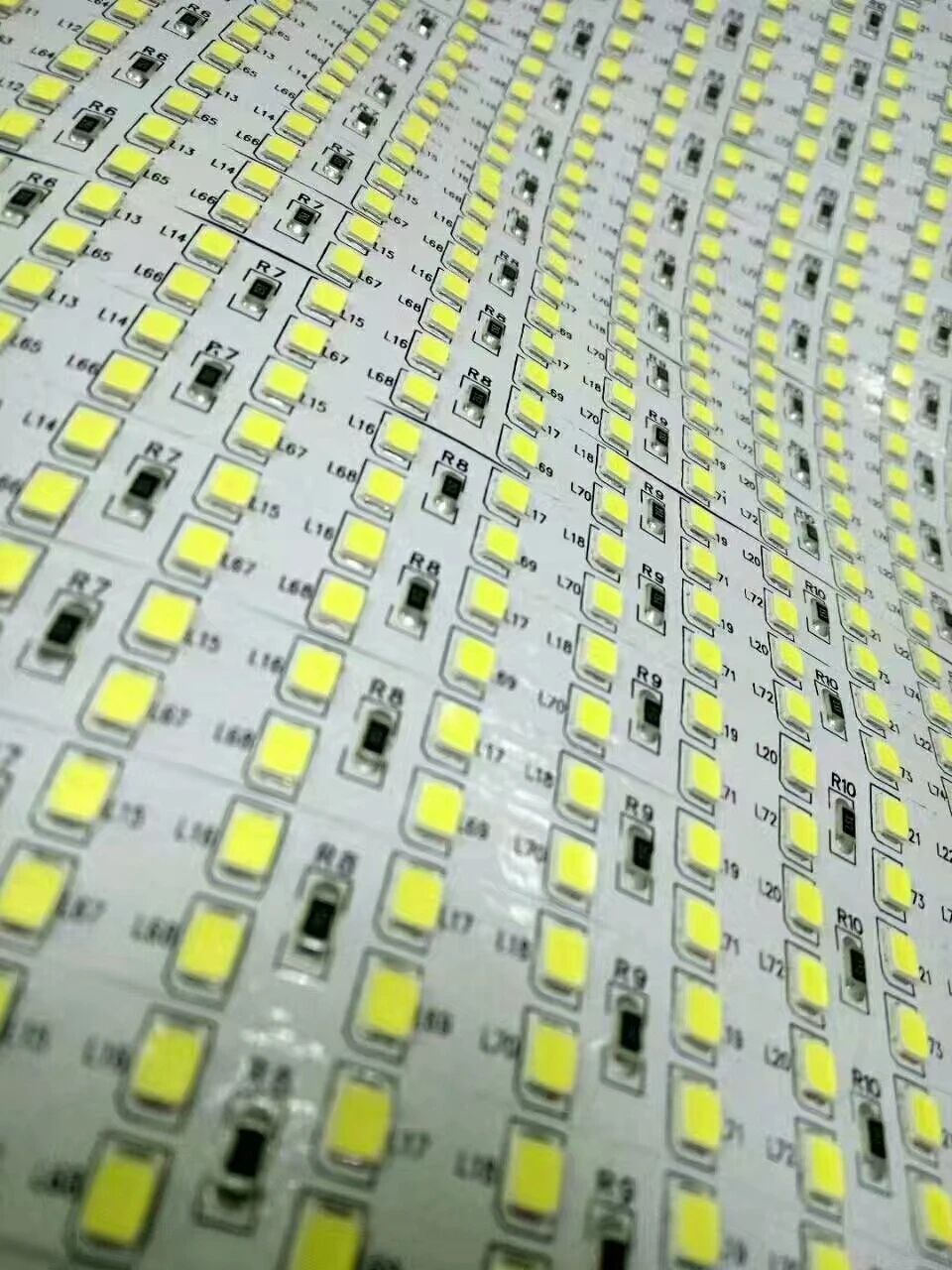

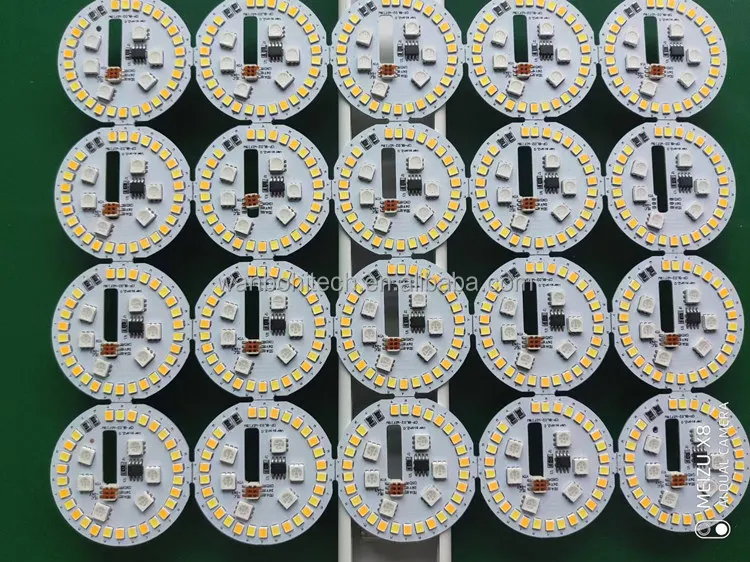

Product	LED fluorescent tube, soft light belt, power drive, guardrail tube, module, display and other LED applications
operating system	WINDOWS XP, WIN 7
negative pressure	An external air source 0.55MPA
Power and rate	220V, 50Hz, 1.2KW
Weight	1500Kg
Dimension	1300MM(L)*1300MM(W)*1450MM(H)

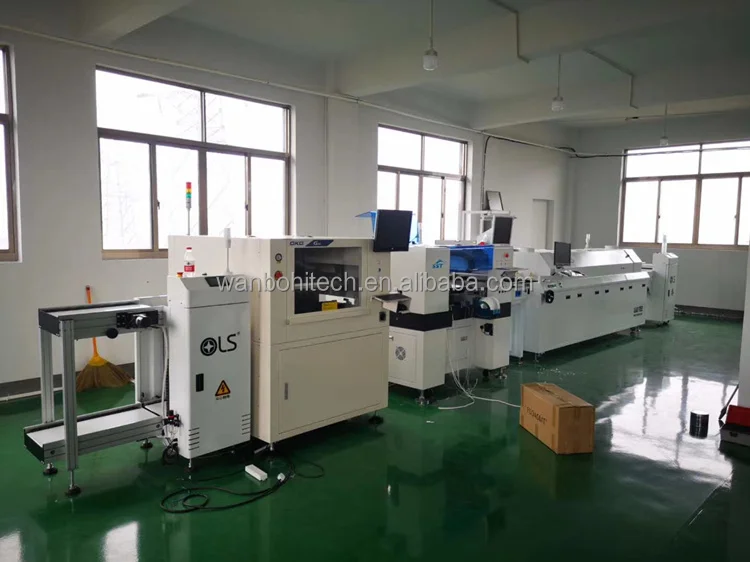

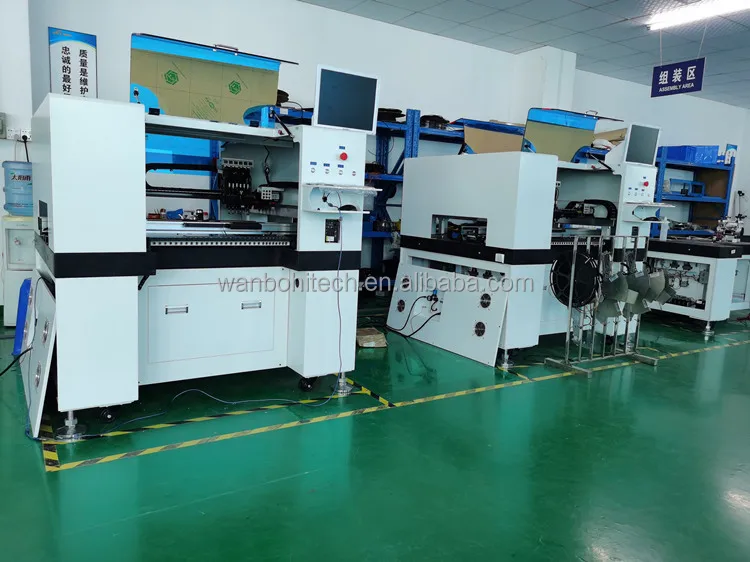

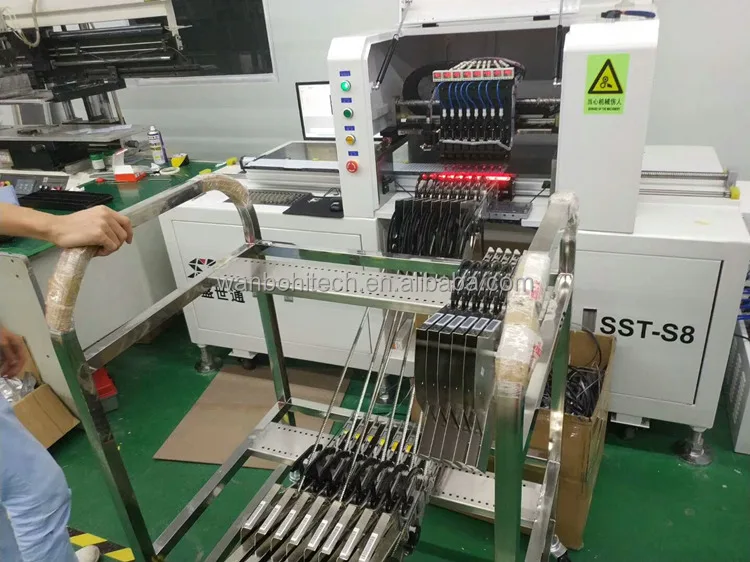

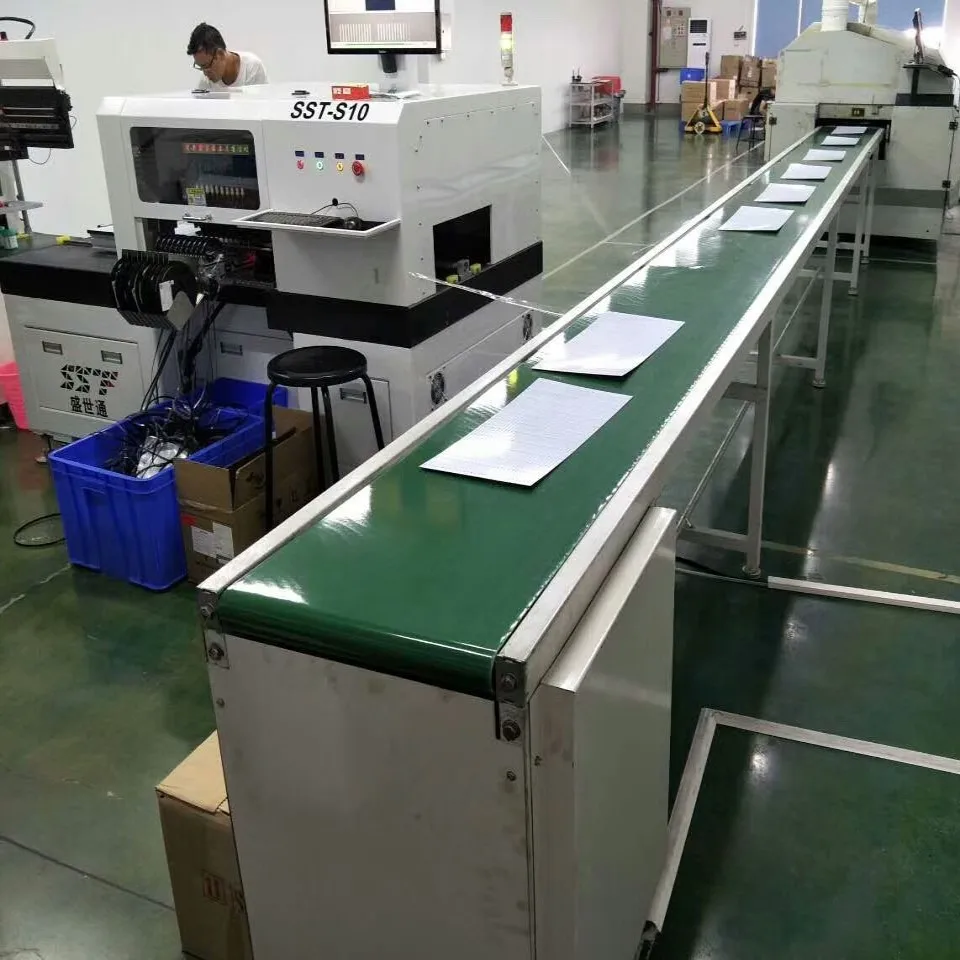

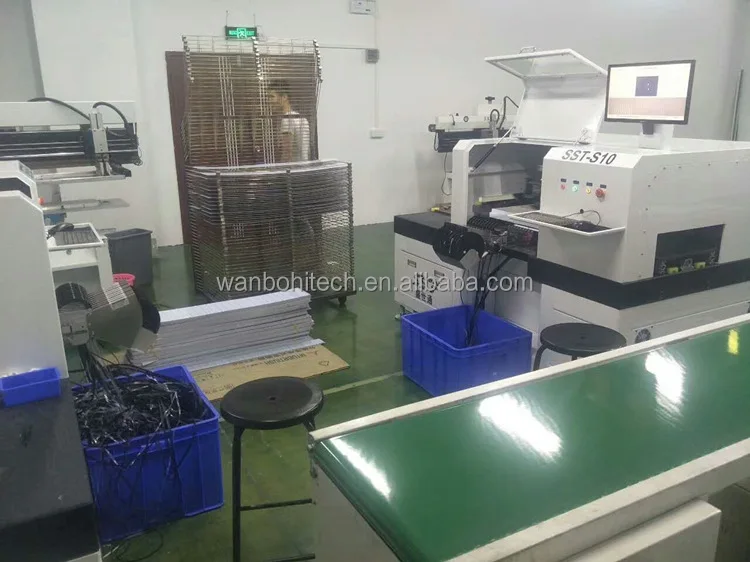

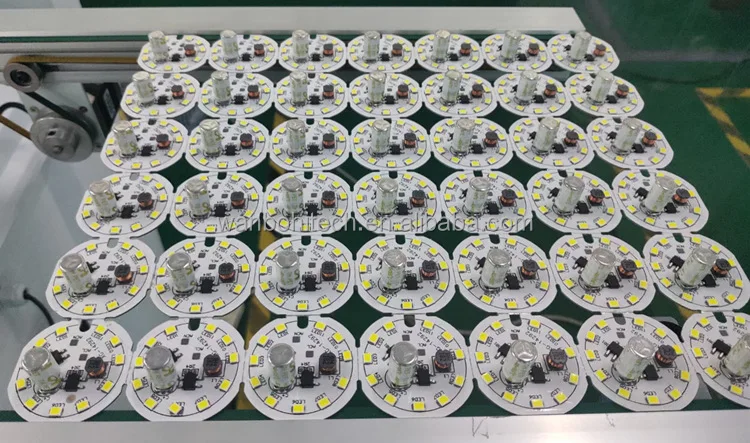

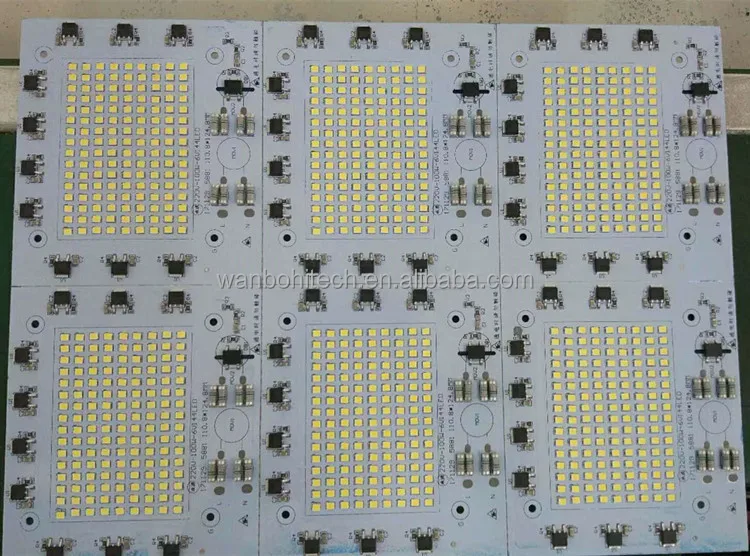

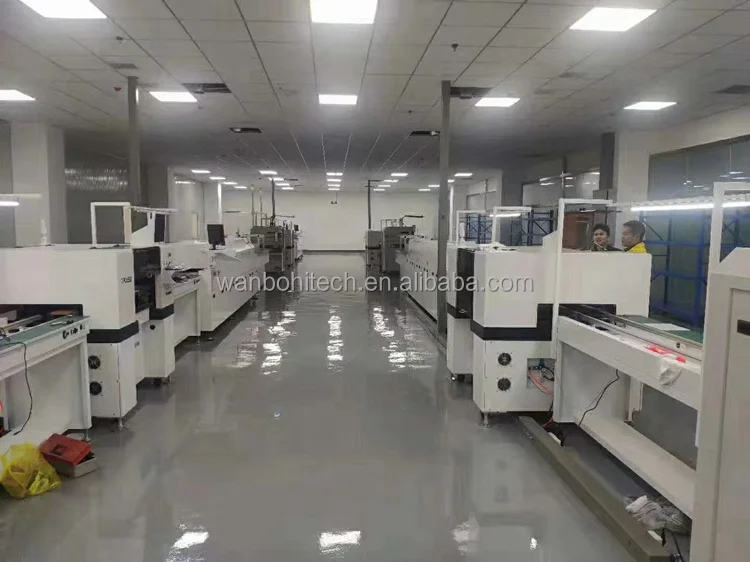

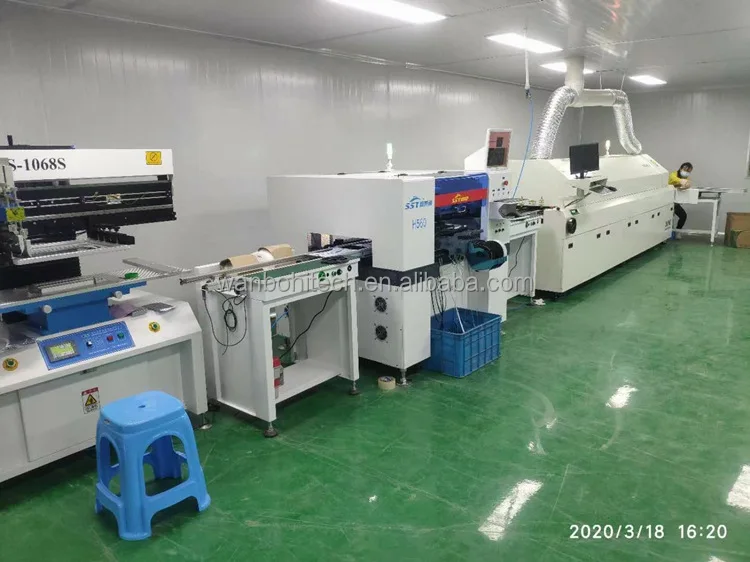

LED SMT produciton line picture from our customer factory:

Freight cost of system is not exact, customer can use own shipping agent. we also provide shipping to customer nearest port.
