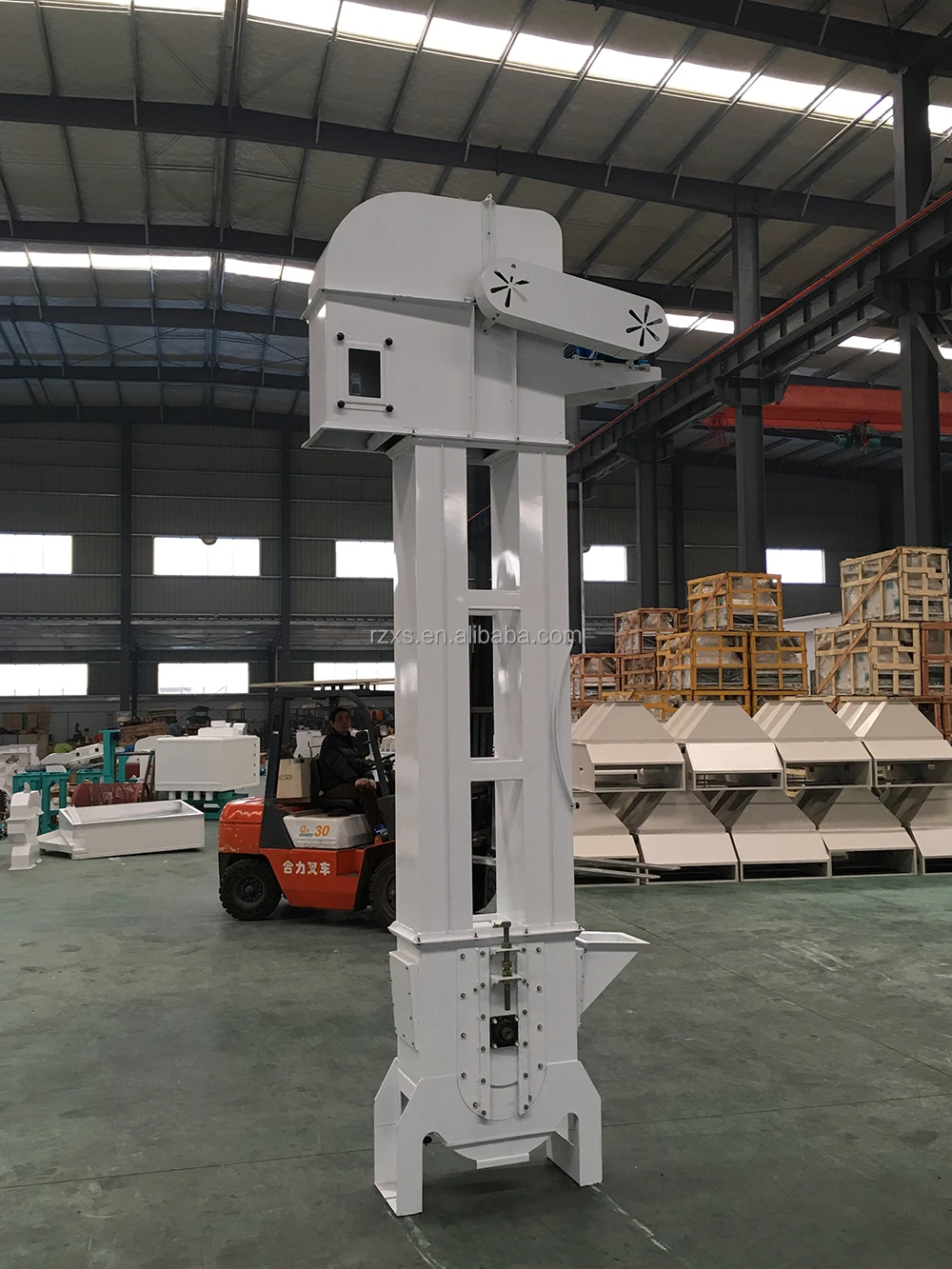

TDTG26/13 wholesale price rice mill grain processing machine centrifugal discharge maize wheat bean feed bucket elevator
- Category: >>>
- Supplier: Rizhao Stream International Co. Ltd.
Share on (1600424947312):
Product Overview
Description
Product Description

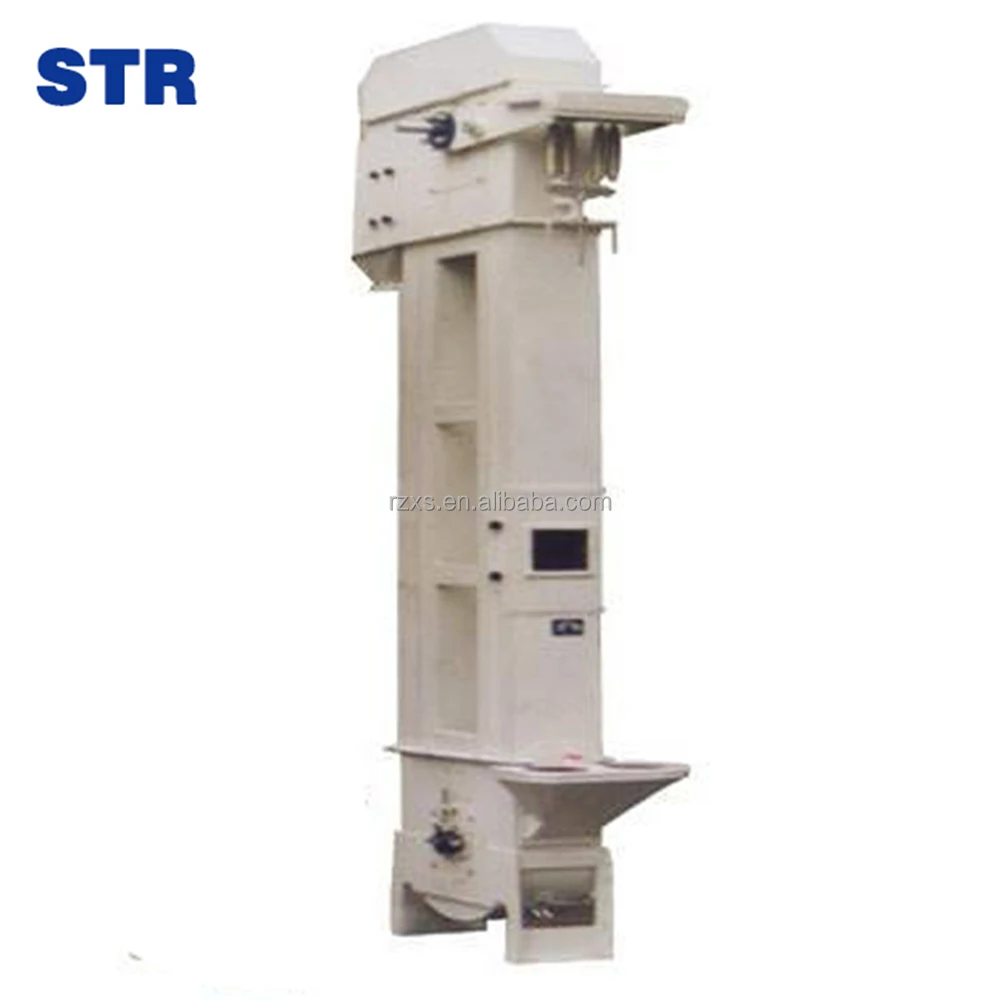

TDTG26/13 wholesale price rice mill grain processing machine centrifugal discharge maize wheat bean feed bucket elevator
TDTG series low speed bucket elevator is an ideal hoisting machine in rice processing factory to avoid rice broken during transportation. It features steady operation, large hoisting capacity. Its bucket has auto-tightening device, lifting height from 3m to 25m,Capacity ranges from 8~650 tons per hour.
Product Features
1.Small installation space,large capacity, high lifting height
2. Total enclosed structure with good sealing,no dust leak out.
3. Materials are fed into the bucket evenly ;
4. The height of elevator is customized according to real condition;
5. The bucket tension can be adjusted easily;
6. Less back-flow.
2. Total enclosed structure with good sealing,no dust leak out.
3. Materials are fed into the bucket evenly ;
4. The height of elevator is customized according to real condition;
5. The bucket tension can be adjusted easily;
6. Less back-flow.
Working principle
The driving device drives the pulley to make the belt with plastic buckets do circular movement from head to tail.There is feeding inlet at tail and discharging outlet at head.Thus materials are fed from the bottom and discharged from the top.
The bucket filled with material goes to the head section, then the material is thrown out from the outlet under the action of centrifugal force.The empty bucket goes back to the tail section and filled with material at the inlet again,then lifted up to head section and do parabolic discharge movement for discharging. The cycle realizes the vertical transportation of materials.
The driving device drives the pulley to make the belt with plastic buckets do circular movement from head to tail.There is feeding inlet at tail and discharging outlet at head.Thus materials are fed from the bottom and discharged from the top.
The bucket filled with material goes to the head section, then the material is thrown out from the outlet under the action of centrifugal force.The empty bucket goes back to the tail section and filled with material at the inlet again,then lifted up to head section and do parabolic discharge movement for discharging. The cycle realizes the vertical transportation of materials.

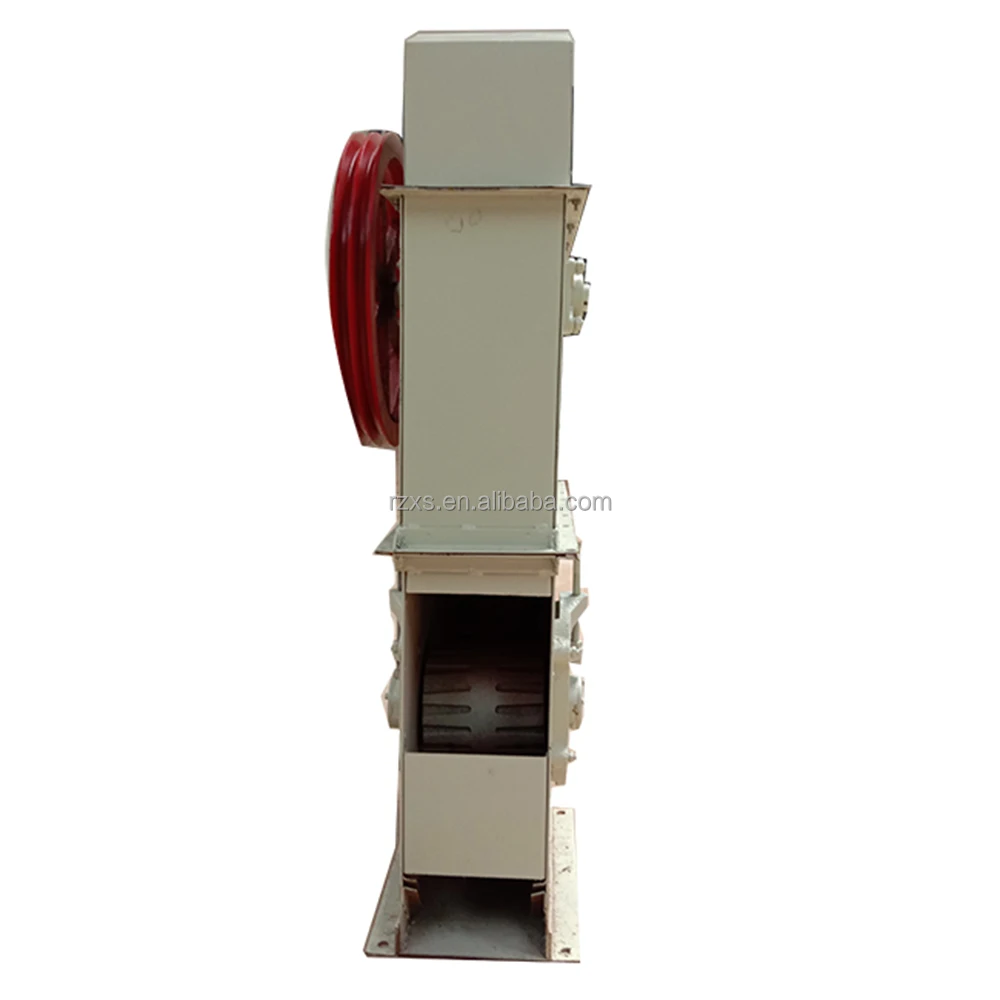

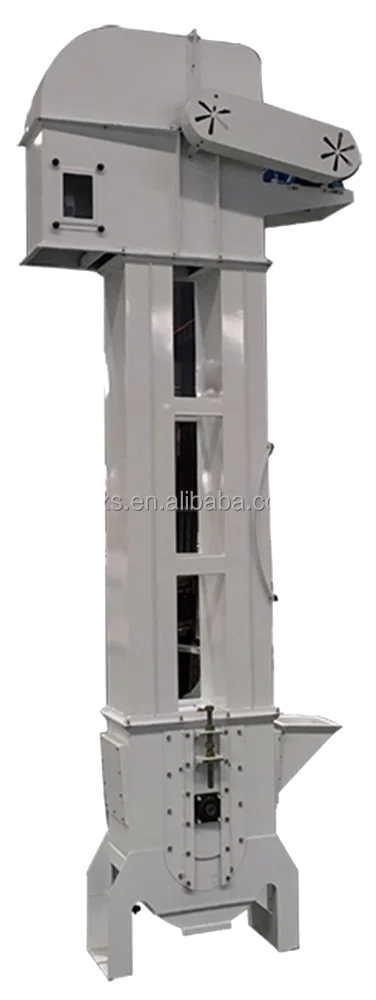

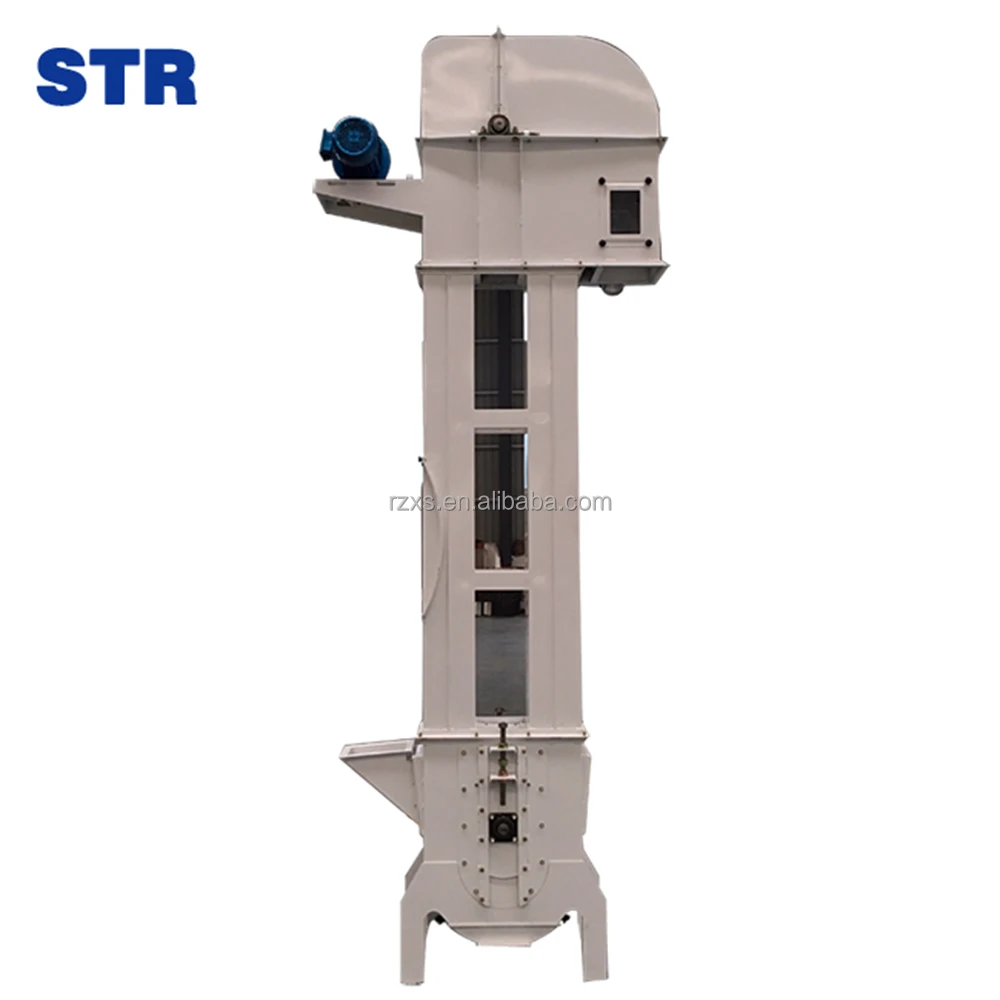

Details Images
Product Paramenters
Machine type | TDTG | TDTG | TDTG | TDTG | TDTG | TDTG | TDTG | TDTG | TDTG |
26*15 | 40*19 | 40*23 | 61*29 | 70*33 | 80*47 | 80*51 | 100*47*2 | 110*51*2 | |
Conveying capacity(T/H) | 8~15 | 20~35 | 20~35 | 35~50 | 60~100 | 120~200 | 150~250 | 350~550 | 400~650 |
Speed(m/s) | 1~2 | 1.6~2.5 | 1.6~2.5 | 2.0~3.2 | 2.0~3.2 | 2.0~3.2 | 2.0~3.2 | 2.5~4 | 2.5~4 |
Capacity(L) | 0.62 | 1.26 | 1.31 | 1.59 | 3.9 | 8.5 | 9.46 | 8.5*2 | 9.46*2 |
Distance(MM) | 150~200 | 200 | 200 | 200 | 250 | 250 | 250 | 250 | 250 |
Width(MM) | 150 | 190 | 235 | 285 | 337 | 475 | 519 | 475 | 519 |
Bend width(MM) | 175 | 220 | 250 | 350 | 380 | 500 | 550 | 1000 | 1200 |
Head drum diameter(MM) | 260 | 400 | 400 | 610 | 700 | 800 | 800 | 1000 | 1140 |

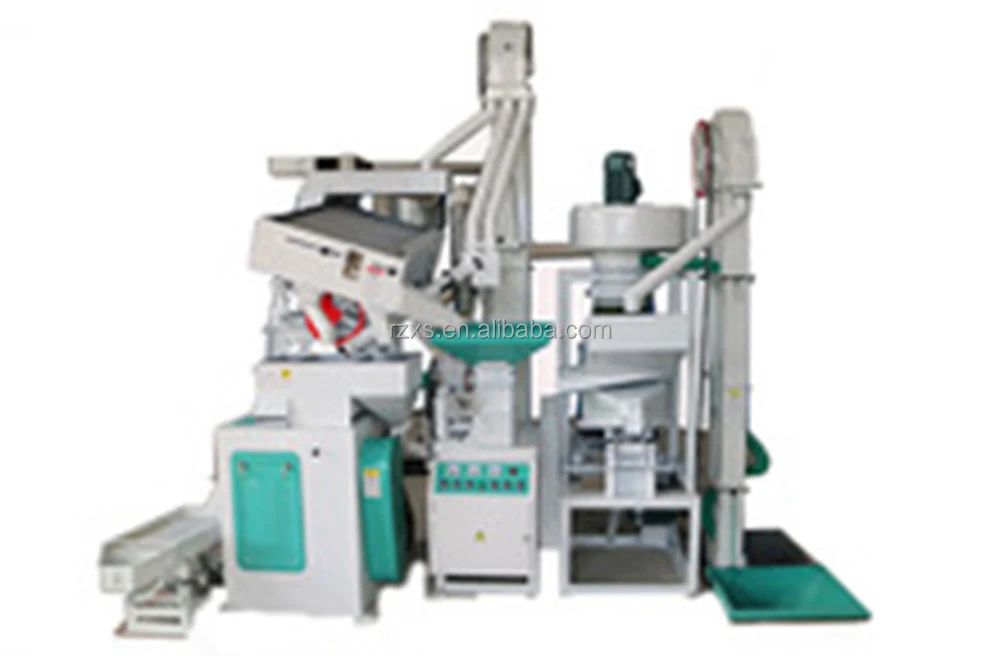

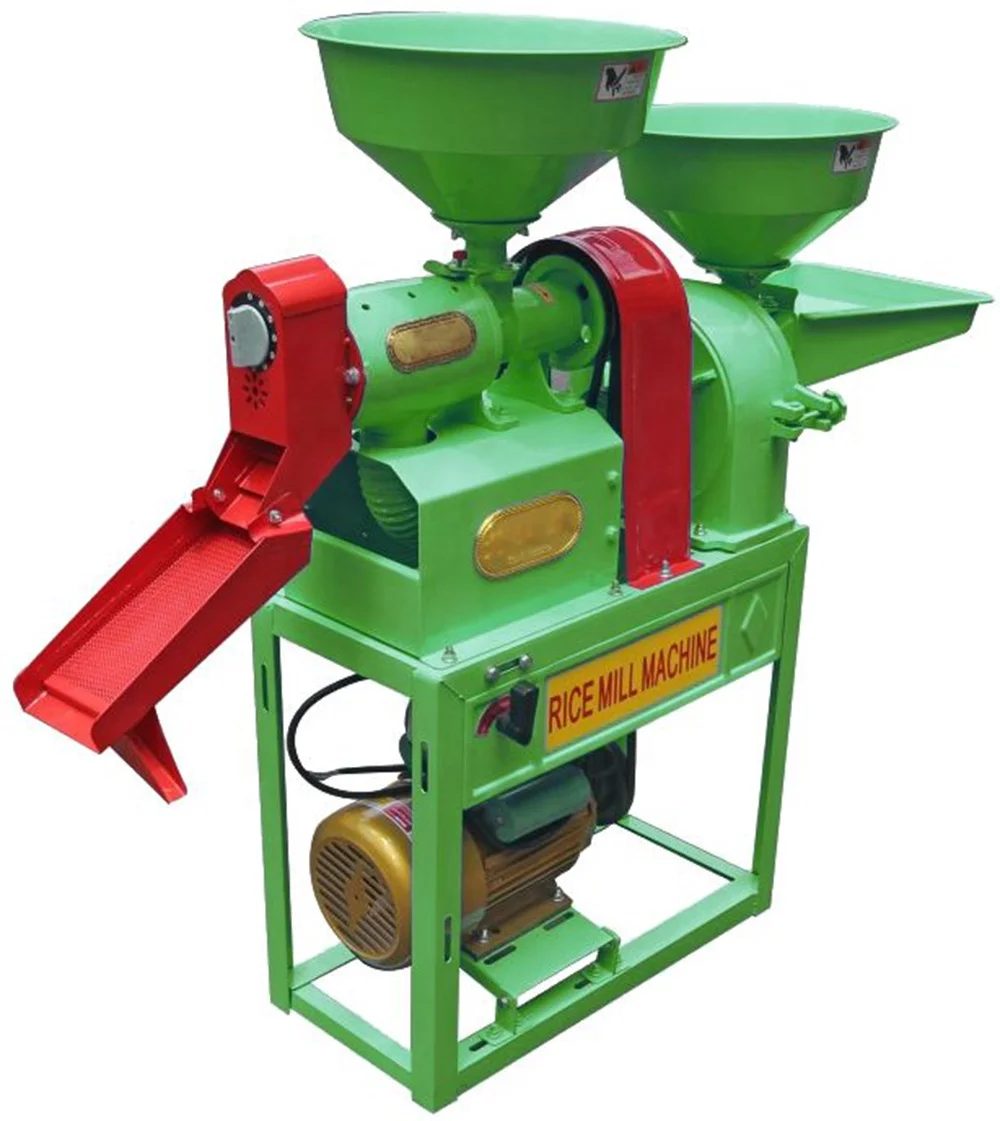

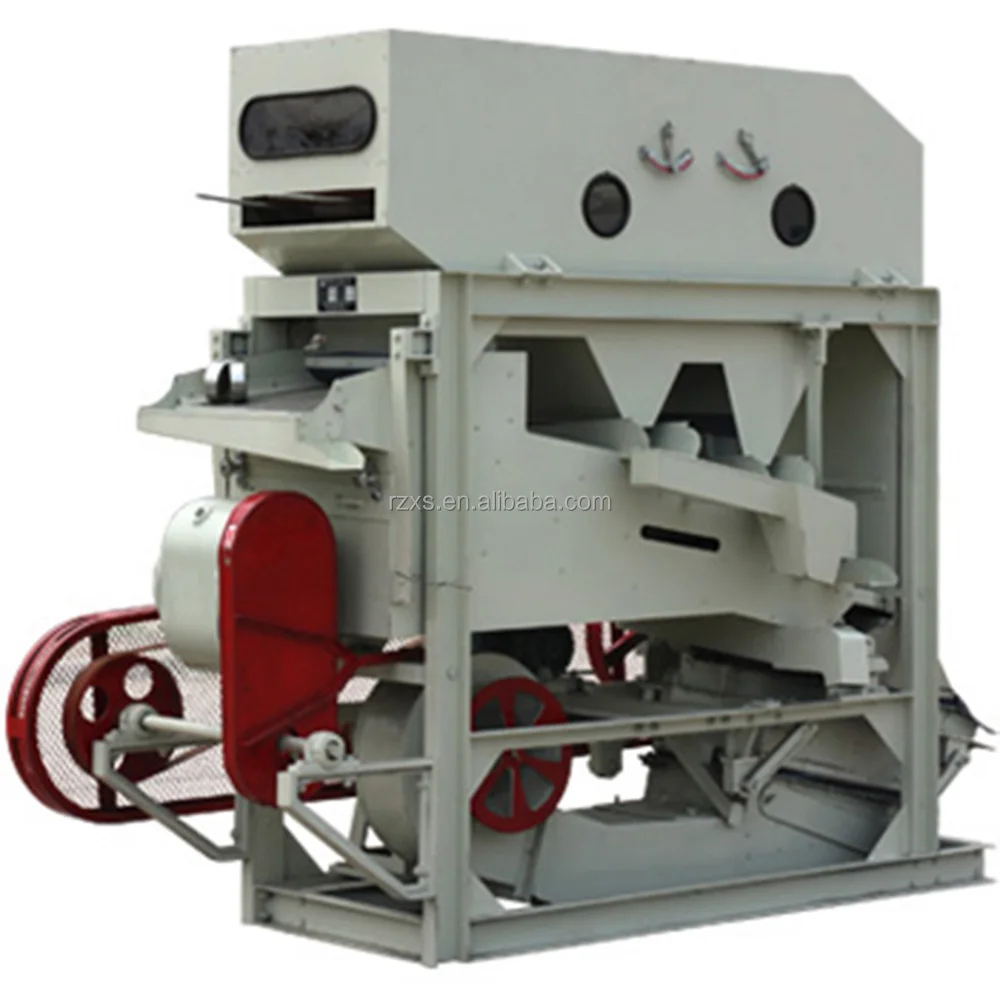

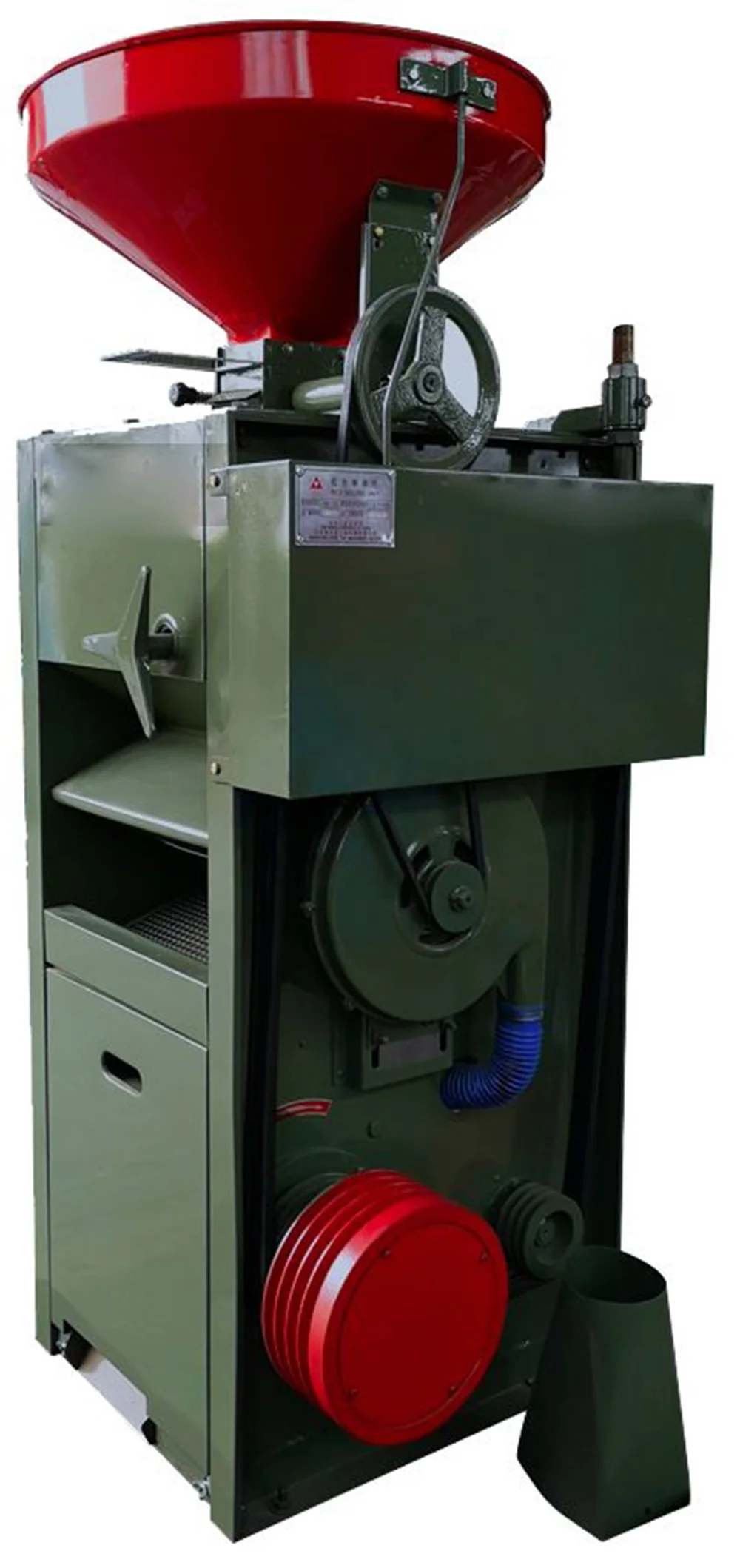

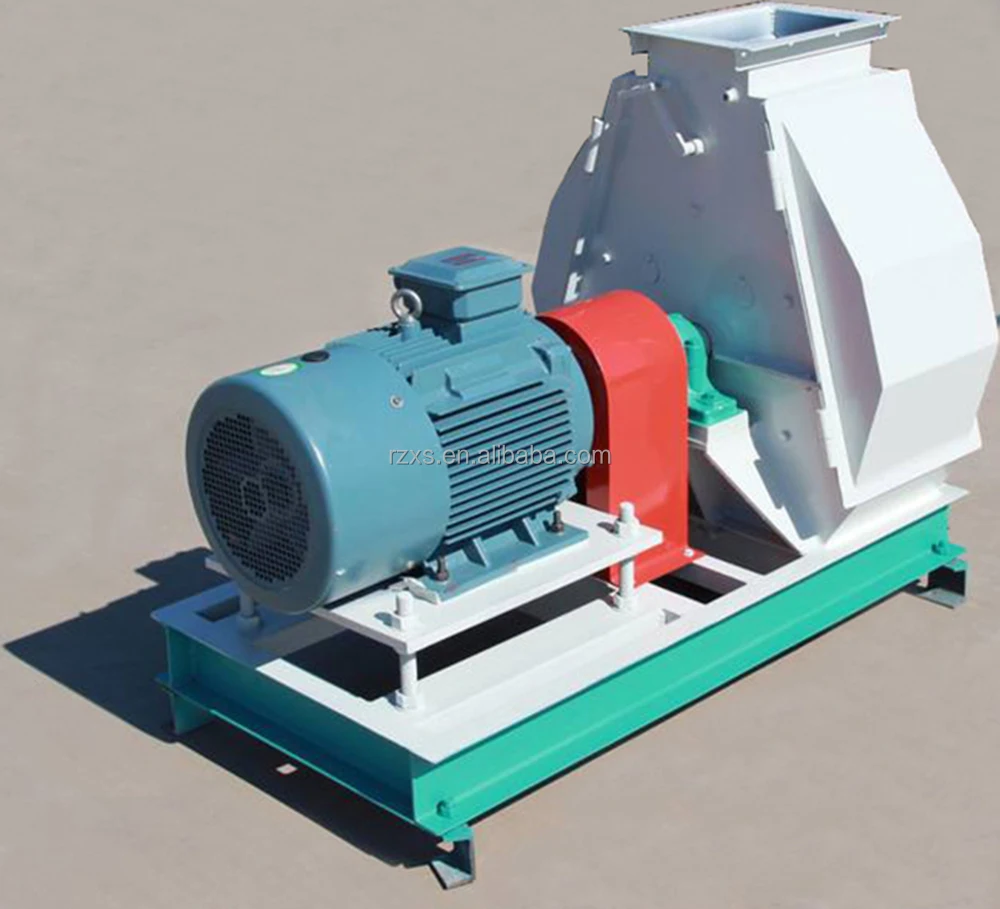

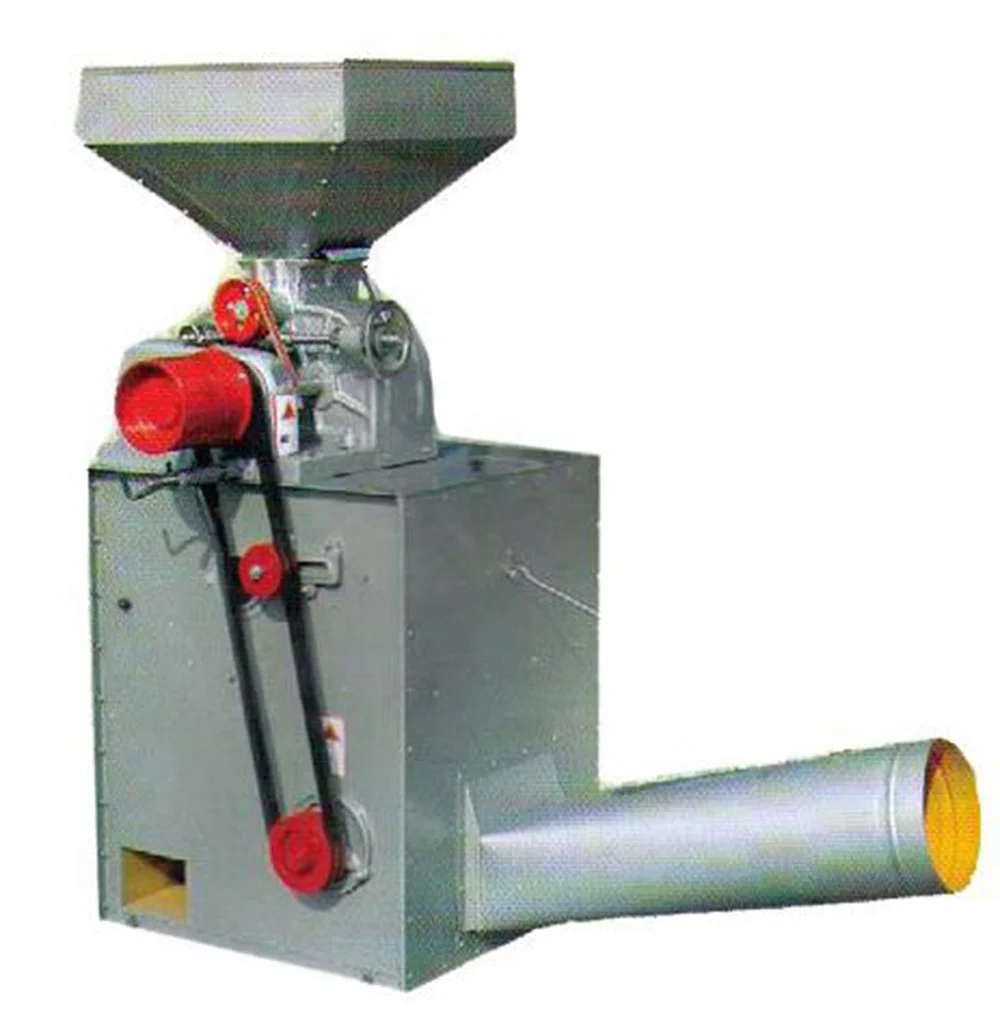

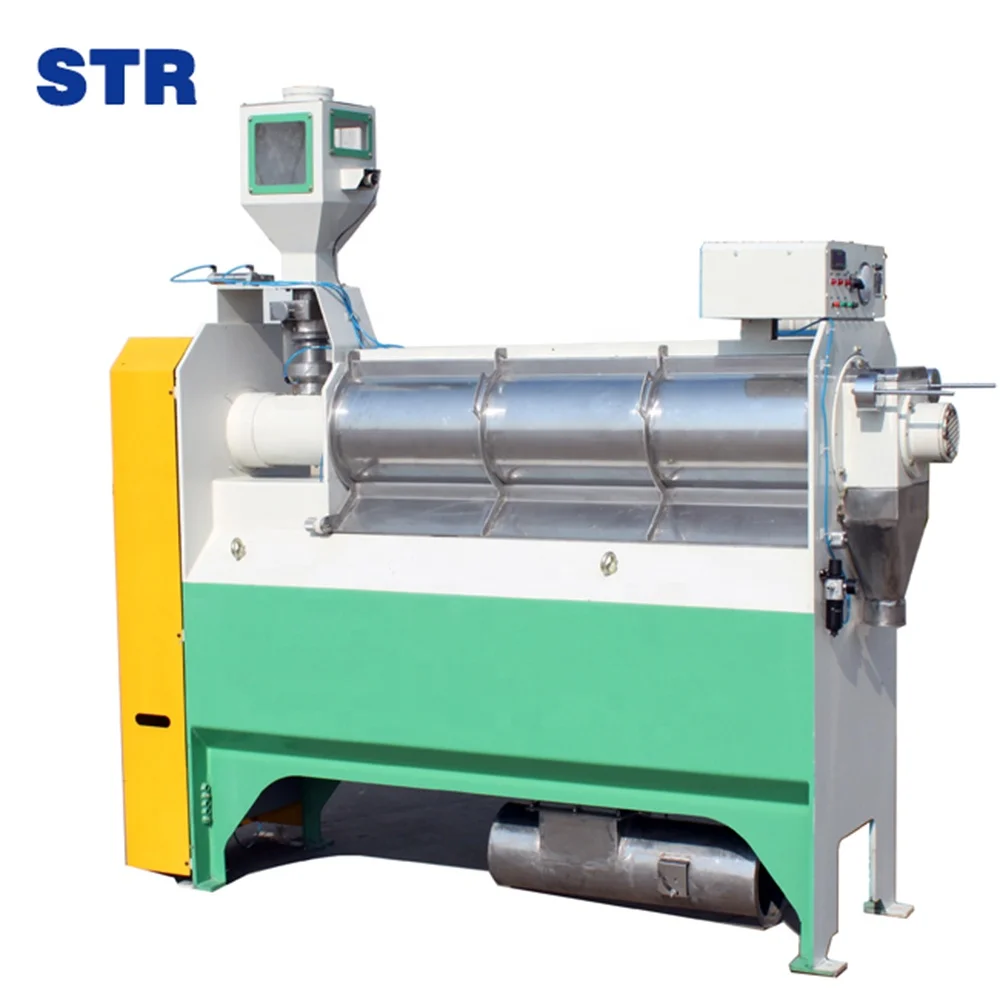

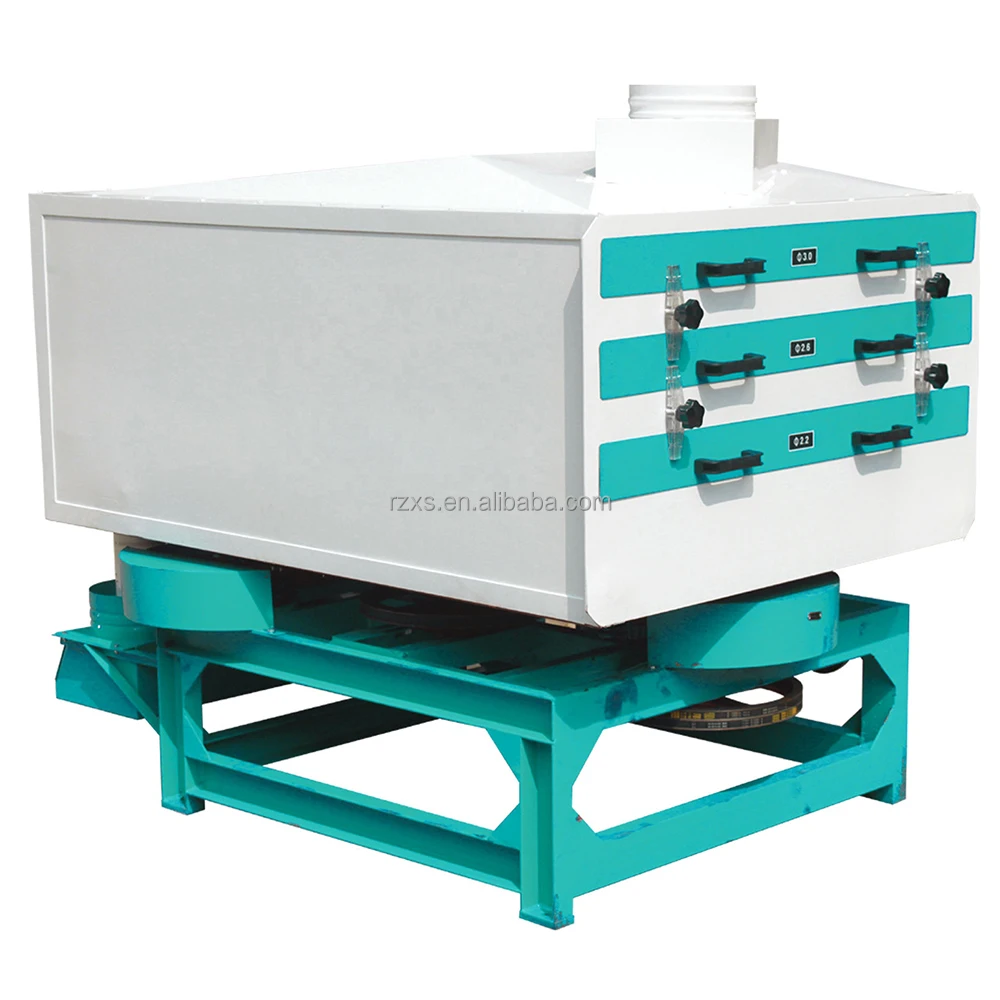

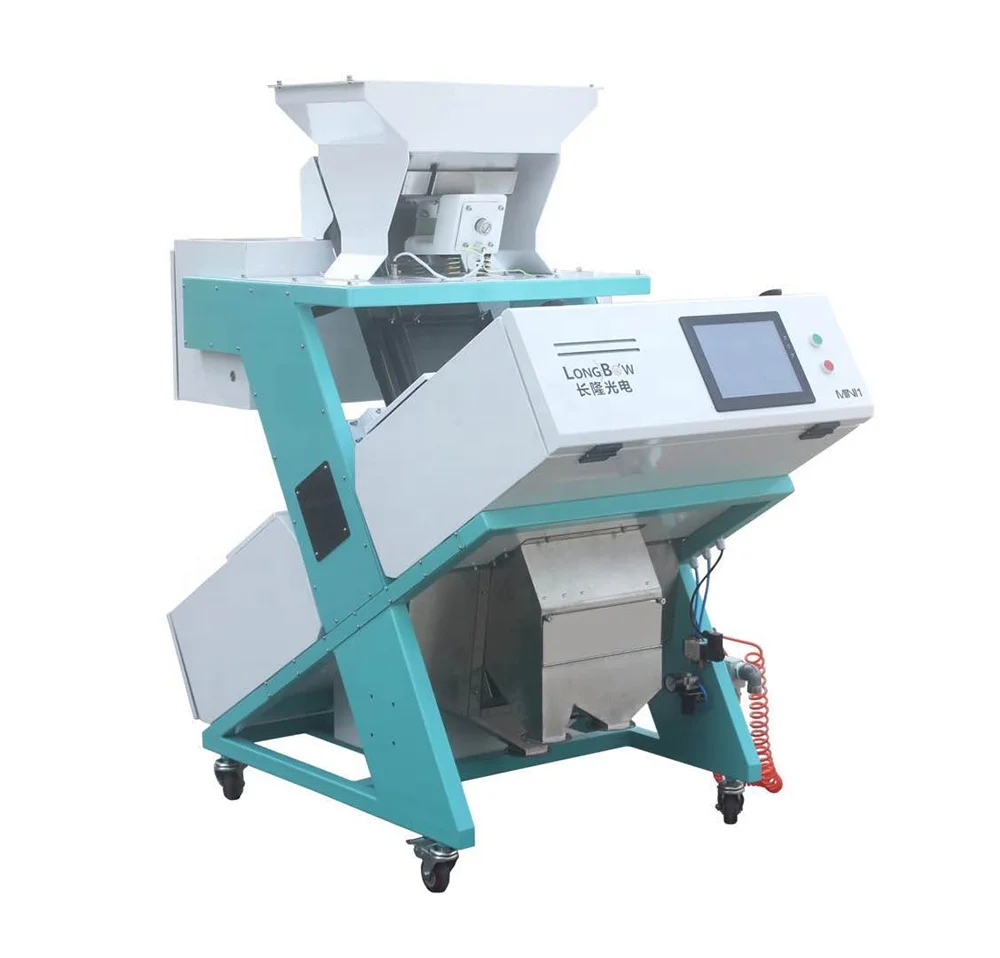

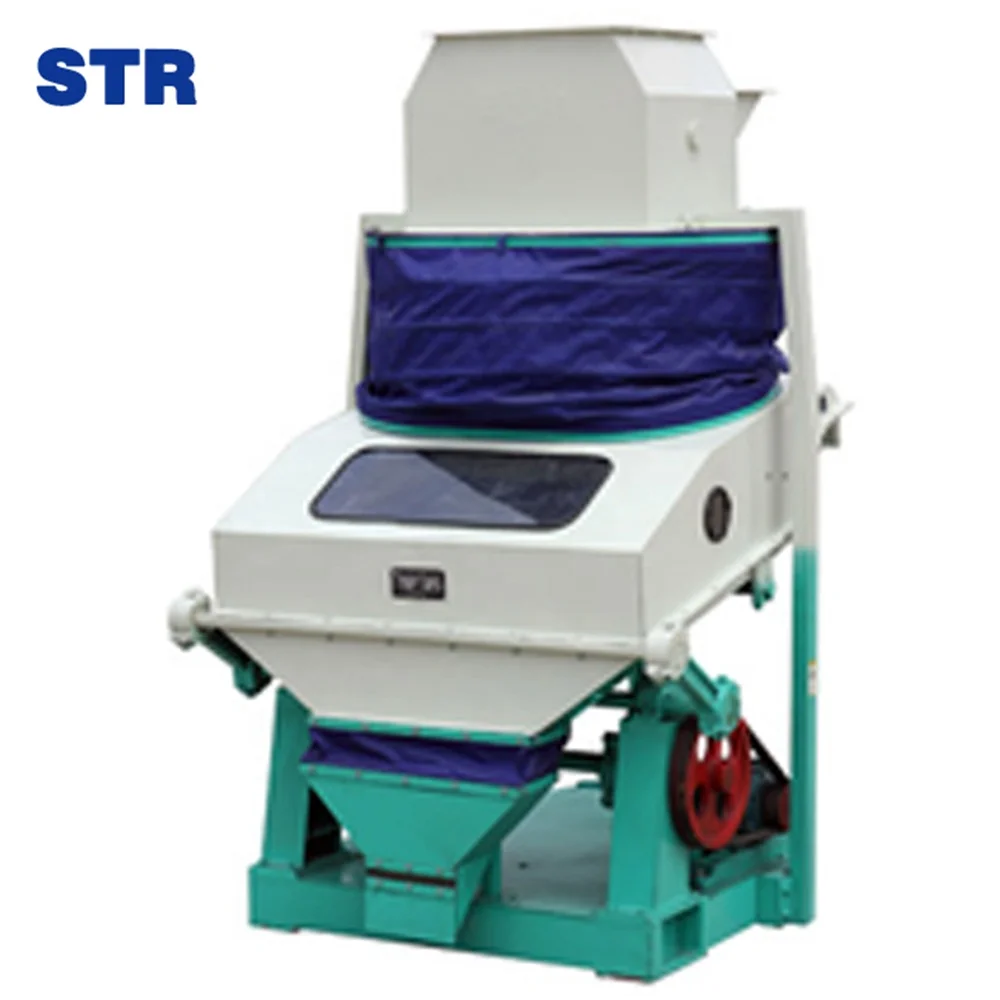

Hot Sale Machines
Packing & Delivery
TDTG26/13 wholesale price rice mill grain processing machine centrifugal discharge maize wheat bean feed bucket elevator
1,Standard export package or according to clients' requirement;
2,We cooperate with MAERSK,MSC,CMA,COSCO,and other big shipping company with long term cooperation contract,to ensure the safety of machines,to ensure the in time delivery,and to provide the 14~21 days freezer use.
Company Profile
Built in 1937,as the first manufacturer of rice mill machine in China,Rizhao Stream(STR) mainly produces Grain Cleaner Machine,Rice Mill,Mini Rice Mill,Rice Grader,Rice Polisher Machine,Rice Packing Machine,Grain Dryer,Grain Silo,Bucket Elevator, Rice/Corn/Grain/Herbs/Cereal Grinder/Flour Mill/Crushing Machine.

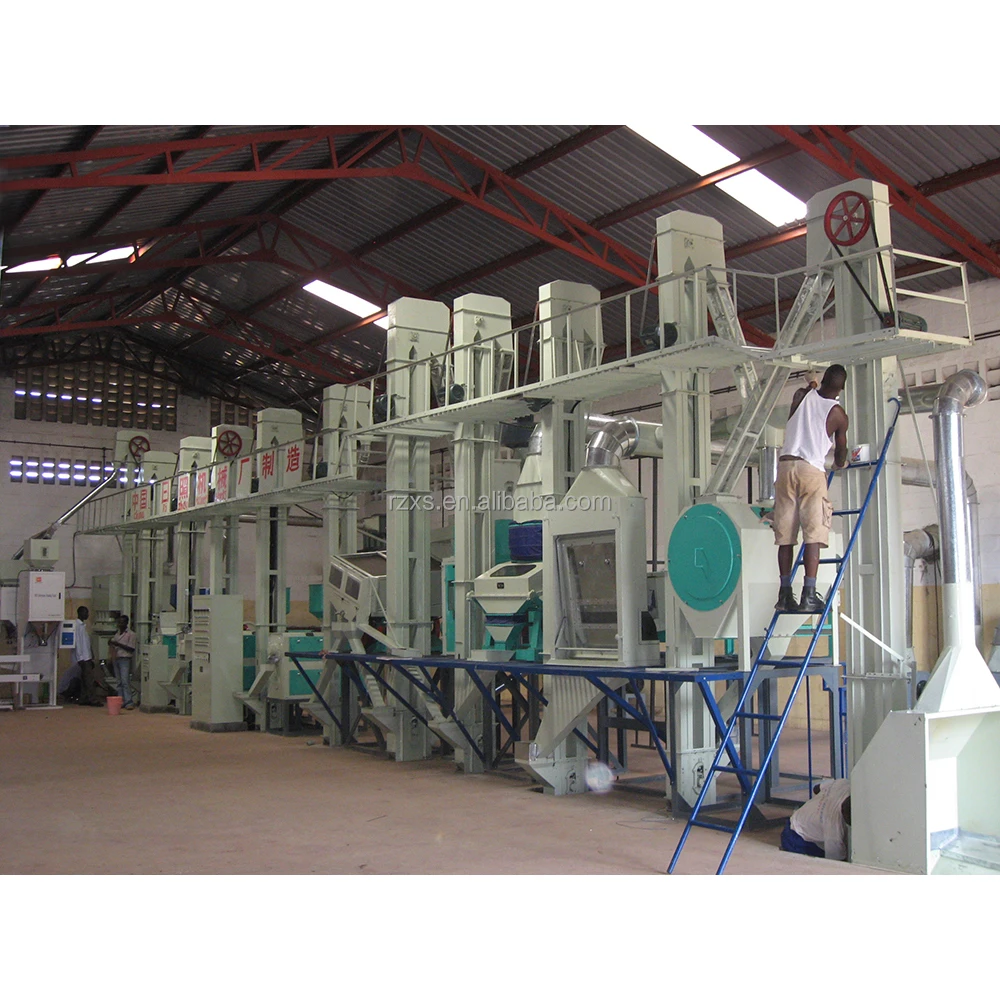

STR is experienced in complete set of fully automatic rice milling equipment with daily output of 20-600 tons, millet processing equipment with daily output 20-80 tons, maize processing equipment with daily output 30-80 tons.
Most workers have been working here for more than 20 years with rich experience.This is why we are better in quality than other suppliers. Furthermore, many Chinese standards in Rice Mill field were made by our company.
STR is experienced in complete set of fully automatic rice milling equipment with daily output of 20-600 tons, millet processing equipment with daily output 20-80 tons, maize processing equipment with daily output 30-80 tons.
Most workers have been working here for more than 20 years with rich experience.This is why we are better in quality than other suppliers. Furthermore, many Chinese standards in Rice Mill field were made by our company.
Certifications
As the century company,we got many certificates and national attention
Our brand of rice mill is 'Famous brand of china machinery industry 'and 'Shandong famous brand ',with a more perfect quality management system.Our company won 'two grade national enterprise 'honor in 1989; Won 'Shandong Quality Management Award ' in 1991; Passed ISO9000 in 1997; Passed 'CCC 'in 2006; Recently,won 'Top ten industrial enterprises all the region ' 'Top ten integrity taxpayers of RIZHAO City ', and so on.
