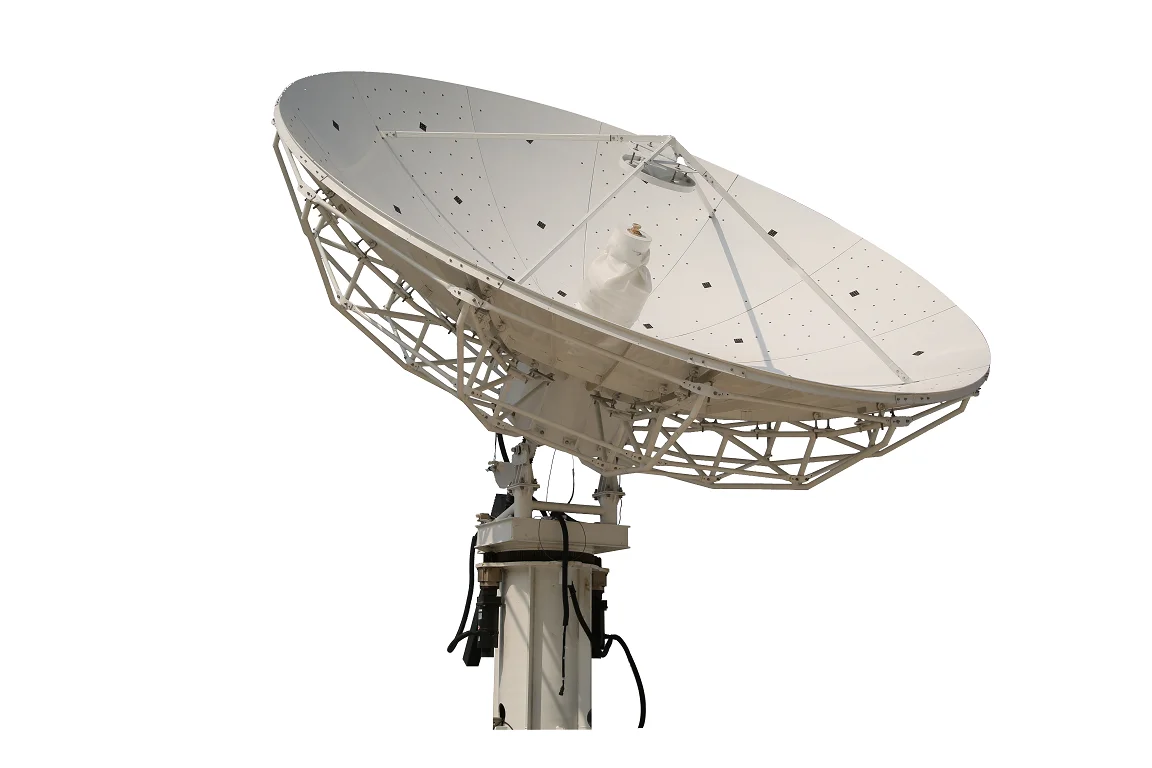

4.5M Ku band motorized satellite communication antenna

ELECTRICAL SPECIFICATION

Type

SSA-450

Band

C-Band

Ku-Band

Operating Frequency, GHz

Receive

Transmit

Receive

Transmit

3.4 ~ 4.2

5.85 ~ 6.725

10.95 ~ 12.75

13.75 ~ 14.5

Gain, Mid-band, dBi

44

47.3

53.2

54.3

Polarization

Linear/Circular

Linear

XPD(on Axis), dB

35

35

35

35

XPD across 1dB Beam Width, dB

33

33

33

33

Axial Ratio (Circular-Polarized)

1.30/1.06

1.09/1.06

VSWR

1.25

1.25

1.25

1.25

Antenna Noise Temperature

10°Elevation

30°Elevation

50°Elevation

34°K

24°K

21°K

52°K

41°K

37°K

-3dB Beam Width, Mid-band          -3dB

1.12°

0.72°

0.37°

0.33°

Typical G/T (El>10°)               G/T

25.9dB/K°

(30°LNA)

32.3dB/K

(70°LNA)

Tx. Power Capability, KW

5

2

Feed Interface

CPR-229G

CPR-137G

WR-75

WR-75

Feed Insertion Loss, dB

0.2

0.2

0.25

0.25

Isolation, Tx to Rx, dB

90

85

First Sidelobe

90% Peaks under Following Envelop

-14

29-25logθ (1°≤θ<20°)

-14

29-25logθ (1°≤θ<20°)

MECHANICAL SPECIFICATION

Antenna Diameter

4.5m

Antenna Type

Dual Reflector Modified Ring Focus

Mount Type

El. over Az

Surface Accuracy (RMS)

≤0.5mm

Antenna Pointing Range

Azimuth

Elevation

Polarization

±90°, ±65° (Continuous)

7° ~ 90° (Continuous)

180° (Continuous)

Drive Mode

Manual or Motorized

Motor Drive System

Azimuth Travel Rate

Elevation Travel Rate

Polarization

0.11°/S (0.03°/S)

0.17°/S (0.04°/S)

1°/S
