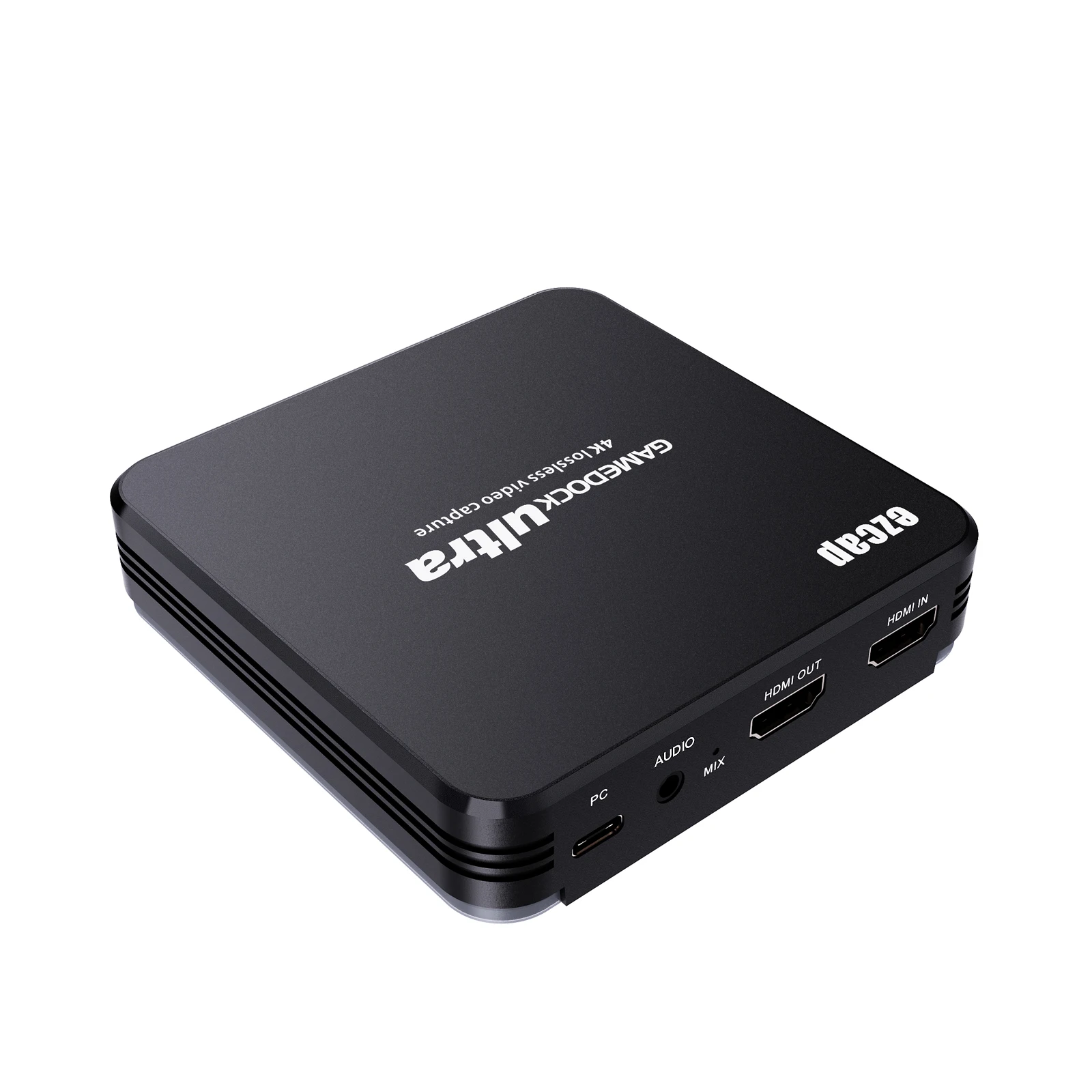

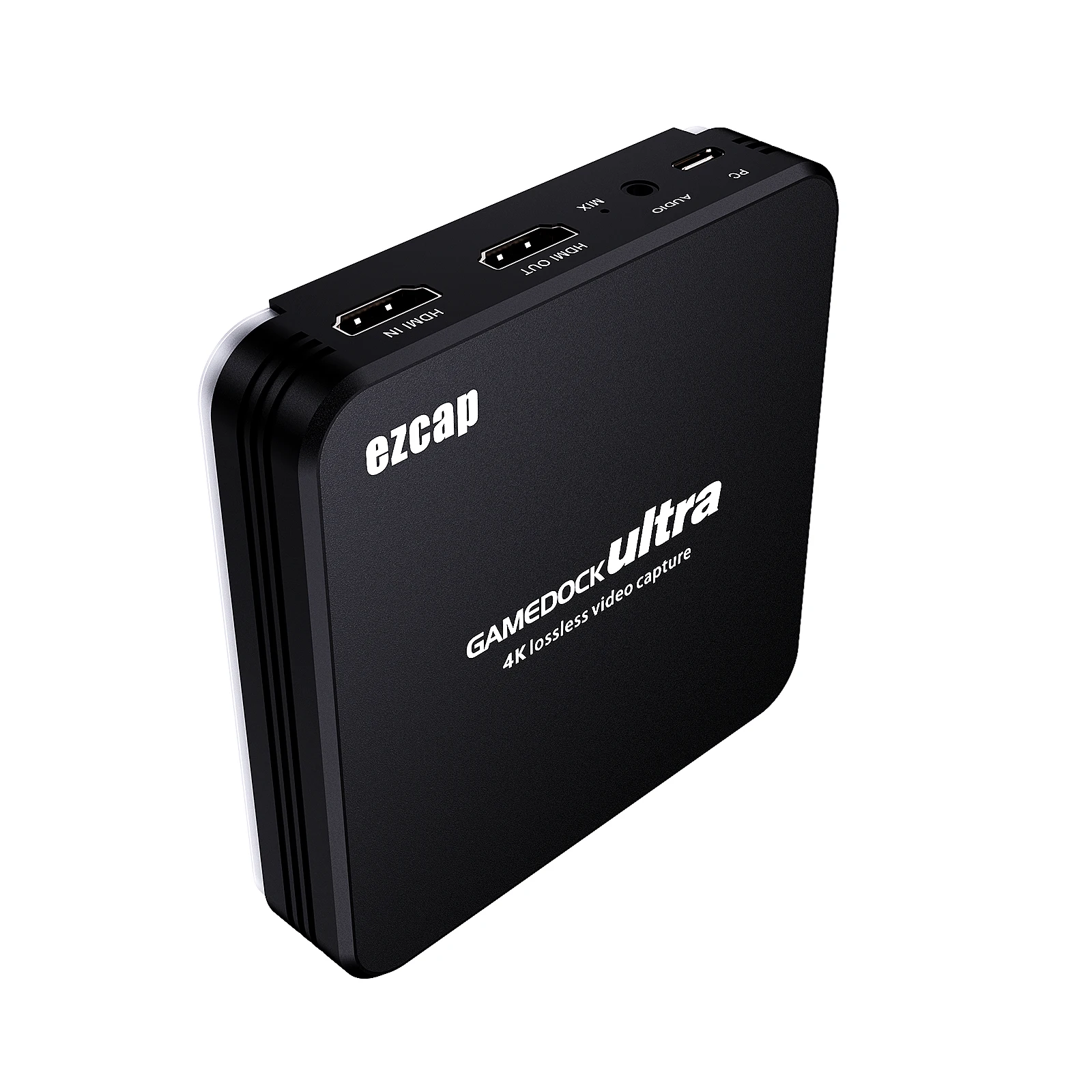

ezcap326 Game Dock Ultra 4Kp60 1080P240 HDR Pass Through 4K30 1080p120 Full HD Recording YUY2 NV12 RGB HDMI Video Capture

Product Overview

Description

ezcap326 Game Dock Ultra 4Kp60 1080P240 HDR Pass-Through 4K30 1080p120 Full HD Recording YUY2 NV12 HDMI Video Capture 4KRGB

4K60 HDR

4K30 Recording

120Hz full HD recording

RGB real color



Main Fetures:

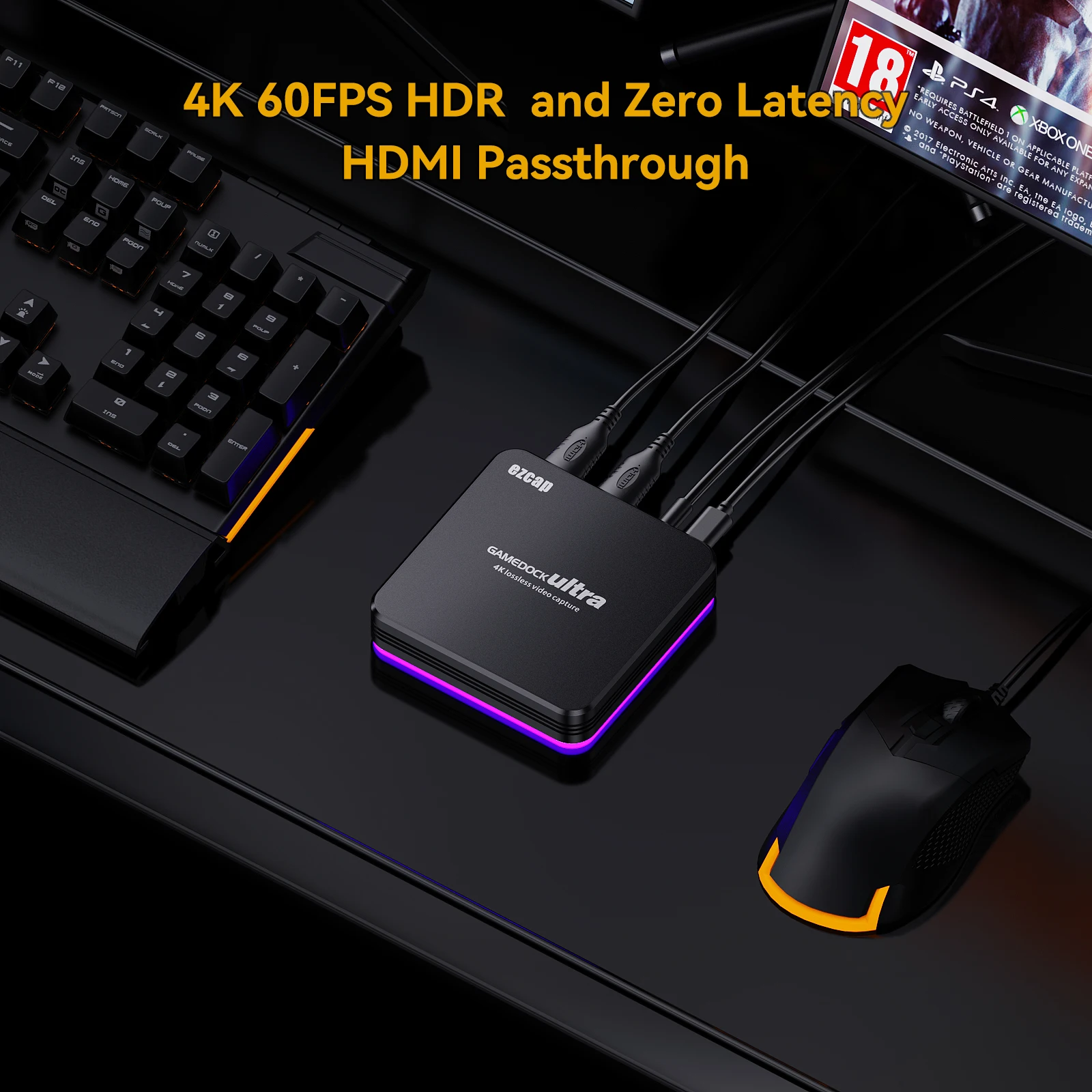

4K High Dynamic Range Pass-through

Don’t give up 4K HDR content just to be able to record your gameplay. With 100% lag-free, 4Kp60 HDR video pass-through, the GDU allows you to enjoy mesmerizing 4K HDR gameplay and record at 4Kp30.



240Hz Full HD Pass-through

1080p 240Hz or 1440p 144Hz high frame rate pass-through, enjoy smooth gameplay while recording

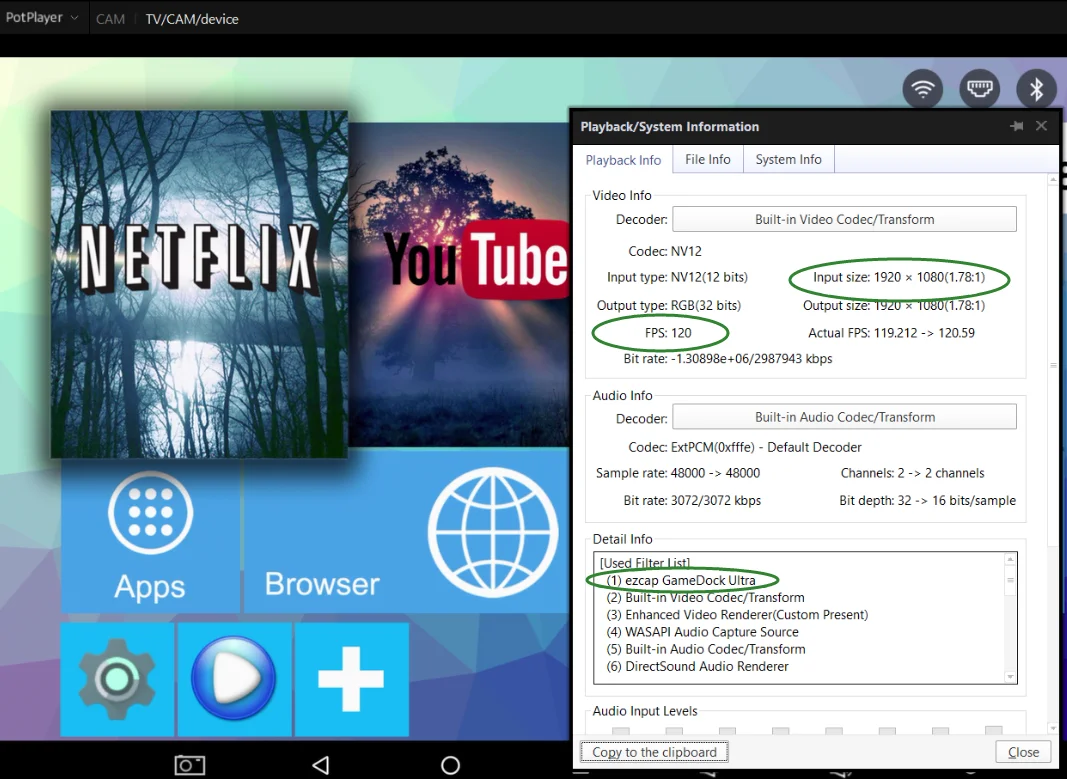

120Hz Full HD Capture

With its high frame rate capture ability of up to 120 fps for Full HD signals, the GDU brings super smooth recordings to your archives. Still can record 4Kp30, 1440p60, 10bit HEVC mp4 and 10bit HDR video.



RGB format recording

First time in the world an USB GameDock delivery RGB format full HD picture, even connect a PC as source, you can capture lossless picture up to 1080p30.

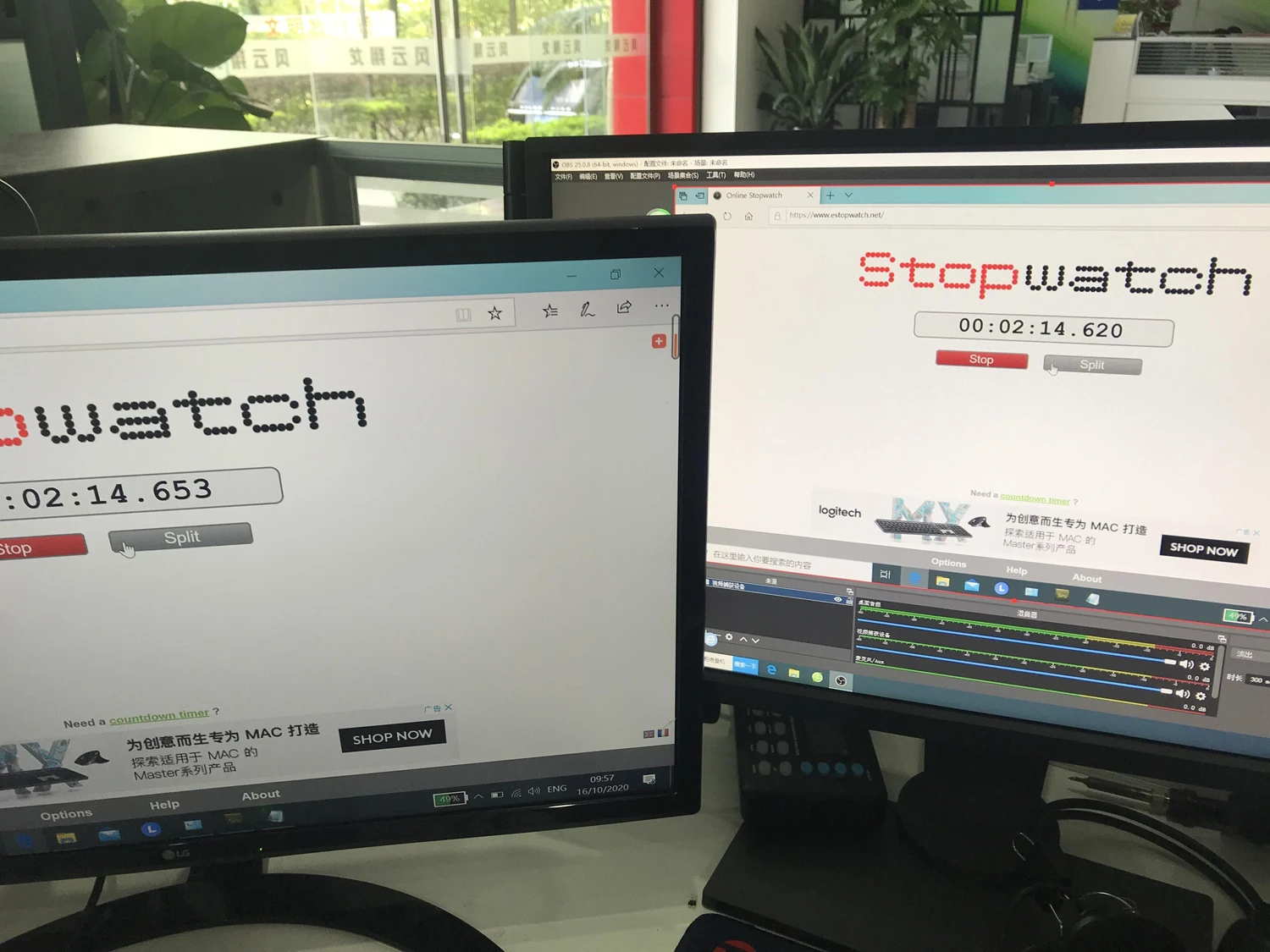

Latency? Not really, not here.

The GDU with latest technology. Make latency less than 50ms. Even use the capture screen to play game, you hardly notice it.

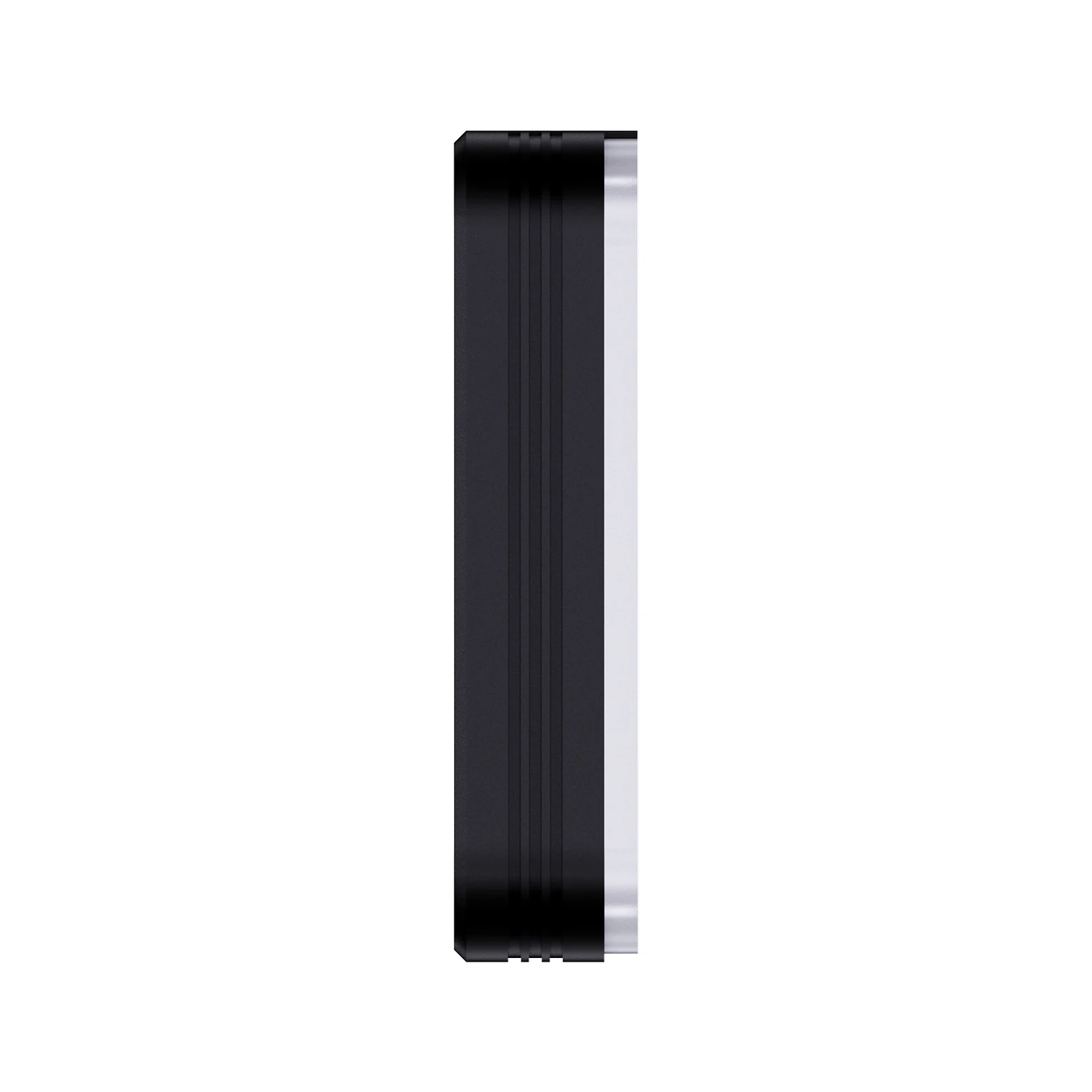

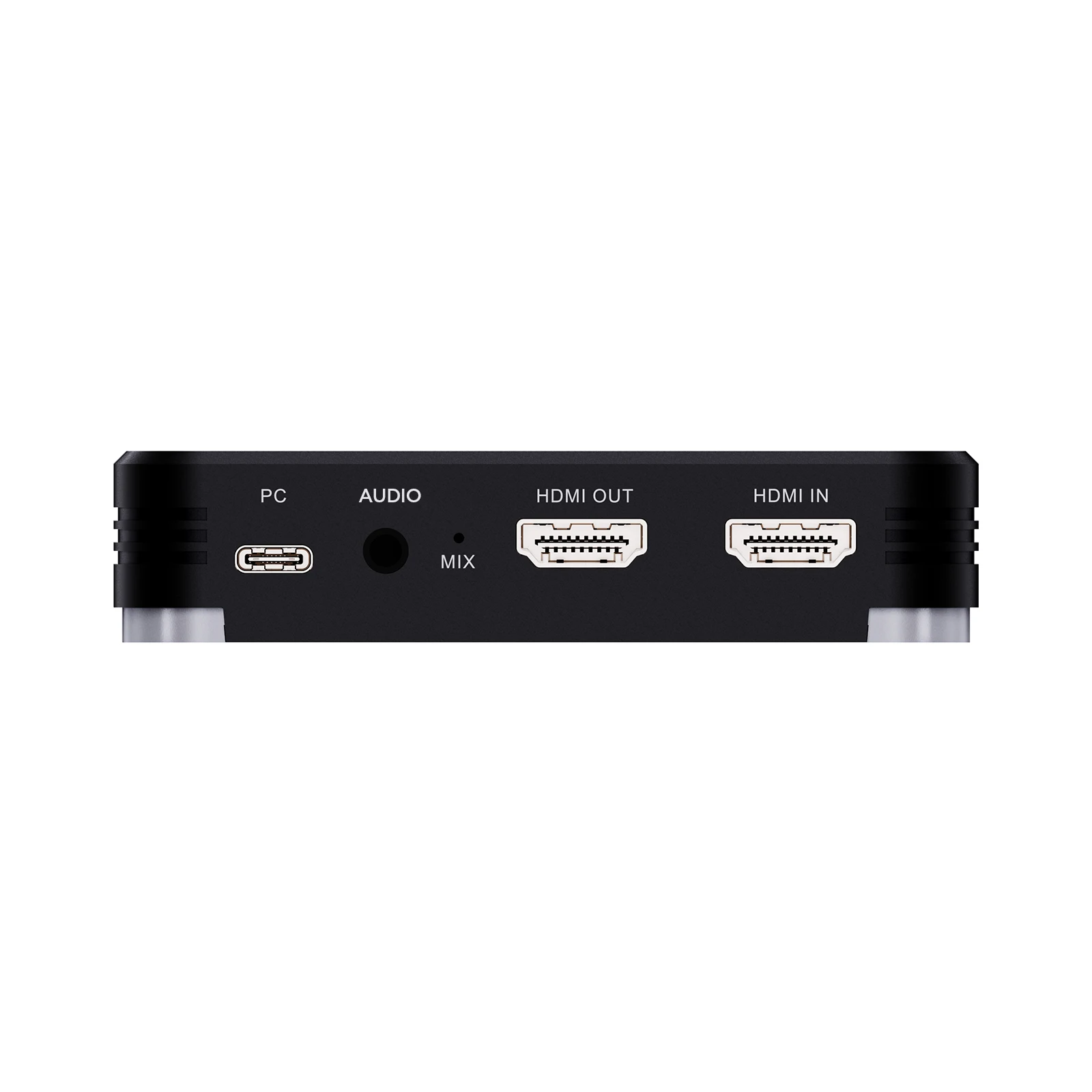

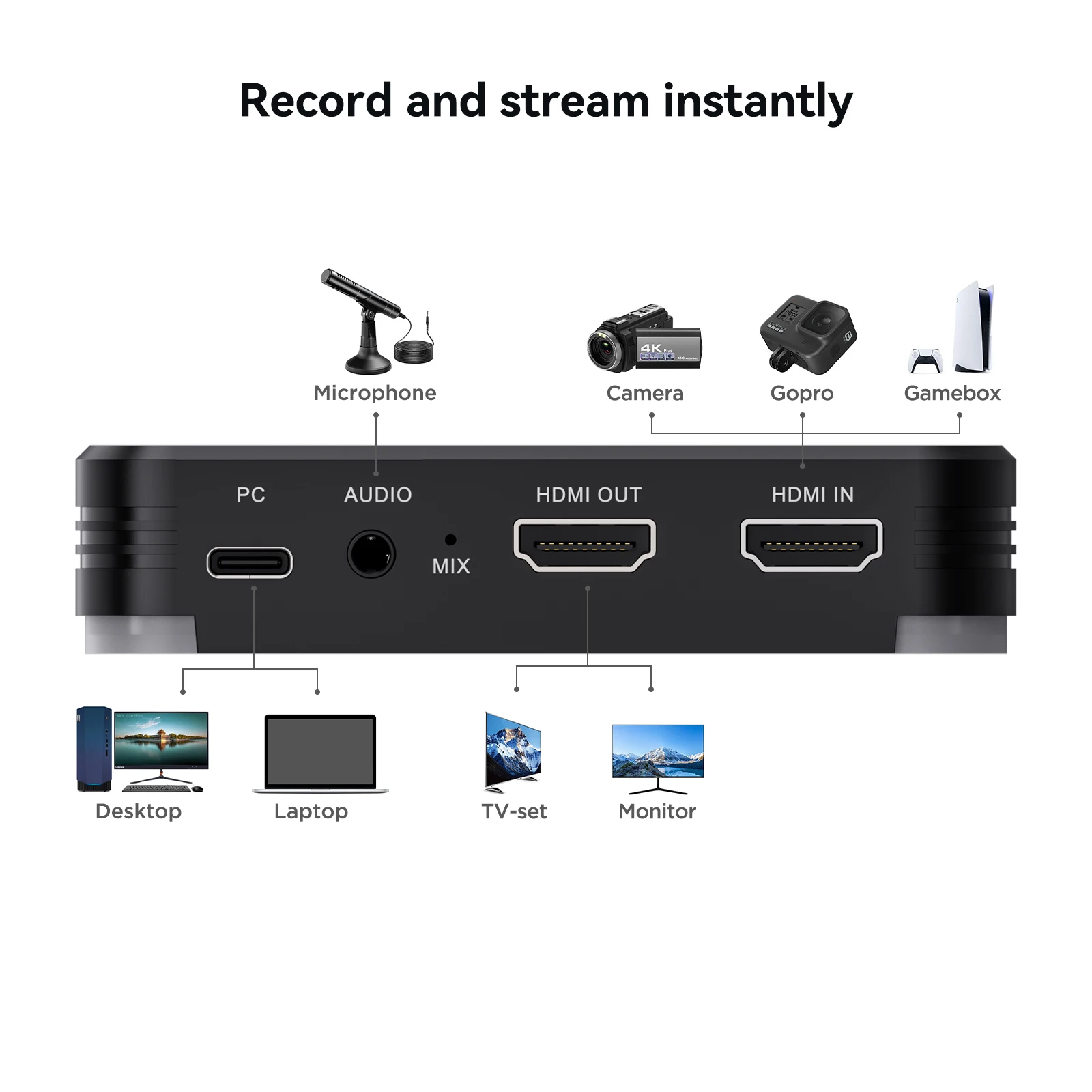

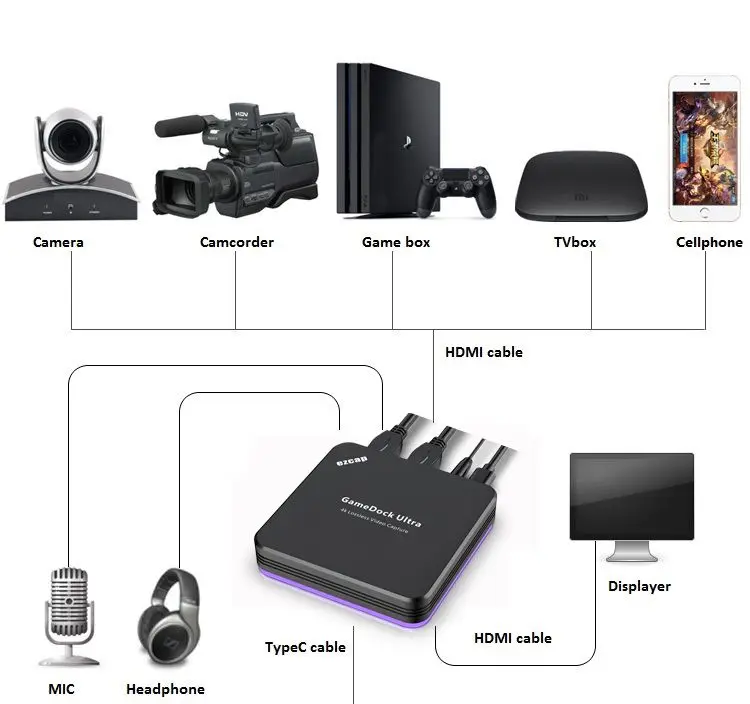

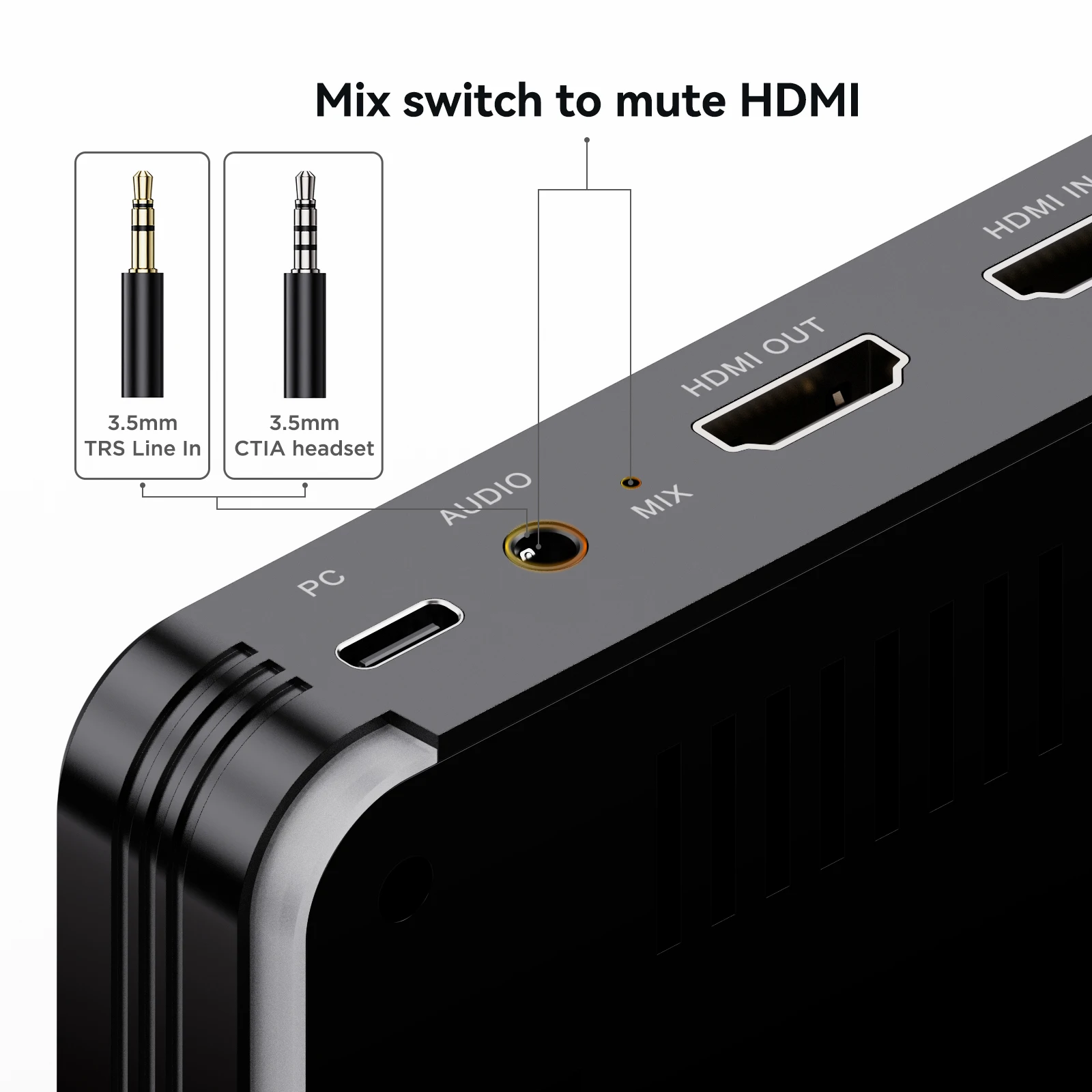

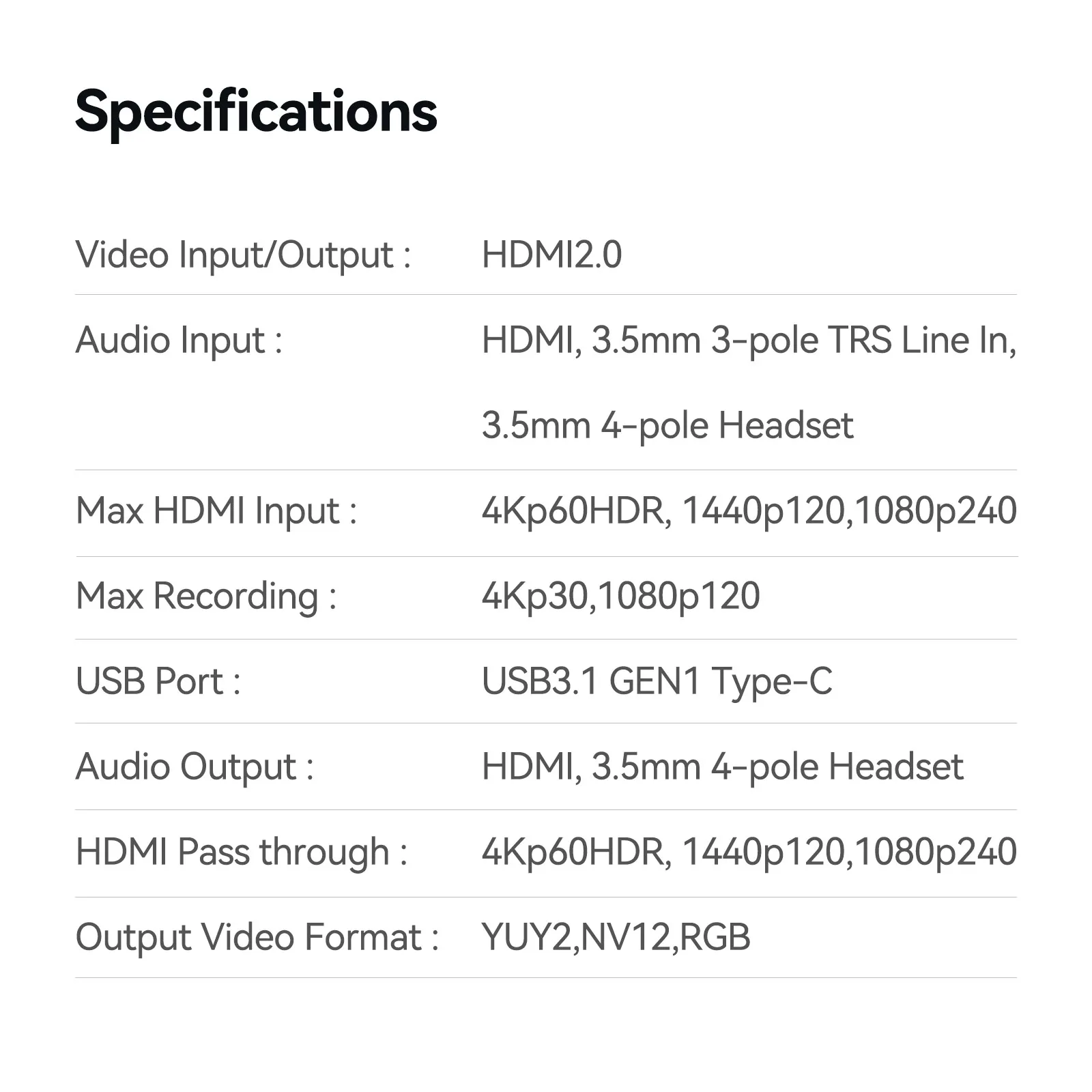

· Interface: Type-C USB3.1 Gen1 · Input & Output (Pass-Through): HDMI 2.0 · Audio Input: 3.5MM TRS Line In · Max. Pass-Through Resolution : 2160p60 HDR /1440p144/ 1080p240 · Max. Recording Resolution: 1080p120,2160P30 · Supported Resolution: 2160p, 1440p, 1080p , 720p · Dimensions (W x D x H): 99 x 99 x 23 mm

Operating system: Windows^® 10 x64

Laptop
For 4Kp30 or 1080p120 recording:
- Intel Core i7-7700HQ or above
- NVIDIA^® GeForce^® GTX1050 Ti or above
- 8 GB*
For 1080p60 recording: - Intel Core i7-4810MQ
- NVIDIA^® GeForce^® GTX 870M or above
- 8 GB
Desktop
For 4Kp30 or 1080p120 recording:
- Intel^® Core™ i5-6XXX / AMD Ryzen™ 3 XXX or above
- NVIDIA^® GTX 1060 / AMD RX 5700 or above
- 8 GB*
For 1080p60 recording (4Kp60 HDR pass-through supported):
- Intel^® Core™ i5-3330 or above (i7-3770 recommended)
- NVIDIA^® GeForce^® GTX 650 / AMD Radeon™ R7 250X or above
- 4 GB

* RAM must be DDR4 2400 or above

· Mac system requirement :
Operating system: MacOS High Sierra 10.15 and above Mac Thunderbolt 3

For 4Kp30 or 1080p120 Recording (4Kp60 HDR pass-through supported)

iMac 2019:
- 3.2GHz 6-core Intel Core i7
- Radeon Pro 555X with 2GB of GDDR5 memory
- 16GB of 2400MHz DDR4 memory
MacBook Pro 2018:
- 2.6GHz 6-core Intel Core i7
- Radeon Pro 560X with 4GB of GDDR5 memory and above
- 16GB 2400MHz DDR4 memory
