Высокая Эффективность Цемент распыления стены машина для перемешивания раствора штукатурки Автоматического Цемента штукатурная машина для Индии
- Category: Engineering & Construction Machinery >>>
- Supplier: Henan,Yugong,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Product Application

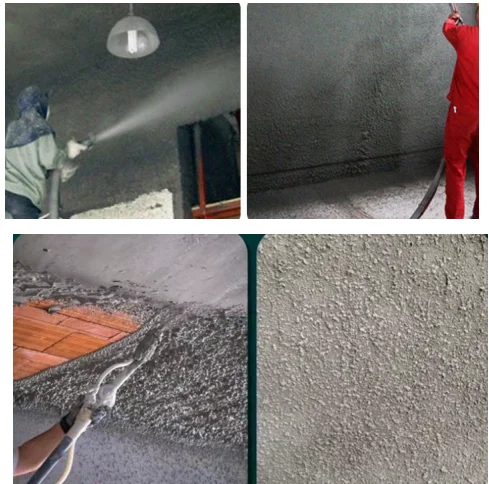

Suitable for indoor and outdoor wall spraying, cement mortar grouting, bridge grouting and waterproof surface spraying, fireproof spraying, ceiling spraying, wall spraying, paint spraying, garden spraying, relief paint spraying, sound-absorbing material spraying, waterproof plugging, waterproofing, It is light and convenient for the construction of bridges, dams, hillsides, basements, tunnels, and housing factories. Mortar spraying machine is suitable for spraying materials: putty powder, paint, latex paint, real stone paint, cement mortar, dry mortar, thermal insulation mortar, waterproof materials, fireproof materials, heat insulation materials, sound-absorbing materials and other water-soluble materials.
Features
1. Adjust the flow rate to bring out the best spraying effect.
2. In addition to the switch on the electric control box, it is also equipped with a remote control switch for spraying.
3. The connection between the spray gun and the feeding tube can be rotated for easy operation.
4. The construction efficiency is high and the quality is good.
5. Small size, easy to carry on site, and low cost of accessories, simple maintenance.
6. Convenient to use, fast, save materials, labor, and more money. One machine only has three people, 150 square meters per hour (thickness 2cm).
7. Material ratio (cement) 0.7:3 mortar.
Product Advantage

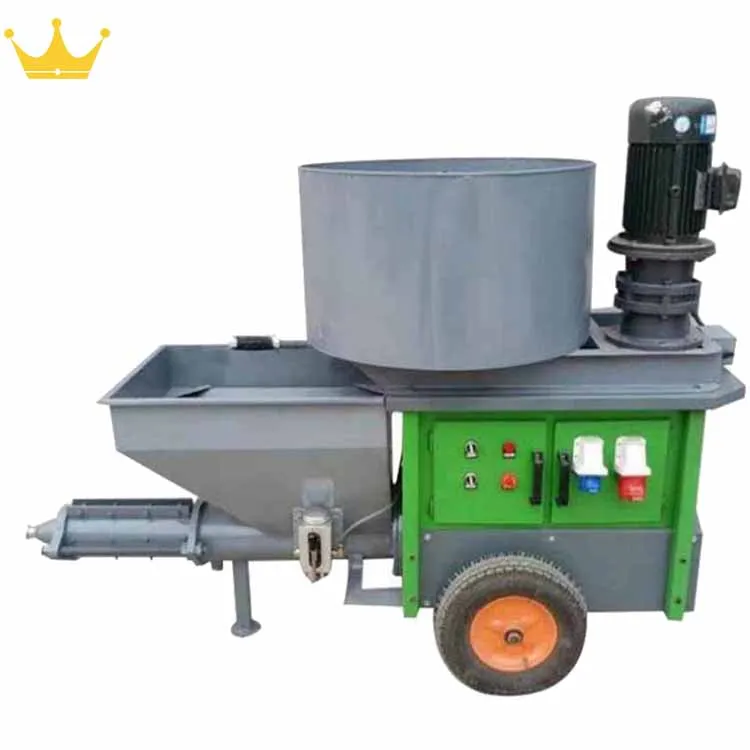

1. The rapid mortar spraying machine is designed reasonably, the pump and compressor are integrated, and it is convenient to move.
2. Continuous feeding of screw mortar spraying machine without pulse phenomenon
3. The mortar spraying machine has wide practicability, can spray dry powder, mortar, or ordinary mortar
4. Mortar spraying machine sprays uniformly and has strong adhesion
5. The mortar spraying machine is fully functional and can be sprayed and sprayed
6. The direction of the spray gun and nozzle connection can be selected for easy operation
Technical Parameters
Model | YG-311 |
Greatest pressure | 3Mpa |
Spraying speed | 120㎡/h |
Voltage level | 380V |
Main motor power | 4.0kw |
Through particle size | <=4mm |
Conveying distance | Horizontal 30m Vertical 20m |
Air compressor | 3.0kw/2.2kw |
Machine Weight | 160kg |
Dimension | 1750*450*800mm |
