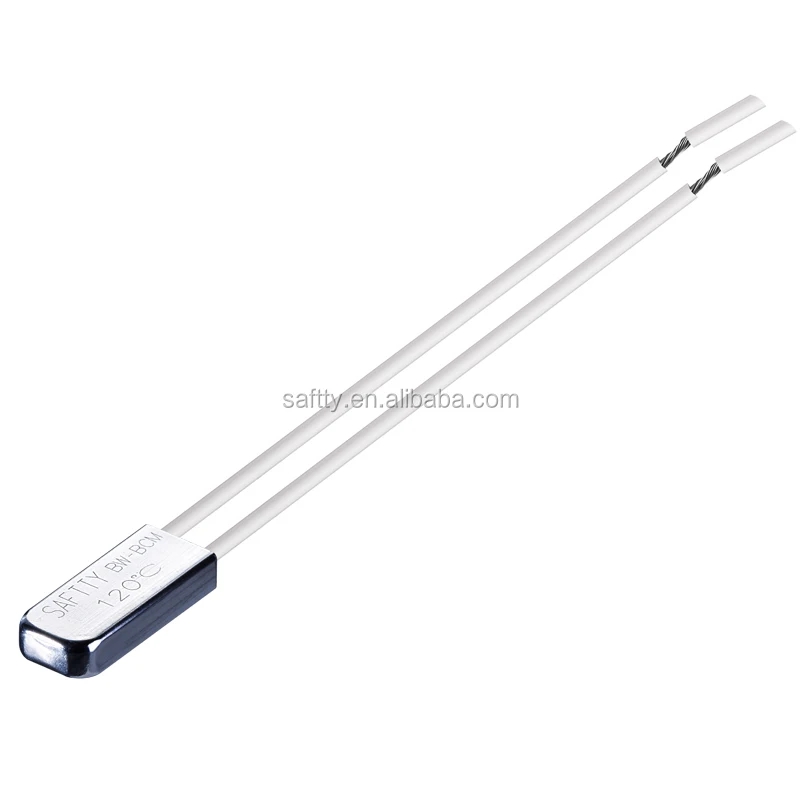

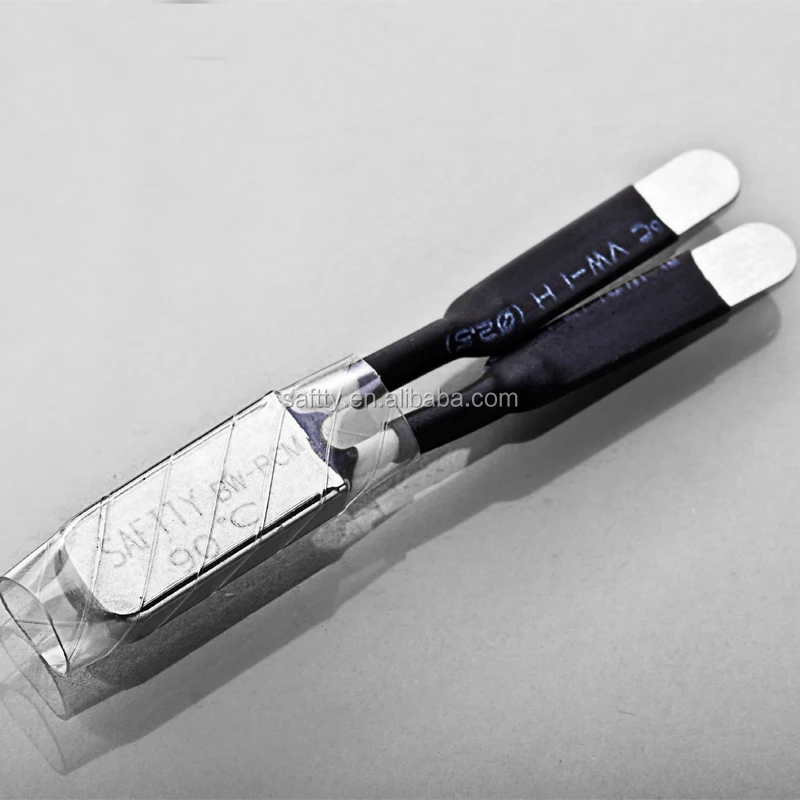

SAFTTY BW BCM/BCP series bimetallic thermal switch for shaded pole motor/smoke extraction centrifuges
- Category: >>>
- Supplier: Guangzhou Saftty Electronic Technology Co. Limited
Share on (1600425100271):
Product Overview
Description
BW-B series
ITEM NO | VOLTAGE&CURRENT | CASE MATERIAL | CASE SIZE(MM) | CERTIFIED OPEN TEMP.RANGE(℃) | FILE NO. | STANDARA NO. | LEAD WIRE |
BW-BCP | 250VAC/6A 24VDC/6A | Plastic | 15×7.0×3.5 | 35-130 | UL:E336656 | UL60730-2-9 | 35-125℃:3266 22# white 70mm≥130℃：3135 20# red 70mm |
VDE:40042780 | EN60730-2-9 | ||||||
50-155 | CQC:13002100964 | GB14536.3 | |||||
CB:CN36591 | IEC60730-2-2：2005 IEC60730-1：2010 | ||||||
KC:ZU02093-17001 | K60730-2-2(2009-12) KC60730-1(2015-09) | ||||||
BW-BCM | 250VAC/6A 24VDC/6A | metal | 15×6.4×3.1 | 35-160 | UL:E336150 | UL60730-2-2 | |
VDE:40042780 | EN60730-2-9 | ||||||
50-155 | CQC:13002100965 | GB14536.3 |
Details Images

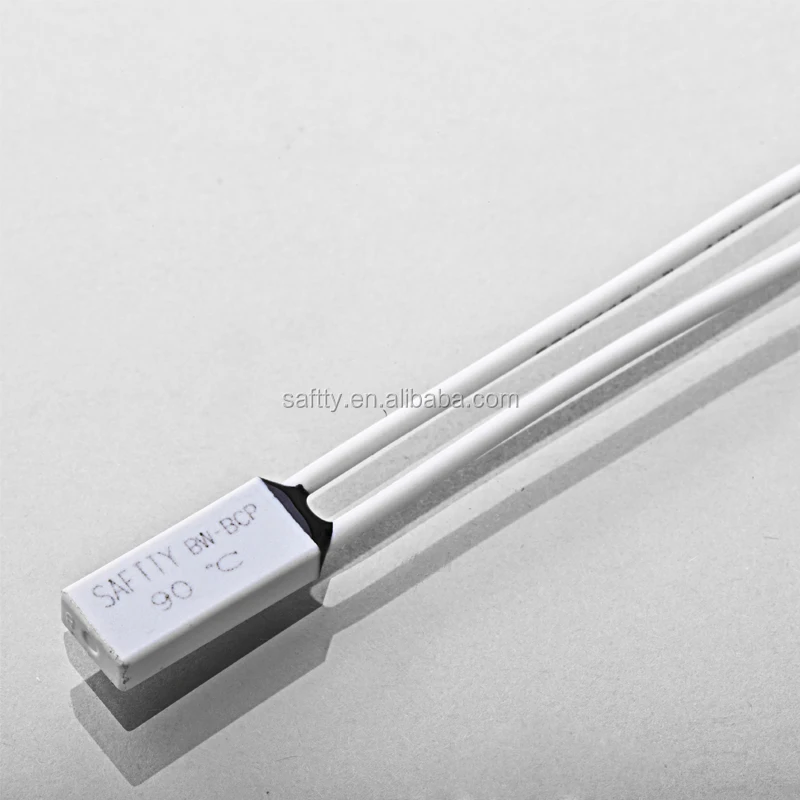

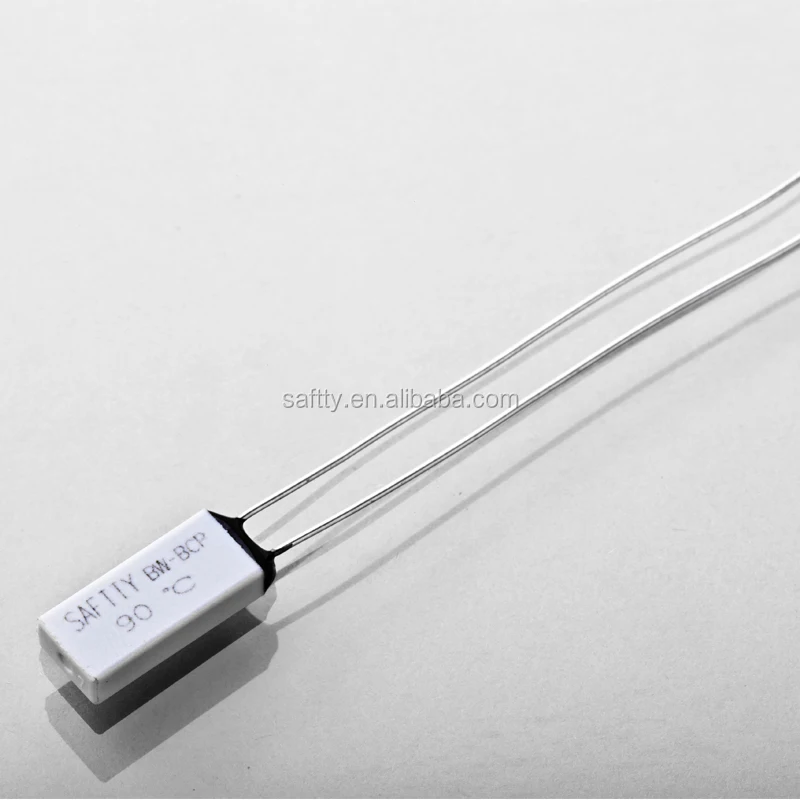

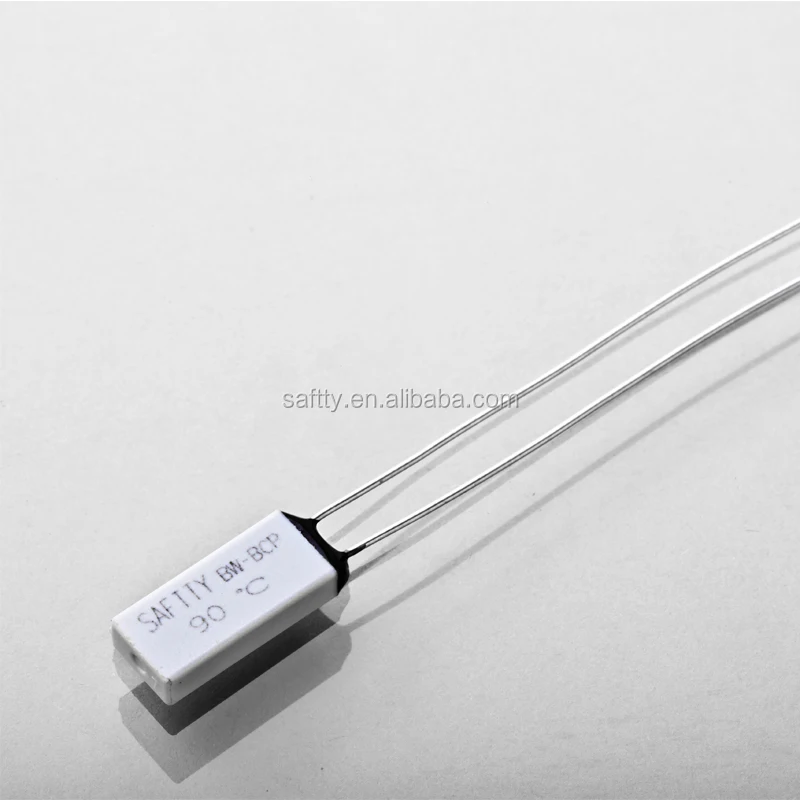

BW-BCP
Open temp. range40~155℃
Voltage¤t250VAC/6A 24VDC/6A
Case materialPlastic
Case size(mm)15*7.0*3.5
BW-BCM
Open temp. range：40~160℃
Voltage¤t：250VAC/6A 24VDC/6A
Case material：Metal
Case size(mm)：15*6.4*3.1
Key Benefits：
• Miniature size.
• Positive make and break with snap-action disc.
• Competitive price.
• Suitable for most impregnation processes.
• Positive make and break with snap-action disc.
• Competitive price.
• Suitable for most impregnation processes.
Applications：
• HID ballasts
• DC motor
• Battery packs
• Heating appliance
• Fractional power motor
• Transformer
• AC brushless motor and pump
• DC motor
• Battery packs
• Heating appliance
• Fractional power motor
• Transformer
• AC brushless motor and pump

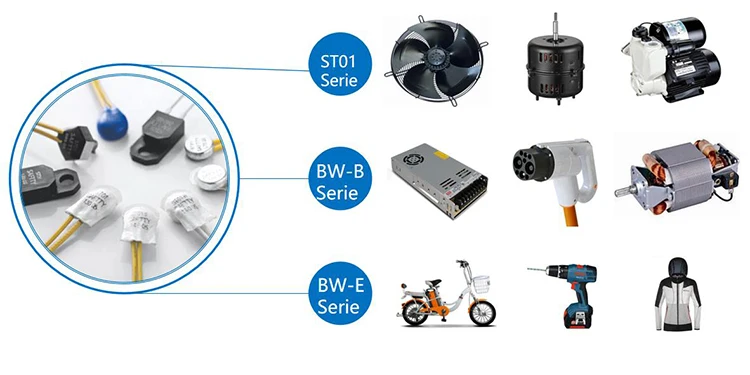

Application Scenarios
Company Profile

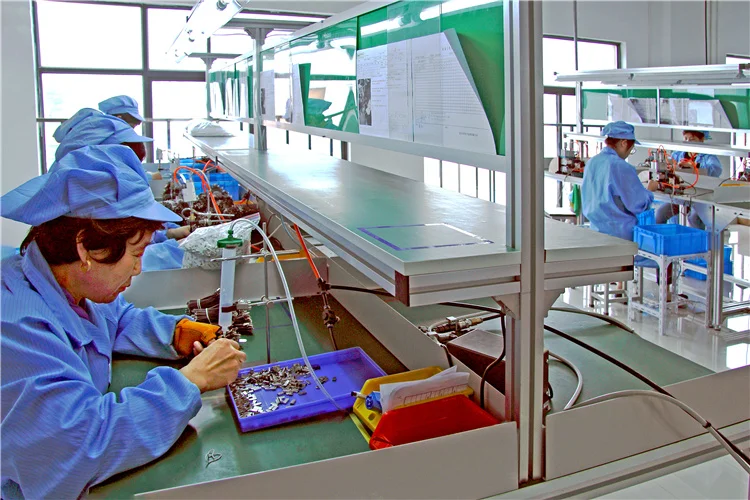

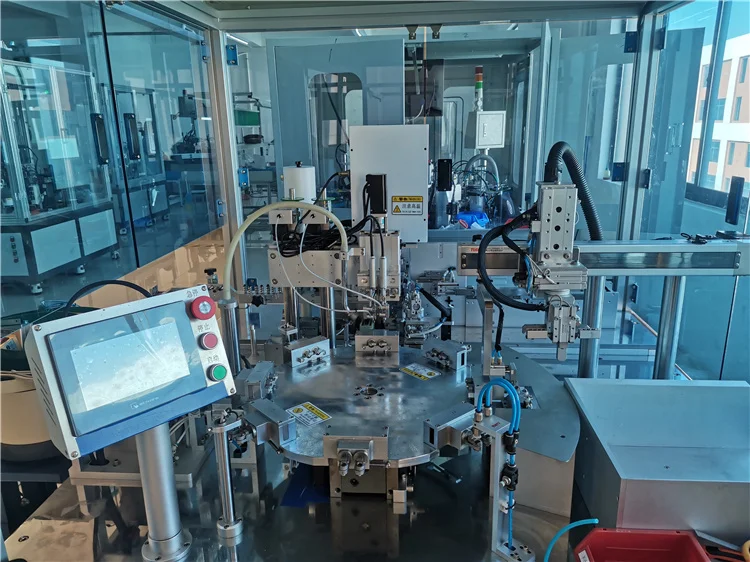

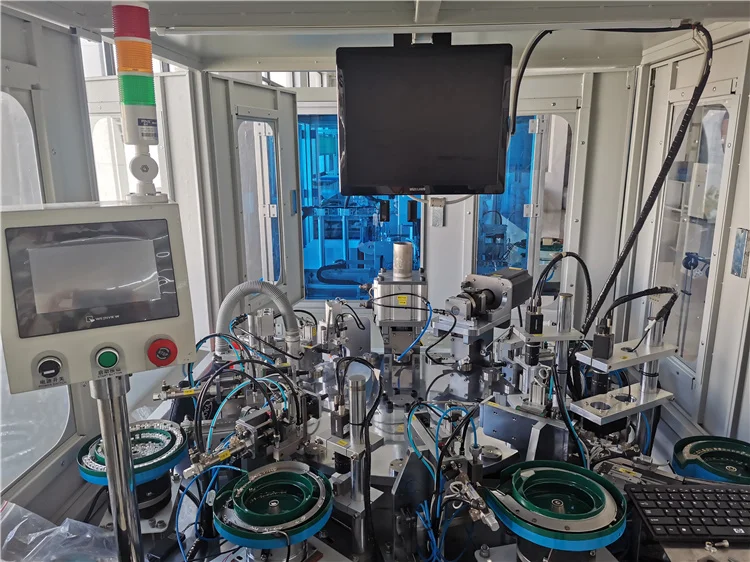

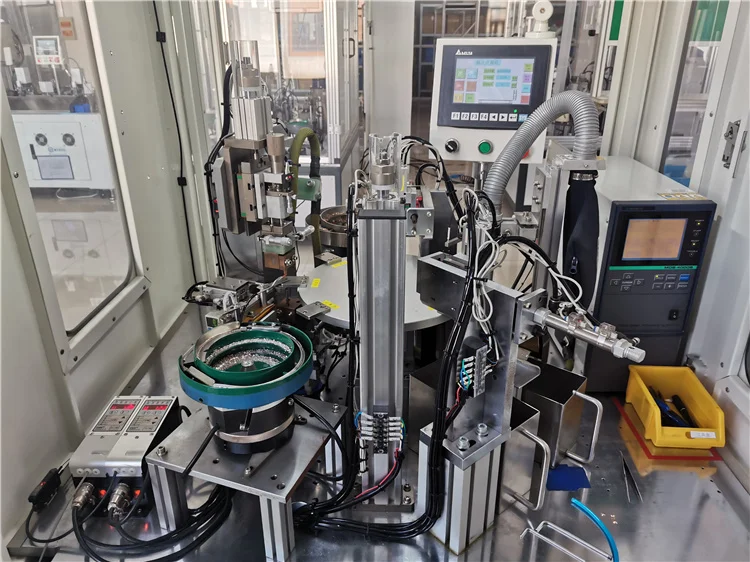

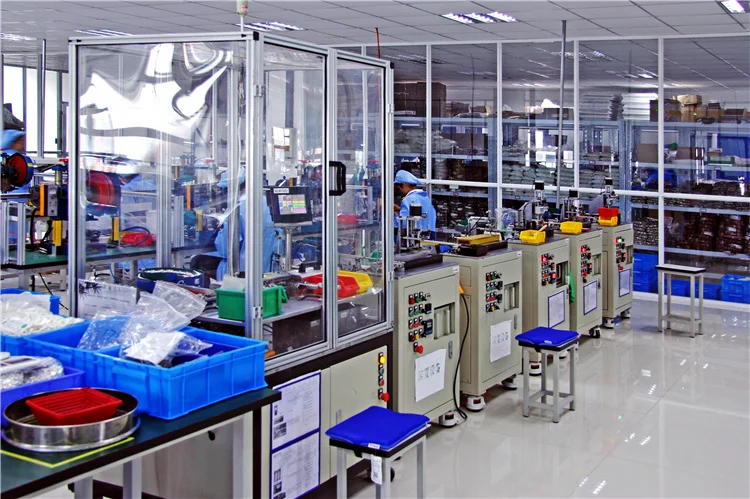

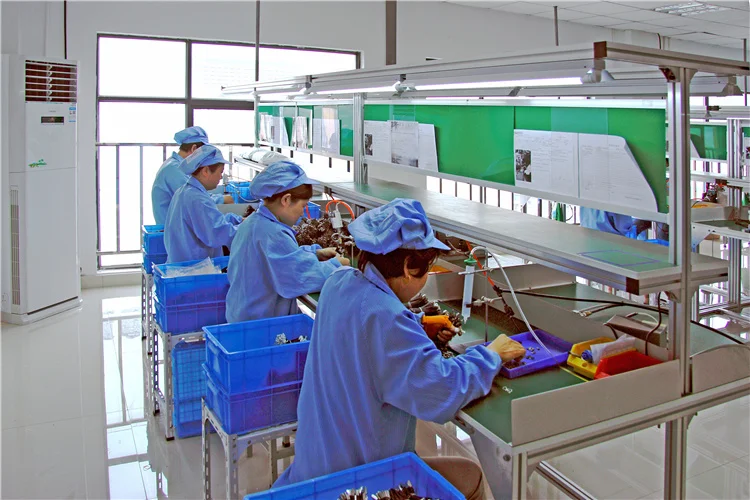

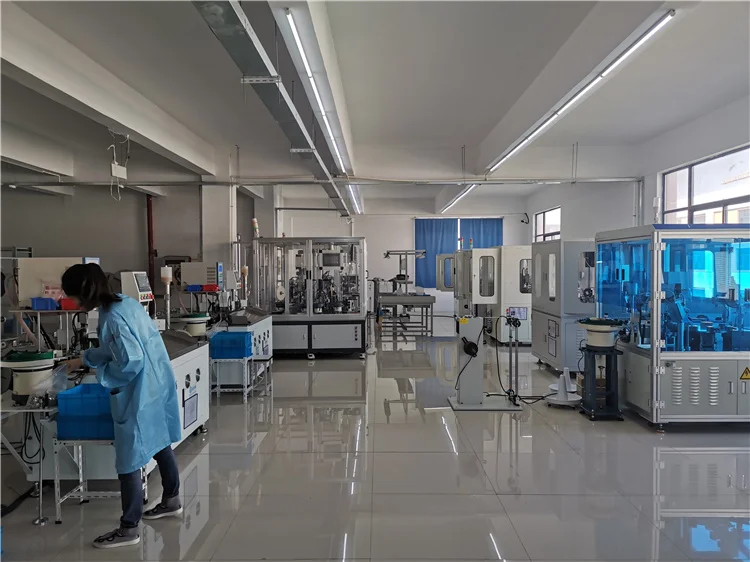

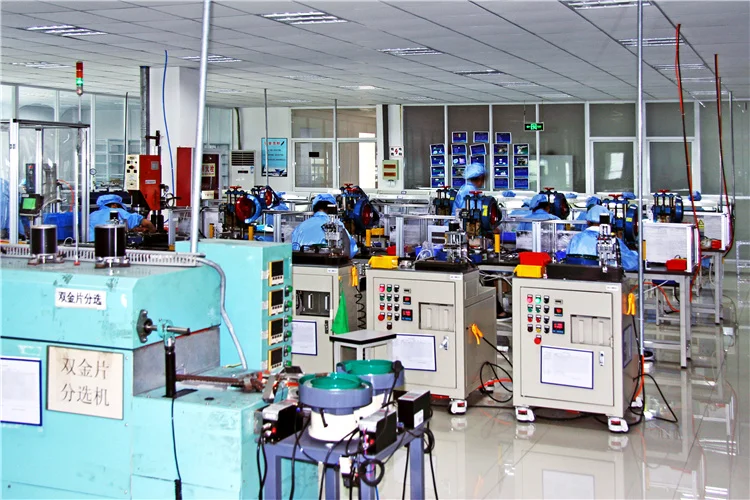

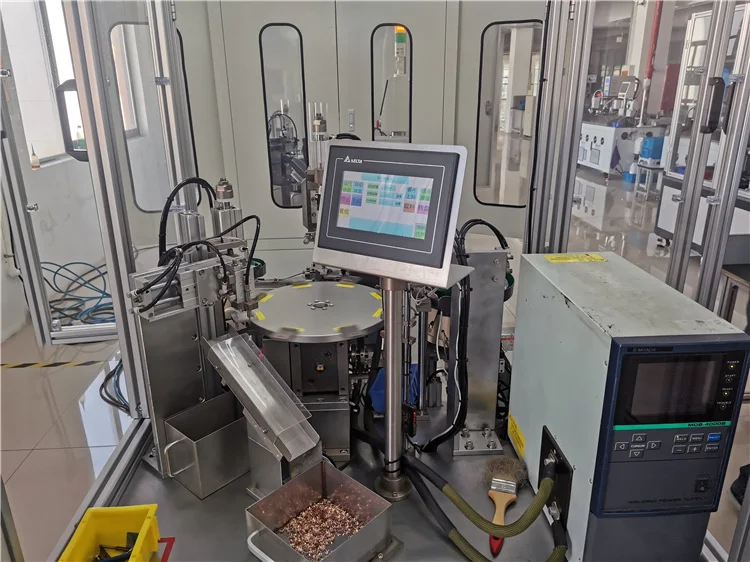

Ours Company
Saftty Electronic Technology Co., Ltd. established in Guangzhou in 2008. It is a member of the China National Automatic Controller Standard Technical Committee and has more than ten national patents.
We are devoted to research and develop various types of miniature thermal protectors.
We are devoted to research and develop various types of miniature thermal protectors.
They are widely used in motors, pumps, cooling fans, power supplies, battery packs, transformers, ballasts, lighting equipment, electric heating products. It can protect your products when the working temperature is higher than normal. The brand SAFTTY (short for safety technology) means providing customers with safe and reliable products, providing employees with a safe working environment and providing shareholders with a stable return
on investment.
on investment.
Ours Team
Exhibition
Packaging & Shipping
FAQ
1.Are you manufacturer ?
-Yes, we own manufacturing base in Baoying,Jiangsu and head office in Guangzhou, Guangdong.
-Yes, we own manufacturing base in Baoying,Jiangsu and head office in Guangzhou, Guangdong.
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays).
-If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
3. Do you offer the sample ?
-Yes ,we would offer below 20pcs free sample for check and test.
4.What is your lead time?
-It depends on the order quantity and the season you place the order.
-Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.
5.What is your payment term?
-T/T,Western Union,MoneyGram,and Paypal.This is negotiable.
6.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).
Please confirm with us before placing orders.
7.where is your market ?
-Italy, Germany ,Turkey ,France,USA, Brazil, India, South Korea ...
8.What applications are thermal protectors used for?
-Electric motor, Power supply ,battery ,transformance ,fan,heating machine ,ect .
-Electric motor, Power supply ,battery ,transformance ,fan,heating machine ,ect .
