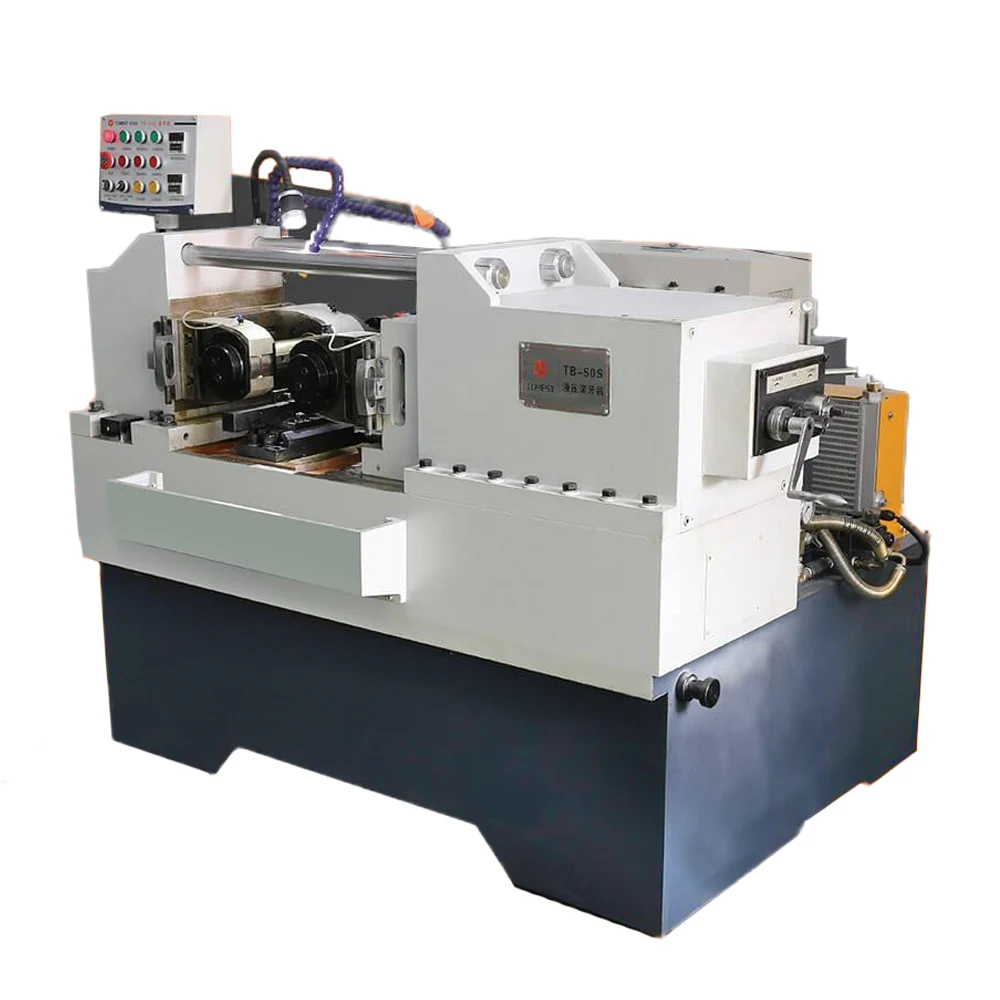

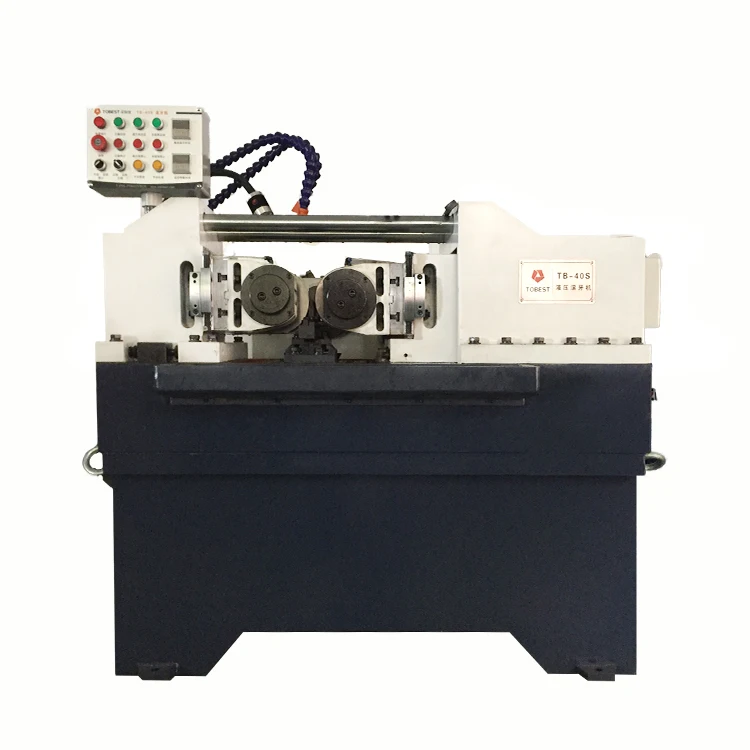

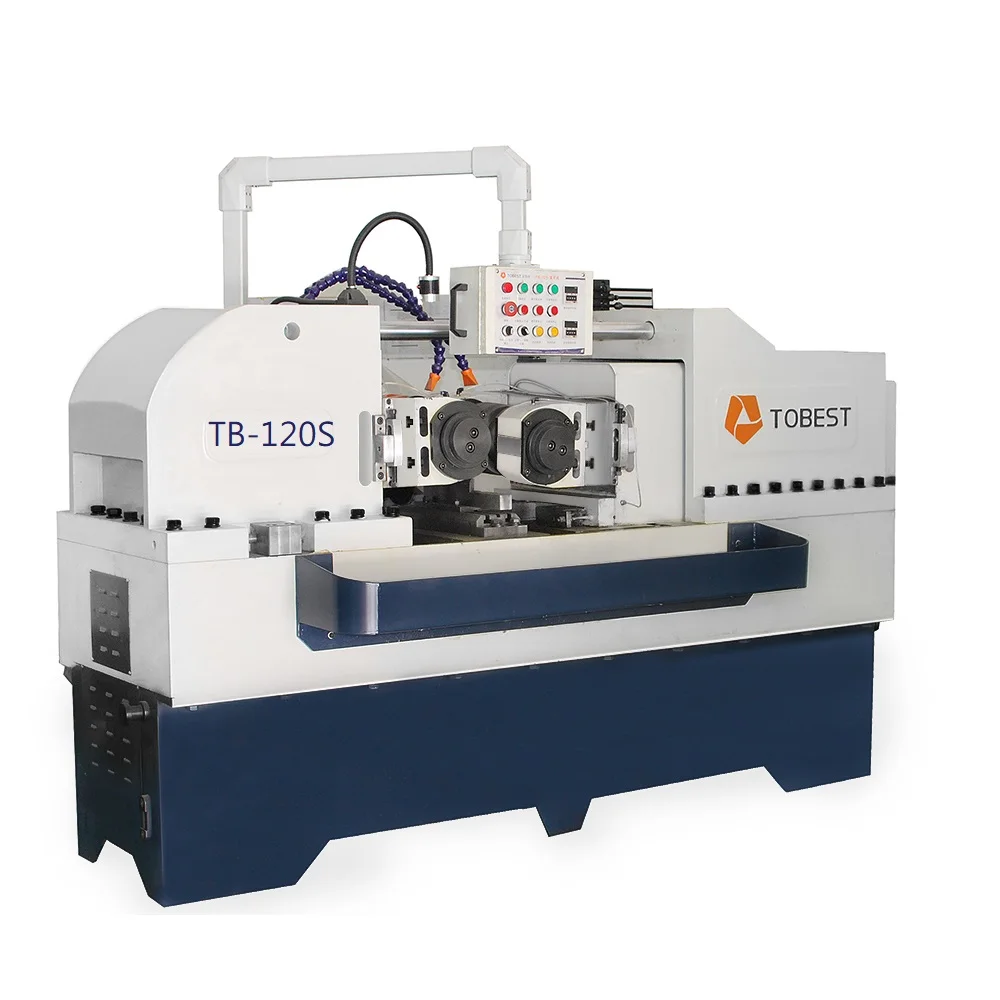

The best selling hydraulic thread rolling machine Variable Speed Type For anchor bolt Making machine fully automatic
- Category: >>>
- Supplier: Shenzhen Tobest Industry Co. Ltd.
Share on (1600425174207):
Product Overview
Description
Product Overview
Advantages
1. Spindle with double row needle roller bearings and cylindrical roller bearings combined to ensure the accuracy and stiffness requirements spindle

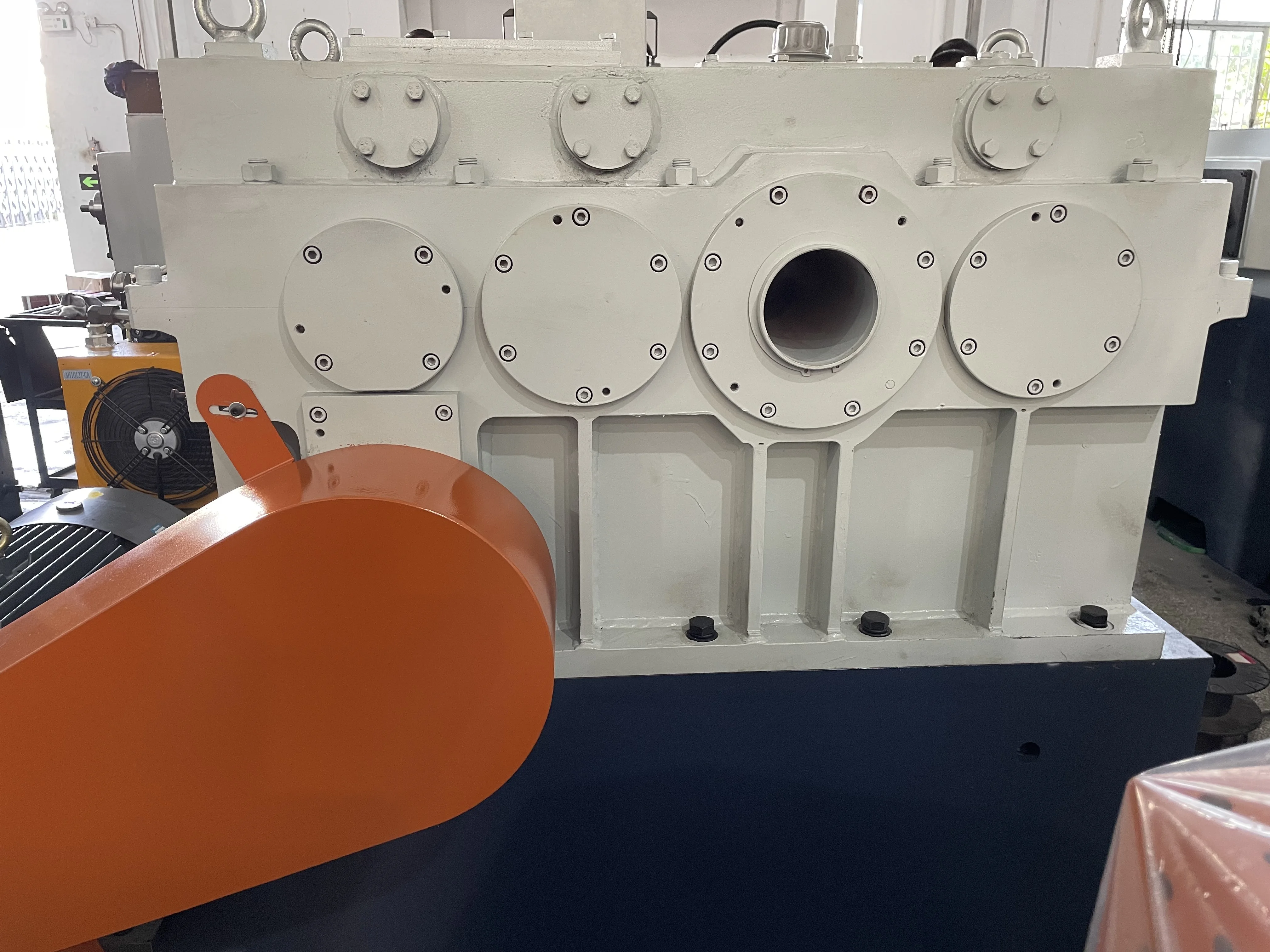

2.Transmission system using multi-polar spindle gear box, to achieve smooth transmission, shifting easily
2.Transmission system using multi-polar spindle gear box, to achieve smooth transmission, shifting easily

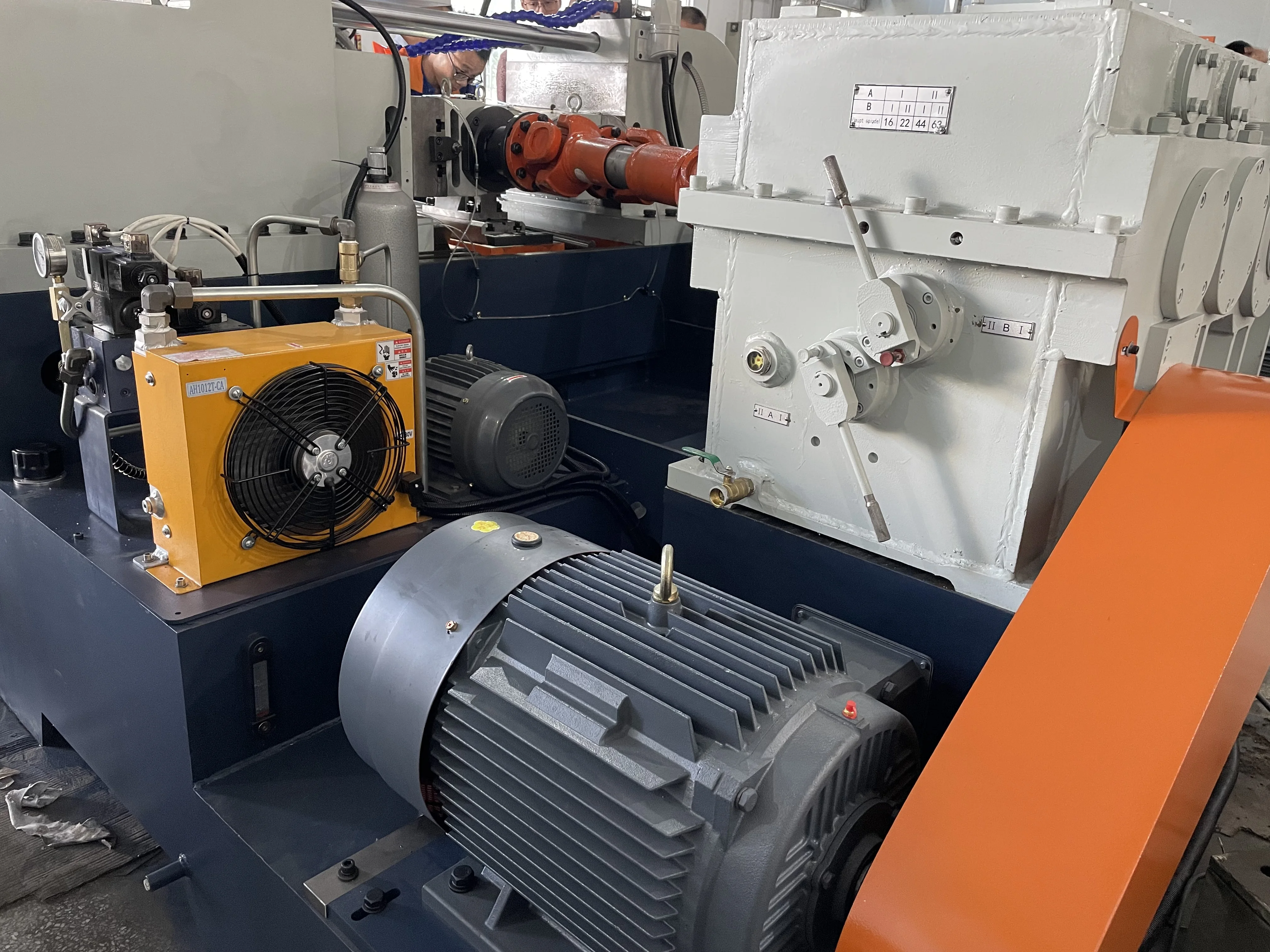

3.Hydraulic system uses modular valves, small footprint, beautiful appearance, stable performance, ease of use and maintenance
4.Machine control system can easily choose manual, semi-automatic, automatic three ways to adjust working hours, using new digital dial code directly controlled roller system time and pause time
FEATURES AT A GLANCE
HIGH PRECISION
HIGH STABILITY
SIMPLE CONTROL
EASY MAINTENANCE
HIGH STABILITY
SIMPLE CONTROL
EASY MAINTENANCE

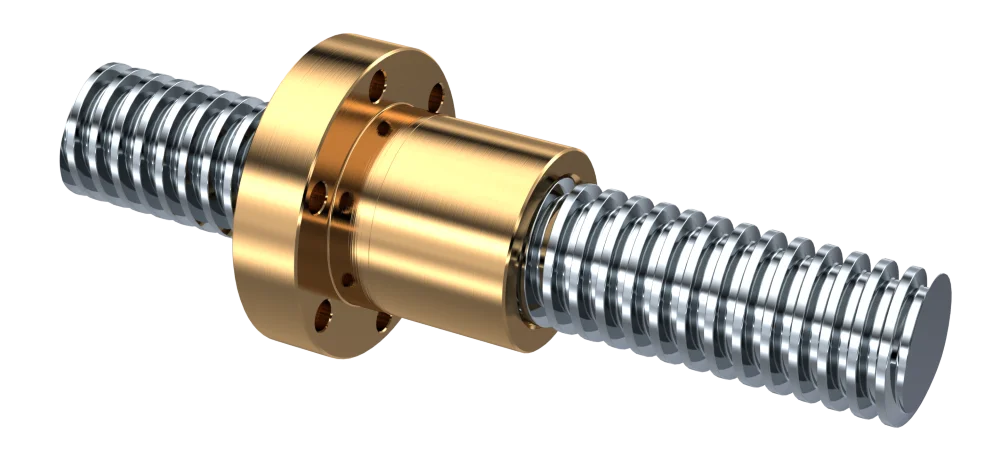

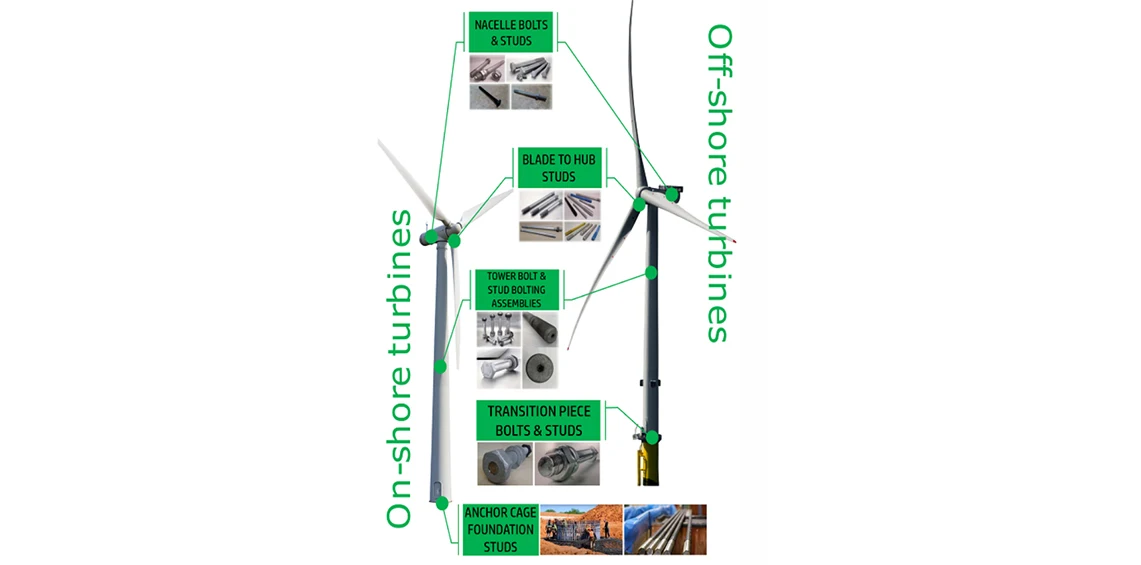

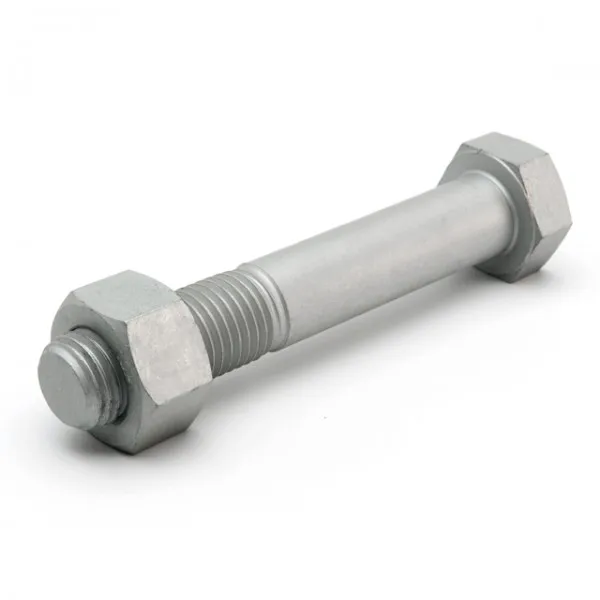

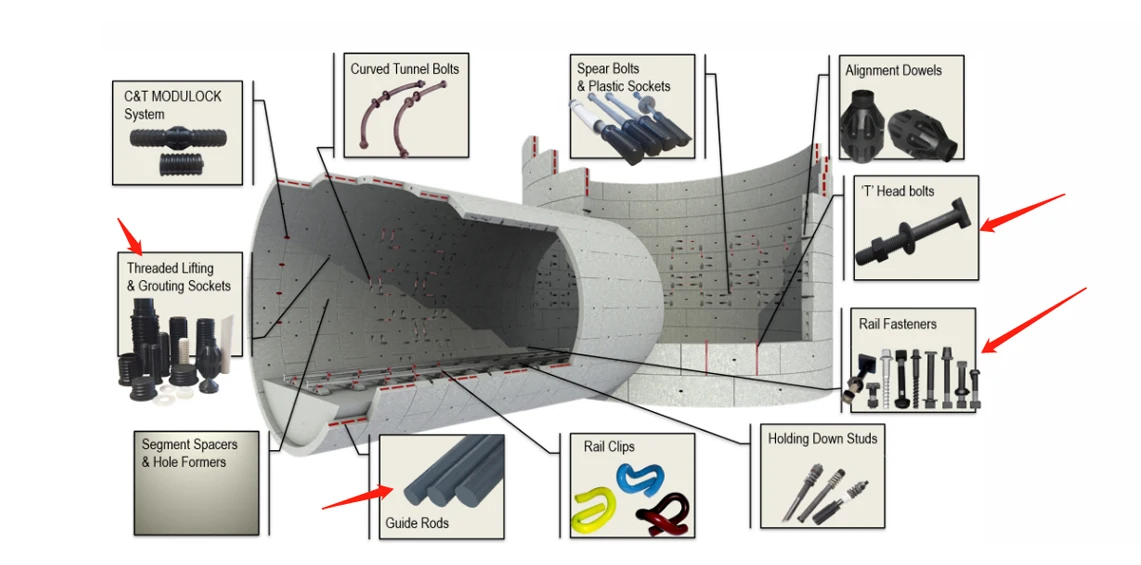

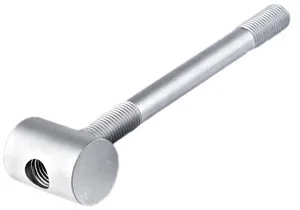

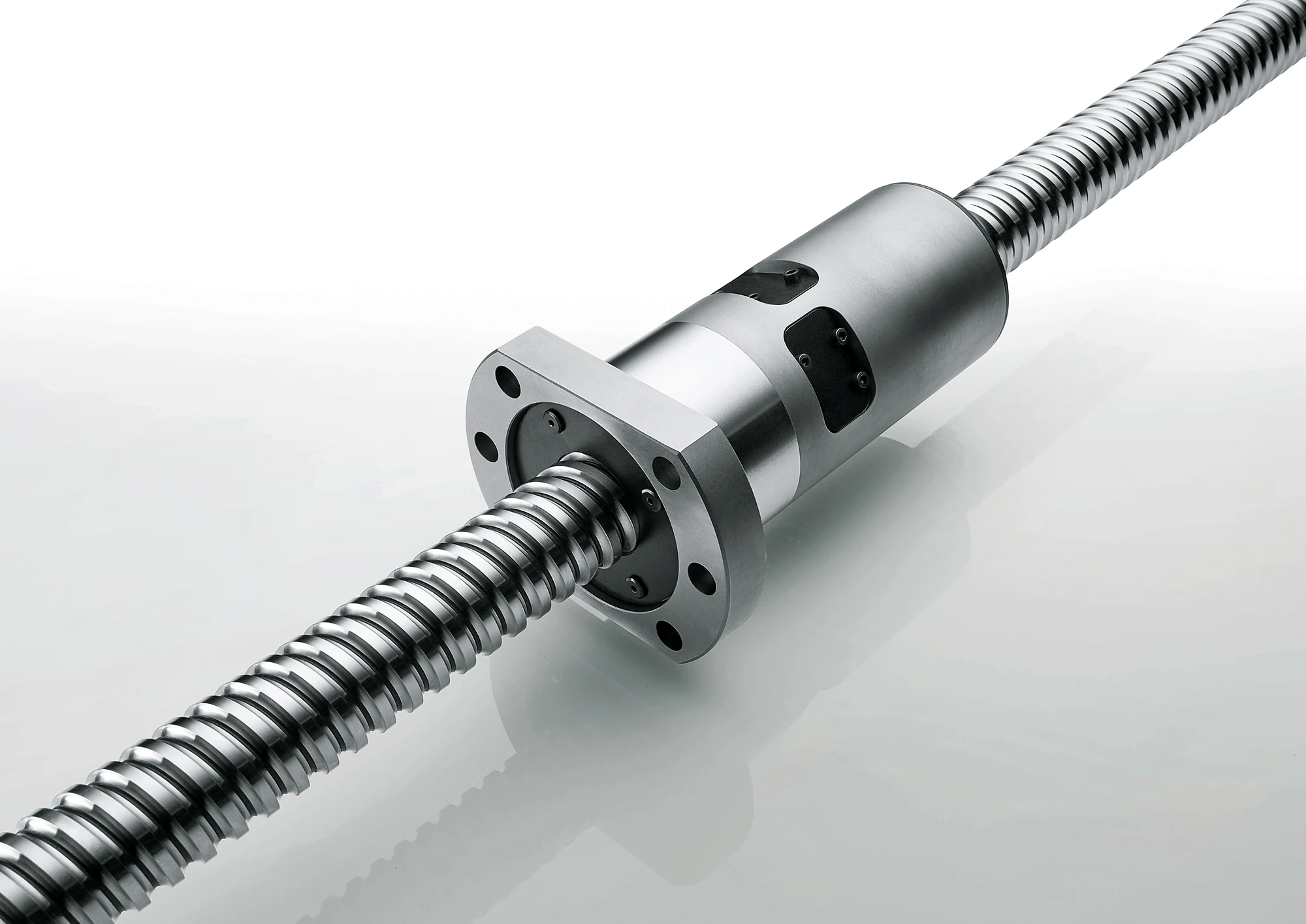

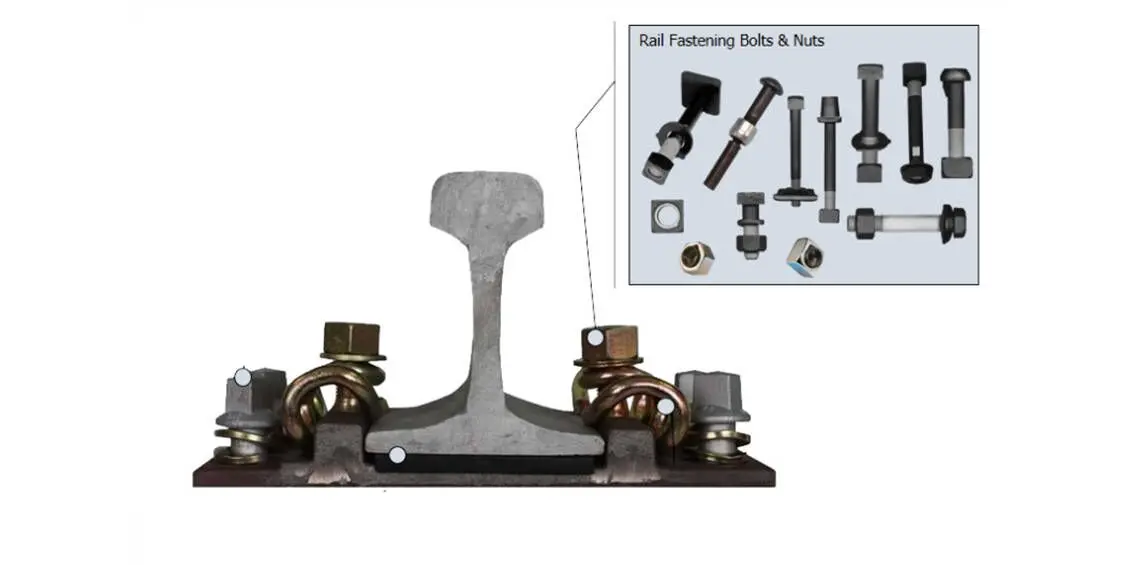

Application
PRODUCT SPECIFICATIONS
Diameter rang | φ20-φ160 | Outside diameter of rolling dies | ø230-ø350 |
Pitch rang | 1.0-25.0p | Inside diameter of rolling dies | 130 mm |
Max length of the threads | in-feed 350mm and thru-feed no limited | Max thickness of rolling die | 350 mm |
Rotation speed | 10/18/30/51 r/min | Output | 5-30 pcs/min |
Machine motor | 40kw | Hydraulic motor | 11.2 kw |
Gear box way | Grinding gear box drive | ||
Max rolling pressure | 120Tons | Machine weight | 12500kg |
Dimension(L*W*H) | 3150*3000*1900 mm | Package Dimension(L*W*H) | 3250*3100*2000 mm |
