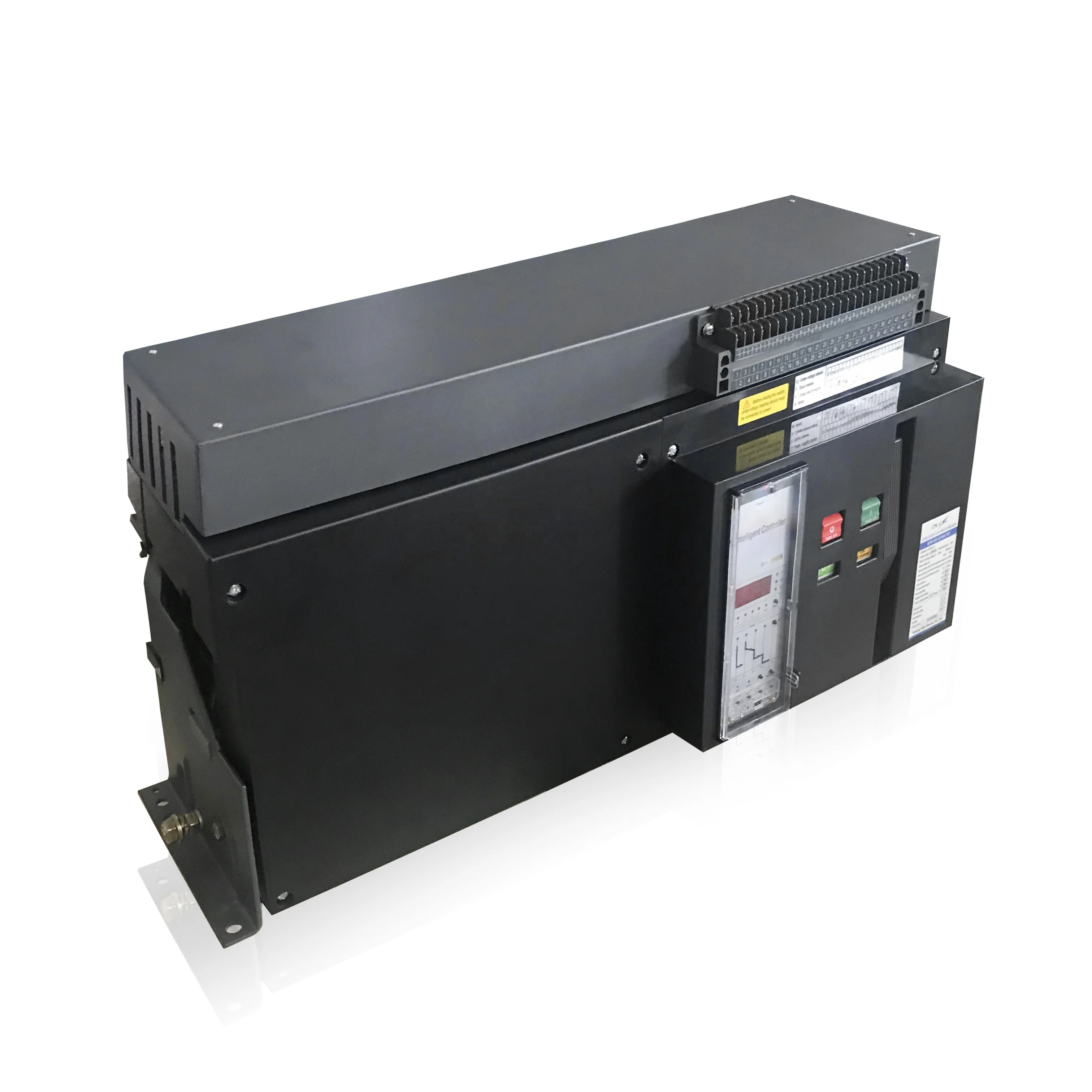

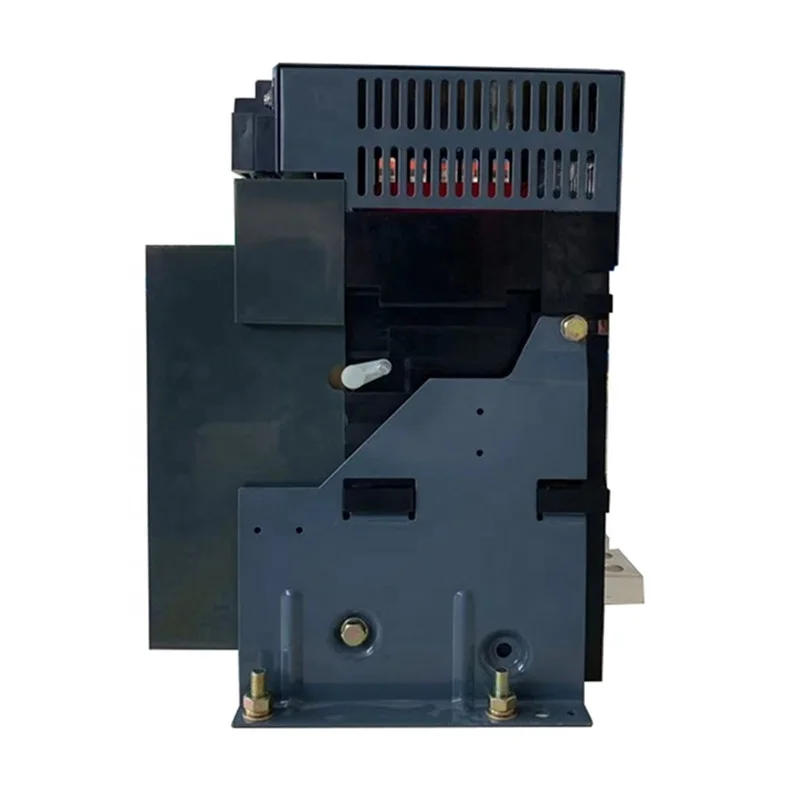

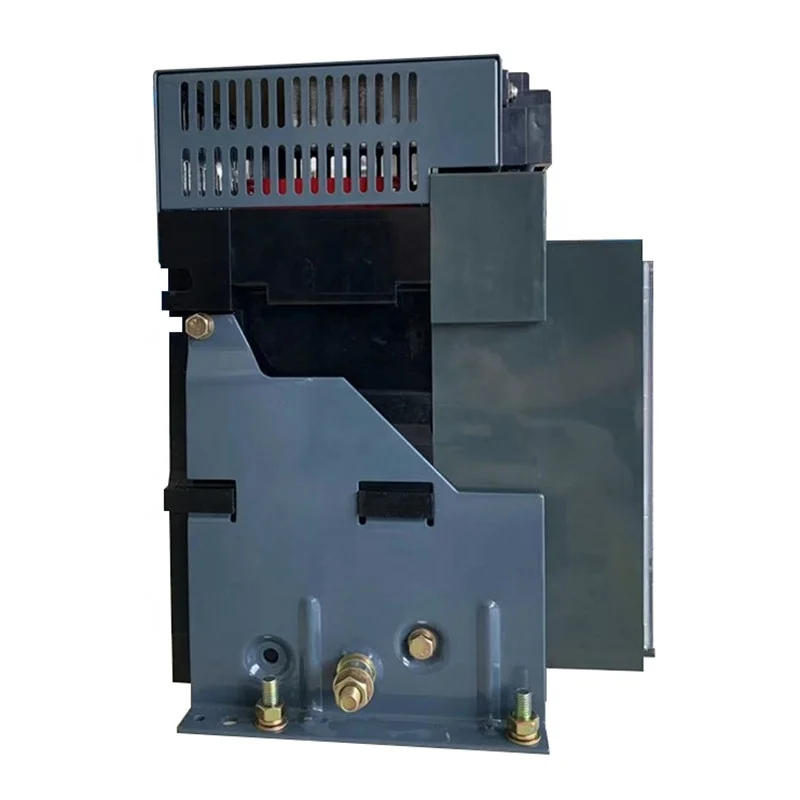

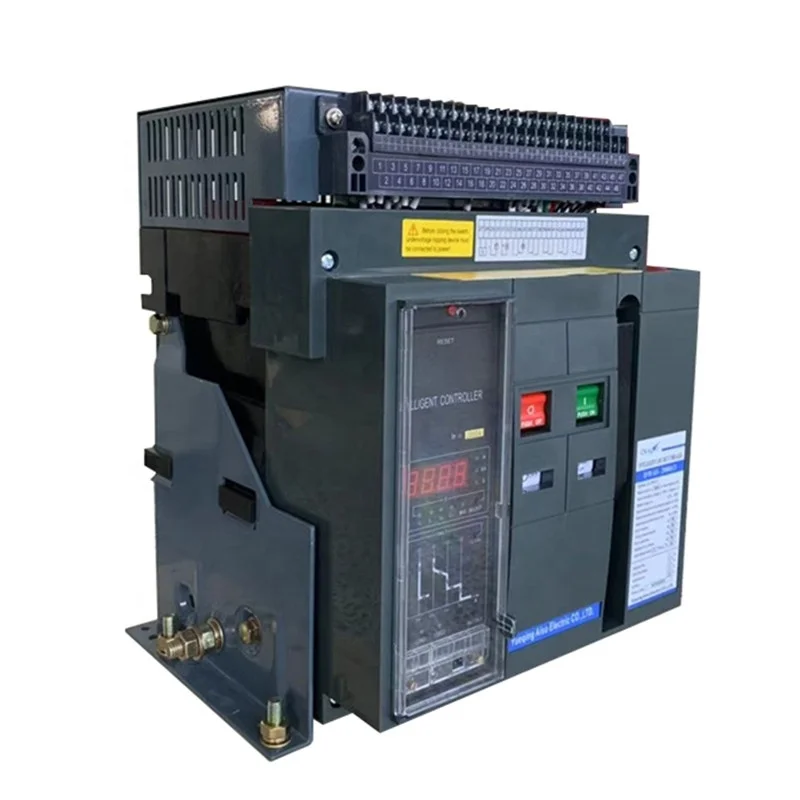

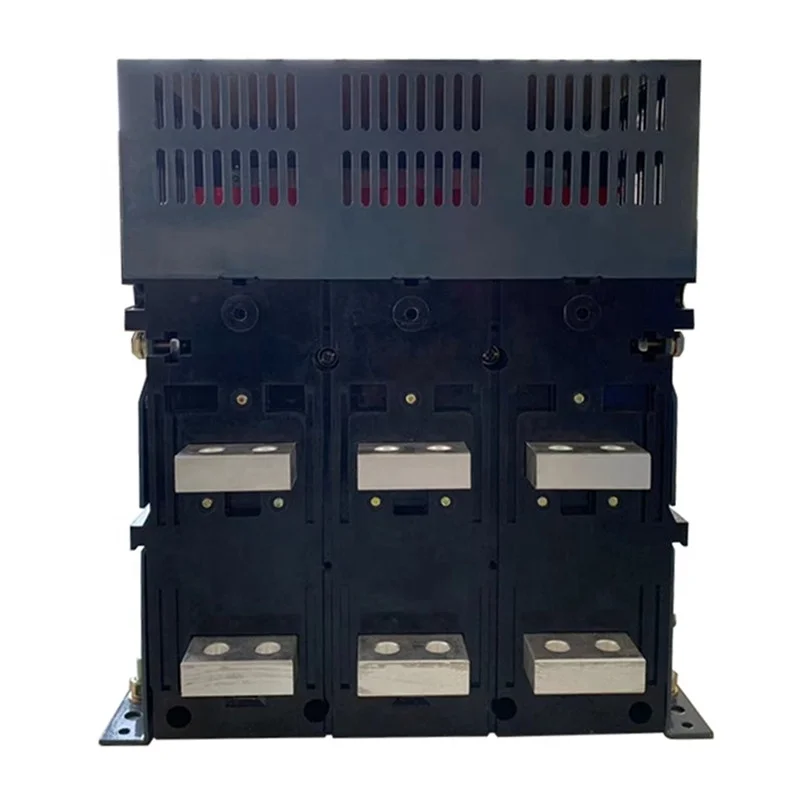

Fixed Type Automatic Circuit Breaker DW45 ACB Air Circuit Breaker

Do Better Performances in Demanding Duties

Application of Intelligent Air Circuit Breaker(ACB)

Frequency:50Hz

Rated voltage:400V,690V

Rated current:4000A

Applicable place:

1.modern high-buildings

(especially for the distribution system of intelligentized building).

2.mines(for 690V).

3.power stations.

4.factories.

*It is mainly used to distribute electric energy.protect circuits and power-supply equipment from overload,under-voltage, short-circuit and single-phase earthing. with intelligentized and selective protection functions, the breaker can improve the reliability of power supply, and avoid unnecessary power failure.               circuit breaker manufacturers/ dw45 air circuit breaker/ fixed-mounted circuit breaker

Feature of Intelligent Air Circuit Breaker(ACB)    Air Break Circuit Breaker/ Competitive Price air Circuit Breaker

1. Rated AC current: 630A-6300A

2. Short-circuit breaking capacity: 80KA-120KA

3. Rated Voltage: under AC690V

4. Standards: IEC60947-2, GB14048.2

Categories of Intelligent Air Circuit Breaker(ACB)

1. Two Types: draw-out type and fixed type

2. Number of poles: 3 pole and 4 pole

3. Operation type: manual operation, auto operation

4. Trip types:*Intelligent controller

                     *under voltage instant ( or time delay type) trip

                     *shunt trip

5.Intelligent controller categories:*L type(basic type),

                                                     *M type( Standard type)

                                                     *H type ( communication type)

6.Type: Air Break Circuit Breaker/ Competitive Price air Circuit Breaker/ dw45 air circuit breaker
