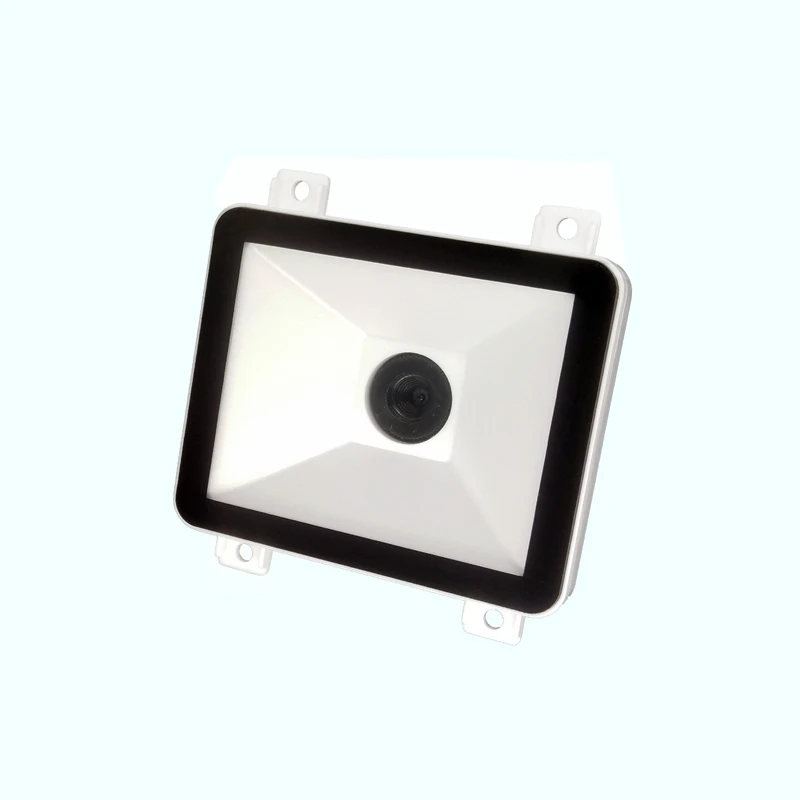

OEM Imager With Decoder Qr Code Scan 2d Cmos Fixed mount Barcode Scanner Engine For Mobile Payment
- Category: Scanners >>>
- Supplier: Shenzhen,Honor,Way,Electronic,Co.,Ltd.
Share on:
Product Overview
Description
OEM Imager With Decoder Qr Code Scan 2d Cmos Fixed mount Barcode Scanner Engine For Mobile Payment
Product Details
Feature and advantage
1. 32-bit high performance CPU,1GHz frequency
2. Decoding min barcode density:5mil
3. Support 1D/2D barcode on paper and screen
4. Interface TTL232,RS232 and USB(HID,COM)
5. Decoding at low and high brightness environment
6. Auto-sensing, Continuous, Host Mode
7. Large window, small size, fast convenient installation
Detailed Parameters
Reading performance | Image Sensor | CMOS |
Resolution | 300 thousand 640*480pixels | |
Decoding capacity
| Support paper and screen barcodes | |
2D: QR, MICROQR, PDF417, MICROPDF417, DATAMATRIX, MAXICODE, AZTEC, HANXIN etc. | ||
1D: UPC-A, UPC-E, EAN-13, ISBN10, ISBN13, EAN-8,CODE39, CODE 11, CODE 93, CODE128, INTERLEAVED25, INDUSTRIAL25, MATRIX25, S25, CODE 32, TRIOPTIC39, GS1_128, CODABAR, MSI, CHINA POST, TELEPEN, RSS, GS1_DATABAR, GS1_DATABAR_LIM, GS1_DATABAR_EXP etc. all normal 1D | ||
Precision | 5mil | |
Light Source | LED(630nm±10nm) | |
View Angle | 66°(H) x60°(V) | |
Scan Angle | Rotation360°,tilt±60°,skew±60° | |
Min Contrast | 25% | |
Trigger Mode | Auto-sensing, Continuous, Host(programmable) Mode | |
Typical DOF | Code 128(6mil) 10-100mm Code 128(20mil)50-260mm QR code(5mil)6-60mm QR code(20mil)40-220mm Performance may be impacted by bar code quality and environmental conditions | |
Mechanical and electrical | Interface | TTL232 ,USB(HID, COM),RS485(optional), RS232(optional) |
Input Voltage | DC 5V±10% | |
Working Current | 90-100mA (working) 1.5mA( TTL standby) 45mA(USB standby) | |

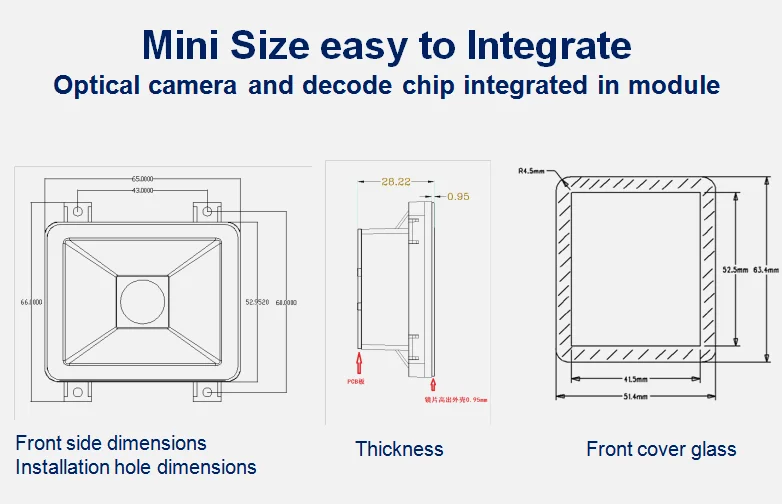

Dimensions | 65*60*28mm | |
Weight | 35g(without cable) | |
Indication | Buzzer & LED | |
Environment Request | Working Tem | -30~65℃ |
Storage Tem | -40~70℃ | |
Humidity | 5%-95%(Non-condensing) |
