Стабилизатор почвы стабилизатор geoceldas weldy Geocell Гравий Стабилизатор geocells стабилизатор ghiaia

Стабилизатор почвы стабилизатор geoceldas weldy Geocell Гравий Стабилизатор geocells стабилизатор ghiaia

Category: Earthwork Products >>>
Supplier: Weifang City Huateng Plastic Products Co. Ltd.

Price:1,76 $ - 2,05 $

Quantity:

Product Overview

Description

Products Description

HDPE Geocell

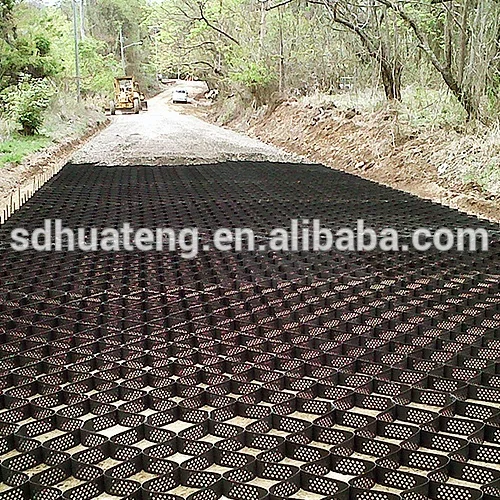

^{Geocell is a kind of three-dimensional reticular cell structure formed by high strength welding of reinforced HDPE sheet material.}

Unperforated Geocell Sheet

Perforated Geocell Sheet

Colours

black, green ,yellow or Other customer required colors

Black Geocell

Green Geocell

Yellow Geocell

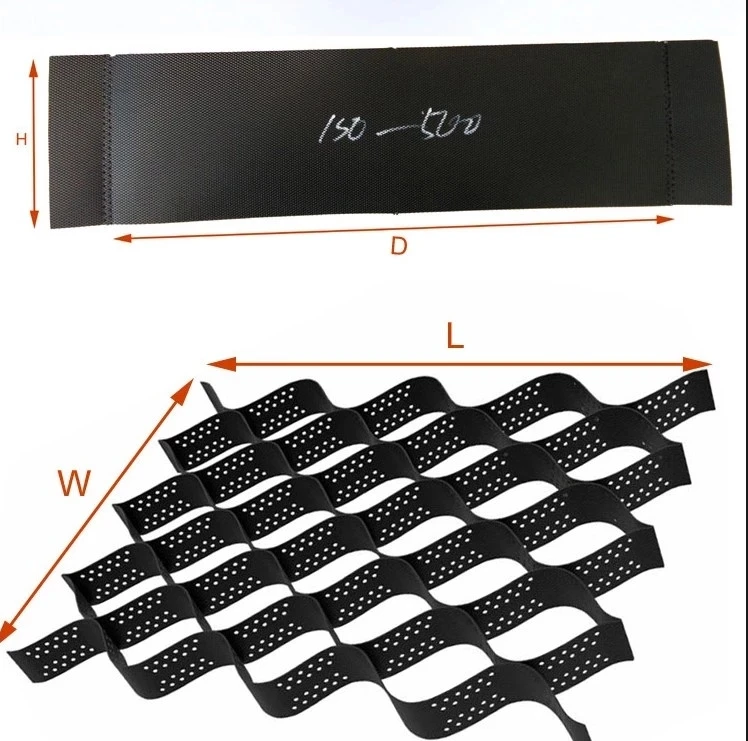

Expanded Geocells parameter specification

One Piece(4*4 cells)

W= width of this piece

L= Length of this piece

H= Height of Cell

D= Welding Distance

Each Cells

W'= Widhth of each Cell

L'= Length of each Cell

H= Height of Cell

Performance parameters of Geocell

Sheet Thickness, mm	1.1	1.2	1.3	1.4	1.5	1.6	1.7	1.8
Welding Distance, mm	300	330	356	400	420	445	450	500
Welding Distance, mm		550	600	650	660	700	712	750	800
Cell Depth, mm	50	70	75	100	150	200	250	300
Properties	Test Method							Value
Material								HDPE
Standard Color								Black /Green
Surface								Smooth / Textured
Sheet Thickness, mm	ASTM D5199							1.1-1.8
Density, g/cm³	ASTM D792							>0.94
Carbon Black Content, %	ASTM D1603							>2.0
Low Temperature Brittleness, ℃	ASTM D746							<-77
Environment Stress Crak Resistance, hours	ASTM D1693							>4000
Seam Peel Strength , N/100mm depthe cell	COE GL-86-19							1000-1420
