10 17% High Concentration Brine Electrolysis Chlorine Machine Sodium Hydroxide Equipment Sodium Hypochlorite Generator
- Category: >>>
- Supplier: Hephis Intelligence Technology(Fujian) Co. Ltd.
Share on (1600425236255):
Product Overview
Description
Product Description
Membrane Electrolysis Sodium Hypochlorite Generator

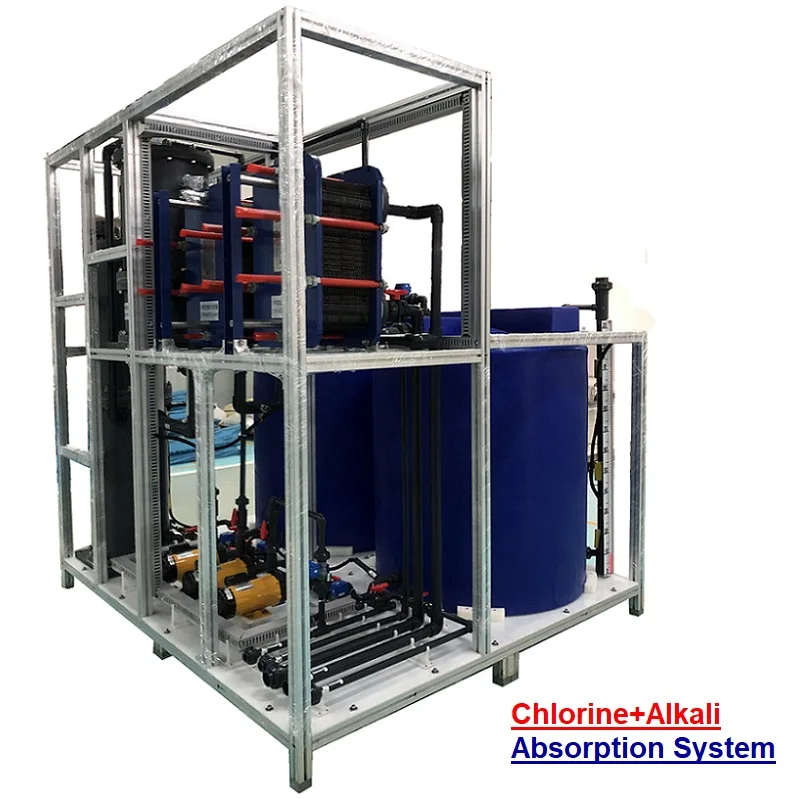

The high-concentration (>10%) sodium hypochlorite generator uses a membrane method to electrolyze sodium chloride saturated brine to generate sodium hydroxide, chlorine and hydrogen, dilute the hydrogen and discharge it, and at the same time collect the chlorine and pass it into the absorption tower. In the absorption tower, the excess sodium hydroxide reacts with chlorine to generate high concentration sodium hypochlorite.

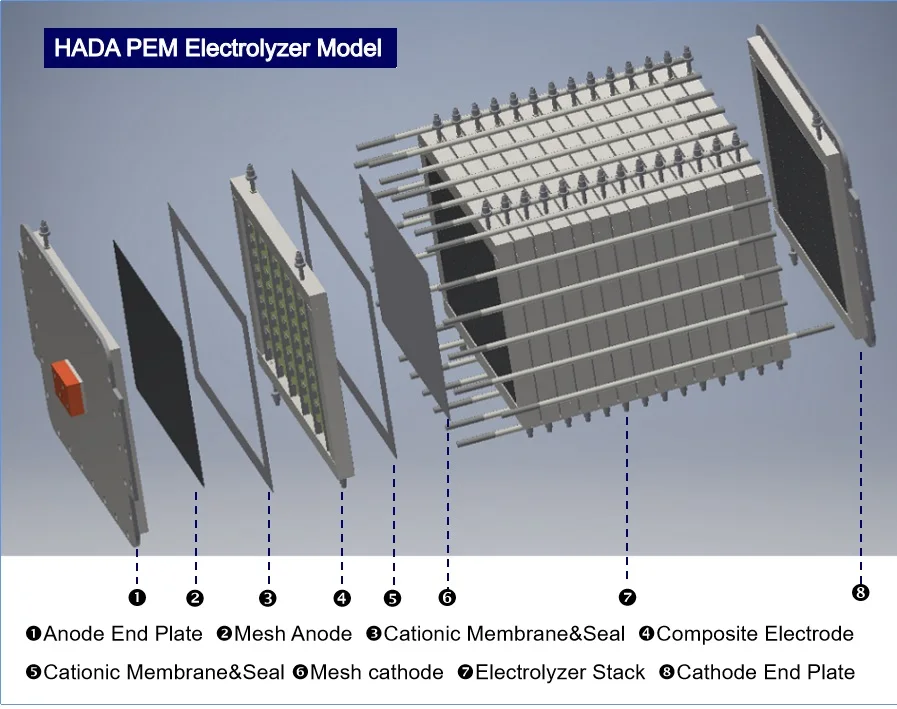

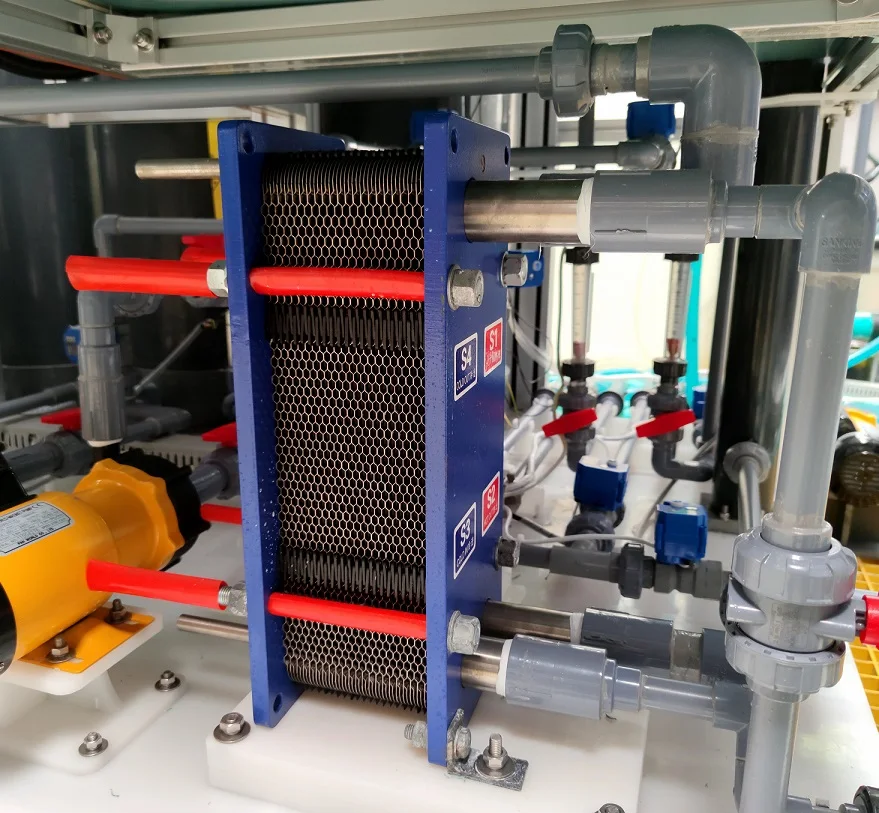

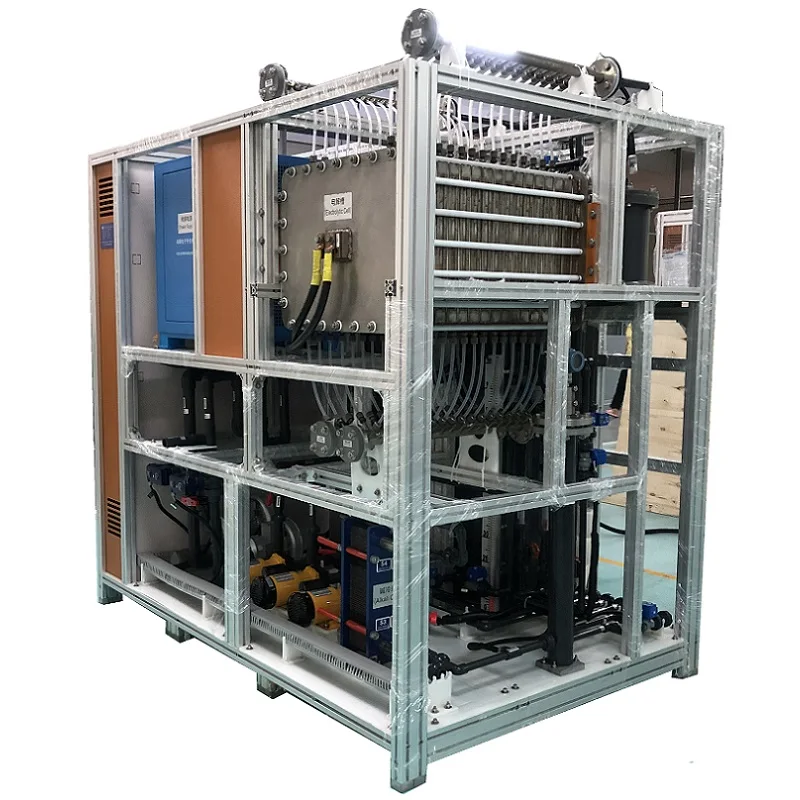

The device system is composed of pure water device, salt dissolving device, filtering device, alkali dissolving device, electrolytic cell assembly, rectifier power supply, absorption device, cooling device, pickling device, automatic control system, storage device and other parts. The device system adopts ion-exchange membrane electrolyzer for electrolysis. The prepared sodium hypochlorite solution has high purity. The system adopts PLC programming for automatic program control, which is easy to operate and easy to understand. The automatic recycling of brine makes the salt consumption low. Using online conductivity meter, online specific gravity meter, online pH meter, temperature meter and other control instruments to stabilize the concentration of finished sodium hypochlorite (>10%), and the concentration can be adjusted arbitrarily between 5% and 17%. The output can also be adjusted.
Working Principle
Product Details
Product Video
Product Paramenters
Specification | ||||||||
Model | Available Chlorine | Available Chlorine Concentrationy | Rated Power | Size (L*W*H) | ||||
HDG-1K-NaClO | 1.0 Kg/hr | 10-17% | 10KW | 5.0×1.8×2.5m | ||||
HDG-2K-NaClO | 2.0 Kg/hr | 10-17% | 15KW | 5.0×1.8×2.5m | ||||
HDG-3K-NaClO | 3.0 Kg/hr | 10-17% | 20KW | 5.0×1.8×2.5m | ||||
HDG-4K-NaClO | 4.0 Kg/hr | 10-17% | 25KW | 5.0×1.8×2.5m | ||||
HDG-5K-NaClO | 5.0 Kg/hr | 10-17% | 30KW | 5.0×2.0×2.5m | ||||
HDG-6K-NaClO | 6.0 Kg/hr | 10-17% | 40KW | 5.0×2.0×2.5m | ||||
HDG-7K-NaClO | 7.0 Kg/hr | 10-17% | 40KW | 5.0×2.0×2.5m | ||||
HDG-8K-NaClO | 8.0 Kg/hr | 10-17% | 40KW | 5.0×2.5×2.5m | ||||
HDG-9K-NaClO | 9.0 Kg/hr | 10-17% | 50KW | 5.0×2.5×2.5m | ||||
HDG-10K-NaClO | 10.0 Kg/hr | 10-17% | 50KW | 5.0×2.5×2.5m | ||||
HDG-15K-NaClO | 15.0 Kg/hr | 10-17% | 80KW | customization | ||||
HDG-20K-NaClO | 20.0 Kg/hr | 10-17% | 100KW | Customization | ||||
HDG-30K-NaClO | 30.0 Kg/hr | 10-17% | 150KW | Customization | ||||
HDG-40K-NaClO | 40.0 Kg/hr | 10-17% | 200KW | Customization | ||||
HDG-50K-NaClO | 50.0 Kg/hr | 10-17% | 250KW | Customization | ||||
HDG-60K-NaClO | 60.0 Kg/hr | 10-17% | 300KW | Customization | ||||
HDG-70K-NaClO | 70.0 Kg/hr | 10-17% | 350KW | Customization | ||||
HDG-80K-NaClO | 80.0 Kg/hr | 10-17% | 400KW | Customization | ||||
HDG-90K-NaClO | 90.0 Kg/hr | 10-17% | 450KW | Customization | ||||
HDG-100K-NaClO | 100.0 Kg/hr | 10-17% | 500KW | Customization | ||||
Product Drawing
Analysis Of Operating Cost And Investment
Payback Period
Our Advantages
Detailed Pictures
Main Features
1) Fully automatic operation--help reduce the work and cost.
2) Components are all from famous brands--ensure stable running and long service life.
3) Excellent design, flexible capacity arrangement, easy installation.
4) The only one raw material-- salt(food level)-- is safe and easily get.
5) High sefety-- all Cl2 will be reacted with NaOH in the absorption tower without leakage.
2) Components are all from famous brands--ensure stable running and long service life.
3) Excellent design, flexible capacity arrangement, easy installation.
4) The only one raw material-- salt(food level)-- is safe and easily get.
5) High sefety-- all Cl2 will be reacted with NaOH in the absorption tower without leakage.
Project Photos
Model No. ：HDG-50K-NaClO
Working Mode： 6 Duty
Solution Concentration：≥10%（final solution）
Electrolyte：≥20% Brine.
Company Information
The Ordering Process
1. Please inform the Capacity/Size/Installation requirements of the electrolytic cell you want, and we will design the drawing for you.
2. Quotation.
3. Your company confirm our quotation reasonable.
4. Negotiation details.
5. Orders and pay.
6. Drawing the picture and production.
6. Drawing the picture and production.
HEPHIS INTELLIGENCE TECHNOLOGY(Fujian) Co.,Ltd.
HEPHIS is Specialized Electrochemical and Fluid Equipment Manufacturer in China.
We Produce the Must Advanced Technology Products With Stable Quality.
We Always Snly 5% of Profit ,So the Price of Our Products Are More Cost-effective.
We have passed ISO9001-2015,ISO14001-2004,OHSAS18001-2011,CE,RoHs certifications to ensure the quality of products.
We Produce the Must Advanced Technology Products With Stable Quality.
We Always Snly 5% of Profit ,So the Price of Our Products Are More Cost-effective.
We have passed ISO9001-2015,ISO14001-2004,OHSAS18001-2011,CE,RoHs certifications to ensure the quality of products.
Shipping & Payment
FAQ
1. What Available Chlorine of HEPHIS Membrance Electrolysis Sodium Hypochlorite Generator ?
1.0-100.0kg/hr .
2.What is the quality of HEPHIS electrolyzers?
We will take samples of each batch of electrodes to test its forced failure life to ensure that it is great.
3.Can I customize electrolyzers with special sizes?
Yes, we can design drawings according to your requirements and produce them after confirmation.
4.Can I customize electrodes with longer life?
Yes, we can get a longer service life by increasing the number of ruthenium-iridium coatings and optimizing the formula.
5.Can you provide me with the matching DC electrolytic power?
Yes, we have all models of high-quality electrolysis power supplies for the electrolysis cells.
6. Is my money safe to pay with the Trade Assurance order?
Yes Sure, the Money is guaranteed by Alibaba, Like Amazon/eBay.
7. How long is the lead time?
Within 150-180 days.
8. Are you a manufacturer or trading company?
HEPHIS has 40+ years of fluid experience, we have perfect automatic factory and R&D teams.
9. Do HEPHIS provide detailed design drawings??
HEPHIS will provide the detailed design drawings for customer, customers only need to install according to our drawings when they receive the product.
2.What is the quality of HEPHIS electrolyzers?
We will take samples of each batch of electrodes to test its forced failure life to ensure that it is great.
3.Can I customize electrolyzers with special sizes?
Yes, we can design drawings according to your requirements and produce them after confirmation.
4.Can I customize electrodes with longer life?
Yes, we can get a longer service life by increasing the number of ruthenium-iridium coatings and optimizing the formula.
5.Can you provide me with the matching DC electrolytic power?
Yes, we have all models of high-quality electrolysis power supplies for the electrolysis cells.
6. Is my money safe to pay with the Trade Assurance order?
Yes Sure, the Money is guaranteed by Alibaba, Like Amazon/eBay.
7. How long is the lead time?
Within 150-180 days.
8. Are you a manufacturer or trading company?
HEPHIS has 40+ years of fluid experience, we have perfect automatic factory and R&D teams.
9. Do HEPHIS provide detailed design drawings??
HEPHIS will provide the detailed design drawings for customer, customers only need to install according to our drawings when they receive the product.
