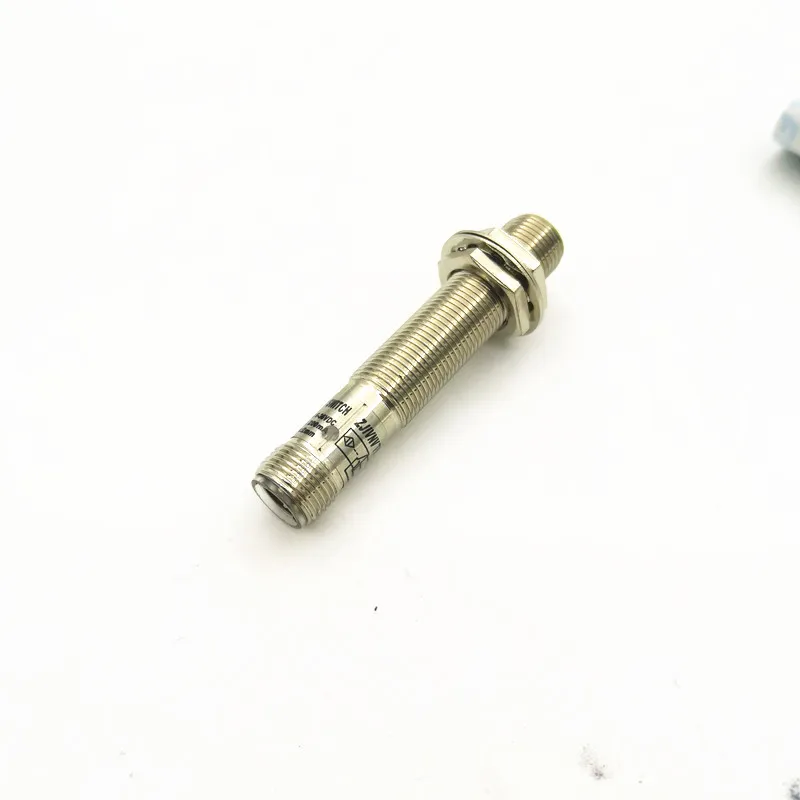

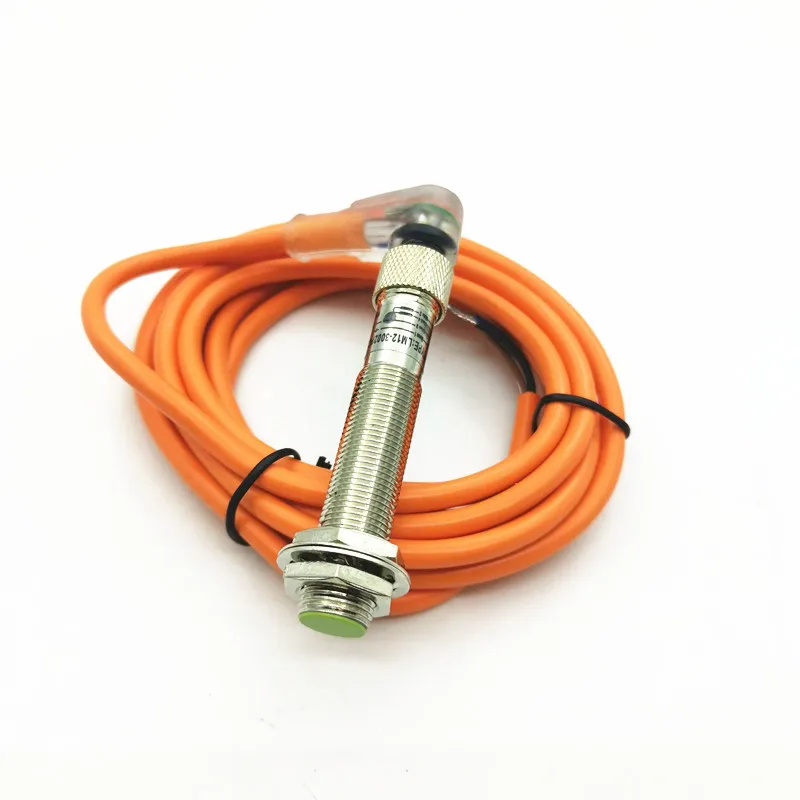

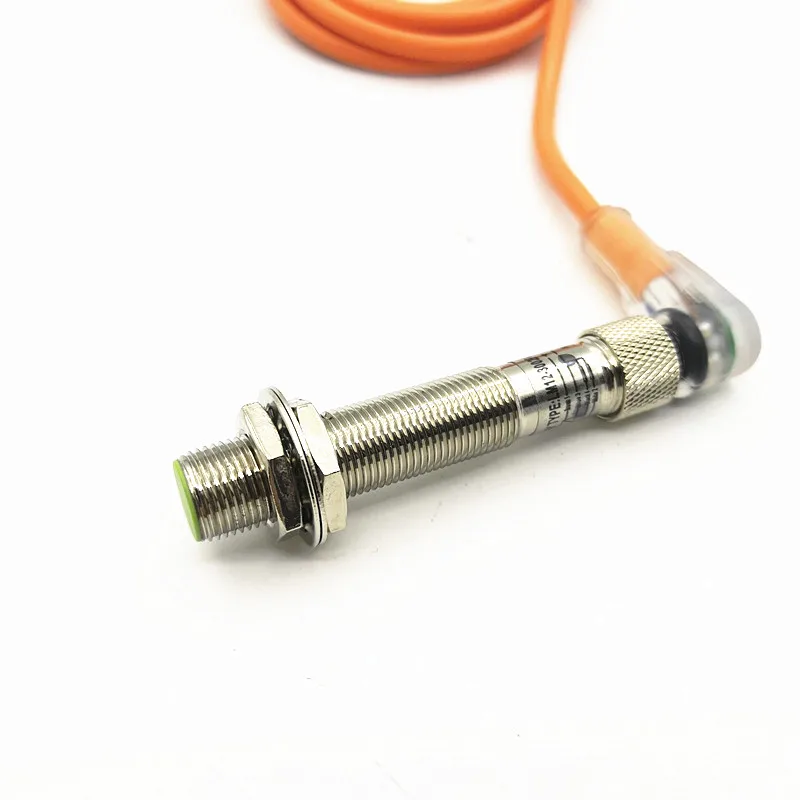

M12 Flush/Non flush Plug in Proximity Switch NPN PNP NO NC Connector Inductive Sensor 5m Angle Aviation Plug with LED Indicator
M12 Flush/Non-flush Plug-in Proximity Switch NPN PNP NO NC Connector Inductive Sensor 5m Angle Aviation Plug with LED Indicator
M12 Flush/Non-flush Plug-in Proximity Switch NPN PNP NO NC Connector Inductive Sensor 5m Angle Aviation Plug with LED Indicator
M12 Flush/Non-flush Plug-in Proximity Switch NPN PNP NO NC Connector Inductive Sensor 5m Angle Aviation Plug with LED Indicator
M12 Flush/Non-flush Plug-in Proximity Switch NPN PNP NO NC Connector Inductive Sensor 5m Angle Aviation Plug with LED Indicator
M12 Flush/Non-flush Plug-in Proximity Switch NPN PNP NO NC Connector Inductive Sensor 5m Angle Aviation Plug with LED Indicator
M12 Flush/Non-flush Plug-in Proximity Switch NPN PNP NO NC Connector Inductive Sensor 5m Angle Aviation Plug with LED Indicator

M12 Flush/Non flush Plug in Proximity Switch NPN PNP NO NC Connector Inductive Sensor 5m Angle Aviation Plug with LED Indicator

Share on (1600425237672):


Price:$5.83 - $6.25

Quantity:


Product Overview

Description





M12 Flush/Non-flush Plug-in Proximity Switch NPN PNP NO NC Connector Inductive Sensor 5m Angle Aviation Plug with LED Indicator


LM12- T
埋入式Flush
检测距离 Detection distance
2mm
直流DC 6~36VDC
NPN
NO
LM12-3002NAT
NC
LM12-3002NBT
NO+NC
LM12-3002NCT
PNP
NO
LM12-3002PAT
NC
LM12-3002PBT
NO+NC
LM12-3002PCT
二线制Two wire system
NO
LM12-3002LAT
NC
LM12-3002LBT
交流AC 90~250VAC
SCR可控硅Control-lable silicon
NO
LM12-2002AT
NC
LM12-2002BT
NO+NC

继电器输出Relay output

非埋入式 Non-flush
检测距离 Detection distance
4mm
直流DC 6~36VDC
NPN
NO
LM12-3004NAT
NC
LM12-3004NBT
NO+NC
LM12-3004NCT
PNP
NO
LM12-3004PAT
NC
LM12-3004PBT
NO+NC
LM12-3004PCT
二线制Two wire system
NO
LM12-3004LAT
NC
LM12-3004LBT
交流AC 90~250VAC
SCR可控硅Control-lable silicon
NO
LM12-2004AT
NC
LM12-2004BT
NO+NC

继电器输出Relay output

输出电流Output current
DC
200mA
SCR/继电器Relay
200mA
输出电压降Outout coltage drop DC/AC
直流（NPN、PNP)型3V以下、二线型:3.9V以下、交流AC 10V以下 DC<3V、AC<10V
消耗电流Consumption current
直流（NPN、PNP)型DC 12V时 8mA、24V时15mA、交流AC 10mA以下 DC<15mA、AC<10mA
标准检测物体 Standard detected object
12×12×1（A3 铁iron）
重复精度 Repeated precision
0.01
响应频率 DC/AC Response frequency
400Hz/10Hz
工作环境温度 Working environment temperature
-25℃~+70℃
绝缘电阻 Insulation resistance
50MΩ
外壳材料 Shell material
金属 Metal
防护等级 Protection grade
IP67

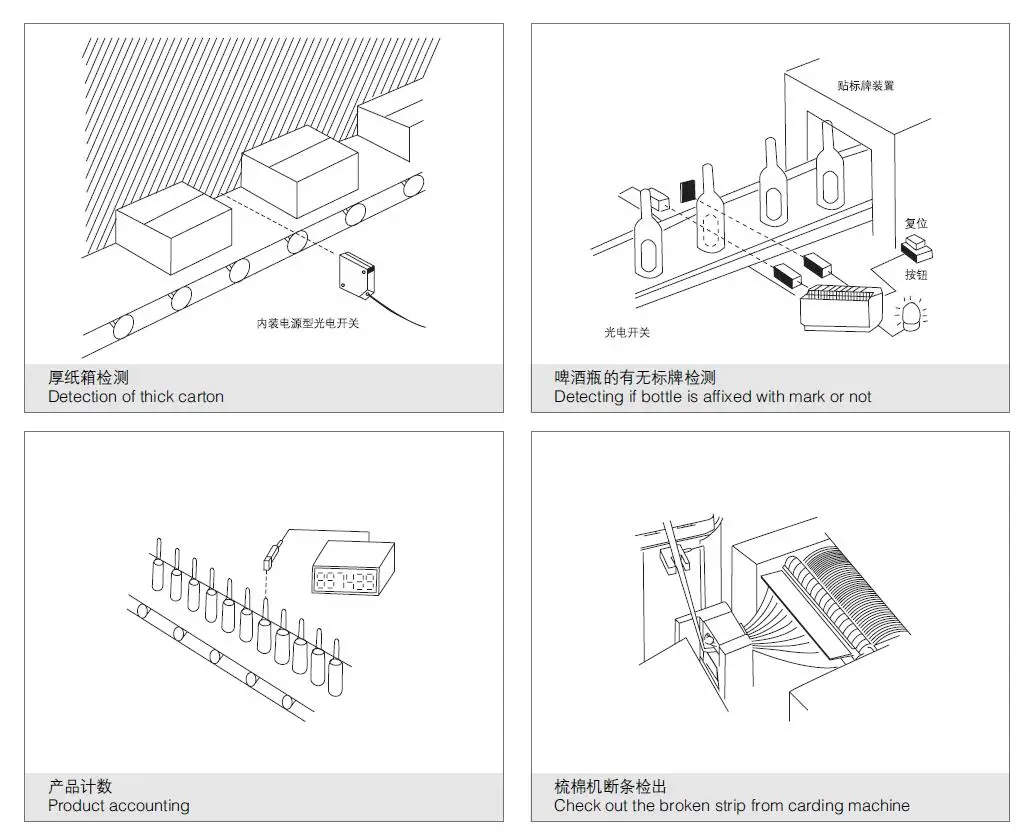

Applications










1. How we control the quality?
Aging test for 8 hours, after then we put them into the market.
2. Can we accept samples customized?
No problem for samples order, and welcome your testing before your big order.
3. What about the production capacity?
4. days for samples order under 100pcs, 7-15 days for general order under 10000pcs.
4. OEM and ODM are available? Yes, we accept
customized products
5. Will the delivery time be long for a big order?
No, we have two special parts in production line, one for samples orders, another for big orders, so we can control the delivery time as we promise in the contract.
6. What is our warranty service?
For all products we sell have 2 year warranty.
