PVC PP PE Pet EVA Hydraulic Heat Press Machine for Making Sample
- Category: >>>
- Supplier: Guangdong Xihua Machinery Co. Ltd.
Share on (1600425254402):
Product Overview
Description
Product Description
Product Application
This machine is applicable to R & D in laboratory.Put the raw materials into the mold between the electric boards and set up certain pressure and temperature. The raw material are formed into test specimen for test use. This machine features compact size,complete functions, stable tempeture, low noise,easy opention and material saving.
XH-406B Technical Parameter | ||||||
Capacity selection | 10,20,30,50 ton or designed | |||||
Temperature control | normal temperature~300℃ | |||||
Precision of the control temp | + -2℃ | |||||
Heating Mode | Electrical Heating | |||||
Timepiece | LED 0~99(min) | |||||
Area of electric board | 300*300mm designated | |||||
Area of cooling plate | 300*300mm designated | |||||
Cooling mode | Compressor water cooling or running water cooling | |||||
Plate spacing | 0~90mm designated | |||||
Volume | 1000*600*1500mm | |||||
Weight | About 710kg | |||||
Power supply | 3Ø, AC380V, 20A | |||||
Main Features
(1) XH-406B tablet press machine is applicable to R & D in laboratory because of its compact size, complete functions, stable temperature, low noise, easy operation and material saving.
(2) High-precision temperature sensor, together LED temperature controller, built-in dense-point heating wire and tubular condenser, has the temperature range from normal temperature to 300℃.
(3) Imported KDB electric board features high-temperature resistance, abrasion resistance, fast thermal transmission and strenghthen against deformation.
(4) Single heating can be designed according to the requirements.
(5) Oil hydraulic system: the pressure range: 30 ton, the maximum stroke of the cylinder: 180mm.
Detailed Images
Machine Parts

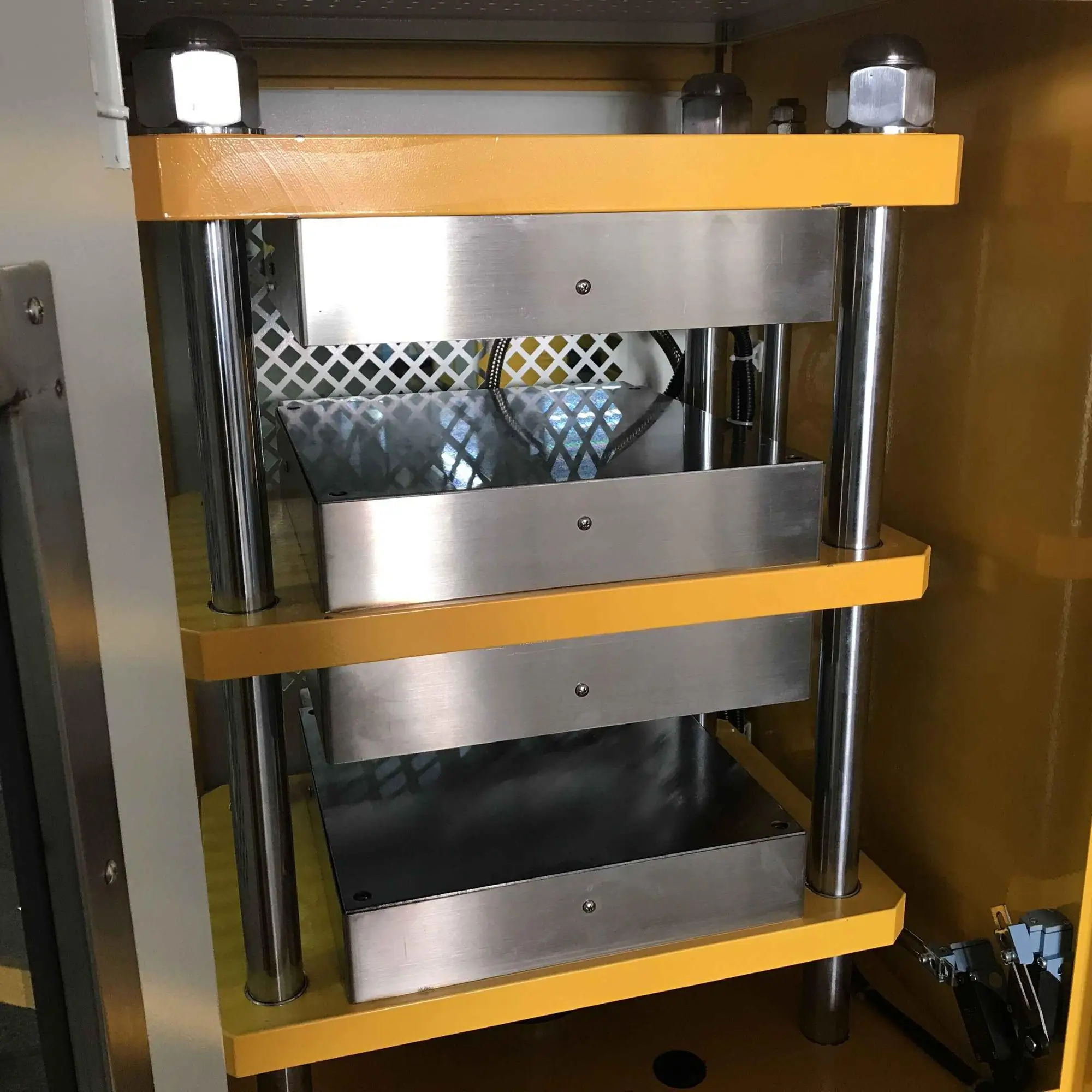

Name: Heating Plate
Brand: XIHUA
Original: CHINA
It is processed with deep carbonation and plated with hard chrome, the machine features fast thermal transmission, abrasion resistance, high hardneee and strenghth deformation.
Main Features
Name: Cooling System
Brand: XIHUA
Original: CHINA
Hermetic single-stage compressor takes advantage of environment-friendly snow as the cooling media. The temperature of cooling water system is adjustable from normal temperature to +5℃.
Machine Parts
Name: Mold frame set
The thickness can be 1mm-10mm
Main Features
Name: PVC testing sheet
Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Contact Information
Dongguan Xihua Testing Machine Co.,Ltd
WhatsApp: +86 15625539168
Wechat: +86 15625539168
Website: www.lab-xh.com
Our Exhibition
Packing & Delivery
Packaging | ||
Size | 1000(L) * 600(W) * 1500 (D) | |
Weight | 710kgs | |
Packaging Details | The normal package is wooden case, we will use PE film roll the equipment first. | |
