12v 24v dc brush motor electric linear actuator solar tracker window opener car boat home appliance lifting table automatic
- Category: >>>
- Supplier: Huizhou H-Antech Motion System Co. Ltd.
Share on (1600425263303):
Product Overview
Description
Technical Specification
Specification | ||||||||
Model | HAD4 | |||||||
Rated Voltage | 12V/ 24V DC | |||||||
Max load | 1200 N | |||||||
Max Pull | 800 N | |||||||
Stroke length | 50mm, 120mm, 150mm, 200mm, 250mm, 300mm, 400mm | |||||||
Motor Speed | 9mm/s | |||||||
Installation Size | 200 mm + stroke length | |||||||
Duty Cycle | 10%, 2 minutes longest continuous operation | |||||||
Color | Grey | |||||||
Working Temperature | --25℃---45℃ | |||||||
Safety certification | CUL , CE, Rohs | |||||||
Waterproof Grade | IP 53 | |||||||
More details Click here send us enquiry
Main Products

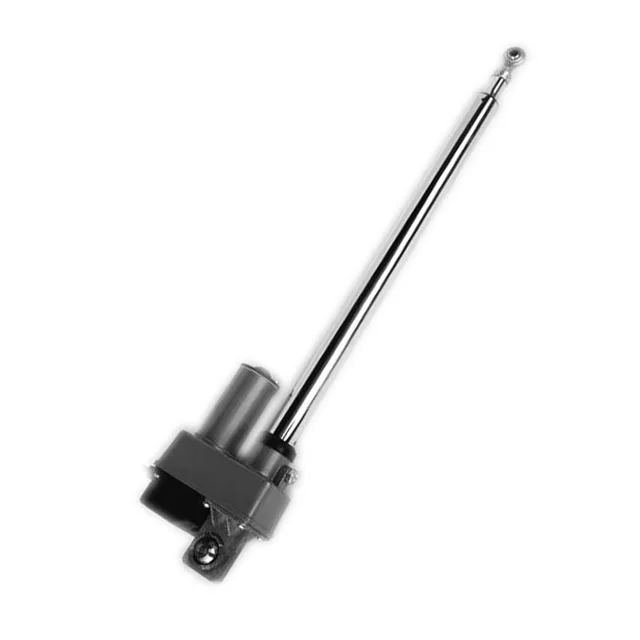

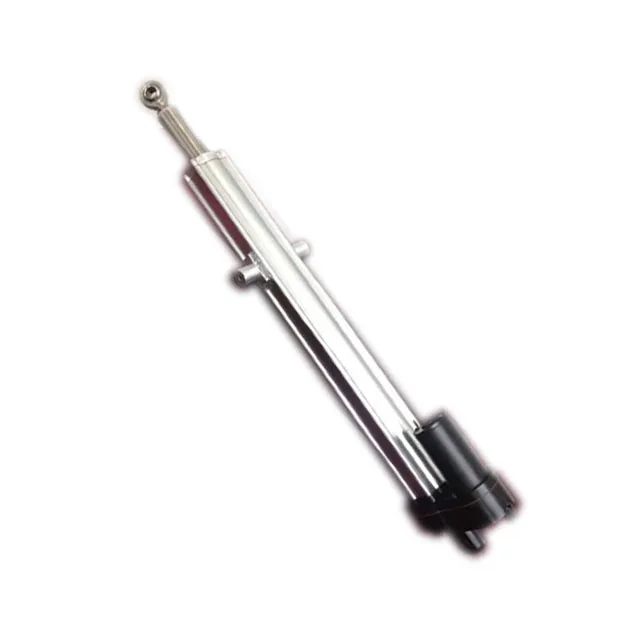

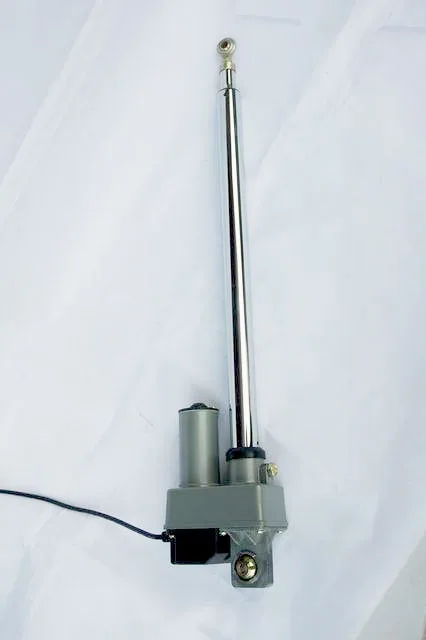

Details Images
More details Click here send us enquiry

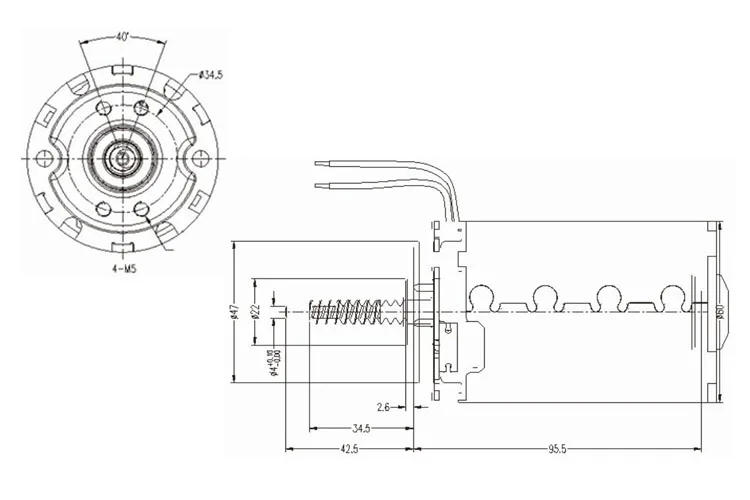

Installation Instructions

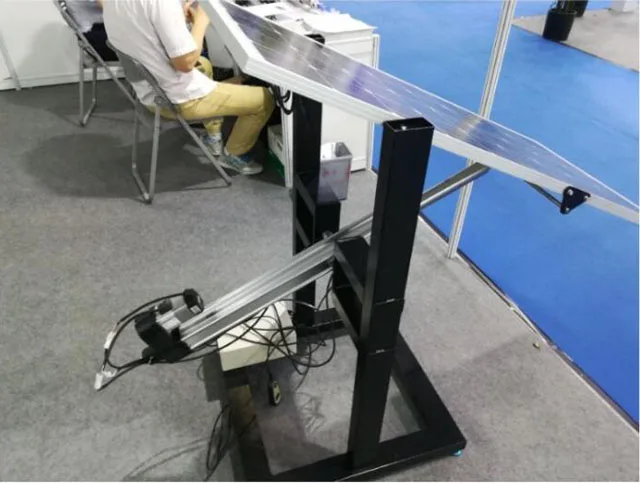

Application Field
More details Click here send us enquiry
Test Instrument
Certifications
Company Profile
Our Advantageous
1. Huizhou H-Antech Motion System Co., Ltd. 1.Huizhou H-antech Motion Systems Co., Ltd. is a high-tech enterprise integrating design, manufacturing, marketing of
electric mechanical devices more than 29+years .
electric mechanical devices more than 29+years .
2.We specialize in manufacturing linear actuators, lifting motors and their control boxes.
3.The products of our own brand Onepower/H-antech are mainly used in farm ventilation system, fitness equipment, smart home,
furniture and other fields.
4. Most of our prodcuts have obtained the international certifications such as CE, UL, CUL, RoHS, EMC, IEC60601-1,IEC60601-1-2 and
ISO9001 etc.
furniture and other fields.
4. Most of our prodcuts have obtained the international certifications such as CE, UL, CUL, RoHS, EMC, IEC60601-1,IEC60601-1-2 and
ISO9001 etc.
