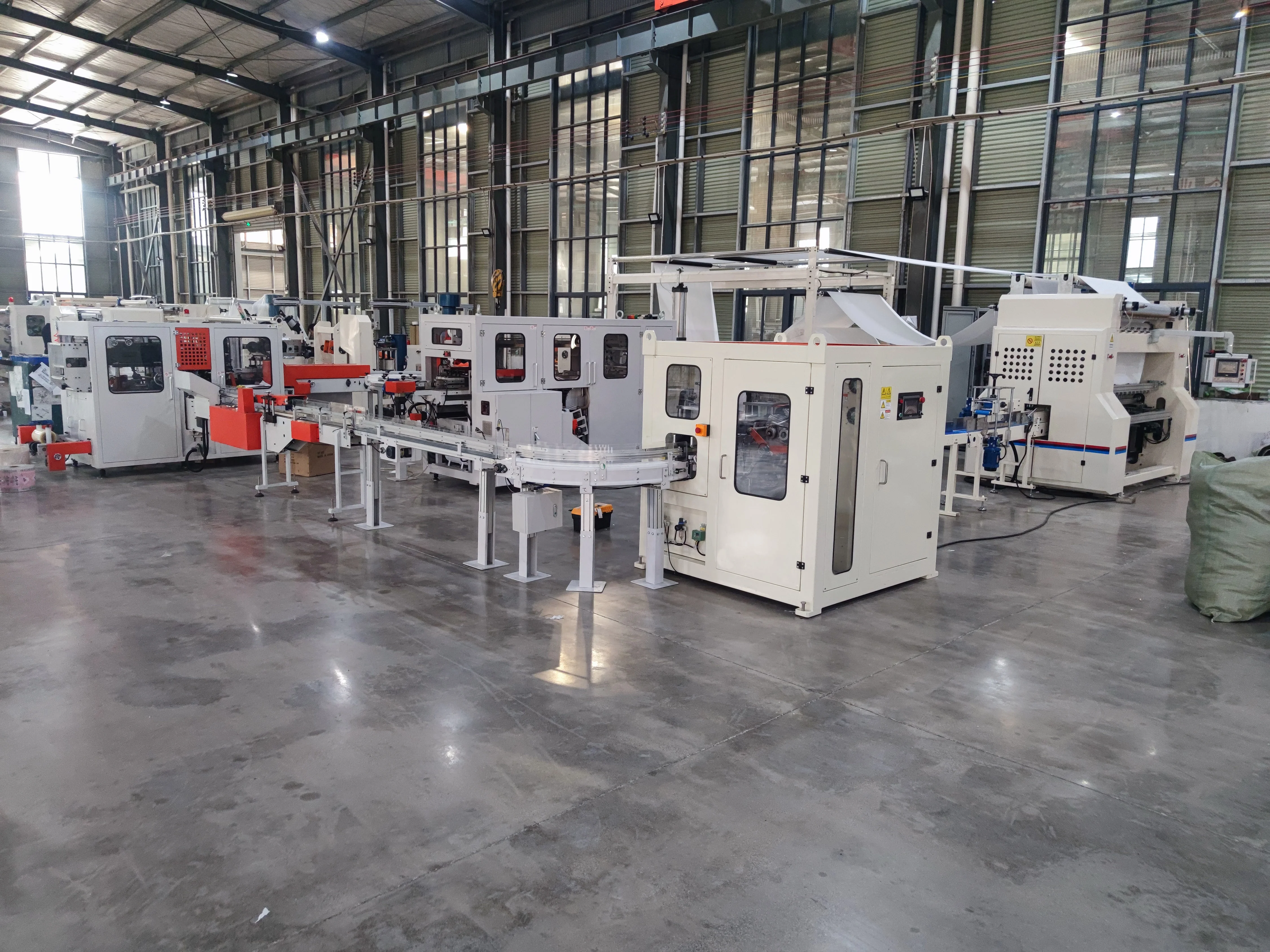

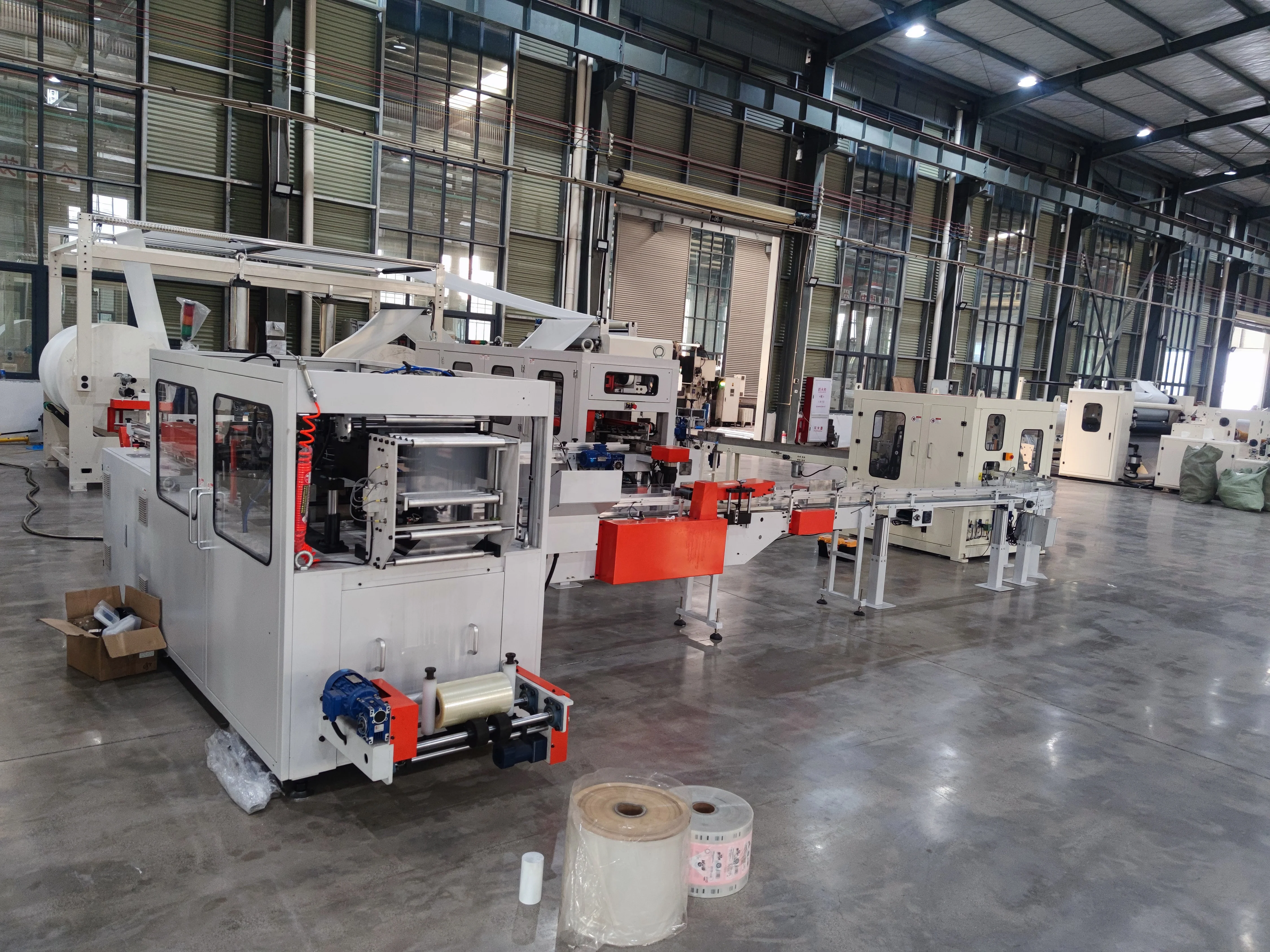

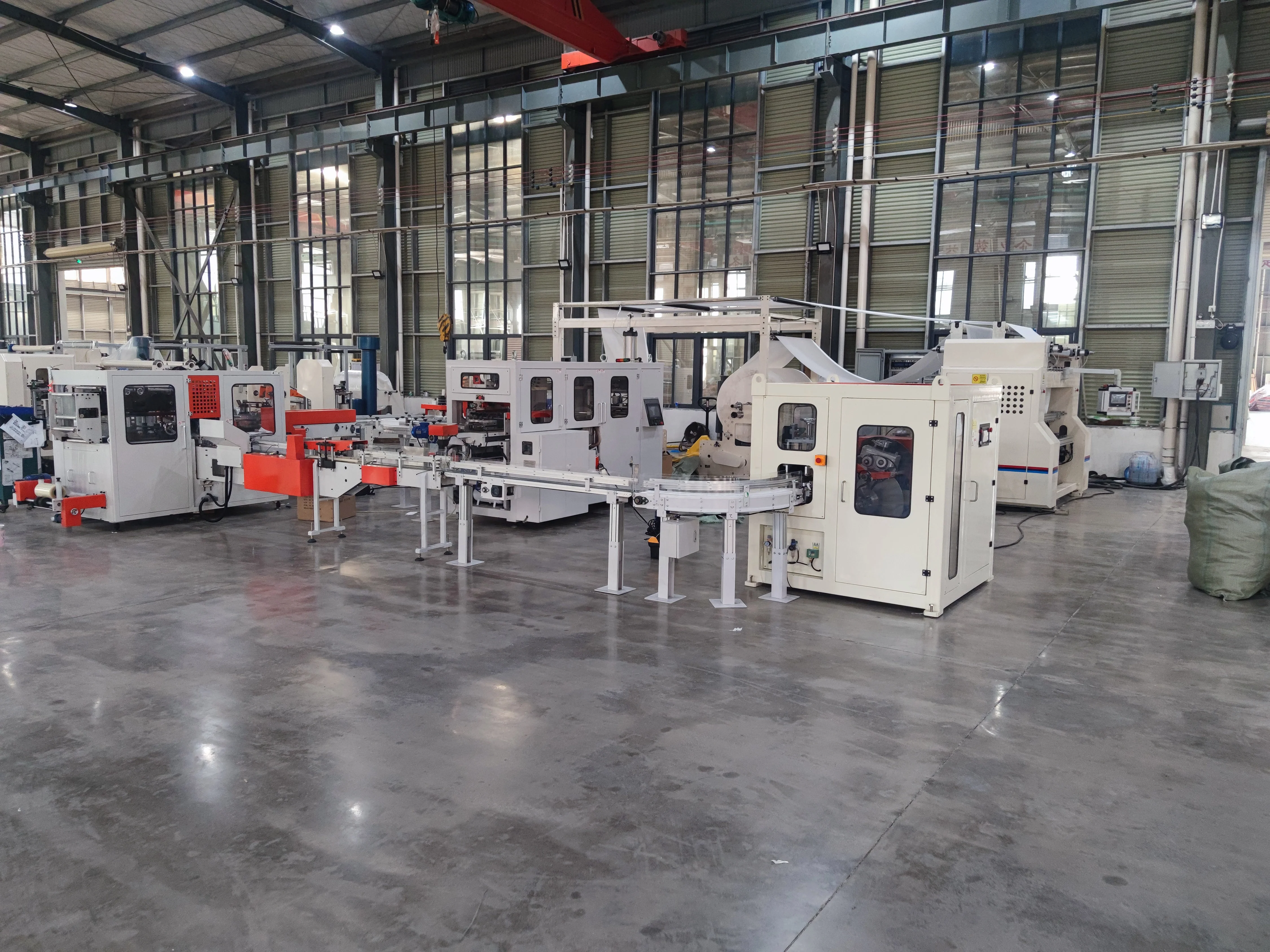

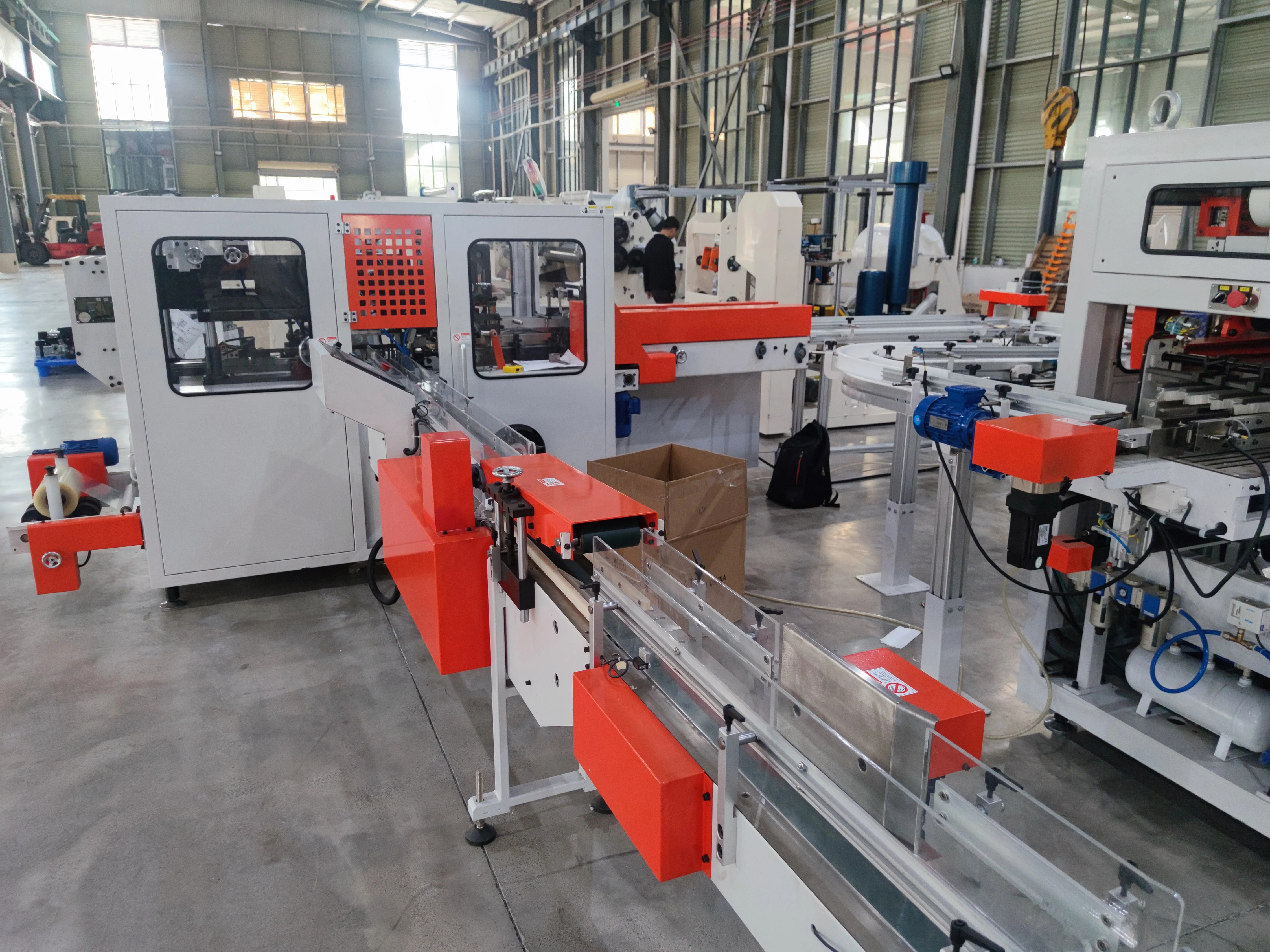

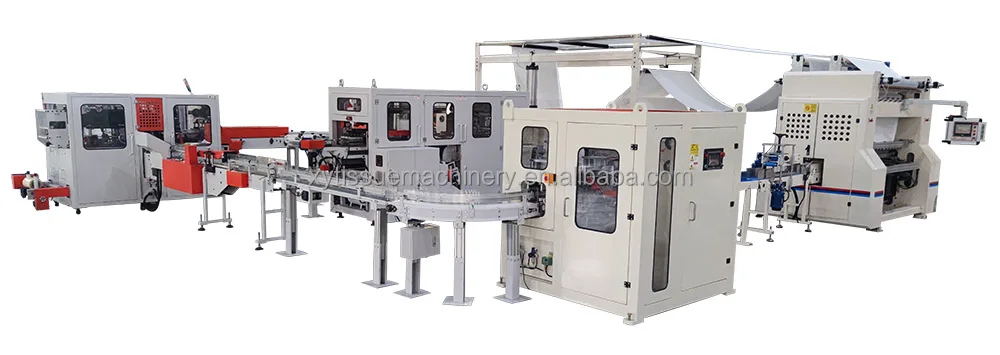

High speed automatic transferring facial tissue paper making machine production line
- Category: >>>
- Supplier: Fujian Xinyun Machinery Development Co. Ltd.
Share on (1600425270662):
Product Overview
Description
High speed automatic transferring facial tissue paper making machine production line XY-GU-A-B
Product Description
Technical performance characteristic：
Automatic facial tissue production line is consist of facial tissue folding machine, single channel log saw cutting machine,single bag packing machine,bundle packing machine,carton box packing machine Working smoothly and stable from the raw material to finished products.This production line has high degree of automation, save labor costs, reduce labor intensity, is the best
choice of the production of tissue products.
Automatic facial tissue production line is consist of facial tissue folding machine, single channel log saw cutting machine,single bag packing machine,bundle packing machine,carton box packing machine Working smoothly and stable from the raw material to finished products.This production line has high degree of automation, save labor costs, reduce labor intensity, is the best
choice of the production of tissue products.
Video Link: https://youtu.be/YMjbH-WT3II
Detailed Images

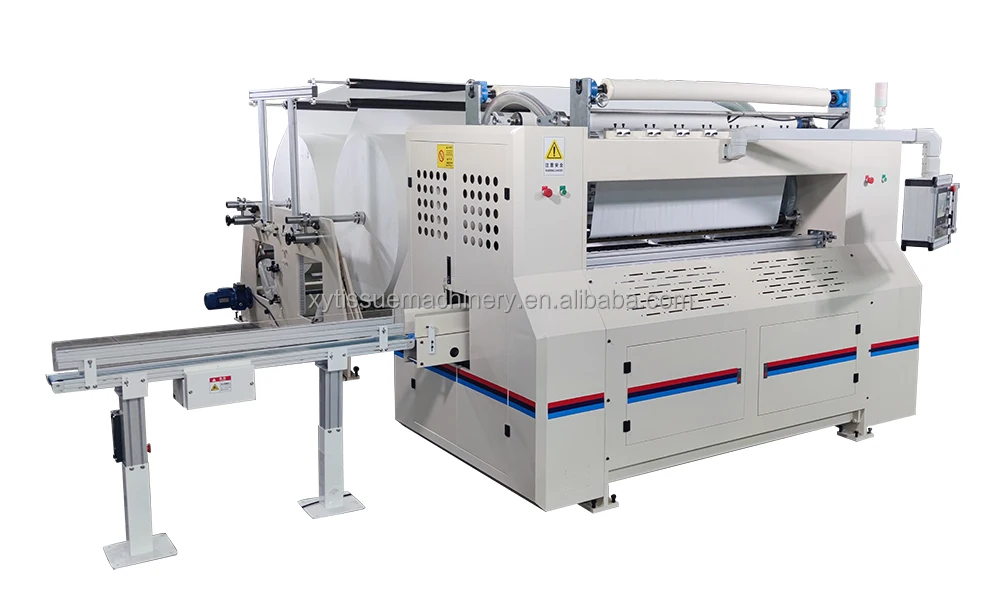

XY-GU-20A Automatic transferring facial tissue making machine
The paper-breaking knife roller adopts the structure of the spiral knife roller, which effectively solves the stability of the paper-breaking and the service life of the blade.
The structure of the paper-breaking knife roller adopts the structure of the spiral knife roller from the original straight knife to the full-cutting type, and the spiral knife roller is the point-cutting type, which solves the instability of the paper break and the short life of the blade caused by the original straight knife structure.
1.Air source system: the air source is prepared by the buyer, and the air source access point is connected to a point which is 1-2 meters away from the gas point and equipped with a shut-off valve, which is according to the seller's requirements. The required pressure of the air source: 5-6kg/cm².
2.Power system: the power supply is prepared by the buyer, and the power supply is connected to the electrical control cabinet of the contract machine according to the seller's requirements.
3. Vacuum system: The piping required for vacuum connection is prepared by the buyer.
Video Link: https://youtu.be/qJlflxLFdtg
The structure of the paper-breaking knife roller adopts the structure of the spiral knife roller from the original straight knife to the full-cutting type, and the spiral knife roller is the point-cutting type, which solves the instability of the paper break and the short life of the blade caused by the original straight knife structure.
1.Air source system: the air source is prepared by the buyer, and the air source access point is connected to a point which is 1-2 meters away from the gas point and equipped with a shut-off valve, which is according to the seller's requirements. The required pressure of the air source: 5-6kg/cm².
2.Power system: the power supply is prepared by the buyer, and the power supply is connected to the electrical control cabinet of the contract machine according to the seller's requirements.
3. Vacuum system: The piping required for vacuum connection is prepared by the buyer.
Video Link: https://youtu.be/qJlflxLFdtg
Machine model | XY-GU-20A |
Folded size of finished products | 100*(120-210)±2mm |
Unfold size of finished products | 200*210±2mm |
The width of jumbo roll paper | 1400mm |
Diameter of jumbo roll paper | 1200mm |
Diameter of jumbo roll paper inner core | 76.2mm |
Daily Output | About 7.5T/22 hours (jumbo roll：three layers and 15g/m²） |
Embossing unit | Steel to steel full embossing, Steel to steel edge embossing ,independent pneumatic regulation |
Slitting unit | Pneumatic slitting |
Pneumatic system | 3 HP air compressor ,mini pressure 5kg/cm2PA |
Driving system | Timing belt |
Voltage | 380V 50HZ |
Pneumatic system | 3 HP air compressor ,mini pressure 5kg/cm2PA |

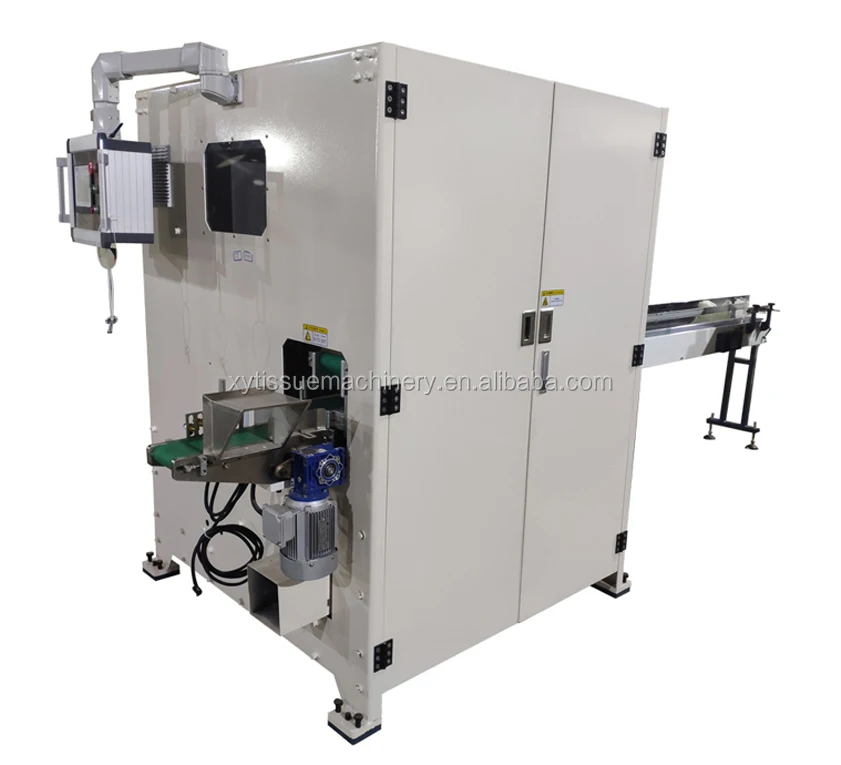

XY-GU-281 Automatic facial tissue log saw cutting machine
Cyclotron paper cutter is used to automatically cut off a row folded and round roll paper towel products, such as the removable tissue or toilet roll paper. The whole machine adopts servo drive technology and frequency control of motor speed and enhance the stability of paper cutting, and improves the cutting precision of tissue and to cut off the end face flat . Cutting length within the scope of the machine allows arbitrary adjustable. Fixed automatic knife grinding wheel Angle, ensure the quality of the sharpening knife. Knife grinding place often blow compressed air for cooling, and can match the special cooling fluid.
Video Link： https://youtu.be/FjNatcZdyWY
Designation | Parameter values |
The length of unfinished products | minimum 500mm(or, mini 5lines) |
The Height of finished product | 15~120mm |
Operating speed | 20~120cut/min |
Round blade outer diameter | Φ610mm |
Paper cutting circular knife top speed | 980R/min |
Finished products specification | 70~300mm |
Paper width | 70~110mm |
Cutting Length | 70~300mm |
Left-over Length | 20~65mm |
Power | 11KW |
Power supply | 380V 50Hz |
Air pressure | 0.5~0.8MPa |
Machine Size | 4600*1700*2500mm |
weight | 2300~2600kg |
brake | Parameter setting (auto/manual) |
Stepping sharpening knife | Parameter setting (auto) |
Pneumatic sharpening knife | Parameter setting (auto/manual) |
Blow air | without |
The total pressure switch | Value (not) |
Human-computer interface | DELTA (or selected by customer) |
frequency changer | DELTA |
Servo Drive | DELTA |
XY-BT-298 Automatic facial tissue packing machine
Technical performance characteristic：This machine is mainly used for Facial Tissue or Napkin Paper Three Dimensional Packing.
Video link: https://youtu.be/8XSU2AvGo_c
Speed | 50-70 bags/min |
Packing size | 100-210*100-200*40-150 |
Packing film | CPP,PE,OPP/CPP,PT/PE and other film sealed on both sides |
Power | 7.2 Kw 380V 50Hz |
Overall size of machine | 3560*5885*1925 |
Weight of machine | 3000 Kg |

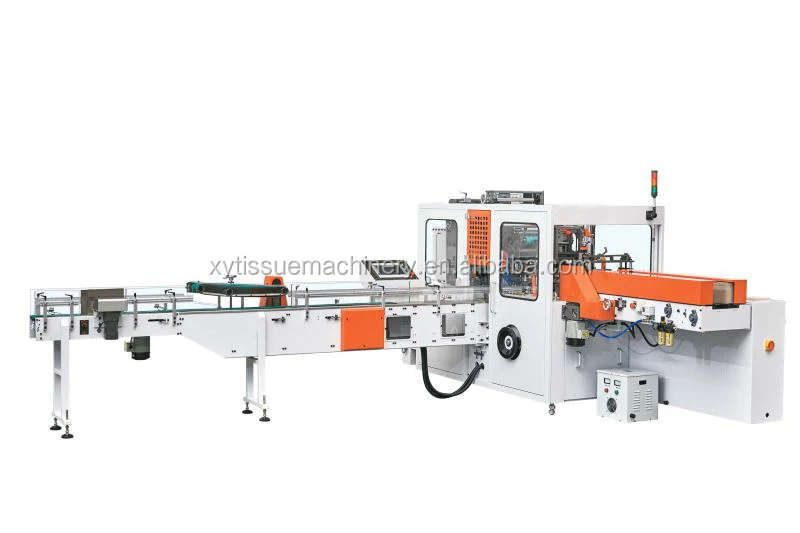

XY-BT-299 Semi automatic facial tissue bundle packing machine
Characteristics:
Full automatic run. High speed.Suitable for packing bundling rolls(6,8,10 bags in one bag).
Can be connected with log saw or single roll wrapping machine.
Servo system,PLC controlled.
Auto feeding, auto adjustment.Adopting high quality sensors.
Operated by color touch screen display.
Characteristics:
Full automatic run. High speed.Suitable for packing bundling rolls(6,8,10 bags in one bag).
Can be connected with log saw or single roll wrapping machine.
Servo system,PLC controlled.
Auto feeding, auto adjustment.Adopting high quality sensors.
Operated by color touch screen display.
Emergency stop/ pause function, safety alarm system, air and electric power protection system.
Adopting constant temperature sealing and cutting system.
Adopting constant temperature sealing and cutting system.
Video Link：https://youtu.be/6CAFLPWpuSY
https://youtu.be/-7h38cnU8jY
Speed | 18 bags/min |
Packing dimension | 600*(150-420)*(80-105) mm 6、8、10 bag/bundling bag |
Power | 17 Kw 380V 50Hz |
Air supply | 0.6 Mpa (prepared by buyer） |
Overall size | 6800*3700*1600 mm |
Weight of machine | 3500 Kg |

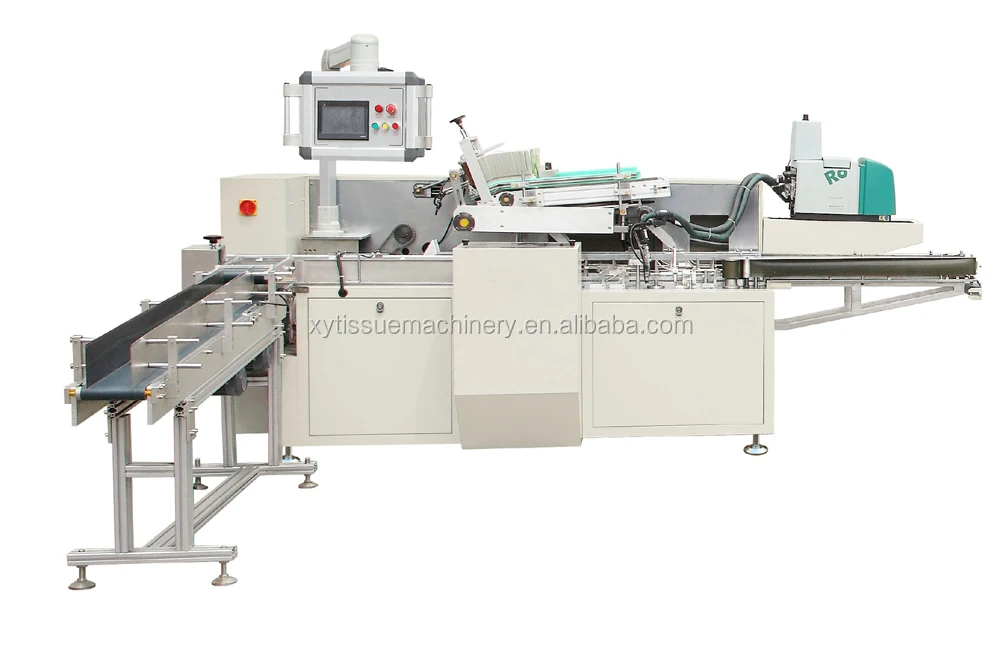

XY-GU-388 Automatic facial tissue carton box packing machine
It is suitable for packing facial tissue paper and other related similar content compact with automatic leaflet folding, box opening and loading, then sealing the box.
It adopts PLC control, photoelectricity supervision to coordinate with every parts. Automatic stop and trouble display when machine running exceptional in order to solving troubles in time. This machine can be used separately, and also can connect with facial tissue log saw cutting machine on line.
It adopts PLC control, photoelectricity supervision to coordinate with every parts. Automatic stop and trouble display when machine running exceptional in order to solving troubles in time. This machine can be used separately, and also can connect with facial tissue log saw cutting machine on line.
Video Link: https://youtu.be/C-vT9LzksHs
Features:
1. Rejection automatically if no products, nonstandard height or lack of leaflet.
2. Stop automatically if incorrect position of products into carton.
3. Stop automatically if no cartons or out of leaflets continuous.
4. Easy to change to different products.
5. Protecting automatically for overloading.
6. Automatically displaying device for speed and finished products counting.
1. Rejection automatically if no products, nonstandard height or lack of leaflet.
2. Stop automatically if incorrect position of products into carton.
3. Stop automatically if no cartons or out of leaflets continuous.
4. Easy to change to different products.
5. Protecting automatically for overloading.
6. Automatically displaying device for speed and finished products counting.
Speed | 50-70 boxes/min |
Packing size | (100-210)mm X (30-120)mm X (40-120)mm |
Power | 5kw 220V 50HZ |
Hot Melt Machine Power: | 1.8kw |
Machine noise | <70 dB |
Overall dimension (L x W x H) | 3400x1400x1700mm |
Weight | 2000kg |

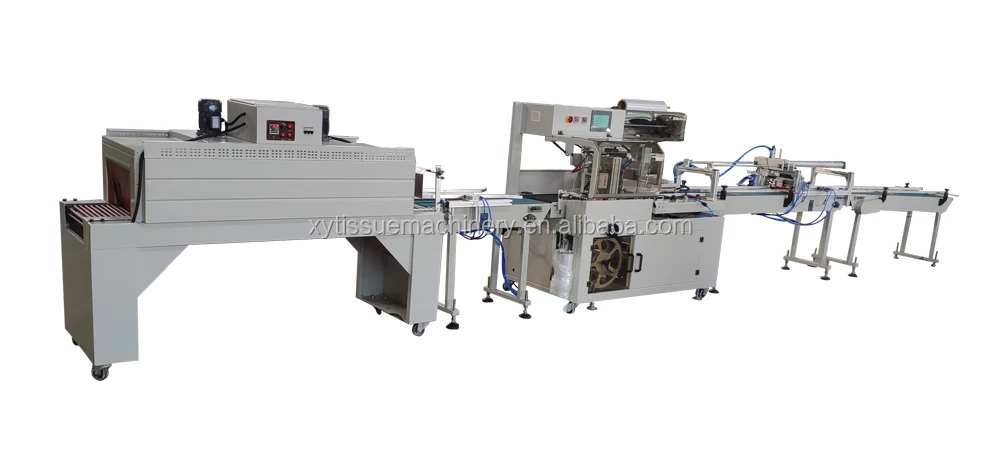

XY-TN-269 Automatic shrink packing machine
Automatic cutting sealing and temperature shrink machine is using shrink film package the product out, after heating, the shrink film will shrink the wrap coiler in a package. In order to fully display the item, with protection and increase the beauty and sense value.
Video Link: https://youtu.be/QzrfdThf-P8
Model | 4525L cutting and sealing machine | 4525 temperature shrink machine |
Power source | 220V 50Hz/60Hz | 380V 50/60Hz |
Rated Power | 1.35KW | 9.6KW |
Sealing Size | L550*W450MM | 450*220*120mm |
Packing speed | 20-40 Packs /min | 0-10m/min |
Packaging Size | L450 x W400 x H120 MM | 450*220*120mm |
Machine size | L1500×W750×H1360mm | L1600×W700×H1300mm |
Weight | 300KG | 150KG |
Related Products

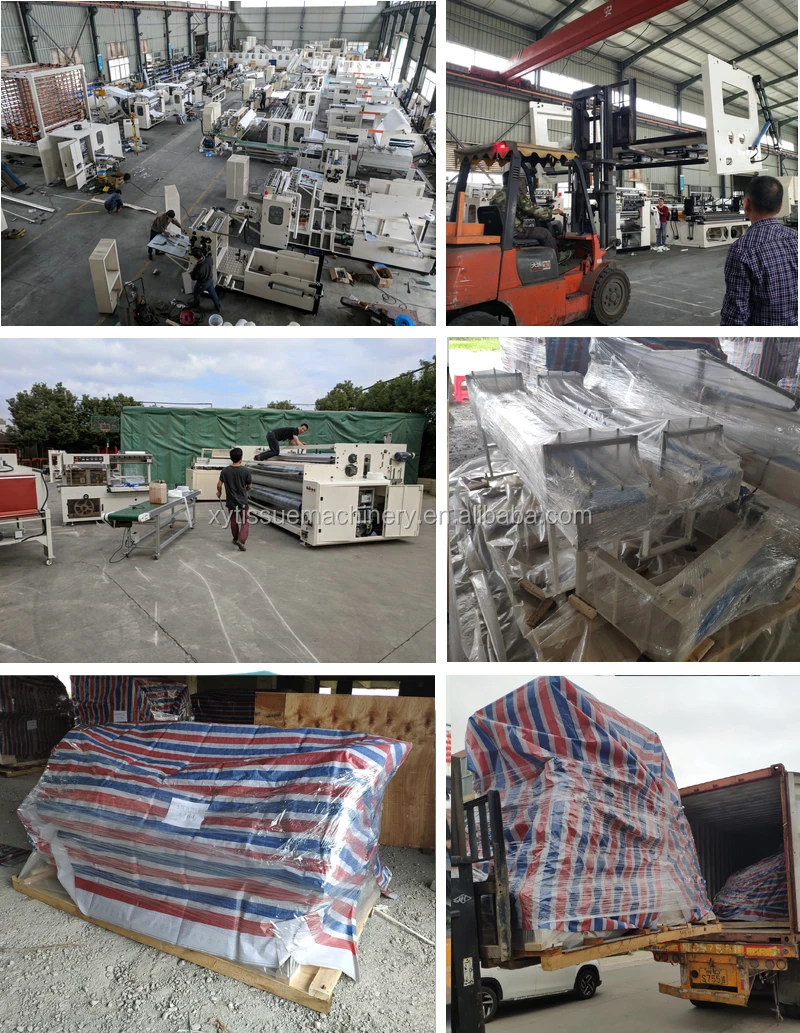

Packing&Shipping
