LA N1 IP66 робот Дрон Micro 12 вольтового источника электропитания постоянного тока с линейным приводом
- Category: >>>
- Supplier: Ningbo Summite Im & Ex Co. Ltd.
Share on (1600425291032):
Product Overview
Description
Products Description

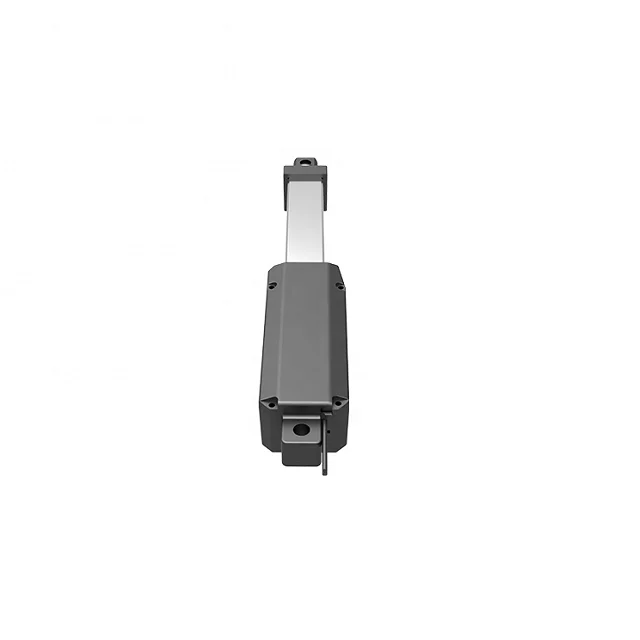

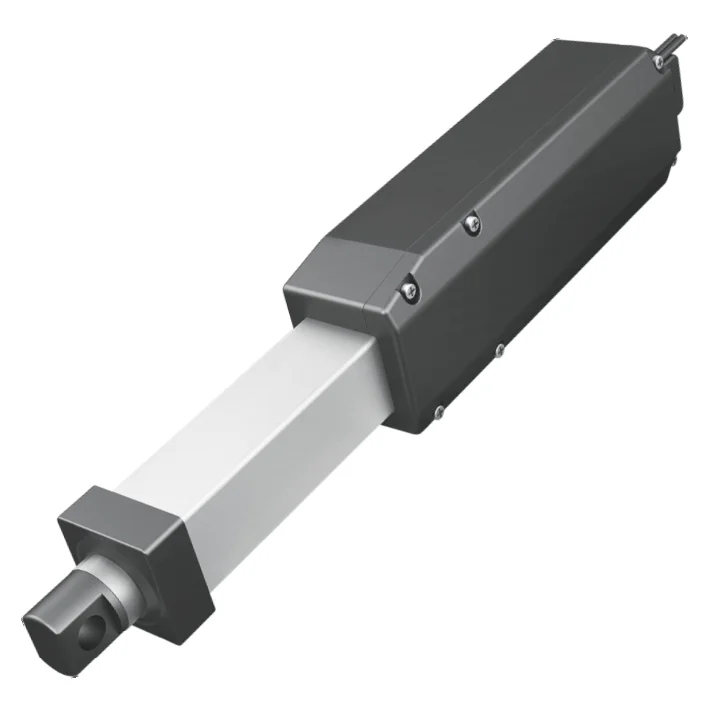

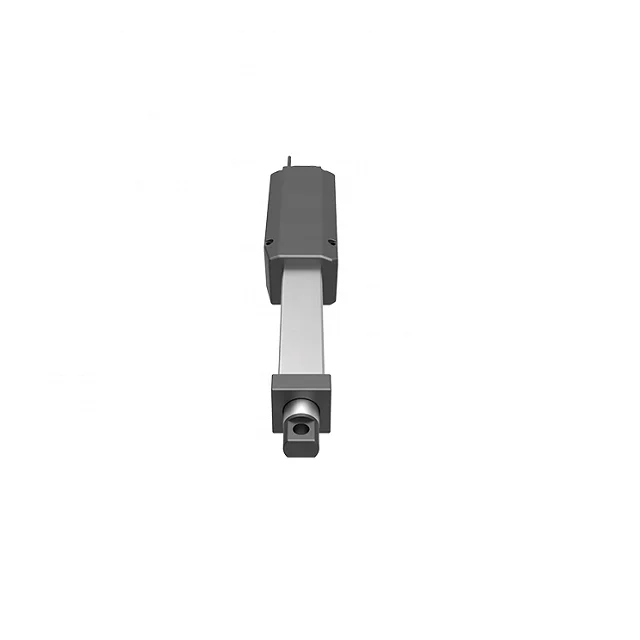

Linear actuator LA-N1
Features
(1)12V safety voltage
(2)Thrust up to 20N in push and up to 20N in pull
(3)Color: black
(4)Standard protection class: IP54/IP66
(5)Aluminium-Alloy outer tube and inner tube, beautiful and corrosion resistant
(6)The average noise level is lower than 60dB(ambient noise is less than 60dB).
(7)High-strength front and back fixtures
(8)Certificate: CE
Usage
(1)Max 10% or 2 minutes continues use followed by 18 minutes not in use
(2)Ambient temperature: +5℃ to +40℃
(3)Matching 12V safety voltage
Specifications
Max Load push(N) | Max Load pull(N) | Self-lock(N) | Speed at No load(mm/s) | Speed at Full load(mm/s) | Typical Amp full load(A) |
20 | 20 | 25 | 15 | 12 | 0.22 |
Note: The data above are general parameters. If you need other parameters, please send the request in the message box at the bottom of this page.
Details Images

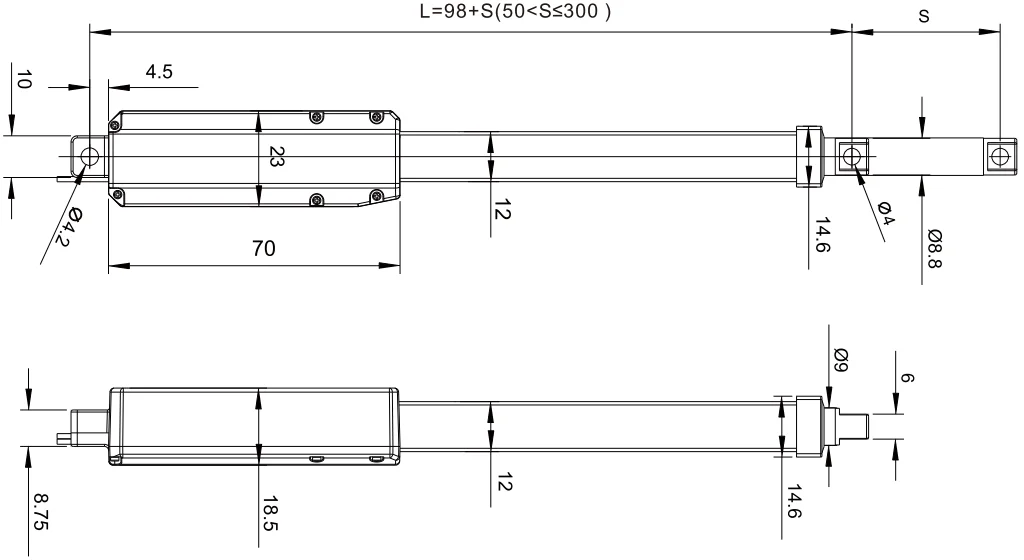

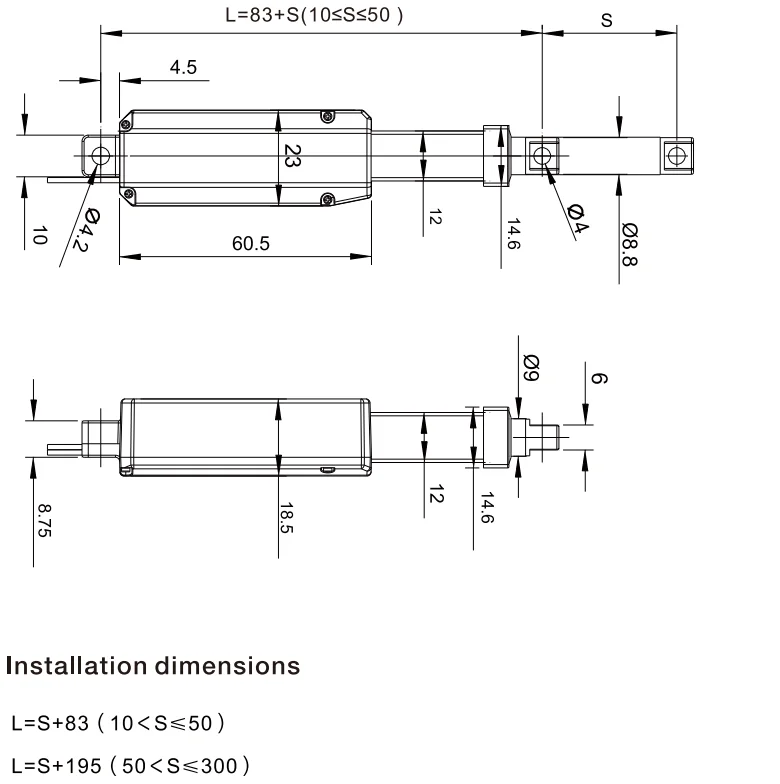

Dimension

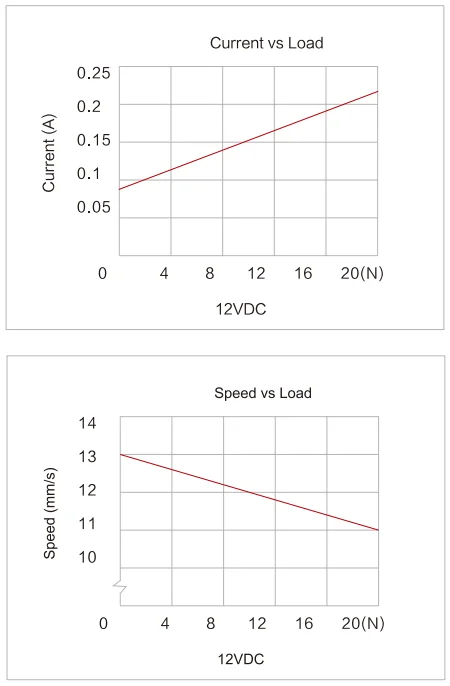

Performance
