Top brand XCT30_M 48.1m lifting height 30ton Truck crane heavy boom lift factory price for sale
- Category: >>>
- Supplier: Xuzhou Asiaway Heavy Machinery Co. Ltd.
Share on (1600425294530):
Product Overview
Description
Product Description

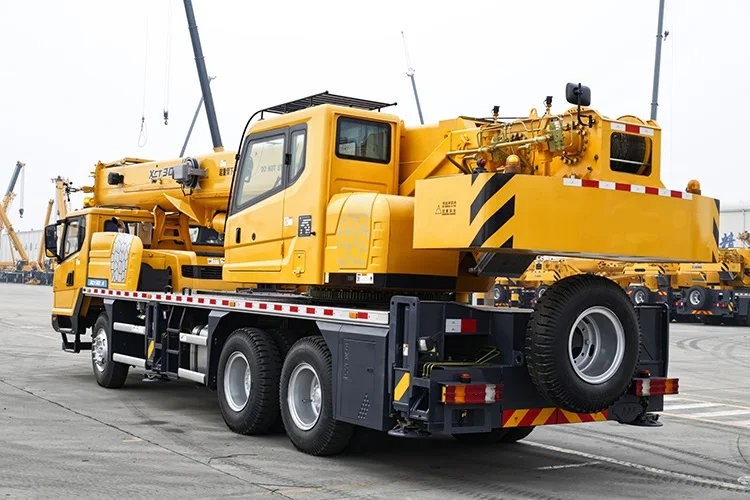

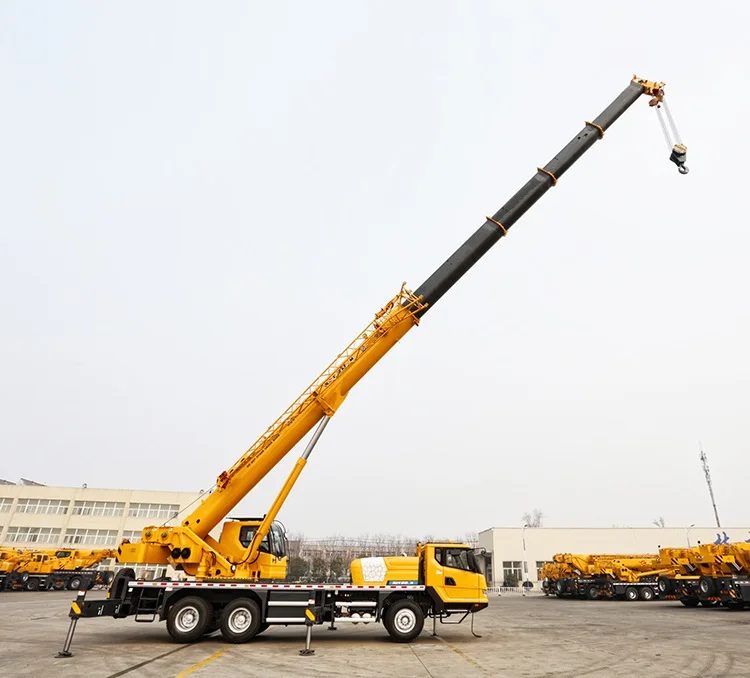

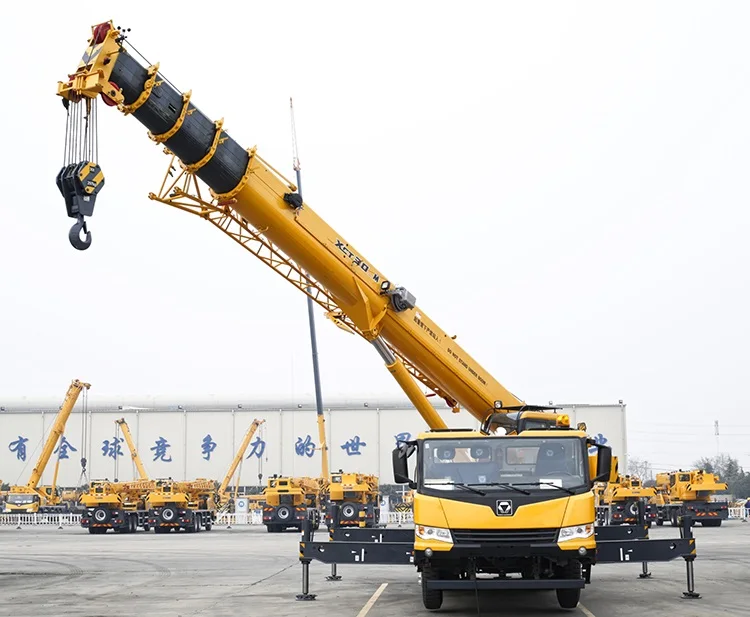

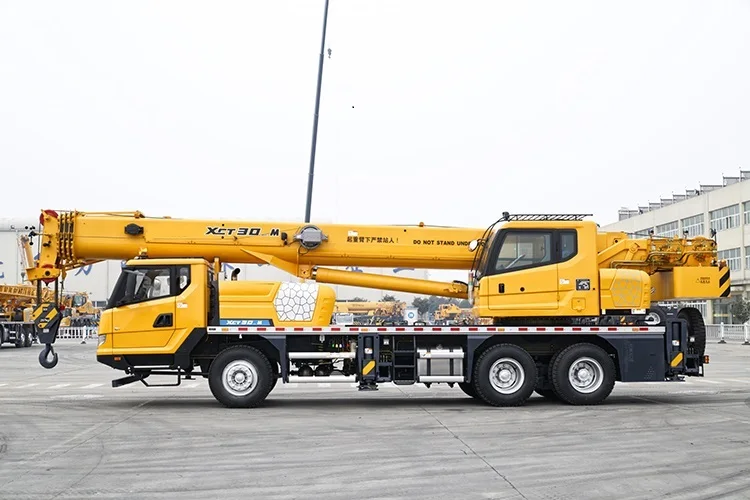

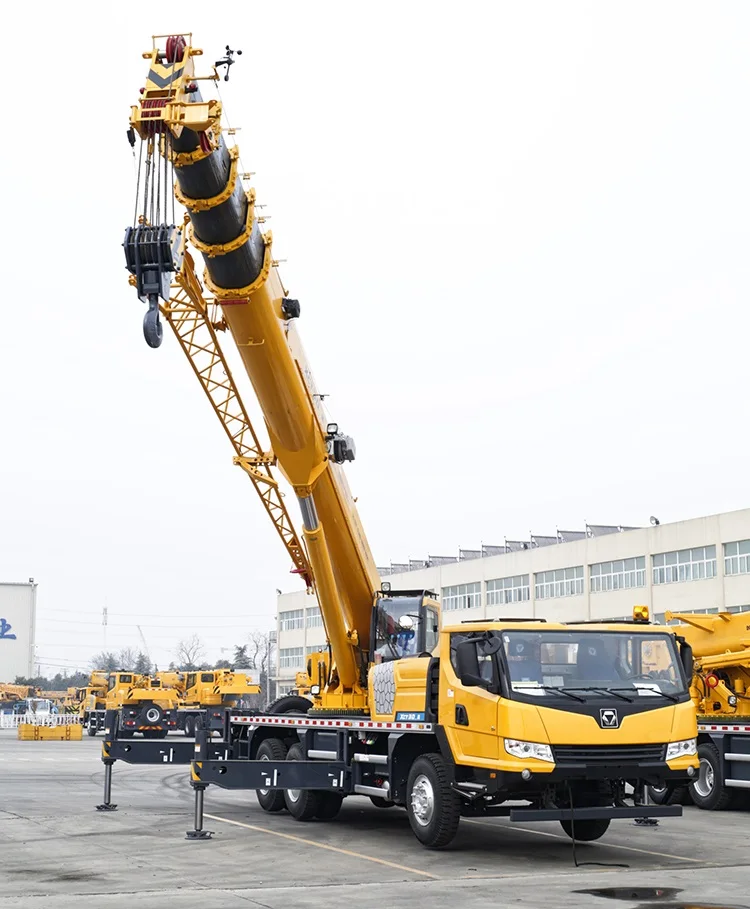

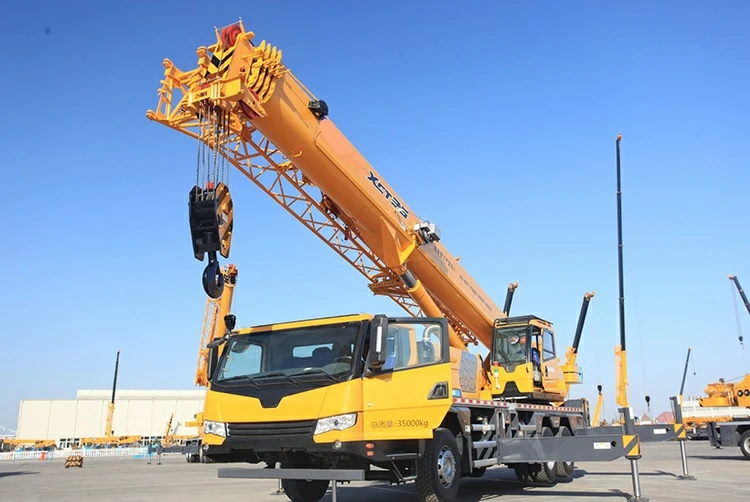

XCT30_M crane 30ton mobile crane truck prices
More excellent performance:
• The optimizing layout of the machine makes the stress of the main bearing carriers more reasonable, and the lifting performance is higher than the products with the same tonnage.
More excellent performance:
• The optimizing layout of the machine makes the stress of the main bearing carriers more reasonable, and the lifting performance is higher than the products with the same tonnage.
• Apply the mature jib technique which integrates plug-in boom head, embedded boom block, and special telescoping mechanism, which makes the jib more stable and reliable.
• Optimize the stress design. Adopt the box-type outriggers which have larger span, stronger rigidity, and better stability.
More reliable quality:
• Adopt the classic K series jib telescoping technique, working safer and more reliable.
• Make the most complete safety device system in the industry, ensuring the lifting safer and more reliable.
• The comprehensively upgraded brake system adopts double circuit air pressure design. Multiple systems ensure the brake safety of the truck during travel.
• The new power steering mechanism adopts hydraulic power design, which makes the steering light, flexible, and precise, and ensures the safety of the truck.
• The intensity and rigidity of the rotary table and frame structure with high rigidity are completely coordinated.
• The perfect integration of the design and structure realizes the automation of welding, which is more reliable.
Easier to operate:
• The high efficient and energy efficient load sensing hydraulic system is sensitive to operate and precise to control, having
good slight mobility.
• Optimize the control levers, which is easier to operate.
• The cab adopts orthodrome front windscreen, having wider operating views.
• Optimize the stress design. Adopt the box-type outriggers which have larger span, stronger rigidity, and better stability.
More reliable quality:
• Adopt the classic K series jib telescoping technique, working safer and more reliable.
• Make the most complete safety device system in the industry, ensuring the lifting safer and more reliable.
• The comprehensively upgraded brake system adopts double circuit air pressure design. Multiple systems ensure the brake safety of the truck during travel.
• The new power steering mechanism adopts hydraulic power design, which makes the steering light, flexible, and precise, and ensures the safety of the truck.
• The intensity and rigidity of the rotary table and frame structure with high rigidity are completely coordinated.
• The perfect integration of the design and structure realizes the automation of welding, which is more reliable.
Easier to operate:
• The high efficient and energy efficient load sensing hydraulic system is sensitive to operate and precise to control, having
good slight mobility.
• Optimize the control levers, which is easier to operate.
• The cab adopts orthodrome front windscreen, having wider operating views.
Item | Unit | Parameter | ||
Dimensions (length x width x height) | mm | 12362×2550×3415 | ||
Total vehicle mass in travel configuration | kg | 30000 | ||
Axle load | 1st and 2nd axle | kg | 6400 | |
3rd axle | kg | 11800 | ||
Engine rated power/rpm | kW/(r/min) | 192/2200 | ||
Max. output torque/rpm | N.m/(r/min) | 1000/1400 | ||
Max. travel speed | km/h | 85 | ||
Min. turning diameter | m | 20 | ||
Min. ground clearance | mm | 261 | ||
Approach angle | ° | 16.5 | ||
Departure angle | ° | 13 | ||
Max. grade ability | % | 40 | ||
Fuel consumption per 100 km | L | 32 | ||
Max. total rated lifting capacity | t | 30 | ||
Min rated working radius | m | 3 | ||
Max. load moment | Base boom | kN.m | 965 | |
Fully-extended boom | kN.m | 576 | ||
Outrigger span | Longitudinal | m | 5.23 | |
Lateral | m | 6.4 | ||
Hoist height | Base boom | m | 10.5 | |
Fully-extended boom | m | 40.3 | ||
Boom length | Base boom | m | 10.4 | |
Fully-extended boom | m | 40.5 | ||
Jib offset angle | ° | 0、15、 30 | ||
Boom raising time | s | ≤38 | ||
Boom fully extending time | s | ≤90 | ||
Hoistin Hoisting speed (single line, 4th layer, no load) | Main winch | m/min | ≥120 | |
Auxiliary winch | m/min | ≤90 | ||
Our Service
Pre-Sales Service
* Inquiry and consulting service support.
* Sample testing support.
* Visiting our Factory.
After-Sales Service
* Training installation and operating.
* Engineers available for overseas service.
