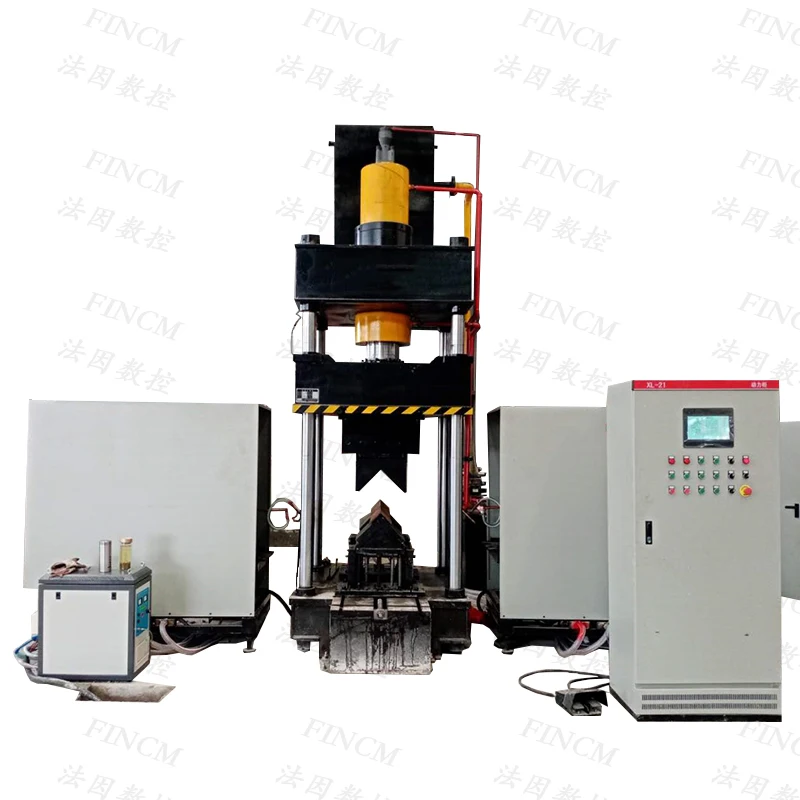

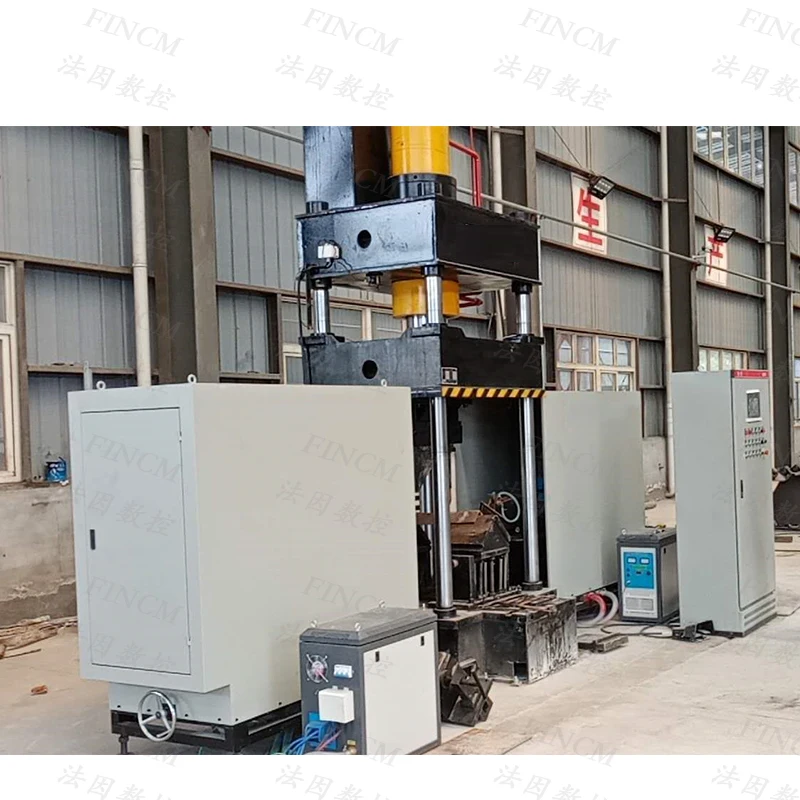

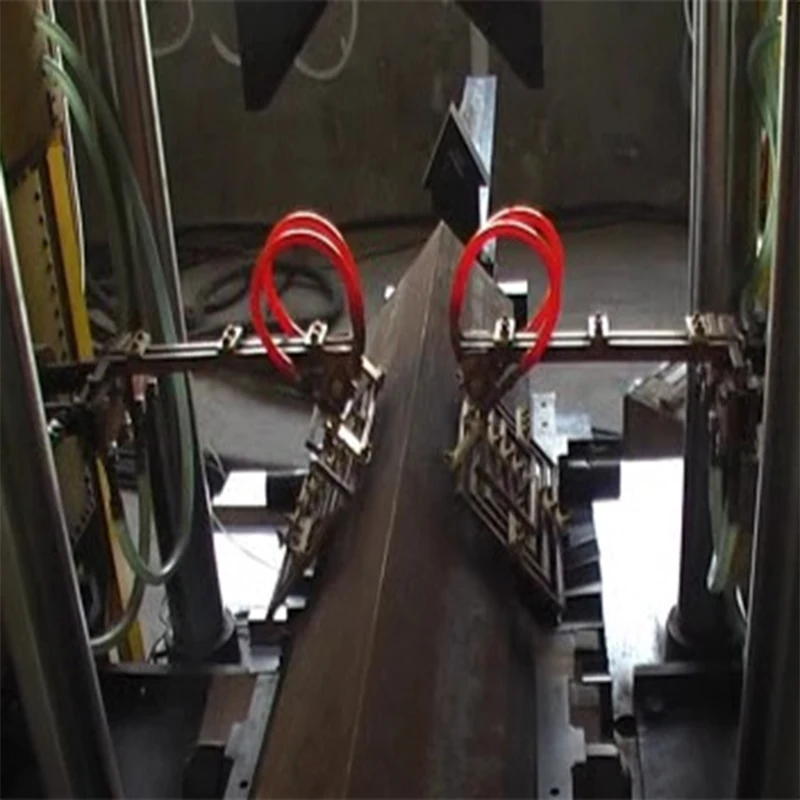

GHQ 250 700 FINCM CNC bending machine for Angle steel And Plates
- Category: >>>
- Supplier: Shandong Fin Cnc Machine Co. Ltd.
Share on (1600425309656):
Product Overview
Description
Product Description

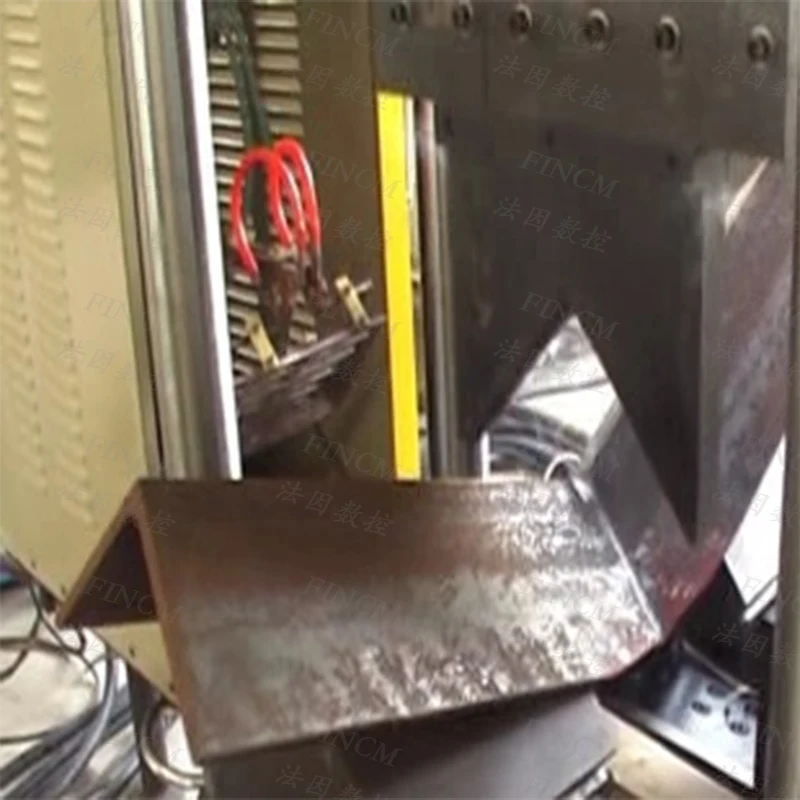

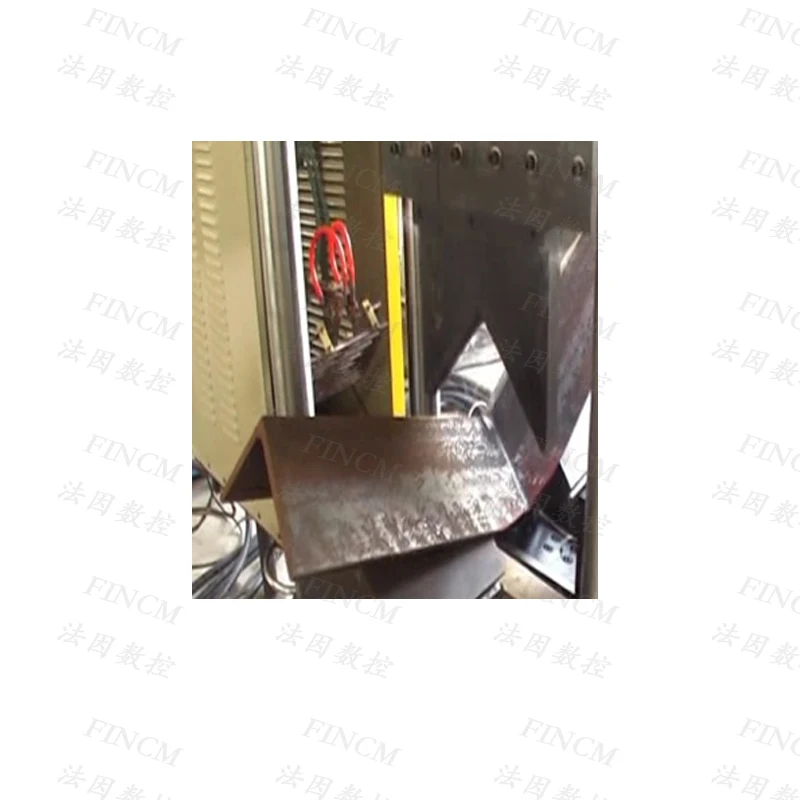

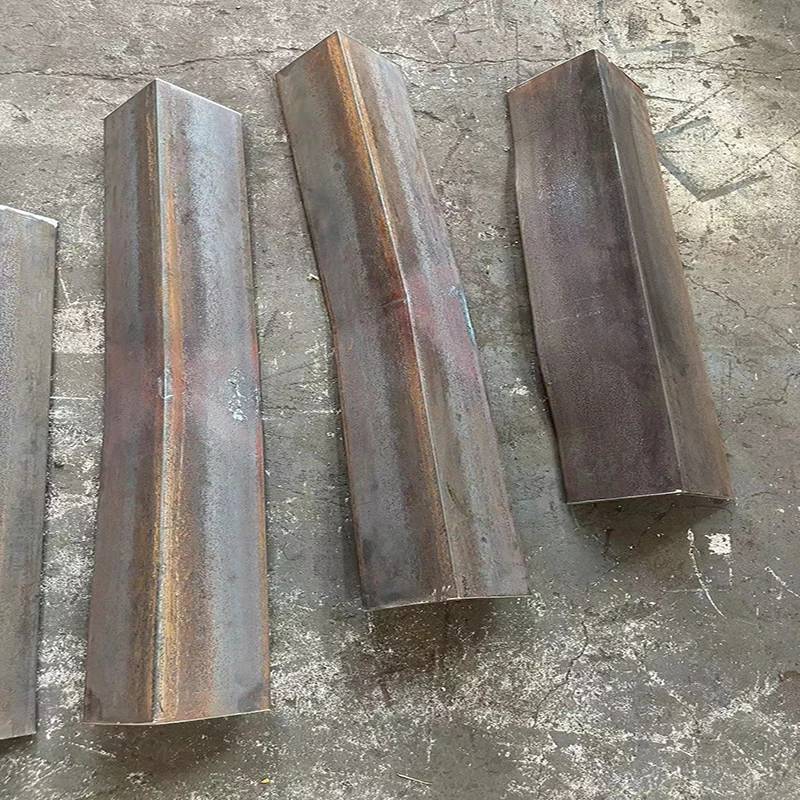

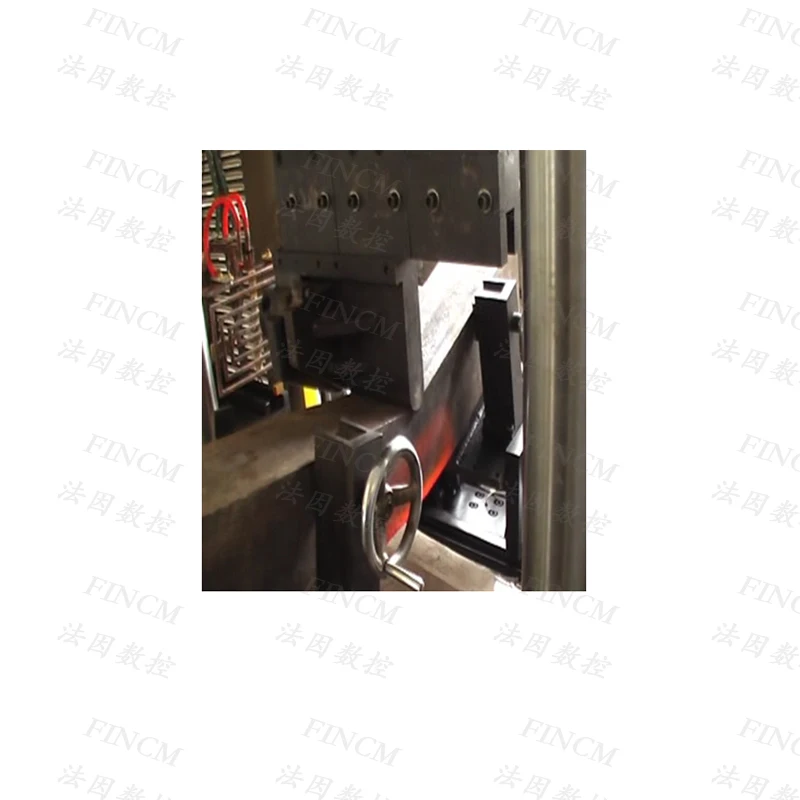

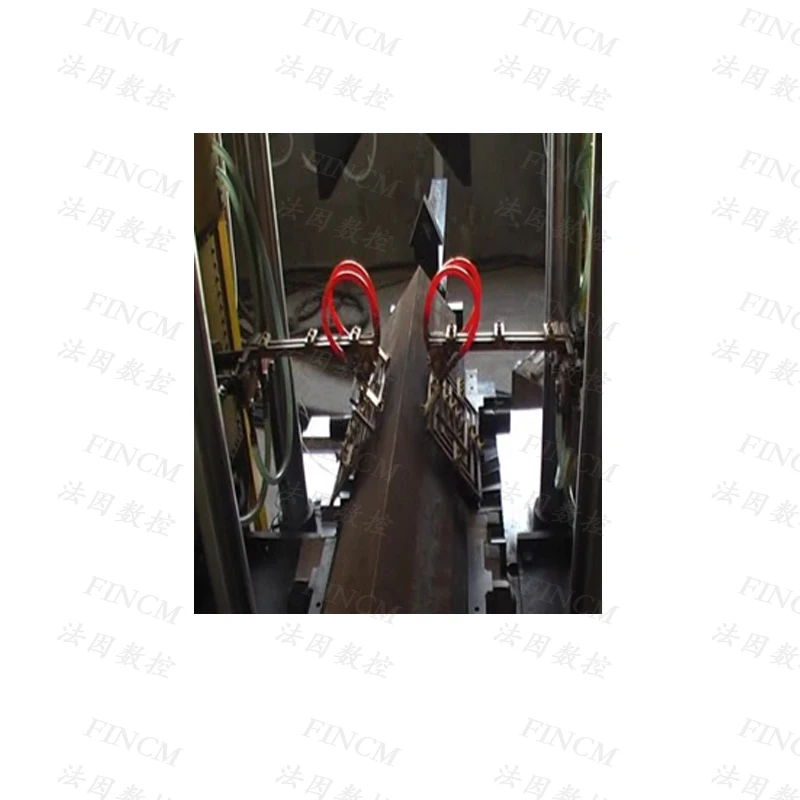

The angle steel bending machine is mainly used for angle steel bending and sheet bending, and is mainly used for power towers, communication towers, power fittings, steel structures, storage shelves and other industries.
Cylinder pressure | 1600KN |
Hyperbolic processing range | L40*7～L250*32mm |
Hyperbolic processing angle | 30° |
Positive single processing range | L40*7～L200*18mm |
Positive single processing angle | 20° |
Curved plate processing thickness | 2～16mm |
Curved plate processing width | 700mm |
Curved plate processing angle | 90° |
Cylinder stroke | 800mm |
Equipment power | 15KW |
Heating power | 60*2KW |
Number of CNC axes | 3 |
Cooling water tank | 6 |
Cooling tower flow | 50m³/h |
Fuel tank capacity | 630L |
Equipment weight | 8T |
Dimensions | 3500*4500*4100mm |

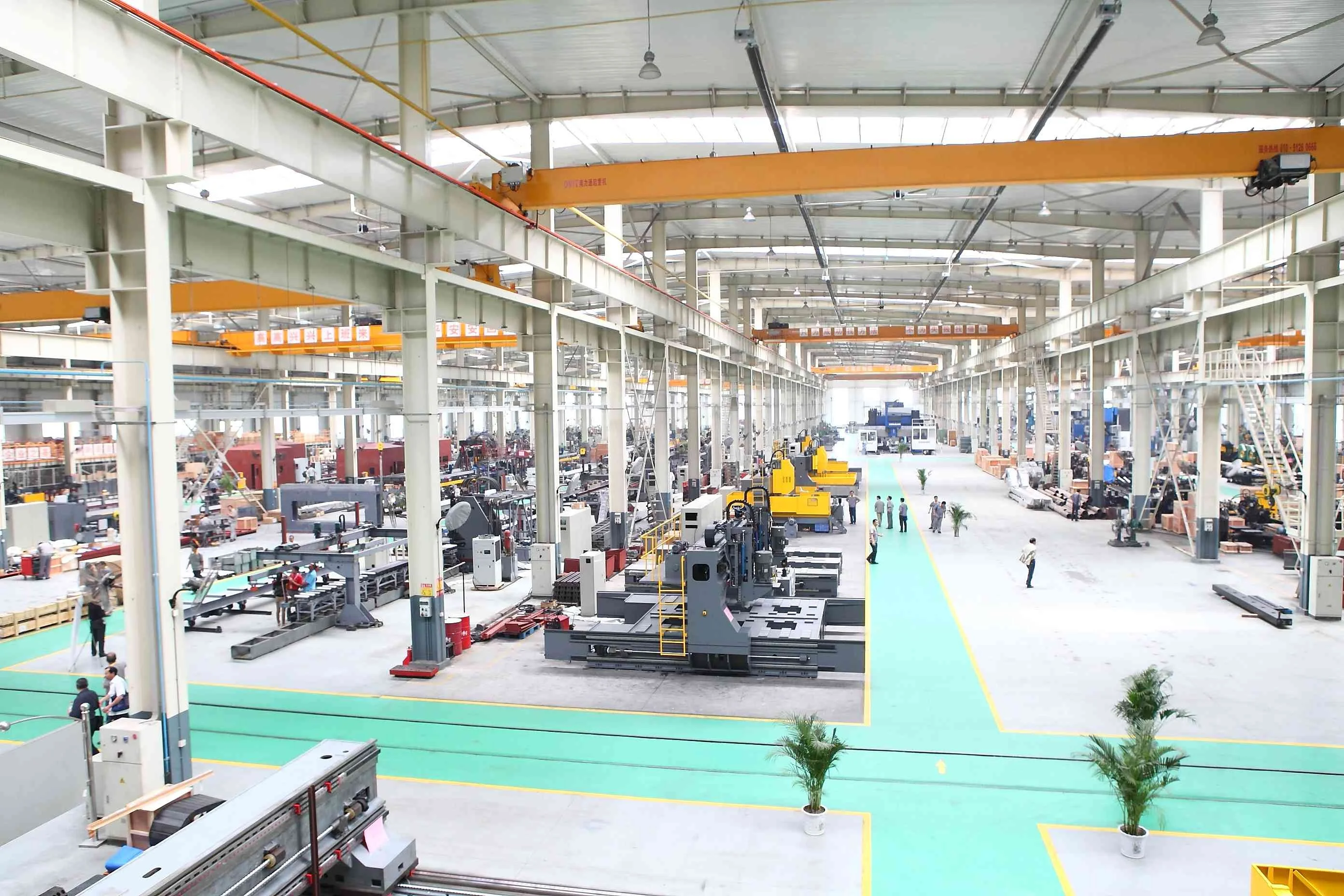

Company Profile

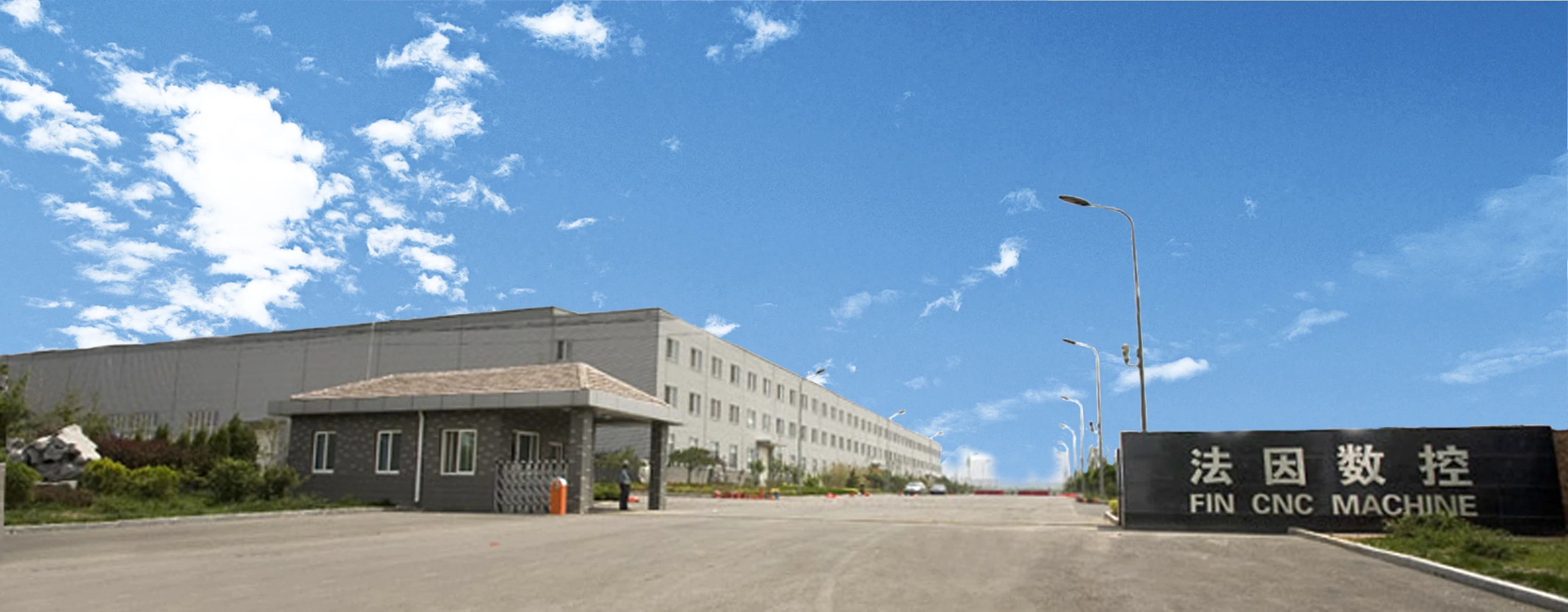

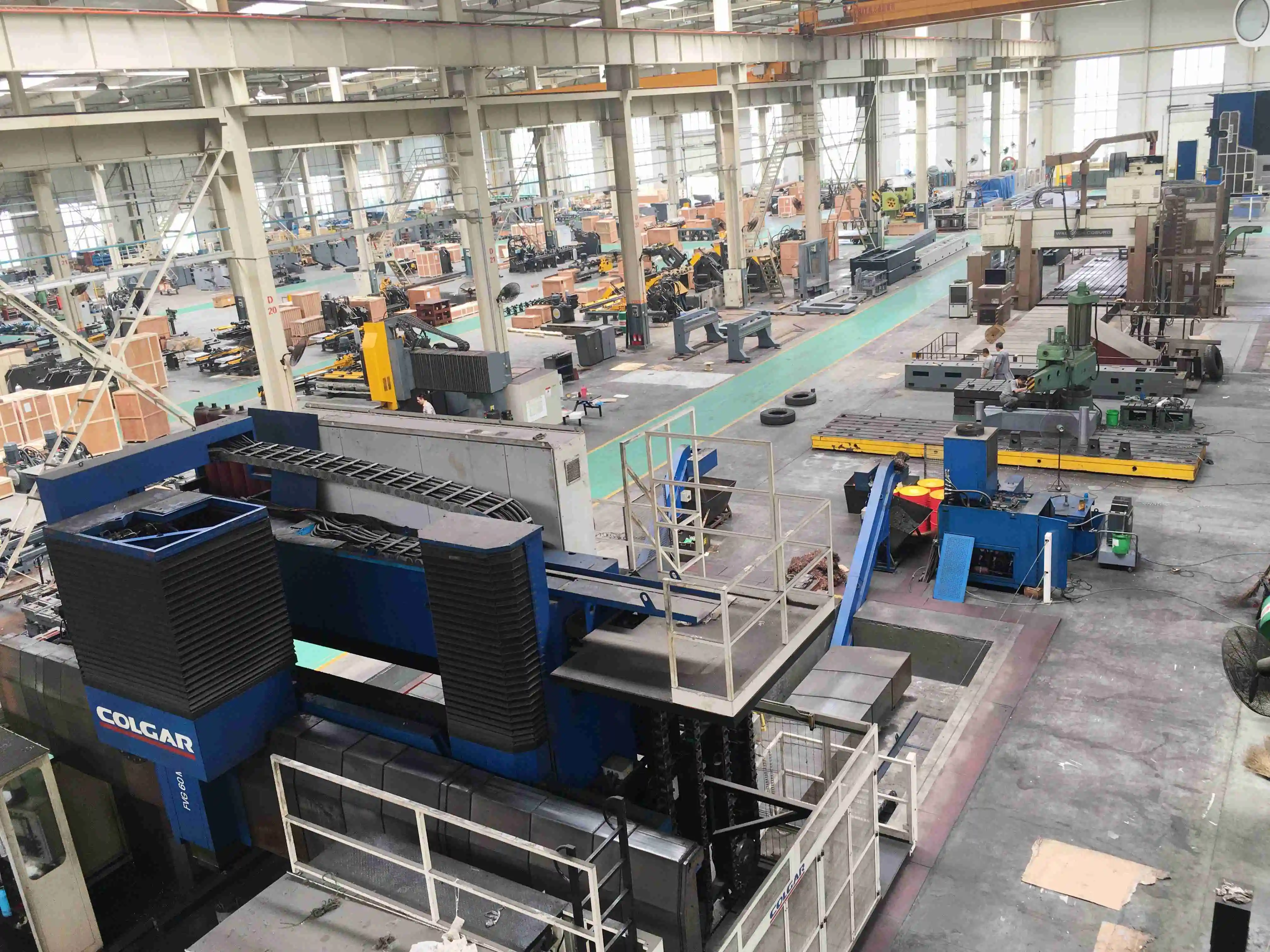

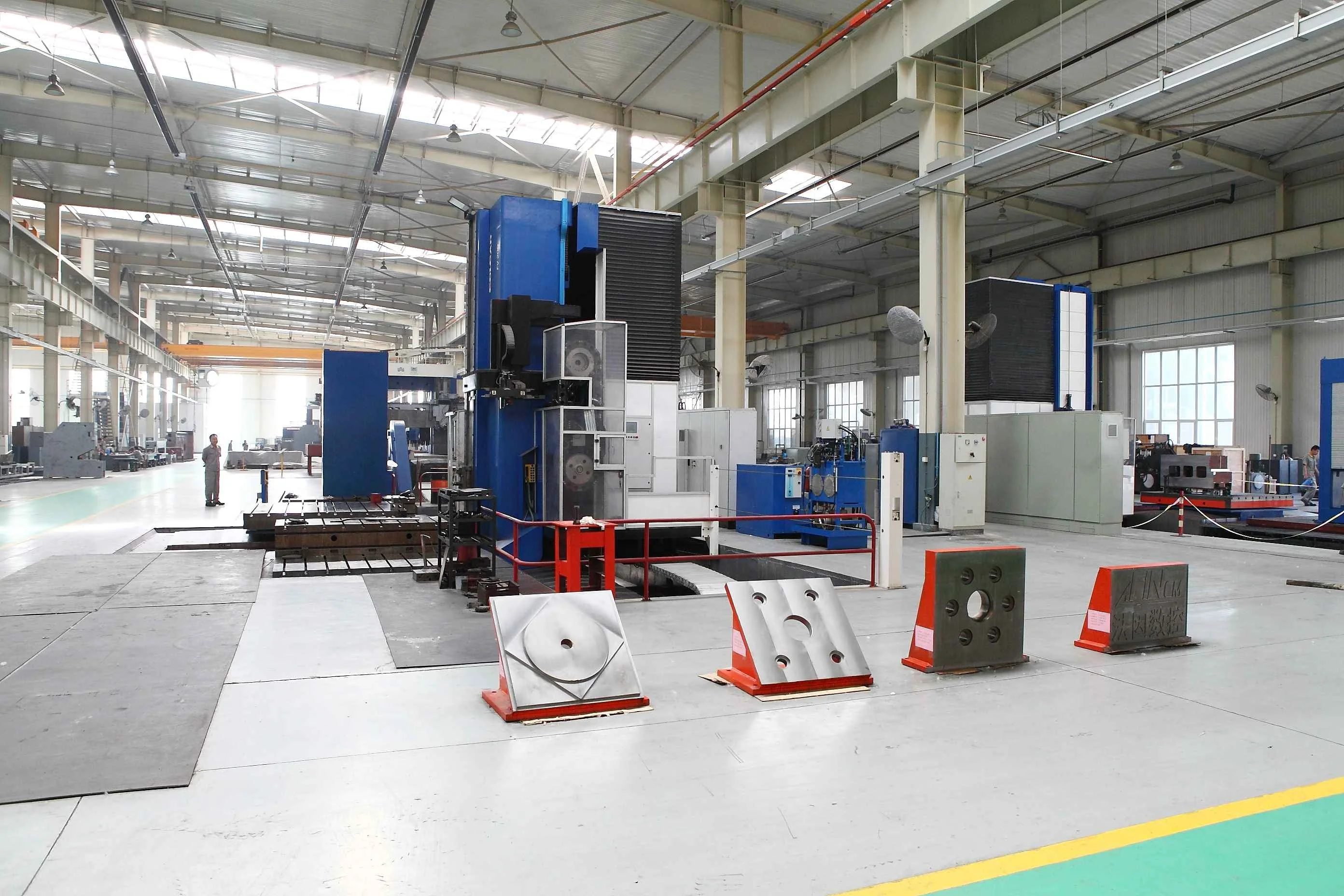

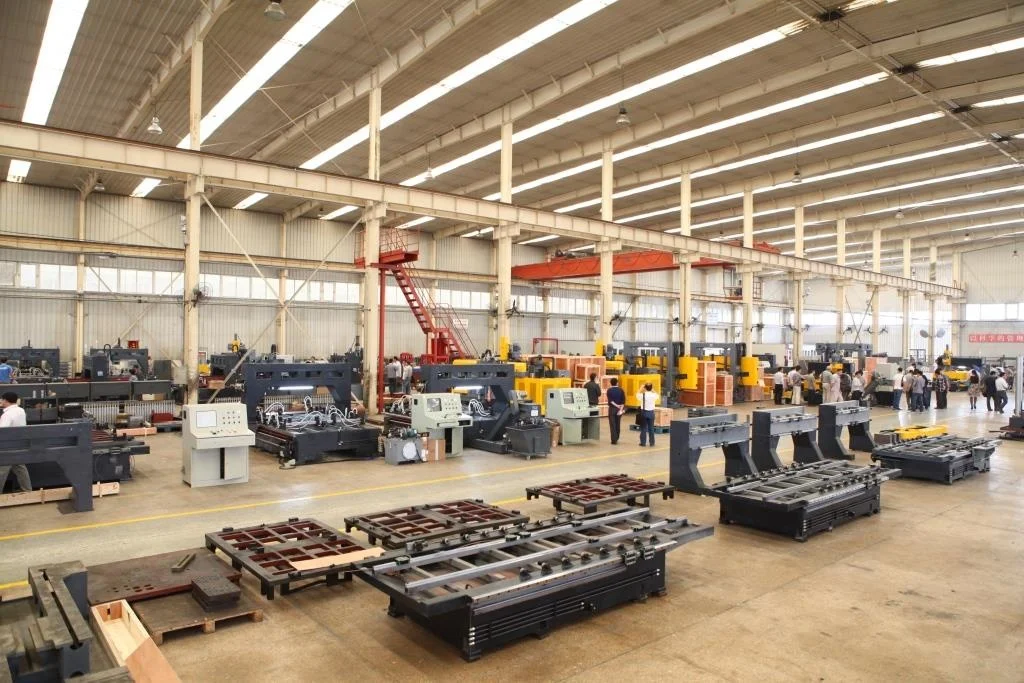

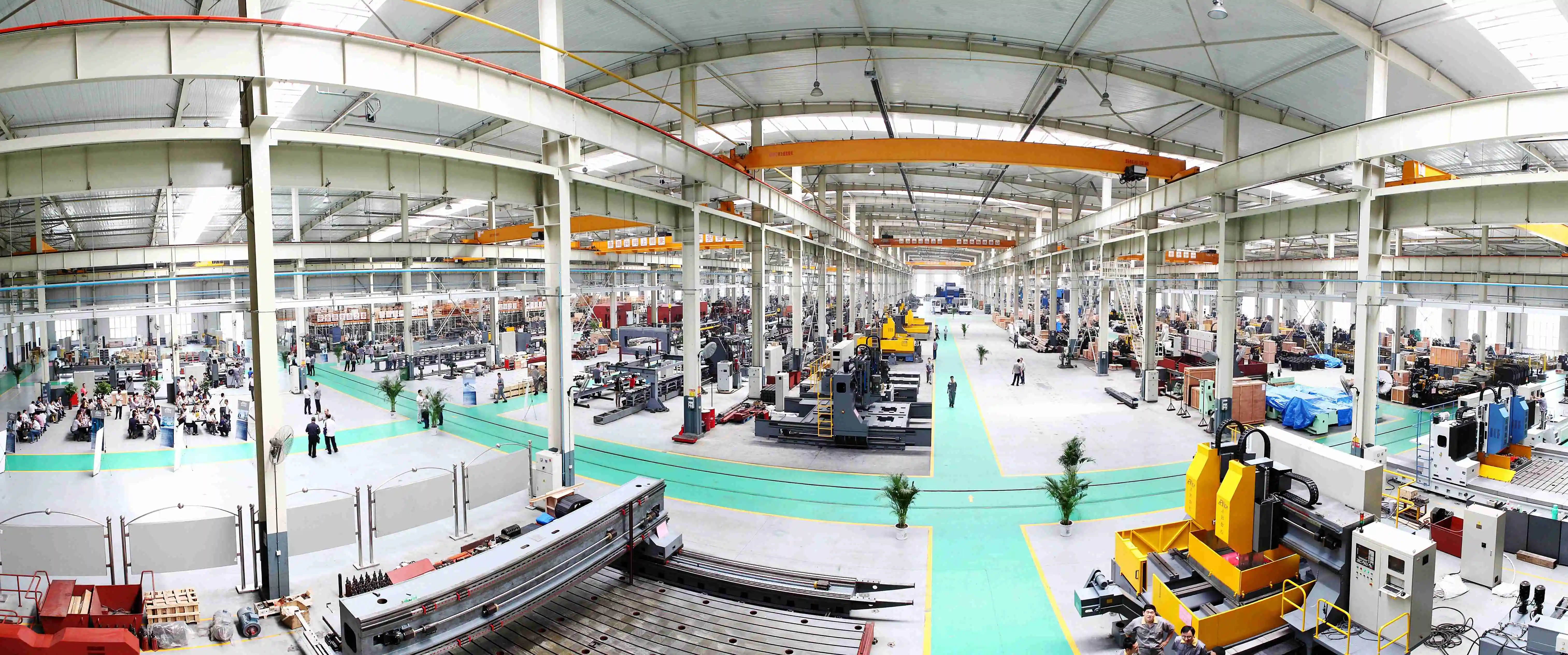

Shandong FIN C N C MACHINE CO., LTD is located in Jinan high tech Development Zone, is committed to the development, research, design, manufacture, sales of CNC machine tools, such as processing angle bar, beam channel profiles, steel plates, tubesheet and flanges and other integrated equipment professional company. It is mainly used in iron tower, steel structure, heat exchanger, boiler, bridge, truck and other industries
Strong R & D center with 30 engineers team, 20 years of experience from year 2001, 280
staff, plant area about 270,000 sqm., very harsh quality control of every component and the whole machine.
staff, plant area about 270,000 sqm., very harsh quality control of every component and the whole machine.
FIN C N C machines exported to 50+ countries across globe market. All top ranked tower manufacturers, steel structure fabricators and power station makers, bridge/railway manufacturers, truck makers are our clients.

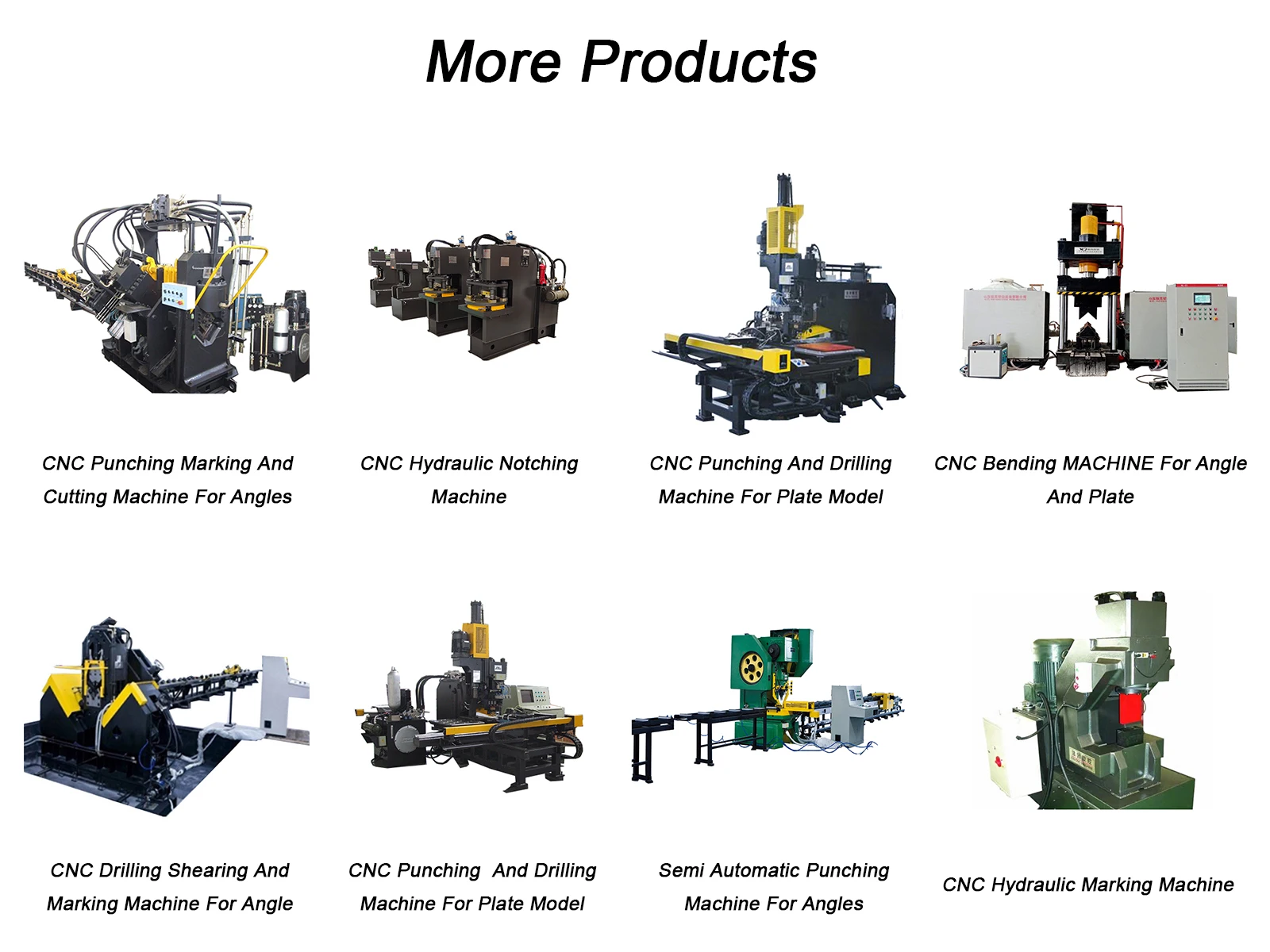

Main products: C N C Angle Line, C N C Beam Drilling Sawing Machine, C N C Plate Drilling Machine, C N C Rail Processing Machine, C N C Tubesheet Flange Drilling Machine, Truck beam plate punching machine.
Cooperative Supplier

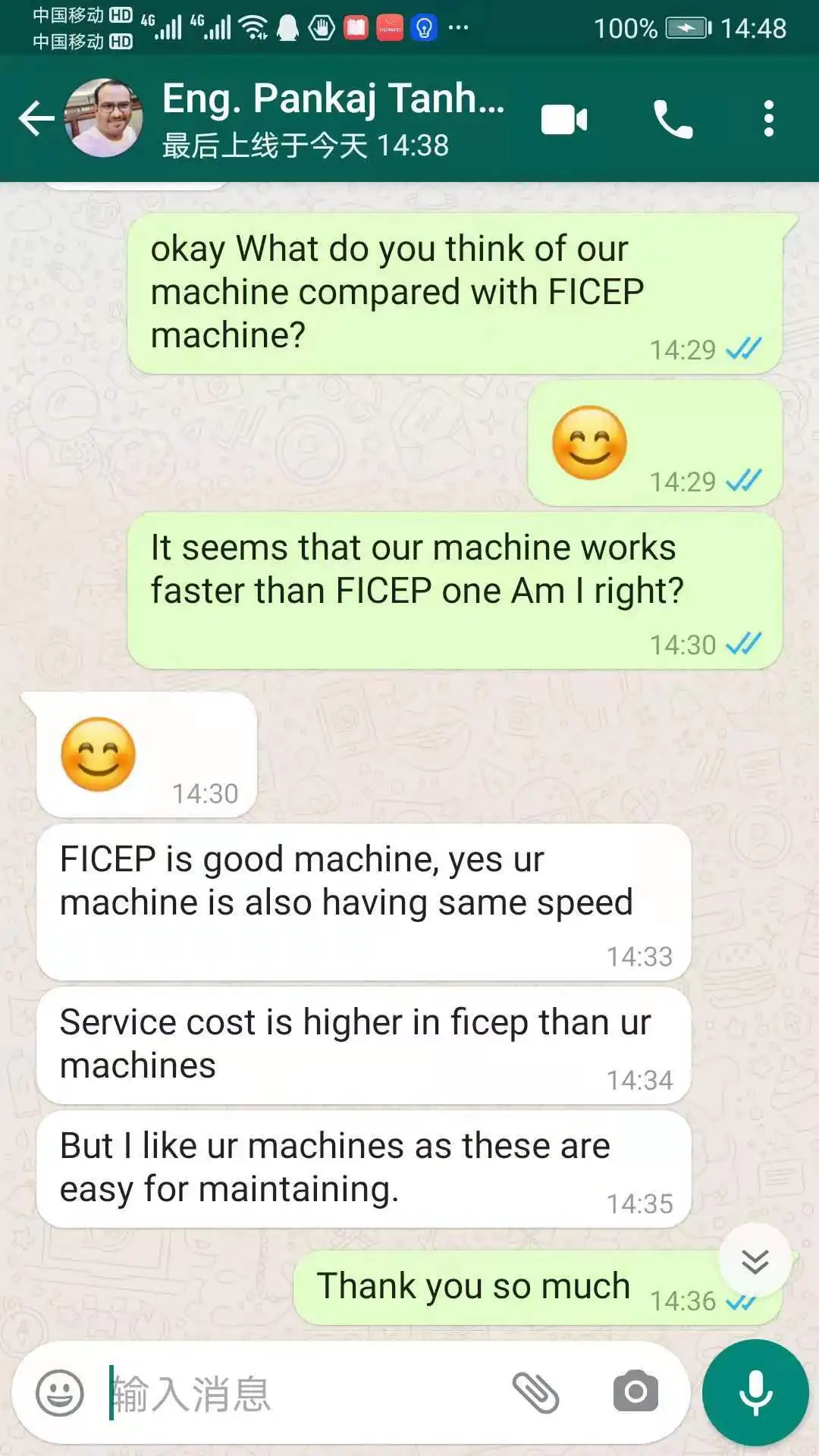

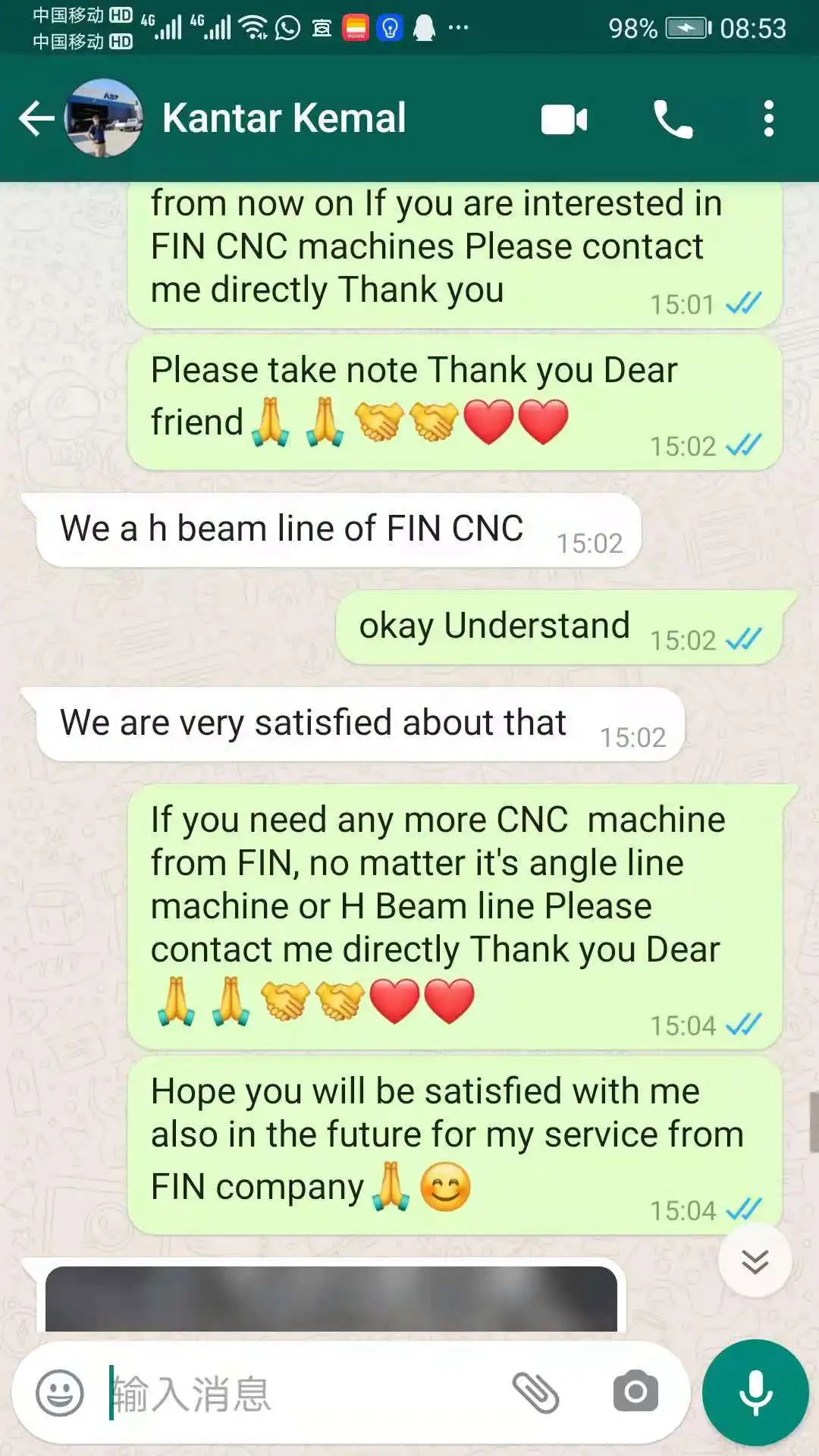

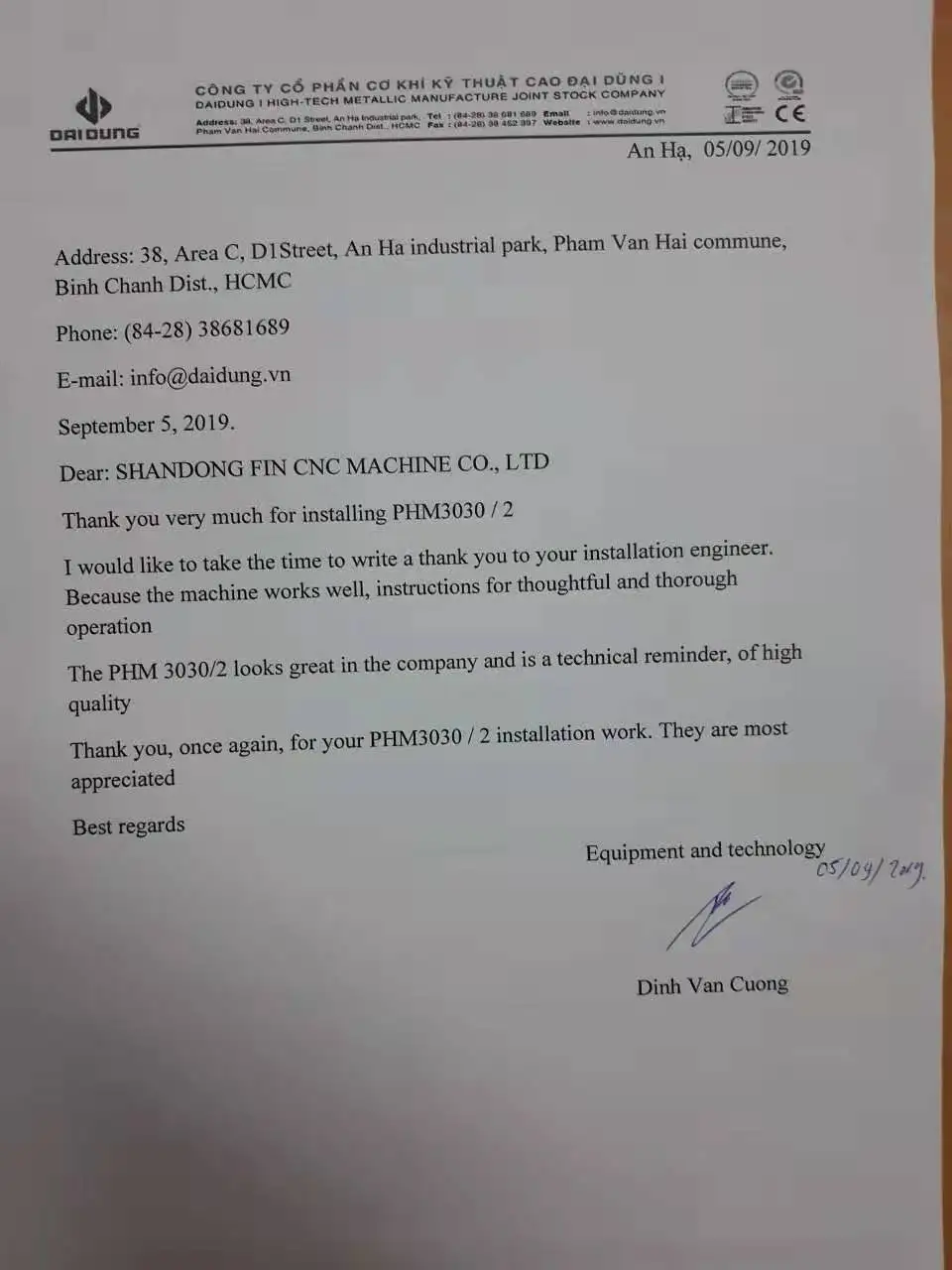

Customer praise

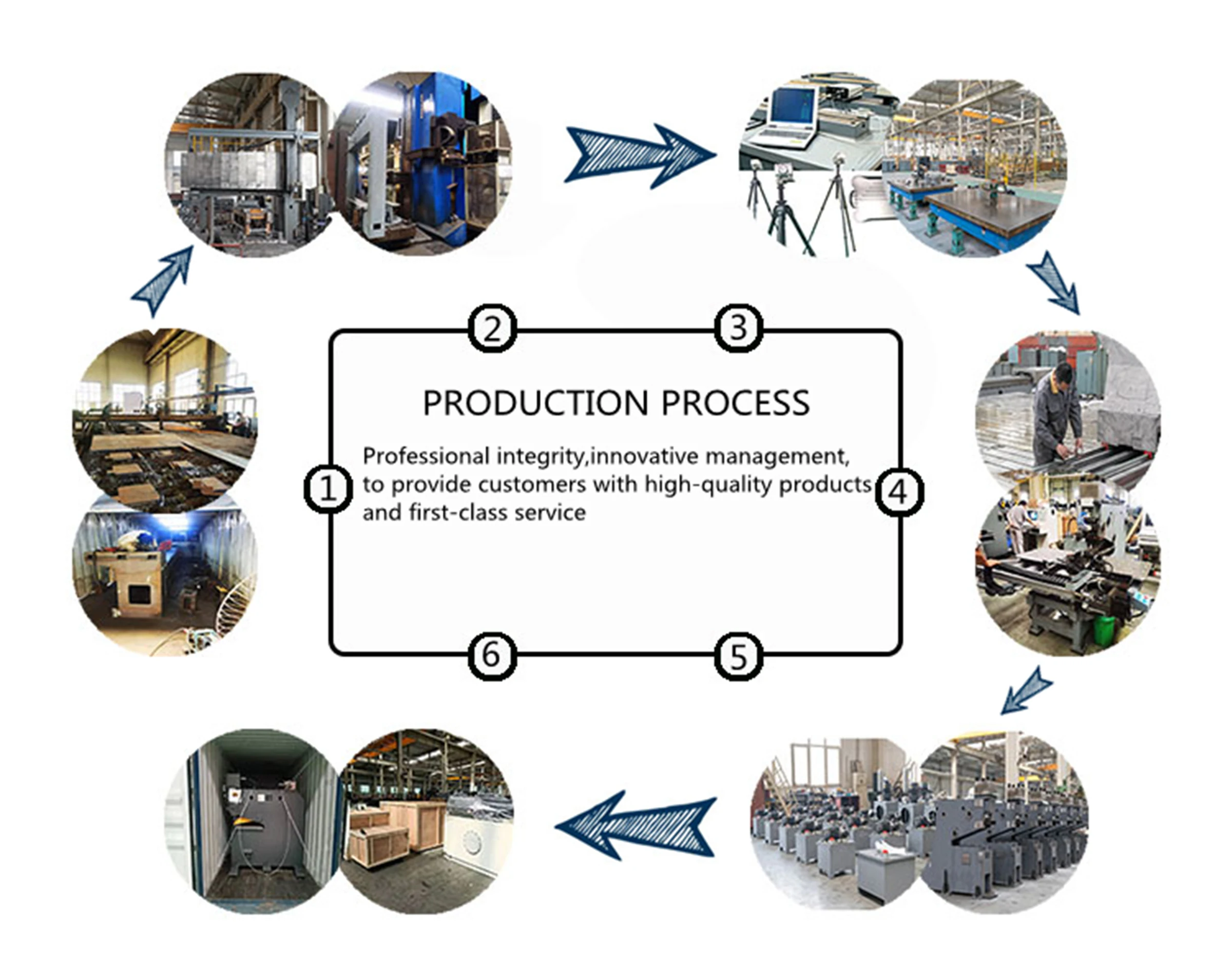

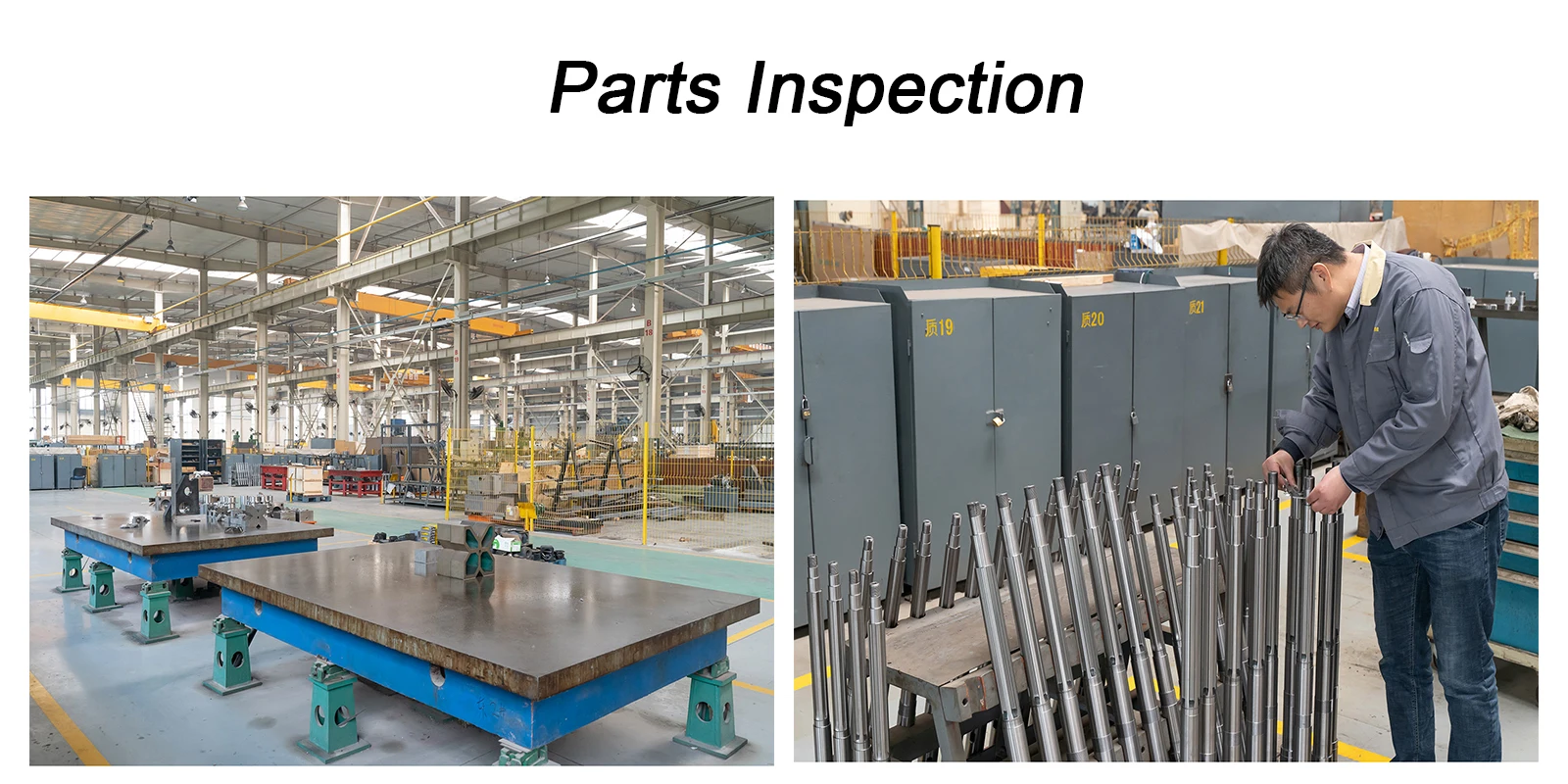

Product Process Control
