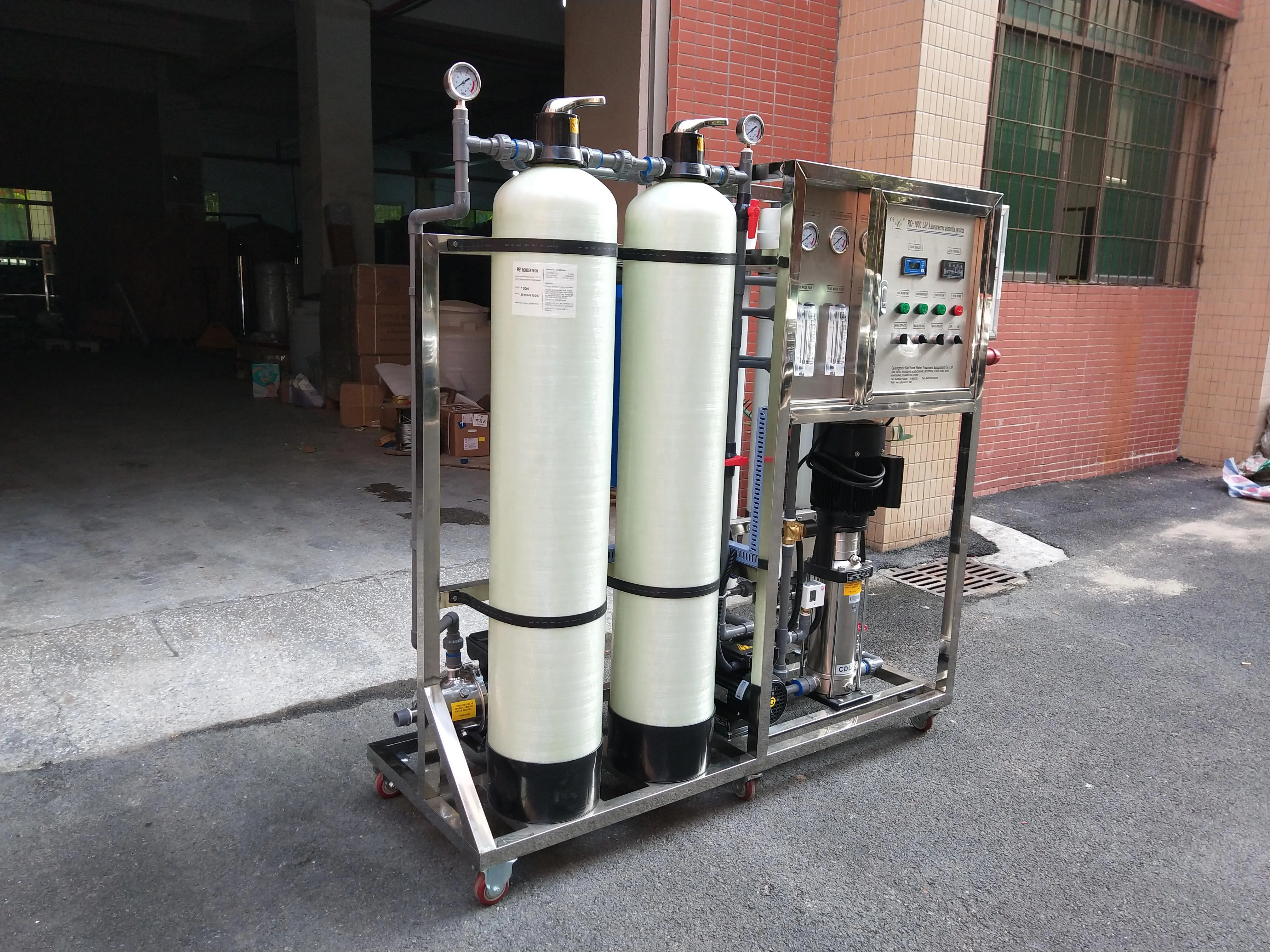

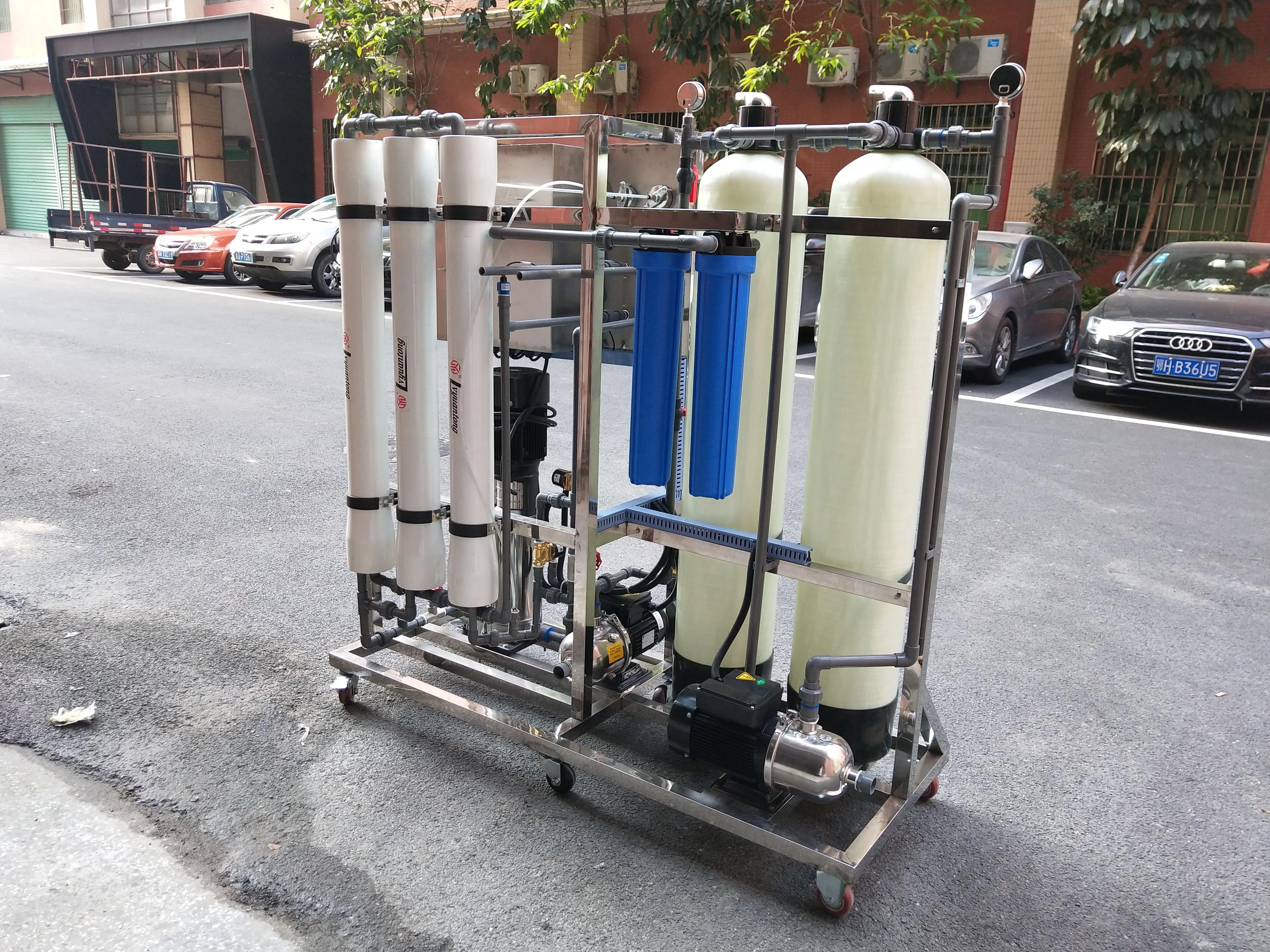

500 Liters Per Hour 132 Gallons Ro Water Filter Pure Water Filtration Machine For Wine Making Reverse Osmosis Desalination Plant
- Category: >>>
- Supplier: Guangzhou Kaiyuan Water Treatment Equipment Co. Ltd.
Share on (1600425323016):
Product Overview
Description
Product Description
A.Description of reverse osmosis water treatment plant
Reverse Osmosis or (RO) can be described as a procedure whereby pure water and contaminants is divided via a semi-permeable membrane(s) with very fine pores. This method is a necessary technique employed in the majority of water purification systems. Reverse Osmosis is considered to be a highly effective approach to eliminating water impurities, such as Toxic Heavy Metals i.e. Lead and Radium, Mercury, Chlorinated Pesticides, organic matters, Turbidity & Dissolved Solids, bacteria, virus.
RO system is widely used in water treatment, purification for tap water, well water, underground water, borehole salty water, brackish water and seawater, pure water and ultra-pure water production. Application area such as, food processing, bottled drinking water, home use drinking water, power stations, electronic industries, cosmetics production, pharmaceuticals manufactories, and medical treatment(such as hemodialysis). It is a key equipment for pure water plant and ultrapure water equipment.
Reverse Osmosis or (RO) can be described as a procedure whereby pure water and contaminants is divided via a semi-permeable membrane(s) with very fine pores. This method is a necessary technique employed in the majority of water purification systems. Reverse Osmosis is considered to be a highly effective approach to eliminating water impurities, such as Toxic Heavy Metals i.e. Lead and Radium, Mercury, Chlorinated Pesticides, organic matters, Turbidity & Dissolved Solids, bacteria, virus.
RO system is widely used in water treatment, purification for tap water, well water, underground water, borehole salty water, brackish water and seawater, pure water and ultra-pure water production. Application area such as, food processing, bottled drinking water, home use drinking water, power stations, electronic industries, cosmetics production, pharmaceuticals manufactories, and medical treatment(such as hemodialysis). It is a key equipment for pure water plant and ultrapure water equipment.
Different water TDS(total dissolved solids) compare and Application | ||||||||
Application/Source Water | Bottled water, Sachet Water | Municipal Tap Water | Brackish water | Sea Water | ||||
TDS Range | 2-10ppm | 100-1000ppm | 2000-20,000ppm | 20,000-40,000ppm | ||||
Direct Drinking | Yes | Yes/No | No | No | ||||
Cooking, human consumption, washing | Yes | Yes | No | No | ||||
Irrigation, industry, animal drinking | Yes | Yes | No | No | ||||
500 Liters Per Hour 132 Gallons Ro Water Filter Pure Water Filtration Machine For Wine Making Reverse Osmosis Desalination Plant
B.Main Parameters of the Reverse Osmosis System
Model | KYRO-500 |
Production capacity | 500L/H ; 132 gallon per hour |
Power | About 3.0kw |
Power supply | AC 380V 50Hz 3phase or 220V 50hz single phase |
Raw water pump | Domestic; SUS304 |
Quartz sand filter Activated carbon filter | FRP tank; Manual control valve；100kg quartz sand FRP tank; Manual control valve；25kg carbon |
Antiscalant dosing device | Dosing pump AKS600; Dosing tank |
Security filter | 20 "× 5μm pp filter cartridges, 5pcs |
High pressure pump | CNP, Hangzhou Nafang; SUS304 |
RO membrane | USA RO membrane; LCLE-4040;3PCS |
Membrane housing | FRP, 3pcs |
CIP cleaning pump | CNP, Hangzhou Nafang; SUS304 |
Desalination rate | 97% - 99% |
Recovery rate | 50%-70% |
Size (mm) | main machine: 1900X620X1850 |
Material | FRP tank+SUS+PVC pipe |
Certificate | CE&ISO9001 |
Warranty | One year |

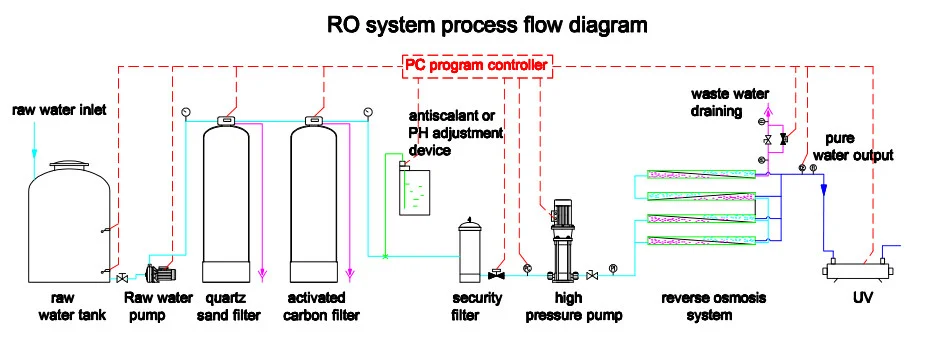

C.Working Process Chart:
Raw water pump→ Quartz Sand filter→ Activated carbon filter→ Anti-scale dosing system→Security filter → High pressure pump→Reverse osmosis system→UV →Pure water tank
D.Every part of the reverse osmosis system
S/N. | Commodity name | Application | Remark |
1 | Raw water tank | Store water, buffering pressure, overcome instability of supplying water by pipe, ensure to supply water stably and continuously for whole system | Customer provide for themselves, because big size will result in expensive freight |
2 | Raw water pump or called booster pump | Provide needed pressure for every pretreatment filter | We can provide CNP pumps or Grundfos pumps |
3 | Mechanical filter or called quartz sand filter or sand filter | We use fiber glass or stainless steel vessel as housing, fill quarts sand, it can filter big particles impurities, suspended substances, colloids etc. | We use China brand or WAVE CYBER brand |
4 | Activated carbon filter | We use fiber glass or stainless steel vessel as housing, fill activated carbon, remove color, odor, residual,chlorine and organics substances. | We use China brand or WAVE CYBER brand |
5 | Water softener, demineralizer, or called Na+ exchanger | Adopt cation resin to soften water, cation resin will absorb Ca2+, Mg2+(main elements for composing scale), reduce hardness of raw water, System can make resin intelligently regenerate, recycling | We use China brand or WAVE CYBER brand |
6 | Antiscalant dosing system or PH regulating system | Dosing antiscalant into feed water, prevent the ro membranes from blocking, prolong the lifetime of RO membranes. Regulating PH to suitable range. | Italy SEKO dosing pump or German Prominent |
7 | Security filter or pp filter, or called PP sediment filter | prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm, | Stainless steel housing or PVC housing |
8 | High pressure pump | Provide needed working pressure for RO system, ensure production capacity of pure water. | CNP pump, Grundfos optional |
9 | RO(reverse osmosis) system | Can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts. | RO membranes USA Filmtec Dow; Domestic well-known brand VONTRON. |
10 | CIP cleaning system | Cleaning RO membranes with chemicals | CNP pumps |
11 | Sterilizing device | UV sterilizer or ozone generator | DAHUAN ozone , ClearUV UV Lamp |
Product Detail
High pressure pump CNP pump, The famous pump brand in China.It is to provide the pressure for water into ro membrane.It is the improtant part in the system
How long the consumables should be replaced?
All the consumable replace period will be depend on the feed water quality.
PP filter cartridge
Advice Replacement time: every month
Quartz sand
Advice Replacement time: Every 15 - 18 months
Activated Carbon
Advice Replacement time: Every 15 - 18 months
Resin
Advice Replacement time: Every 15 - 18 months
RO membrane (LCLE4040)
Advice Replacement time:
Every 2 years
Every 2 years
UV lamp
Advice Replacement time:
9000 hours
9000 hours
Exhibition

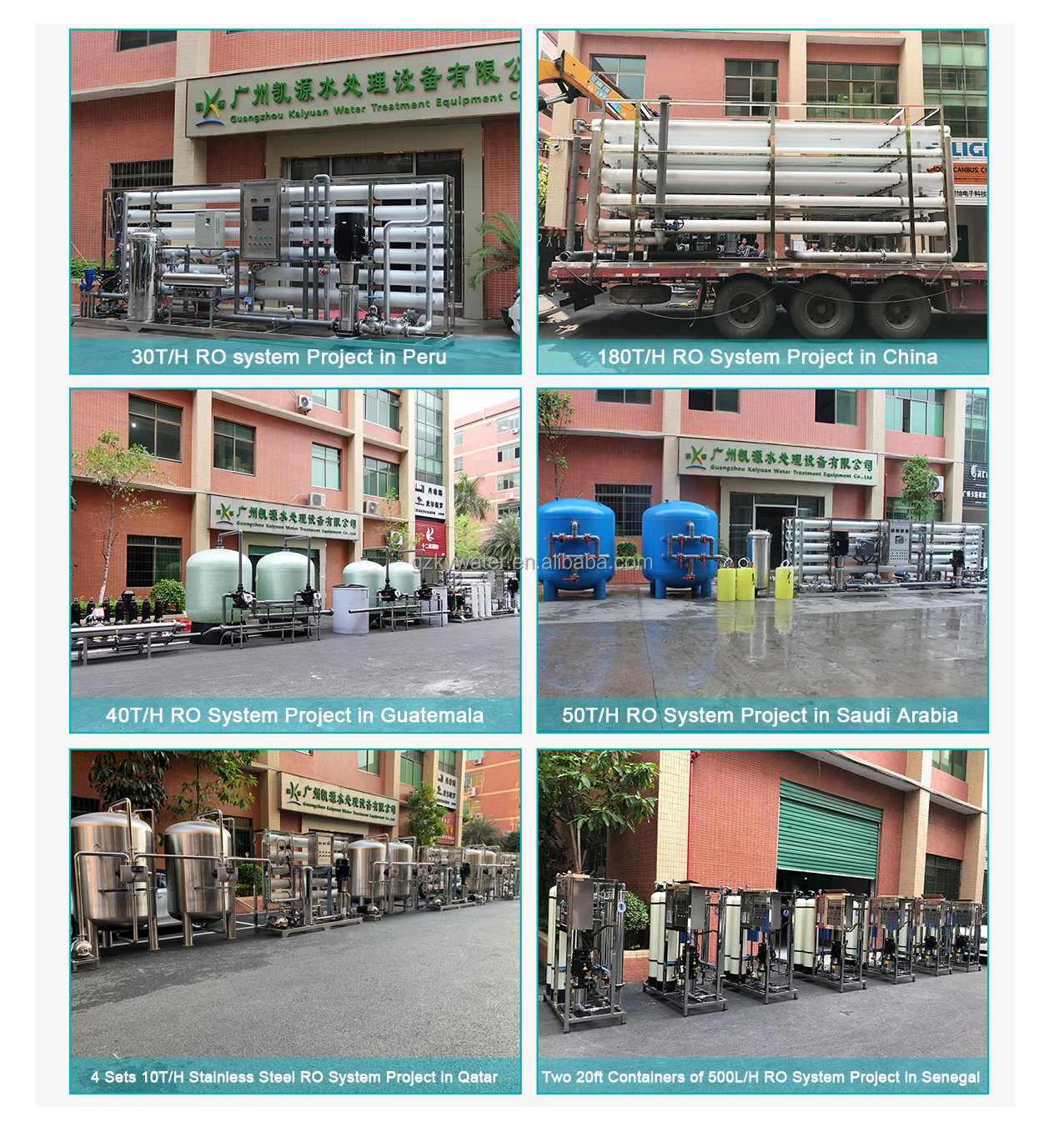

We install on-site photos for customers
