LA LC10 3 2000N 24V DC Motor 3 Stage Medical Dental Telescopic Lifting Column
- Category: >>>
- Supplier: Ningbo Summite Im & Ex Co. Ltd.
Share on (1600425336232):
Product Overview
Description
Products Description

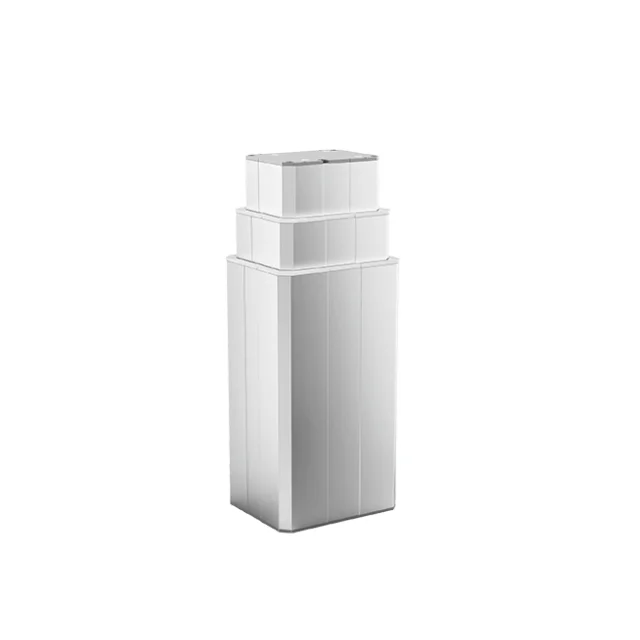

Lifting column LA-LC10-3
Features
(1)Motor: 24VDC
(2)Built-in dimension: 350mm(+/-4)
(3)Stroke length: Max 400mm(+/-4)
(4)Load in push: 2000N
(5)LA-LC10-3 has two types: E(small) and F(large)
(6)Static bending moment: 1000NM
(7)Dynamic bending moment: 500NM
(8)Protection class: IP54
(9)Colour: anodised aluminium
(10)Built-in electrical limited switch-not adjustable
(11)Noise level: 48dB
(2)Built-in dimension: 350mm(+/-4)
(3)Stroke length: Max 400mm(+/-4)
(4)Load in push: 2000N
(5)LA-LC10-3 has two types: E(small) and F(large)
(6)Static bending moment: 1000NM
(7)Dynamic bending moment: 500NM
(8)Protection class: IP54
(9)Colour: anodised aluminium
(10)Built-in electrical limited switch-not adjustable
(11)Noise level: 48dB
(12)Approvals: CE
Options
(1)With hall-sensor(apply for synchronize or memory function)
Usage
(1)Usage temperature: From +5℃ ~ +40℃
(2)Duty cycle: 2 minutes continuous use followed by 18 minutes not in use
(2)Duty cycle: 2 minutes continuous use followed by 18 minutes not in use
(3)Compatibility: LA-CB4, LA-CB4, LA-CB8, LA-CB13A, LA-CB-T and LA-CB13B
Specifications
Spindle pitch | Push max (N) | Self- lock (N) | Bending force max(Static) (NM) | Bending force max(Dynamic) (NM) | Speed without load (mm/s) | Speed under load (mm/s) | Current under load (A) |
4 | 2000 | 2000 | 1000 | 500 | 12 | 10 | 7.0 |
Note: The data above are general parameters. If you need other parameters, please send the request in the message box at the bottom of this page.
Details Images

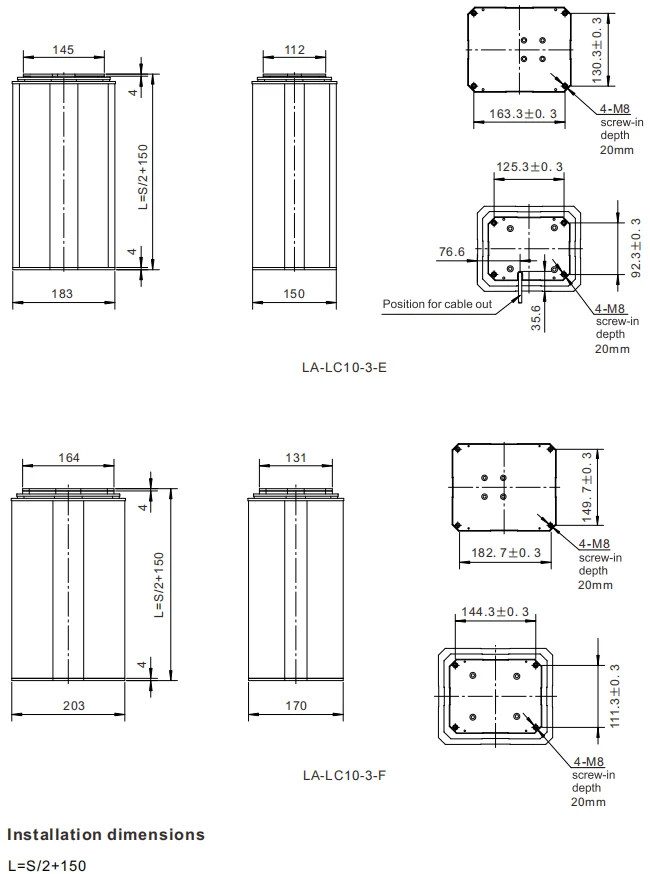

Dimension
