Acrel Wireless Communication Energy Management Meter Three Phase Rs485 Modbus Power Analyzer Energy Meter
- Category: Energy Meters >>>
- Supplier: Acrel,Electric,Co.,Ltd.
Share on:
Product Overview
Description
Acrel Three Phase Energy Management Meter Wireles Energy Analyzer Meter with RS485 Lora NB-IOT wireless communication ADW300/NB
Product Paramenters
Function | Description |
Display Model | LCD |
Energy metering | Active kWh (positive and negative),quadrant reactive power energy |
Electrical measurement | U,I, P,Q,S,PF,F |
Harmonic function | THDv,Harmonic on 2nd-31st |
Pulse output | Active pulse output |
Three-phase unbalance degree | Voltage unbalance,current unbalance |
Temperature measurement | Temperature of A/B/C/N(Alternate configuration:T) |
DI/DO | 4DI,2DO(Alternate configuration:K) |
Aftercurrent | One-way aftercurrent(Alternate configuration:L) |
LED display | Pulse LED display |
External current transformer | External open type current transformer (Alternate configuration:W) |
Electrical parameter | Undervoltage, undercurrent, overcurrent, underload, etc |
Communication | Infrared communication |
RS485(Alternate configuration:C) | |
Wireless transmission on 470MHz (Alternate configuration:LR) | |
GPRS(Alternate configuration:2G) | |
NB-IOT(Alternate configuration:NB) | |
4G(Alternate configuration:4G) |
General
ADW300 wireless meter is mainly used to measure three-phase active power in low-voltage network. It has the functions of RS485 communication and 470MHZ wireless communication. It is convenient for users to monitor, collect and manage electricity. It can beflexibly installed in the distribution box to realize the measurement, statistics and analysis of individual electric energy in different regions and loads.

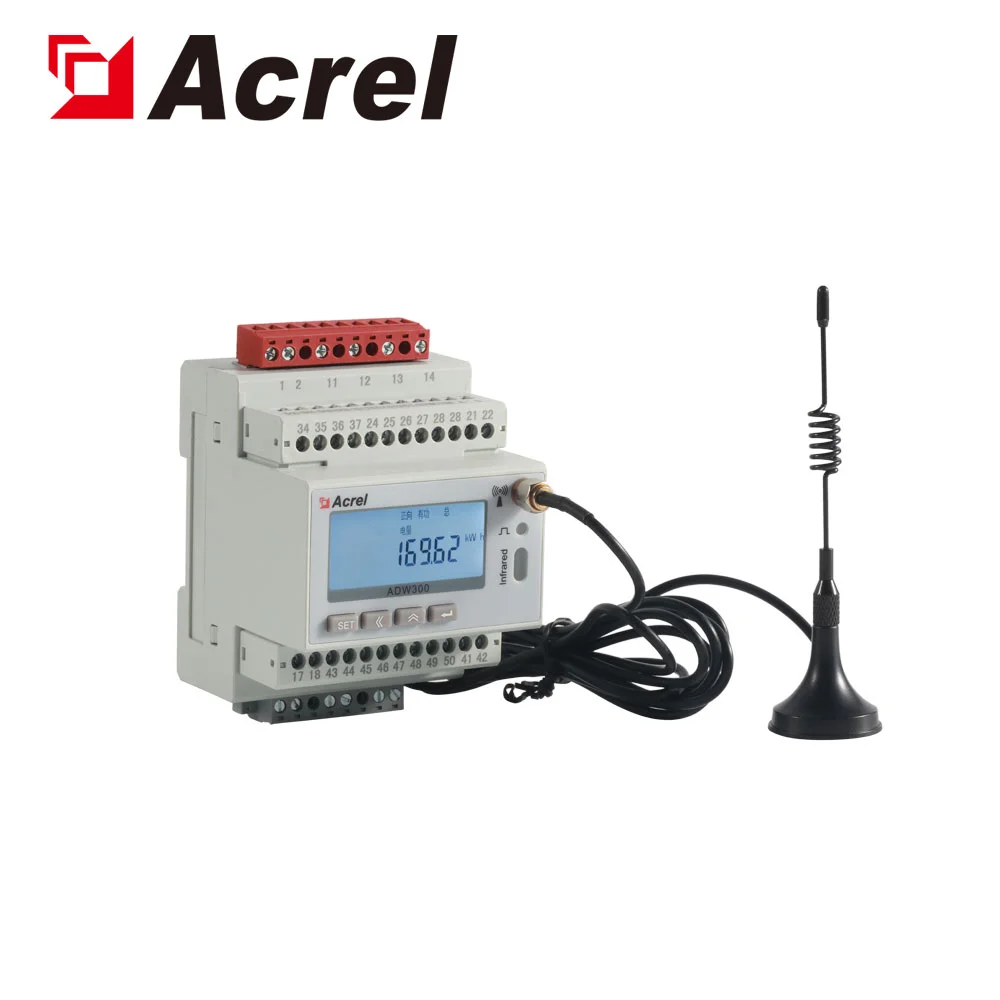

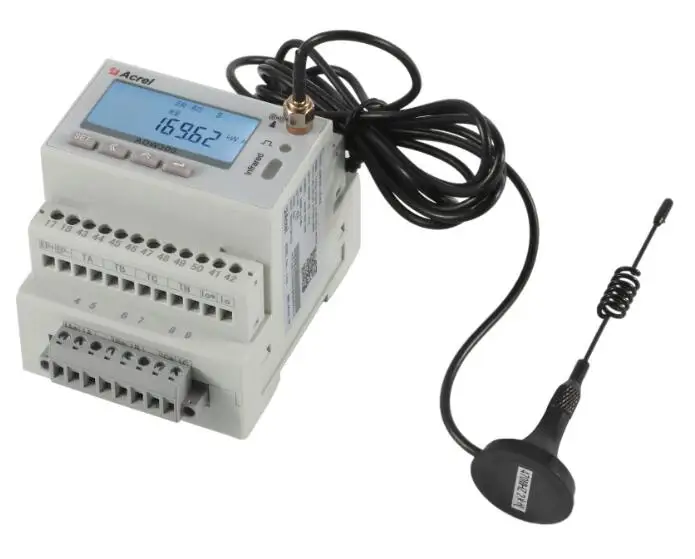

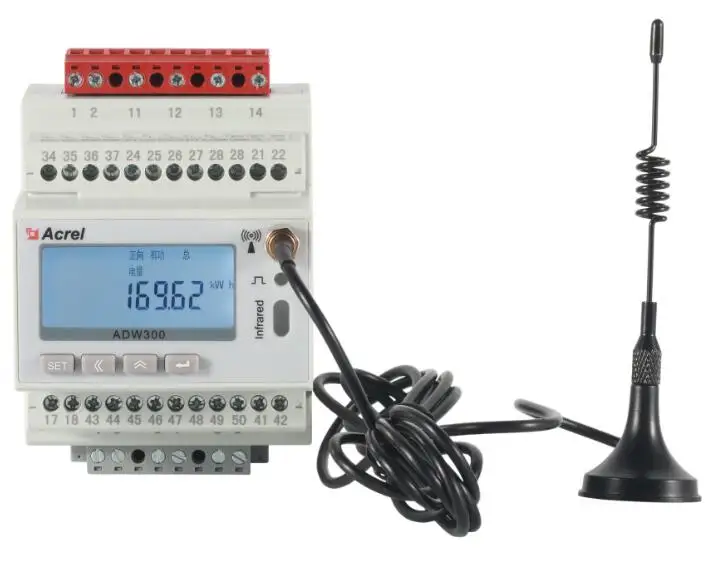

Appearance
It can measure all power parameters including voltage U, current I, active power P, reactive power Q, apparent power S, power factor PF, phase angle of voltage and current Φ, voltage unbalance, current unbalance, frequency F, 2-31st fractional harmonics,odd and even total harmonics and total harmonics. Voltage U reserved 1 decimal, frequency F reserved 2 decimal, current I reserved 3 decimal, power P reserved 4 decimal, phase angle Φ reserved 2 decimal, unbalance reserved 2 decimal. Supporting 4-channel temperature measurement and residual current monitoring.
Characteristic
*Rated Voltage: 3×57.7/100V,3×220/380V,3×380/660V,3×100V, 3×380V,3×660V
*Display: LCD dispaly
Optional Functions:
*Communication: RS485(Modbus-RTU)
* K : 4DI/2DO
* T : 4 Channels temperature measure
* L : 1 Channel residual current measure
* LR : Lora wireless communication
* 2G : 2G wireless communication
* NB : NB -IOT wireless communication
*Display: LCD dispaly
Optional Functions:
*Communication: RS485(Modbus-RTU)
* K : 4DI/2DO
* T : 4 Channels temperature measure
* L : 1 Channel residual current measure
* LR : Lora wireless communication
* 2G : 2G wireless communication
* NB : NB -IOT wireless communication
Dimensions
Wiring
