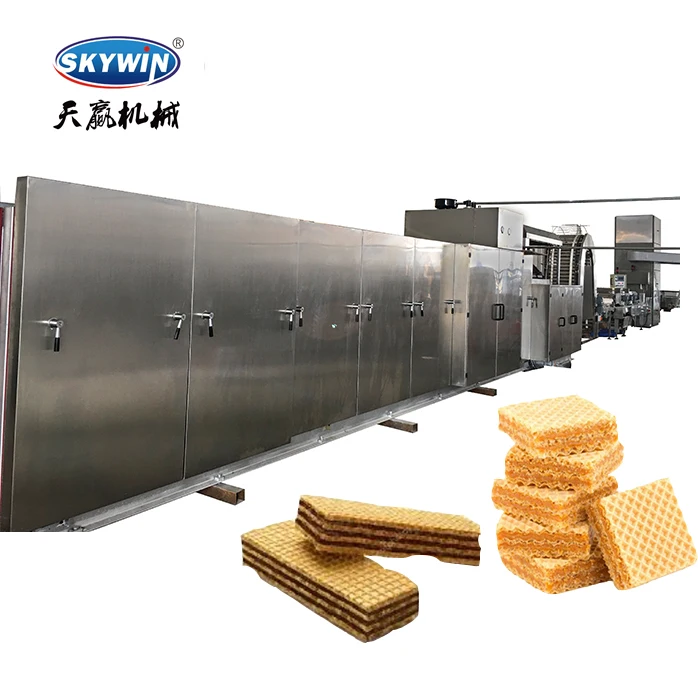

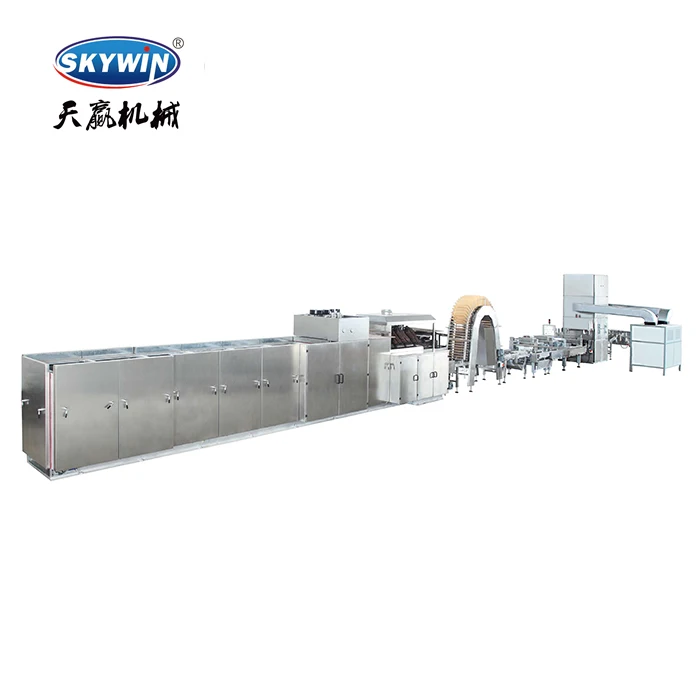

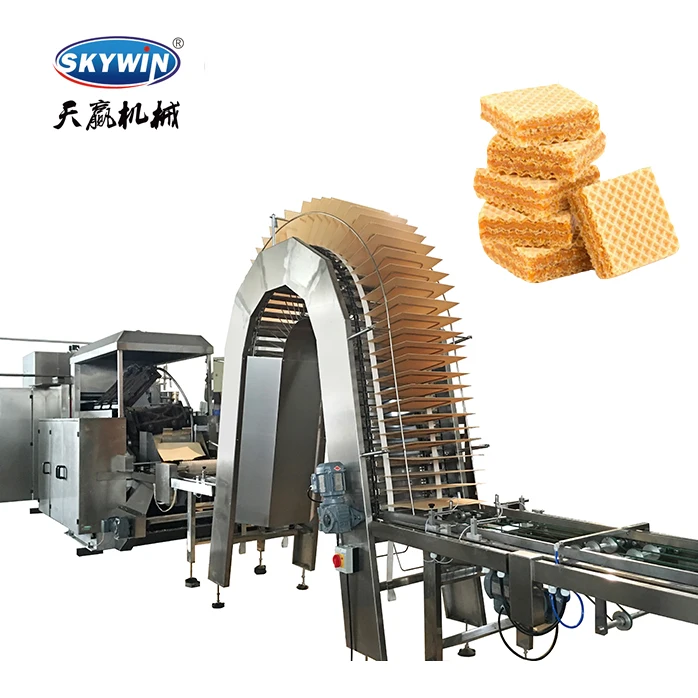

Full Automatic Chocolate Wafer Biscuit Machine Production Line
- Category: >>>
- Supplier: Skywin Foodstuff Machinery Co. Ltd.
Share on (1600425347246):
Product Overview
Description
Product Description
The video and pictures for reference only
1. Mybake Machinery Co., Ltd was established since 2015,which is a subsidiary of Skywin Group.
2. We are committed to make high quality products. The following is our automatic wafer production line.
Details

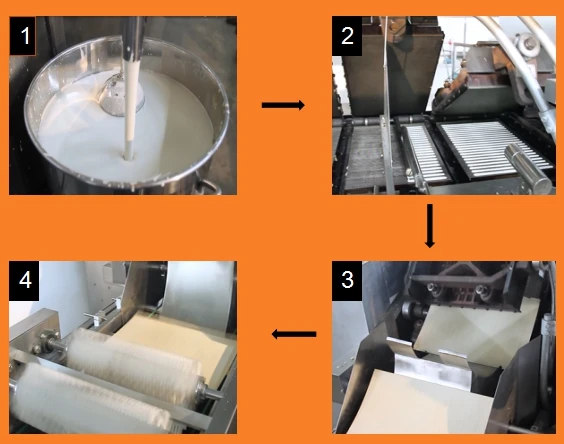

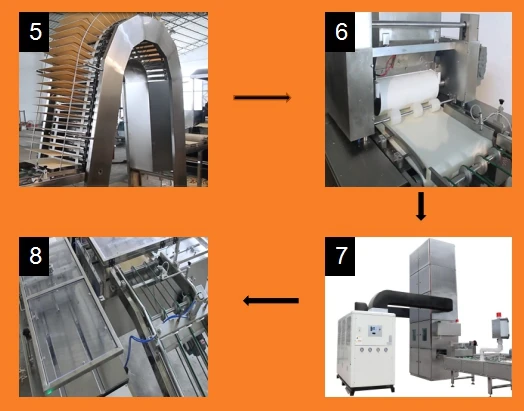

The following is the process of wafer line

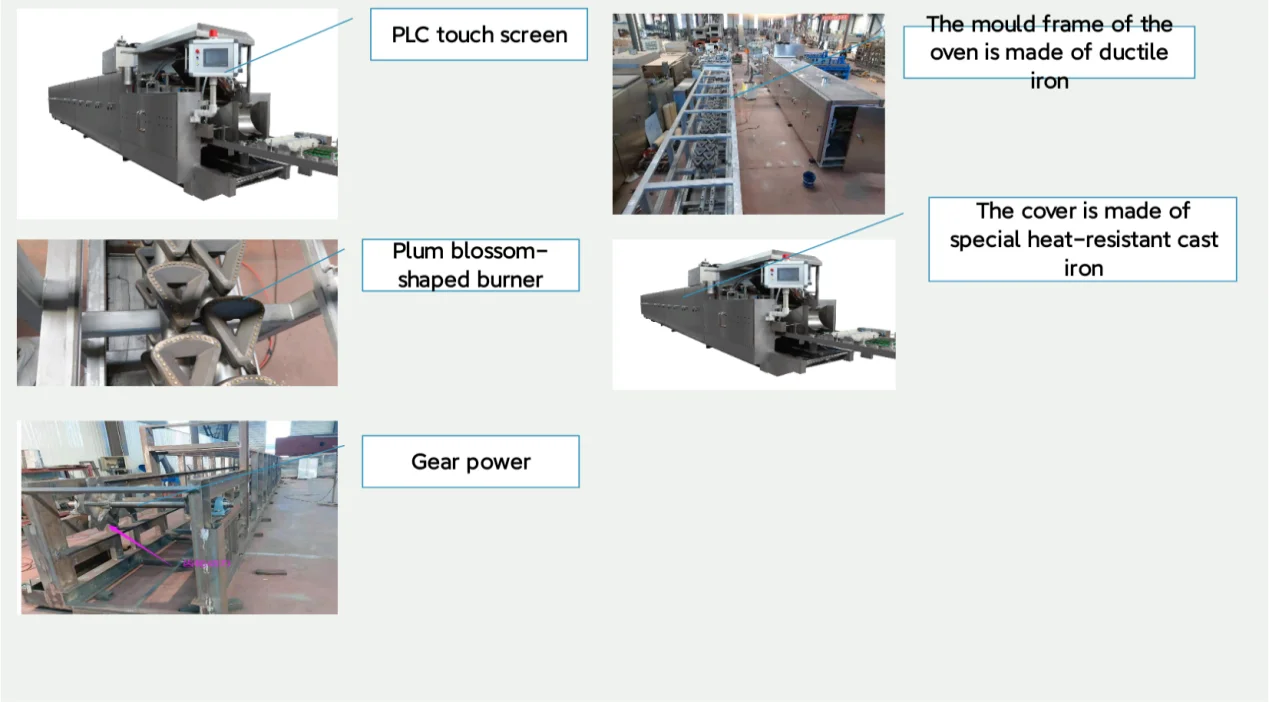

Merits :
1. The stirring rod has a dynamic and static ring blade structure, which is very easy to clean.
2. Oven modules are from 27 to 75. The standard plates size is 470×325 mm, and the maximum can reach 500×350 mm.
3. PID automatic temperature control, wafer color are uniform.
1. The stirring rod has a dynamic and static ring blade structure, which is very easy to clean.
2. Oven modules are from 27 to 75. The standard plates size is 470×325 mm, and the maximum can reach 500×350 mm.
3. PID automatic temperature control, wafer color are uniform.
Merits :
1. The cooling machine is made of all stainless steel and is driven by an independent motor.

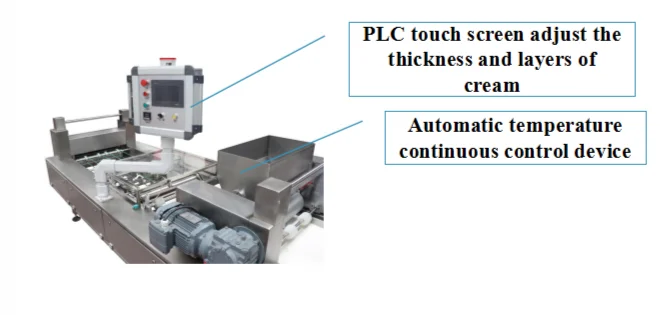

2. The PLC touch screen can adjust the layer and thickness of the cream. The butter bucket has a heat preservation device.
3. The cooling time of the cooling cabinet can be set between 15 and 25 minutes depending on the product. The indoor temperature is between 13-15ºC and can be adjusted to 6-10ºC.
4. Blade type high-speed cutting machine, standard cutting speed up to 10 copies, special design up to 17 copies.
1. The cooling machine is made of all stainless steel and is driven by an independent motor.
2. The PLC touch screen can adjust the layer and thickness of the cream. The butter bucket has a heat preservation device.
3. The cooling time of the cooling cabinet can be set between 15 and 25 minutes depending on the product. The indoor temperature is between 13-15ºC and can be adjusted to 6-10ºC.
4. Blade type high-speed cutting machine, standard cutting speed up to 10 copies, special design up to 17 copies.
Product Paramenters
1. Advantages
2. The out put capacity of the oven
Type/Mould | 27 | 33 | 39 | 45 | 51 | 65 | 69 | 75 |
Oven length (mm) | 6000 | 7150 | 8300 | 9450 | 10600 | 14000 | 15500 | 16280 |
output(kg/hour) | 90 | 119 | 140 | 160 | 193 | 229 | 242 | 271 |
Our Service $ Certificates
* Training how to install the machine,send install video to you, or dispatch engineer to your factory.
* Supply the recipes free to customer,produce biscuit.
* Machine One year warranty and whole line after-sales service.
* Supply the recipes free to customer,produce biscuit.
* Machine One year warranty and whole line after-sales service.
* CE Certificate For All Biscuit Cookie Machine;
* Patent Protect From China Government;
* All Certificates For Import and Export can be done.
* Patent Protect From China Government;
* All Certificates For Import and Export can be done.
Our Customers $ Exhibition
Packing & Delivery

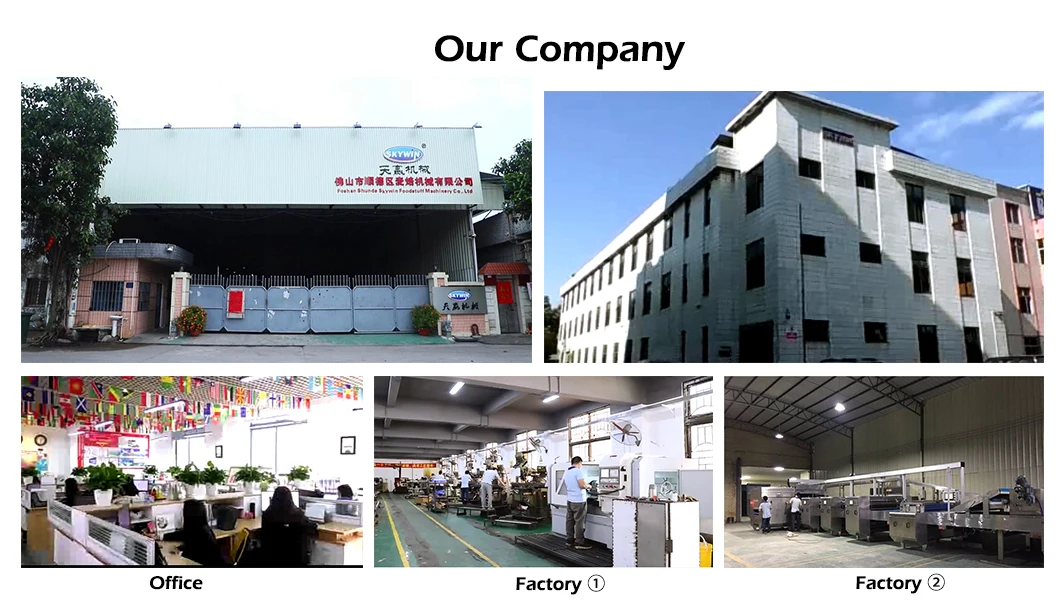

Company Profile
Mybake is High-end series biscuit line in Skywin Group.
Skywin Machinery co,Ltd was established since 2010.Our work experlence range from the biscuit production line to automatic packing system.
Skywin Machinery co. Ltd has three own sub-factories,one factory special for Full set of Automatic High Quality Biscuit And Cookies Production Line, one factory special for Wafer Biscuit Production Lie, and another factory special for Auto Feeding and Packing Line included all kinds of flow packs, vertical packers, biscuit sandwiching biscuit chocolate coating and packing.etc.
We provide One stop solution and service for biscuit production.
All operation is full automatic PLC controlled. we will supply professional consulting services for machines used in the industry of biscuit and cookies and wafer production, as well as the most suitable design proposals and quality machines.
Skywin Machinery co,Ltd was established since 2010.Our work experlence range from the biscuit production line to automatic packing system.
Skywin Machinery co. Ltd has three own sub-factories,one factory special for Full set of Automatic High Quality Biscuit And Cookies Production Line, one factory special for Wafer Biscuit Production Lie, and another factory special for Auto Feeding and Packing Line included all kinds of flow packs, vertical packers, biscuit sandwiching biscuit chocolate coating and packing.etc.
We provide One stop solution and service for biscuit production.
All operation is full automatic PLC controlled. we will supply professional consulting services for machines used in the industry of biscuit and cookies and wafer production, as well as the most suitable design proposals and quality machines.
