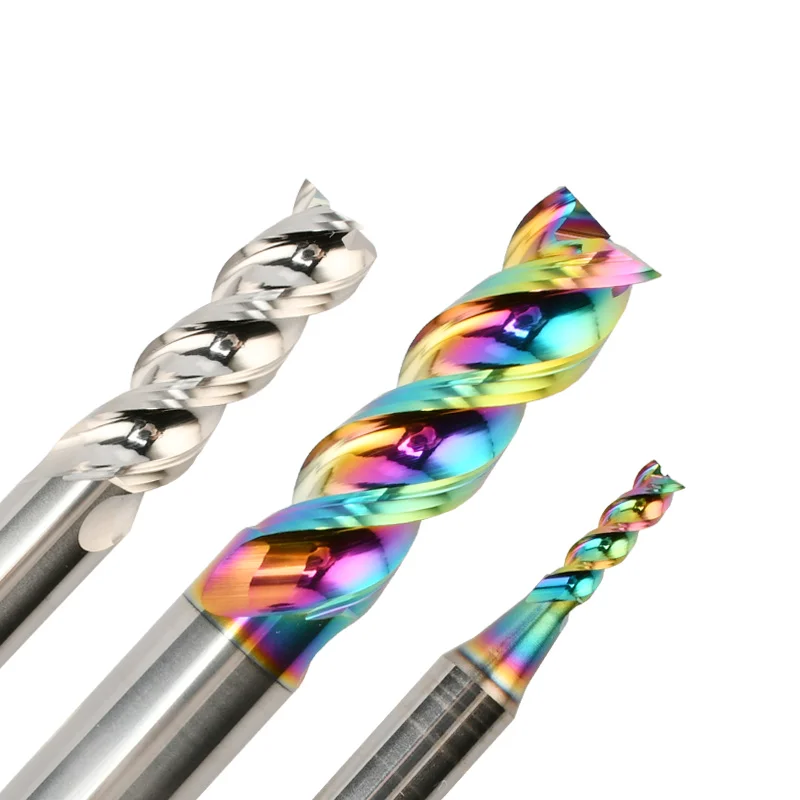

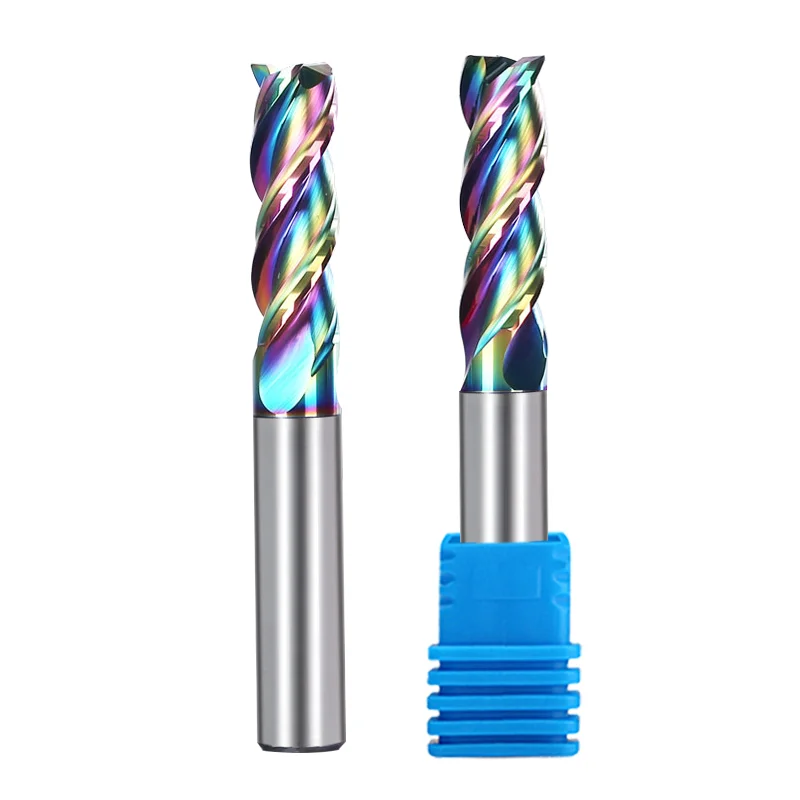

Jinchuan Carbide DLC Coating End Mill 3 Flute High Polished Milling Cutter for Aluminum CNC Machine Tool router bit
- Category: >>>
- Supplier: Shenzhen Jinchuan Precision Tools Co. Ltd.
Share on (1600425348815):
Product Overview
Description
Product Overview
Product Name | 6mm Ball Nose End Mill Cnc Router Bits,Carbide Cutting Tools 2 Flute |
Material | Tungsten Carbide |
Size | D1-D12 |
Overall Length | 50mm/60mm/75mm/100mm |
Apply for | Gold,silver,copper,aluminumalloy, |
OEM | Supported |
Blade belt: double blade belt design is adopted to determine a more wear-resistant edge.It adopts a blade design suitable for
high-speed cutting,with a 2-blade edge and excellent chip removal!
High capacity chip removal with strong cutting,smooth cutting discharge,can achieve high effiency machining.
Perfect chamfering,easy and fast installation chuck,high gloss knife body import essential features.
PRODUCT SPECIFICATIONS

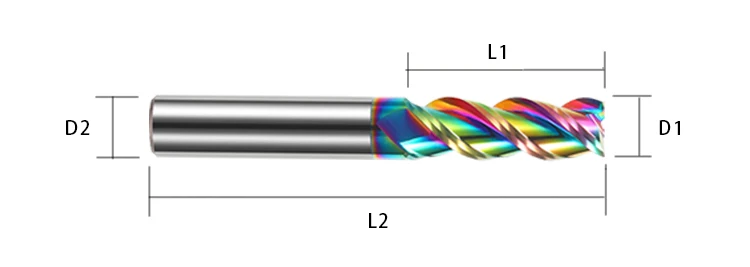

EDP # | Mill Diameter D1 | Shank Dia D2 | Flute length L1 | O.A.L L2 | Number of blades |
JC3FTCLYXD001 | 1.0 | 4 | 3 | 50 | 3F |
JC3FTCLYXD002 | 1.5 | 4 | 4 | 50 | 3F |
JC3FTCLYXD003 | 2.0 | 4 | 6 | 50 | 3F |
JC3FTCLYXD004 | 2.5 | 4 | 6 | 50 | 3F |
JC3FTCLYXD005 | 3.0 | 3 | 8 | 50 | 3F |
JC3FTCLYXD006 | 3.0 | 4 | 8 | 50 | 3F |
JC3FTCLYXD007 | 3.5 | 4 | 10 | 50 | 3F |
JC3FTCLYXD008 | 4.0 | 4 | 11 | 50 | 3F |
JC3FTCLYXD009 | 1.0 | 6 | 3 | 50 | 3F |
JC3FTCLYXD0010 | 1.5 | 6 | 4 | 50 | 3F |
JC3FTCLYXD0011 | 2.0 | 6 | 6 | 50 | 3F |
JC3FTCLYXD0012 | 2.5 | 6 | 6 | 50 | 3F |
JC3FTCLYXD0013 | 3.0 | 6 | 8 | 50 | 3F |
JC3FTCLYXD0014 | 3.5 | 6 | 10 | 50 | 3F |
JC3FTCLYXD0015 | 4.0 | 6 | 11 | 50 | 3F |
JC3FTCLYXD0016 | 4.5 | 6 | 13 | 50 | 3F |
JC3FTCLYXD0017 | 5.0 | 6 | 13 | 50 | 3F |
JC3FTCLYXD0018 | 5.5 | 6 | 16 | 50 | 3F |
JC3FTCLYXD0019 | 6.0 | 6 | 16 | 50 | 3F |
JC3FTCLYXD0020 | 6.5 | 8 | 20 | 60 | 3F |
JC3FTCLYXD0021 | 7.0 | 8 | 20 | 60 | 3F |
JC3FTCLYXD0022 | 7.5 | 8 | 20 | 60 | 3F |
JC3FTCLYXD0023 | 8.0 | 8 | 20 | 60 | 3F |
JC3FTCLYXD0024 | 8.5 | 10 | 25 | 75 | 3F |
JC3FTCLYXD0025 | 9.0 | 10 | 25 | 75 | 3F |
JC3FTCLYXD0026 | 9.5 | 10 | 25 | 75 | 3F |
JC3FTCLYXD0027 | 10.0 | 10 | 25 | 75 | 3F |
JC3FTCLYXD0028 | 11.0 | 12 | 30 | 75 | 3F |
JC3FTCLYXD0029 | 12.0 | 12 | 30 | 72 | 3F |
JC3FTCLYXD0030 | 14.0 | 14 | 40 | 100 | 3F |
JC3FTCLYXD0031 | 16.0 | 16 | 40 | 100 | 3F |
JC3FTCLYXD0032 | 18.0 | 18 | 40 | 100 | 3F |
JC3FTCLYXD0033 | 20.0 | 20 | 40 | 100 | 3F |

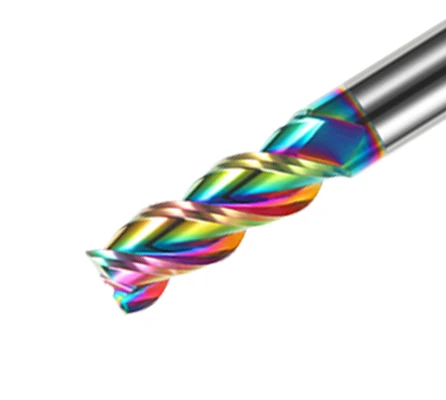

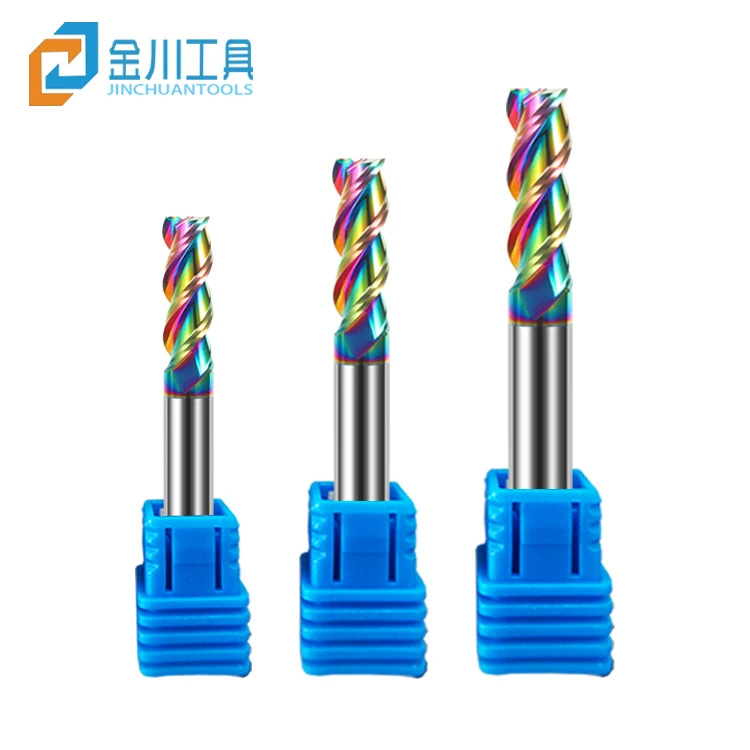

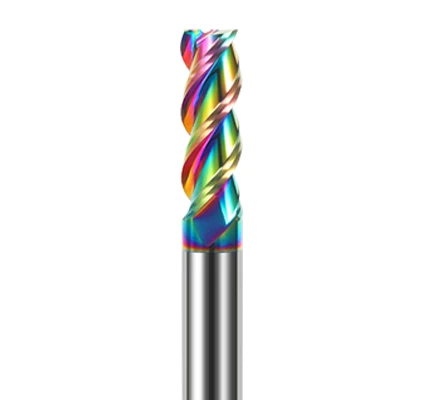

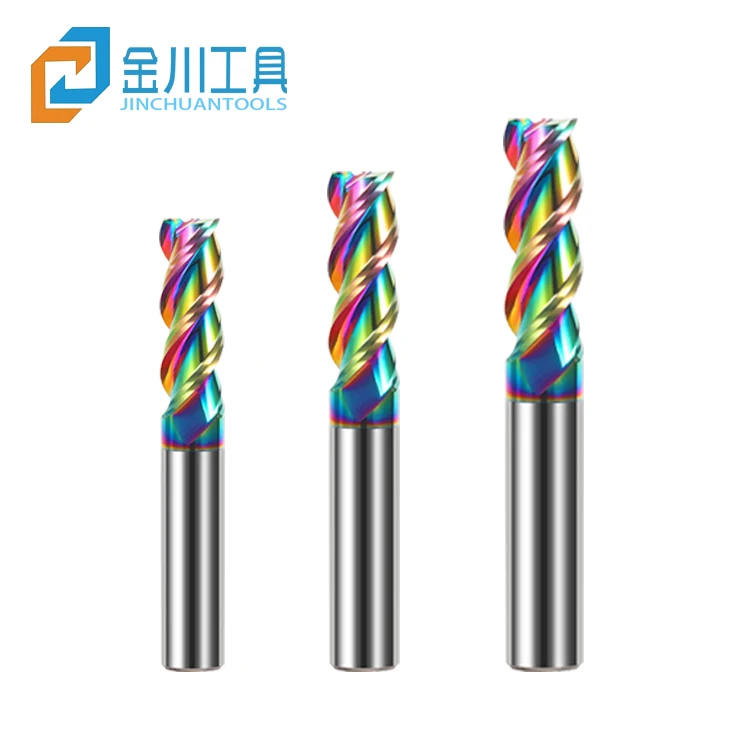

Product real shot pictures
STRENGTH INTRODUCTION OF JINCHUAN COMPANY
Company Profile
Warm welcome to visit our factory
Shenzhen Jinchuan Precision Tools Co., Ltd. is a CNC carbide blade, turning tool, CNC milling cutter, CNC engraving tool, advertising engraving tool, woodworking router bits, PCD diamond bits and diamond polish end mills manufacturer, which integrates R&D, design and sales. We adhere to the principle of "high quality, competitive price and excellent service."Our company has more than 1,500 square meters of workshops and warehouses. We have many years of leading OEM and ODM manufacturing experience in this field, all of our products have passed ISO9001 certificates.
We have a variety of products, and 70% of them are exporting to overseas. Our customers come from all over the world, such as North America, Europe, South America, the Middle East, East Asia and Africa.
There are many advanced automated processing centers and complete testing methods to control all aspects of the product in our company. We follow standard procedures and have an excellent team of designers, constantly launching innovative product designs to meet the needs of the international market.
Provide you with quality products and excellent service! Let’s Win-win !
COMPANY ESHIBITION
Delivery way
FAQ
Q1：What is the processing speed of this tool?
A1：We recommend 22000-24000rpm/Min, Feed rate is 1-5m/Min
Q2: Can PVC soft glass be processed?
Q2: Can PVC soft glass be processed?
A2: Yes, it can cut PVC, Acrylic, PP board
Q3: Can cut PS sheets ?
A3: Yes, but it is easy to
stick to the tools
stick to the tools
Q4: Can mill bakelite?
A4: Yes, you need slow down feed speed , it is not recommended to use, it is easy to
break we recommend to process the bakelite with a PCB corn milling cutter
break we recommend to process the bakelite with a PCB corn milling cutter
Q5: Is it okay to mill the iron keyway
A5: No, it cancut aluminum alloy, mainly for PVC, Acrylic, PC, PMMA, PP Sheets
Q6: Can it drill ?
A6: Yes, it can.
Q7: Can it be used on an electric drill
A7: No, Only applicable to machining centers above 20,000 rpm
