Powder Coating Used Linear Vibrating Screen Sieving Machine
- Category: >>>
- Supplier: Cic Luoyang Mechanical Engineering Technology Co. Ltd.
Share on (1600425350143):
Product Overview
Description

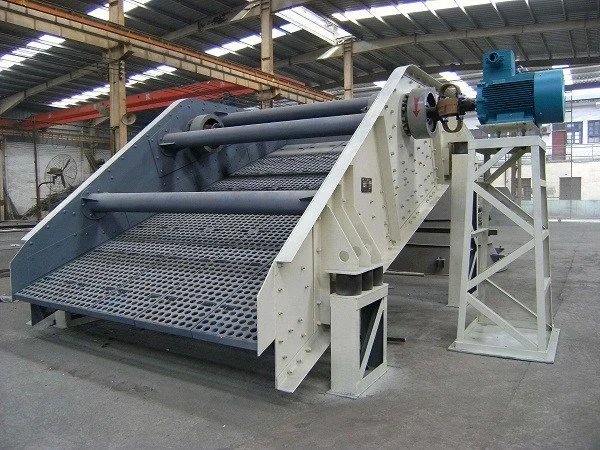

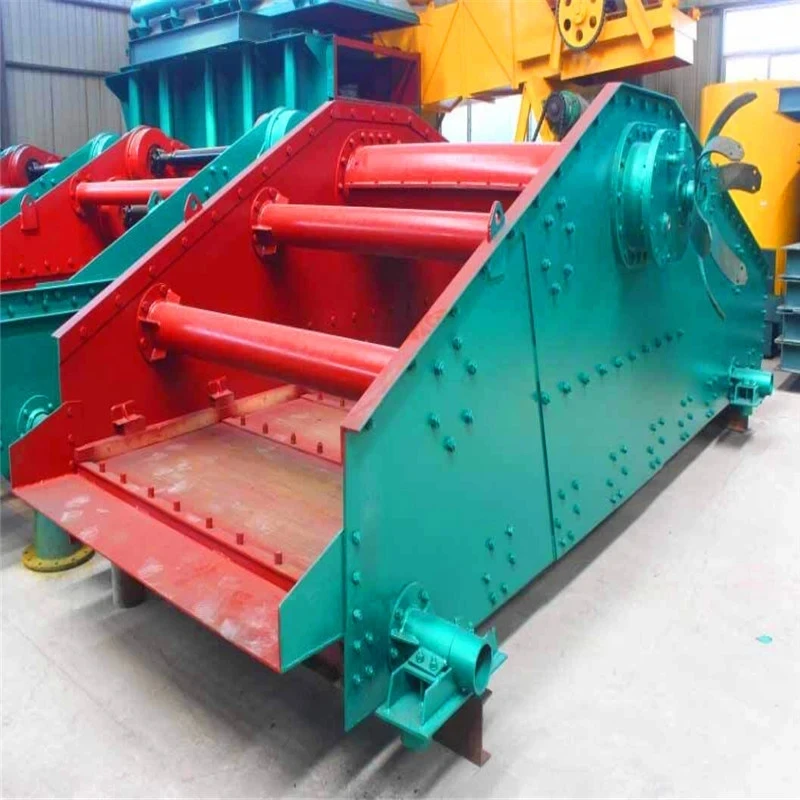

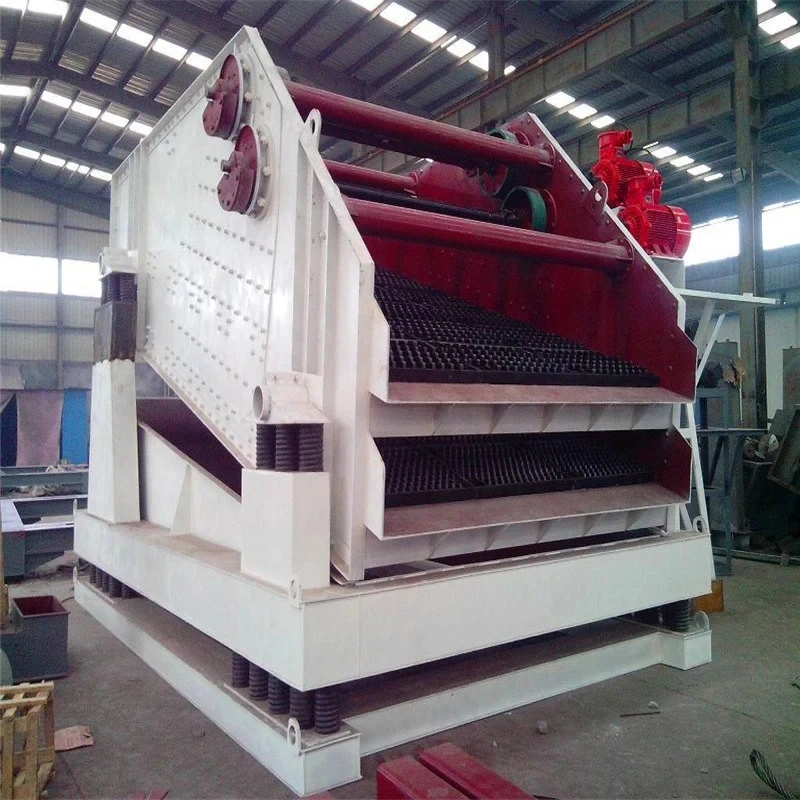

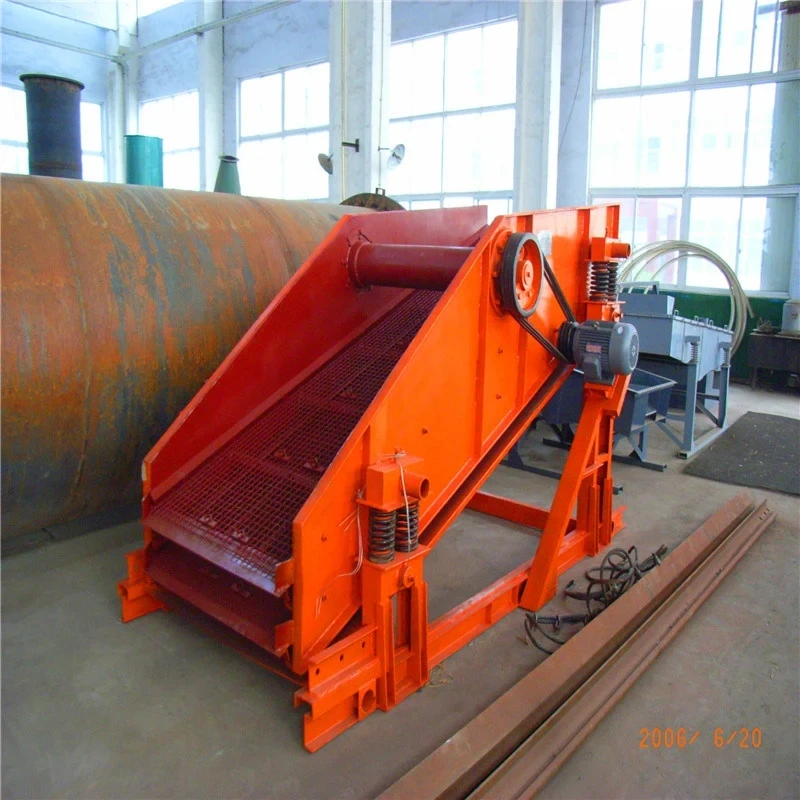

ZKB linear vibrating screen
The ZKB linear vibrating screen is a single mass vibration system which consisting of screen box, vibrator, four sets of supportingspring devices, motors and tire shafts joint.The screen box depends on the inertial excitation force generated by two
sets of reverse-rotating vibrators. Eccentric mass and eccentricity of two sets of vibrator are all the same, the eccentricity mass of the two sets of vibrator in the same direction, the vibration force will be overlap-added, while in the opposite position,the vibration force will be offsetted each other. Therefore, the vibrator produces a straight vibration force, its magnitude and direction is always changing, so that the screen box could do a straight action.There is no gear connection between the two sets of vibrators, they are driven separately by two motors and achieved the synchronization because of the principle of mechanics.Under the action of vibration force, the material can do throwing motion on the screen at 45 degree Angle with screen continuously, by this, the materialis is loose, layered, and sieving, then dehydration, desiccation, desilting and grading is realized.
The supporting spring of this is a rubber spring, because the inner damping of the rubber spring is larger, so there is no damping device in this screen。
Application:
It is mainly used to coal preparation, mineral separation and the dehydration, desiccation and desilting for coal or mine.
Features:
1. Simple structure and reliability,
2. The screen works smoothly away from the resonant area
3. Since the natural frequency is far less than the working frequency, the spring stiffness is small, and the dynamic load of the foundation is small
sets of reverse-rotating vibrators. Eccentric mass and eccentricity of two sets of vibrator are all the same, the eccentricity mass of the two sets of vibrator in the same direction, the vibration force will be overlap-added, while in the opposite position,the vibration force will be offsetted each other. Therefore, the vibrator produces a straight vibration force, its magnitude and direction is always changing, so that the screen box could do a straight action.There is no gear connection between the two sets of vibrators, they are driven separately by two motors and achieved the synchronization because of the principle of mechanics.Under the action of vibration force, the material can do throwing motion on the screen at 45 degree Angle with screen continuously, by this, the materialis is loose, layered, and sieving, then dehydration, desiccation, desilting and grading is realized.
The supporting spring of this is a rubber spring, because the inner damping of the rubber spring is larger, so there is no damping device in this screen。
Application:
It is mainly used to coal preparation, mineral separation and the dehydration, desiccation and desilting for coal or mine.
Features:
1. Simple structure and reliability,
2. The screen works smoothly away from the resonant area
3. Since the natural frequency is far less than the working frequency, the spring stiffness is small, and the dynamic load of the foundation is small

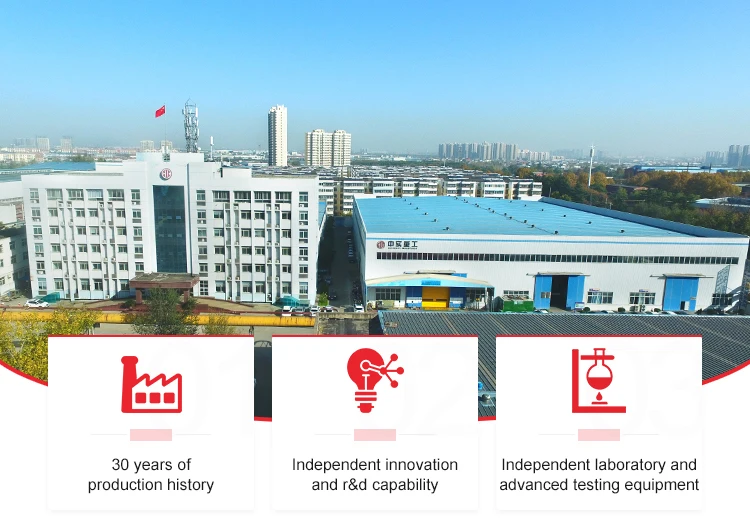

Company Profile

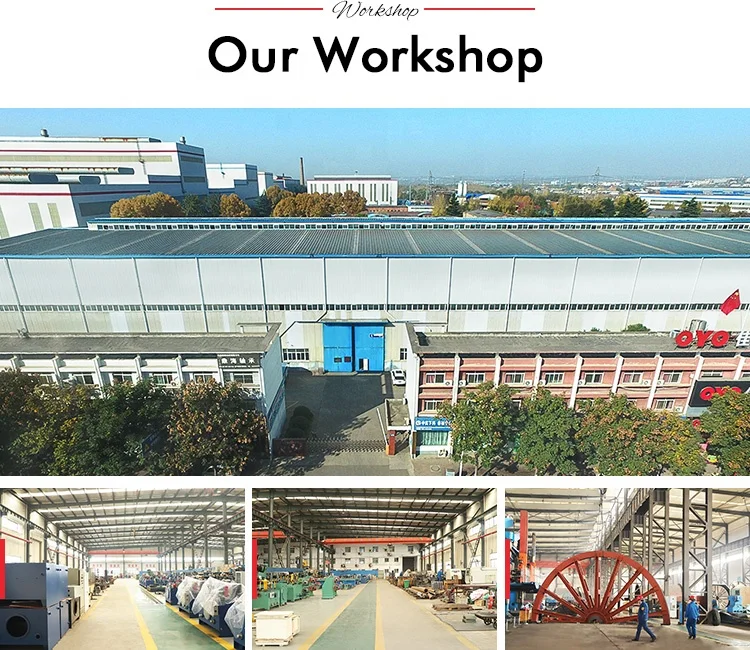

About Us

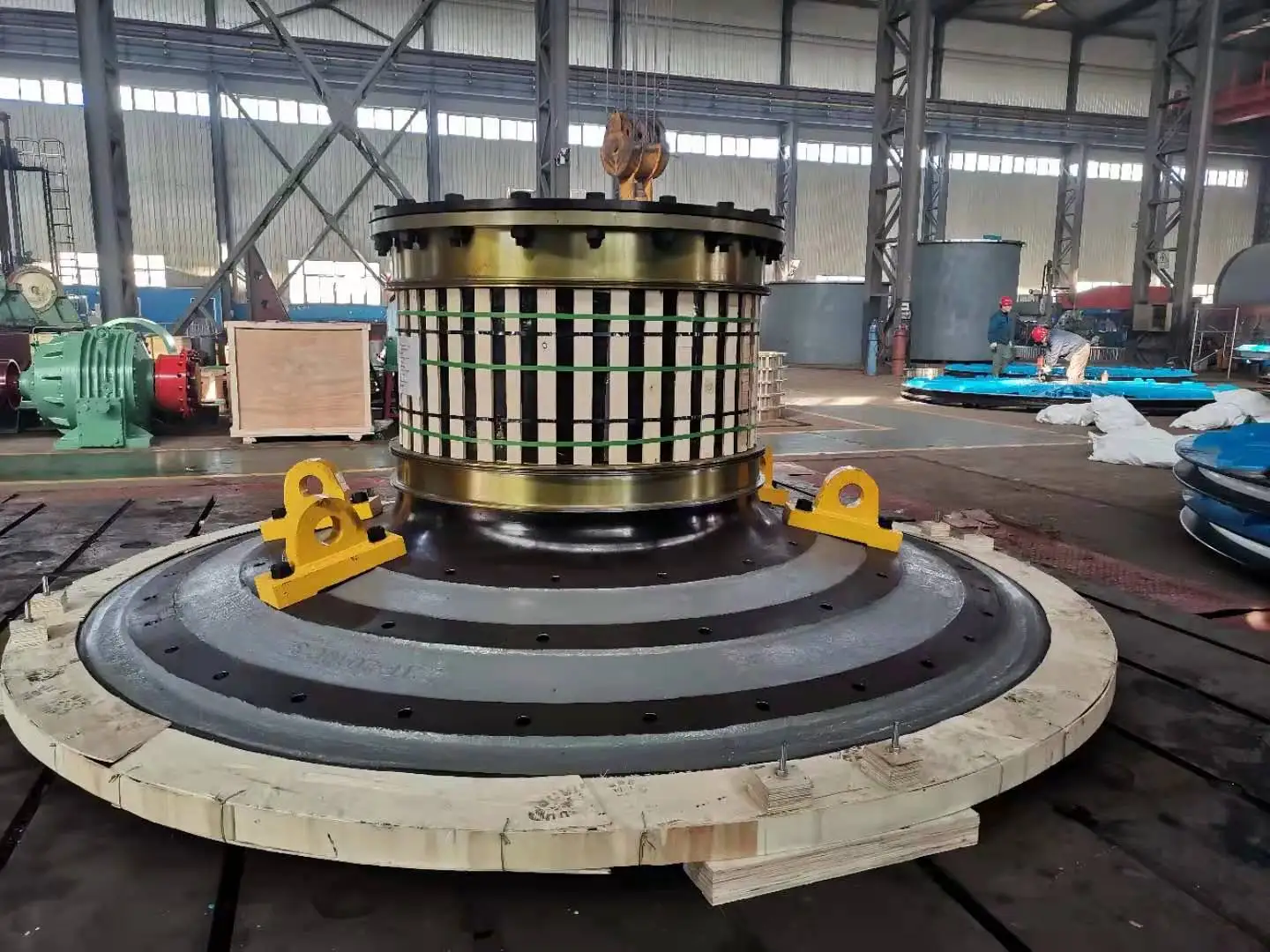

Our company has strong machining capacity. We can produce: Rotary Part: 250t in weight and 8m in diameter for one single; Shell Part: 200t in weight, 6m in diameter and 20m in length for one single; Gear Part: 150t in weight, 15m in diameter and modulus 45 for one single;Shaft Part: 60t in weight, 2m in diameter and 10m in length for one single. The company can supply large-sized ring&loop parts forthe kiln grinding with capacity of 10000t per day , it is able to produce φ15m girth gear and the reducer with the flank hardness over HRC57, precision GB/T10095 Class 5 and transmission power can reach 45kw.

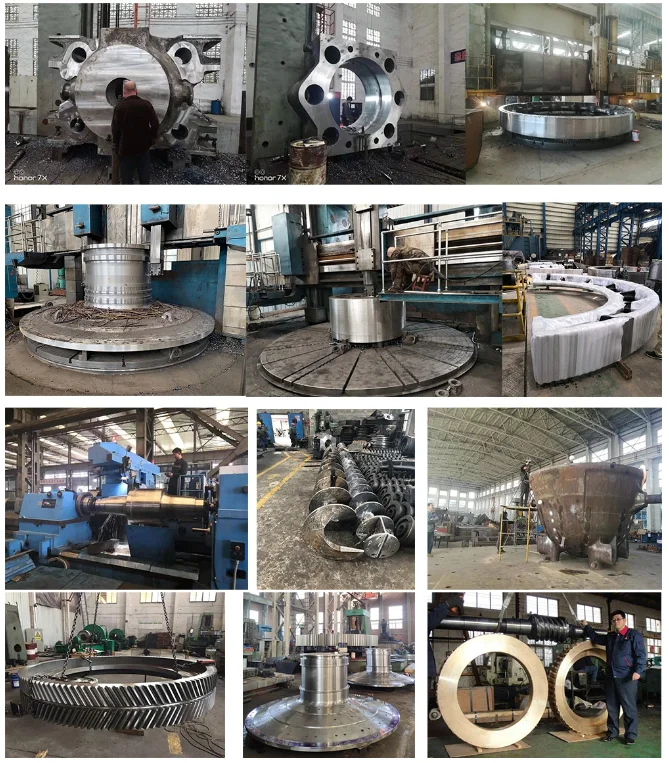

The company has various large and precision machining equipments such as: 15m CNC Hobbing Machine, 8m CNC Hobbing Machine producedby Wuzhong, 5m CNC Vertical Lathe, 200 Boring&Milling Machine, 220 Boring&Milling Machine, φ2m×10m CNC Horizontal Lathe and φ6m×20m Heavy Horizontal Lathe, etc.
The company has various large and precision machining equipments such as: 15m CNC Hobbing Machine, 8m CNC Hobbing Machine producedby Wuzhong, 5m CNC Vertical Lathe, 200 Boring&Milling Machine, 220 Boring&Milling Machine, φ2m×10m CNC Horizontal Lathe and φ6m×20m Heavy Horizontal Lathe, etc.

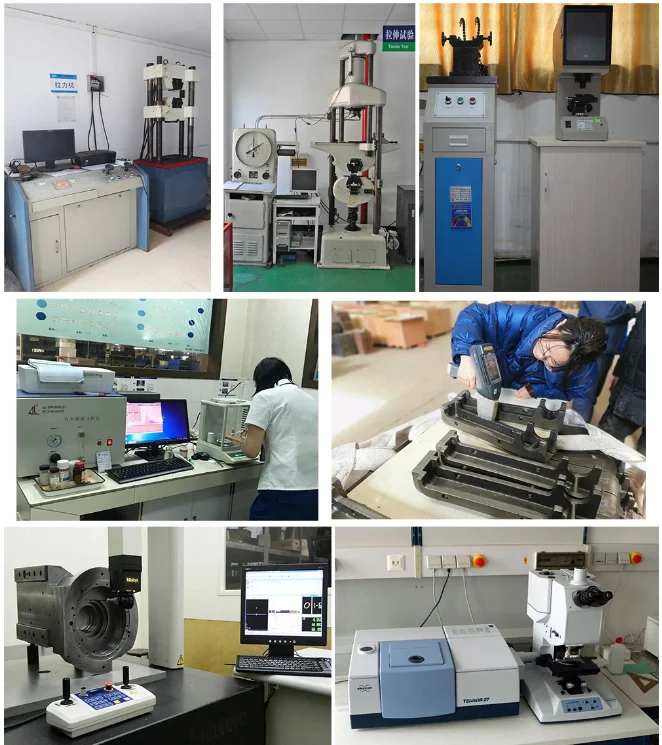

Quality Control

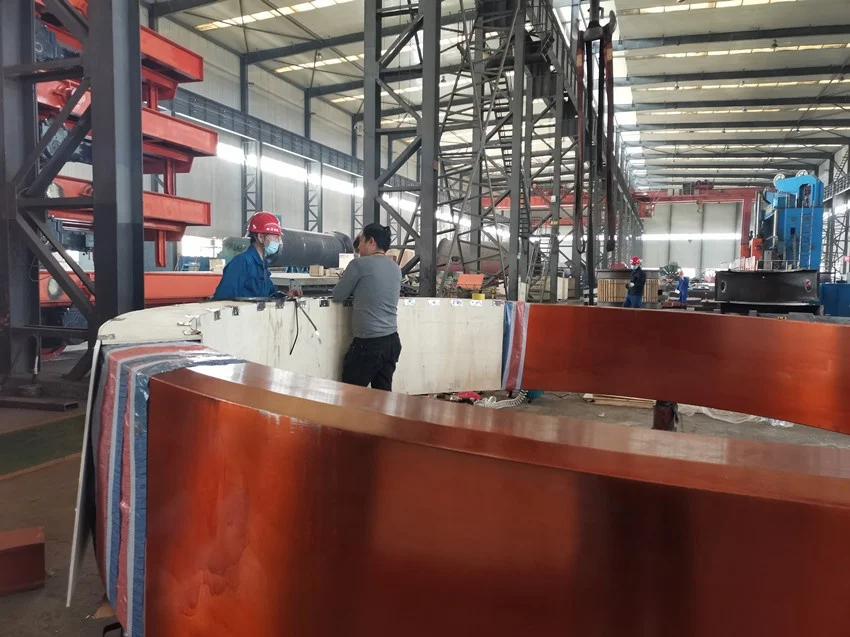

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1.How can I get the quotation?
Please give us your drawing,quantity,weight and material of the product.
2.If you don't have the drawing,can you make drawing for me?
Please give us your drawing,quantity,weight and material of the product.
2.If you don't have the drawing,can you make drawing for me?
Yes,we are able to make the drawing of your sample duplicate the sample.
3.When can I get the sample and your main order time?
3.When can I get the sample and your main order time?
Sample time: 35-40 days after start to make mold. Order time: 35-40 days, the accurate time depends on product.
4.What is your payment method?
4.What is your payment method?
Tooling:100% T/T advanced Order time:50% deposit,50%to be paid before shipment.
5.Which kind of file format you can read?
5.Which kind of file format you can read?
PDF, IGS, DWG, STEP, MAX
6.What is your surface treatment?
6.What is your surface treatment?
Including: powder coating, sand blasting, painting, polishing, acid pickling, anodizing, enamel, zinc plating, hot-dip galvanizing, electrophoresis, chrome plating.
7.What is your way of packing?
7.What is your way of packing?
Normally we pack goods according to customers' requirements.
