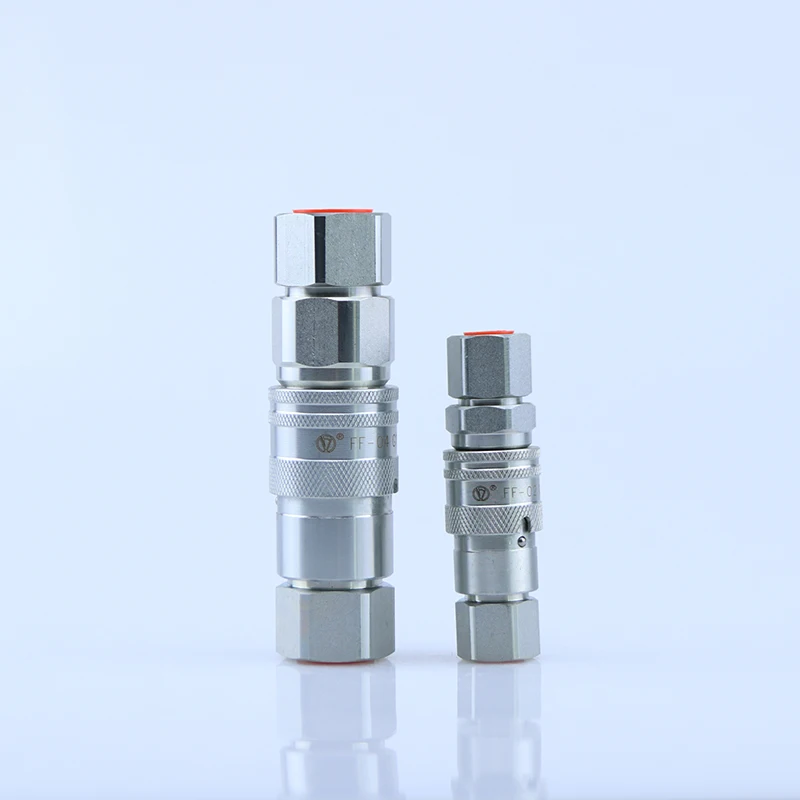

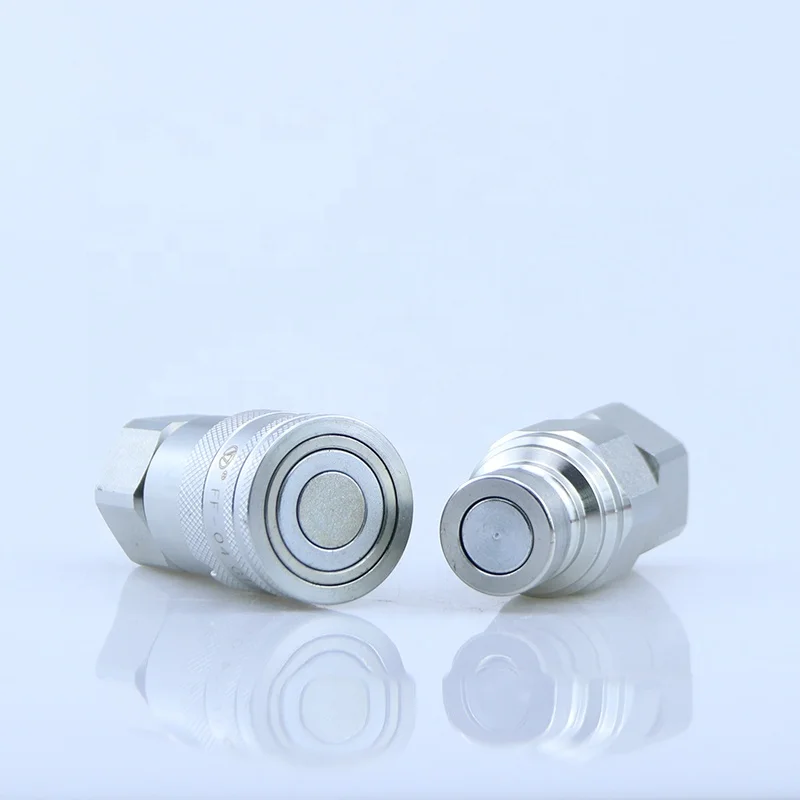

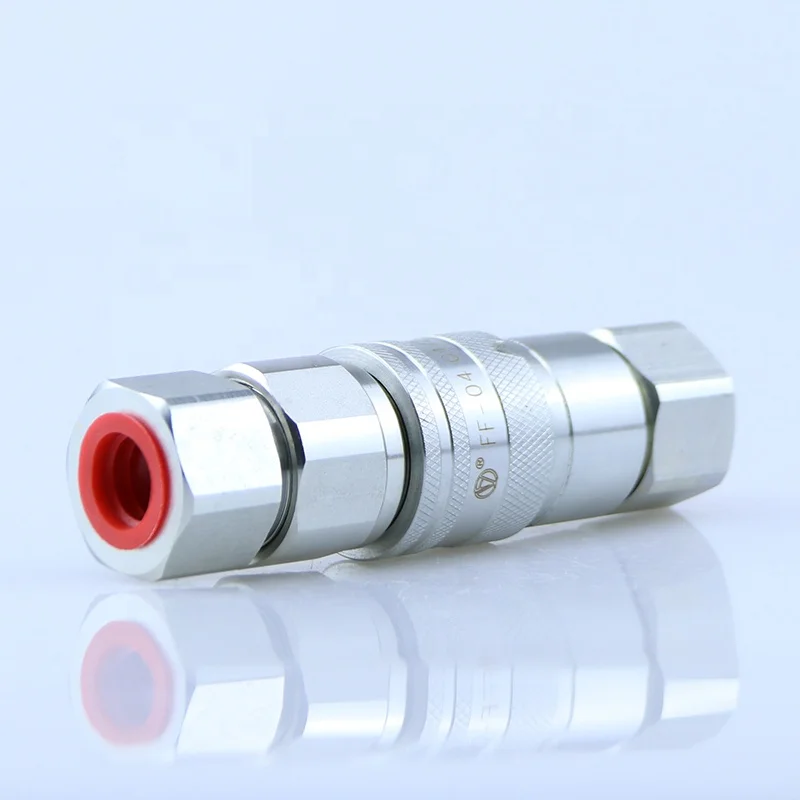

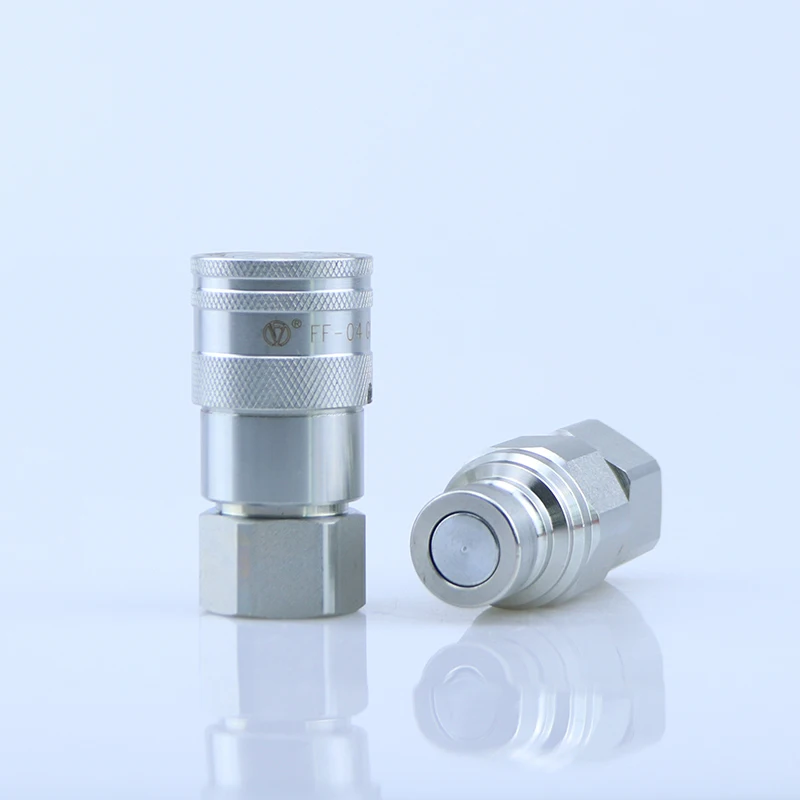

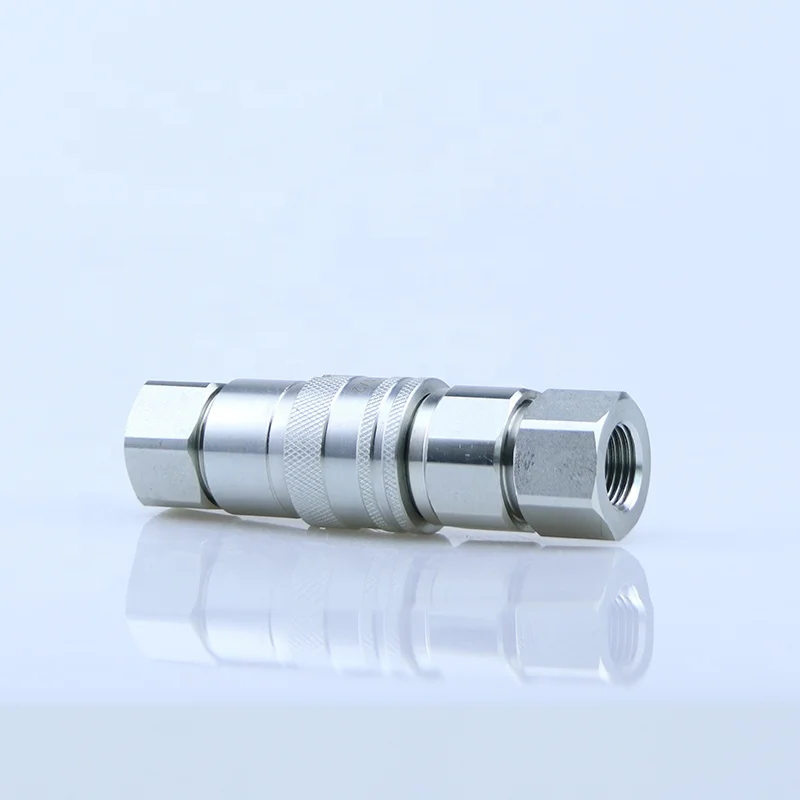

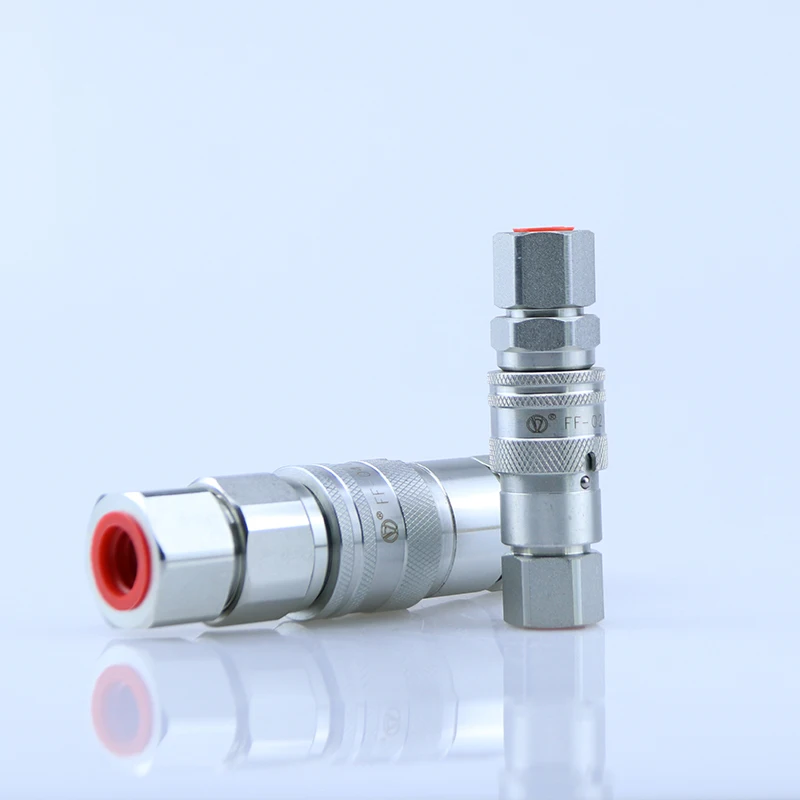

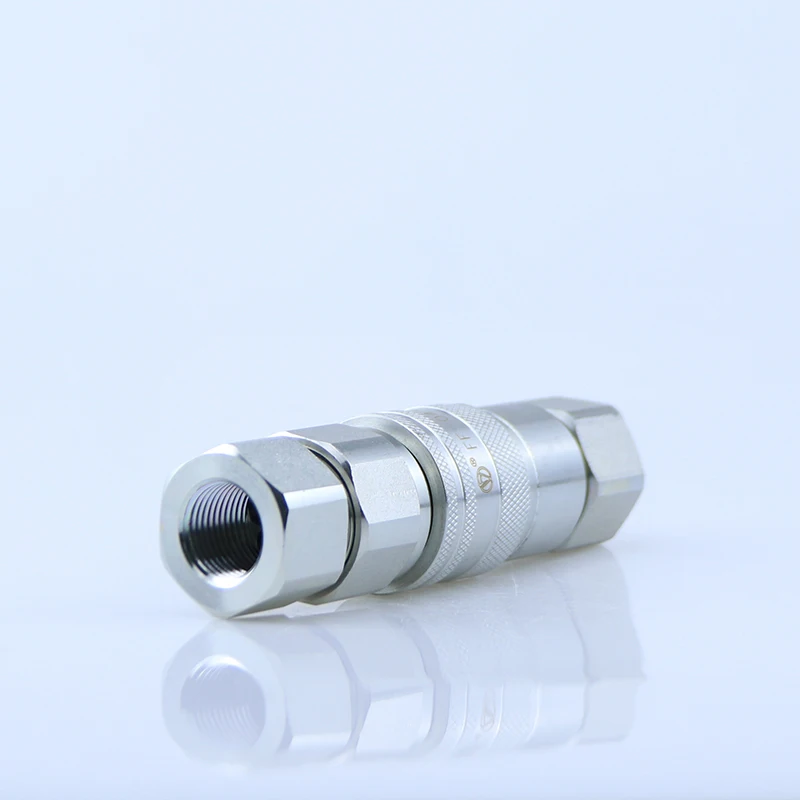

ISO16028 1 дюймовый гидравлический быстроразъемный соединитель из углеродистой стали, БЫСТРОРАЗЪЕМНАЯ муфта
- Category: Pipe Fittings >>>
- Supplier: Hebei Feiman Machinery Parts Co. Ltd.
Share on (1600425357102):
Product Overview
Description
Products Description
Applications and features.
1. The H302 Series flat face type hydraulic quick couplings are used for quick change of hydraulic tools in construction , railway maintenance and mining industries. The ease of cleaning makes them ideal for use in these types of hostile environments.
2. Sleeve locking mechanism is engaged by rotating sleeve after connection. It prevents accidental disconnection when the coupling is dragged along the ground. Sleeve mechanism is designed to help prevent dirt from entering the internal mechanism and thus avoid the faulty operation during connecting or disconnecting.
3. Critical parts are hardened for durability.
4. H302 Series couplings employ flush valving when connecting or disconnecting. This means that the valves are mated together so that only small amounts of fluid would be lost during disconnec -tion or air inclusion during reconnection.
5. H302 Series conforms to ISO16028.
6. Compatible with PARKER FEand FF Series, STUCCHI A8008 Series.AEROQUIP FD89 Series, HANSEN QA29000 Series.
2. Sleeve locking mechanism is engaged by rotating sleeve after connection. It prevents accidental disconnection when the coupling is dragged along the ground. Sleeve mechanism is designed to help prevent dirt from entering the internal mechanism and thus avoid the faulty operation during connecting or disconnecting.
3. Critical parts are hardened for durability.
4. H302 Series couplings employ flush valving when connecting or disconnecting. This means that the valves are mated together so that only small amounts of fluid would be lost during disconnec -tion or air inclusion during reconnection.
5. H302 Series conforms to ISO16028.
6. Compatible with PARKER FEand FF Series, STUCCHI A8008 Series.AEROQUIP FD89 Series, HANSEN QA29000 Series.

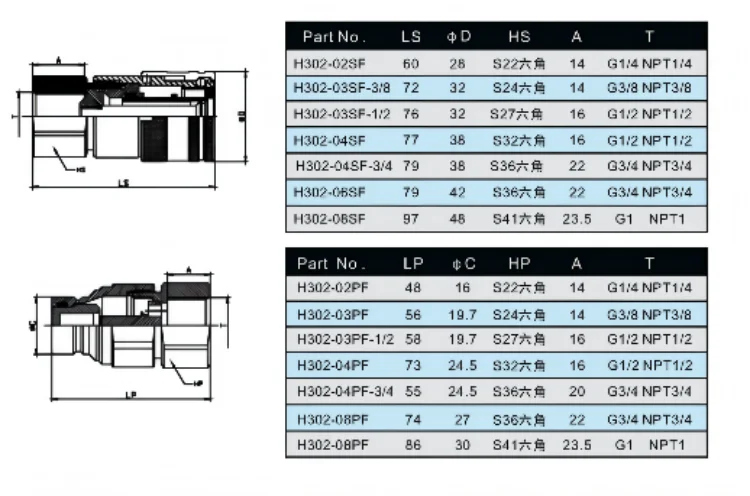

Product name | Flat Face Type Hydraulic Quick Couplings | ||||||||||
Part No. | H302 | ||||||||||
Body size（In） | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | |||||
Rated Pressure(PSI) | 5000 | 3000 | 3000 | 3000 | 3000 | 3000 | |||||
Rated flow(L/Min) | 11.34 | 22.68 | 45.36 | 105.84 | 189 | 332.64 | |||||
Material | Carbon steel, stainless steel, brass or according to customer's requirements | ||||||||||
Application | Construction equipment，forestry equipment，hydraulic tools，oil equipment，steel mill machinery and other industry required hydraulic connection | ||||||||||
Standard | ISO16028 | ||||||||||
Temperture Range | -20℃~80℃ | ||||||||||
Machining Process

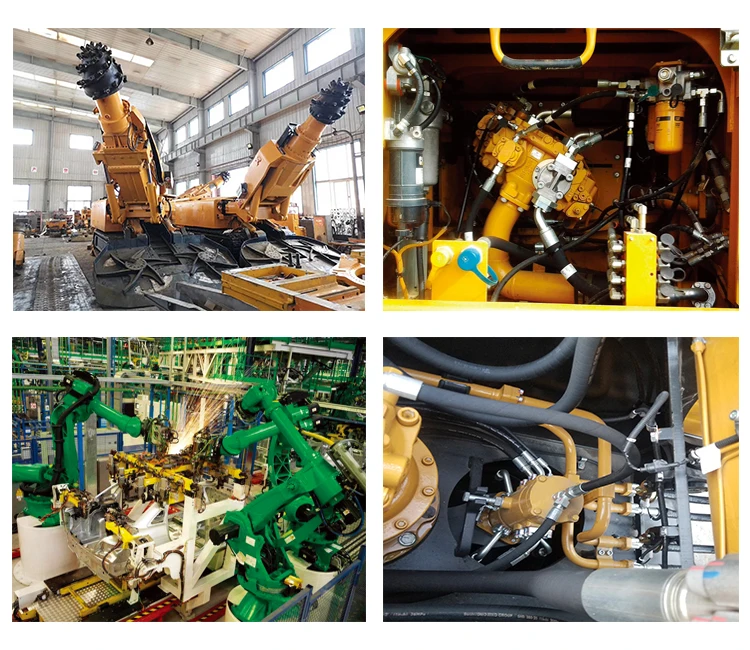

Application
Company Information
Company Profile.
Hebei Feiman mechanical parts Co., Ltd. is a set of design, development, production, sales of hydraulic quick coupling, pneumatic quick coupling, pipe joint in one enterprise. Hebei Feiman Machinery Parts Co., Ltd. integrity, strength and product quality has been recognized by the industry. Welcome friends from all walks of life to visit, guide and business negotiation.
Our enterprise has always adhered to the tenet of "quality first, reputation first, service first". We take management as the leading, management as the guarantee, quality as the life, science and technology as the driving force, so as to fully meet the needs of users as the goal, so that the market share of products is constantly improved. The company is developing rapidly, steadily and healthily, speeding up the pace of connecting with the international standard, pursuing excellent brand, abiding by the service promise, and creating a better tomorrow with you hand in hand.
Our enterprise has always adhered to the tenet of "quality first, reputation first, service first". We take management as the leading, management as the guarantee, quality as the life, science and technology as the driving force, so as to fully meet the needs of users as the goal, so that the market share of products is constantly improved. The company is developing rapidly, steadily and healthily, speeding up the pace of connecting with the international standard, pursuing excellent brand, abiding by the service promise, and creating a better tomorrow with you hand in hand.
Packing And Shipping
