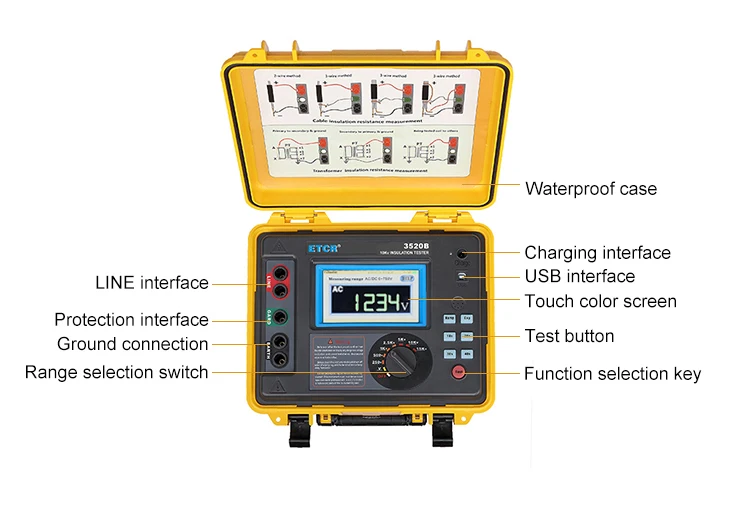

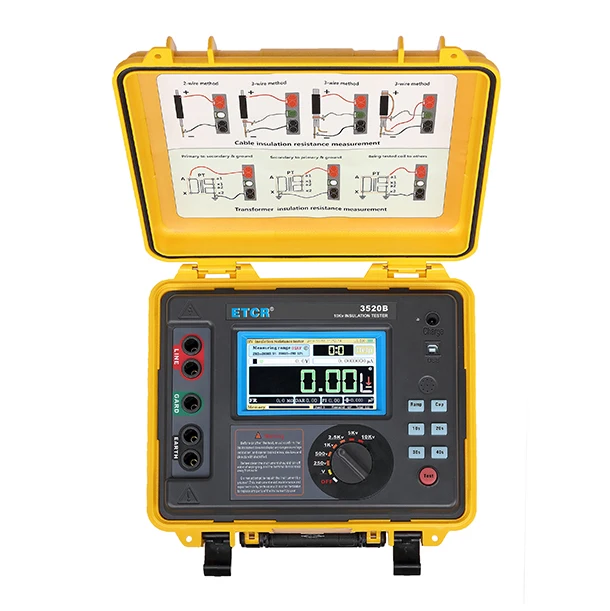

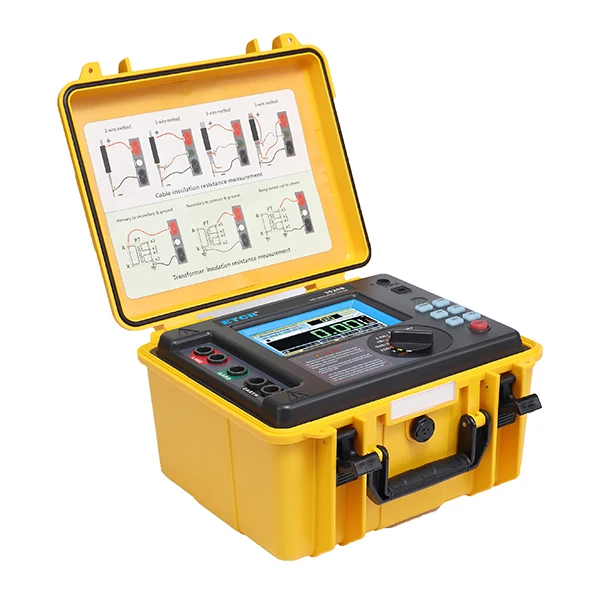

High Voltage Insulation Resistance Tester Meter with Data Storage Function 10KV 20Tohm 7mA

Rated Voltage

250v,500v,1000v,2500v,5000v,10Kv

Output Voltage Accuracy

(5%~10%)±10V

Insulation Resistance Range

10KV,20TΩ,7mA

Output Short Circuit Current

≥7mA

Power Supply

Rechargeable lithium battery pack 6.2Ah

Polarization Index Test

Yes

Dielectric Absorption Ratio Test

Yes

Ramp Test Mode

The output voltage will start at 10% of the preset voltage and increase in steps of 10% until the preset voltage is reached

Filtered Resistance Test Mode

10S,20S,30S,40S (4 selection)

Voltage Test

Range: AC/DC 0V~1000V;Accuracy: ±(5%+3V)

Current Test

Range: 0.01nA~9mA;Accuracy: ±(5%+0.2nA);

Capacitance Test

Range: 10nF~25uF;Accuracy: ±(10%+10nF)

Voltage Monitor

Monitor the voltage of the measured object, and monitor discharge status after test, Forbidden to test when voltage is larger than
36V, protect instrument and operator.

Test Timer

Automatic record test time, time range: 0s~9999s

Storage Function

Automatically store the real-time test data with test date, time and timing, total of 1000 groups

Upload Function

Upload the stored data to computer with USB communication cable.

Battery Power Indication

Yes, when battery voltage low will remind to replace the battery

Automatic Shutdown

After 15 minutes start up will shut down automatically without any operation

Meter Dimension

280mm×260mm×160mm

Meter Weight

4900g (include battery)

Test Wire

Red high voltage test wire 1 pcs (with alligator clip 1PCS and hook 1PCS), green test wire 1PCS, black test wire 1PCS

Protection Level

Close the case IP65; open the case IP40

Working Environment

-20℃~50℃;80%rh

Store Environment

-25℃~65℃;80%rh

Insulation Resistance

50MΩ(1000v)(between the test circuit and shell)

Withstand Voltage

AC 3Kv 50Hz 1min(between the test circuit and shell)

Suitable Safety Standard

IEC61010-1,IEC61326-1

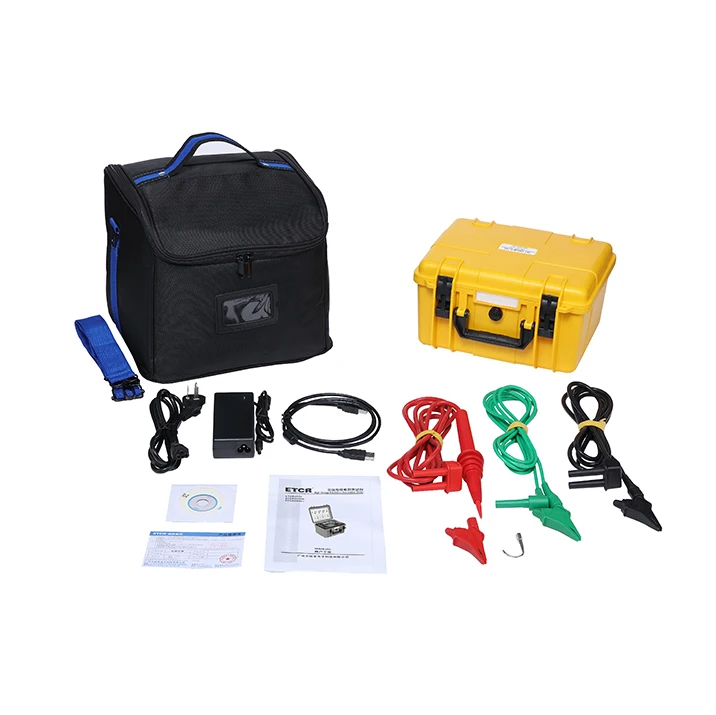

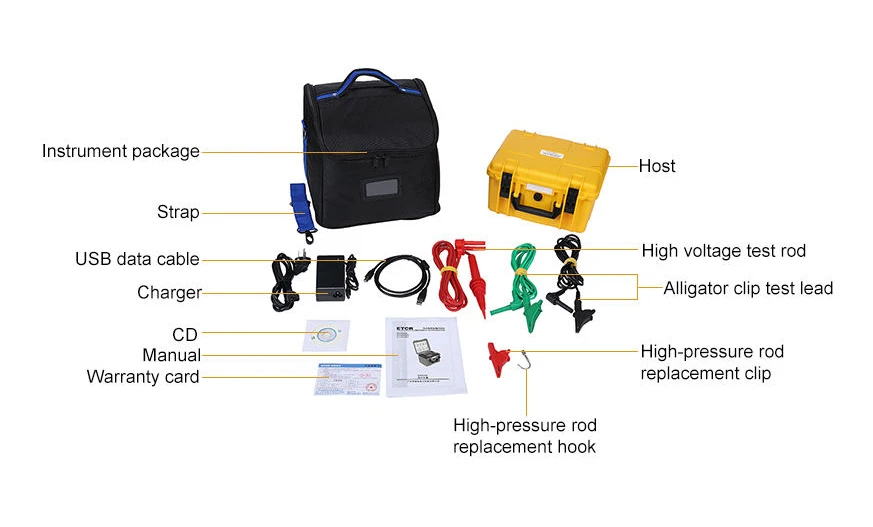

Accessories

Host: 1PCS, high voltage test wire(red): 1PCS, Test wire (green): 1PCS; Test wire (black): 1PCS; Alligator clip: 1PCS; Hook 1PCS;

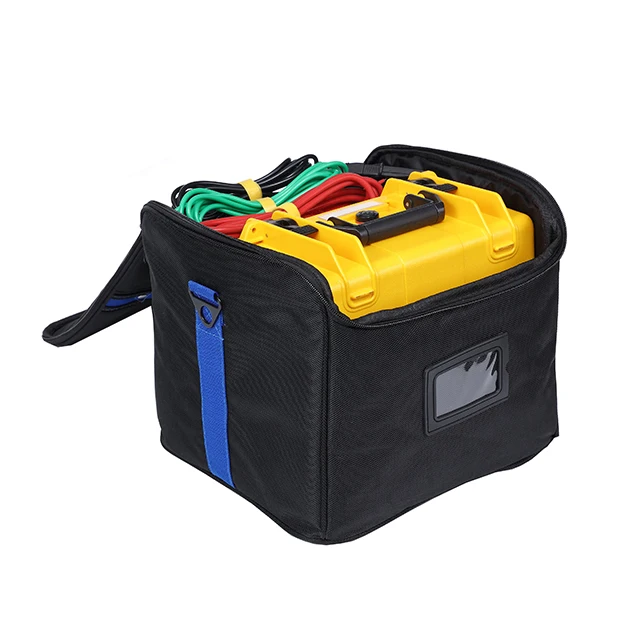

USB communication cable 1PCS; Software CD: 1COPY; Tool bag: 1PCS
