TMAX Stainless Steel Foam SS Foam Plate for Laboratory Battery Electrode Research
- Category: >>>
- Supplier: Xiamen Tmax Battery Equipments Limited
Share on (1600425389714):
Product Overview
Description
Product Description

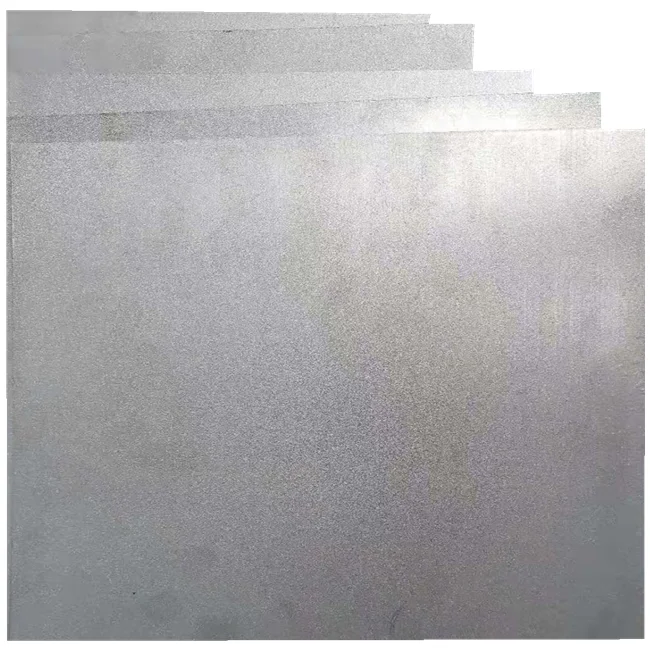

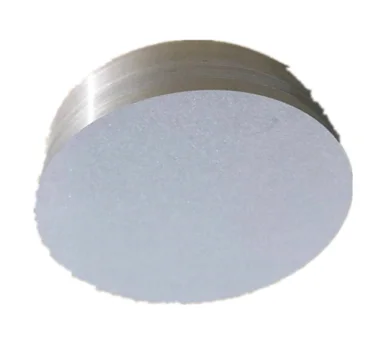

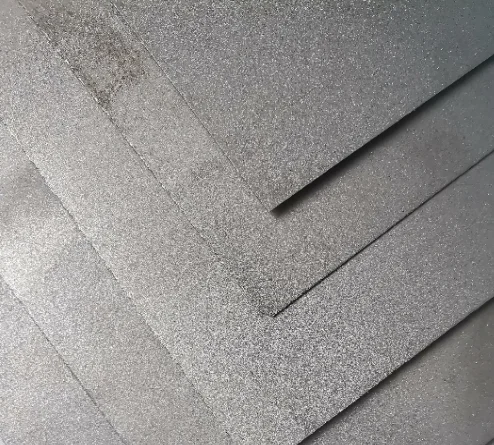

TMAX Stainless Steel Foam SS Foam Plate for Laboratory Battery Electrode Research
Stainless steel powder sintered filter element is made of stainless steel powder pressed by mold and sintered at high temperature. It adopts its unique technology and strictly controlled every step of production process (including powder particle distribution, molding and sintering). It has high mechanical strength, high temperature resistance, good corrosion resistance, uniform pore size distribution, good air permeability, cleanable regeneration, weldable and Machinable And so on. By adjusting powder particle size and process conditions, porous metal sintered filter element with wide range of filtration accuracy can be produced. Due to the advantages of porous metal powder sintering materials, these products are widely used in gas-liquid filtration and separation in catalyst recovery, chemical industry, medicine, beverage, food, metallurgy, petroleum, environmental fermentation and other fields, such as coarse filtration and fine filtration of liquid such as medicine liquid, oil, beverage, mineral water, dust removal of various gases and steam, oil mist removal, noise elimination, oil mist removal, etc Flame retardant, gas buffer, etc.
Product features:1) Its shape is stable, and its impact resistance and alternating load capacity are better than other metal filter materials; 2) Air permeability and stable separation effect; 3) Excellent mechanical strength, suitable for high temperature, high pressure and strong corrosive environment; 4) It is especially suitable for high temperature gas filtration; 5) We can make products of various shapes and precision according to customers' requirements Main application examples:1) Filtration and recovery of catalyst; 2) Filtration of high temperature gas in petrochemical industry; 3) Purification of high temperature flue gas in metallurgical industry; 4) Recovery of dust from tail gas of solid fluidized bed; 5) Purification of dust and tail gas in thermal power generation and nuclear power generation industry
Foil dimension | 0.8-2.5 mm Thickness x 250mm Width x 250 mm Length |
Porosity | 50-micron average |
Density | 5 g/cm3 average |
Gas permeability | (6-10)* 10-4 (L/min.cm2.kpa ) |
Bubbling Pressure | 3000-3700 Pa ( 0.43 - 0.55 PSI ) |
0.1mm*200mm*300mm | 0.2mm*200mm*300mm | 0.3mm*200mm*300mm |
0.5mm to 1.7mm*200mm*300mm | 2mm*200mm*300mm | 3 to 4mm*200mm*300mm |
5mm*200mm*300mm | 6mm*200mm*300mm | 8mm*200mm*300mm |
10mm*200mm*300mm | 10 to 20mm*200mm*300mm | The size can be customized |
Our Company & Team
Certifications
Cooperative Partner
Packaging & Shipping
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
