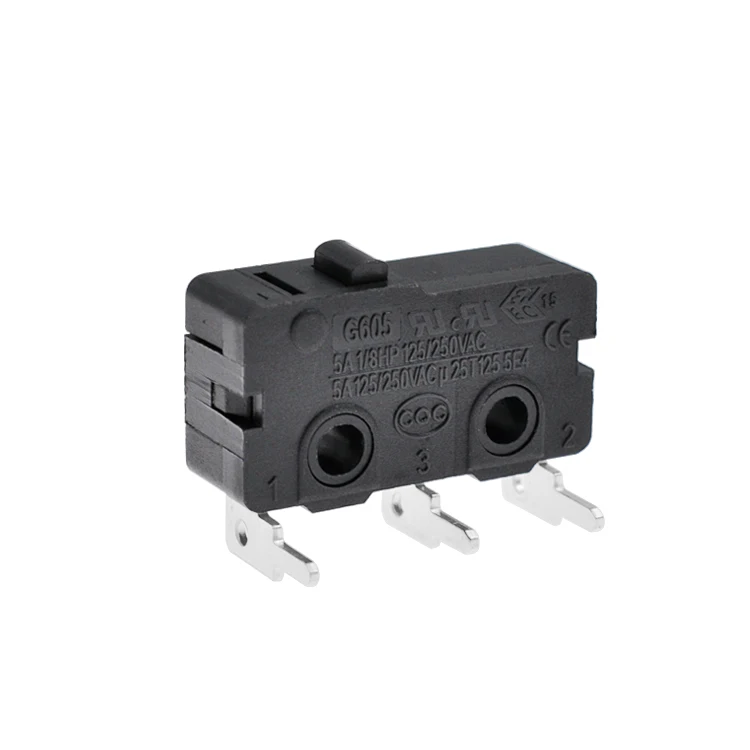

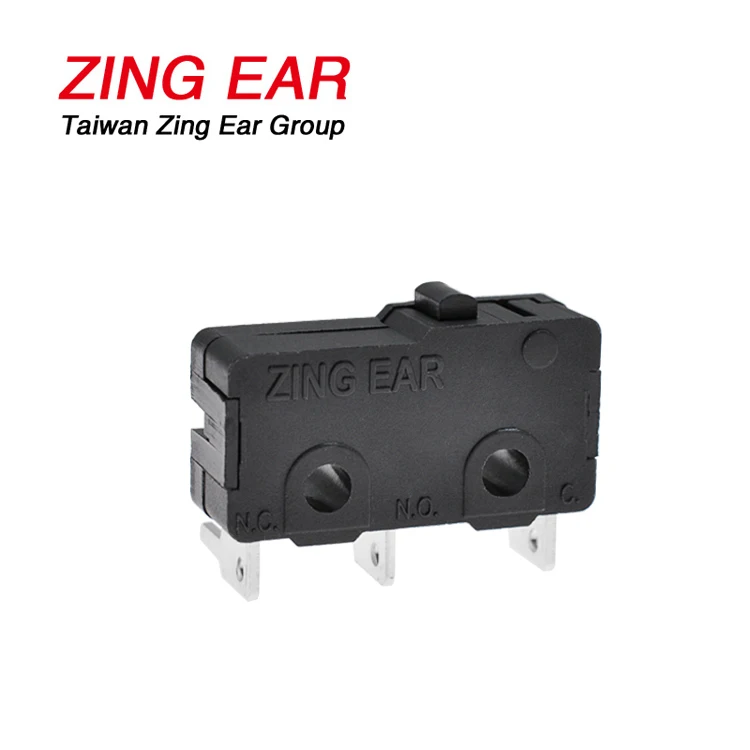

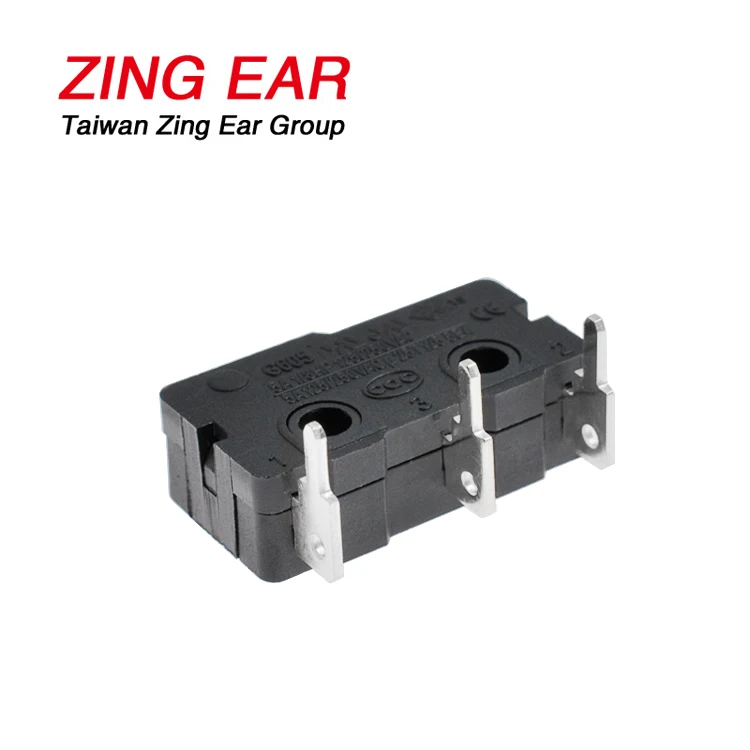

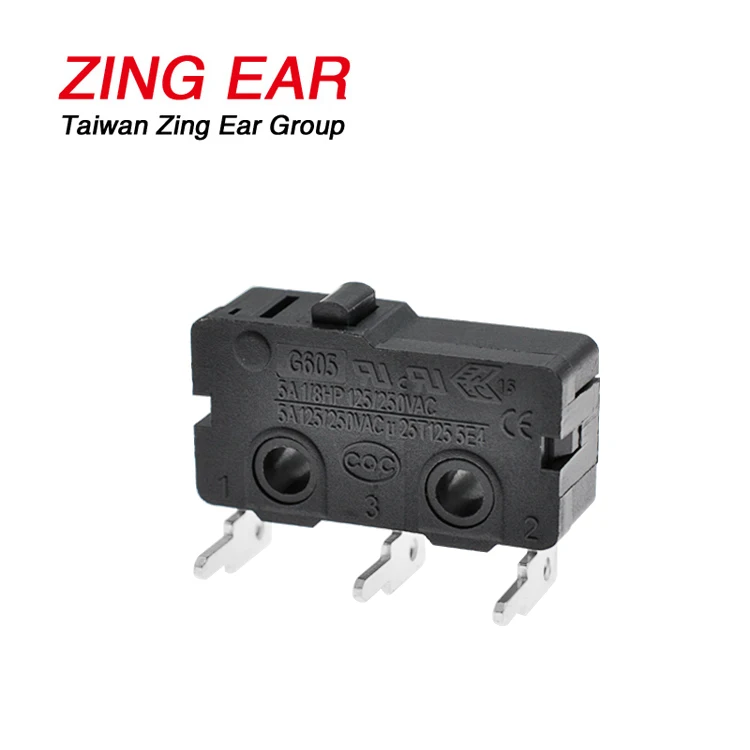

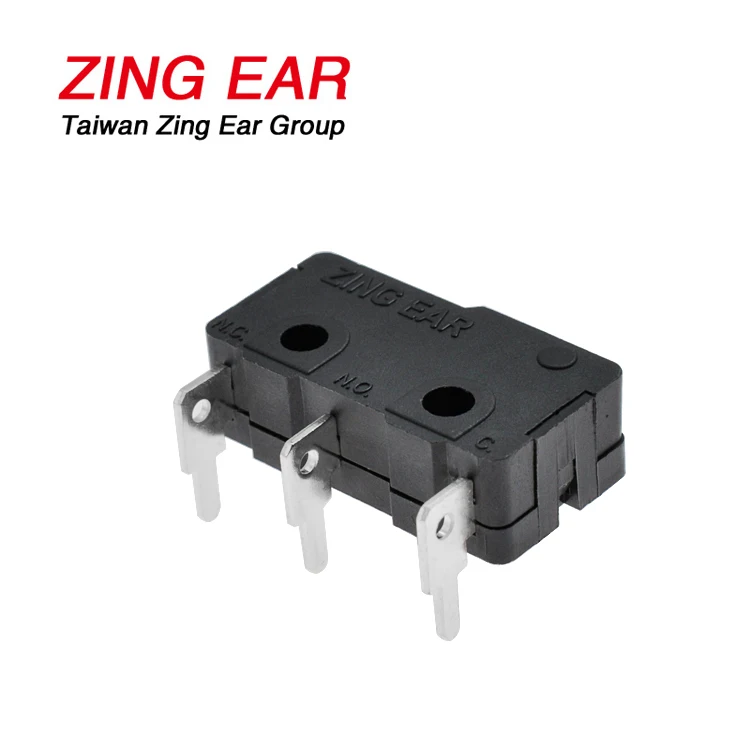

KW10 Momentary Limit Switch 5A T125 118HP Bent PCB Terminals Micro Switch
- Category: >>>
- Supplier: Huizhou Grandye Industrial Co. Ltd.
Share on (1600425404435):
Product Overview
Description
G6 Miniature Micro Switch
* Features - Small compact size
- Global safety approvals
- Long life and high reliability
- Variety of actuator and terminals
- High rating to 10(2)A, 1/4HP
- Customized Designs
- Widely used in Auto control, Appliance control and Industrial Control etc.
- Global safety approvals
- Long life and high reliability
- Variety of actuator and terminals
- High rating to 10(2)A, 1/4HP
- Customized Designs
- Widely used in Auto control, Appliance control and Industrial Control etc.
-Home Appliance
- Game Controller
- Game Controller
Products Description
KW10 Momentary Limit Switch 5A T125 118HP Bent PCB Terminals Micro Switch

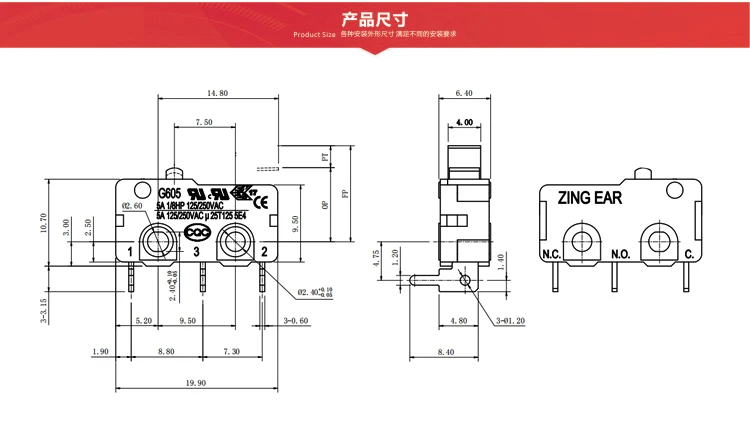

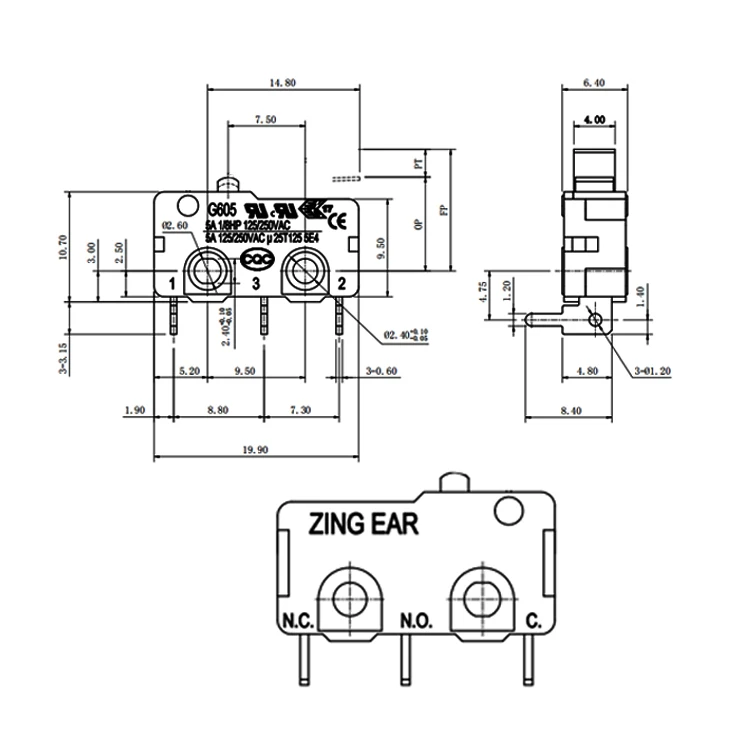

Product size
Product Parameters
Rating - P1/P11/P12 | ENEC:0.1A,125/250V 48VDC 5EA ULcul:0.1A,125/250V 48VDC Gold Plated Contact Optional | ||||||
Rating - 05/051/052 | ENEC:5A,125/250VAC ULcul:5A, 1/8HP 125/250VAC | ||||||
Rating - 10/101 | ENEC:10(2)A,125/250VAC U 25T125 ULcul:10.1A,1/4HP 125/250VAC Note:250gf/Only with "OF "over "250gf" | ||||||
Rating - 12 | ENEC: 12(6) A,125/250VAC U 40T125 ULcul:12A,125/250VAC Note:350gf/Only with 350gf OF | ||||||
Operating Frequency - Electrical | 10-30 cycles/minute | ||||||
Operating Frequency - Mechanical | 120 cycles/minute | ||||||
Contact Resistance(Initiative) | 100mΩ Max | ||||||
Insulation Resistance (at500VDC) | 100mΩ Min | ||||||
Dielectric strength | AC ,1,000 RMS (50-60HZ) | ||||||
Storage Temperature | -25℃~+125℃ | ||||||
Storage Humidity | 85%RH Max | ||||||
Service Life - Electrical | 10,000-50,000 cycles(Depend on part No.) | ||||||
Service Life - Mechanical | 1,000,000 cycles | ||||||
