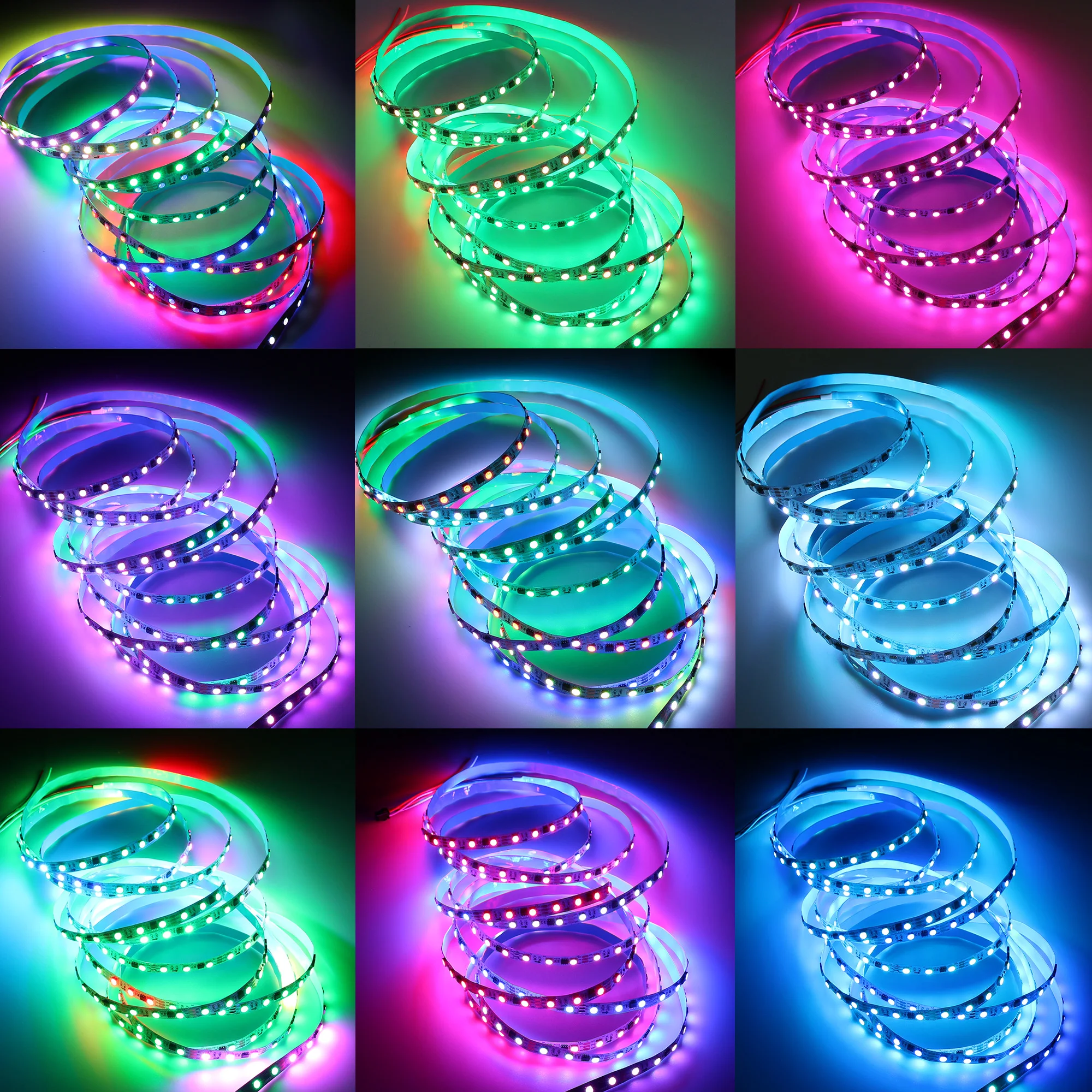

Dream Color Digital MultipleX 512 Super Bright Addressable 5050 RGB DMX512 UCS512C3 Led Strip flexible lighting.
- Category: >>>
- Supplier: Shenzhen Hongtai World Lighting Co. Ltd.
Share on (1600425424427):
Product Overview
Description
Product Description
1. By double flexible quality FPC circuit board / bright RGB 5050 external control per meter 10IC/ silica gel or PU (high temperature, low temperature resistance, resistance to ultraviolet) glue or silicone casing filled rubber into; through the controller can realize water, chase and scanning happy effect; according to the change of design good animation program can achieve unlimited color.
2. Strip light of the installation is convenient, safe and energy saving, long life and low attenuation and other excellent characteristics, can be customized according to customer requirements per meter of LED lights, the width of the circuit board and can be cut as well as the number of control IC;
2. Strip light of the installation is convenient, safe and energy saving, long life and low attenuation and other excellent characteristics, can be customized according to customer requirements per meter of LED lights, the width of the circuit board and can be cut as well as the number of control IC;
Specification
* The kinds of IP20 and drop glue product’s specifications is L1000mm*W10/12mm*H2.5mm, IP68 and silica tube is wide 12-14mm/5.5mm high waterproof casing.
* Per meter external 10 IC pixels (60LEDs/meters, 6LEDs controlled by 1IC); connection controller can achieve more than 700 kinds of patterns, through ingenious combination can achieve fantastic results (including water, chase, and scan based effect).
* Working voltage and power: DC24V/14.4W/M
* LED working current：1200mA/M
* LED angle beam:120°/Flood beam 160°
* Protection grade: IP20/IP65/IP68 optional
* Packing: each 5 meters a roll packing into an anti-static bag.
* Per meter external 10 IC pixels (60LEDs/meters, 6LEDs controlled by 1IC); connection controller can achieve more than 700 kinds of patterns, through ingenious combination can achieve fantastic results (including water, chase, and scan based effect).
* Working voltage and power: DC24V/14.4W/M
* LED working current：1200mA/M
* LED angle beam:120°/Flood beam 160°
* Protection grade: IP20/IP65/IP68 optional
* Packing: each 5 meters a roll packing into an anti-static bag.

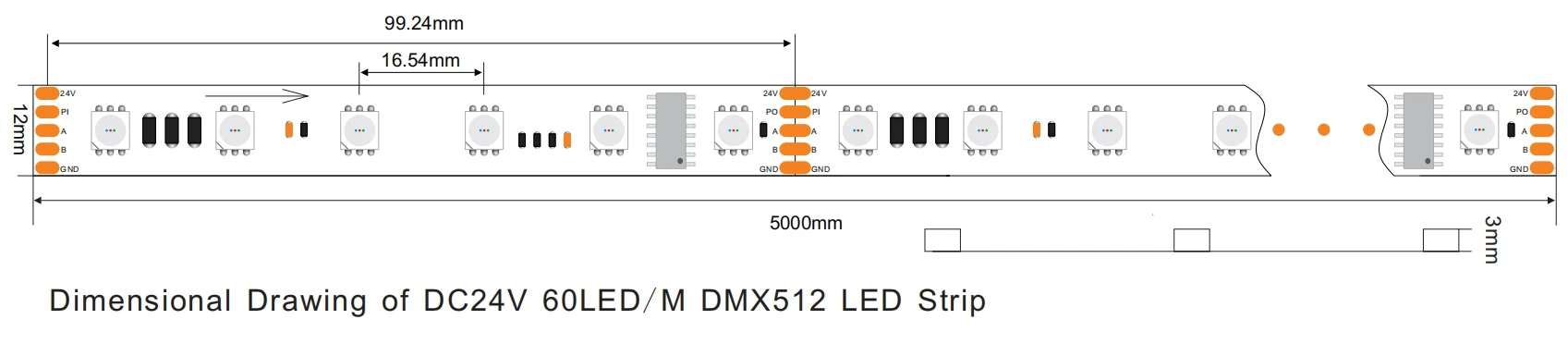

Product size chart（This kind of strip is each 3LEDs 1 cut）：
* Extremity parameters（Ta=25℃）：
Item | Code | Extremity parameters | Unit |
Positive working current | IF | 1200mA/m | mA |
Power | PD | 14.4/m | W |
Antistatic voltage | ESD | 800 | V |
Working temperature | Topr | -35~+55 | ℃ |
* Electrical / optical properties (Ta=25℃)
Product No. | Color | LED quantity | Working current | NM Wavelength | Lumen/M | Packing |
Red | 60/M | 1200mA/m | 625-630nm | 600-1200lm | 5M/Reel | |
Blue | 465-470nm | |||||
Green | 515-520nm |
*Note：
1. The lumen flux measurement tolerance of ±15%;
2. LED lumen flux, wavelength, color temperature parameters according to customer specified production.
1. The lumen flux measurement tolerance of ±15%;
2. LED lumen flux, wavelength, color temperature parameters according to customer specified production.
Instructions：

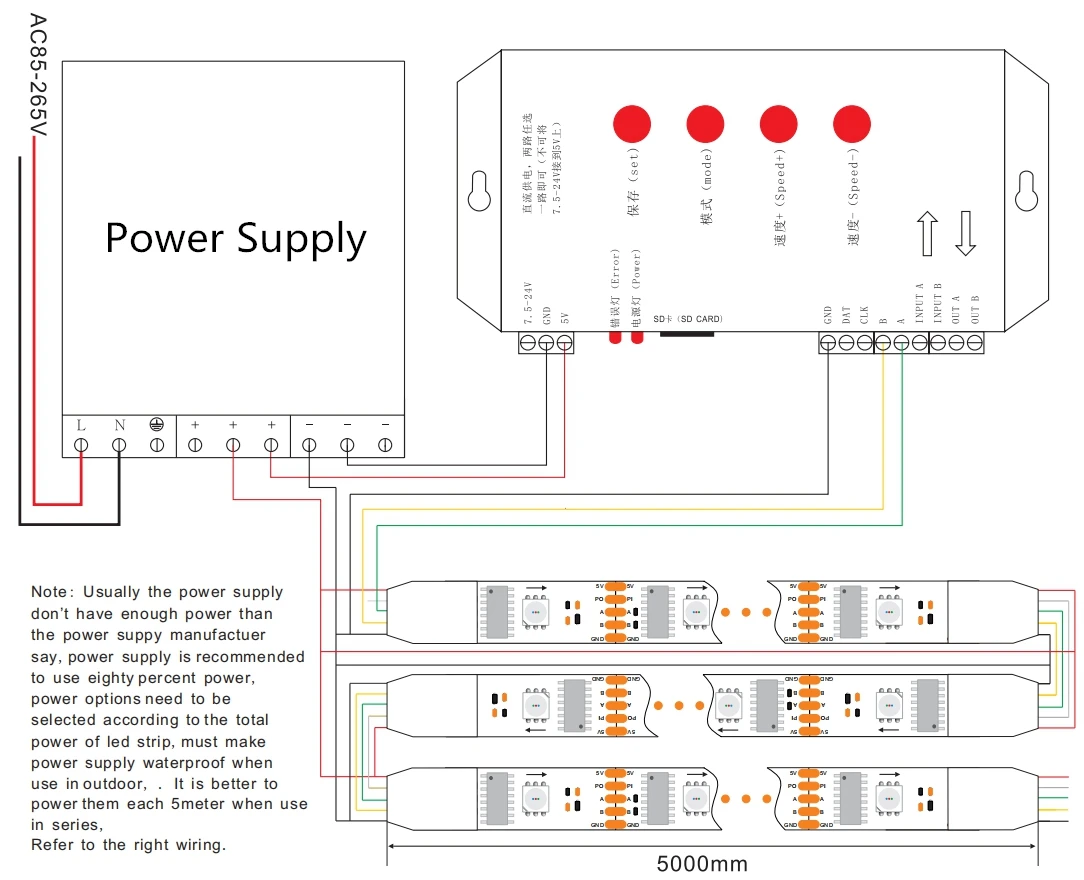

*Wiring instructions: Strip light wirings have two groups: one group was used for the power lines connect LED power supply, other group was used for signal lines connect controller. See figure below:
*Wiring instructions: Strip light wirings have two groups: one group was used for the power lines connect LED power supply, other group was used for signal lines connect controller. See figure below:
* Note: Our Company can provide free animation program design and provide the wiring diagram required by the project. If need to achieve DMX control, need match the right controller and the decoder, the master console needs to match at least 1; if the custom DMX IC lamp, can be removed from the decoder.
* Installation instructions：IP20 and IP65 glue strip light installation by 3M,tube IP65 and IP68 strip used clips to fixed, each 2pcs clips per meters standard configuration, each installation chip fixed need with two M3 screws (some clips only need 1 screw). The installation clip was injected made by transparent PC environmental protection material, with excellent weather resistance. If you need to install reinforcement, available glass glue or silicone adhesive attached on the edge.
* Installation instructions：IP20 and IP65 glue strip light installation by 3M,tube IP65 and IP68 strip used clips to fixed, each 2pcs clips per meters standard configuration, each installation chip fixed need with two M3 screws (some clips only need 1 screw). The installation clip was injected made by transparent PC environmental protection material, with excellent weather resistance. If you need to install reinforcement, available glass glue or silicone adhesive attached on the edge.
*Tips:
1. When we calculate the power consumption, should be retained 20% of the margin to protect the power supply life extension;
2. Prohibit use of ultra 5M in a cascade, if need 10meter a cascade, please ensure that both ends of strips connect the power supply to achieve the best use of the effect;
3. Power and the controller with the light source the distance between we recommended not more than 6 meters main line, and strictly in accordance with the local electrical standards;
4. Be sure to follow the wiring diagram provided by our company correct wiring and placing lights;
5. The working parameters of the product cannot exceed the limit parameter table;
6. In the process of installation and use note anti-static, not allowed to touch with a sharp, extruded or punctured light source or surface glue and silicone casing;
7. Cannot contact with acid, alkali and other corrosive chemicals, not near the fire;
8. Bending angle of the lamp is not allowed to be less than 60 degrees; the bending radius is not allowed to be less than 3mm;
9. When LED strip light and the controller connection, the controller and the junction to do waterproof treatment, otherwise it will affect the normal use of rain.
1. When we calculate the power consumption, should be retained 20% of the margin to protect the power supply life extension;
2. Prohibit use of ultra 5M in a cascade, if need 10meter a cascade, please ensure that both ends of strips connect the power supply to achieve the best use of the effect;
3. Power and the controller with the light source the distance between we recommended not more than 6 meters main line, and strictly in accordance with the local electrical standards;
4. Be sure to follow the wiring diagram provided by our company correct wiring and placing lights;
5. The working parameters of the product cannot exceed the limit parameter table;
6. In the process of installation and use note anti-static, not allowed to touch with a sharp, extruded or punctured light source or surface glue and silicone casing;
7. Cannot contact with acid, alkali and other corrosive chemicals, not near the fire;
8. Bending angle of the lamp is not allowed to be less than 60 degrees; the bending radius is not allowed to be less than 3mm;
9. When LED strip light and the controller connection, the controller and the junction to do waterproof treatment, otherwise it will affect the normal use of rain.
Applications
* Full-color advertising letters or signs;
* Hotel lobby or entertainment place dark trough, ladder, handrail and any contour trim.
* All kinds of landscape lighting and creative lighting engineering assistant;
* Combined into a screen to display a simple picture and text, etc...
* Hotel lobby or entertainment place dark trough, ladder, handrail and any contour trim.
* All kinds of landscape lighting and creative lighting engineering assistant;
* Combined into a screen to display a simple picture and text, etc...
Certifications
HTD-Lighting National-Level Qualification Certification
Shenzhen HongTai World Lighting Co., Ltd. won the ‘National High-tech Enterprise’ certification in December 2020. This certification is a national-level qualification certification, which proves that the company has strong technological innovation and high-end technology development capabilities in this field, which is conducive to the company's development of domestic and foreign markets; it is an important condition for companies to bid. At the same time, it also shows this company is a high-growth enterprise supported by the state and has good potential economic benefits.
