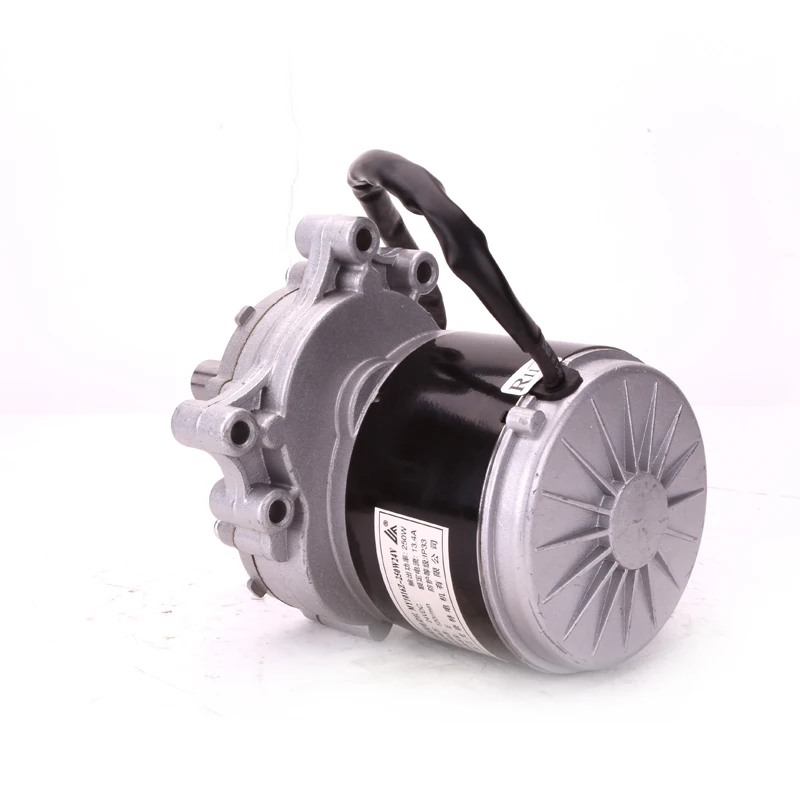

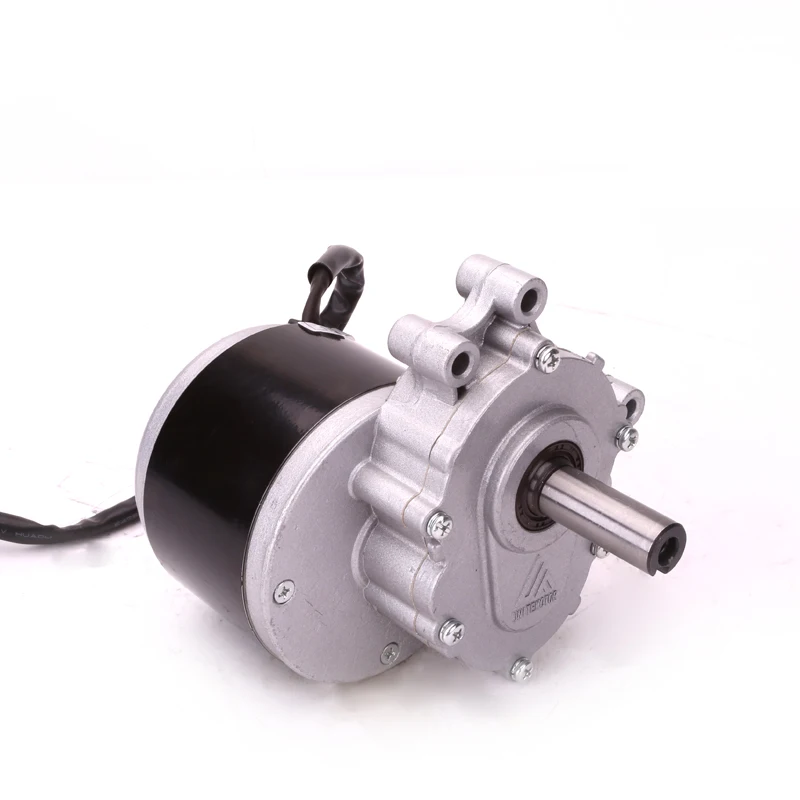

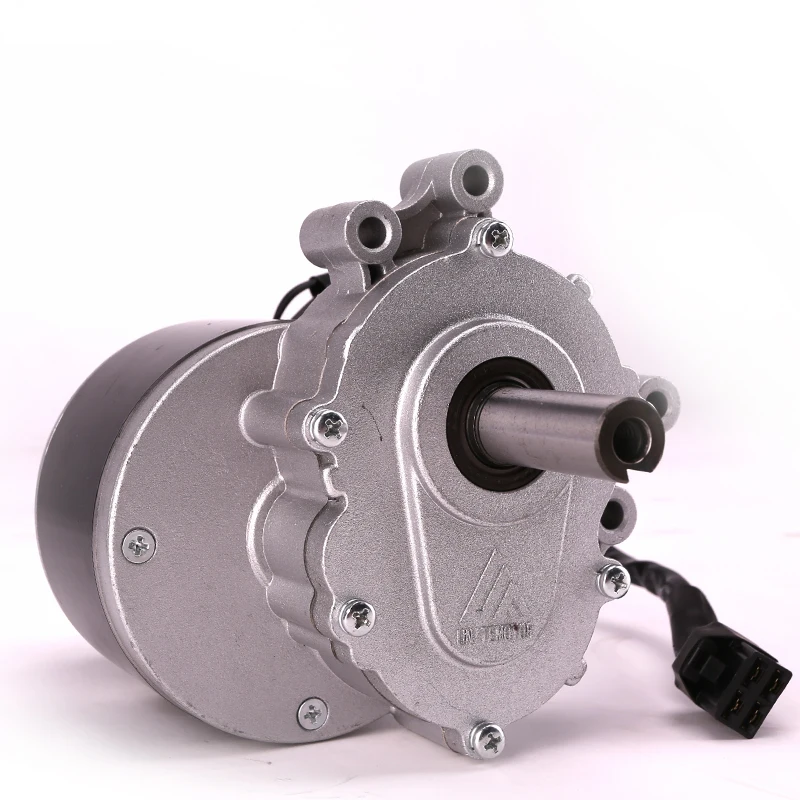

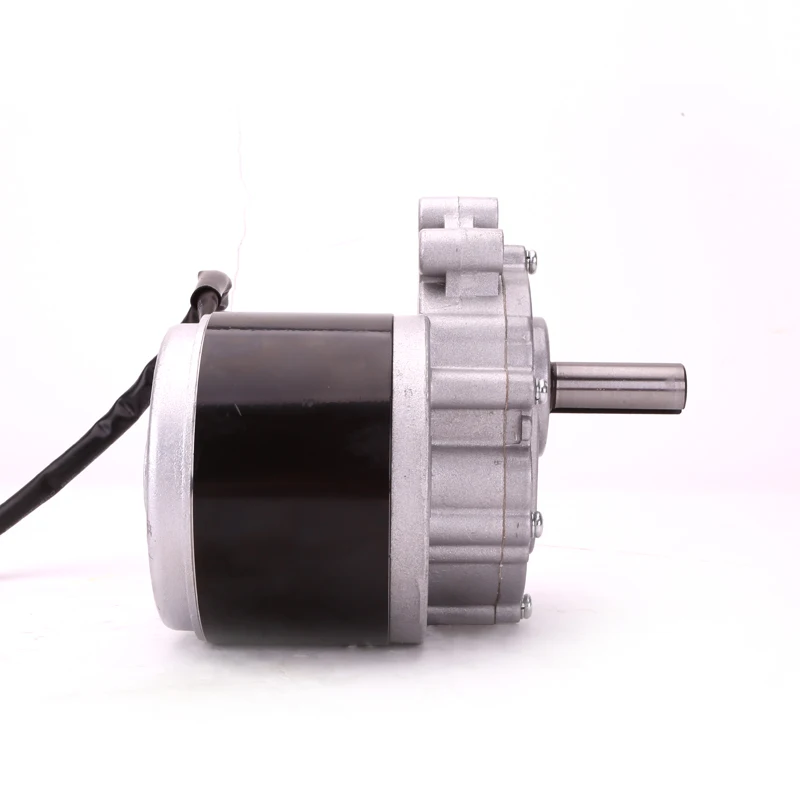

Gear dc motor 250W 350W 24V 36V dc brush brake wheelchair motor
- Category: >>>
- Supplier: Wuxi Shenma Vehicle Parts Co. Ltd.
Share on (1600425439016):
Product Overview
Description
Product Description
Product Numbers: MY1016Z / ZD101AZ1
Rated power: 250 W
Electricity voltage: 24 V
No-load current: ≤ 4.0 A
No-load speed: 75/120 RPM/160 rpm
Rated torque: 0.64 / 0.98 N·m
Rated speed: 2400/3700 RPM
Rated current: ≤13.7 / 14.8 A
Motor efficiency: ≥ 70/76%
Work system: S2: 60
Insulation class: E
Reduction ratio: 37.98: 1
Adaptation range: wheelchair motor
Rated power: 250 W
Electricity voltage: 24 V
No-load current: ≤ 4.0 A
No-load speed: 75/120 RPM/160 rpm
Rated torque: 0.64 / 0.98 N·m
Rated speed: 2400/3700 RPM
Rated current: ≤13.7 / 14.8 A
Motor efficiency: ≥ 70/76%
Work system: S2: 60
Insulation class: E
Reduction ratio: 37.98: 1
Adaptation range: wheelchair motor
Specification
item | value |
Brand Name | SM |
Type | Brushless Motor |
Speed | 2400rpm |
Commutation | Brush Motor |
Continuous Current(A) | ≤4.0 |
Product Name | Mid-drive Motor |
Voltage | 24V |
Power | 250W |
Typical Applications | wheel chair |
Recommend Products
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Wuxi Shenma Vehicle Parts Co., Ltd are located in Wuxi city, Jiangsu province, which is the most qualified disk brake and hub motor manufacturer over 20 years in China.
Our main products are electric cars, motorcycle disc brake, brushless/brush dc motor, controllers, chargers, converters, lithium battery series, and etc. The main advantages of the company can be customized according to your requirements of brake switch code, tubing length, steel angle, and etc.
We always adheres to the concept of "details determine success or failure, quality wins the market", and is well received by
domestic and foreign customers.
Our main products are electric cars, motorcycle disc brake, brushless/brush dc motor, controllers, chargers, converters, lithium battery series, and etc. The main advantages of the company can be customized according to your requirements of brake switch code, tubing length, steel angle, and etc.
We always adheres to the concept of "details determine success or failure, quality wins the market", and is well received by
domestic and foreign customers.
FAQ
1. who are we?
We are manufacturer for Brush/brushless motor, gear motor, disc brake system over 20 years in China.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Disc brake,Brake disc,Brake calipers,Brake pads,The brake lever; DC Brush Motor; Brushless Hub Motor;
4. why should you buy from us not from other suppliers?
Our company's core advantages: 1, according to the actual situation of electric vehicle or motorcycle customized corresponding safe and cost-effective brake system; 2, brake system accessories complete, non-standard can be customized, fast delivery;
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU；
Accepted Payment Type: T/T,L/C,PayPal;
We are manufacturer for Brush/brushless motor, gear motor, disc brake system over 20 years in China.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Disc brake,Brake disc,Brake calipers,Brake pads,The brake lever; DC Brush Motor; Brushless Hub Motor;
4. why should you buy from us not from other suppliers?
Our company's core advantages: 1, according to the actual situation of electric vehicle or motorcycle customized corresponding safe and cost-effective brake system; 2, brake system accessories complete, non-standard can be customized, fast delivery;
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU；
Accepted Payment Type: T/T,L/C,PayPal;
