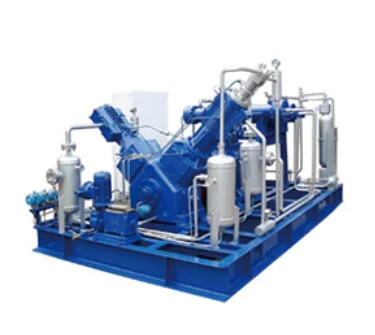

Cheap Price CNG Gas Compressor With 3 Stage Customized 250bar
- Category: >>>
- Supplier: Henan Zhongzhen Gas Co. Ltd.
Share on (1600425449318):
Product Overview
Description
PRODUCTS DESCRIPTION
Popular CNG Compressors for 600~800Nm3/h Capacity with Best Price
CNG gas station series compressor

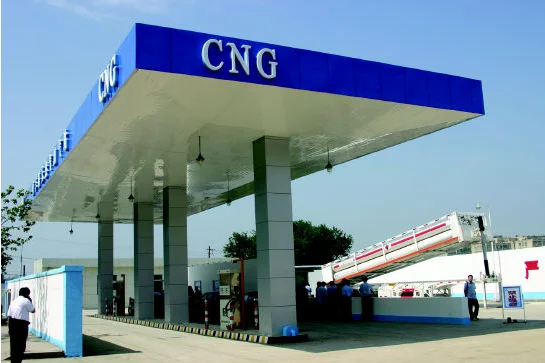

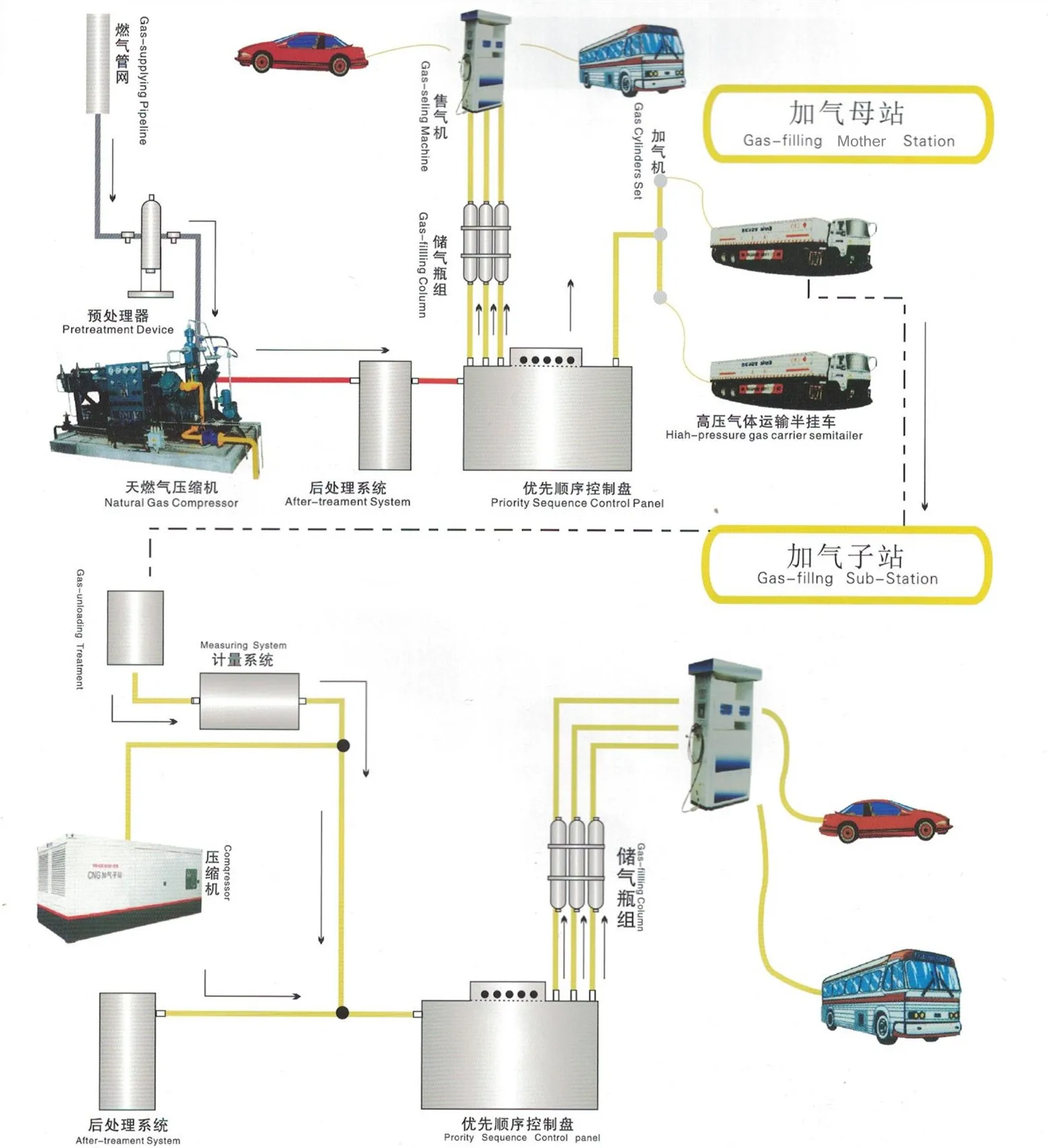

The main equipment of CNG gas station is composed of compressor unit, metering device, gas purification dryer, gas storage device, charging sequence control panel, gas filling column, gas seller, etc.

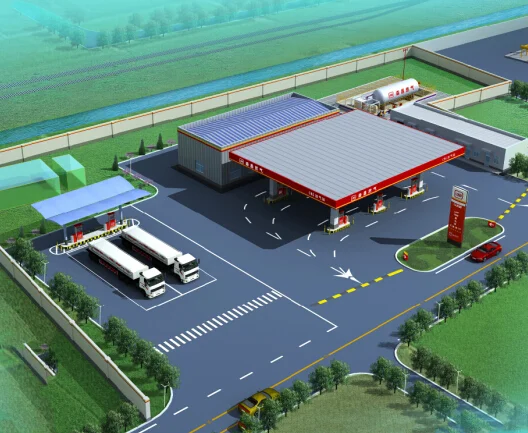

According to different functions, it can be divided into three types: CNG standard station, CNG gas filling parent station and CNG gas filling sub station.
CNG standard station takes gas directly from the natural gas pipeline network, and after a series of processes such as pretreatment system, compression and storage, it adds gas to the vehicle through the gas seller.
In addition to the function of the standard station, the CNG fueling master station also fills the compressed natural gas into the high-pressure gas transportation semi-trailer (CNG trailer for short) through the fueling column in the station and transports it to the CNG fueling sub station for vehicle fueling. At the same time, as an effective supplementary means of pipeline gas transmission, in small and medium-sized cities far from the natural gas pipeline, CNG trailers can be used to send compressed natural gas to the cities of use by road transportation, and enter the gas pipe network after pressure regulation to supply gas to residential users and other natural gas users.
CNG gas filling sub station is built at the place where the natural gas pipeline network has not arrived. It receives the compressed natural gas transported by the trailer from the gas filling parent station, and adds gas to the vehicle through the gas vending machine through storage, compression and other processes.
The main equipment of CNG gas station is composed of compressor unit, metering device, gas purification dryer, gas storage device, charging sequence control panel, gas filling column, gas seller, etc.
According to different functions, it can be divided into three types: CNG standard station, CNG gas filling parent station and CNG gas filling sub station.
CNG standard station takes gas directly from the natural gas pipeline network, and after a series of processes such as pretreatment system, compression and storage, it adds gas to the vehicle through the gas seller.
In addition to the function of the standard station, the CNG fueling master station also fills the compressed natural gas into the high-pressure gas transportation semi-trailer (CNG trailer for short) through the fueling column in the station and transports it to the CNG fueling sub station for vehicle fueling. At the same time, as an effective supplementary means of pipeline gas transmission, in small and medium-sized cities far from the natural gas pipeline, CNG trailers can be used to send compressed natural gas to the cities of use by road transportation, and enter the gas pipe network after pressure regulation to supply gas to residential users and other natural gas users.
CNG gas filling sub station is built at the place where the natural gas pipeline network has not arrived. It receives the compressed natural gas transported by the trailer from the gas filling parent station, and adds gas to the vehicle through the gas vending machine through storage, compression and other processes.
PRODUCT SPECIFICATIONS
No | Compressor model | Inlet pressure Mpa | Outlet pressure Mpa | Capacity Nm3/h | Motor power kW |
1 | DF-0.32/35-250 | 3.5 | 25 | 690 | 75 |
2 | DF-2.5/12-14-250 | 1.2-1.4 | 25 | 1950-2250 | 280 |
3 | MW-5.5/4-250 | 0.4 | 25 | 1550 | 280 |
4 | WF-3.6/2-250 | 0.2 | 25 | 650 | 160 |
5 | V-2.5/3-250 | 0.3 | 25 | 600 | 132 |
6 | VF-2.4/8-250 | 0.8 | 25 | 890 | 132 |
7 | VFD-2/7-250 | 0.7 | 25 | 840 | 200 |
8 | VFD-0.36/(30-200)-250 | 3.0-20.0 | 25 | 580-2950 | 110 |
PRODUCT CONFIGURATION

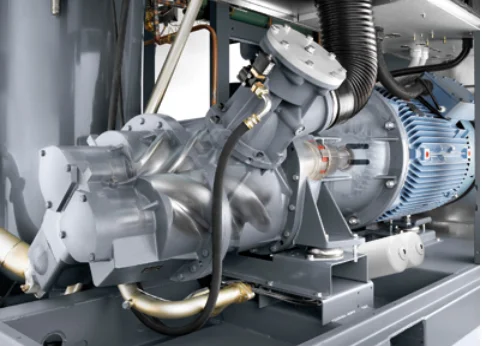

Our compressor has introduced vulnerable parts such as air valve, piston ring and packing from Austria, France and Britain, with a service life of more than 8000 hours. The basic components are manufactured by introducing German technology, and the reliability of the products is greatly improved.
Wide range intake design technology is adopted, which is customized, and there is no need to add pressure regulating device to the intake system;
The control system adopts Siemens PLC and text display for program control, with high degree of equipment automation and convenient remote control.
Soft start is adopted to allow the compressor to start and stop frequently.

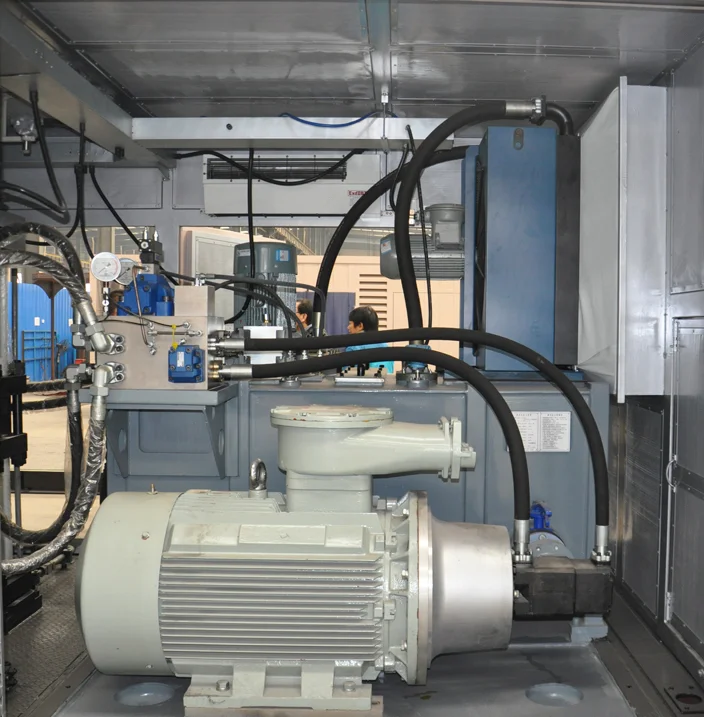

Overall skid mounted structure, low noise, easy to install in urban area and save investment.
Air cooling and water cooling can be selected according to the user's actual site.
Wide range intake design technology is adopted, which is customized, and there is no need to add pressure regulating device to the intake system;
The control system adopts Siemens PLC and text display for program control, with high degree of equipment automation and convenient remote control.
Soft start is adopted to allow the compressor to start and stop frequently.
Overall skid mounted structure, low noise, easy to install in urban area and save investment.
Air cooling and water cooling can be selected according to the user's actual site.
