Free Shipping!!! Epever EPsolar MPPT 60A 12V 24V 36V 48V Auto Tracer 6415AN Solar Panel System Regulator Solar Charge Controller
- Category: >>>
- Supplier: Shenzhen Hehe Jin Industrial Co. Ltd.Shenzhen Ltd.
Share on (1600425462489):
Product Overview
Description
Note: The Tracer 6415AN product is shipped from Germany warehouse!!
Product Description
The Tracer AN series. Based on common negative design and advanced MPPT control algorithm, with LCD displaying running status, this product is artistic, economical and practical. Improving the MPPT control algorithm further, Tracer AN series can minimize the maximum power point loss rate and loss time, quickly track the maximum power point of the PV array and obtain the maximum energy from solar modules under any conditions; and can increase the ratio of energy utilization in the solar system by 10%-30% compared with a PWM charging method. The limitation function of the charging power and current and reducing charging power function automatic improve the stability which works even connecting oversize PV modules and in high temperature, and increase the professional protection chip for the communication port, further improving the reliability and meeting the different application requirements.
Features：
* CE certification(LVD EN/IEC62109, EMC EN61000-6-1/3)High quality & low failure rate components of ST and Infineon to ensure the product’s life
* Advanced MPPT technology & ultra-fast tracking speed is up to 99.5% guaranteed
* Maximum DC/DC transfer efficiency is as high as 98.7%
* Advanced MPPT control algorithm will minimize the MPP loss rate and loss time
* The accuracy of the recognition and tracking at the highest point of multiple-peaks MPP
* The wider range of MPP operating voltage
* Auto control system to limit the charging power & current go over the rated value
* Support 4 charging options: Sealed, Gel, Flooded, and User
* Battery temperature compensation function
* Real-time energy recording and statistical function
* Automatic over-temperature power reduction function
* Hundred percent full load operation in working environment temperature range within charging & discharging
* Support up to 8 units in parallel to expand the system
* Load relay control external load switch signal to realize diversified load work modes
* The first and the second disconnection of load control, contain two relay’s contact
* Auto-control of utility and generator relay design
* Utility or generator auto-control relays make it easy to compose the hybrid power system
* The remote temperature and the voltage sensor design will collect accurate data on battery temperature and voltage
* Isolated RS-485 with 5VDC/200mA to protect output for no power devices with MODBUS protocol
* To monitor or set the parameters by using the phone Apps or PC software
* Advanced MPPT technology & ultra-fast tracking speed is up to 99.5% guaranteed
* Maximum DC/DC transfer efficiency is as high as 98.7%
* Advanced MPPT control algorithm will minimize the MPP loss rate and loss time
* The accuracy of the recognition and tracking at the highest point of multiple-peaks MPP
* The wider range of MPP operating voltage
* Auto control system to limit the charging power & current go over the rated value
* Support 4 charging options: Sealed, Gel, Flooded, and User
* Battery temperature compensation function
* Real-time energy recording and statistical function
* Automatic over-temperature power reduction function
* Hundred percent full load operation in working environment temperature range within charging & discharging
* Support up to 8 units in parallel to expand the system
* Load relay control external load switch signal to realize diversified load work modes
* The first and the second disconnection of load control, contain two relay’s contact
* Auto-control of utility and generator relay design
* Utility or generator auto-control relays make it easy to compose the hybrid power system
* The remote temperature and the voltage sensor design will collect accurate data on battery temperature and voltage
* Isolated RS-485 with 5VDC/200mA to protect output for no power devices with MODBUS protocol
* To monitor or set the parameters by using the phone Apps or PC software
Package List:
1 * Tracer 6415AN Solar Charge Controller

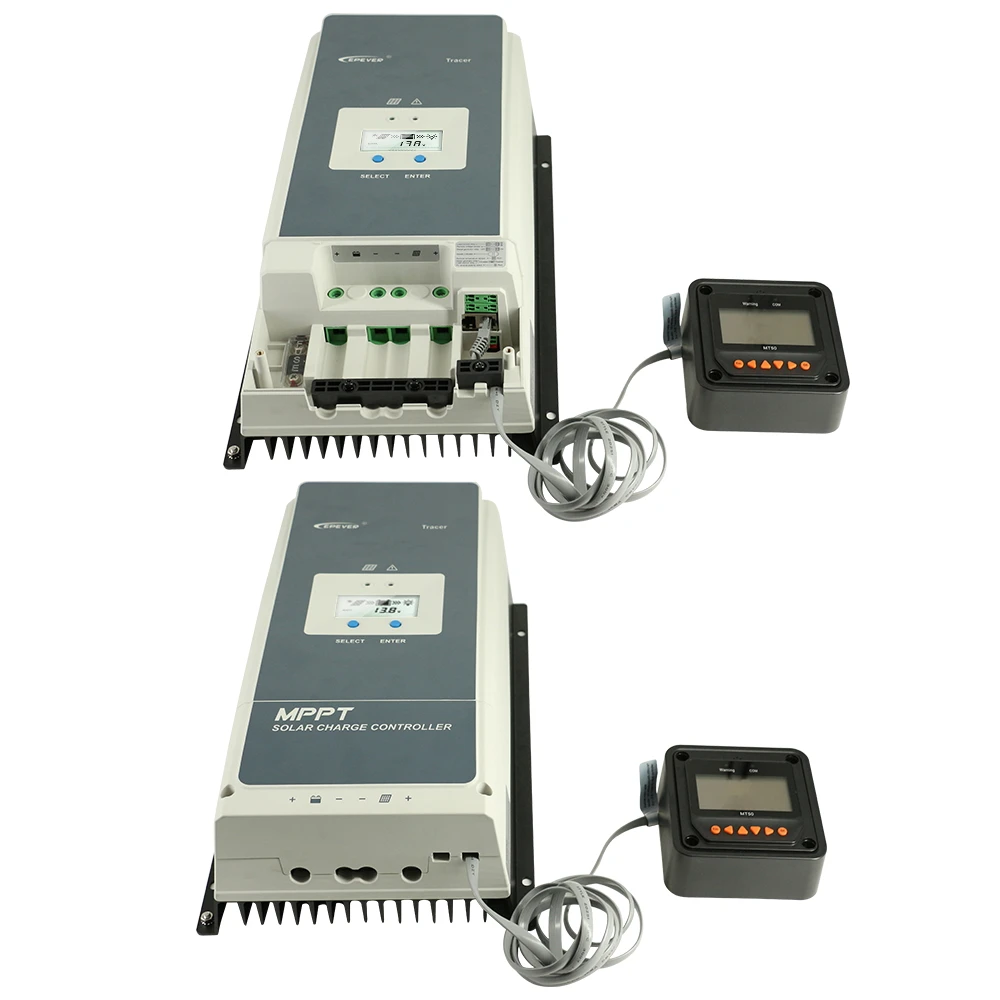

1 * MT50 remote meter
1 * Temperate Sensor
1 * MT50 remote meter
1 * Temperate Sensor
1 * PC cable / 1 * English Use Manual
Product Paramenters
Model | Tracer5415AN | Tracer 6415AN | Tracer 8415AN | Tracer 10415AN | ||||
System nominal voltage | 12/24/36/48VDC① Auto | |||||||
Battery Input Voltage Range | 8V～68V | |||||||
Battery Type | Lead-acid Battery :Sealed(Default)/Gel/Flooded/User Lithium Battery :LiFePO4/ Li(NiCoMn)O2/ User | |||||||
Battery fuse | 80A/58V | 125A/58V | 150A/58V | |||||
Rated charge current | 50A | 60A | 80A | 100A | ||||
Rated charge Power | 625W/12V 1250W/24V 1875W/36V 2500W/48V | 750W/12V 1500W/24V 2250W/36V 3000W/48V | 1000W/12V 2000W/24V 3000W/36V 4000W/48V | 1250W/12V 2500W/24V 3750W/36V 5000W/48V | ||||
Max. PV open circuit voltage | 150V① 138V② | |||||||
MPP voltage range | (Battery Voltage +2V) ～108V② | (Battery Voltage +2V) ～108V② | ||||||
Tracking efficiency | ≥99.5% | |||||||
Max. conversion efficiency | 98.3% | 98.6% | 98.5% | 98.6% | ||||
Full load efficiency | 97.8% | 98.0% | 98.0% | 98.0% | ||||
Temperature compensate coefficient | -3mV/℃/2V (Default) | |||||||
Self-consumption | 98mA/12V;60mA/24V;50mA/36V;46mA/48V | |||||||
Grounding | Common negative grounding | |||||||
Relay | Rated Value:5A/30VDC; Max. Value:0.5A/60VDC | |||||||
RS485 interface | RS485(5VDC/200mA, Two RJ45 ports in parallel) ③ | |||||||
LCD backlight time | Default:60S,Range:0～999S(0S:the backlight is ON all the time) | |||||||
①At minimum operating environment temperature; ②At 25℃ environment temperature; ③When connect the controller to external devices, only one of the ports can be used; when use multiple controllers in parallel, the port are for cascaded use | ||||||||
Ambient temperature range | -25℃～+60℃(Derate above 45℃) | |||||||
LCD temperature range | -20℃～+70℃ | |||||||
Storage temperature range | -30℃～+85℃ | |||||||
Relative humidity range | 5% to 95% (N.C.) | |||||||
Enclosure | IP20 | |||||||
Pollution degree | PD2 | |||||||

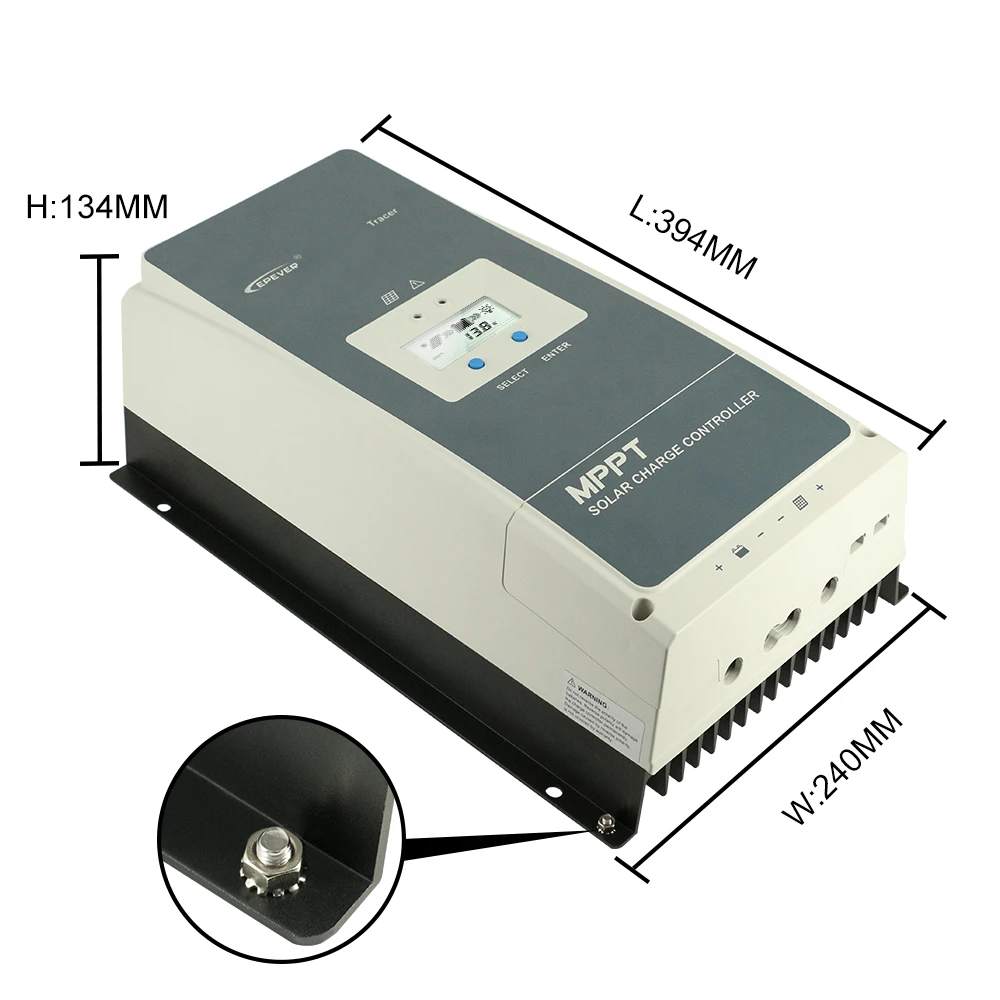

Dimension(mm) | 261×216×119 | 340×236×119 | 394×240×134 | 394×242×143 | ||||
Mounting dimension(mm) | 180×204 | 260×224 | 300×228 | 300×230 | ||||
Mounting hole size | Φ7 | |||||||
Terminal | 6AWG(16mm2 ) | 2AWG(35mm2 ) | 2AWG(35mm2 ) | 2AWG(35mm2 ) | ||||
Recommended cable | 6AWG(16mm2 ) | 6AWG(16mm2 ) | 4AWG(25mm2 ) | 2AWG(35mm2 ) | ||||
Weight | 3.5kg | 4.5kg | 6.1kg | 7.4kg | ||||

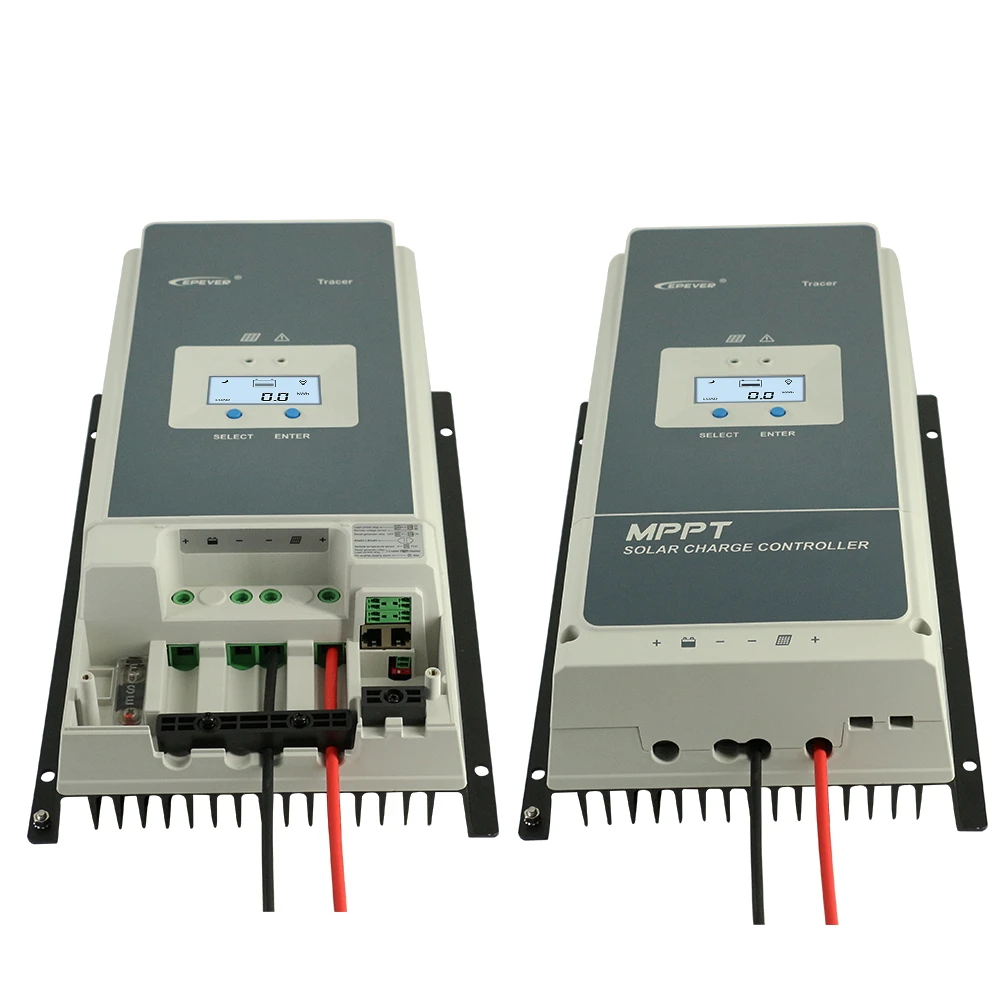

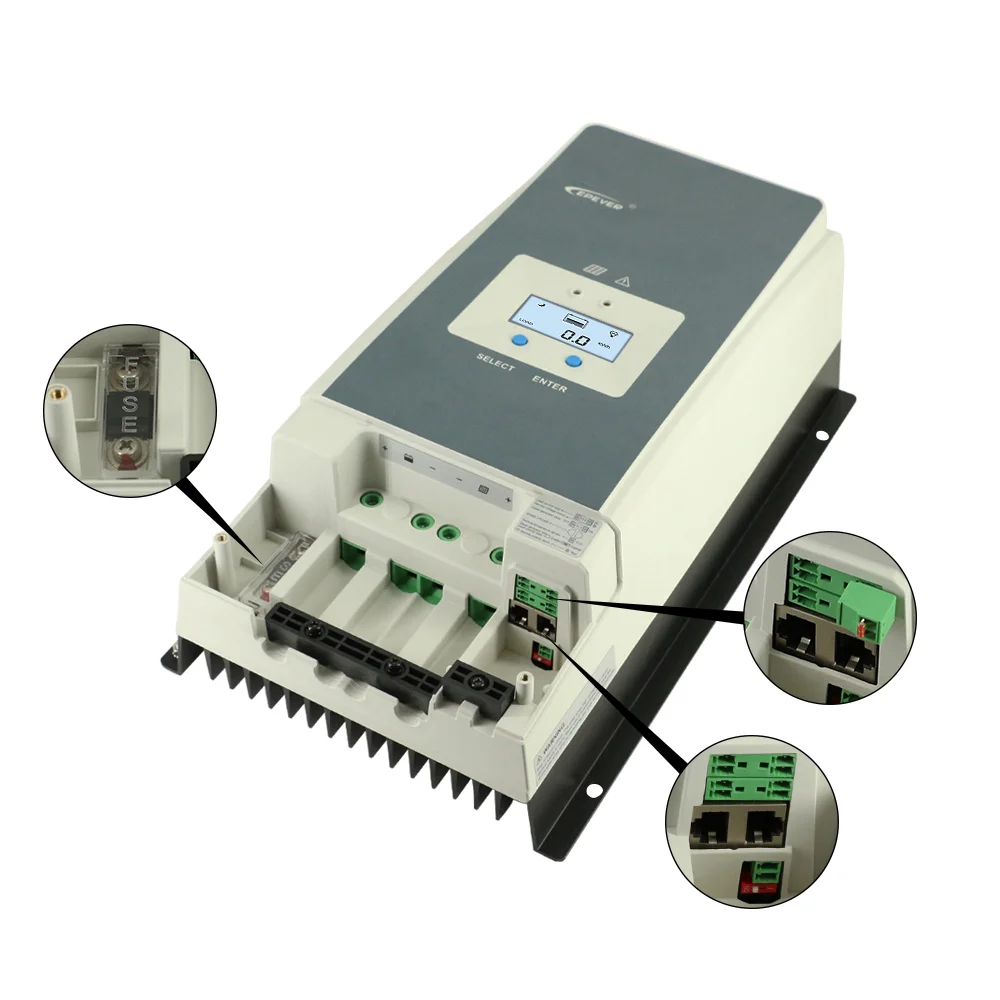

Details Images
Tips：
1. Always connect the battery first!!! Make sure enough batteries’ voltage lets the controller recognize the right system voltage.
2. DO NOT connect any Inverter/wind / Alternator or Charger into the charge controller! connect the Inverter directly to the battery.
3. Ensures solar input voltage higher than 3V or more than batteries’ voltage and total input power in the range. the charging current almost is zero when the controller is floating charge.
4. Parameter Setting Rules: Floating voltage > Low voltage reconnect > Low voltage discharge.
5. The solar charge controller will stop output when the battery is under 10.7V (adjustable). The LCD will be blank when the battery is under 8V and it will re-output when the battery is up to 12.6V (adjustable).
6. Install the Charger controller to the battery as close as possible to avoid voltage and power dropping caused by overlong wire and affect normal voltage judgment.
7. Remove all the debris around the controller(leaving a space of approx. 5.91in)
8. WARNING: Do not reverse the polarity of the batteries. Reverse polarity will damage the charge controller permanently！！！
Electronic protections:
* PV over current/power protection
* PV short circuit protection
* PV reverse polarity protection
* Night reverse charging protection
* Battery over-voltage protection
* Battery over-discharge protection
* Battery overheating protection
* Controller overheating protection
* TVS high voltage transients protection
1. Always connect the battery first!!! Make sure enough batteries’ voltage lets the controller recognize the right system voltage.
2. DO NOT connect any Inverter/wind / Alternator or Charger into the charge controller! connect the Inverter directly to the battery.
3. Ensures solar input voltage higher than 3V or more than batteries’ voltage and total input power in the range. the charging current almost is zero when the controller is floating charge.
4. Parameter Setting Rules: Floating voltage > Low voltage reconnect > Low voltage discharge.
5. The solar charge controller will stop output when the battery is under 10.7V (adjustable). The LCD will be blank when the battery is under 8V and it will re-output when the battery is up to 12.6V (adjustable).
6. Install the Charger controller to the battery as close as possible to avoid voltage and power dropping caused by overlong wire and affect normal voltage judgment.
7. Remove all the debris around the controller(leaving a space of approx. 5.91in)
8. WARNING: Do not reverse the polarity of the batteries. Reverse polarity will damage the charge controller permanently！！！
Electronic protections:
* PV over current/power protection
* PV short circuit protection
* PV reverse polarity protection
* Night reverse charging protection
* Battery over-voltage protection
* Battery over-discharge protection
* Battery overheating protection
* Controller overheating protection
* TVS high voltage transients protection
