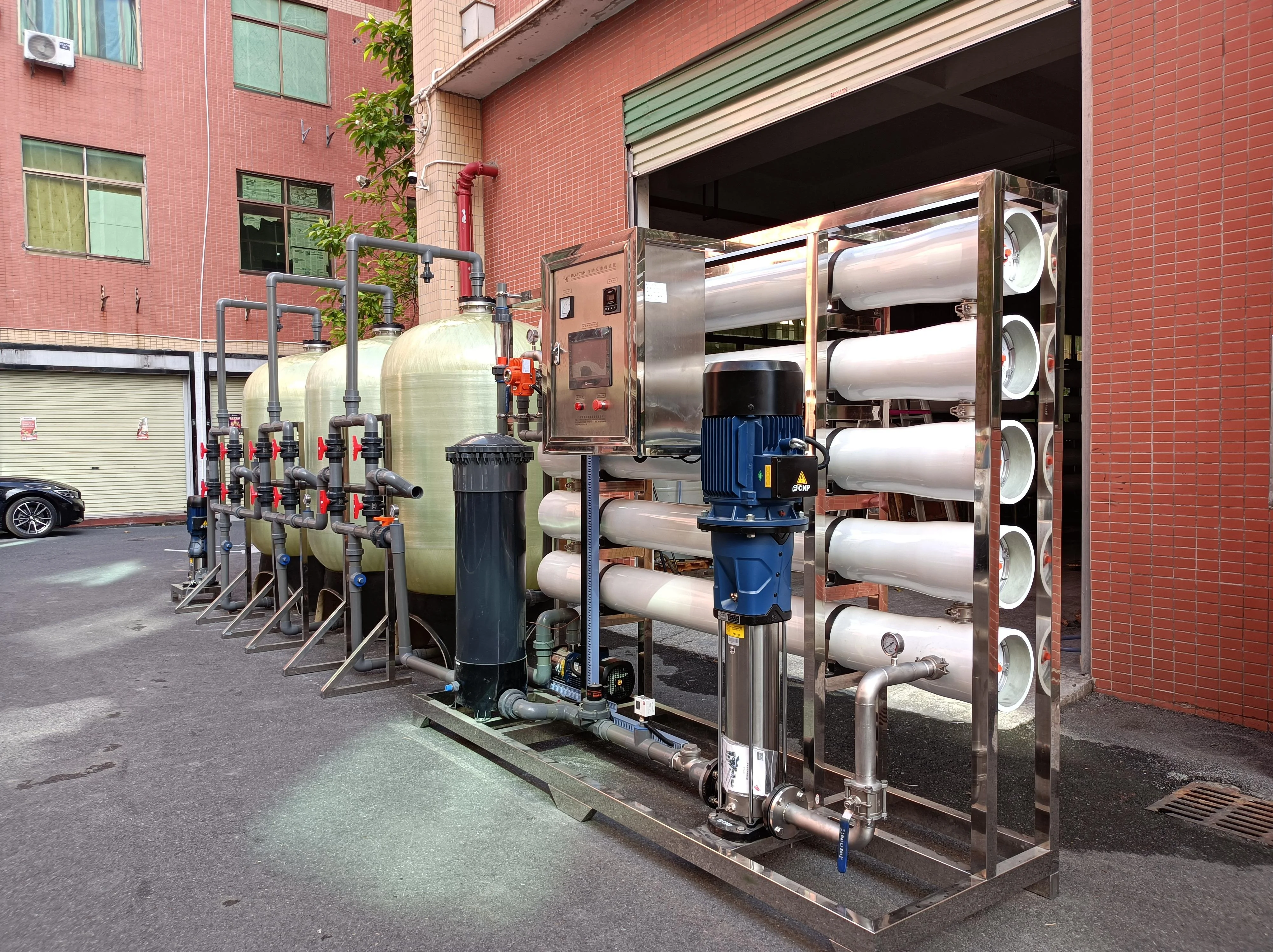

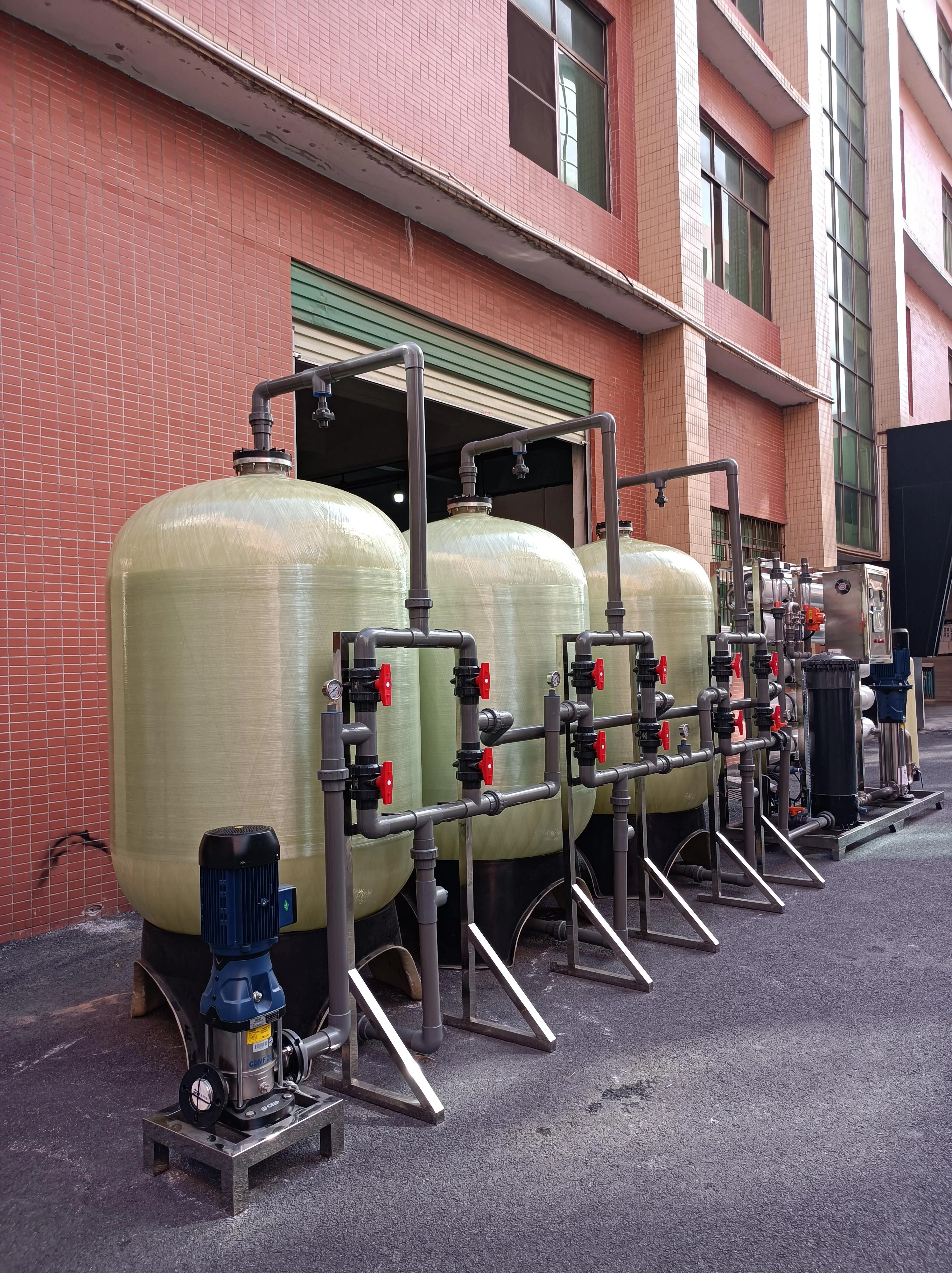

10000 L/hr Industrial Softening Desalinated Water Reverse Osmosis Ro Water System Plant For Textile Printing And Dyeing Process
- Category: >>>
- Supplier: Guangzhou Kaiyuan Water Treatment Equipment Co. Ltd.
Share on (1600425504663):
Product Overview
Description
Product Description
A.Description of reverse osmosis water treatment plant
Reverse osmosis (RO) can be described as the process of separating pure water from contaminants by means of a semi-permeable membrane with very fine pores. This method is a necessary technology used in most water purification systems. Reverse osmosis is considered to be a highly efficient method of removing impurities from water, such as lead and radium, mercury, chlorine, organic matter, turbidity and dissolved solids.
Reverse osmosis systems are widely used for water treatment, purification, pure and ultrapure water production for tap water, well water, ground water, drilling brine, brackish water and seawater. Application areas: food processing, bottled drinking water, household drinking water, power station, electronic industry, cosmetics production, etc.. It is the key equipment of pure water equipment and ultrapure water equipment.
Reverse osmosis (RO) can be described as the process of separating pure water from contaminants by means of a semi-permeable membrane with very fine pores. This method is a necessary technology used in most water purification systems. Reverse osmosis is considered to be a highly efficient method of removing impurities from water, such as lead and radium, mercury, chlorine, organic matter, turbidity and dissolved solids.
Reverse osmosis systems are widely used for water treatment, purification, pure and ultrapure water production for tap water, well water, ground water, drilling brine, brackish water and seawater. Application areas: food processing, bottled drinking water, household drinking water, power station, electronic industry, cosmetics production, etc.. It is the key equipment of pure water equipment and ultrapure water equipment.
Different water TDS(total dissolved solids) compare and Application | ||||||||
Application/Source Water | Bottled water, Sachet Water | Municipal Tap Water | Brackish water | Sea Water | ||||
TDS Range | 2-10ppm | 100-1000ppm | 2000-20,000ppm | 20,000-40,000ppm | ||||
Direct Drinking | Yes | Yes/No | No | No | ||||
Cooking, human consumption, washing | Yes | Yes | No | No | ||||
Irrigation, industry, animal drinking | Yes | Yes | No | No | ||||

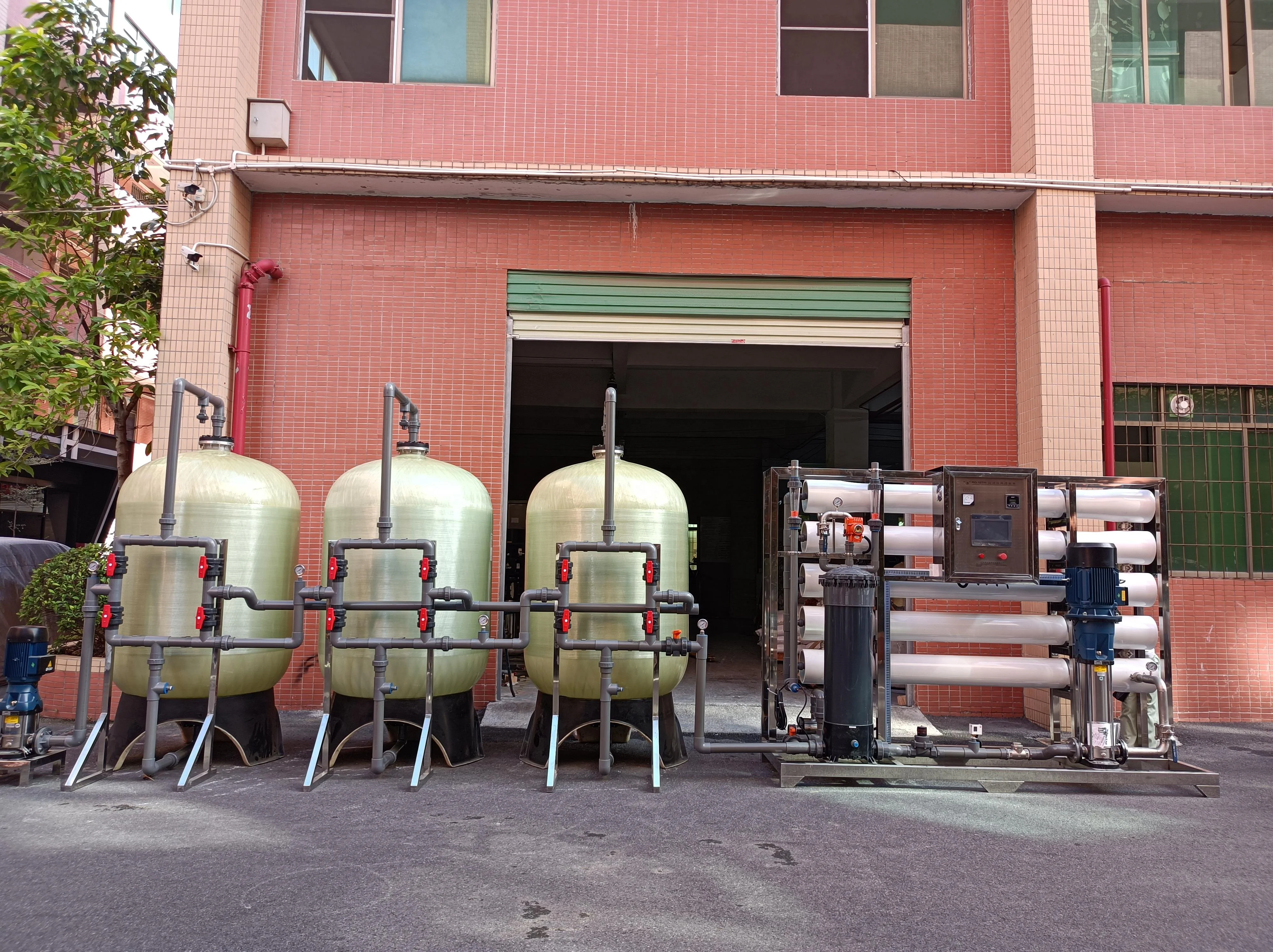

10000 L/hr Industrial Softening Desalinated Water Reverse Osmosis Ro Water System Plant For Textile Printing And Dyeing Process
B.Main Parameters of the Reverse Osmosis System
Model | KYRO-10000 |
Production capacity | 10000L/H |
Power | About 20kw |
Power supply | AC 380V/220V；50Hz /60hz |
Raw water pump | CNP, Hangzhou Nafang; SUS304 |
Quartz sand filter Manganese sand filter Activated carbon filter | FRP material ; Size : φ1200×2300 ; Media :1800kg FRP material ; Size : φ1200×2300 ; Media :1800kg FRP material ; Size : φ1200×2300 ; Media :550kg |
Antiscalant dosing device | Dosing pump; Dosing tank |
Security filter | 1μm/ 5μm pp filter cartridges |
High pressure pump | CNP, Hangzhou Nafang; SUS304 |
RO membrane | DOW Memebrane ; BW30-400IG;10pcs |
Membrane housing | FRP, 5pcs |
CIP cleaning pump | CNP, Hangzhou Nafang; SUS304 |
Desalination rate | 97% - 99% |
Recovery rate | 50%-70% |
Size (mm) | about 8000mm 1200mm 2300mm |
Material | FRP tank+SUS+PVC pipe |
Certificate | CE&ISO9001 |
Warranty | One year |

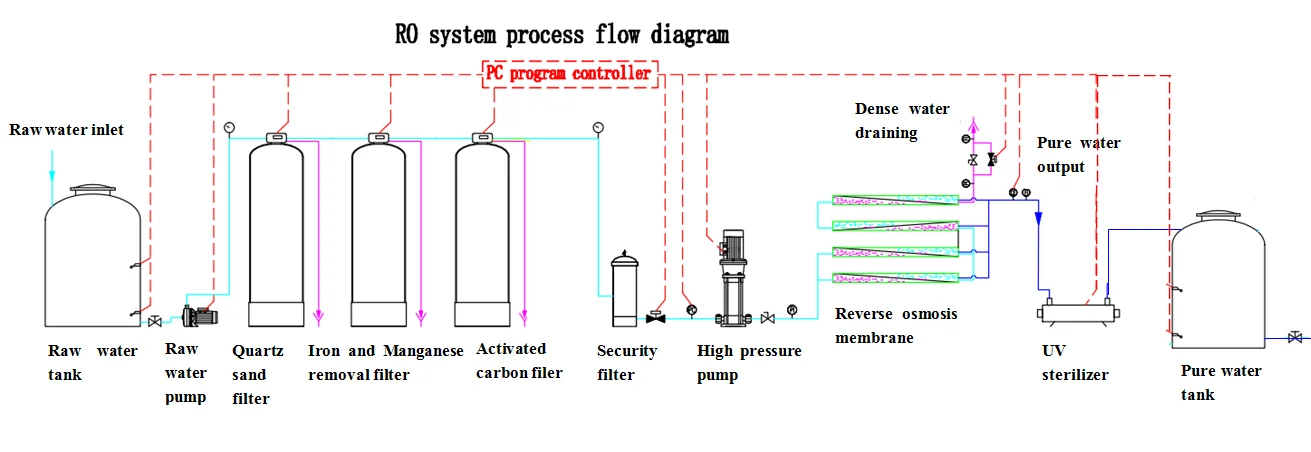

C.Working Process Chart:
Raw water pump→ Quartz Sand filter→Manganese sand filter →Activated carbon filter→ Anti-scale dosing system→Security filter → High pressure pump→Reverse osmosis system→UV sterilizer/ozone generator(optional →Pure water tank

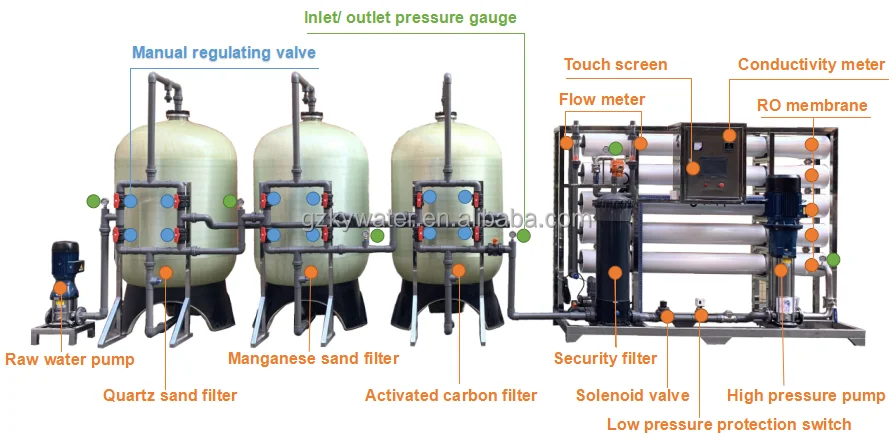

D.Every part of the reverse osmosis system
S/N. | Commodity name | Application | Remark |
1 | Raw water tank | Store water, buffering pressure, overcome instability of supplying water by pipe, ensure to supply water stably and continuously for whole system | Customer provide for themselves, because big size will result in expensive freight |
2 | Raw water pump or called booster pump | Provide needed pressure for every pretreatment filter | We can provide CNP pumps or Grundfos pumps |

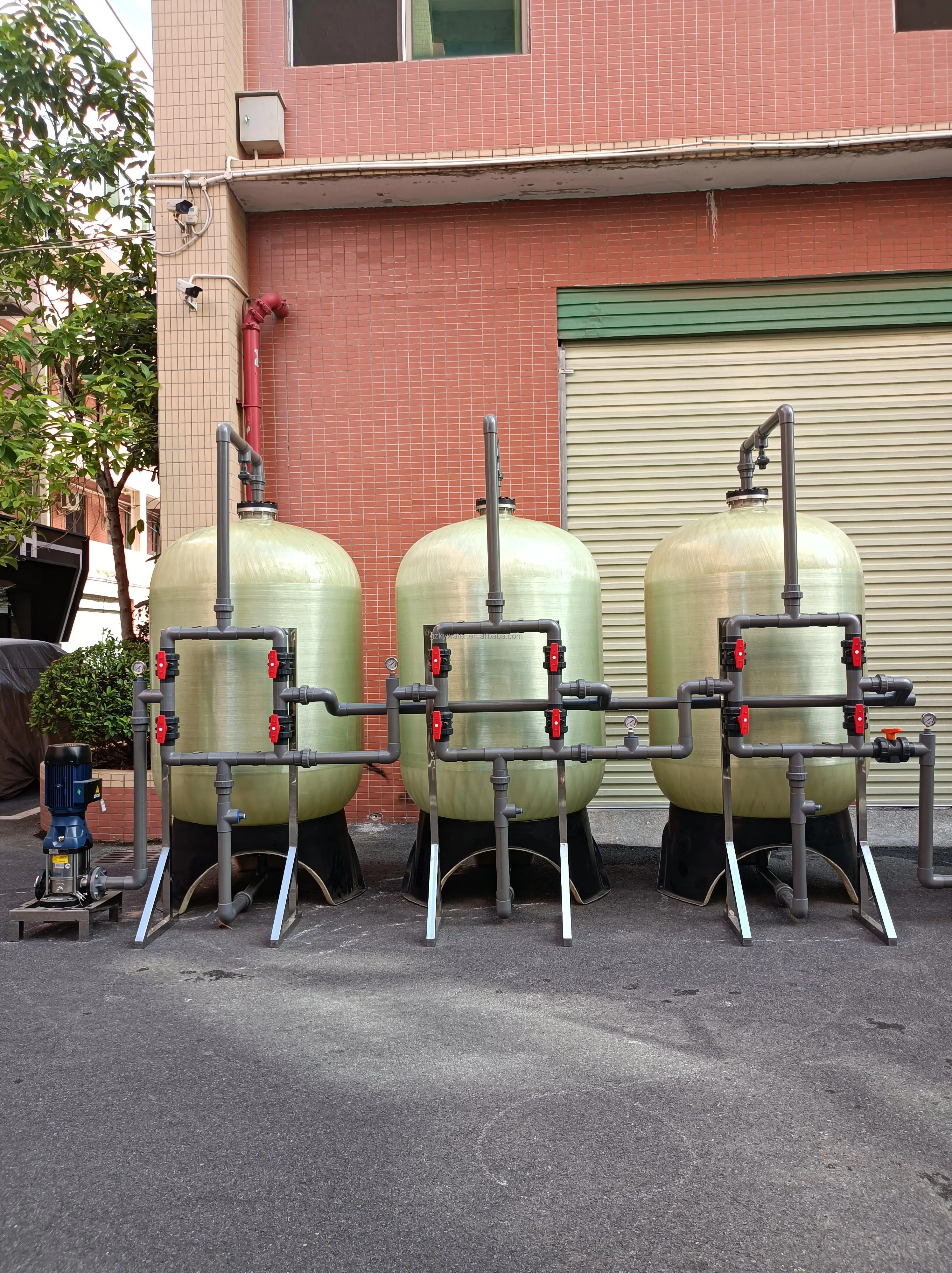

3 | Mechanical filter or called quartz sand filter or sand filter | We use fiber glass or stainless steel vessel as housing, fill quarts sand, it can filter big particles impurities, suspended substances, colloids etc. | We use China brand or WAVE CYBER brand |
4 | Manganese sand filter | fill manganese sand inside, it can iron(Fe2+), manganese(Mn2+) ion in water etc. | We use China brand or WAVE CYBER brand |
4 | Activated carbon filter | We use fiber glass or stainless steel vessel as housing, fill activated carbon, remove color, odor, residual,chlorine and organics substances. | We use China brand or WAVE CYBER brand |
5 | Antiscalant dosing system or PH regulating system | Dosing antiscalant into feed water, prevent the ro membranes from blocking, prolong the lifetime of RO membranes. Regulating PH to suitable range. | Italy SEKO dosing pump or German Prominent |
6 | Security filter or pp filter, or called PP sediment filter | Prevents large particles from entering the RO membrane with an accuracy of 5µm, | Stainless steel housing or PVC housing |
7 | High pressure pump | Provide needed working pressure for RO system, ensure production capacity of pure water. | CNP pump, Grundfos optional |

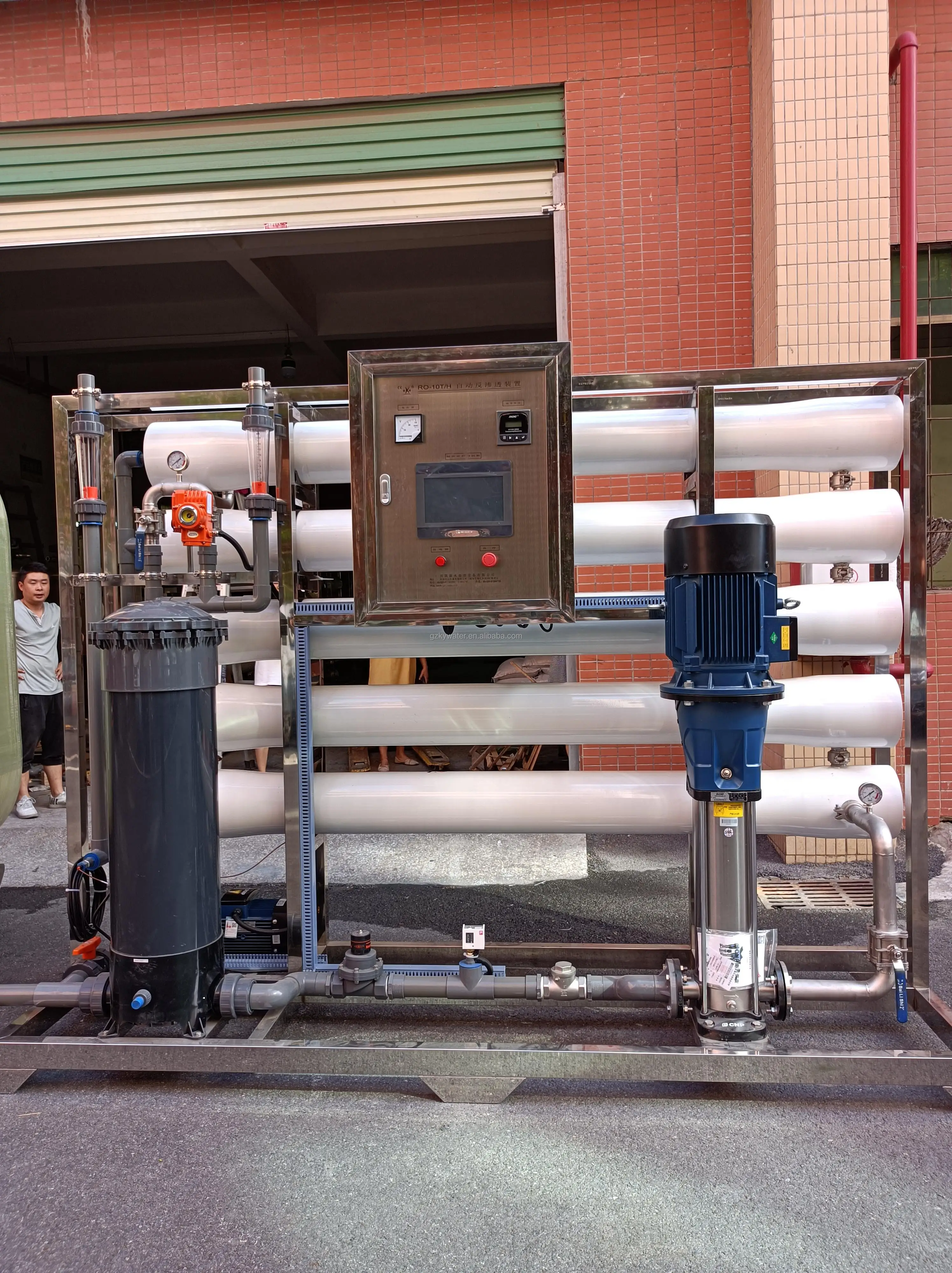

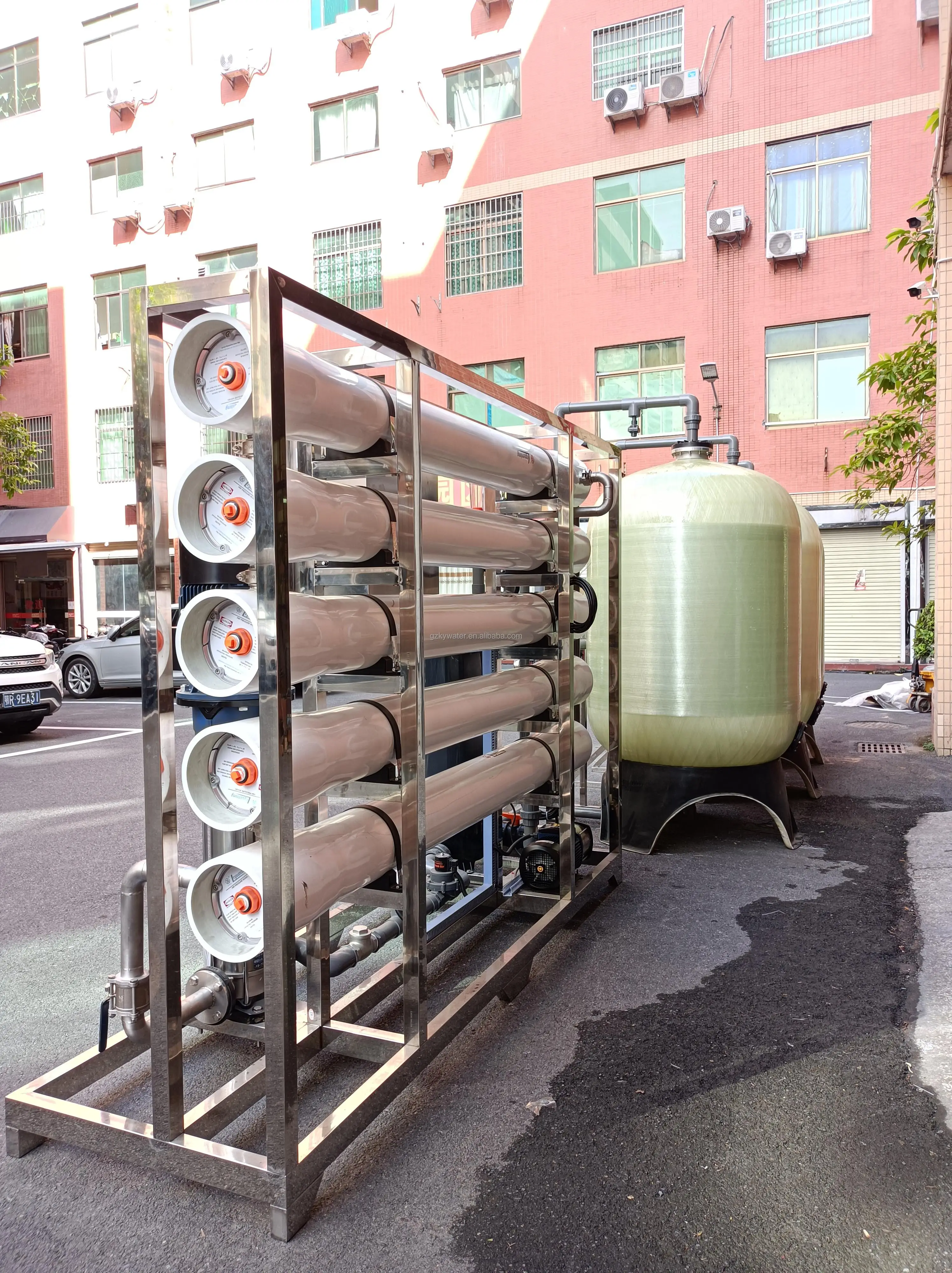

8 | RO(reverse osmosis) system | Removes particles, colloids, organic impurities, heavy metal ions, heat sources, etc. 99% of the dissolved salt. (Reverse osmosis membrane Filmtec, USA) | RO membranes USA Filmtec Dow; Domestic well-known brand VONTRON. |
9 | CIP cleaning system | Cleaning RO membranes with chemicals | CNP pumps |
10 | Sterilizing device | UV sterilizer or ozone generator | DAHUAN ozone , ClearUV UV Lamp |
Product Detail

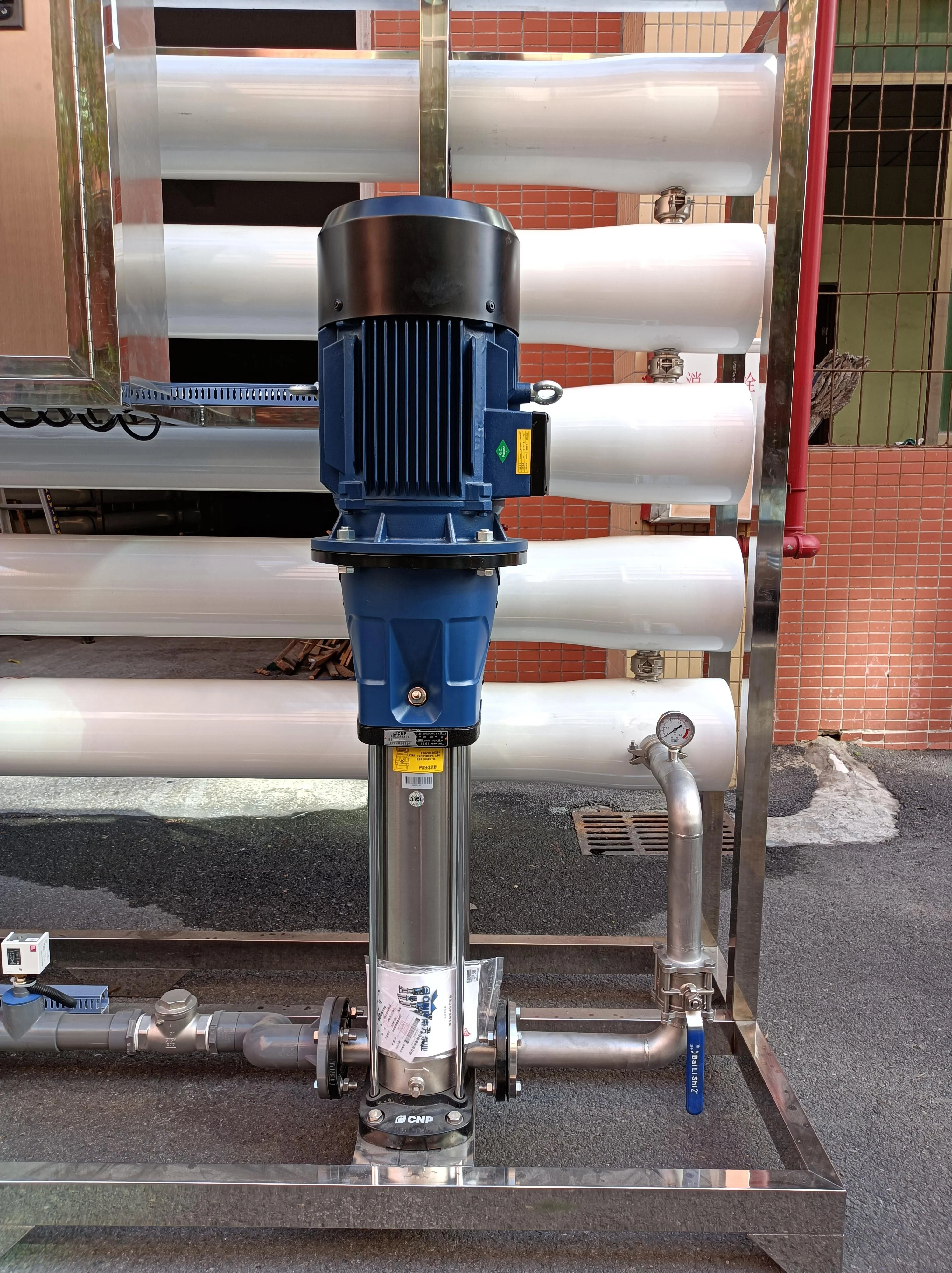

High pressure pump CNP pump, The famous pump brand in China.It is to provide the pressure for water into ro membrane.It is the improtant part in the system
How long the consumables should be replaced?
All the consumable replace period will be depend on the feed water quality.
PP filter cartridge
Advice Replacement time: every month
Quartz sand
Advice Replacement time: Every 15 - 18 months
Activated Carbon
Advice Replacement time: Every 15 - 18 months
Resin
Advice Replacement time: Every 15 - 18 months
RO membrane (LCLE4040)
Advice Replacement time:
Every 2 years
Every 2 years
UV lamp
Advice Replacement time:
9000 hours
9000 hours
