Product Overview
Description
Product Description
Pixels | 1280 (H)*800 (V) |
illumination | High brightness red light source / High brightness white light source |
Focusing | Green LED aiming |
Scan mode | Auto-sensing, external pulse mode, continuous scan mode, serial command mode |
Symbologies | 1D: UPC A , UPC E , EAN 8 , EAN 13 , Code 128 , Code 39 , Code 93 , Code 32 , Code11 , Codabar ,Plessey , MSI , Interleaved 2 of 5 ,IATA 2 of 5 , Matrix 2 of 5 , Straight 2 of 5 , Pharmacode , RSS-14 , RSS-14 Expanded , RSS-14 Limited ,Composite Code-A , Composite Code-B , Composite Code-C,etc. 2D: PDF 417 , Micro PDF 417 , Data Matrix , QR , Micro QR , Aztec , MaxiCode ,etc. |
Resolution | A65-SR: 1D : ≥4 mil ; 2D : ≥9 mil A65-HD: 1D : ≥3 mil ; 2D : ≥7 mil |
Typical Depth of Field | A65-SR: Code 39 (5mil) : 60 mm ~ 250 mm EAN-13 (13mil) : 50 mm ~400 mm QR Code (10 mil) : 35 mm ~ 130 mm A65-HD: Code 39 (3 mil) : 50 mm ~ 90 mm Data Matrix (10 mil) : 40 mm ~ 150 mm QR Code (7 mil) : 35 mm ~ 120 mm |
Field of View | Horizontal 46°, Vertical 29° |
Symbol Contrast | ≥20% (UPC/EAN 100% , PCS 90%) |
Dimensions | 36（W）* 43（D）* 24（H）(mm) |
Shell material | aluminum alloy |
Communication Transmission | RS232, USB (HID ; CDC), Ethernet (TCP / UDP / Modbus) |
Tip method | Buzzer, LED indicator |
Operating Voltage | 5-36 VDC |
Sealing | IP65 |
Current@5VDC | Operating current :300 mA ±5% (typical), 450 mA±5%(maximum) |
Standby current | 100 mA ±5% |
External Inputs | 1 opto-couple isolated input (NPN / PNG / relay) |
External output | 2 way photocouple isolated output (Good ; NG) |
Operating Temperature | -20℃~+50℃ |
Storage Temperature | -40℃~+70℃ |
Humidity | 5% to 95% (non-condensing) |
Static Protection | ±20 kV (air discharge), ±8 kV (direct discharge) |
Drop height protection level | IP65 |
International Certification | CE EN55022 , FCC Part 15 Class B , CE EMC Class B |
Warranty | 1 Year |

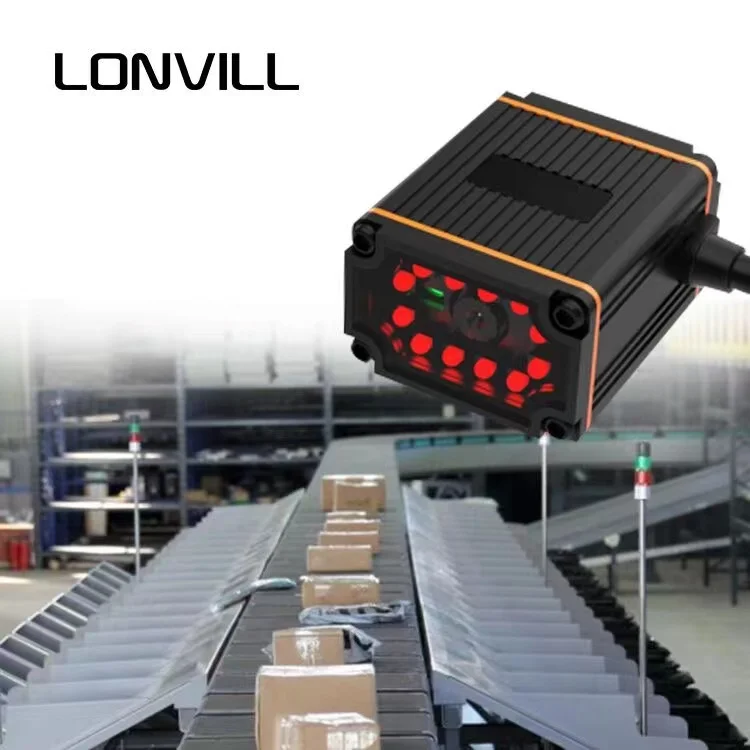

This A65 industrial fixed scanner can be applied to most industrial environments, has excellent performance in scanning direct part mark (DPM) code, which is equipped with intelligent light source debugging function to meet the general scene as well as industrial production line different materials (such as reflective), form (curved), background and barcode color of all kinds of complex scanning needs.
Megapixel
It is equipped with 1280*800 pixel C-MOS sensor, which can easily recognize various bar codes, including all international 1D bar codes and PDF 417 , Micro PDF417 , Data Matrix , QR , Micro QR , Aztec , MaxiCode, etc.
It is equipped with 1280*800 pixel C-MOS sensor, which can easily recognize various bar codes, including all international 1D bar codes and PDF 417 , Micro PDF417 , Data Matrix , QR , Micro QR , Aztec , MaxiCode, etc.

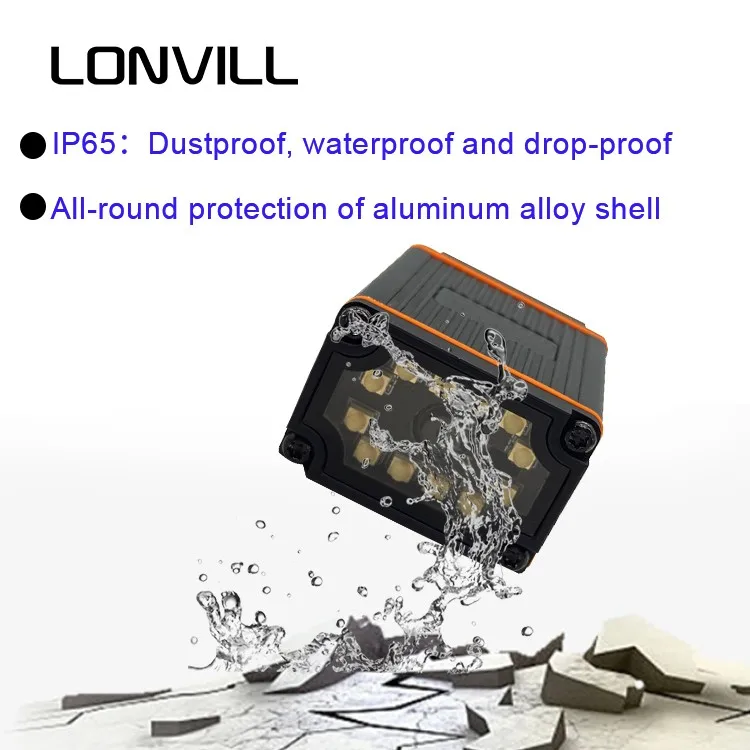

High Specification Industrial IP 65 Protection
Has an aluminum housing,waterproof, dustproof and drop-proof, all-round protection for the scanning head and prolonging the life of the device. It works well for a long time even in wet or dusty working environment.Application
