Excellent torque High Power Maxon dia 40mm brushless servo motor for drone
- Category: >>>
- Supplier: Shanghai Mindong Mechanism Electron Co. Ltd.
Share on (1600425560005):
Product Overview
Description
Products Description

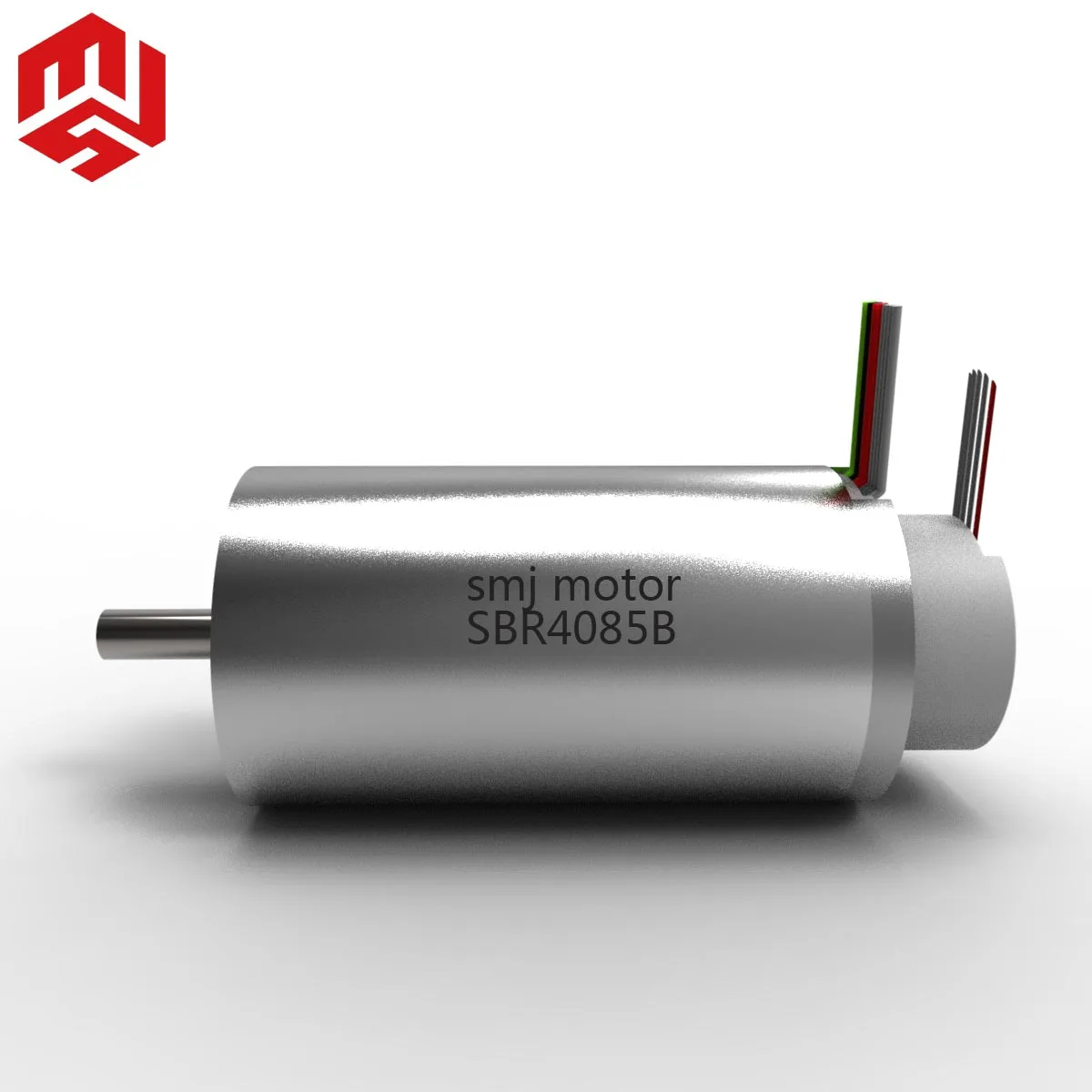

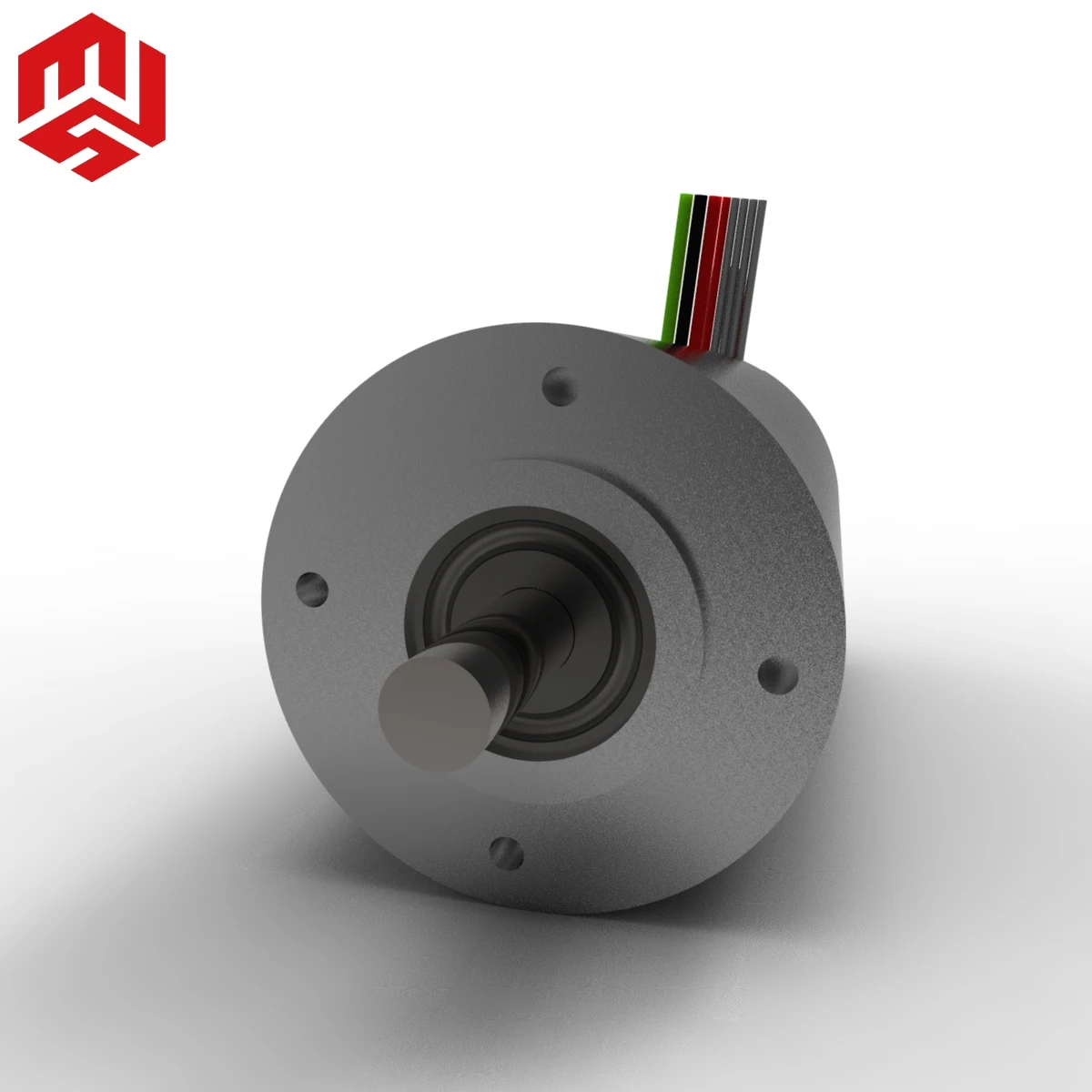

Part number SBR408548B Ø40 mm, brushless Servo motor, 86.8 Watt, with Hall sensors and Encoder
Motor model | SBR408548B | ||
Nominal voltage | V | V | 48 |
No load speed | rpm | Wnl | 3500 |
No load current | mA | InI | ＜100 |
Nominal speed | rpm | Wc | 2800 |
Nominal torque | mNm | Tc | 296 |
Nominal current | A | Ic | 2.38 |
Output power | W | Pc | 86.8 |
Stall torque | mNm | Tmax | 1623.9 |
Stall current | A | Imax | 12.5 |
Max. efficiency | % | ηmax | 76 |
Terminal resistance | Ω | Rt | 3.84 |
Torque constant | mNm / A | Kt | 129.91 |
Speed constant | rpm / V | Kn | 73.5 |
Speed torque gradient | rpm / mNm | Δn / ΔT | 9.5 |
Optional Gearbox P42H
