Automatic Gate Opener Electric Lock
US $110.00-$156.00

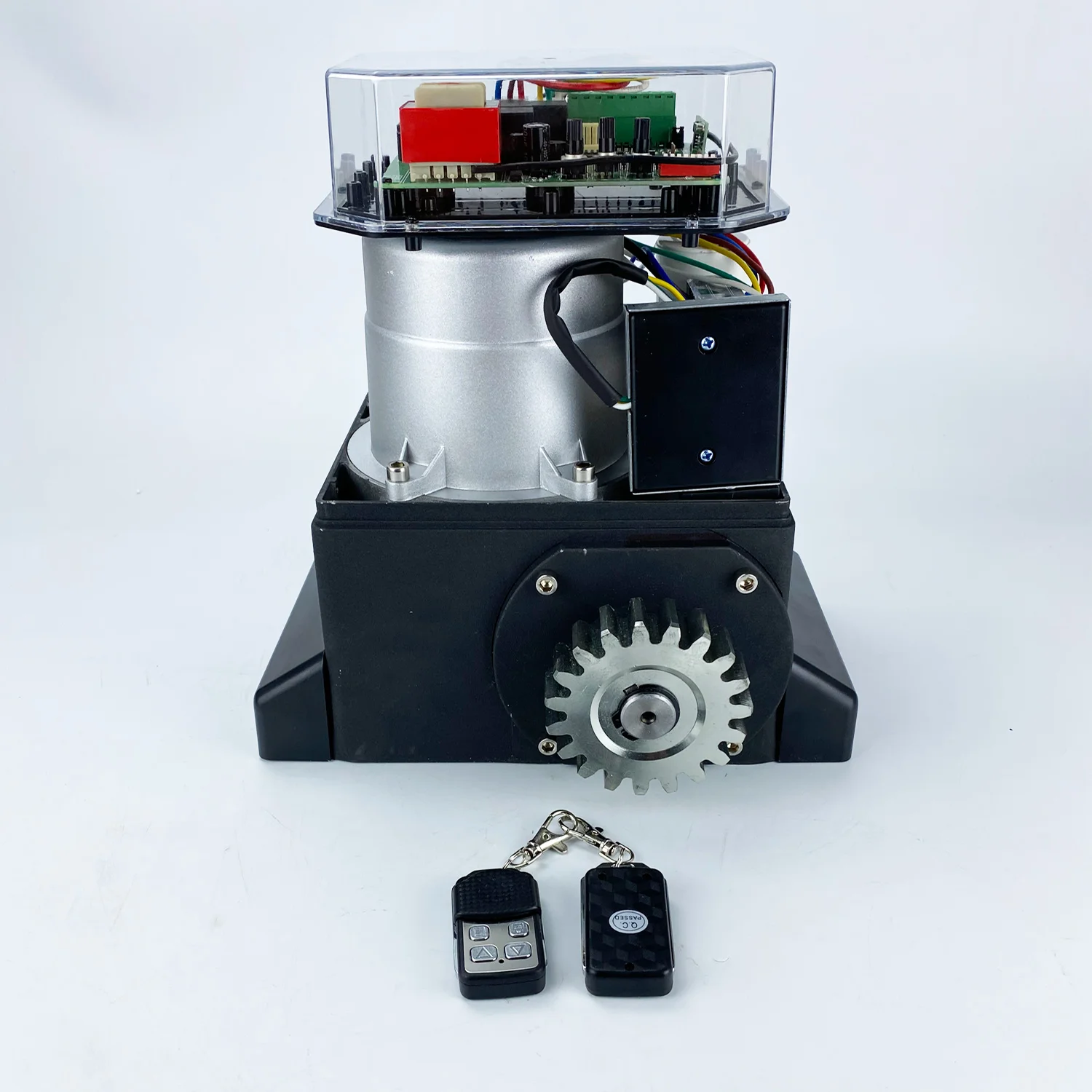

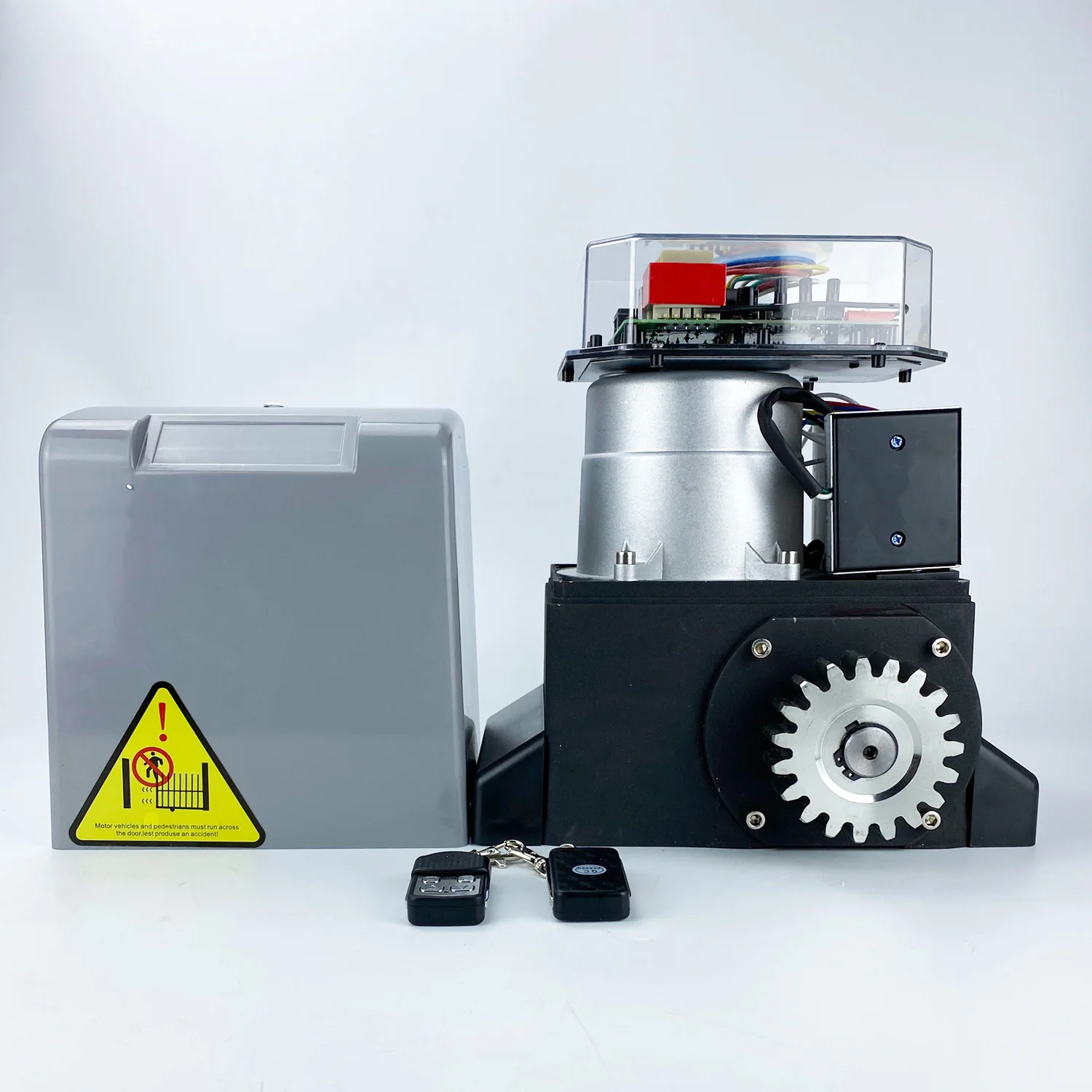

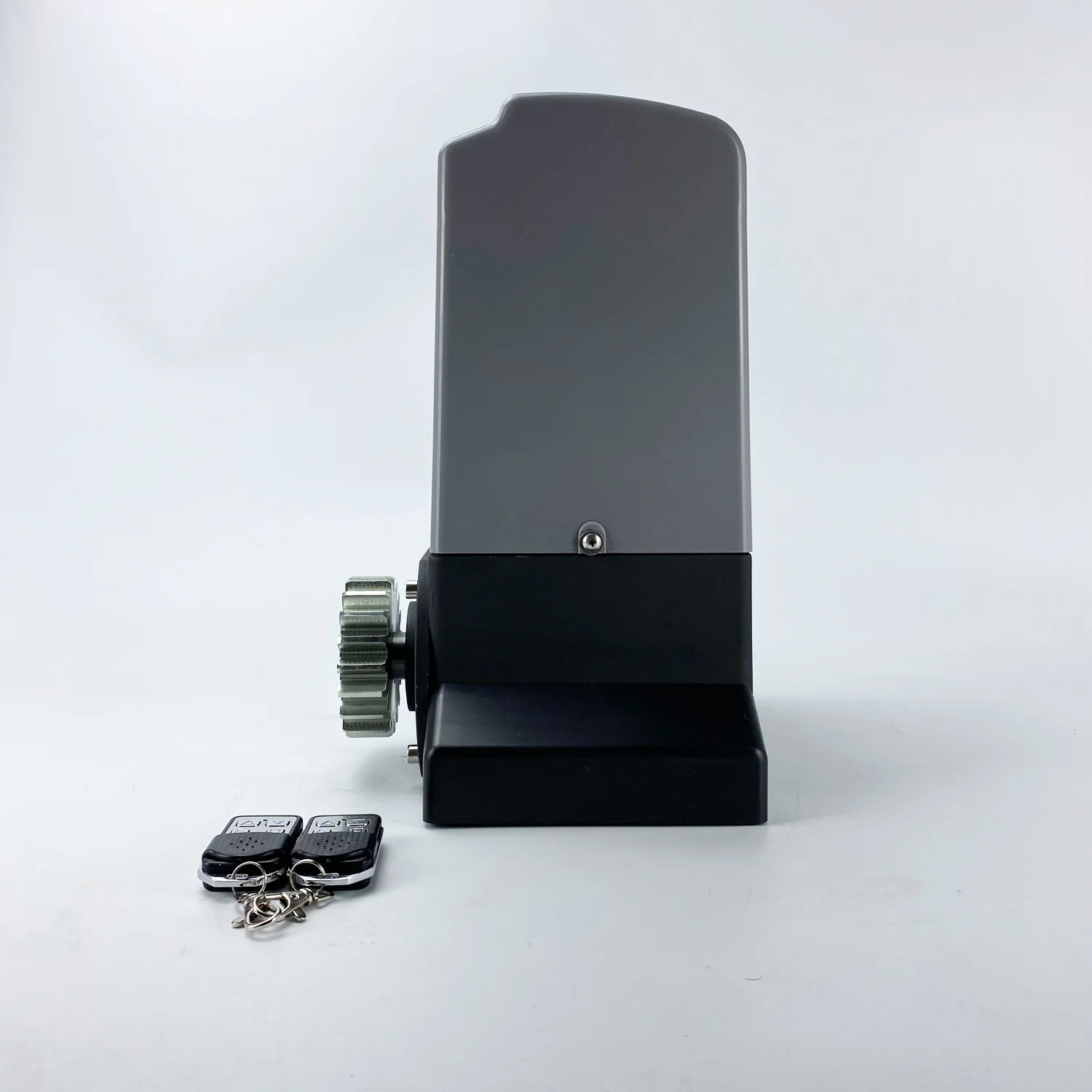

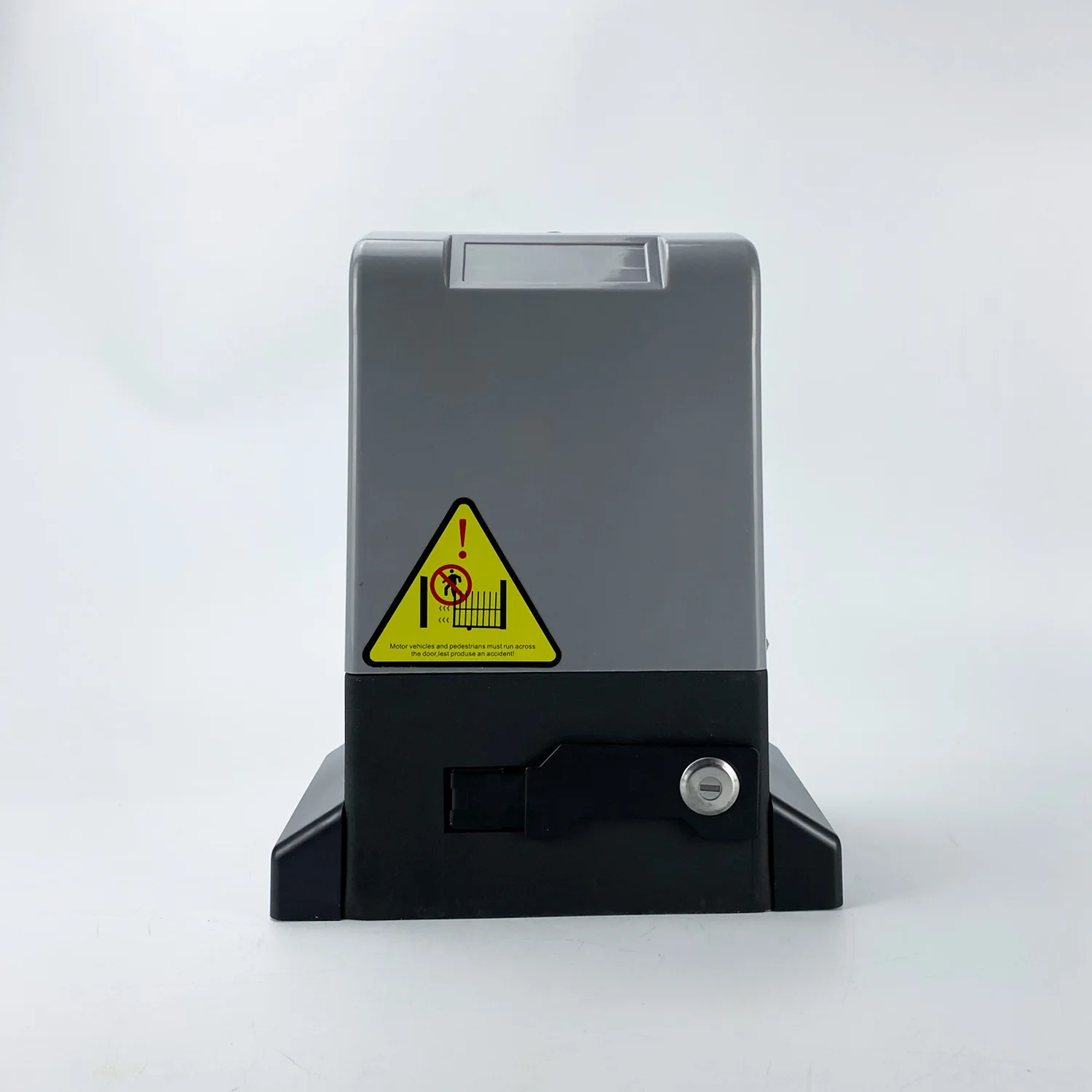

AAYEE Hot Sale Factory Direct Autogate Automatic Gates Auto Gate openers Ac Sliding Motor Motors With 100% Safety
- Category: Automatic Door Operators >>>
- Supplier: Hangzhou Aayee Techonology Co. Ltd.
Share on (1600425589219):
Product Overview
Description
Products Description
Aayee AC sliding door motor could be bear 600 to 2000kg gate, and integrate seven advanced features:
1. User-friendliness: Only two wires can connect up to 7 groups of external devices such as infrared beams, controller buttons and safety devices.
2. Practicality: The battery position and interface are reserved in the motor, and the battery (optional) can be easily installed and connected to the controller.
3. Advanced: equipped with advanced temperature sensor, so that the motor can adapt to various climatic conditions and overheat protection at the same temperature.
The master/auxiliary mode can be selected to achieve full synchronization of the two motors. This means that 2 motors can be used to make a double-leaf sliding door.
4. Intelligence: It has the function of obstacle detection and automatic setting of working hours. If there is a fault, it can conduct self-diagnosis and report an error through the indicator light.
5. Security: The soft start and soft stop function of each operation can be adjusted.
6. Sturdiness: Die-cast motor base and clutch device, easy to open clutch handle.
7. Quiet: geared motor for bearing.
1. User-friendliness: Only two wires can connect up to 7 groups of external devices such as infrared beams, controller buttons and safety devices.
2. Practicality: The battery position and interface are reserved in the motor, and the battery (optional) can be easily installed and connected to the controller.
3. Advanced: equipped with advanced temperature sensor, so that the motor can adapt to various climatic conditions and overheat protection at the same temperature.
The master/auxiliary mode can be selected to achieve full synchronization of the two motors. This means that 2 motors can be used to make a double-leaf sliding door.
4. Intelligence: It has the function of obstacle detection and automatic setting of working hours. If there is a fault, it can conduct self-diagnosis and report an error through the indicator light.
5. Security: The soft start and soft stop function of each operation can be adjusted.
6. Sturdiness: Die-cast motor base and clutch device, easy to open clutch handle.
7. Quiet: geared motor for bearing.
Product Name | AC sliding gate opener |
Specifications | G6 |
Power Supply | 220V/50Hz;110V/60Hz |
Power of Motor | 370W |
Output torque | 20Nm |
Operating Speed | 12m/min |
Maximum Gate length | 20m |
Shipping Mass of Unit | 12.4kg |
Maximum Gate Mass | 600kgs |
Details Images

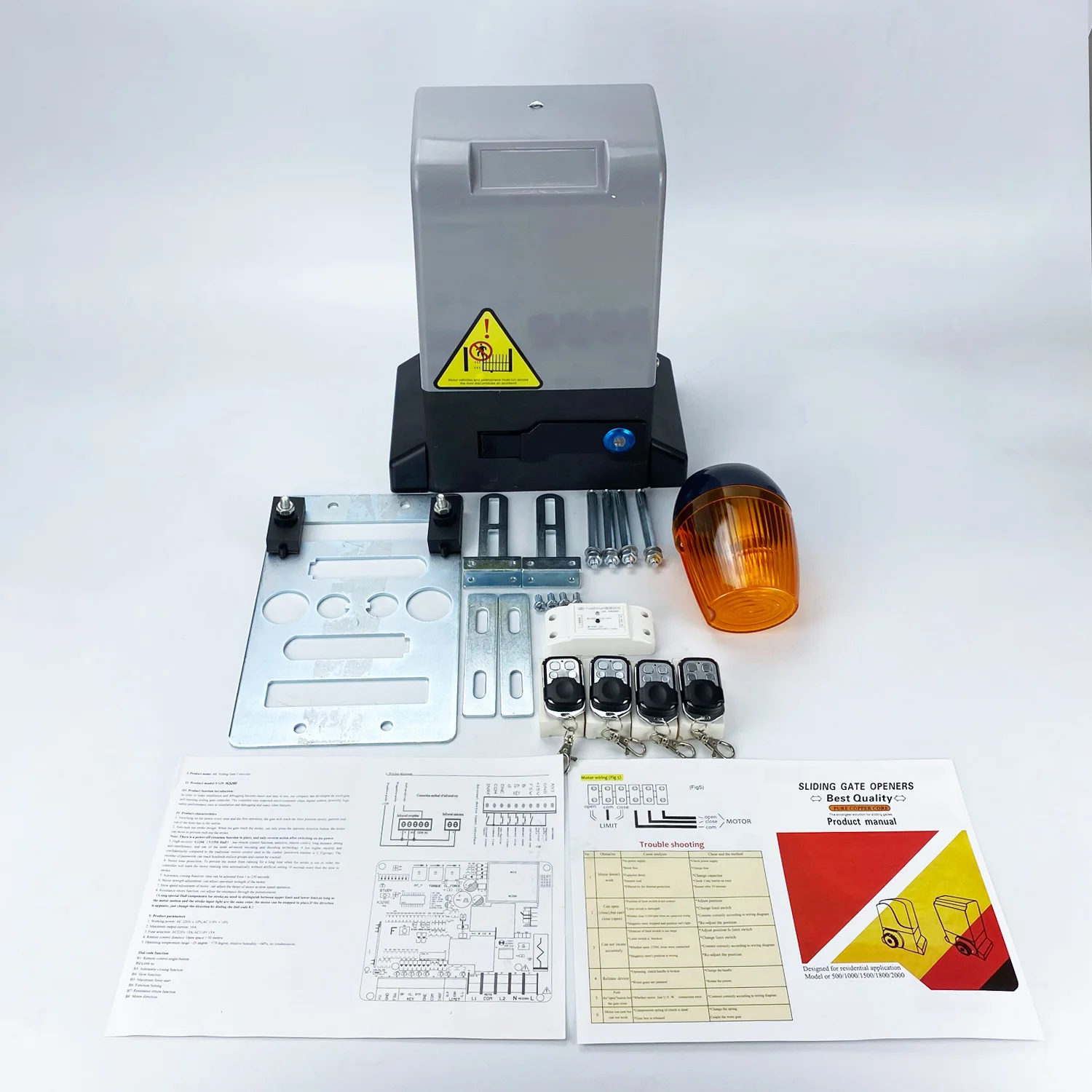

Accessories
Parts List
1.Install backplane*1
2.Bracket*1
3.Expansion screw*4
4.Screw*4
5.Gasket*2
6.Magnet*2
7.Remote control*2
8.Clutch key*2
Optional accessories
Flash lamp Remote control Photocell Gear rack
Wifi controller
This WIFI smart switch controller could be directly connected to the power circuit, use APP to add devices and connect to your
WIFI router, so as to achieve networking and remote control without adding a host.
Anytime, anywhere, mobile phone remote intelligent control , to create your smart life.
WIFI router, so as to achieve networking and remote control without adding a host.
Anytime, anywhere, mobile phone remote intelligent control , to create your smart life.
Sliding Gate Opener Carton Package
Packaging Details: Standard Exporting Packing
Measurement of carton box: 32*25*39 cm
Measurement of accessories carton box :30*20*12cm
Weight :12.4KG
Measurement of carton box: 32*25*39 cm
Measurement of accessories carton box :30*20*12cm
Weight :12.4KG
Similar Products
Contact

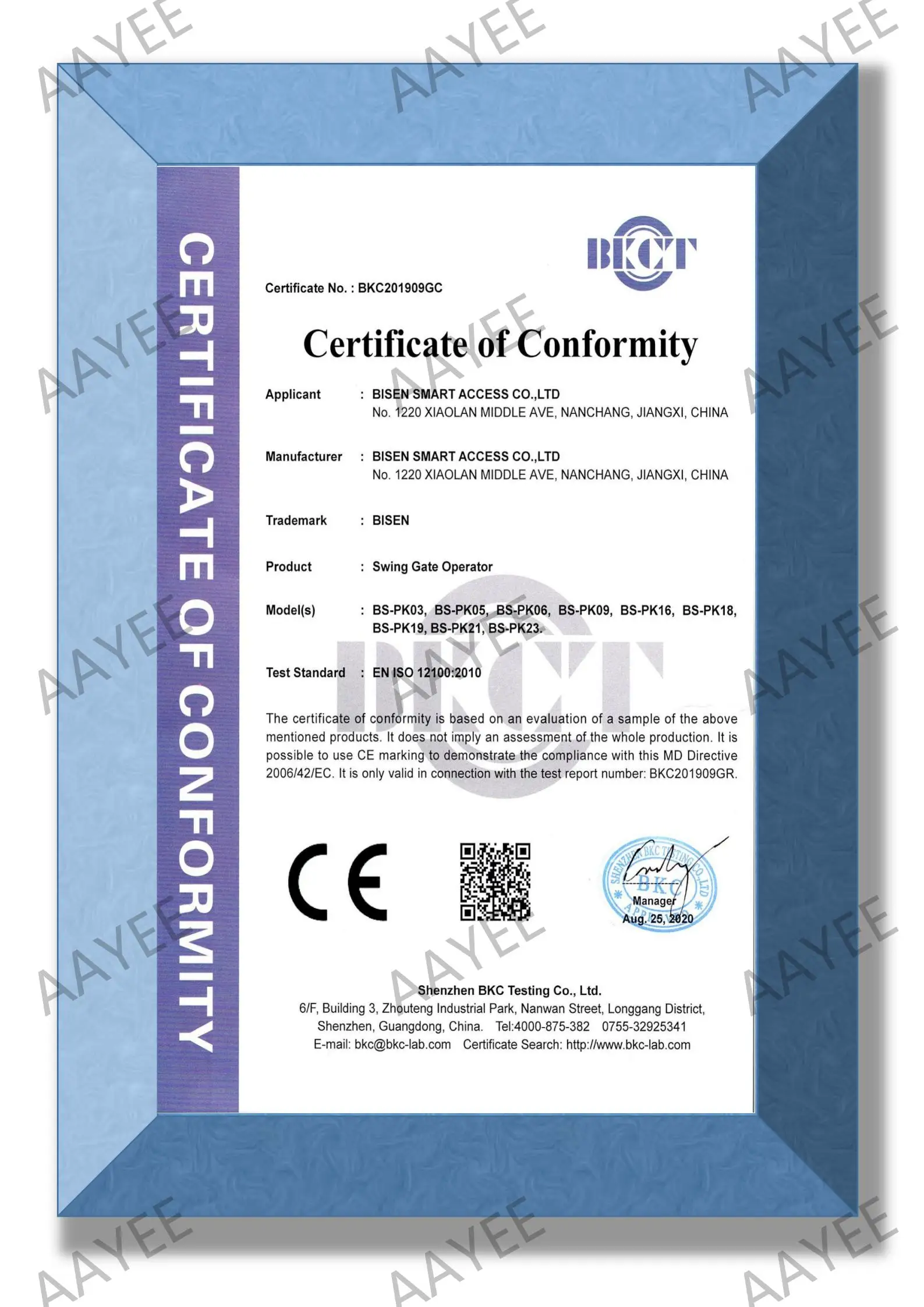

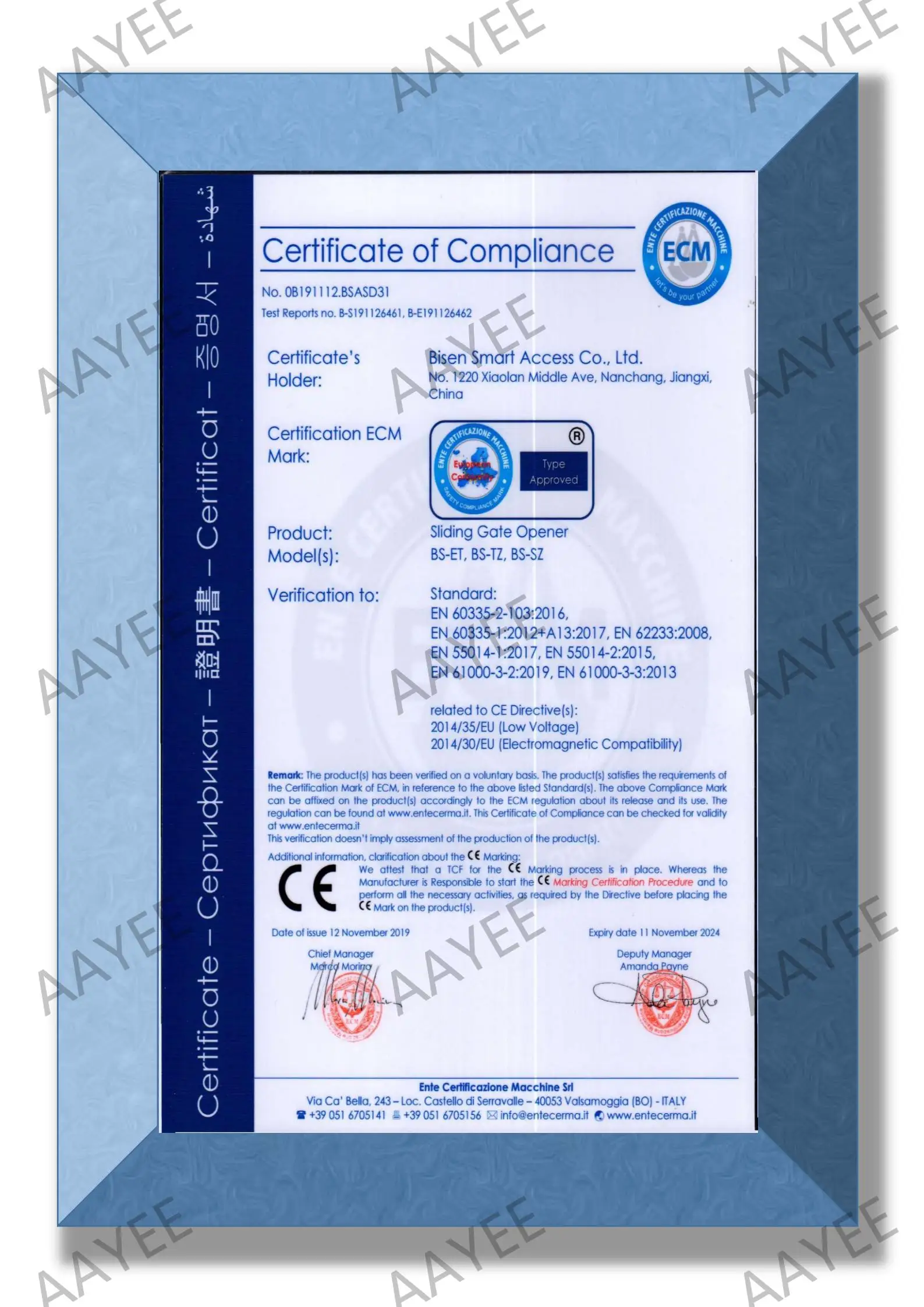

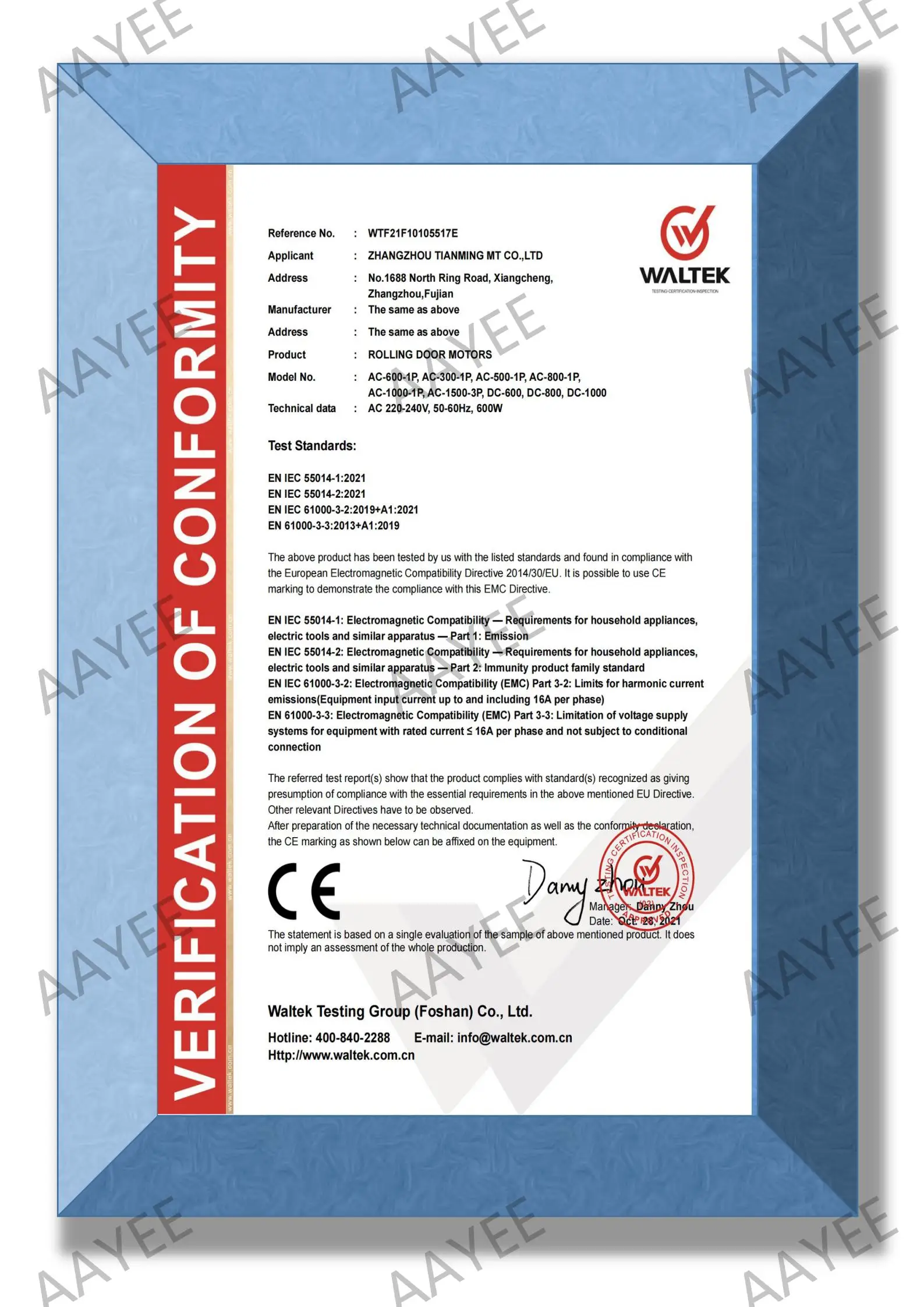

Certifications
