Product Overview
Description

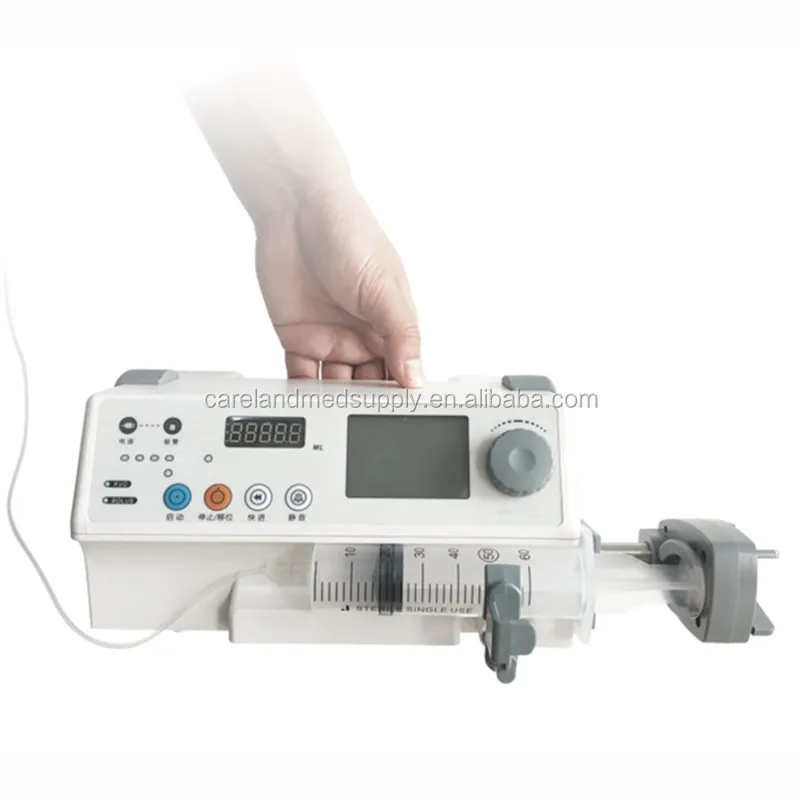

SP-2000 Best Selling CE approved Single-channel Stackable Syringe Pump for CCU ICU
The syringe pump is high-precision and intelligent. It is suitable for clinical treatment
that needs long-time and high precision injection and supervision of injection process.
It can be widely used in traditional intravenous, anesthetic, anticoagulant injection,
chemotherapy for patients. It also applies to ICU and CCU etc.
Connect to DC power
Connect to Nursing Calling System
Features :
1.With drug library and 2000 records.
2.Freely Stackable: Users can freely stack one syringe pump onto another to provide multiple Solutions, which have a wide range of clinical applications.
3.Transfer the message between the Nurse-call System and the pumps.
4.Three working modes: rate mode, time-volume mode, dosage-weight mode.
5.Unique Human Voice Alarm system and accurate injection rate make the injection process safer and more reliable.
6.Have store many brands syringes ,Automatically calibration and compatible with any brand syringes.

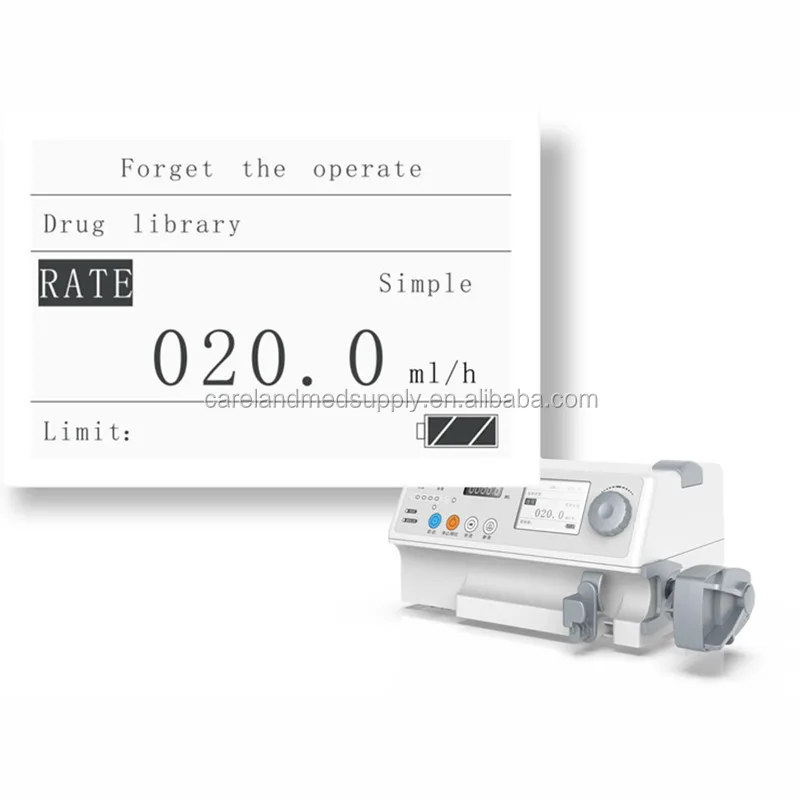

7.Large LCD screen displays working status.
8.KVO and Bolus functions.
Specification:
Unique Human Voice Alarm system | The device triggered the human voice prompt and stop injection automatically when there is any malfunction, making the infusion process safer and more reliable. |
Special function | With drug library |
Rate: | 50/60ml Syringe: 0.1ml/h~999.9ml/h (0.1ml/h step) |
Flow Rate Accuracy: | Within ±3% (after correct calibration) |
Mechanical precision: | Within ±2% |
Bolus Rate: | 50/60ml Syringe: 1,200ml/h |
Purge Rate: | 50/60ml Syringe: 1,500ml/h |
Volume Limit: | 0.1ml~999.9ml |
Total Injection | 0.1ml~9999.9ml (0.1ml step) |
Occlusion: | High: 800mmHg ±200mmHg (106.7kPa±26.7kPa |
Alarms: | Injection soon finish, end of injection,occlusion, improperly installation of syringe, wrong setting, low battery, syringe loose etc. |
Power Source: | AC 100V~240V, 50/60Hz; Internal rechargeable Li battery, capacity≥1,600mAh, 4 hours internal battery backup |
KVO rate: | 1ml/h |
Fuse: | F1AL/250/60V, 2pcs inside |
Power Consumption: | 30VA |
IP Classification: | IPX4 |
Equipment Classification: | Class I, internal power supply, Type CF |
Operating Condition: | Ambient temperature: +5°C~+40°C; |
Relative humidity: | 20~90% |
Transport & Storage Condition: | Ambient temperature: -30°C~+55°C |
Relative humidity: | ≤95% |
Dimension: | 280mm (L) × 210mm (W) × 130mm (H) |
Weight: | 2.2kg (net weight) |
Package Size:
I piece/polybag/foam/carton.
carton ,3.2kg;35cm(L)*28cm(w)*17cm(H)
Warranty:
This equipment will be enjoyed 2 year warranty according to the international standard .We will responsible for repairing it or replace the related accessories free of charge .
For further information ,Please contact us ,we will be more than happy to fully assist with you in any project and tender.
