Tiandy Starlight TC H358M 5MP 44X Smart IR Camera IR Face Capture Aew PTZ Camera built in speaker
- Category: >>>
- Supplier: Nanjing Quanxi Electronic Technology Co. Ltd.
Share on (1600425745925):
Product Overview
Description

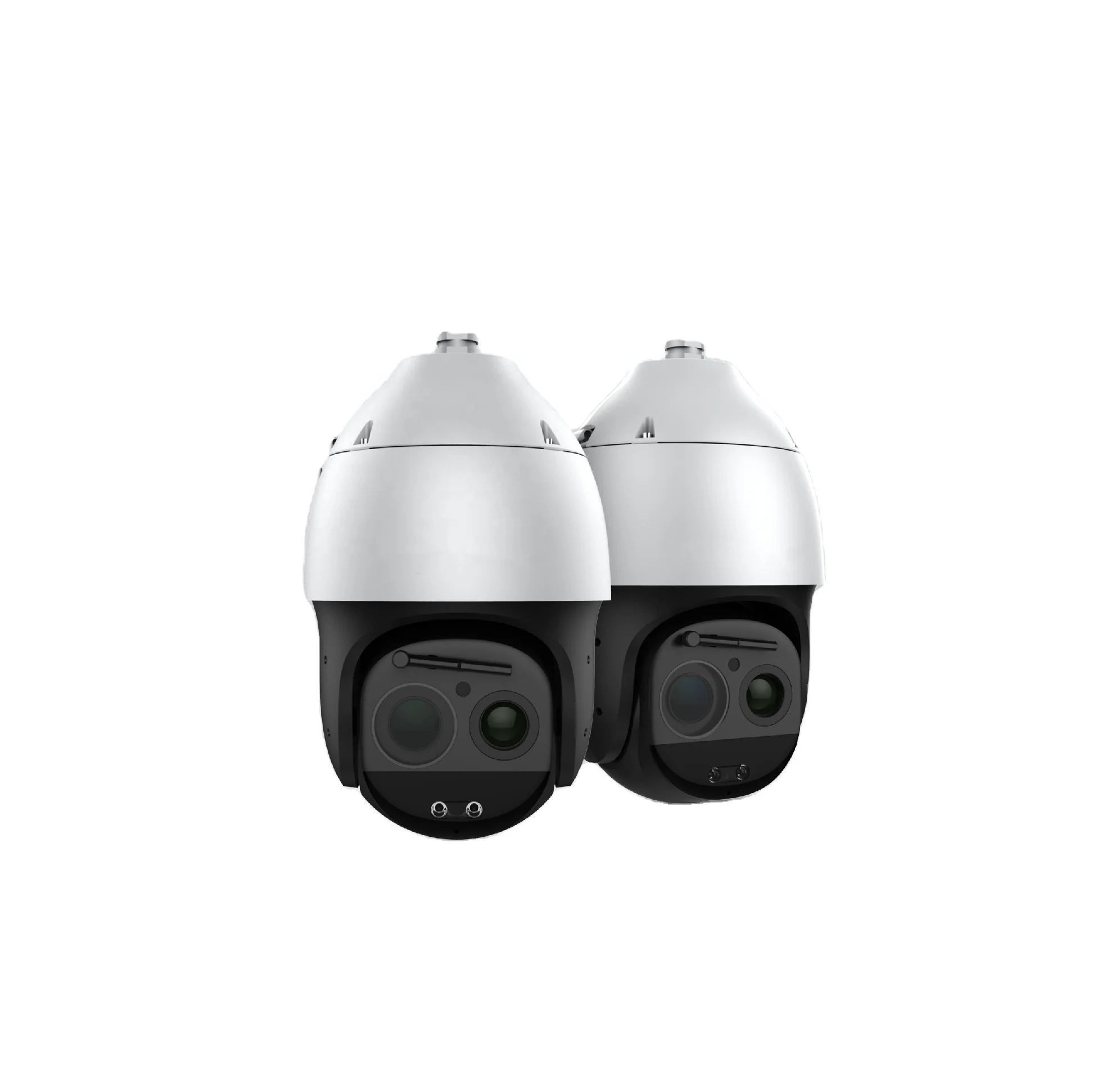

Tiandy Starlight TC-H358M 5MP 44X Smart IR Camera IR Face Capture Aew PTZ Camera built-in speaker
Product Description
• Support PAL/NTSC system switching, with good regional applicability • Support close-up channel 3D positioning and panoramic
channel 3D positioning functions, which can realize click tracking and zooming• Support auto flip • Support power down memory, timing restart • Horizontal 360° continuous rotation, manual control speed:
0.1～160°/s, preset position accuracy 0.5° • Vertical rotation angle -16°～90°, manual control speed: 0.1～120°/s •
Support key
control limit, proportional zoom function • Support intelligent analysis • The panoramic channel keeps track of the moving target
that triggers the event in the set area within the set tracking time. And can manually switch the tracking target during the
tracking process, and proceed within the set tracking time • IP66, TVS four-level lightning protection, anti-surge, anti-surge
control limit, proportional zoom function • Support intelligent analysis • The panoramic channel keeps track of the moving target
that triggers the event in the set area within the set tracking time. And can manually switch the tracking target during the
tracking process, and proceed within the set tracking time • IP66, TVS four-level lightning protection, anti-surge, anti-surge
Camera | ||
Image Sensor | 1/1.8" CMOS | |
Signal System | PAL/NTSC | |
Min. Illumination | Color: 0.001lux@ (F1.6, ACG ON), BW: 0lux with IR | |
Shutter Time | 1s to 1/100,000s | |
Day & Night | Dual IR Cut Filter with Auto Switch | |
Wide Dynamic Range | 140dB | |
Optical Zoom | 44X | |
Digital Zoom | 16X | |
Lens | ||
Focal Length | 6mm~264mm | |
Zoom Speed | <5s | |
Angle of View | Horizontal filed of view: 61.8° (w)~2.3° (t) Vertical filed of view: 36.3° (w)~1.3° (t) | |
Aperture Range | F1.6~F5.3 | |
Pan&Tilt | ||
Pan Range | 360° | |
Pan Speed | Pan Manual Speed: 0.1°~200°/s, Pan Preset Speed: 108°/s | |
Tilt Range | -21°~90° (Auto flip) | |
Tilt Speed | Tilt Manual Speed: 0.1°~120°/s, Tilt Preset Speed: 128°/s | |
3D Position | Yes | |
Presets | 500 | |
Preset Accuracy | ±0.1° | |
Scan | 8 | |
Cruise | 16, up to 32 presets per cruise | |
Pattern | 8, each with 600s memory or 1000 orders | |
Power-off Memory | Yes | |
RS-485 Protocols | DOME_PELCO_D ， DOME_PELCO_P ， DOME_PLUS | |
Illuminator | ||
IR LEDs | 11 | |
IR Range | Up to 300m | |
IR Irradiation Angle | Adjustable by Zoom | |
White LEDs | 2, support white/blue/red light flash | |
Laser | yes | |
Laser Distance | Up to 800m | |
Compression Standard | ||
Video Compression | S+265/H.265/H.264/M-JPEG | |
Video Bit Rate | 32Kbps~16Mbps | |
Audio Compression | G.711A/G.711U/ADPCM_D/AAC_LC | |
Audio Bit Rate | 8K～ 48Kbps | |
Image | ||
Max. Resolution | 5.0MP (3072×1728 | |
Main Stream | PAL: 25fps (3072×1728), 50fps (2560×1440, 2304×1296, 1920x1080, 1280x720) | |
NTSC: 30fps (3072×1728), 60fps (2560×1440, 2304×1296, 1920x1080, 1280x720) | ||
Sub Stream | PAL: 25fps (704×576, 704×288, 640×360, 352×288) | |
NTSC: 30fps (704×480, 704×240, 640×360, 352×240) | ||
Image Setting | PAL:25fps (1920×1080, 1280×720, 704×576, 640×480, 704×288, 352×288) | |
NTSC: 30fps (1920×1080, 1280×720, 704×480, 640×480, 704×240, 352×240) | ||
Image Setting | Saturation, brightness, contrast, sharpness, adjustable by client software or web browse | |
Image Enhancement | BLC/3D DNR/HLC | |
ROI | 7 Dynamic Areas for Both Main and Sub Stream, support auto-tracking ROI | |
OSD | 16×16, 24×24,32×32, 48×48, 64×64, 96×96, 128×128, adaptable size, Letters such as Week, Date, Time, Total 5 Regions | |
Picture Overlay | Yes | |
Privacy Mask | Yes | |
Smart Defog | Yes | |
Feature | ||
Alarm Trigger | Harsh Voice Alarm, Motion Detection, Mask Alarm, Network Disable Alarm, IP Conflict, MAC Conflict Detection | |
Video Analytics | Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running, Parking, Heatmap, Video Abnormal, Crowd, Audio Abnormal, Demographics(People Counting), On Duty Detection, Safety Helmet Detection, Auto tracking, Face Capture, Early Warning | |
Early Warning(EW) | Yes | |
Auto-Tracking | Yes | |
Face Detection and Analytics | ||
Operating Mode | Face capture, intelligent monitoring optional, default intelligent monitoring | |
Face Detection Performance | Detects up to 32 faces at the same scene | |
Face Exposure Brightness | Default 35, 1~100 brightness optional | |
Min. Face Pixel | Default 80, 19~1920 optional | |
Precautionary Alert | Three level | |
Network | ||
Protocols | TCP/UDP/HTTP/MULTICAST/UPnP/DHCP/PPPoE/DDNS/NFS/FTP/NTP/RTP/RTSP/IPv6/SNMP/ SMTP/RTMP | |
System Compatibility | ONVIF (PROFILE S/T/G), SDK, CGI, P2P | |
ANR | Auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection (Only Support Tiandy ANR NVR) | |
Remote Connection Client | 7 | |
Client | Easy7, EasyLive | |
Web Version | web6 | |
Interface | ||
Communication Interface | 2 RJ45 100M/1000M self adaptive Ethernet ports | |
Audio | 1/1 | |
Alarm | 8/2 | |
Speaker | yes | |
Reset Button | yes | |
On-board storage | Built-in Micro SD card slot, up to 256 GB | |
RS-485 | yes | |
BNC | yes | |
Wiper | Yes, automatic wiper | |
Electronic Compass | yes | |
GPS/BDS | yes | |
General | ||
Firmware Version | - | |
Web Client Language | 15 languages Simple Chinese, Traditional Chinese, English, Spanish, Korean, Italian, Turkish, Russian, Thai, French, Polish, Dutch, Hebraism, Arabic, Vietnamese | |
Operating Conditions | -40°C~70°C (IR OFF), -40°C~40°C (IR ON), 0-95%RH | |
Power Supply | AC24V±25%， DC24V±10% | |
Power Consumption | 30W (IR OFF), 73.44W (IR ON ) | |
Protection | IP66, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017 | |
Heater | N/A | |
Dimensions | Φ445x700mm (Φ308x506 inch) | |
Weight | 11.61kg (25.60lb) | |
Best selling Body fever detection imaging IR thermal cctv camera
Packing&Shipping
one piece in one box
2/ We support the goods to you by sea, air or express. B/L copy tracking No and C/O are available after shipping.
Company Introduction
Nanjing Quanxi Electronic Technology Co., Ltd is a agency of Security equipments with well-equipped testing facilities and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in security and other industries.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in security and other industries.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
FAQ
Q1:When will you ship my order?
Ordinary, once we get confirmation for payment,we will ship order within 5-7 days.
Q2:How is your after-sale service?
One engineers work more than ten years we will respond your technical support within 24 hours.
Q3:Why should I choose your products?
Our products are high quality and low price.
Q4:How about warranty?
Three years warranty.
Ordinary, once we get confirmation for payment,we will ship order within 5-7 days.
Q2:How is your after-sale service?
One engineers work more than ten years we will respond your technical support within 24 hours.
Q3:Why should I choose your products?
Our products are high quality and low price.
Q4:How about warranty?
Three years warranty.
