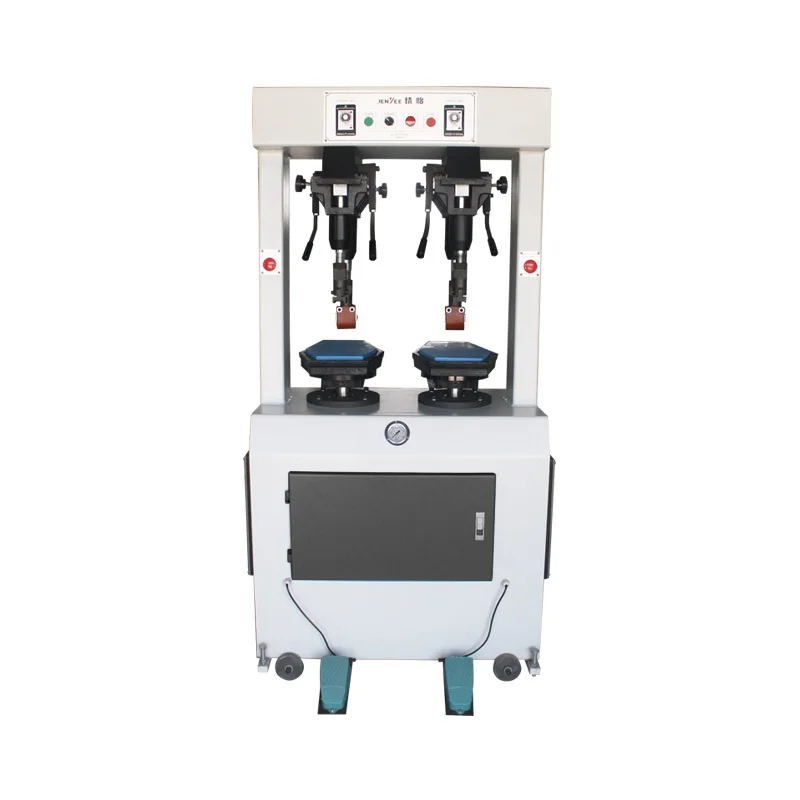

JY986 flat sole laminating machine is suitable for all kinds of male and female shoe soles
- Category: >>>
- Supplier: Shenzhen Gude Automation Equipment Co. Ltd.
Share on (1600425757514):
Product Overview
Description
Product Details

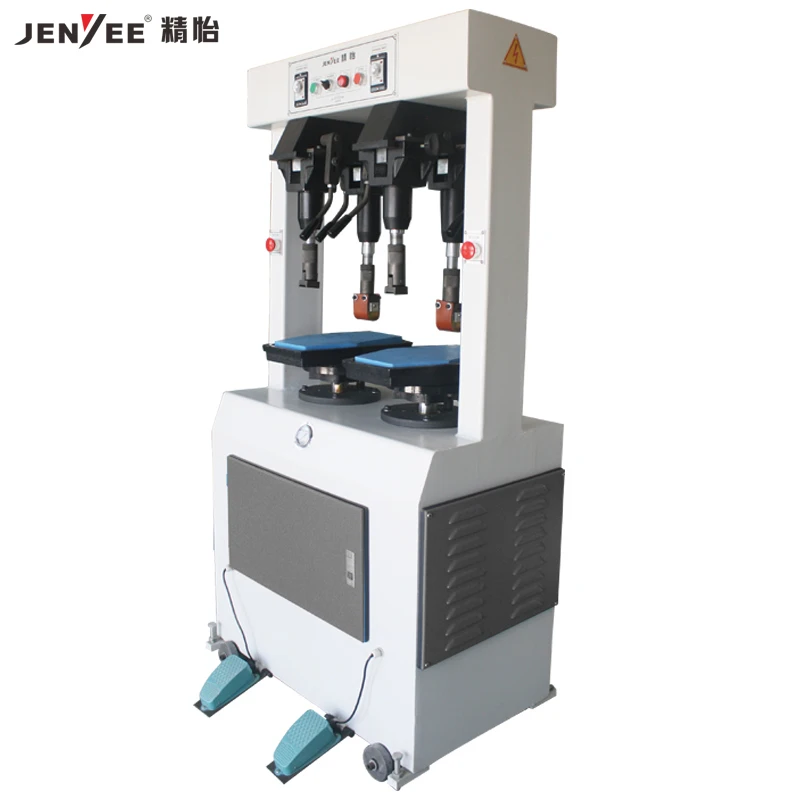

This machine is designed for various of non-piping flat shoes, easy to use.Unique gantry structure combined with design of full oil pressure system achieves heavy output,secures firm adhesion and even pressing performance.
Brand Name: | JENYEE | Dimension(L*W*H): | 850*500*1750mm |
Power(W): | 1.5KW | Voltage: | 380V |
Weight: | 500KG | Type: | Hydraulic system |
Application: | Sole Attaching Machine | Applicable: | all kinds of shoes |
Production Capacity: | 2500pairs/8hr | Warranty: | 1 Year |
Products Description

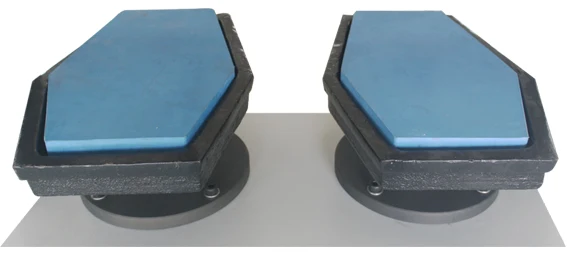

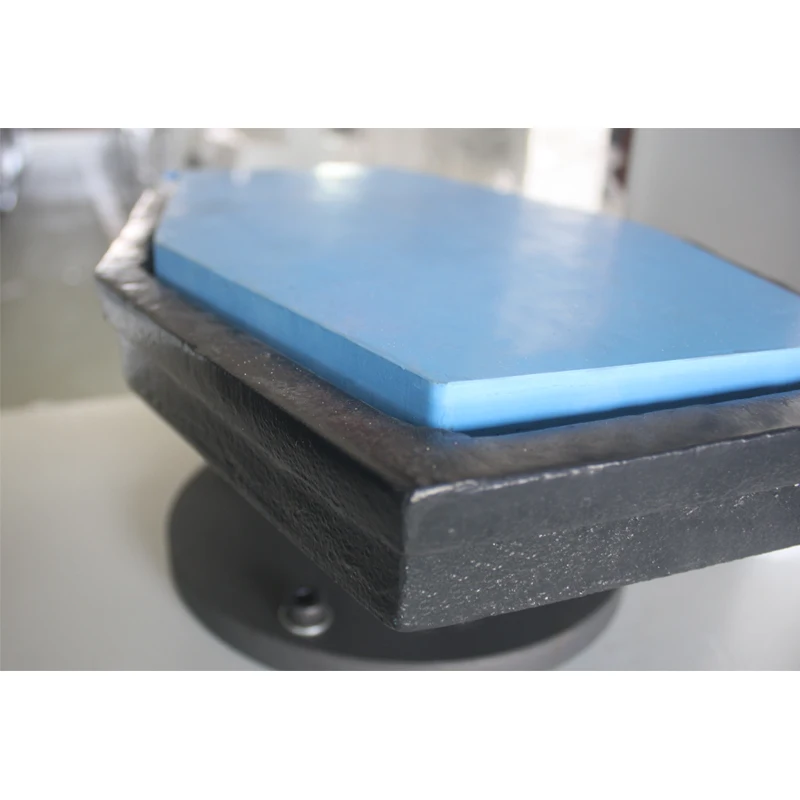

Large seat
Put shoes on the large seat, then turn on switch, there will be a upward strength

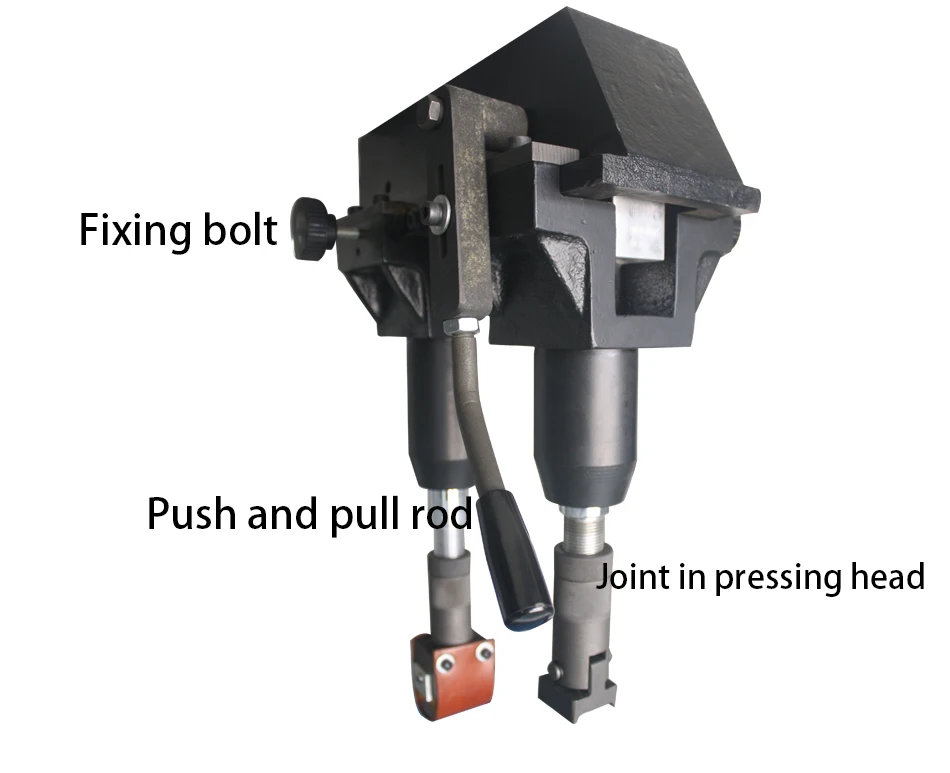

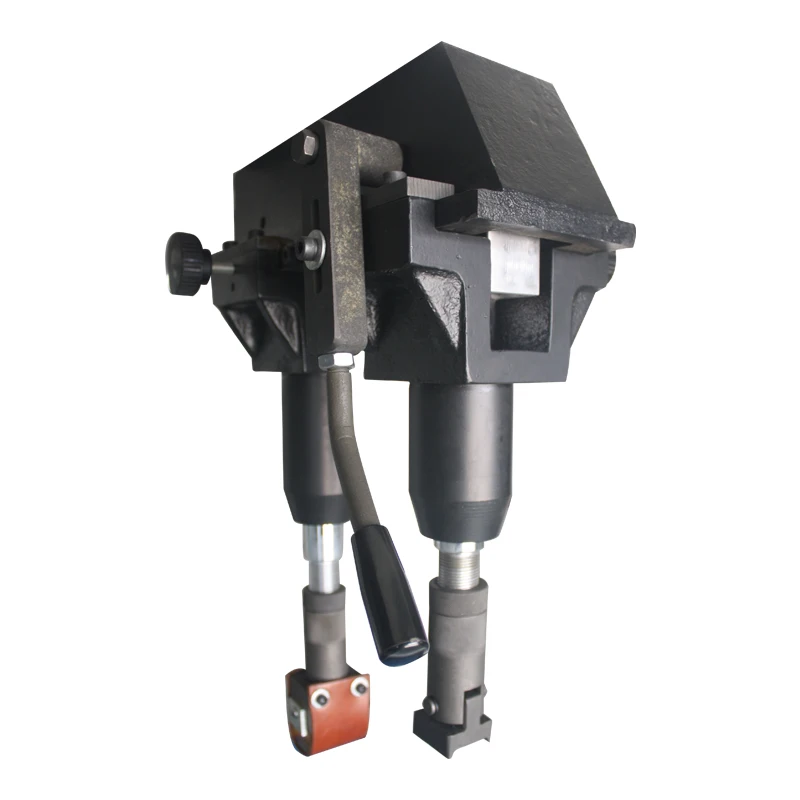

Seat of pressing rod
Push and pull the rod to adjust pressing head’s forward and backward.Screw the pressing rod to adjust pressing head’s height

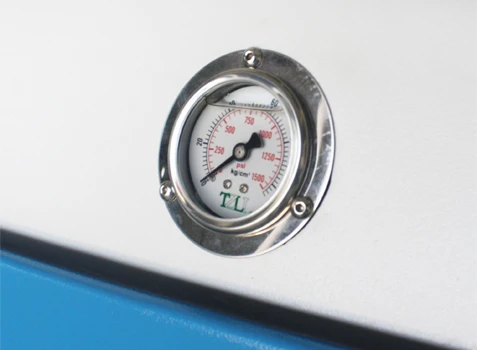

Oil meter & adjusting valve
High quality oil meter is introduced, which indicates system pressure value directly and clearly, and makes commissioning and repairing convenient.
Front placed pressure regulation design simplified pressure adjustment for side part and secondary pressure. High quality adjusting valve is introduced, which makes flow control more precise.

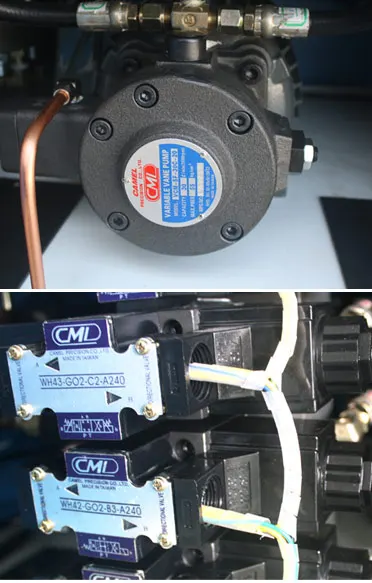

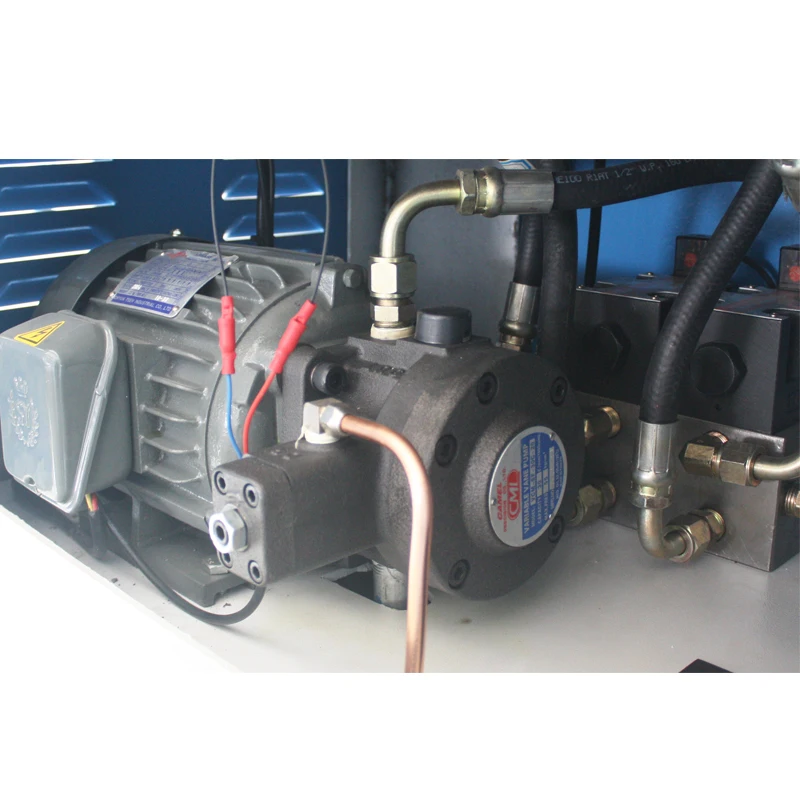

Oil system
Devices of Taiwan brands are introduced ,CML oil pump, motor, offer big horsepower with low noise.Valve of Taiwan brand are introduced CML hydraulic magnetic valve adjusting system Offer more precise control over circuit and oil flow.
Product Application
Brief operating proc
Brief operating procedures of sole attaching machine
1.Power cable should be connected on socket meet ECC standards with magnetic switch of 380v.
2.Please fill 90-100 litters of 68# or 46# hydraulic oil into oil tank.
3.switch on main power, then turn on pump switch, then select mode, then adjust pressing time.
4.Put the shoe last in the large seat properly, then adjust relevant component properly.
5.To adjust distance between front and rear rod, adjusting distance between top and bottom part of the rear pressing head by screwing the rod.
6.Step the pedal switch or press the two green button at the same time to start the machine for pressing operation.
2.Please fill 90-100 litters of 68# or 46# hydraulic oil into oil tank.
3.switch on main power, then turn on pump switch, then select mode, then adjust pressing time.
4.Put the shoe last in the large seat properly, then adjust relevant component properly.
5.To adjust distance between front and rear rod, adjusting distance between top and bottom part of the rear pressing head by screwing the rod.
6.Step the pedal switch or press the two green button at the same time to start the machine for pressing operation.
Company Profile
Company Information

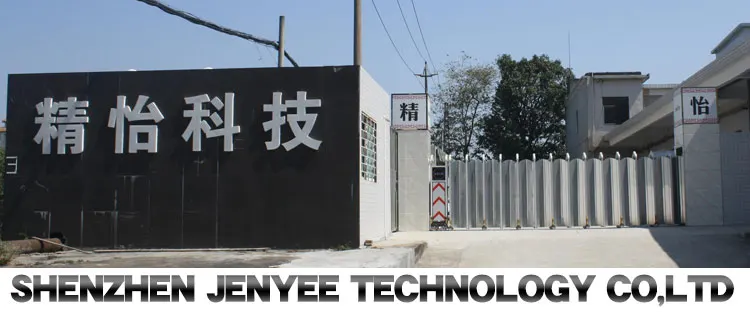

Shenzhen JENYEE Technology Co.,Ltd was established in 1997 .At Jingyi, who always persist in notion of based on science and technology development, never forget to offer his own endeavor for industrial development of the Chinese nation. Along with years of hard investigation, the company now has grown into a comprehensive enterprise whose business as a integration including design and development, manufacture, sales and service. The company been awarded with tittles of The National high Technology Enterprise,The Shenzhen City high Technology Enterprise, and The Drafting Unit og National Standard of shoe industry in 2017.
Certifications
Exhibition

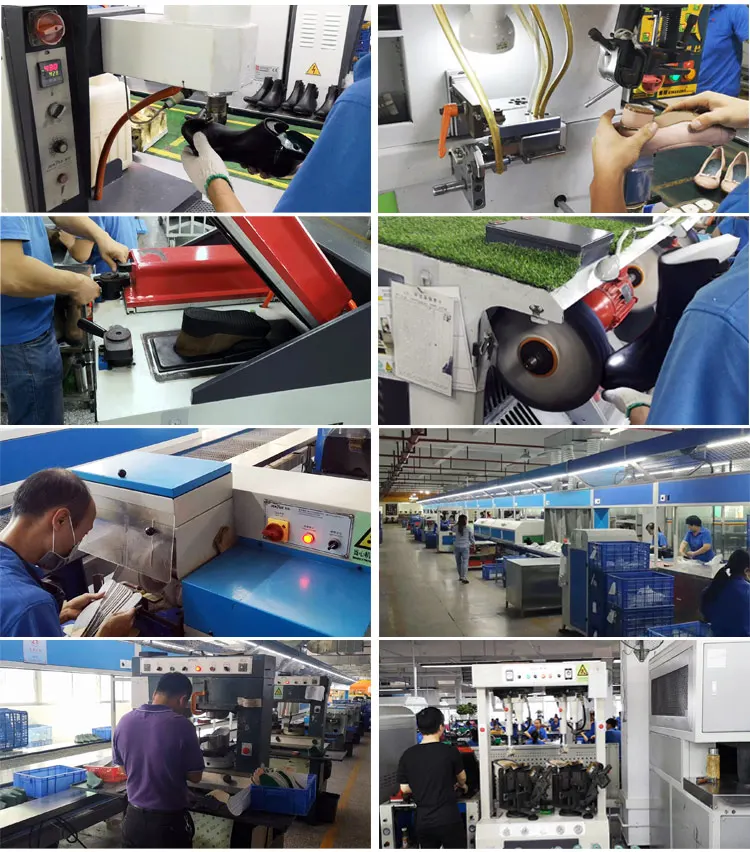

Customer case

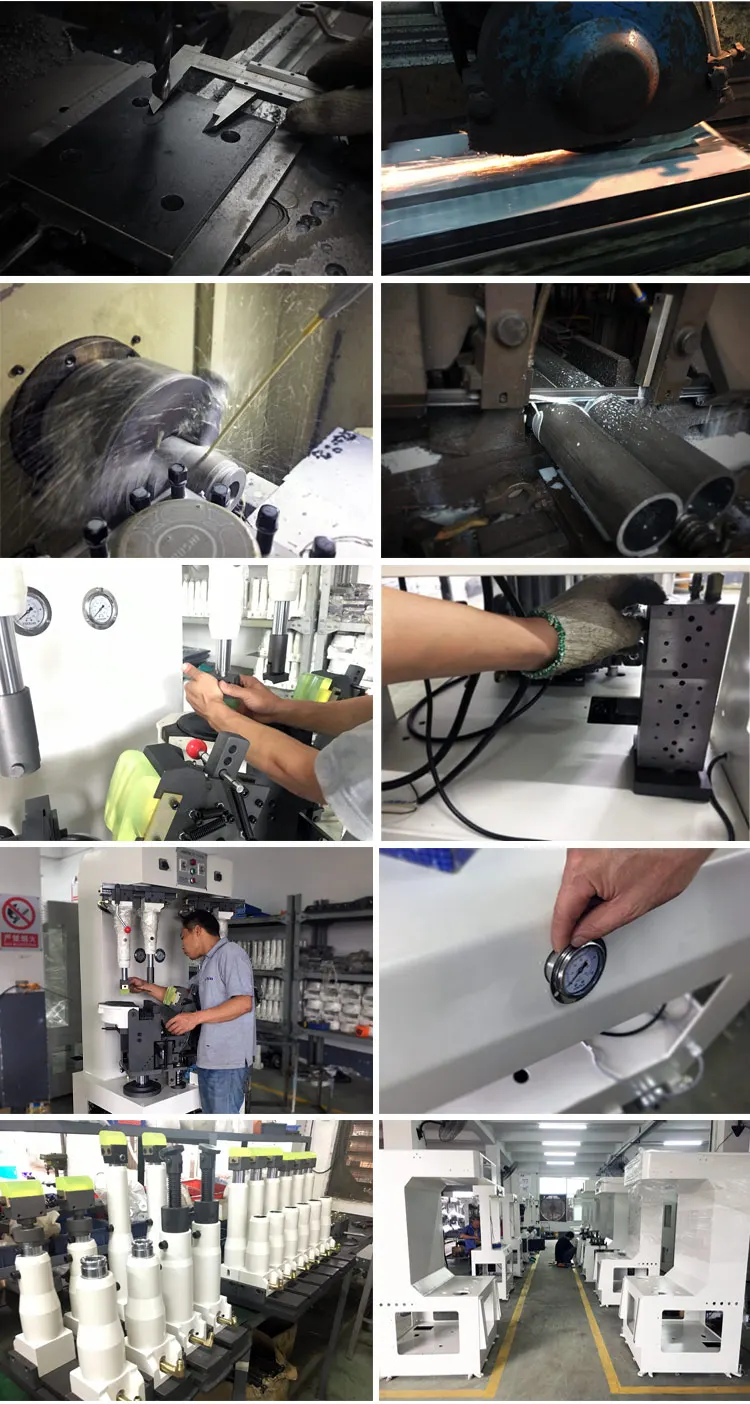

About Factory

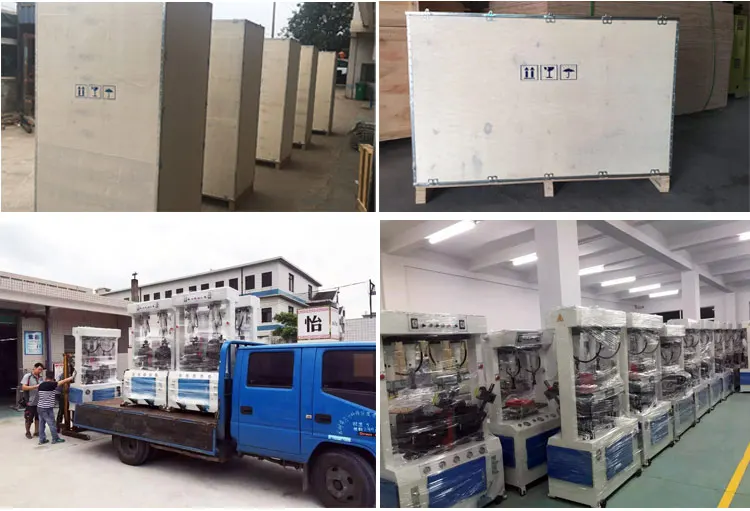

Packing&Delivery
