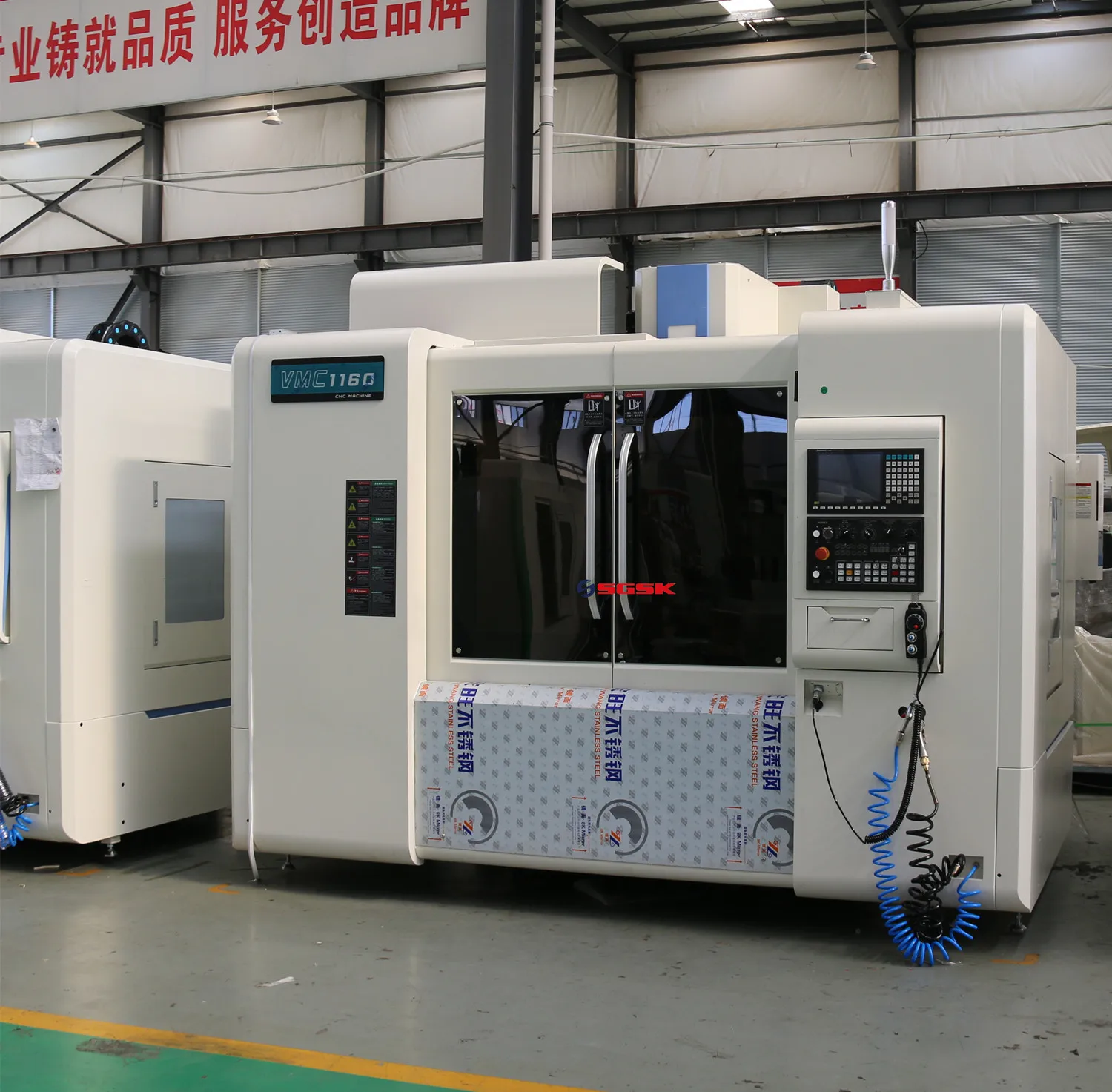

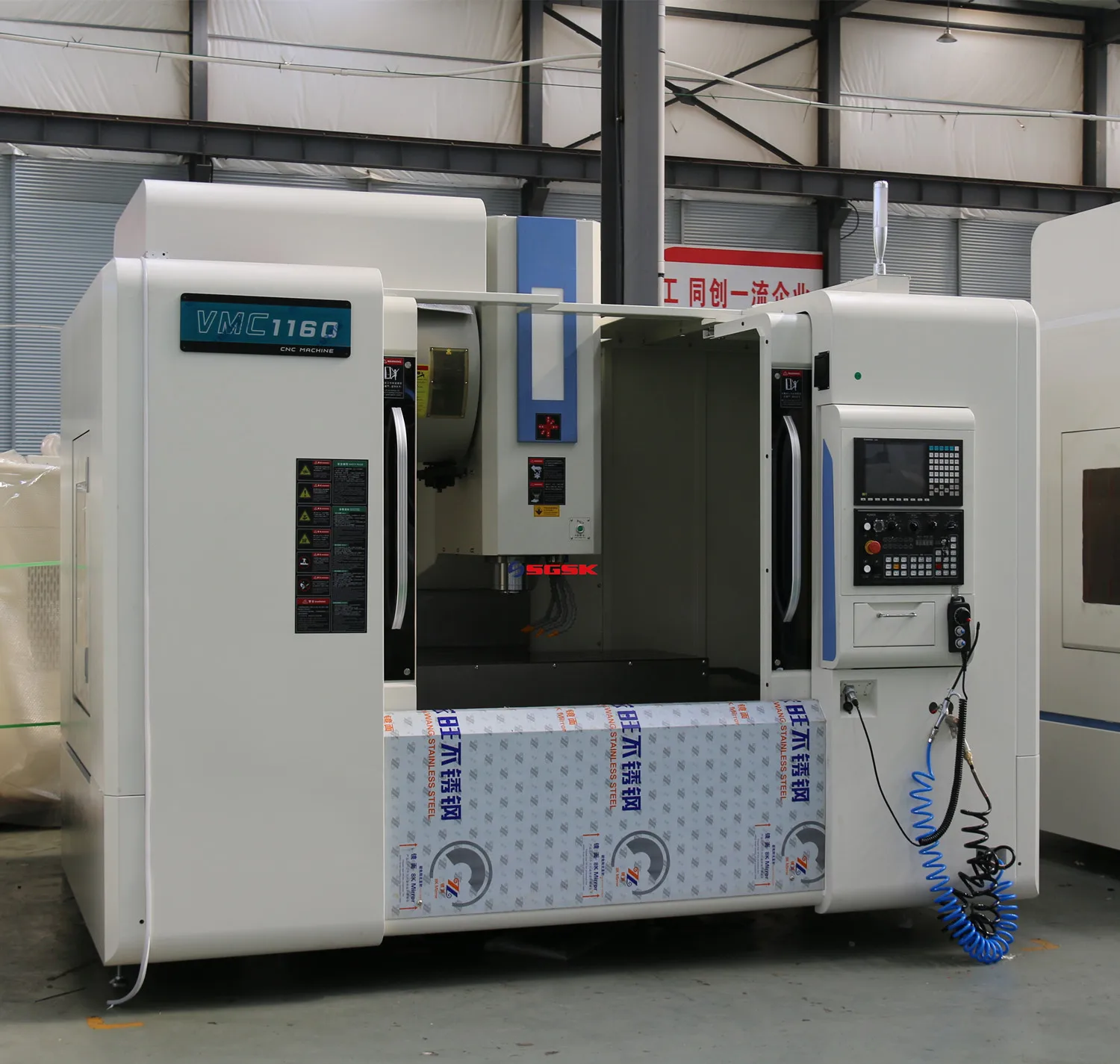

vmc machining center machine VMC1160 cnc milling machine 3 axis
- Category: >>>
- Supplier: Shandong Gsk Cnc Equipment Co. Ltd.
Share on (1600425759643):
Product Overview
Description
vmc machining center machine VMC1160 cnc milling machine 3 axis
Products Description

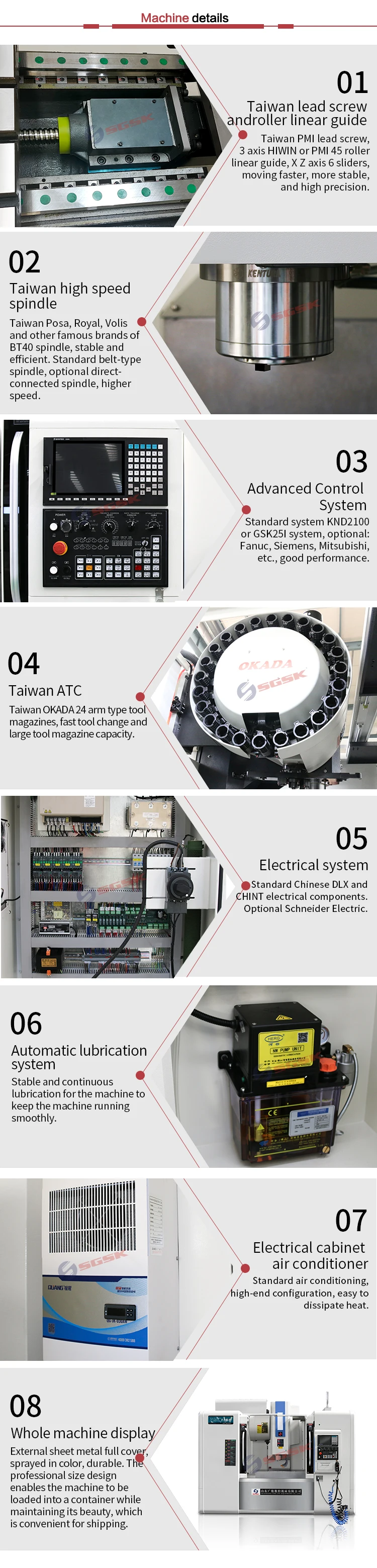

Details Images
Product Paramenters
Features:

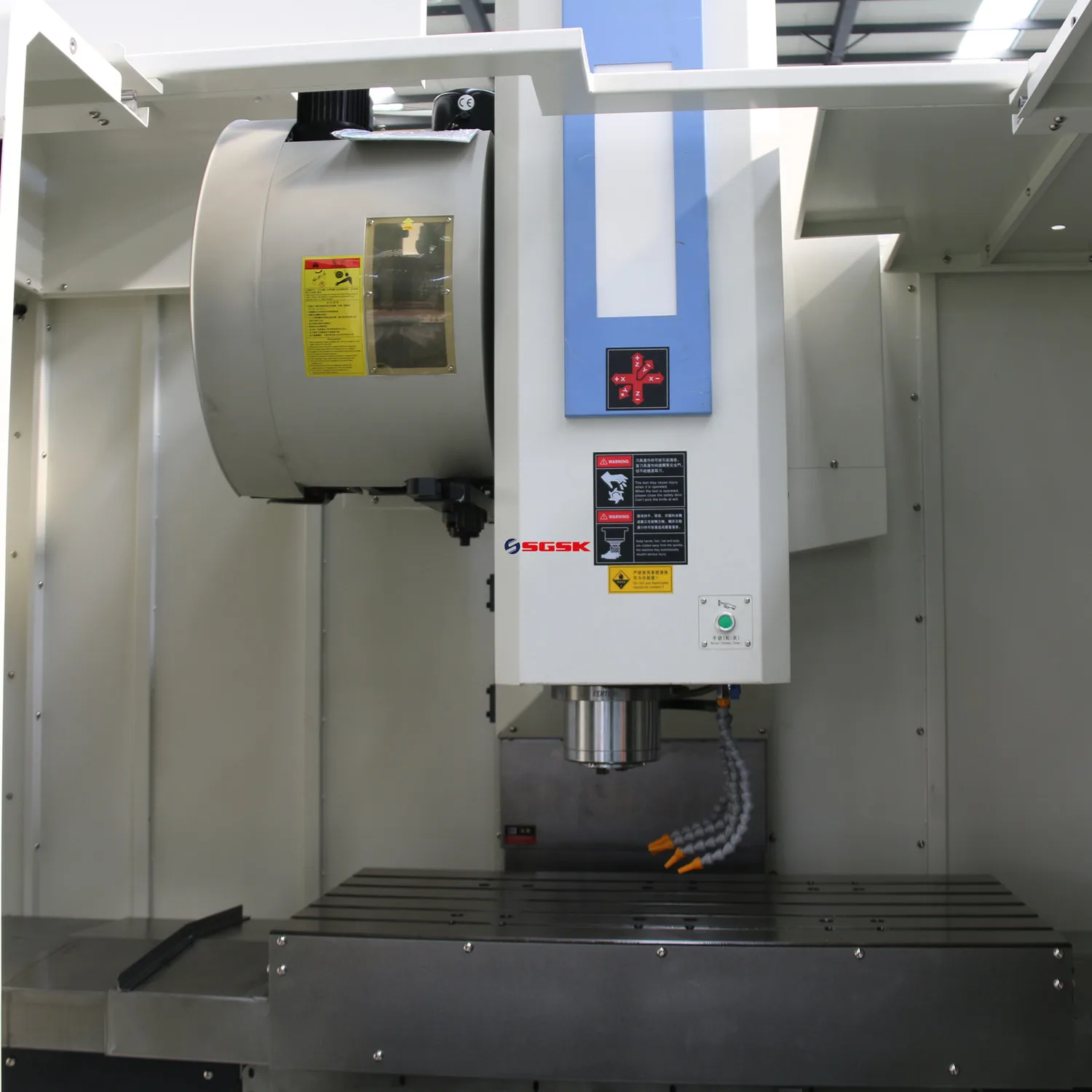

Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Automatic lubrication system
Chip conveyor at optional
Application:
This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough
machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Automatic lubrication system
Chip conveyor at optional
Application:
This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough
machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
Product main technical specifications:
Specifications | Units | VMC1160 | VMC1260 |
Table size | mm | 1200x600 | 1200x600 |
X axis travel | mm | 1100 | 1200 |
Y axis travel | mm | 600 | 600 |
Z axis travel | mm | 600 | 600 |
Max. worktable load | kg | 1000 | 1000 |
T slot(number-width-pitch) | 5-18x125 | 5-18x125 | |
Max. spindle speed | rpm | 8000(Optional:10000 ) | 8000(Optional:10000 ) |
Spindle taper | mm | BT40 | BT40 |
Main motor power | kw | 11/15 | 11/15 |
X/Y/Z rapid traverse speed | m/min | 24/24/20 | 24/24/20 |
Cutting feed speed | mm/min | 1-8000 | 1-8000 |
Guide rail type | Linear rail | Linear rail | |
Distance from spindle axis to column surface | mm | 650 | 650 |
Distance between spindle nose and worktable surface | mm | 140-740 | 140-740 |
Positioning accuracy | mm | ±0.0075 | ±0.0075 |
Repeat positioning accuracy | mm | ±0.005 | ±0.005 |
Tool magazine | Arm 24 | Arm 24 | |
Max. tool diameter | mm | φ78( Adjacent)/ φ120(Apart) | φ78( Adjacent)/ φ120(Apart) |
Max.tool weight | kg | 8 | 8 |
Machine weight | kg | 7000 | 7000 |

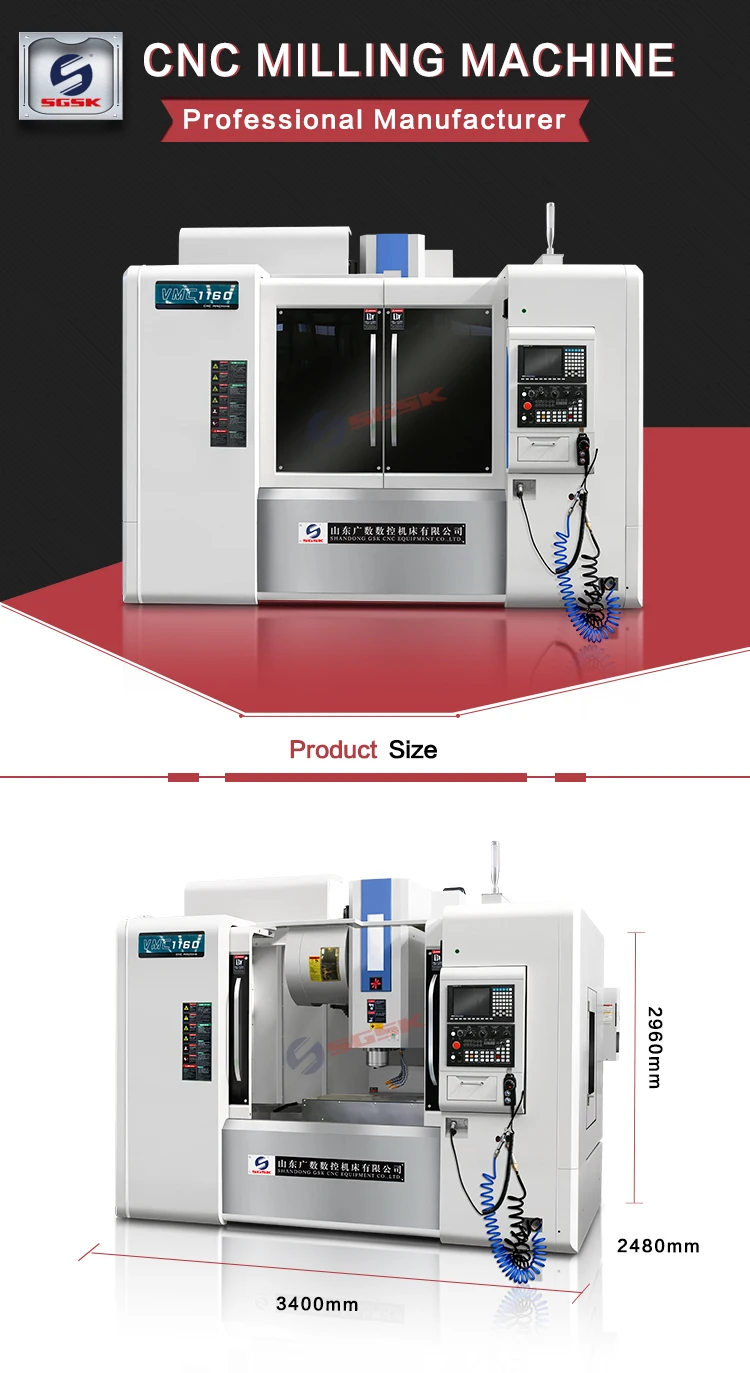

Overall dimension | mm | 3400x2480x2960 | 3400x2480x2960 |
Recommend Products
Why Choose Us

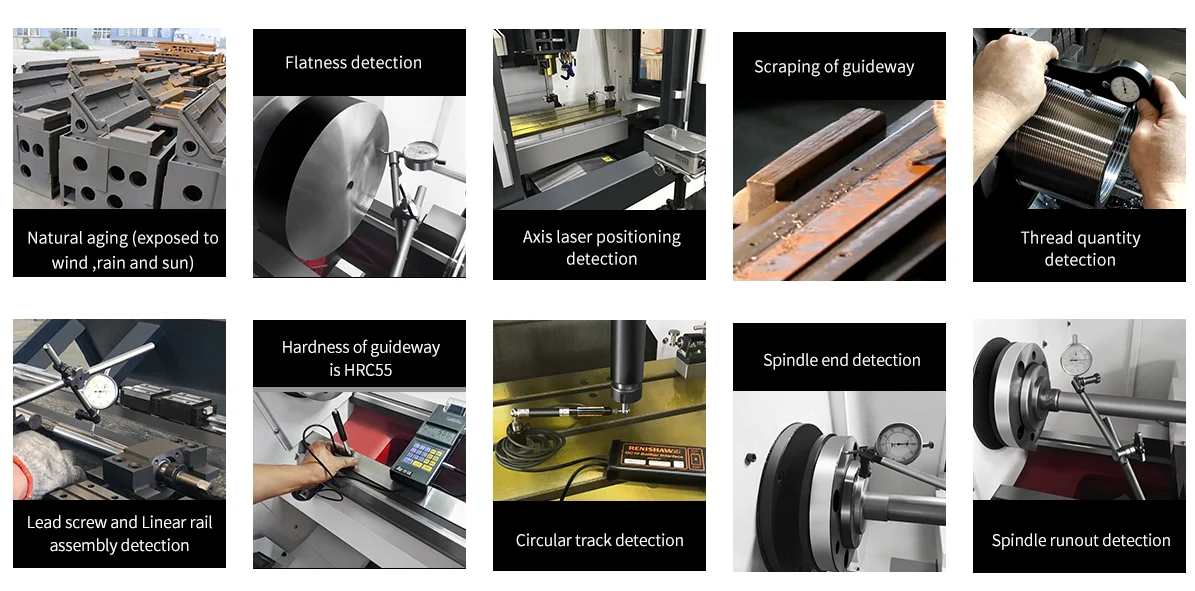

All our machine include cnc lathe machine, cnc milling machine , lathe machine , milling machine , drilling machine will running 24hours . And it have finished all test , then we will arrange package.
Choose SGSK machines, we will supplied the 5 star service to you .
FAQ
1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.

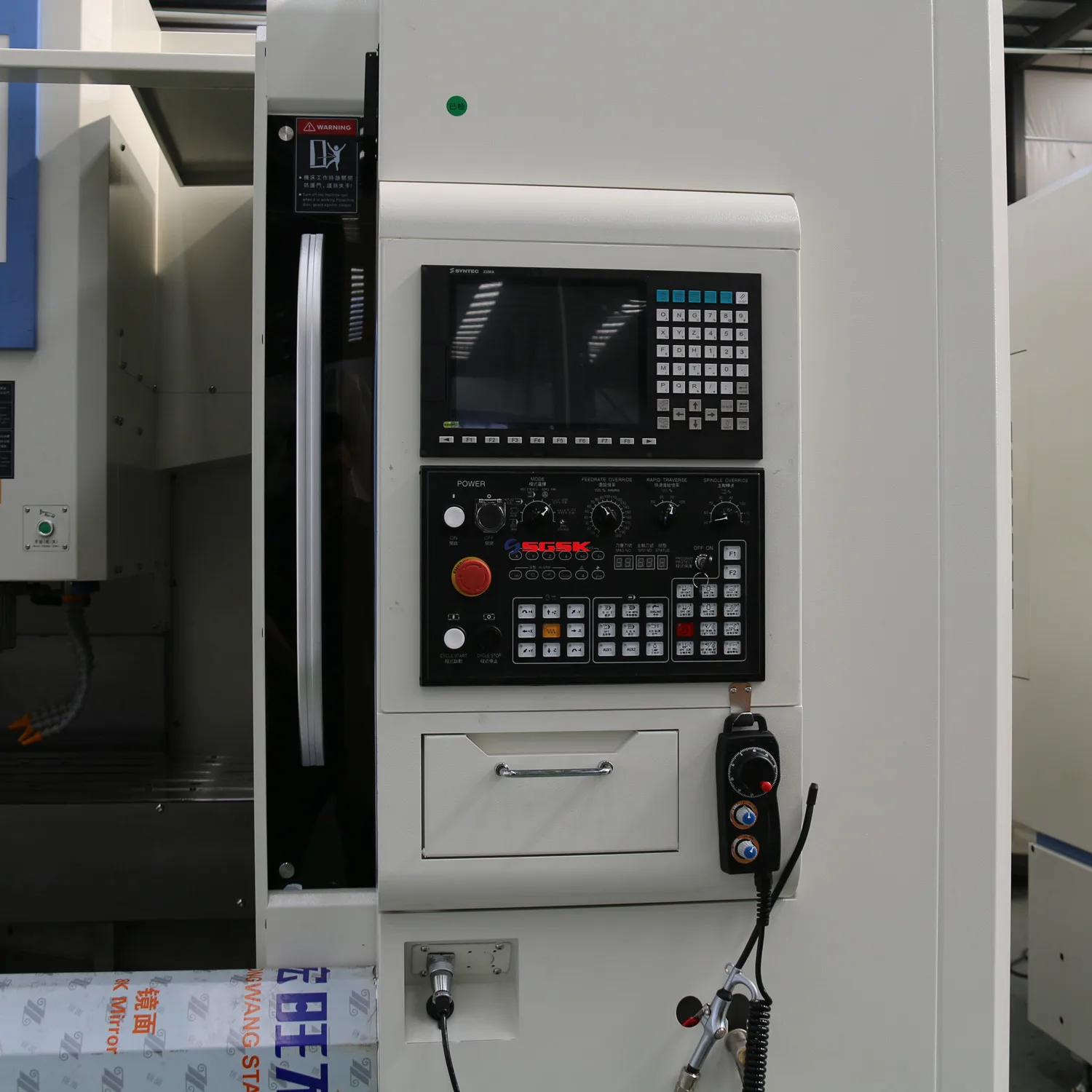

2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.
3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.
5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
A: MOQ is one set, and warranty is one year.
2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.
3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.
5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

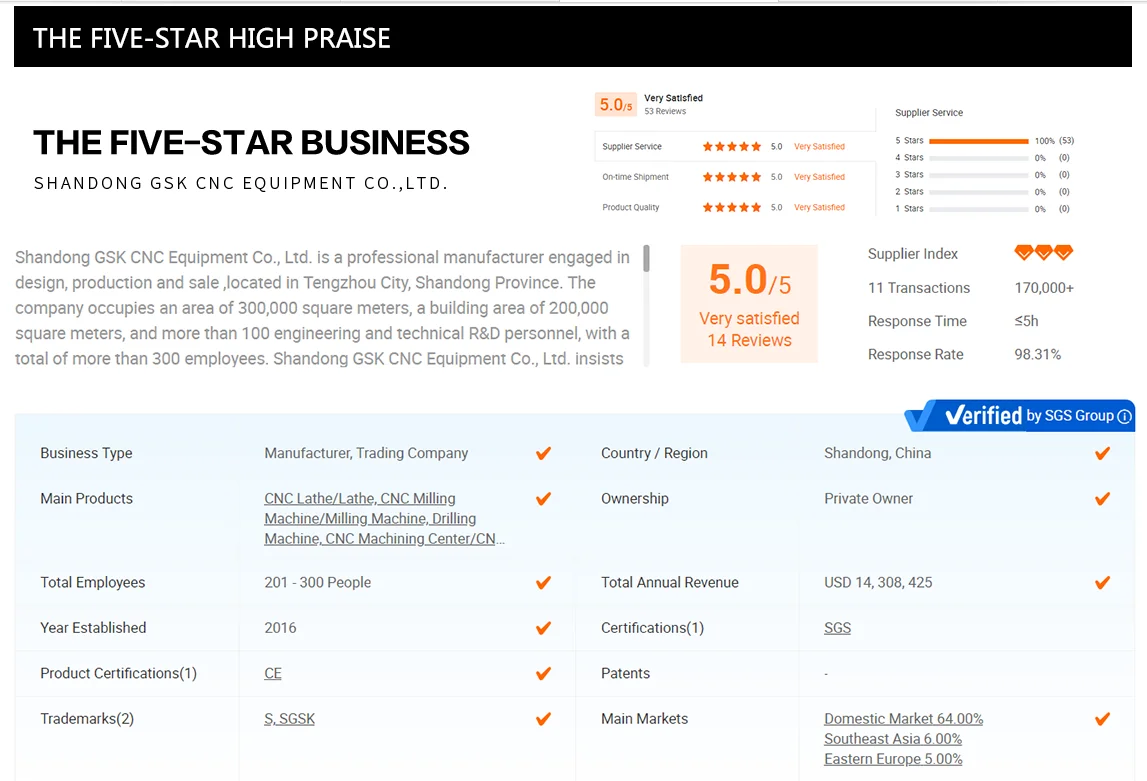

Company Profile
