China Manufacture Sandwich Panel Production Line Insulated Sandwich Panels
- Category: >>>
- Supplier: Shanghai Minran Refrigerating Engineering Equipment Co. Ltd.
Share on (1600425766533):
Product Overview
Description
Products Description
Product Paramenters

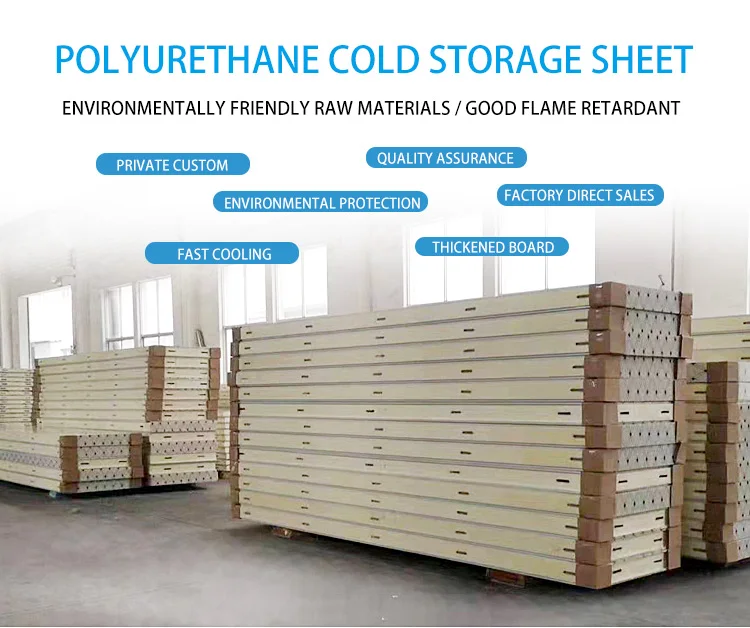

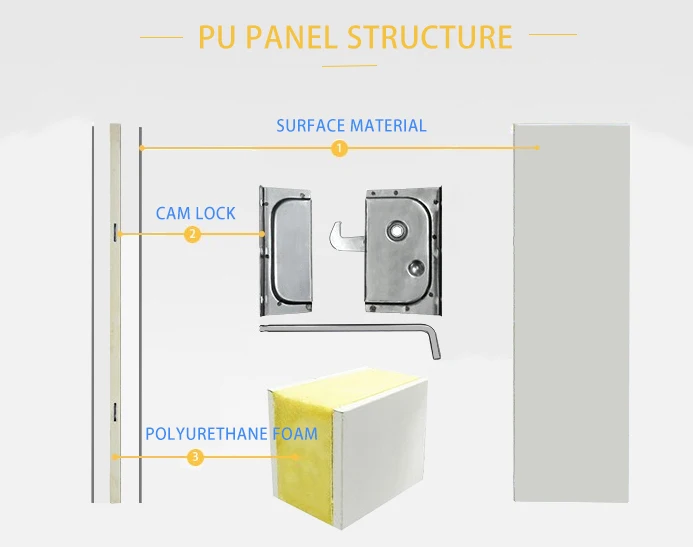

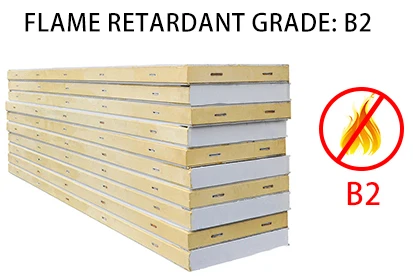

Pu sandwich panel
compressive strength, good sealing, and etc. It is suit for temperature of -50°C to +100°C, and nonperishable.
Different Applicable Temperature with Different Thickness of PU Panel
Thickness of PU panel | Applicable temperature |
50mm | Above 15℃ |
75mm | Above 5~15℃ |
100mm | Above -5~5℃ |
120mm | Above -18~-5℃ |
150mm | Above -40~-18℃ |
Product Name | Polyurethane cold |
Storage Insulation Board Product Density | 40-45Kg/M³ |
Bending Strength | > 0.25 MPA |
Compressive Strength | > 0.2MPA |

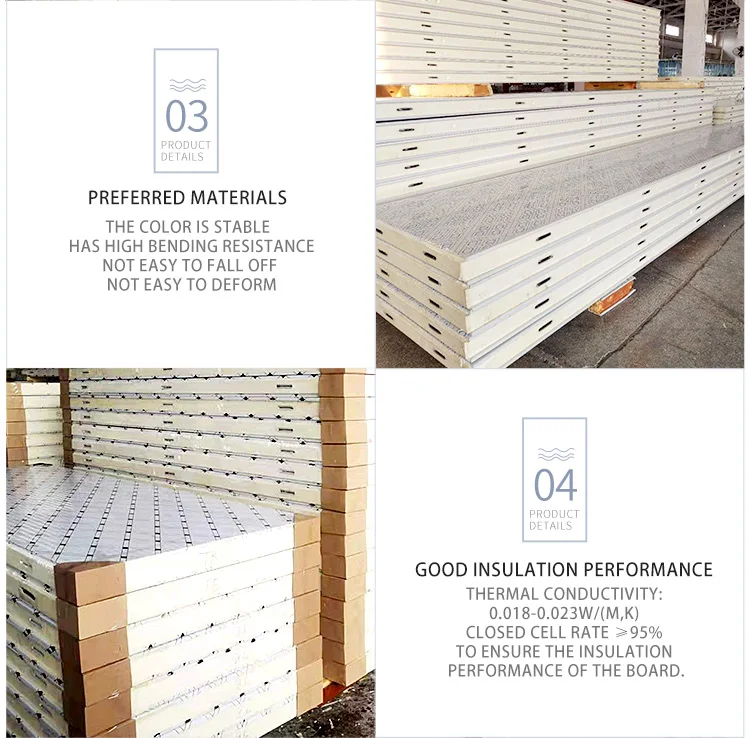

Thermal Conductivity | < 0.022W/N° C |
Water Absorption | < 0.30Kg/M |
Self-extinguishing Time | 7s |

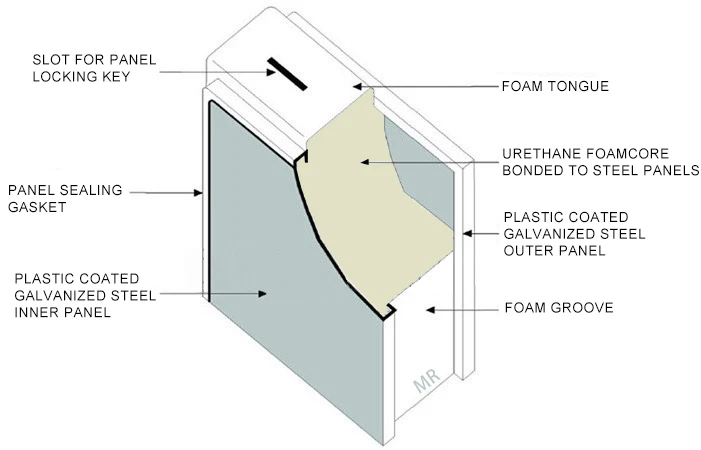

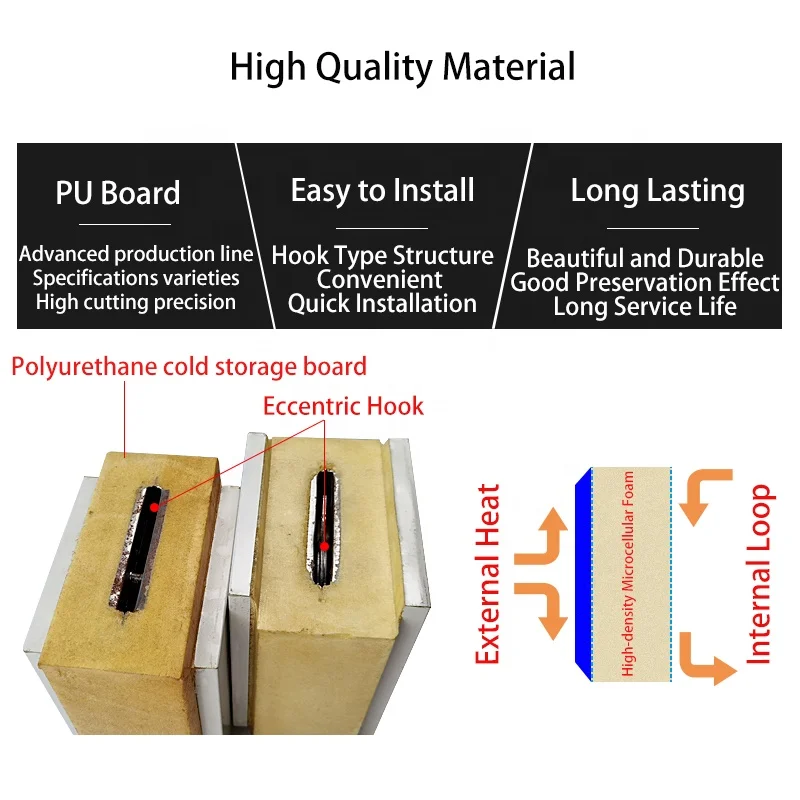

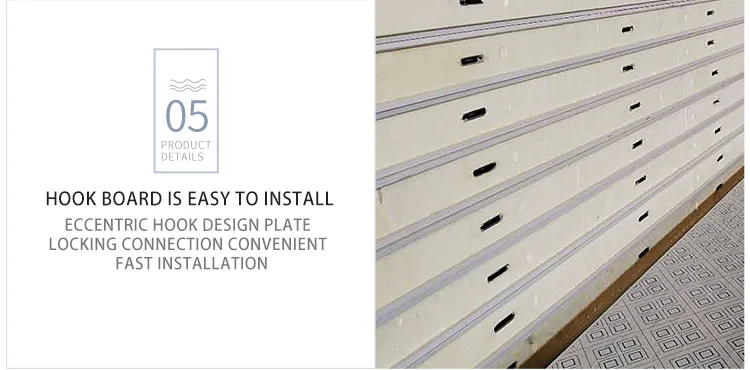

Installation Instructions

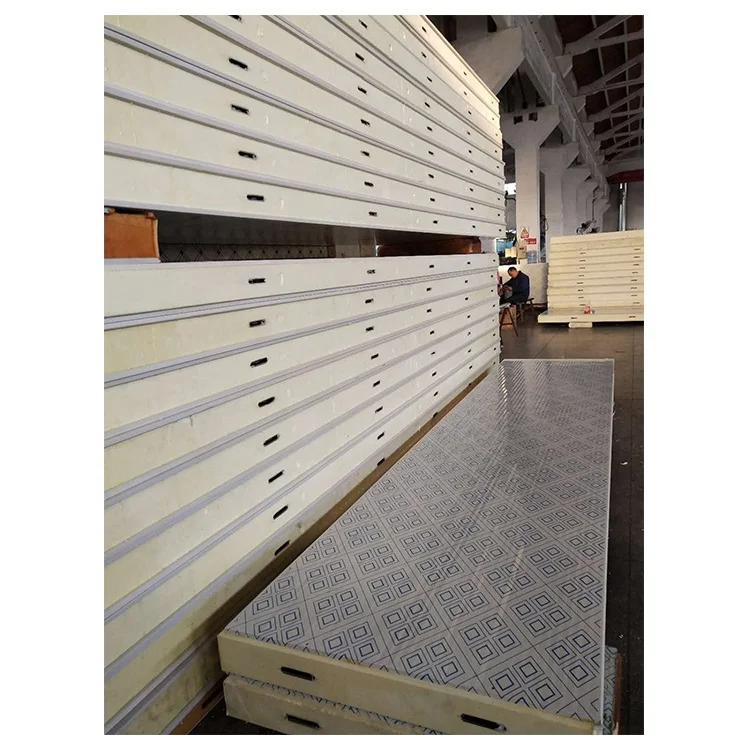

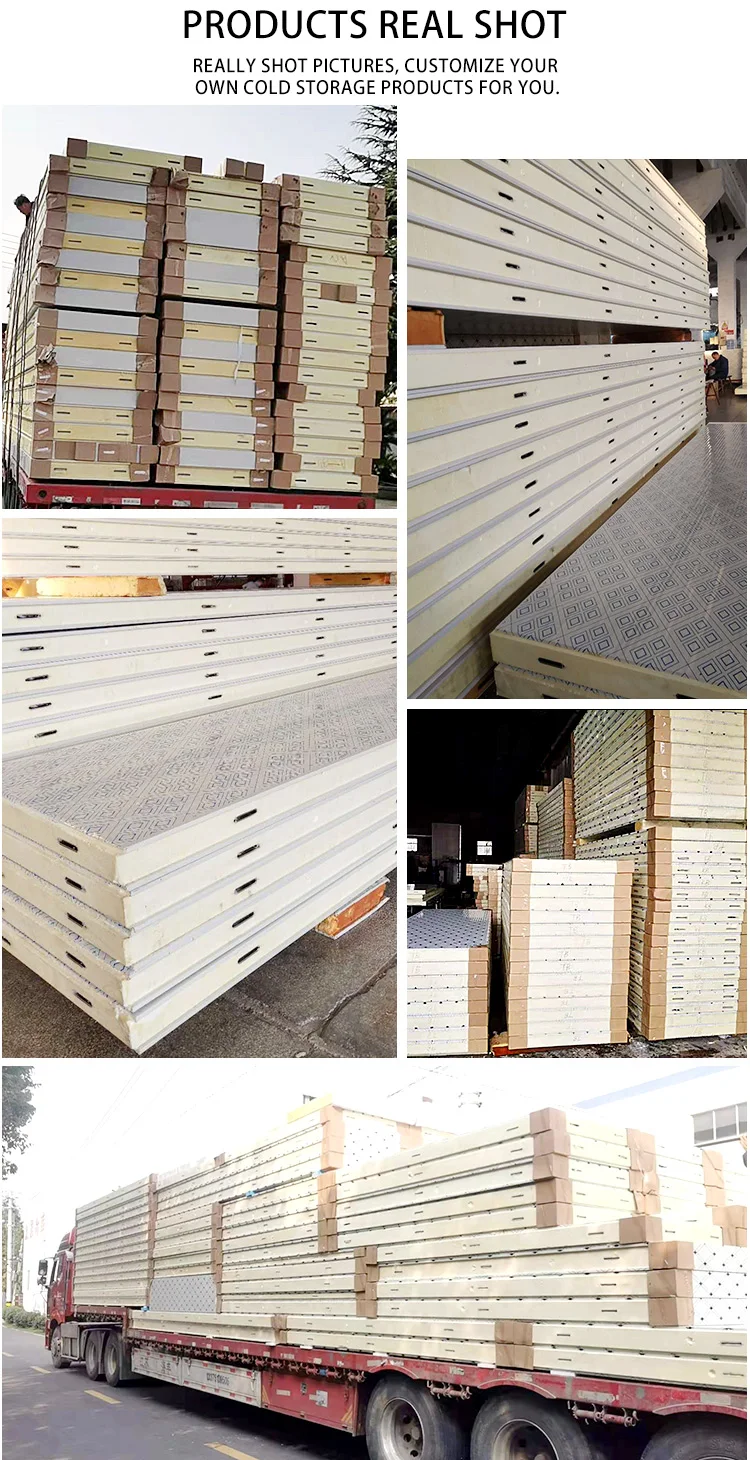

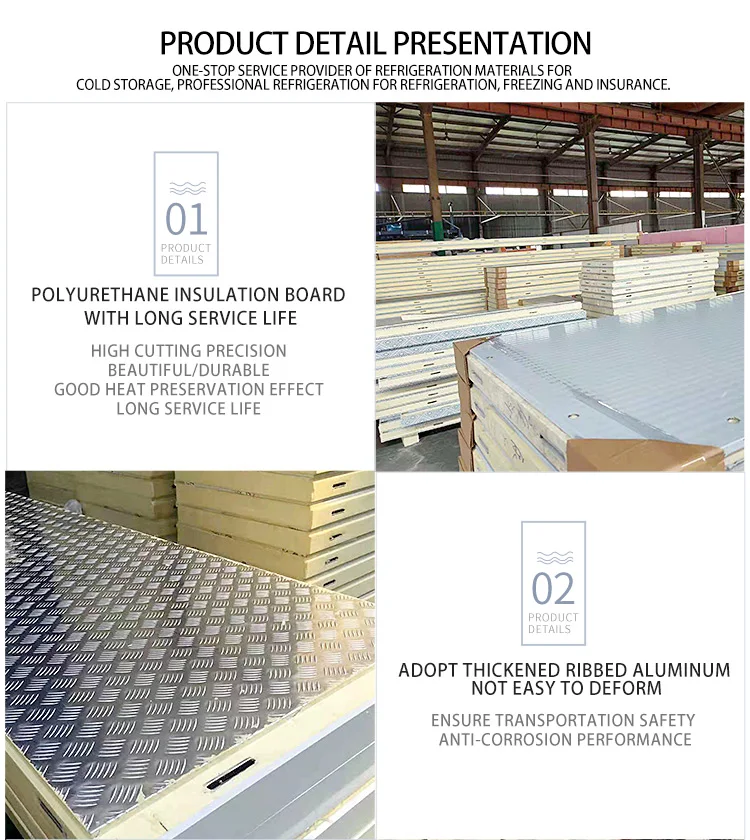

Details Images

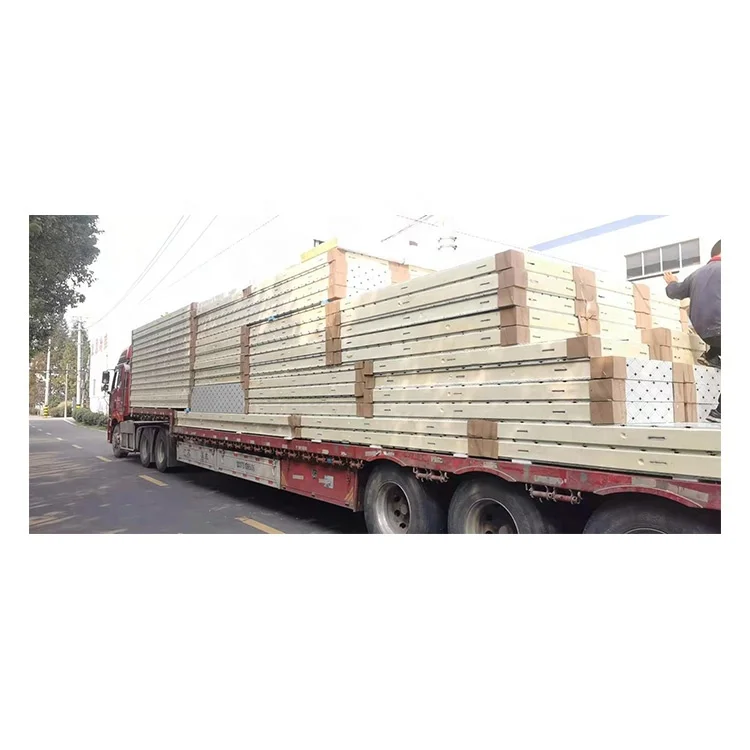

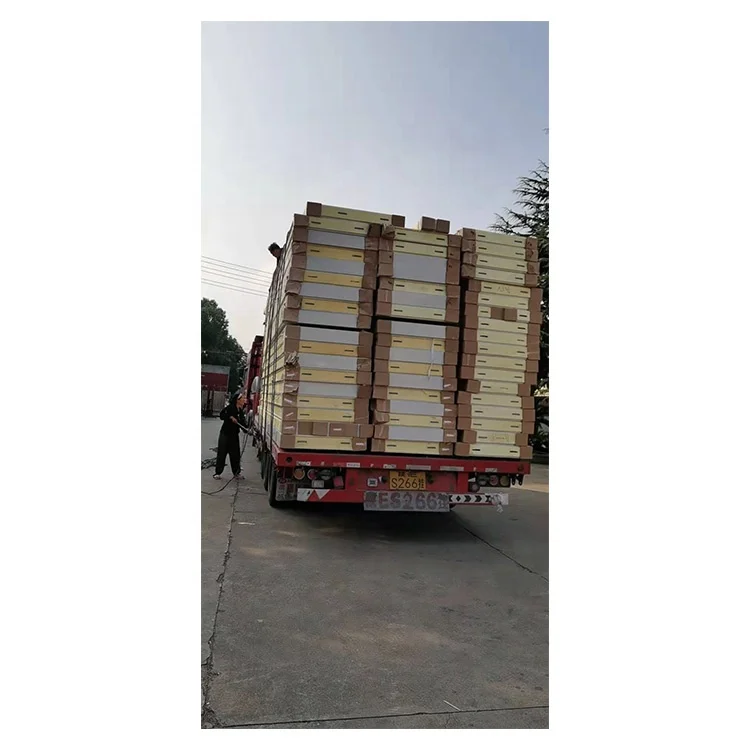

Logistics and transportation
Customer Feedback

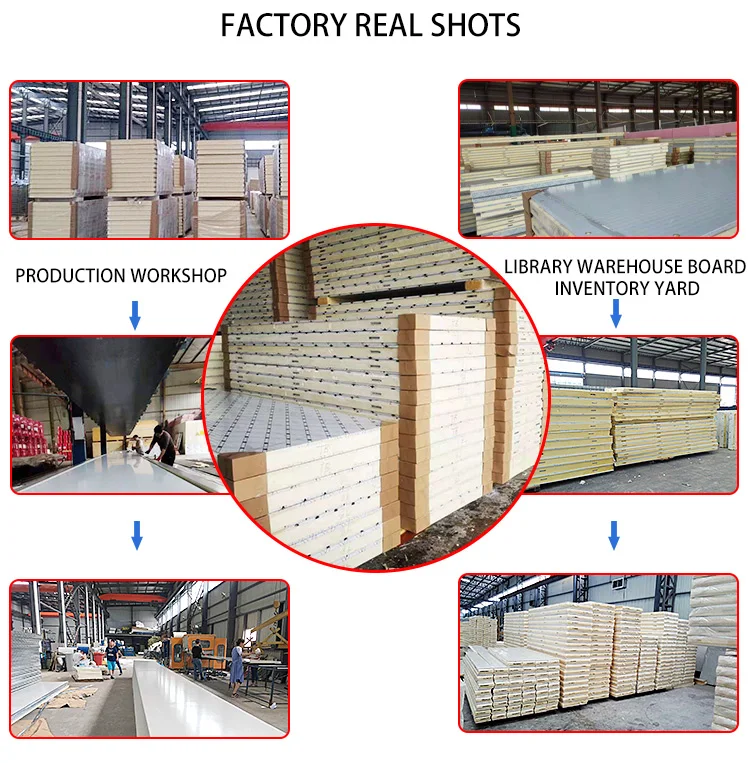

Company Profile
FAQ
Can the size of the cold storage be customized?
Yes, we can set the size of the refrigeration storage according to your requirements.Any size is fine, if you don’t know, please tell me the total amount of your goods and our engineers can design it for you.
What is the minimum order quantity?
Our minimum order quantity depends on the project and there is no limit.
Can you provide samples?

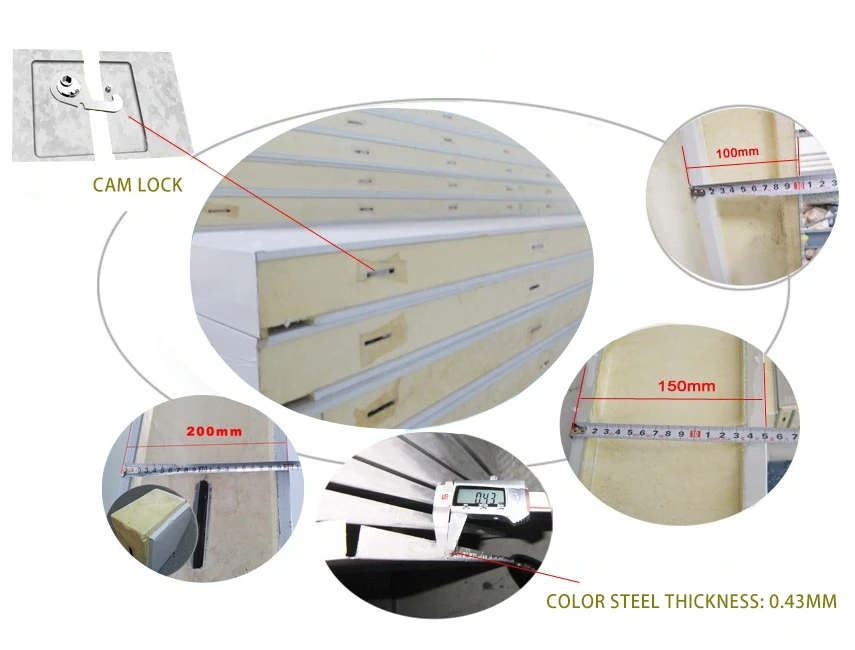

Yes, the specification of the sample is a 1 square meter sample of a pair of cold storage boards with cam lock.
