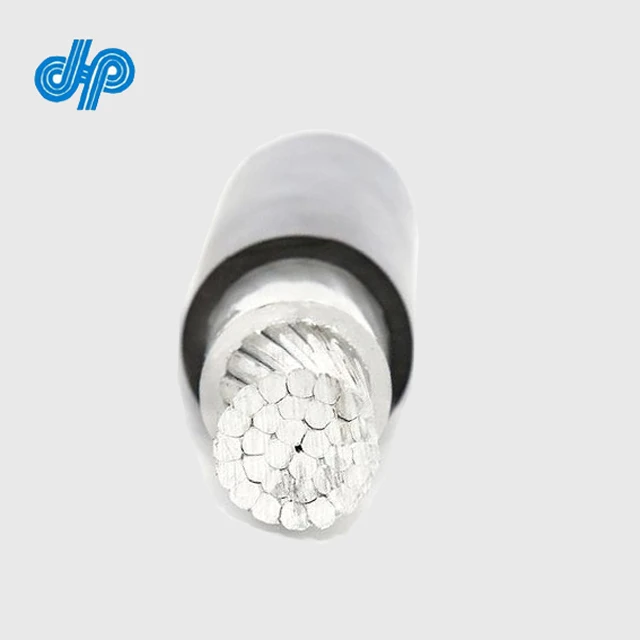

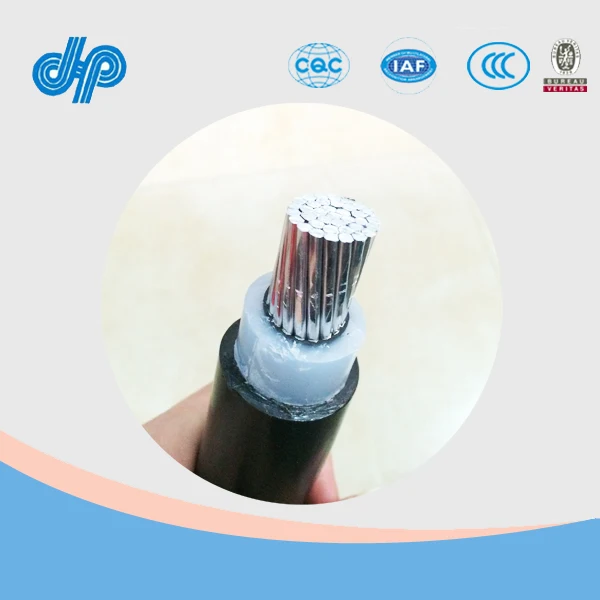

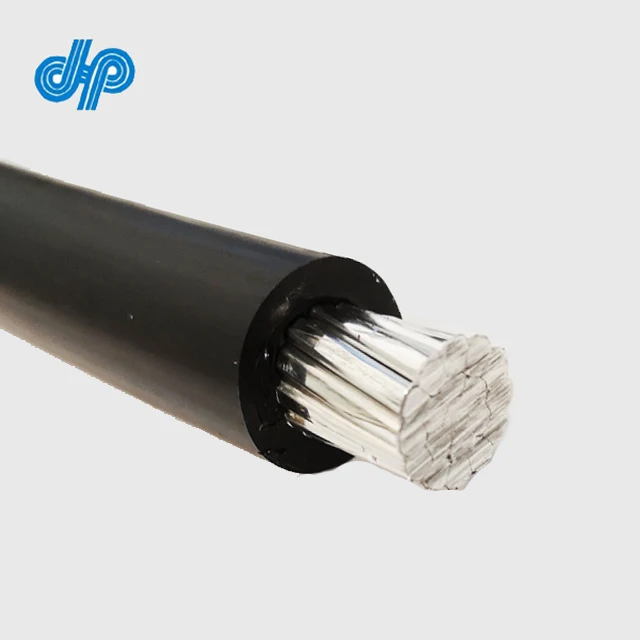

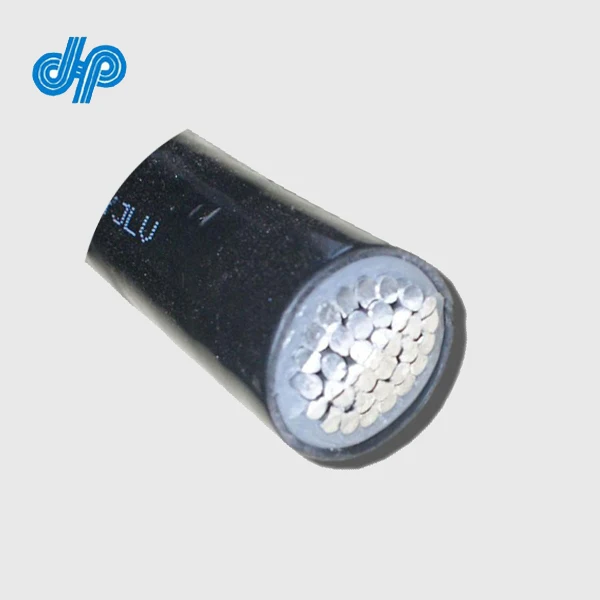

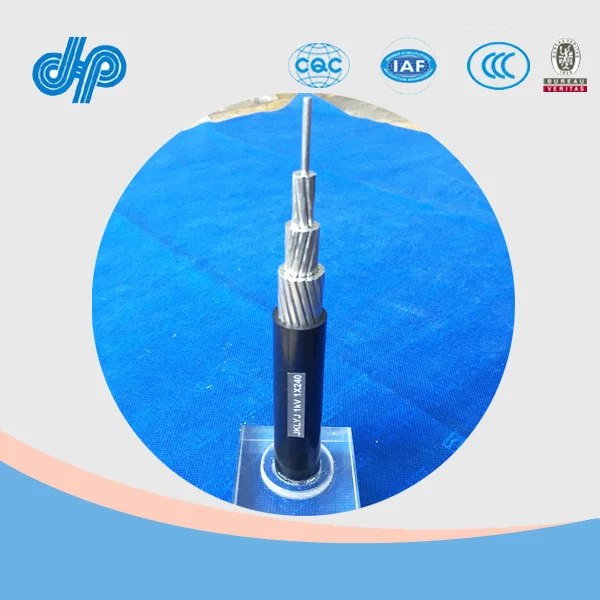

ICEA S 121 733 3 Layer 15kV AAC Tree Wire/Spacer Cable

Share on (1600425796968):


Price:

Quantity:


Product Overview

Description



Product Description


ICEA S-121-733 3-Layer 15kV AAC Tree Wire/Spacer Cabled





Description
XLPE insulated or covered aerial cable without or with conductor screen, the phase conductor may be AAC or AAAC or ACSR or Copper.





Construction


1. Conductor : Compact round stranded hard-drawn
2. Conductor screen: Semi conductive cross-linked polyethylene (XLPE) compound


3. Insulation : Cross-linked polyethylene (XLPE)
4. Jacket : Black cross-linked polyethylene (XLPE) or HDPE








Operating Characteristics
Operating voltage: 10kV 15kv 24kv 25kv 35kv


Max. permissible continuous operating temperature of conductor with XLPE insulation: 90°C
Max. temperature of conductor during short-circuit (5s max. duration) shall not exceed: 250°C
The ambient temperature under installation should not be lower than: -20°C
The bending radius of cable is recommended as following:
Single core cable: not less than 20 times of the diameter of cable
Multi-core cable: not less than 15 times of the diameter of cable





Application
XLPE insulated aerial cable as a new-type aerial cable is used for overhead electric power transmission and distribution, extensively used in rebuilding of urban and forest region electrified wire netting. It improves the safety and reliance of electrified wire netting.





Manufacturing Standards
GB/T 14049-2008, IEC 60502-2,  ICEA S-66-524 / MEA


15kv 25kv 35kv 35 50 70 95 120 sqmm Aluminum Conductor XLPE SAC Cable for Thailand




















































































































35



7



6.96



3.175



3.175



20.88



0.868








50



7



8.28



3.175



3.175



22.20



0.641








70



18



9.80



3.175



3.175



23.72



0.443




1



95



18



11.45



3.175



3.175



25.37



0.320




120



18



12.95



3.175



3.175



26.87



0.253













150



18



14.20



3.175



3.175



28.12



0.206








185



34



15.98



3.175



3.175



29.90



0.164








240



34



18.47



3.175



3.175



32.39



0.125












































.jpg

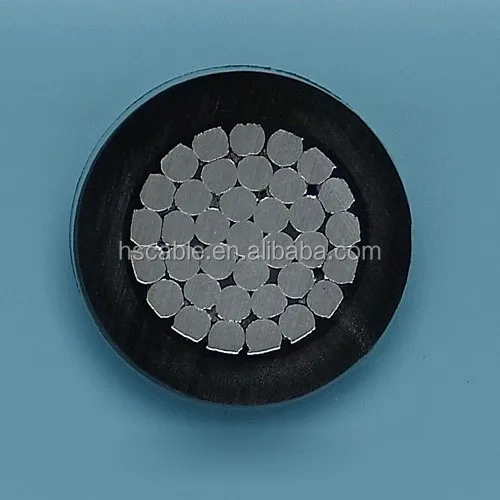

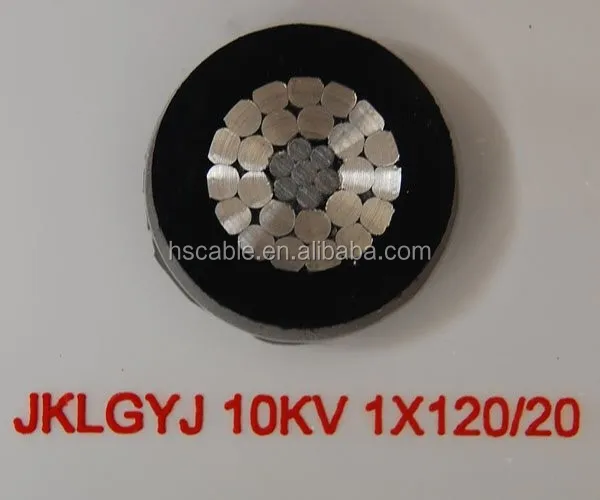

IMG_1646.JPG10_kv_XLPE_sheath_Aerial_cable52827_s.jpgabc jklv jklyj cable.JPGIMG_0801.JPGu=1538958461,2186409735&fm=21&gp=0.jpgu=2132642472,694530550&fm=21&gp=0.jpg





Packaging & Shipping


 B0C8C9DD1F0D892(01-07-09-16-41)iron-wooden drums
